Dometic RM2812 Freedom Product # 921595601 Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 149 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2812 Freedom Product # 921595601 RV refrigerator: 6 assemblies (Replacement Refrigerator, Door Assembly, Cabinet Rear View, Burner & Controls, Cabinet Interior and more) and 149 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

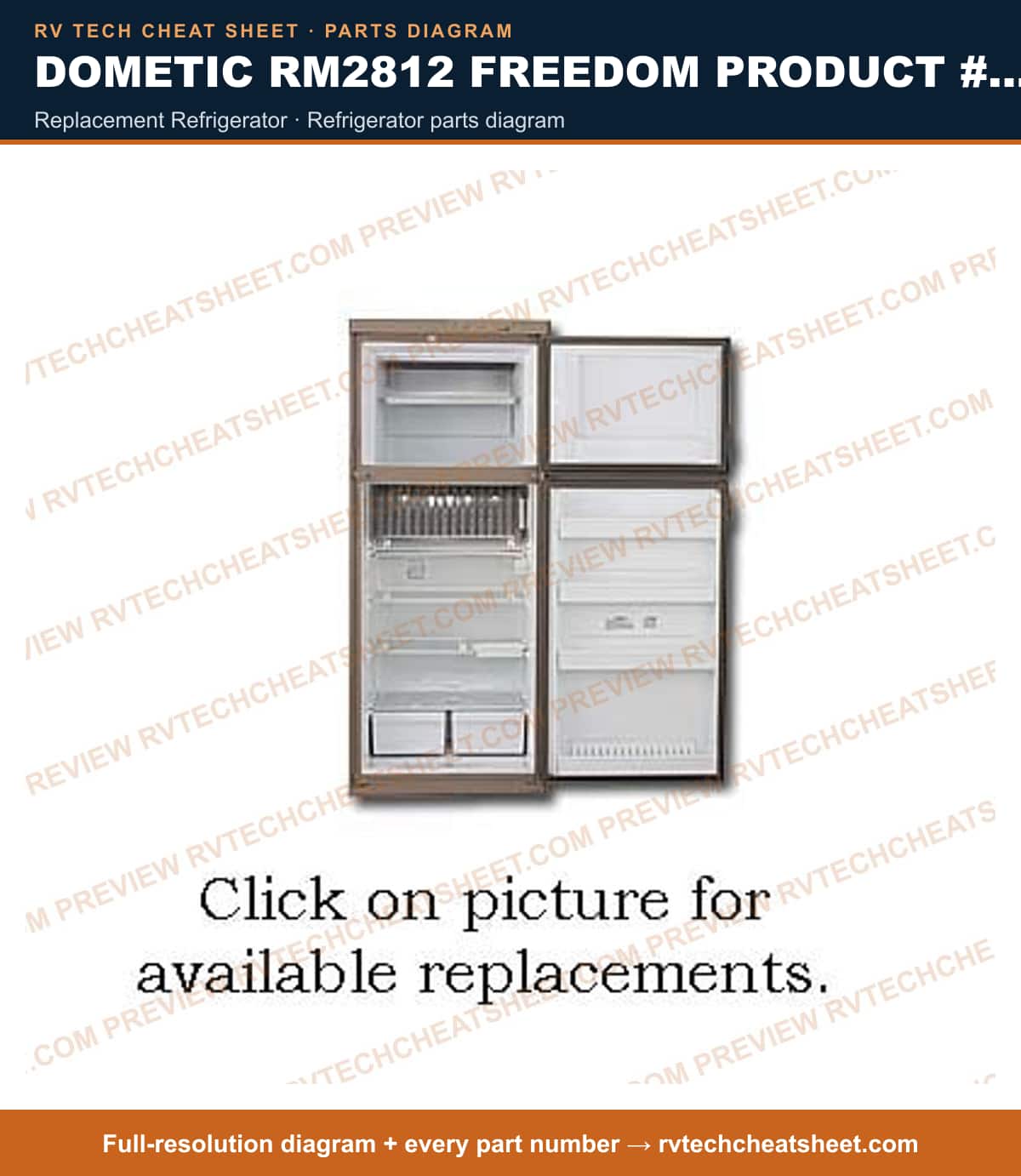

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
2. #REFER, 8 CUFT. USE RM2820N 2WAY 55 3/8 X 23 5/8 X 24 MFR # RM28122N Superseded: see description
3. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
5. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095

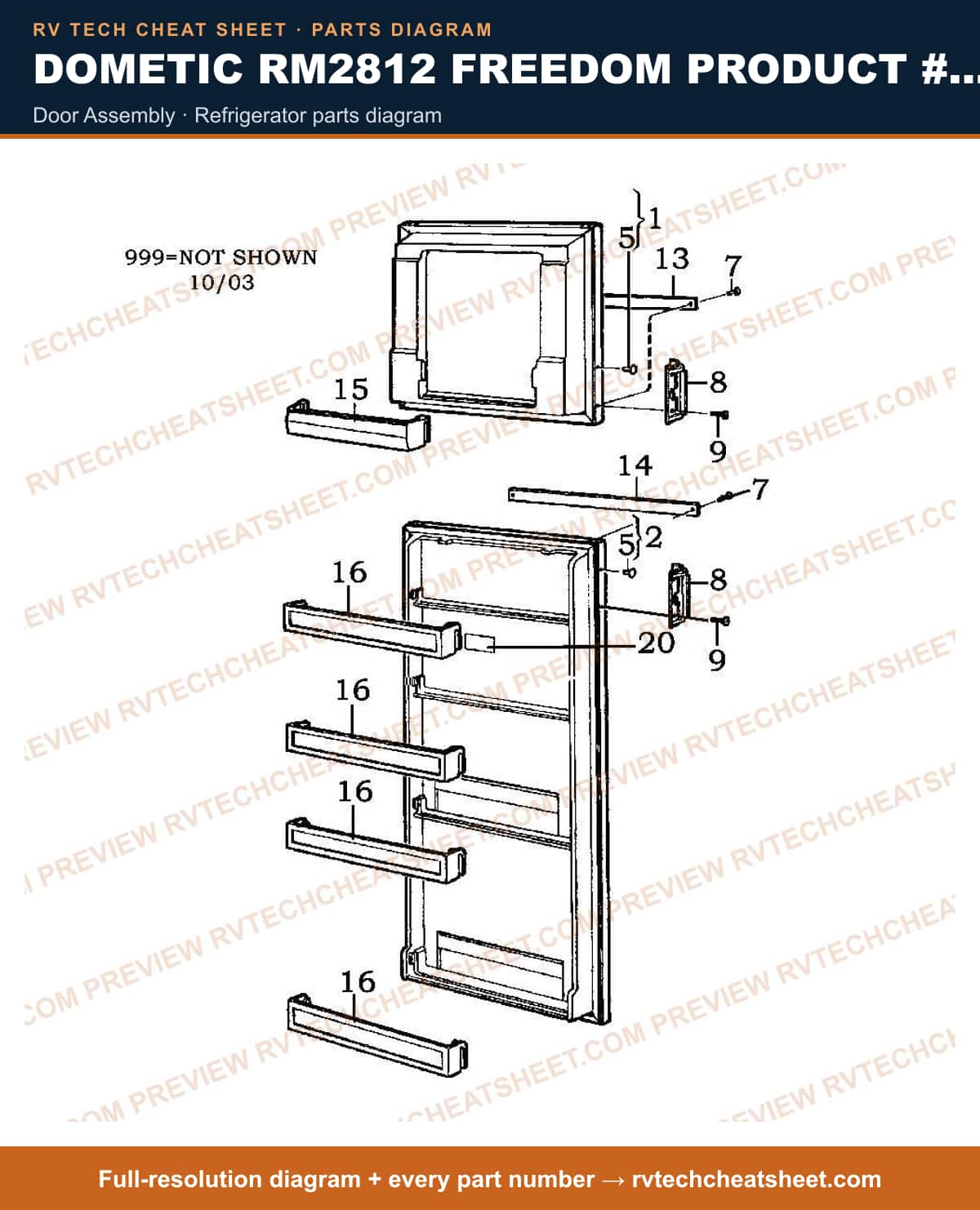

Door Assembly

Components

19 items

1. #APPLIANCE COMPONENTS RV; Door Upper MFR # 2931591115
2. #PANELS, DOOR, BLACK ACRYLIC FOR MODEL RM2812/20 MFR # RM2820L
3. #DOOR,LOWER W/O SHELVES RM2810 MFR # 2931590117
4. #Refrigerator Gasket; Replacement For Dometic RM2811/ RM2812 Model Refrigerator; Door Gasket; With Double Stick Tape/ Silicone Sealer/ Instruction Sheet MFR # 3108704268
5. #PANELS, DOOR, WOODGRAIN FOR MODEL RM2812/20 MFR # RM2820G
6. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
7. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
8. #SCREW USE 7295229400 MFR # 7295229012 Superseded: see description
9. #Refrigerator Door Handle; Replacement For Dometic RM2811/ RM2612/ RM2620 Refrigerators; Fits Lower Door Hand Side; SPECS: FOR RM2820/2620, PRODUCT #'S921575009, 921596007 USE PART # 3850541016. FOR ALL OTHER PRODUCT #'S USE 2931600023 MFR # 2931600023 Superseded: see description
10. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
11. #APPLIANCE COMPONENTS RV; Strip Deco Use 3850382023 MFR # 2931583021 Superseded: see description
12. #S,DECOR,DOOR,LT BRN,RM2820 MFR # 3850382023
13. #APPLIANCE COMPONENTS RV; Decoration Lower Door MFR # 2931583195
14. #SHELF,FREEZER USE 2931418038 RM2610 MFR # 2931418020 Superseded: see description
15. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
16. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
17. #SHELF,DOOR USE 2001732136 MFR # 2001732151 Superseded: see description
18. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
19. #DOOR PANEL - BRUSHED ALUM MFR # 2820BA

Cabinet Rear View

Components

13 items

1. #Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N
2. #Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description
3. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2934903994N
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932692011
7. #S,TUBE,OVERFILL MFR # 2931829010
8. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
9. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
10. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
11. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
12. #Plate Protection Rm2800 MFR # 2930785015
13. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

Burner & Controls

Components

65 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #SHIELD, THERMOCOUPLE LEAD MFR # 2932001015
3. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052
4. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
5. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
6. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description
7. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
8. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
9. #SCREW M4 X 10 S MFR # 7241289615
10. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
14. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
15. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
16. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
17. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
18. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
19. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
20. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
21. #BRACKET, MOUNTING MFR # 2931822015
22. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
23. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
24. #Label 12VDC MFR # 2931827006
25. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
26. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
27. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
28. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
29. #BOARD, PC USE 3308741002 MFR # 2932770015 Superseded: see description
30. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
31. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
32. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
33. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
34. #S,COVER,LESS DECALS MFR # 2931858019
35. #LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description
36. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
37. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
38. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
39. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
40. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
41. #APPLIANCE COMPONENTS RV; Conductor Gas Valve MFR # 2954437014
42. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
43. #HOUSING BURNER MFR # 2931913012
44. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
45. #Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016
46. #APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011
47. #ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020
48. #APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description
49. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
50. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
51. #3858022019 MFR # 3858022019
52. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
53. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
54. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
55. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
56. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
57. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
58. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
59. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
61. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
62. #STRIP, TERMINAL 6 POS. MFR # 2930327008
63. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
64. #CAP FLUE MFR # 2931540013
65. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description

Cabinet Interior

Components

18 items

1. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
2. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
3. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
5. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
6. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
7. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
8. #PLATE RETAINING MFR # 2007649011
9. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
10. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
11. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
12. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
13. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
14. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
15. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
16. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
17. #APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015
18. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description

Cabinet Exterior

Components

33 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
5. #Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012
6. #Refrigerator Control Board Kit; Use With Dometic Refrigerators MFR # 2932771013 Superseded: see description
7. #CONTROL, UPPER USE 2932771013 PANEL W/DECAL MFR # 955030242 Superseded: see description
8. #Button Pushbutton On/Off MFR # 955024138
9. #Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description
10. #S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014
11. #Appliance Components RV MFR # 2931289017
12. #BRACKET, MOUNTING RH MFR # 2932125012
13. #BRACKET, MOUNTING LH MFR # 2932125020
14. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
15. #S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012
16. #S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020
17. #S,HINGE PIN,MID,25MM MFR # 2931287011
18. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
19. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
20. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
21. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
22. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
23. #Refrigerator Vent Cover Back Plate MFR # 2930664012
24. #Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014
25. #Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044
26. #APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011
27. #DECAL MFR # 2932165000
28. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
29. #S,STRIKE 9*35*24MM MFR # 2931511014
30. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
31. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
32. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
33. #Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020
