Dometic RM3500 Parts Diagram · Door Assembly

Refrigerator · 4 assemblies · 4 diagram sheets · 177 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3500 RV refrigerator: 4 assemblies (Door Assembly, Gas-electric, Replacement Refrigerator, Cabinet Assembly) and 177 manufacturer part numbers. 58 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

27 items

1. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103692004
2. #DOOR, MAIN USE 2930924119 MFR # 2930680067 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Refer MFR # 2930924119
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #PLUG MFR # 2930736026
8. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
9. #HANDLE USE 45-9988 MFR # 2930763020 Superseded: see description
10. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
11. #RIVET, EXPANSION MFR # 165521022
12. #RETAINER RM3601, 3500, 3501, 3600 MFR # 2930593005
13. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
14. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
15. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012
16. #APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930531013
17. #APPLIANCE COMPONENTS RV; Door Dairy S MFR # 2930541046
18. #DOOR USE 2930531013 RM3500 MFR # 2930541053 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Shelf Butter MFR # 2930530007
20. #APPLIANCE COMPONENTS RV; Compartment Butter MFR # 2930530015
21. #SHELF,DOOR USE 2002261143 MFR # 2002261184 Superseded: see description
22. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
23. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
24. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
25. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
26. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
27. #STRIP,DECORATION MFR # 2930639048

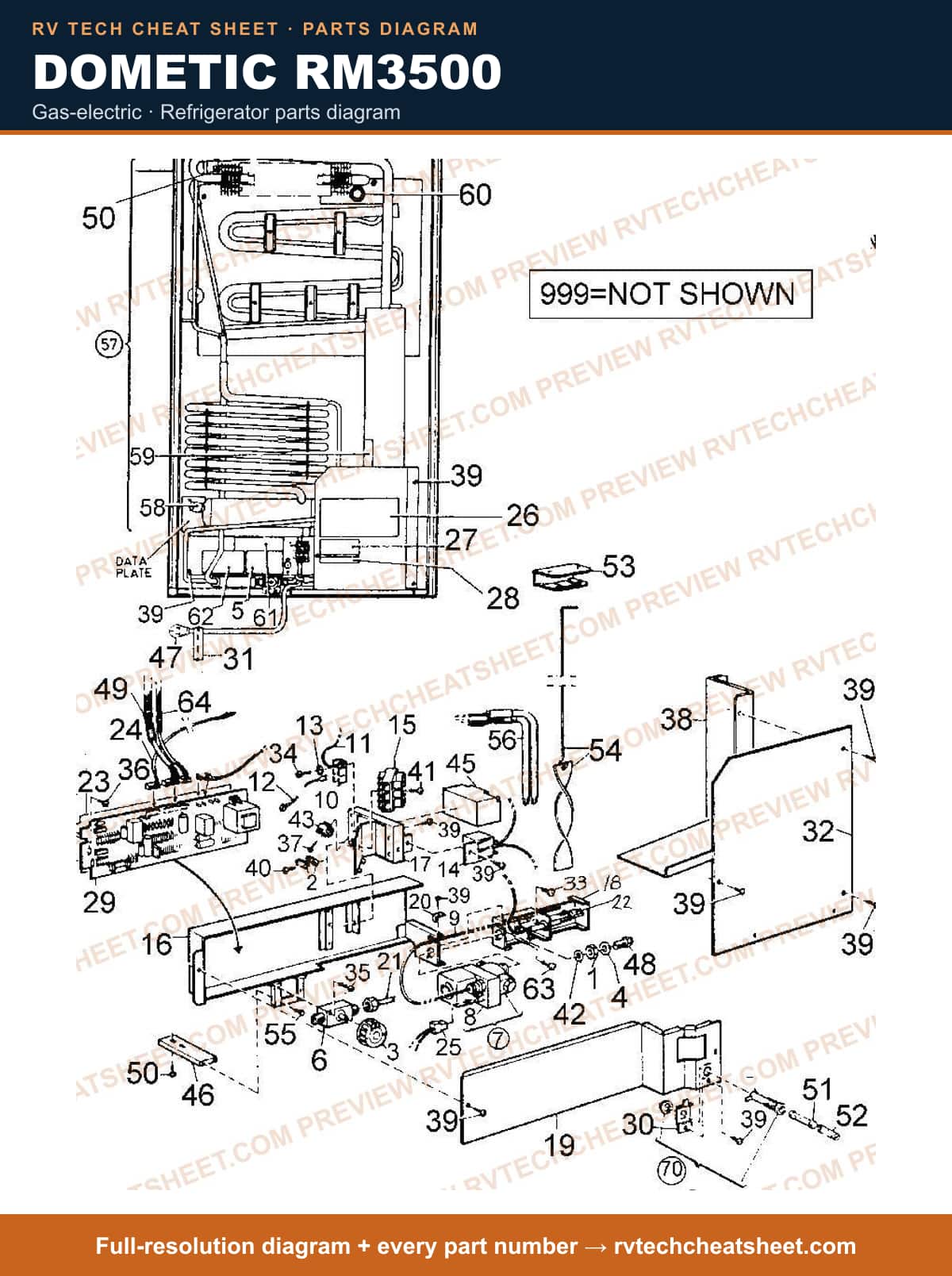

Gas-electric

Components

56 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
3. #WASHER MFR # 2007456001
4. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
5. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
7. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
8. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
10. #BOARD, MODULE MFR # 3106375015
11. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
12. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
13. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
14. #THERMOCOUPLE (350MM) MFR # 2931496091
15. #Thermocouple MFR # 2931496091MC
16. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
17. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
18. #Washer; Replacement For Dometic RM3500/ RM3600/ RM3604 Model Refrigerator MFR # 2930364001
19. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
20. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
21. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
22. #COMPONENT BOX 3600 ,3500 MFR # 2930642018
23. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
24. #COVER MFR # 2930653015
25. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
26. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
27. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
28. #BOARD,CIRCUIT USE 3106375003 MFR # 87500351199 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Board Module MFR # 3106375003
30. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338
31. #BOARD,CIRCUIT USE 87500351199 MFR # 4980557005 Superseded: see description
32. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
33. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
34. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
35. #HOLDER, FUSE MFR # 7628801230
36. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
37. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
38. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
39. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
40. #Retainer MFR # 2930661018
41. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
42. #ORIFICE #32 BUTANE 360 MFR # 2007419134
43. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
44. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
46. #S,CAP,FLUE MFR # 2007598010
47. #BAFFLE MFR # 2007590041
48. #Screw MFR # 7295340017
49. #ELEMENT, HEATING **ALT 72-8708 120V 185W MFR # 173738063
50. #ELEMENT, HEATING Q 3/8"DIA 5"LONG 175W 12V MFR # 173739038
51. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM3500; 120 Volt; 185 Watts MFR # 173738063MC Superseded: see description
52. #REMAN C/U USE 5535 (UPS) RM3500/3501 MFR # 2934701091R Superseded: see description
53. #COOLING UNIT UPS MFR # 2934701091N
54. #REMAN COOLING UNIT RM3500/RM3501 MFR # 5535
55. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
56. #COVER, ELEMENT MFR # 2800821007

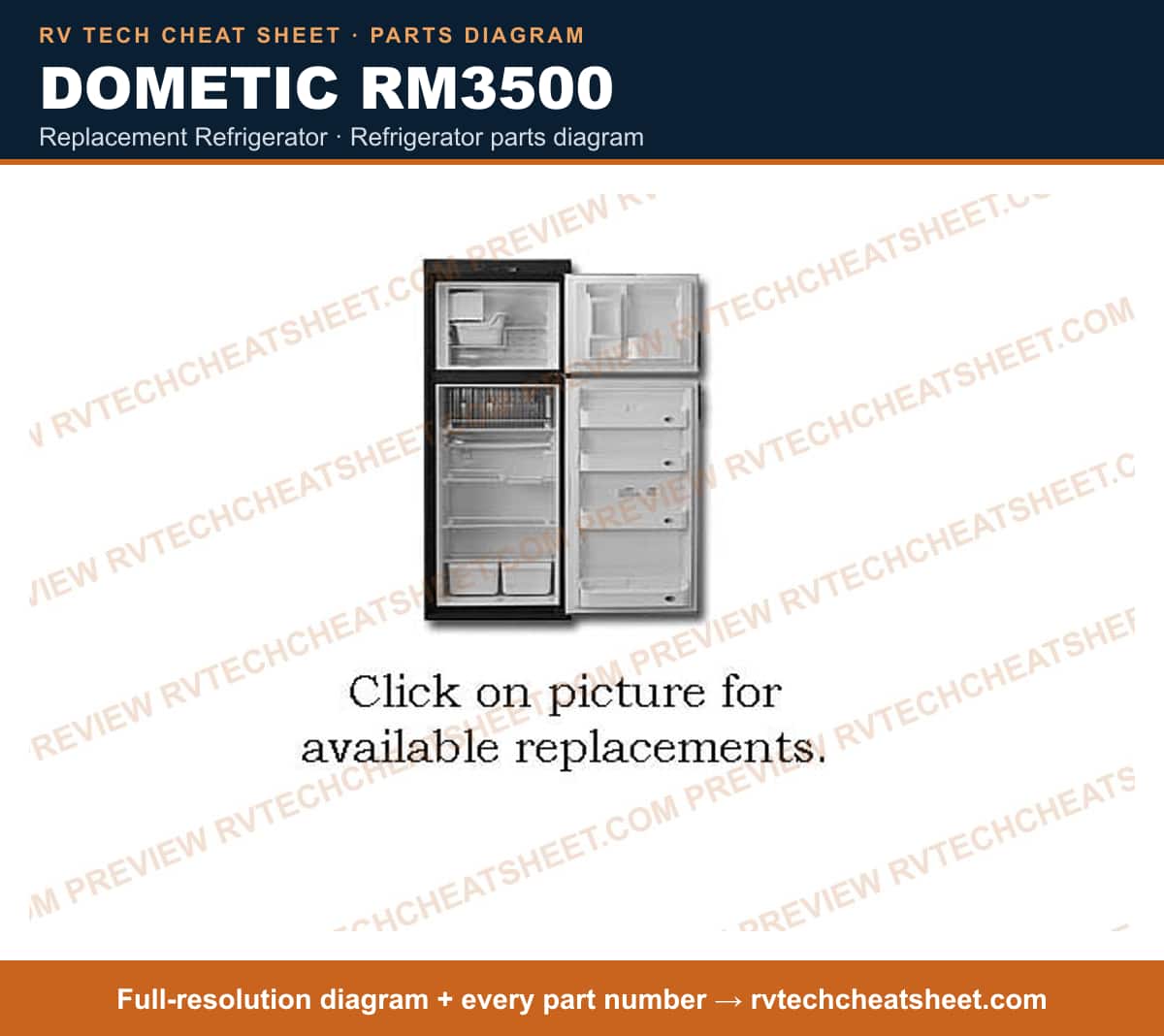

Replacement Refrigerator

Components

11 items

1. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR
2. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
3. #REFER USE 72-4906 OR 72-4907 N400.3 MFR # N4003N Superseded: see description
4. #REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description
5. #REFER,5.5CU FT USE N510URN 2-WAY MFR # N500N Superseded: see description
6. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
7. #REFER, 4.5 CU FT 2 W USE N410U MFR # N400N Superseded: see description
8. #REFER 40 3/16 21 13/16 23 3/4 MFR # RM3500N
9. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410U
10. #REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
11. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U

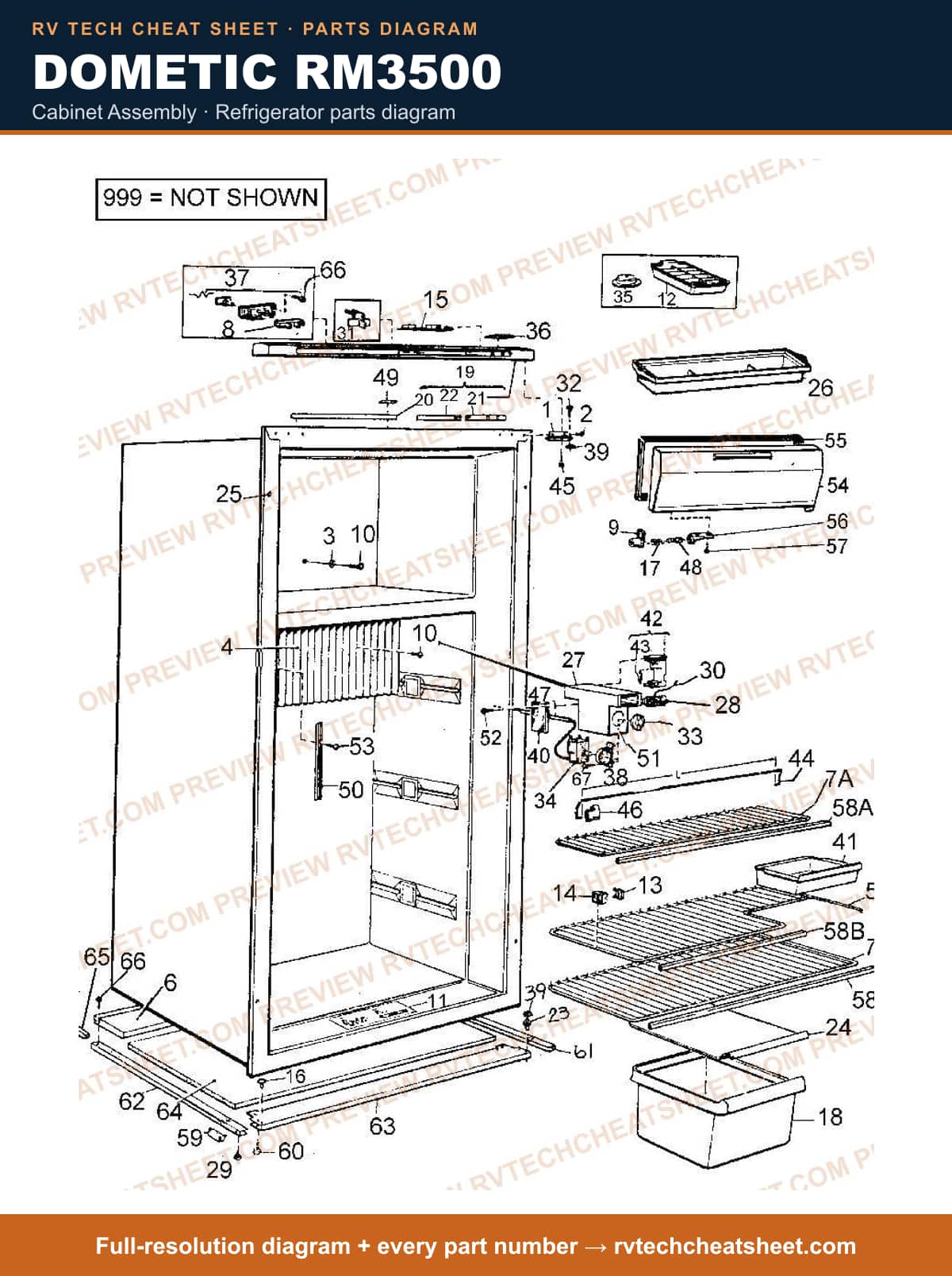

Cabinet Assembly

Components

83 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #WASHER MFR # 7344888206
3. #FLANGE, COOLING MFR # 2007558006
4. #SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
6. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
7. #SHELF, WIRE USE 2002652242 MDL#660 9.5" DEEP MFR # 2002652150 Superseded: see description
8. #SHELF, 9.5" X 17 7/8" MFR # 2002652242
9. #SHELF USE 2002652226 MFR # 2002652135 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Key MFR # 2930135047
11. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
12. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
13. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
14. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
15. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
16. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
17. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
18. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
19. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
20. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
21. #CARD, SWITCH MUST ALSO HAVE 2930710013 MFR # 4980572004
22. #KEY FOR SWITCH CARD MFR # 2930710013
23. #Spring, Freezer Door RH MFR # 2002237010
24. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
25. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
26. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
27. #DECORATION USE 2930749078 RM3500 MFR # 2930749037 Superseded: see description
28. #FRONT,DECORATION MFR # 2930749078
29. #DECORATION STRIP MFR # 2930746041
30. #STRIP,DECO USE 2930749078 MFR # 2930745019 Superseded: see description
31. #DECORATION STRIP MFR # 2930746033
32. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
34. #COVER, LIGHT SWITCH MFR # 2004044109
35. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
36. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
37. #2004044091 MFR # 2004044091
38. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
39. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
40. #Pin, Hinge Upper MFR # 2930612003
41. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM3500 MFR # 2930625013 Superseded: see description
42. #T-STAT USE K50P1336 MFR # K50P1317 Superseded: see description
43. #T-STAT MFR # 2007712033
44. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
46. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027
47. #LATCH USE 2007546027 MFR # 2007546019 Superseded: see description
48. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
49. #SHADE, LAMP MFR # 2004043002
50. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
52. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
53. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
54. #BULB 2/PK MFR # 2007290006
55. #APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062
56. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
57. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
58. #RETAINER USE 2930693029 MFR # 2930693011 Superseded: see description
59. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
60. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
62. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
63. #S,LID,FRZ,RM2510 MFR # 2002239289
64. #Refrigerator Door; Replacement For Dometic RM2500/ RM2501/ RM2510/ RM2401/ RM3500/ RM3501 Model Refrigerator; Upper; Door Measures 17 6/16" W X 7 9/16" H X 1" MFR # 2002239206
65. #Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027
66. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
67. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
68. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
69. #STRIP, DECO USE 2005111071 3600, 3501, 3500 MFR # 2005111188 Superseded: see description
70. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
71. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
72. #Appliance Components RV; Strip Decoration MFR # 2055366013
73. #STRIP, DECOR USE 2005111071 MFR # 2005111014 Superseded: see description
74. #PLATE, LEFT SIDE MFR # 2930603002
75. #GABLE, RH MFR # 2930604000
76. #Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004
77. #Refrigerator Support Rail; Replacement For Dometic RM3801/ RM2603/ RM3800 Refrigerators; Left Hand Side MFR # 2930601006
78. #APPLIANCE COMPONENTS RV; Base Front 3500/3600 MFR # 2930600008
79. #SUPPORT MFR # 2930774019
80. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
81. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
82. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
83. #PIN,RETAINING MFR # 2001281019
