Dometic RM3501 Parts Diagram · Replacement Refrigerator

Refrigerator · 4 assemblies · 4 diagram sheets · 182 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3501 RV refrigerator: 4 assemblies (Replacement Refrigerator, Cabinet Assembly, Door Assembly, Gas-electric) and 182 manufacturer part numbers. 56 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

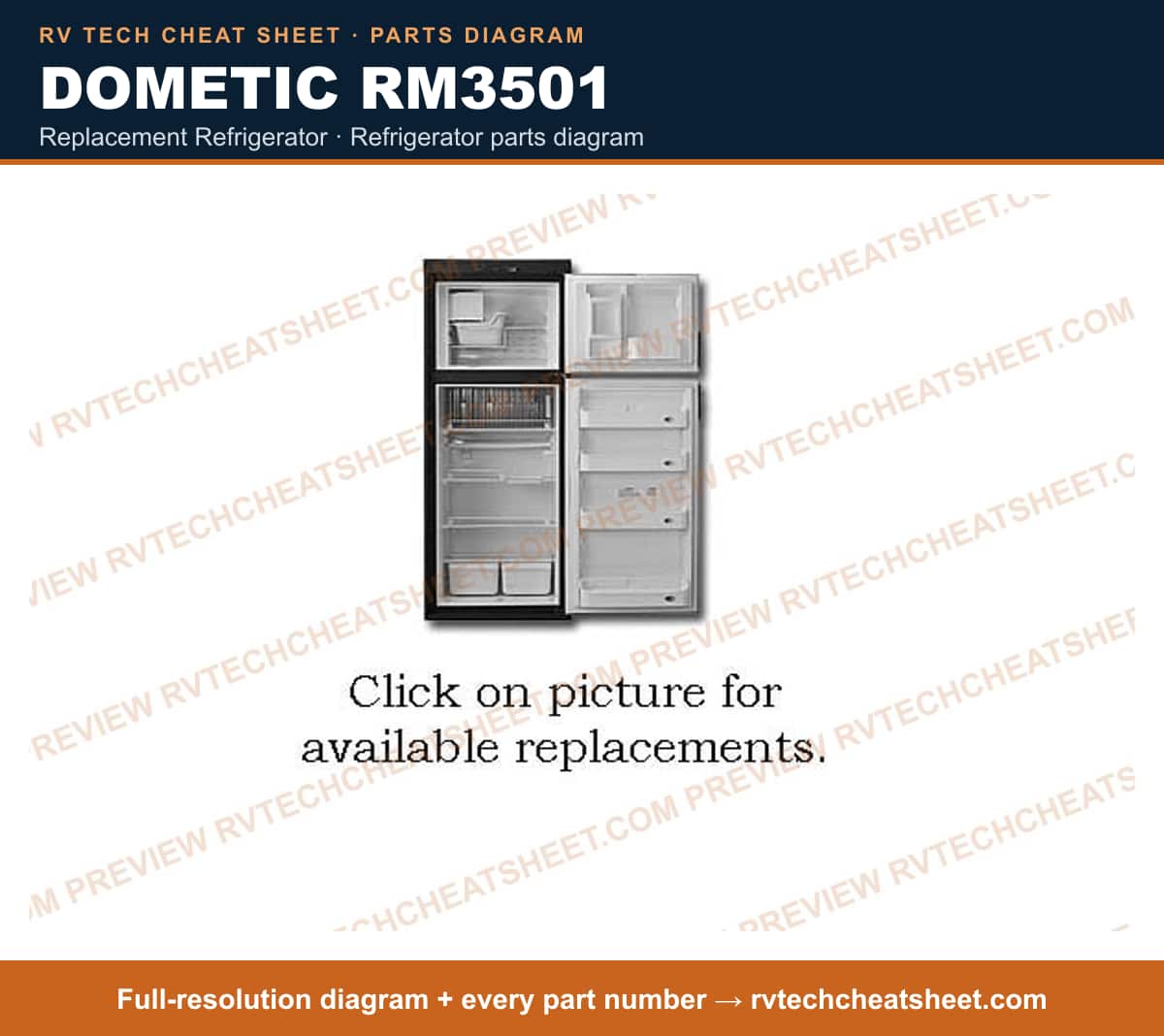

Replacement Refrigerator

Components

10 items

1. #REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
2. #REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
4. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U
5. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR
6. #REFER,5.5CU FT USE N510URN 2-WAY MFR # N500N Superseded: see description
7. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
8. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410U
9. #REFER USE 72-4906 OR 72-4907 N400.3 MFR # N4003N Superseded: see description
10. #REFER, 4.5 CU FT 2 W USE N410U MFR # N400N Superseded: see description

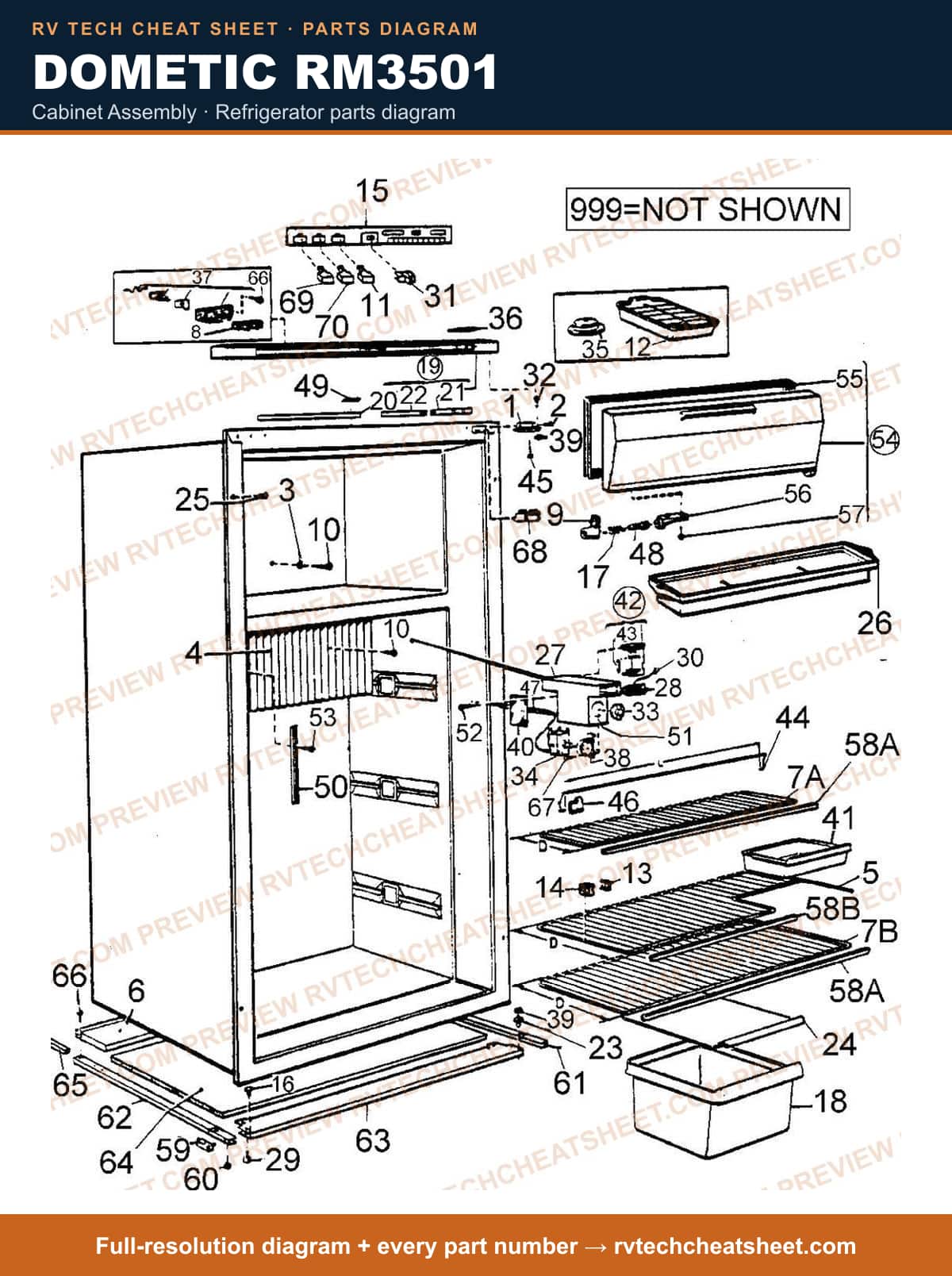

Cabinet Assembly

Components

84 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #NO PART # GIVEN BY VENDOR MFR # NPG
3. #WASHER MFR # 7344888206
4. #FLANGE, COOLING MFR # 2007558006
5. #SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
7. #SHELF, 9.5" X 17 7/8" MFR # 2002652242
8. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
9. #SHELF, WIRE USE 2002652242 MDL#660 9.5" DEEP MFR # 2002652150 Superseded: see description
10. #SHELF USE 2002652226 MFR # 2002652135 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Key MFR # 2930135047
12. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
13. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
14. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
15. #Refrigerator Control Knob; For Use With Dometic RM2602/ RM2603/ RM2802/ RM2803/ RM3501/ RM3601/ RM3801 And RM4801 Refrigerator Models; Push Button MFR # 2930980038 Superseded: see description
16. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
17. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
18. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
19. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
20. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
21. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
22. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Card Switch On Circ. Boar MFR # 87500350258
24. #Spring, Freezer Door RH MFR # 2002237010
25. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
26. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
27. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
28. #APPLIANCE COMPONENTS RV; Decoration Upper 3501 MFR # 2930983032
29. #DECORATION STRIP MFR # 2930989054
30. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930987017
31. #DECORATION STRIP MFR # 2930989062
32. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
34. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
35. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
36. #COVER, LIGHT SWITCH MFR # 2004044109
37. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
38. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
39. #2004044091 MFR # 2004044091
40. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
41. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
42. #APPLIANCE COMPONENTS RV; Key MFR # 2930982018
43. #Pin, Hinge Upper MFR # 2930612003
44. #KNOB, T-STAT USE 2930625039 MFR # 2930625021 Superseded: see description
45. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
46. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
47. #T-STAT MFR # 2007712033
48. #T-STAT USE K50P1336 MFR # K50P1317 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
50. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027
51. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
52. #SHADE, LAMP MFR # 2004043002
53. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
54. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
55. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
56. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
57. #BULB 2/PK MFR # 2007290006
58. #APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062
59. #APPLIANCE COMPONENTS RV; Bar L Approx. 13.5" Rm76 MFR # 2007337005
60. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
61. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
62. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
63. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
64. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
65. #S,LID,FRZ,RM2510 MFR # 2002239289
66. #Refrigerator Door; Replacement For Dometic RM2500/ RM2501/ RM2510/ RM2401/ RM3500/ RM3501 Model Refrigerator; Upper; Door Measures 17 6/16" W X 7 9/16" H X 1" MFR # 2002239206
67. #Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027
68. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
69. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
71. #Appliance Components RV; Strip Decoration MFR # 2055366013
72. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
73. #STRIP, DECOR USE 2005111071 MFR # 2005111014 Superseded: see description
74. #STRIP, DECO USE 2005111071 3600, 3501, 3500 MFR # 2005111188 Superseded: see description
75. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
76. #PLATE, LEFT SIDE MFR # 2930603002
77. #GABLE, RH MFR # 2930604000
78. #Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004
79. #Refrigerator Support Rail; Replacement For Dometic RM3801/ RM2603/ RM3800 Refrigerators; Left Hand Side MFR # 2930601006
80. #APPLIANCE COMPONENTS RV; Base Front 3500/3600 MFR # 2930600008
81. #PIN,RETAINING MFR # 2001281019
82. #FERRULE RM3801/3601/2802 2603,2803,3501,2602 MFR # 2930824012
83. #APPLIANCE COMPONENTS RV; Pushbutton Lh MFR # 2930980012
84. #Push Button Switch; On/ Off Switch; Middle; Panel Mount MFR # 2930980020

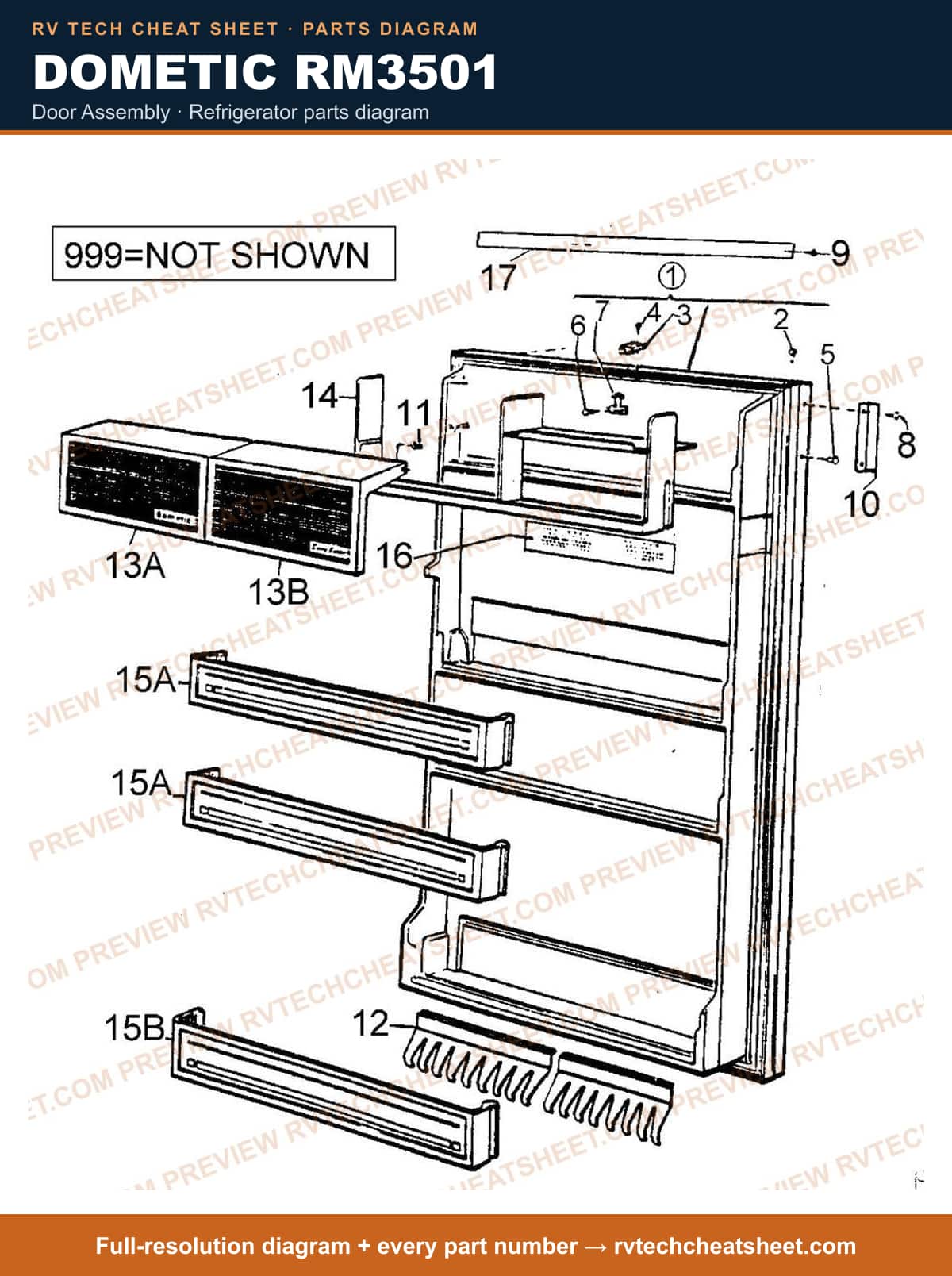

Door Assembly

Components

28 items

1. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103692004
2. #DOOR MFR # 2930924127
3. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
4. #RETAINER, CATCH MFR # 2930994021
5. #APPLIANCE COMPONENTS RV; Retainer Catch 2300 MFR # 2930994013
6. #NO PART # GIVEN BY VENDOR MFR # NPG
7. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
8. #PLUG MFR # 2930736026
9. #RIVET, EXPANSION MFR # 165521022
10. #RETAINER RM3601, 3500, 3501, 3600 MFR # 2930593005
11. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
12. #HANDLE USE 45-9988 MFR # 2930763020 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
14. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
15. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012
16. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
17. #DOOR USE 2930531013 RM3500 MFR # 2930541053 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930531013
19. #APPLIANCE COMPONENTS RV; Door Dairy S MFR # 2930541046
20. #APPLIANCE COMPONENTS RV; Shelf Butter MFR # 2930530007
21. #APPLIANCE COMPONENTS RV; Compartment Butter MFR # 2930530015
22. #SHELF,DOOR USE 2002261143 MFR # 2002261184 Superseded: see description
23. #Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description
24. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
25. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
26. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
27. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
28. #STRIP, DECORATION MFR # 2930639170

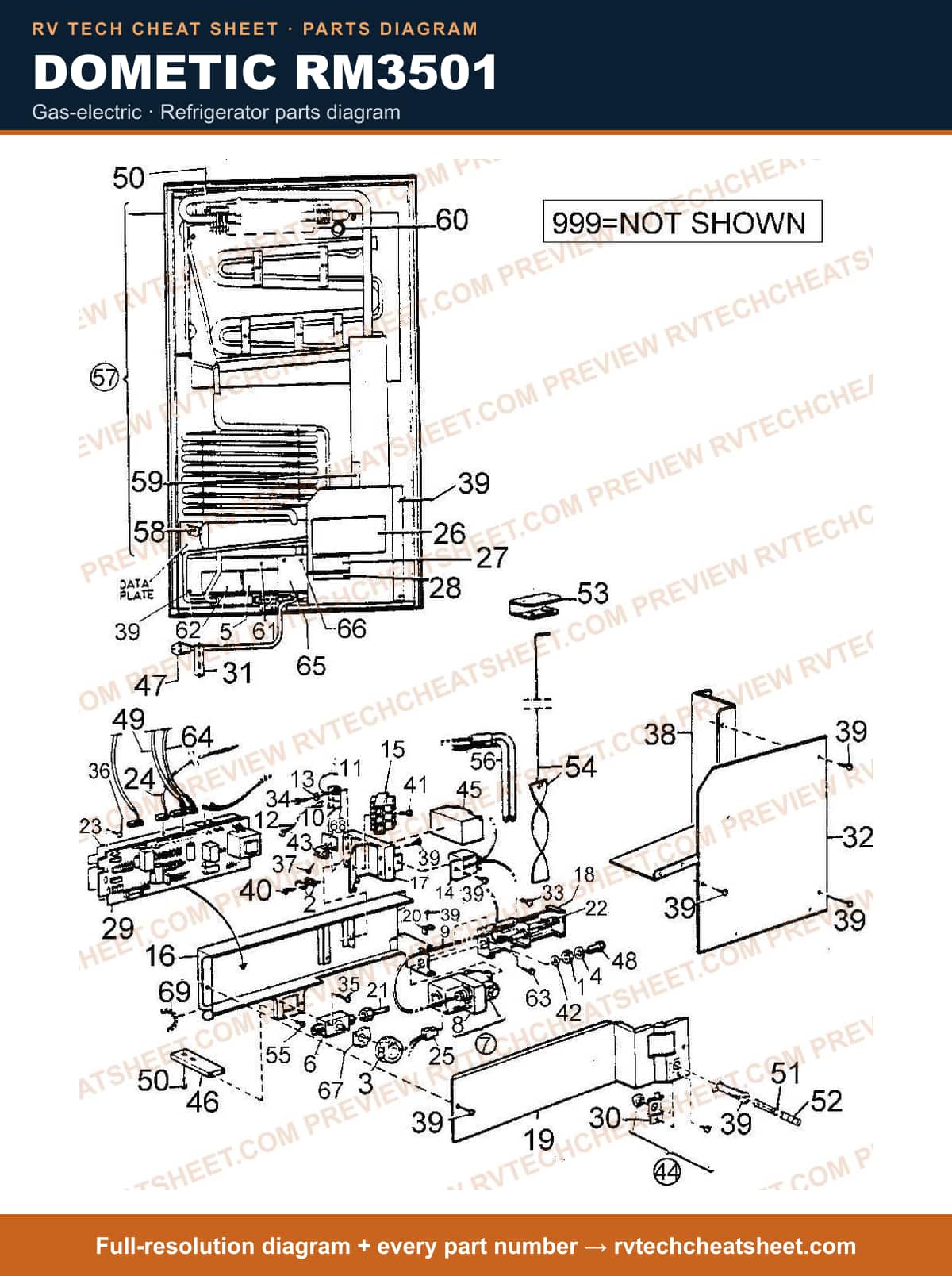

Gas-electric

Components

62 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
3. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
4. #NO PART # GIVEN BY VENDOR MFR # NPG
5. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
7. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
8. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
9. #BOARD, MODULE MFR # 3106375015
10. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
12. #APPLIANCE COMPONENTS RV; Valve Kit Gas MFR # 3108705280
13. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
14. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Coil Solenoid Only MFR # 2007715010
16. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
17. #THERMOCOUPLE (350MM) MFR # 2931496091
18. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
19. #Thermocouple MFR # 2931496091MC
20. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
22. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
23. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerators; 3 Way MFR # MICROP243
24. #APPLIANCE COMPONENTS RV; Box Complete Use 29306420 MFR # 2930642034 Superseded: see description
25. #BOX, COMPONENT MFR # 2930642042
26. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
27. #RETAINER MFR # 2930648015
28. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
29. #COVER MFR # 2930653015
30. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
31. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
32. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
33. #BOARD, CIRCUIT USE 2931308015 MFR # 87500350241 Superseded: see description
34. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
35. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
36. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
37. #HOLDER, FUSE MFR # 7628801230
38. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
39. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
40. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
41. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
42. #ORIFICE #32 BUTANE 360 MFR # 2007419134
43. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
44. #WIRE, LEAD MFR # 2930782046
45. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
46. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
47. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
48. #S,CAP,FLUE MFR # 2007598010
49. #BAFFLE MFR # 2007590041
50. #ELEMENT, HEATING **ALT 72-8708 120V 185W MFR # 173738063
51. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM3500; 120 Volt; 185 Watts MFR # 173738063MC Superseded: see description
52. #ELEMENT, HEATING Q 3/8"DIA 5"LONG 175W 12V MFR # 173739038
53. #REMAN C/U USE 5535 (UPS) RM3500/3501 MFR # 2934701091R Superseded: see description
54. #COOLING UNIT UPS MFR # 2934701091N
55. #REMAN COOLING UNIT RM3500/RM3501 MFR # 5535
56. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
57. #COVER, ELEMENT MFR # 2800821007
58. #LEAD, 4 WIRE MFR # 2930783028
59. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
60. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
61. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
