Diagrams › Dometic › RM36 Dometic RM36 Parts Diagram · Electric Breakdown RM36A
Refrigerator · 22 assemblies · 22 diagram sheets · 334 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM36 RV refrigerator: 22 assemblies (Electric Breakdown RM36A, Cooling Unit RM36E, Door Assembly & Parts RM36C, Switch Control RM36E, Door Assembly RM36A and more) and 334 manufacturer part numbers. 65 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Electric Breakdown RM36A

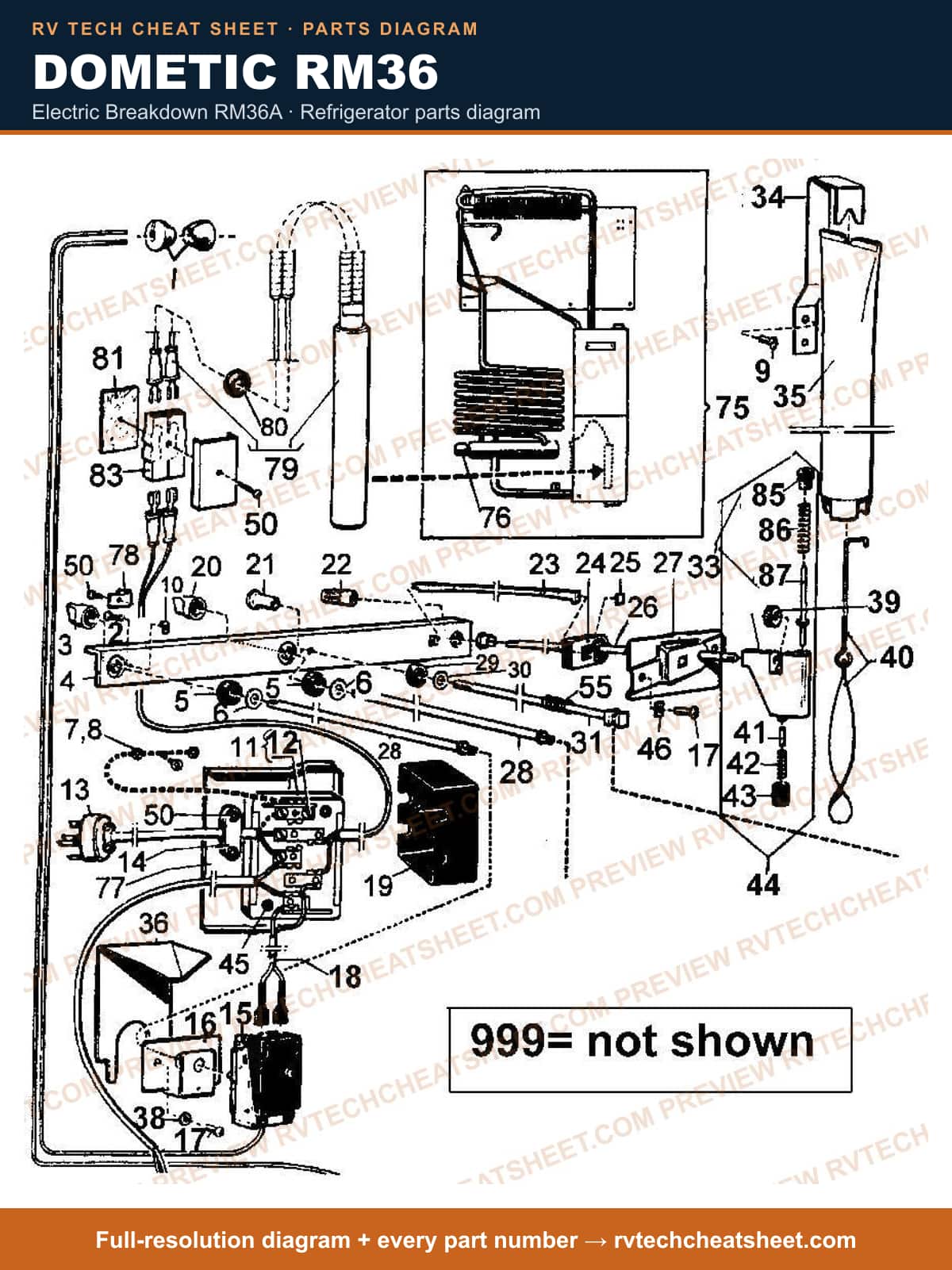

Dometic RM36 electric breakdown rm36a — parts list sheet Full-resolution diagram + every part number →
Components 67 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # SCREW MFR # 7295281658 # Appliance Components RV; Knob Electric T-Stat; White Knob with Gray Writing MFR # 2002423016 # Panel, Control MFR # 2002228001 # SEALING RING MFR # 2002224018 # WASHER RM36E MFR # 7344974014 # SCREWS RM10 0 MFR # 7241328017 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # Screw, LKXS B6X8, Z. PL. MFR # 7295277516 # Lock Nut SNJ 1915 MFR # 7331813062 # BLOCK, TERMINAL RM36 - RM100 MFR # 581557709 # Screw, KCS 3.5X5, N1. PL. MFR # 7232250030 # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description # T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description # BRACKET T-STAT MFR # 2890034008 # SCREW #17 MFR # 7241289011 # CABLE F/T-STAT MFR # 173193020 # APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728 # Refrigerator Control Knob; Replacement For Dometic RM75/ RM36/ RM45A; Thermostat Control Knob; White MFR # 2002423008 # Knob, Pull Orange MFR # 2002426001 # Appliance Components RV; Knob Turn Lighter MFR # 2002425003 # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2002222012 # APPLIANCE COMPONENTS RV; Packing MFR # 2002304000 # APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008 # Appliance Components RV; Shaft F/Lighter RM36 MFR # 2890019017 # APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007 # APPLIANCE COMPONENTS RV; Shaft MFR # 2002300016 # WASHER RM66 MFR # 7344908012 # Rod MFR # 2002226013 # Igniter Striker MFR # 944023001 # Support For Flue MFR # 2890027002 # Flue Top RM36 MFR # 2890026020 # PROTECTION PLATE MFR # 2002445001 # SPRING WASHER MFR # 7351136010 # Appliance Components RV; Wheel Igniter Knurled MFR # 2890016005 # Baffle, Flue MFR # 2890028000 # FLINT MFR # 270127004 # SPRING MFR # 2890018001 # Refrigerator Evaporator Door Spring Holder; Use With Dometic Refrigerator Model RM45 MFR # 2890008002 Superseded: see description # Spark Lighter Complete MFR # 2890030000 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # WASHER MFR # 2002351001 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2002381008 # Cooling Unit MFR # 9282564005N # Reman Cooling Unit RM36, 36A (UPS) MFR # 9282564005R # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Fastening Plate MFR # 2002447007 # N/A MFR # 271020000 # Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034 # ELEMENT, HEATING 135w/110V 2WIRE 5/16 X 4 1/2 MFR # CS000009 # Element, Heating Use 173708009 135W 3W REV 3-8-91 MFR # 173707001 Superseded: see description # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description # ELEMENT,HEATING USE 173718016 MFR # 173717018 Superseded: see description # ELEMENT,HEATING, ALT 48-9502 135w/110V 2WIRE 5/16 X 4 1/2 MFR # 173718016 # APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009 # BUSHING MFR # 149585010 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # Connection Block RM45 MFR # 2400298004 # Bushing for Guide Pin MFR # 2890022003 # Spring for Guide Pin RM36 MFR # 2890021005 # N/A Guide Pin for Lighter MFR # 2890020007
Cooling Unit RM36E

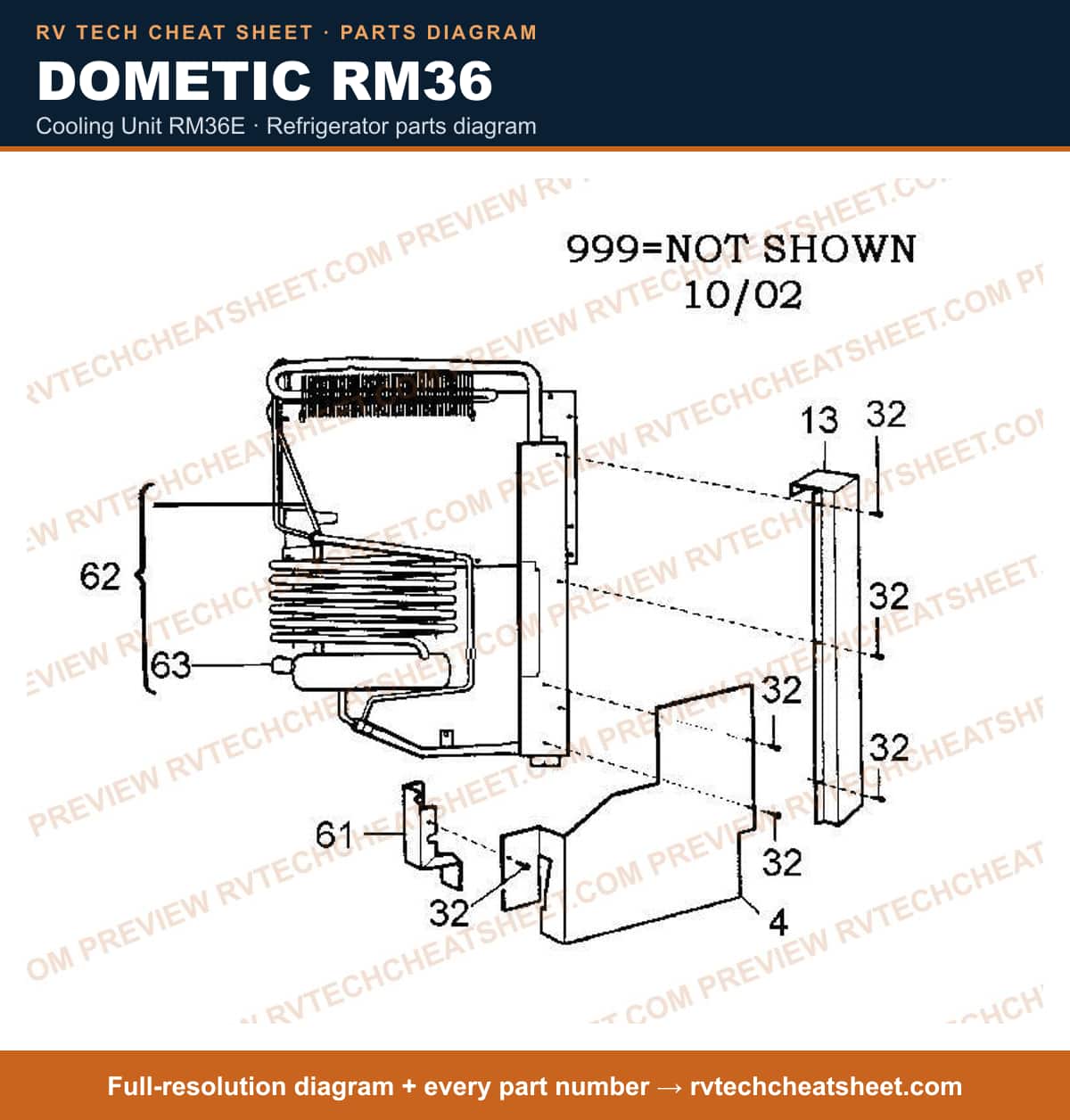

Dometic RM36 cooling unit rm36e — parts list sheet Full-resolution diagram + every part number →
Components 9 items # COVER MFR # 2007170000 # FLUE CHANNEL MFR # 2007165000 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # END PIECE MFR # 2007094002 # REMAN COOLING UNIT (UPS) RM36C/D/E MFR # 9282711002R # COOLING UNIT RM36E MFR # 9282711002N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
Door Assembly & Parts RM36C

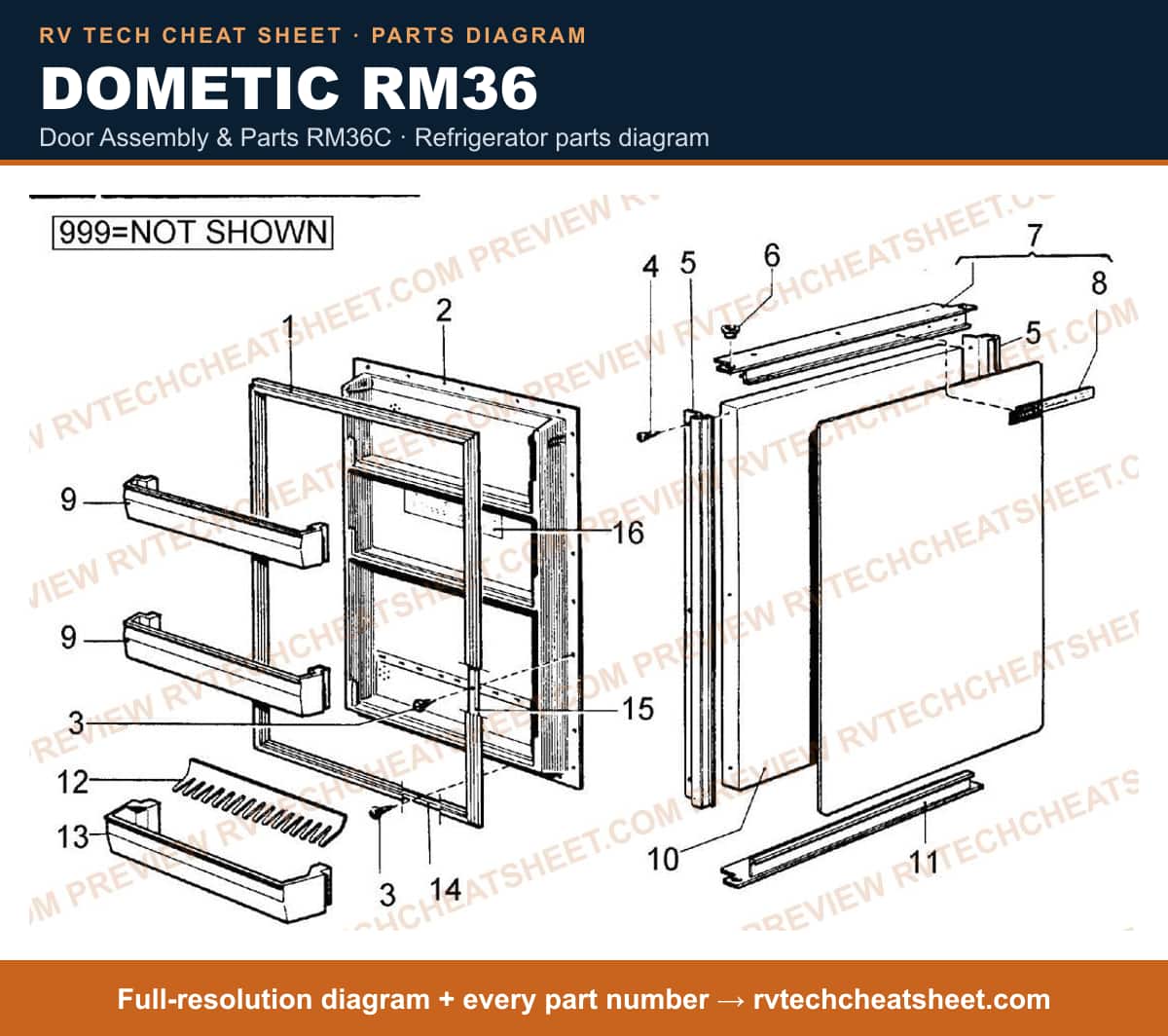

Dometic RM36 door assembly & parts rm36c — parts list sheet Full-resolution diagram + every part number →
Components 19 items # Refrigerator Gasket; Use With Dometic Refrigerator RM76D MFR # 3108700489 Superseded: see description # GASKET USE 3103689 MFR # 2001111075 Superseded: see description # DOOR PAN - YELLOW MFR # 2002380059 # SCREW MFR # 7295279652 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # DOOR FRAME, VERTICAL MFR # 2002342026 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # DOOR FRAME, COMP., ANODIZED ALUMINUM MFR # 2002343099 # NAME PLATE (GAS/ELECTRIC DOMETIC) MFR # 2002708002 # SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # DOOR PLATE/INSULATED MFR # 2002294003 # DOOR FRAME, ANODIZED ALUMINUM MFR # 2002340004 # APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007 # DOOR SHELF/LOWER MFR # 2002622042 # REINFORCING STRIP, HORIZONTAL MFR # 2001586037 # REINFORCING STRIP VERTICAL MFR # 2001585062 # LABEL, INSTRUCTION MFR # 2002356000
Switch Control RM36E

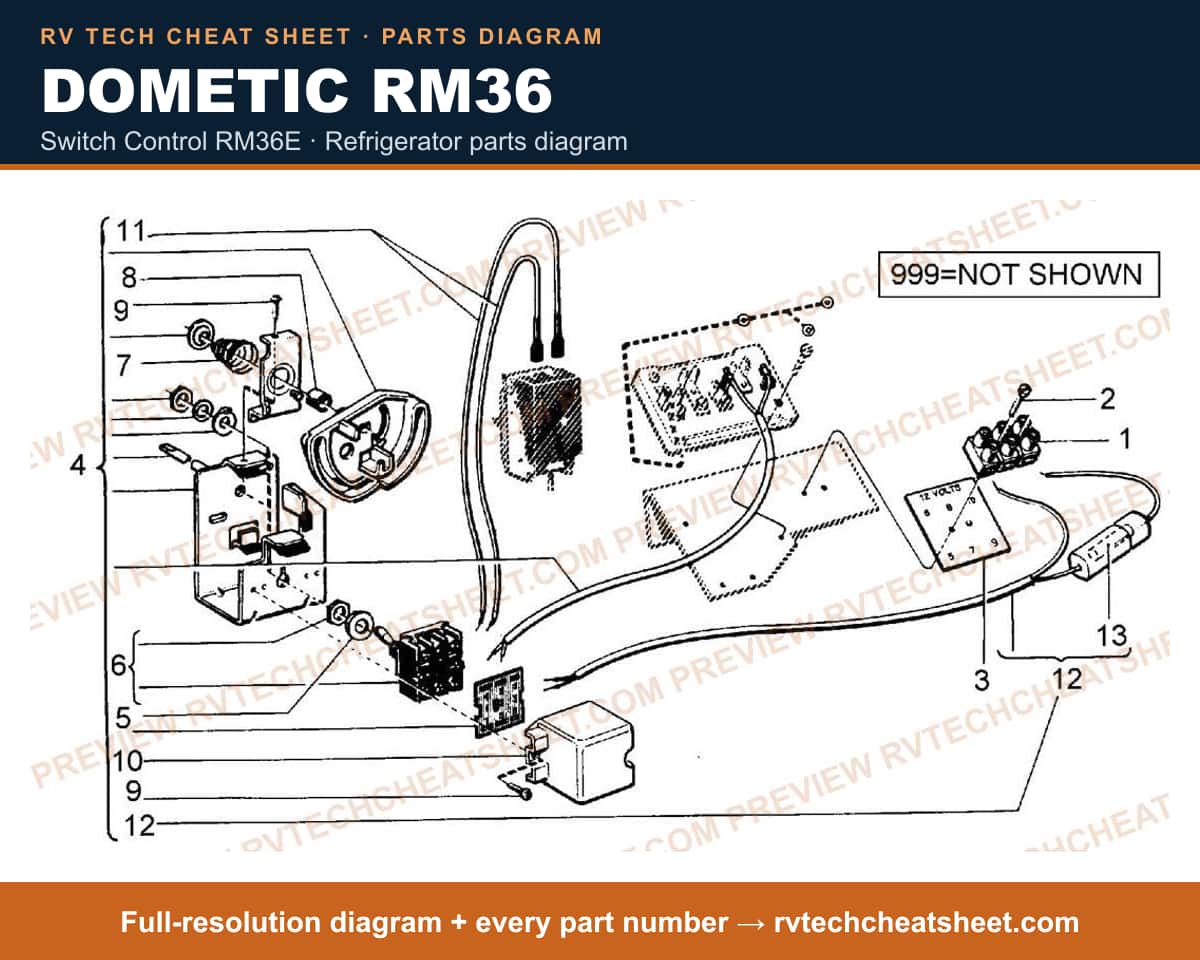

Dometic RM36 switch control rm36e — parts list sheet Full-resolution diagram + every part number →
Components 16 items # APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001 # BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # SWITCH ASM 3 WAY MFR # 2007176007 # PLATE USE 2007176007 MFR # 2002589006 Superseded: see description # WASHER MFR # 7341178601 # SWITCH, TOGGLE USE 2007176007 MFR # 2007490002 Superseded: see description # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SEALING RING MFR # 7356819115 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # PROTECTION COVER MFR # 2002698013 # CABLE USE 2007176007 F/ T -STAT MFR # 2002705008 Superseded: see description # FUSE CABLE USE 2007176007 MFR # 2007173004 Superseded: see description # APPLIANCE COMPONENTS RV; Fuse 16 Amp MFR # 2002578009
Door Assembly RM36A

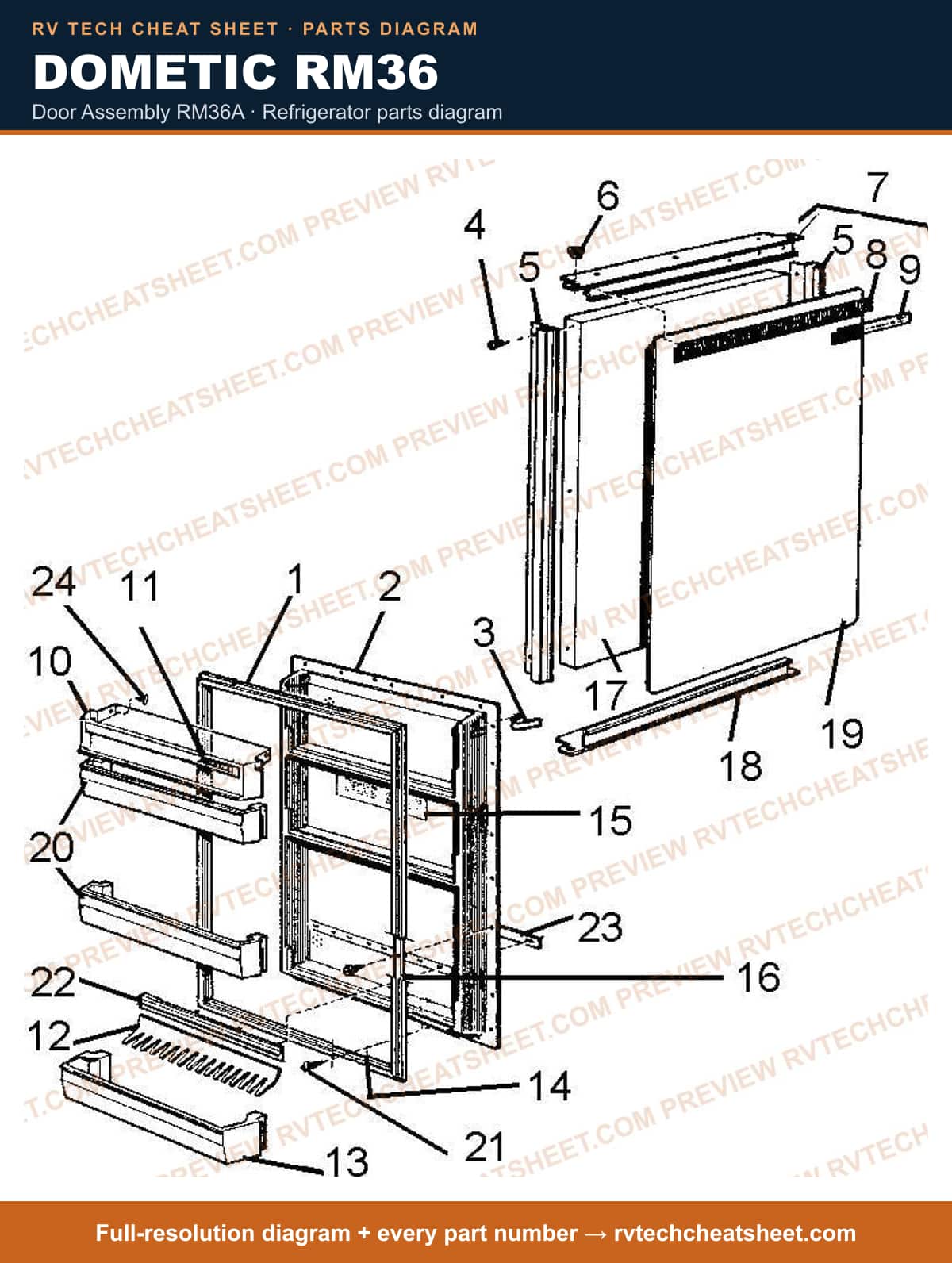

Dometic RM36 door assembly rm36a — parts list sheet Full-resolution diagram + every part number →
Components 33 items # GASKET USE 3103689 MFR # 2001111075 Superseded: see description # Refrigerator Gasket; Use With Dometic Refrigerator RM76D MFR # 3108700489 Superseded: see description # DOOR LINER MFR # 2002380000 # INSERT,HINGE PIN MFR # 171563000 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # DOOR FRAME, VERTICAL MFR # 2002342026 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # DOOR FRAME, UPPER HOR. MFR # 2002343032 # DOOR FRAME, UPPER HOR. MFR # 2002343008 # DECORATION STRIP MFR # 2002499008 # DECORATION STRIP MFR # 2002344048 # DECORATION STRIP MFR # 2002498000 # NAMEPLATE MFR # 2002345003 # N/A DOOR, DAIRY SMOKE MFR # 2002258016 # NAME PLATE DOMETIC MFR # 2002256002 # BOTTLE HOLDER FOR DR LINE R W/ FASTENING STRIPS MFR # 581702016 # APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007 # SHELF, DOOR SMOK E RM3 MFR # 2002262042 # REINFORCING STRIP, HORIZONTAL MFR # 2001586037 # LABEL, INSTRUCTION MFR # 2002356000 # REINFORCING STRIP VERTICAL MFR # 2001585062 # LINER, DOOR MFR # 20022394003 # DOOR FRAME, ANODIZED ALUMINUM MFR # 2002340004 # PANEL, DOOR MFR # 2002264071 # PANEL, DOOR MFR # 2002264022 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002264072 # SCREW MFR # 7295279652 # FASTENING STRIP OUTER FOR BOTTLE HOLDER MFR # 168940005 # FASTENING STRIP INNER FOR BOTTLE HOLDER MFR # 168939007 # SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
Gas Breakdown

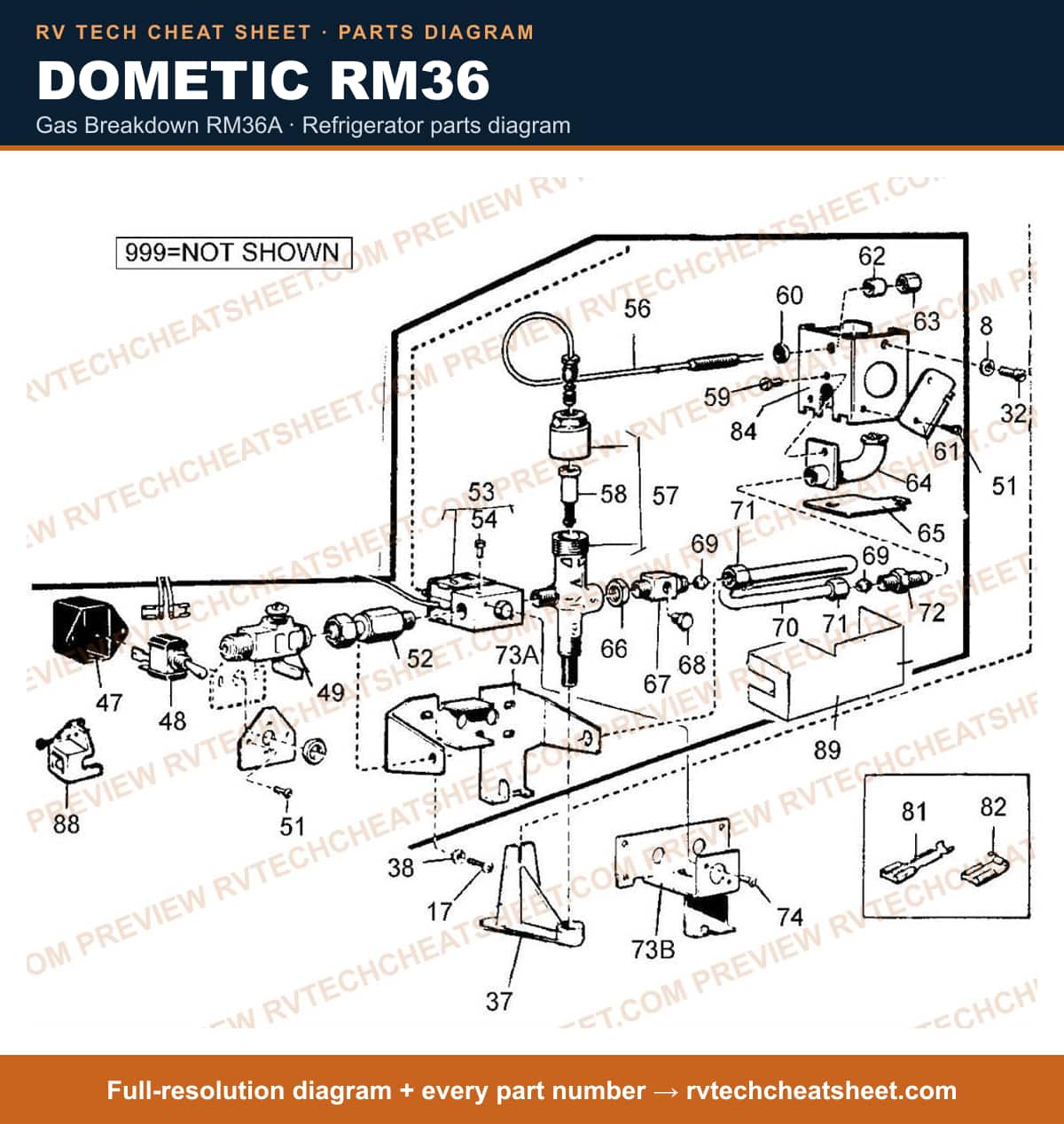

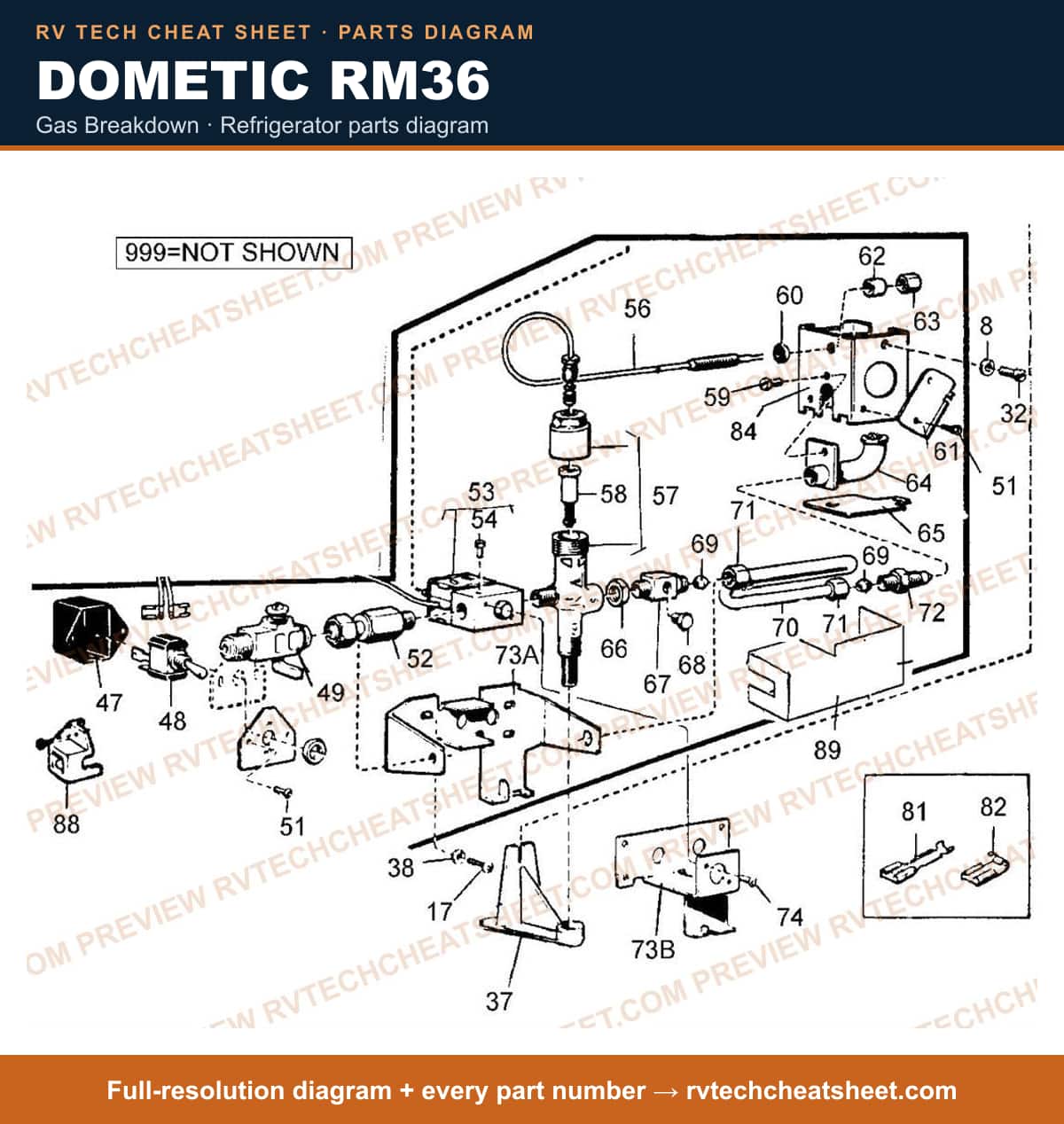

Dometic RM36 gas breakdown — parts list sheet Full-resolution diagram + every part number →
Components 58 items # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # SCREW #17 MFR # 7241289011 # SCREW, RX 5X10, Z . PL. MFR # 7241325001 # Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003 # SPRING WASHER MFR # 7351136010 # PROTECTION COVER FOR 120V SWITCH MFR # 173101007D # SWITCH FOR 120V MFR # 172168007D # CUT OFF VALVE MFR # 172807000D # Screw MFR # 7295340017 # GAS FILTER W/NIPPLE & NUT MFR # 172810004D # T-STAT, GAS MFR # V35P0111013 # T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description # T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description # Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC # BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # APPLIANCE COMPONENTS RV; Screw Bypass S11 Alt 45- MFR # 172819047 # BYPASS SCREW S 17 MFR # 172819021D # T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description # THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description # Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC # T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description # T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description # QUICK CHECK MFR # 423 # THERMOCOUPLE MFR # 169372000MC # THERMOCOUPLE, 18" MFR # 169372002MC # VALVE, SAFETY; Use 293165 MFR # 2932656017 Superseded: see description # S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017 # Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description # VALVE, SAFETY MFR # 293165 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description # VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description # MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019 # NUT MFR # 169386000D # LID MFR # 2890053008 # SPACER SLEEVE MFR # 173344011D # UNION NUT MFR # 170827000D # TUBE, BURNER MFR # 2890010008 # APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000 # LOCK NUT MFR # 173366006D # CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description # HOUSING, PRESSURE TEST - NLA MFR # 2002470009 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # OLIVE MFR # 173213000D # APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009 # UNION NUT MFR # 173215005D # ORIFICE, #39 USE 2890039155 MFR # 2002660153 Superseded: see description # APPLIANCE COMPONENTS RV; Orifice #39Lp MFR # 2890039155 # ORIFICE, #43 MFR # 2002660161 # HOLDER, VALVE BRACKET MFR # 2890033000 # BRACKET MFR # 2002469001 # SCREW, RX 4X8, Z. PL. MFR # 7241287015 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # TAB CONNECTOR, ANGLE MFR # 7604855002 # BRACKET,BURNER MFR # 2002493001 # TURN PROTECTION MFR # 2002766000 # COVER, BURNER MFR # 2002476014
Replacement Refrigerator

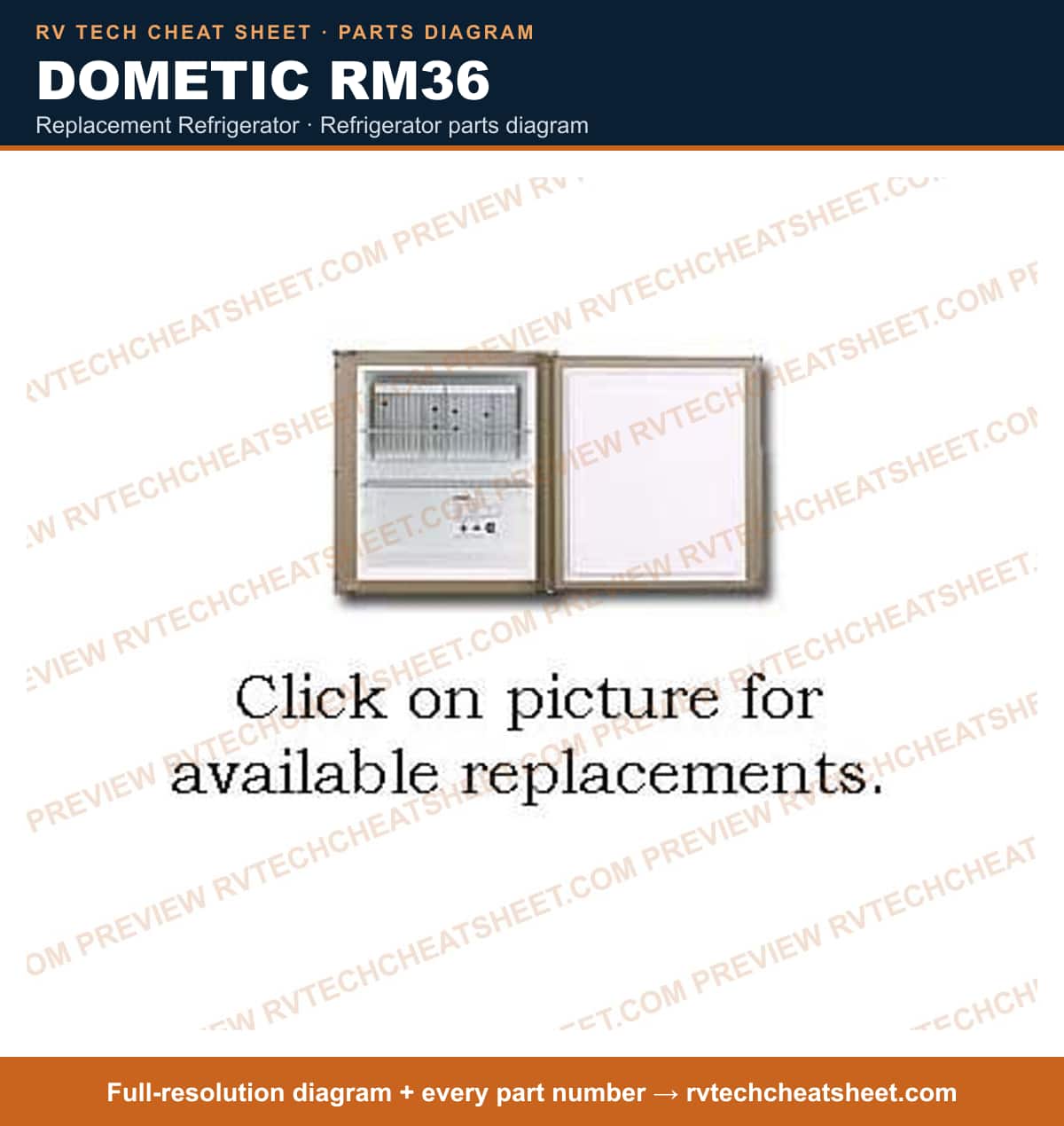

Dometic RM36 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 8 items # Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker MFR # N300R # REFER 28 3/8 20 1/4 21 7/8 MFR # RM36N # Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB # REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description # REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N # Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker MFR # N3003R # REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description # REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N
Gas-electric Parts RM36C
Dometic RM36 gas-electric parts rm36c — parts list sheet Full-resolution diagram + every part number →
Components 117 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # TURN PROTECTION MFR # 2002766000 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SCREW MFR # 7298285402 # SEALING RING MFR # 2002224018 # WASHER RM36E MFR # 7344974014 # APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # SCREW RXS B6X5 MFR # 7295275015 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # BLOCK, TERMINAL RM36 - RM100 MFR # 581557709 # SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311 # BOX, FLUE MFR # 2002472005 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012 # T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description # T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description # BRACKET T-STAT MFR # 2890034008 # SCREW #17 MFR # 7241289011 # CABLE F/T-STAT MFR # 173193020 # APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728 # TAB CONNECTOR, ANGLE MFR # 7604855002 # CONNECTION BLOCK MFR # 2400297004 # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2002222012 # IGNITER,PIEZO USE 2002609036 IM3, HR3, MFR # 2002609002 Superseded: see description # PIEZO LIGHTER MFR # 440 # IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028 # LIGHTER,PIEZO ALT 2002609036MC MFR # 2002609036 # Igniter; Use On Dometic Refrigerators; Piezo Spark MFR # 2002609036MC Superseded: see description # Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description # ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description # ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description # APPLIANCE COMPONENTS RV; Packing MFR # 2002304000 # APPLIANCE COMPONENTS RV; Shaft MFR # 2002300016 # RING,SEALING MFR # 2002224000 # WASHER RM66 MFR # 7344908012 # Rod MFR # 2002226013 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # ELEMENT,HEATING, ALT 48-9502 135w/110V 2WIRE 5/16 X 4 1/2 MFR # 173718016 # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description # ELEMENT,HEATING USE 173718016 MFR # 173717018 Superseded: see description # ELEMENT, HEATING 135w/110V 2WIRE 5/16 X 4 1/2 MFR # CS000009 # APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009 # Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034 # Bushing MFR # 149585011 # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # PROTECTION PLATE MFR # 2002445001 # Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003 # SPRING WASHER MFR # 7351136010 # APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008 # APPLIANCE COMPONENTS RV; Control Switch 2 Way MFR # 2002670012 # APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007 # COVER MFR # 173101007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SWITCH ASM 3 WAY MFR # 2007176007 # SEALING RING MFR # 7356819115 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # INSULATION - NLA MFR # 2002442008 # APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description # VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description # Baffle, Flue MFR # 2890028000 # Screw MFR # 7295340017 # APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004 # T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description # T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description # T-STAT, GAS MFR # V35P0111013 # APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021 # Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC # APPLIANCE COMPONENTS RV; Spring MFR # 2002381008 # T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description # T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description # QUICK CHECK MFR # 423 # T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description # THERMOCOUPLE, 18" MFR # 169372002MC # THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description # THERMOCOUPLE MFR # 169372000MC # Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC # Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description # VALVE, SAFETY MFR # 293165 # VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description # VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100 # S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017 # MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019 # LID MFR # 2890053008 # SPACER SLEEVE MFR # 173344011 # SPACER NUT MFR # 170827000 # TUBE, BURNER MFR # 2890010008 # APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000 # APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000 # NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description # HOUSING, PRESSURE TEST - NLA MFR # 2002470009 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description # APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009 # NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description # NUT, UNION FEMALE MFR # 2902553003 # APPLIANCE COMPONENTS RV; Orifice #39Lp MFR # 2890039155 # ORIFICE, #39 USE 2890039155 MFR # 2002660153 Superseded: see description # ORIFICE, #43 MFR # 2002660161 # BRACKET MFR # 2002469001 # COVER, BURNER MFR # 2002476014 # COOLING UNIT USE 9282711002N MFR # 9282701003N Superseded: see description # COOLING UNIT RM36E MFR # 9282711002N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description # BRACKET,BURNER MFR # 2002493001
Cabinet Assembly RM36D
Dometic RM36 cabinet assembly rm36d — parts list sheet Full-resolution diagram + every part number →
Components 52 items # APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005 # SPACER MFR # 2002266019 # SCREWS RM10 0 MFR # 7241328017 # HOLDER MFR # 2002796007 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003 # PIN,RETAINING MFR # 2001281019 # PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # WASHER,LOCK F/UPPER HINGE MFR # 7352160019 # RADIATOR FLANGE MFR # 2002302004 # SCREW MFR # 7295281658 # SNAP SPRING MFR # 2000547006 # STOP,SHELF MFR # 2002635007 # PLUG, FACE WHITE MFR # 2002352009 # APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017 # CABINET BASE MFR # 2002533079 # NUT MFR # 2001674007 # COVER MFR # 2002395016 # APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007 # APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002 # APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009 # BRACKET, ROLLER MFR # 171885007 # ROLLER MFR # 171886005 # WARNING LABEL MFR # 2007048008 # SHUTTER USE 172319097 MFR # 172319071 Superseded: see description # APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097 # GASKET, FREEZER SHUTTER MFR # 171893001 # SHELF MFR # 2002651095 # FLAP MFR # 2001659024 # APPLIANCE COMPONENTS RV; Label Instruction MFR # 2002354005 # WIRE SHELF MFR # 200652044 # WASHER MFR # 2000341022 # PLUG MFR # 2002376008 # TRAY,ICE W/RELEASER MFR # 2002337000 # COVER MFR # 2002358006 # INSULATION MFR # 2002403000 # INSULATION MFR # 2002402002 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # INSTRUCTION PLATE MFR # 2007008010 # KNOB,PIEZO MFR # 2002669006 # APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027 # Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032 # KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024 # S,KNOB 3-W SWITCH,BRN/BLK MFR # 2002423057 # Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description # PANEL,CONTROL YELLOW MFR # 2002664056 # LOCK NUT SNJ 1915 MFR # 7337813062 # PROTECTION PLATE MFR # 2002625008
Cabinet Assembly RM36C
Dometic RM36 cabinet assembly rm36c — parts list sheet Full-resolution diagram + every part number →
Components 52 items # APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005 # SPACER MFR # 2002266019 # SCREWS RM10 0 MFR # 7241328017 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007 # HOLDER MFR # 2002796007 # PIN,RETAINING MFR # 2001281019 # PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # WASHER,LOCK F/UPPER HINGE MFR # 7352160019 # RADIATOR FLANGE MFR # 2002302004 # SCREW MFR # 7295281658 # SNAP SPRING MFR # 2000547006 # STOP,SHELF MFR # 2002635007 # PLUG, FACE WHITE MFR # 2002352009 # APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017 # CABINET BASE MFR # 2002533079 # NUT MFR # 2001674007 # COVER MFR # 2002395016 # APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007 # APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002 # APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009 # BRACKET, ROLLER MFR # 171885007 # ROLLER MFR # 171886005 # WARNING LABEL MFR # 2007048008 # APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097 # SHUTTER USE 172319097 MFR # 172319071 Superseded: see description # GASKET, FREEZER SHUTTER MFR # 171893001 # SHELF MFR # 2002651095 # FLAP MFR # 2001659024 # APPLIANCE COMPONENTS RV; Label Instruction MFR # 2002354005 # WIRE SHELF MFR # 200652044 # WASHER MFR # 2000341022 # PLUG MFR # 2002376008 # TRAY,ICE W/RELEASER MFR # 2002337000 # COVER MFR # 2002358006 # INSULATION MFR # 2002403000 # INSULATION MFR # 2002402002 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # INSTRUCTION PLATE MFR # 2007008010 # KNOB,PIEZO MFR # 2002669006 # APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027 # KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024 # Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032 # S,KNOB 3-W SWITCH,BRN/BLK MFR # 2002423057 # Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description # PANEL,CONTROL YELLOW MFR # 2002664056 # LOCK NUT SNJ 1915 MFR # 7337813062 # PROTECTION PLATE MFR # 2002625008
Switch Control 12-110V RM36C
Dometic RM36 switch control 12-110v rm36c — parts list sheet Full-resolution diagram + every part number →
Components 17 items # THERMOSTAT CABLE MFR # 2002591036 # APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001 # BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # SWITCH ASM 3 WAY MFR # 2007176007 # PLATE USE 2007176007 MFR # 2002589006 Superseded: see description # SWITCH, CONTROL 3-WAY MFR # 2002681027 # SWITCH, SELECTOR MFR # 2007034024 # SWITCH MFR # 2002697007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SEALING RING MFR # 7356819115 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # PROTECTION COVER MFR # 2002698005 # CABLE W/FUSE RM66 MFR # 2002702005 # APPLIANCE COMPONENTS RV; Fuse 16 Amp MFR # 2002578009
Gas-electric Assembly

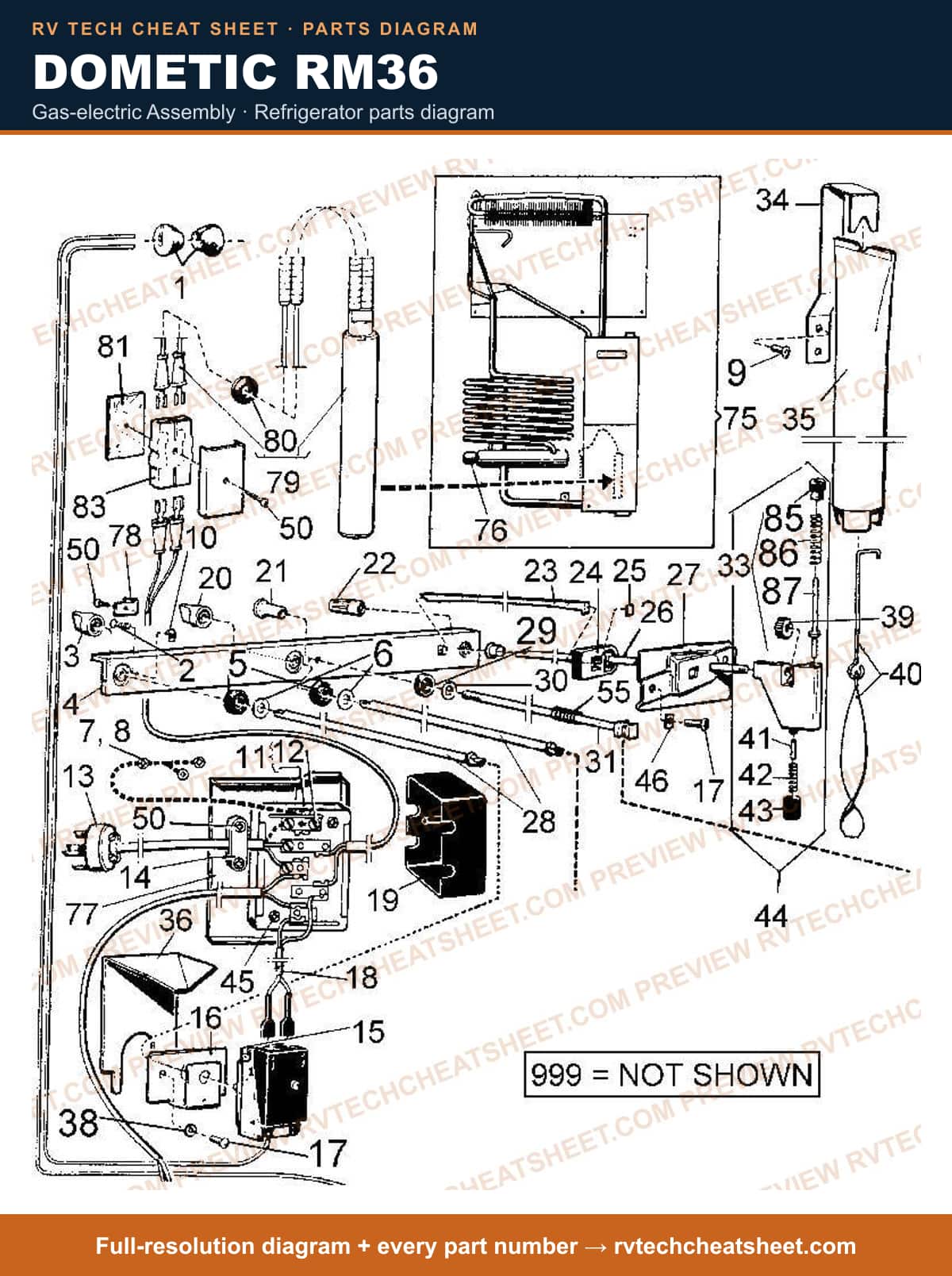

Dometic RM36 gas-electric assembly — parts list sheet Full-resolution diagram + every part number →
Components 70 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # SCREW MFR # 7295281658 # Appliance Components RV; Knob Electric T-Stat; White Knob with Gray Writing MFR # 2002423016 # Panel, Control MFR # 2002228001 # SEALING RING MFR # 2002224018 # WASHER RM36E MFR # 7344974014 # SCREWS RM10 0 MFR # 7241328017 # SPRING WASHER MFR # 7351136010 # Screw, LKXS B6X8, Z. PL. MFR # 7295277516 # Lock Nut SNJ 1915 MFR # 7331813062 # BLOCK, TERMINAL RM36 - RM100 MFR # 581557709 # Screw, KCS 3.5X5, N1. PL. MFR # 7232250030 # PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description # APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012 # T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description # BRACKET T-STAT MFR # 2890034008 # SCREW #17 MFR # 7241289011 # CABLE F/T-STAT MFR # 173193020 # APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728 # Refrigerator Control Knob; Replacement For Dometic RM75/ RM36/ RM45A; Thermostat Control Knob; White MFR # 2002423008 # Knob, Pull Orange MFR # 2002426001 # Appliance Components RV; Knob Turn Lighter MFR # 2002425003 # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2002222012 # APPLIANCE COMPONENTS RV; Packing MFR # 2002304000 # APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008 # Appliance Components RV; Shaft F/Lighter RM36 MFR # 2890019017 # APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007 # APPLIANCE COMPONENTS RV; Shaft MFR # 2002300016 # RING,SEALING MFR # 2002224000 # WASHER RM66 MFR # 7344908012 # Rod MFR # 2002226013 # Igniter Striker MFR # 944023001 # Support For Flue MFR # 2890027002 # Flue Top RM36 MFR # 2890026020 # PROTECTION PLATE MFR # 2002445001 # Appliance Components RV; Wheel Igniter Knurled MFR # 2890016005 # Baffle, Flue MFR # 2890028000 # FLINT MFR # 270127004 # SPRING MFR # 2890018001 # Refrigerator Evaporator Door Spring Holder; Use With Dometic Refrigerator Model RM45 MFR # 2890008002 Superseded: see description # Spark Lighter Complete MFR # 2890030000 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # WASHER MFR # 2002351001 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SCREW MFR # 7298285402 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2002381008 # Cooling Unit MFR # 9282564005N # Reman Cooling Unit RM36, 36A (UPS) MFR # 9282564005R # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Fastening Plate MFR # 2002447007 # N/A MFR # 271020000 # APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009 # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description # ELEMENT,HEATING USE 173718016 MFR # 173717018 Superseded: see description # ELEMENT,HEATING, ALT 48-9502 135w/110V 2WIRE 5/16 X 4 1/2 MFR # 173718016 # Element, Heating Use 173708009 135W 3W REV 3-8-91 MFR # 173707001 Superseded: see description # Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034 # ELEMENT, HEATING 135w/110V 2WIRE 5/16 X 4 1/2 MFR # CS000009 # BUSHING MFR # 149585010D # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # Connection Block RM45 MFR # 2400298004 # Bushing for Guide Pin MFR # 2890022003 # Spring for Guide Pin RM36 MFR # 2890021005 # N/A Guide Pin for Lighter MFR # 2890020007
Door Assembly
Dometic RM36 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 33 items # GASKET USE 3103689 MFR # 2001111075 Superseded: see description # Refrigerator Gasket; Use With Dometic Refrigerator RM76D MFR # 3108700489 Superseded: see description # DOOR LINER MFR # 2002380000 # INSERT,HINGE PIN MFR # 171563000 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # DOOR FRAME, VERTICAL MFR # 2002342026 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # DOOR FRAME, UPPER HOR. MFR # 2002343008 # DOOR FRAME, UPPER HOR. MFR # 2002343032 # DECORATION STRIP MFR # 2002344048 # DECORATION STRIP MFR # 2002499008 # DECORATION STRIP MFR # 2002498000 # NAMEPLATE MFR # 2002345003 # N/A DOOR, DAIRY SMOKE MFR # 2002258016 # NAME PLATE DOMETIC MFR # 2002256002 # BOTTLE HOLDER FOR DR LINE R W/ FASTENING STRIPS MFR # 581702016 # APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007 # SHELF, DOOR SMOK E RM3 MFR # 2002262042 # REINFORCING STRIP, HORIZONTAL MFR # 2001586037 # LABEL, INSTRUCTION MFR # 2002356000 # REINFORCING STRIP VERTICAL MFR # 2001585062 # DOOR PLATE/INSULATED MFR # 2002294003 # DOOR FRAME, ANODIZED ALUMINUM MFR # 2002340004 # PANEL, DOOR MFR # 2002264022 # PANEL, DOOR MFR # 2002264071 # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description # SCREW MFR # 7295279652 # FASTENING STRIP OUTER FOR BOTTLE HOLDER MFR # 168940005 # FASTENING STRIP INNER FOR BOTTLE HOLDER MFR # 168939007 # SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
Switch Control 12-100V RM36D

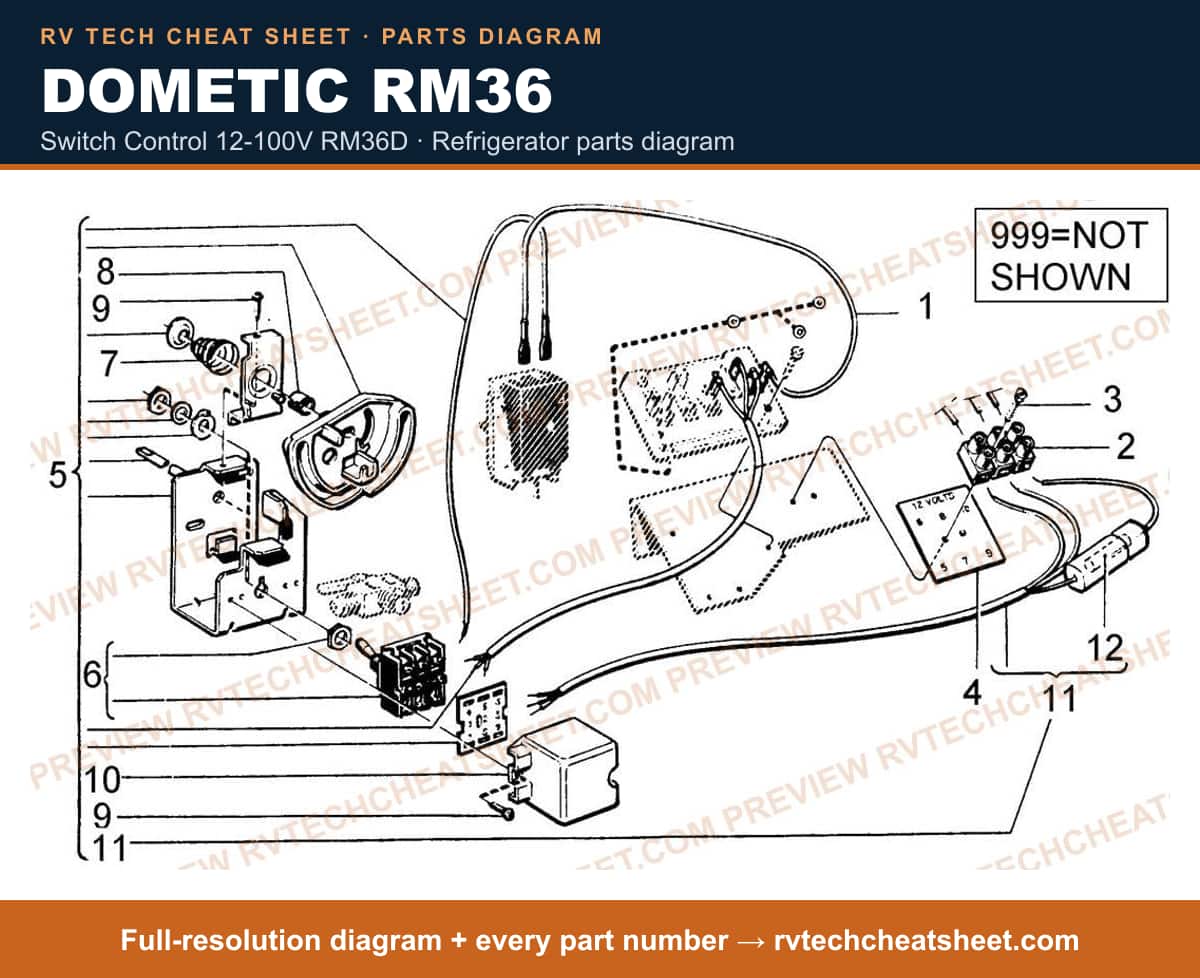

Dometic RM36 switch control 12-100v rm36d — parts list sheet Full-resolution diagram + every part number →
Components 17 items # THERMOSTAT CABLE MFR # 2002591036 # BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description # APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001 # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # PLATE USE 2007176007 MFR # 2002589006 Superseded: see description # SWITCH ASM 3 WAY MFR # 2007176007 # SWITCH, CONTROL 3-WAY MFR # 2002681027 # SWITCH, SELECTOR MFR # 2007034024 # SWITCH MFR # 2002697007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SEALING RING MFR # 7356819115 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # PROTECTION COVER MFR # 2002698005 # CABLE W/FUSE RM66 MFR # 2002702005 # APPLIANCE COMPONENTS RV; Fuse 16 Amp MFR # 2002578009
Door Assembly RM36E

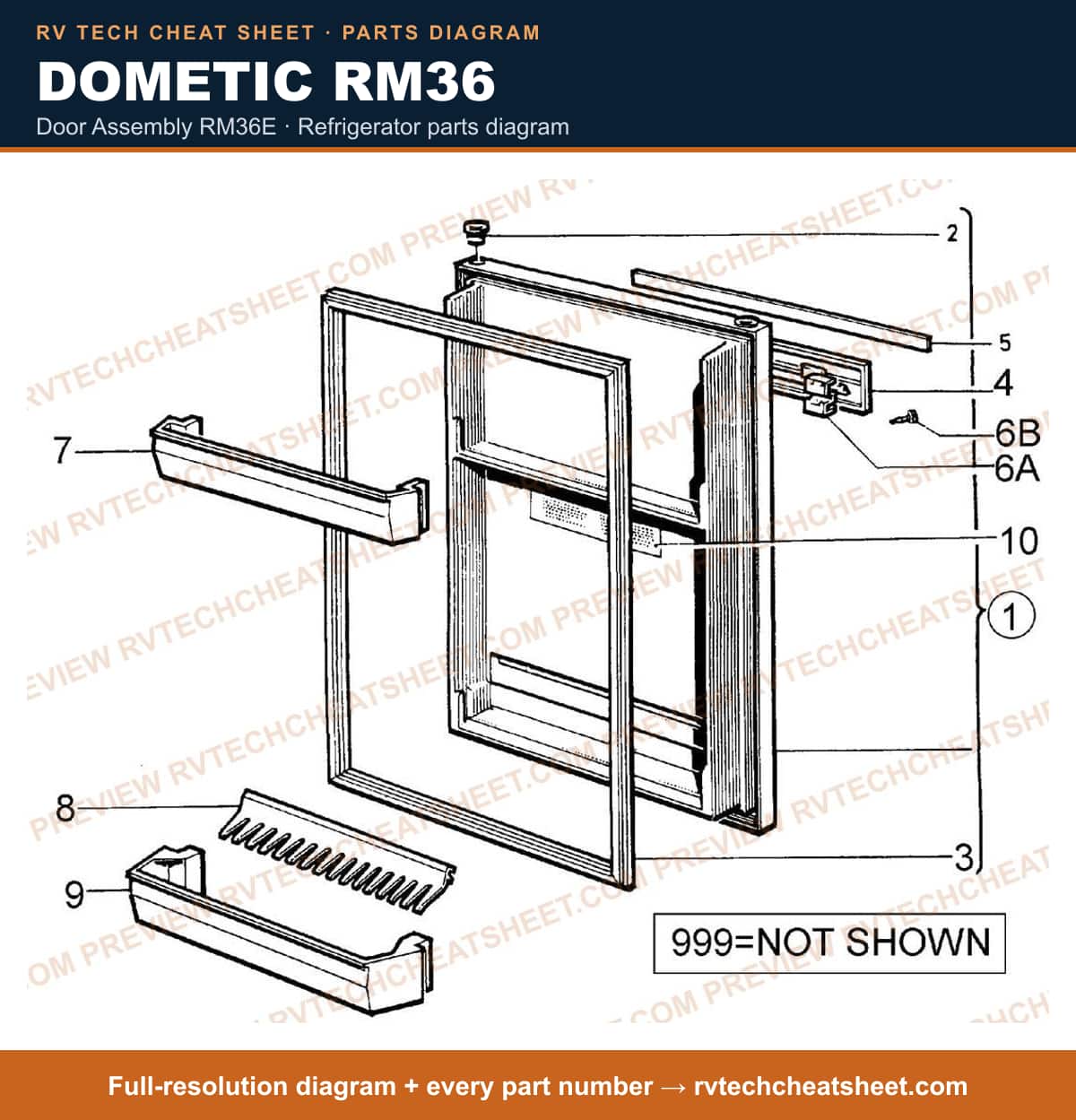

Dometic RM36 door assembly rm36e — parts list sheet Full-resolution diagram + every part number →
Components 16 items # DOOR WITHOUT COMPARTMENTS MFR # 2002771042 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # GASKET, DOOR 21" X 26-1/2" MFR # 2002626048 # DECORATION STRIP RM36 E MFR # 2002675037 # NAME PLATE "DOMETIC GAS-ELECTRIC" MFR # 2002777007 # FASTENING PLATE MFR # 2002707004 # SCREW RXS B4X6, 5 Z. PL. MFR # 7295221027 # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description # HOLDER, BOTTLE USE 2002794168 MFR # 2002794002 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # SHELF, DOOR SMOK E RM3 MFR # 2002262042 # LABEL, INSTRUCTION MFR # 2002356000
Cabinet Assembly RM36A

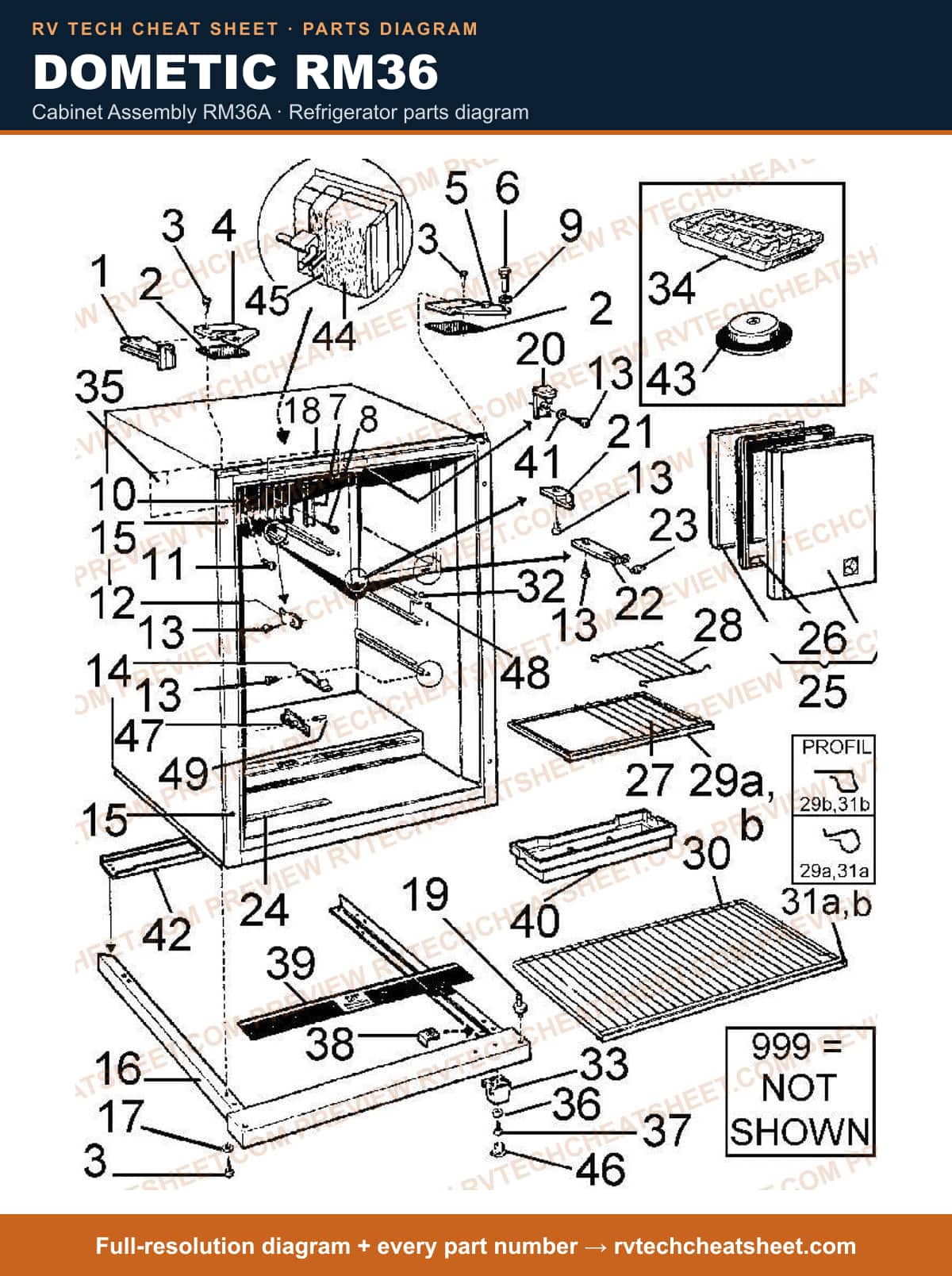

Dometic RM36 cabinet assembly rm36a — parts list sheet Full-resolution diagram + every part number →
Components 58 items # APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005 # SPACER MFR # 2002266019 # SCREW, RX 5X10 Z. PL. MFR # 7241325013 # APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002350011 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # WASHER,LOCK F/UPPER HINGE MFR # 7352160019 # RADIATOR FLANGE MFR # 2002302004 # SCREW, RX5X16, STAINLESS (LATER VERSION) MFR # 7241329403 # SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402 # SNAP SPRING MFR # 2000547006 # SCREW MFR # 7295281658 # STOP,SHELF MFR # 2002635007 # PLUG, FACE WHITE MFR # 2002352009 # CABINET BASE MFR # 2002393003 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # COVER MFR # 2002395016 # APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007 # APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002 # APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009 # BRACKET, ROLLER MFR # 171885007 # ROLLER MFR # 171886005 # WARNING LABEL MFR # 2002235006 # SHUTTER USE 172319097 MFR # 172319071 Superseded: see description # APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097 # GASKET, FREEZER SHUTTER MFR # 171893001 # SHELF MFR # 2002651095 # FLAP MFR # 2001659024 # SHELF MFR # 2002479000 # SHELF MFR # 2002398044 # SHELF, LOWER 9 1/2"W X 16 3/4"L MFR # 2002652044 # SHELF MFR # 2002398036 # SHELF MFR # 2002479018 # PLUG MFR # 2002376008 # APPLIANCE COMPONENTS RV; S, FOOT, LEVELING MFR # 2004003006 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # COVER MFR # 2002358006 # WASHER USE 3858010022 MFR # 7344880013 Superseded: see description # S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022 # SCREW, RX5X12, Z. PL. MFR # 7241327019 # WASHER MFR # 2002389001 # N/A PLATE, INSTRUCTION MFR # 2002234009 # APPLIANCE COMPONENTS RV; Label Instruction MFR # 2002354005 # WASHER MFR # 2000341022 # PROTECTION PLATE MFR # 2002625008 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # INSULATION MFR # 2002402002 # INSULATION MFR # 2002403000 # INSULATION MFR # 2004013005 # APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001 # NUT MFR # 2001674007 # PIN,RETAINING MFR # 2001281019 # PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
Gas-electric Parts RM36D

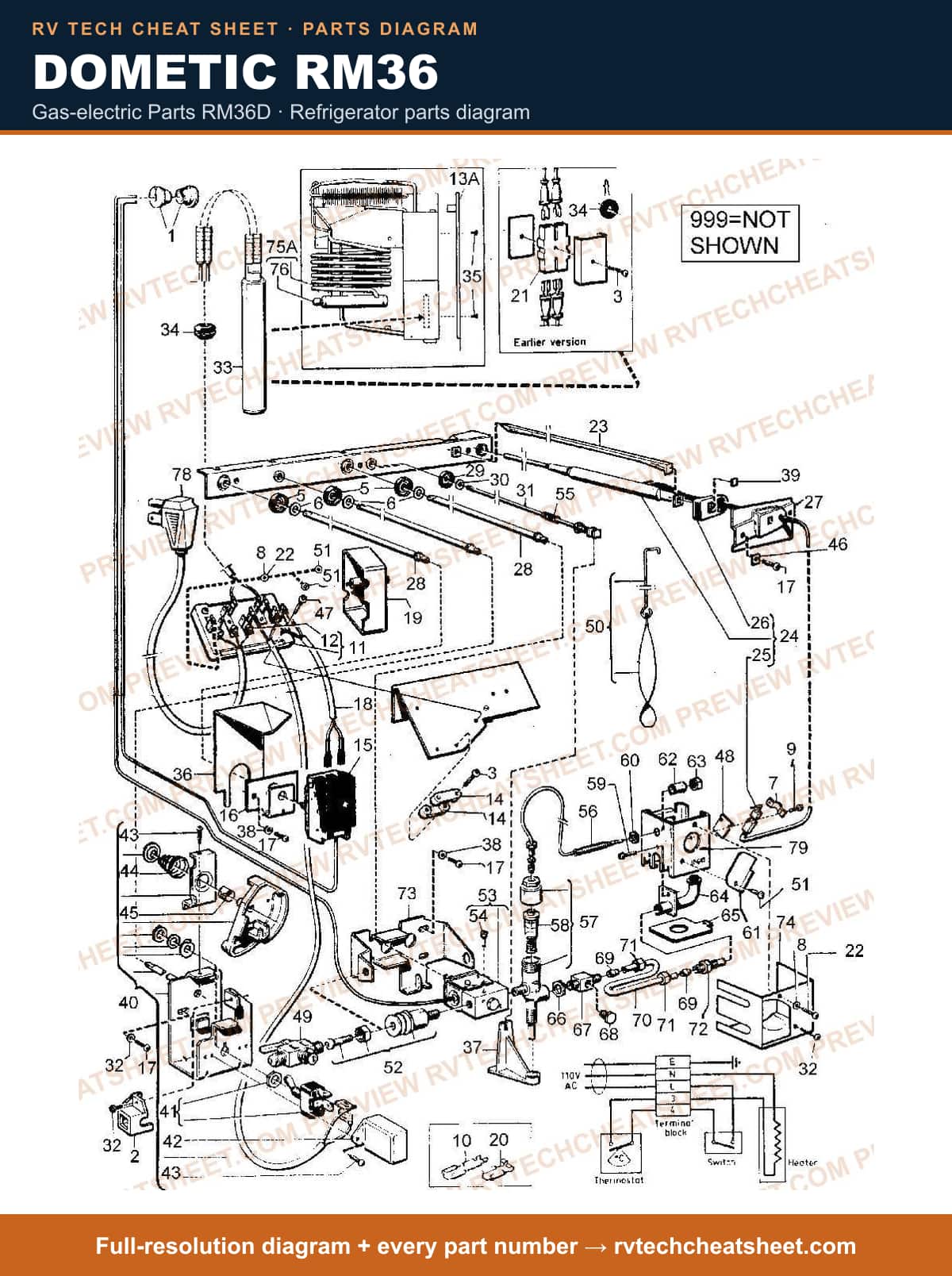

Dometic RM36 gas-electric parts rm36d — parts list sheet Full-resolution diagram + every part number →
Components 119 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # TURN PROTECTION MFR # 2002766000 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SCREW MFR # 7298285402 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SEALING RING MFR # 2002224018 # WASHER RM36E MFR # 7344974014 # APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # SCREW RXS B6X5 MFR # 7295275015 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # BLOCK, TERMINAL RM36 - RM100 MFR # 581557709 # SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311 # BOX, FLUE MFR # 2002472005 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012 # T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description # T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description # BRACKET T-STAT MFR # 2890034008 # SCREW #17 MFR # 7241289011 # CABLE F/T-STAT MFR # 173193020 # APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728 # TAB CONNECTOR, ANGLE MFR # 7604855002 # CONNECTION BLOCK MFR # 2400297004 # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2002222012 # Igniter; Use On Dometic Refrigerators; Piezo Spark MFR # 2002609036MC Superseded: see description # IGNITER,PIEZO USE 2002609036 IM3, HR3, MFR # 2002609002 Superseded: see description # LIGHTER,PIEZO ALT 2002609036MC MFR # 2002609036 # PIEZO LIGHTER MFR # 440 # IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028 # ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description # ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description # Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description # APPLIANCE COMPONENTS RV; Packing MFR # 2002304000 # APPLIANCE COMPONENTS RV; Shaft MFR # 2002300016 # RING,SEALING MFR # 2002224000 # WASHER RM66 MFR # 7344908012 # Rod MFR # 2002226013 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Element, Heating Use 48-9502 125W 110V MFR # 173711011 Superseded: see description # Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034 # APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009 # ELEMENT,HEATING USE 173718016 MFR # 173717018 Superseded: see description # ELEMENT,HEATING, ALT 48-9502 135w/110V 2WIRE 5/16 X 4 1/2 MFR # 173718016 # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description # Element, Heating Use 173708009 135W 3W REV 3-8-91 MFR # 173707001 Superseded: see description # ELEMENT, HEATING 135w/110V 2WIRE 5/16 X 4 1/2 MFR # CS000009 # Bushing MFR # 149585011 # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # PROTECTION PLATE MFR # 2002445001 # Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003 # SPRING WASHER MFR # 7351136010 # APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008 # APPLIANCE COMPONENTS RV; Control Switch 2 Way MFR # 2002670012 # APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007 # COVER MFR # 173101007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SWITCH ASM 3 WAY MFR # 2007176007 # SEALING RING MFR # 7356819115 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # INSULATION - NLA MFR # 2002442008 # VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000 # VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Baffle, Flue MFR # 2890028000 # Screw MFR # 7295340017 # APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004 # T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description # T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description # T-STAT, GAS MFR # V35P0111013 # Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC # APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021 # APPLIANCE COMPONENTS RV; Spring MFR # 2002381008 # THERMOCOUPLE, 18" MFR # 169372002MC # Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC # THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description # T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description # T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description # THERMOCOUPLE MFR # 169372000MC # QUICK CHECK MFR # 423 # T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description # VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description # VALVE, SAFETY MFR # 293165 # VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description # Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description # S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017 # MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019 # LID MFR # 2890053008 # SPACER SLEEVE MFR # 173344011 # SPACER NUT MFR # 170827000 # TUBE, BURNER MFR # 2890010008 # APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000 # APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000 # NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description # HOUSING, PRESSURE TEST - NLA MFR # 2002470009 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description # APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009 # NUT, UNION FEMALE MFR # 2902553003 # NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description # ORIFICE, #43 MFR # 2002660161 # ORIFICE, #39 USE 2890039155 MFR # 2002660153 Superseded: see description # APPLIANCE COMPONENTS RV; Orifice #39Lp MFR # 2890039155 # BRACKET MFR # 2002469001 # COVER, BURNER MFR # 2002476014 # COOLING UNIT USE 9282711002N MFR # 9282701003N Superseded: see description # COOLING UNIT RM36E MFR # 9282711002N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # BRACKET,BURNER MFR # 2002493001
Gas Breakdown RM36A
Dometic RM36 gas breakdown rm36a — parts list sheet Full-resolution diagram + every part number →
Components 58 items # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # SCREW #17 MFR # 7241289011 # SCREW, RX 5X10, Z . PL. MFR # 7241325001 # Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003 # SPRING WASHER MFR # 7351136010 # PROTECTION COVER FOR 120V SWITCH MFR # 173101007D # SWITCH FOR 120V MFR # 172168007D # CUT OFF VALVE MFR # 172807000D # Screw MFR # 7295340017 # GAS FILTER W/NIPPLE & NUT MFR # 172810004D # T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description # T-STAT, GAS MFR # V35P0111013 # T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description # BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC # APPLIANCE COMPONENTS RV; Screw Bypass S11 Alt 45- MFR # 172819047 # BYPASS SCREW S 17 MFR # 172819021D # T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description # THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description # THERMOCOUPLE, 18" MFR # 169372002MC # QUICK CHECK MFR # 423 # T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description # Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC # T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description # THERMOCOUPLE MFR # 169372000MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description # S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017 # VALVE, SAFETY; Use 293165 MFR # 2932656017 Superseded: see description # VALVE, SAFETY MFR # 293165 # Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description # VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description # MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019 # NUT MFR # 169386000D # LID MFR # 2890053008 # SPACER SLEEVE MFR # 173344011D # UNION NUT MFR # 170827000D # TUBE, BURNER MFR # 2890010008 # APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000 # LOCK NUT MFR # 173366006D # CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description # HOUSING, PRESSURE TEST - NLA MFR # 2002470009 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # OLIVE MFR # 173213000D # APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009 # UNION NUT MFR # 173215005D # ORIFICE, #43 MFR # 2002660161 # ORIFICE, #39 USE 2890039155 MFR # 2002660153 Superseded: see description # APPLIANCE COMPONENTS RV; Orifice #39Lp MFR # 2890039155 # HOLDER, VALVE BRACKET MFR # 2890033000 # BRACKET MFR # 2002469001 # SCREW, RX 4X8, Z. PL. MFR # 7241287015 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # TAB CONNECTOR, ANGLE MFR # 7604855002 # BRACKET,BURNER MFR # 2002493001 # TURN PROTECTION MFR # 2002766000 # COVER, BURNER MFR # 2002476014
Cabinet Assembly RM36E

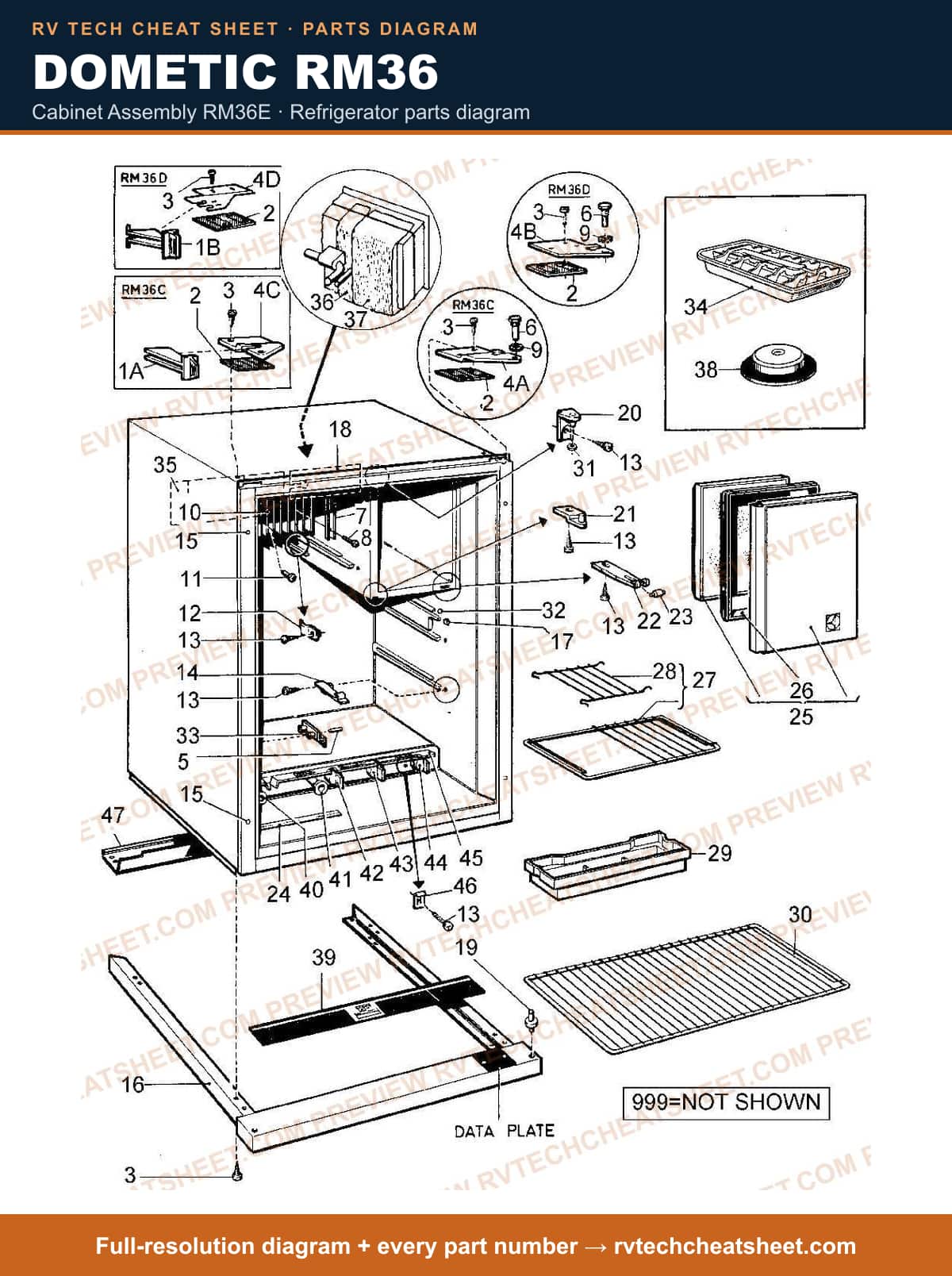

Dometic RM36 cabinet assembly rm36e — parts list sheet Full-resolution diagram + every part number →
Components 48 items # S,LOCK PIN MFR # 2002759005 # SPACER MFR # 2002266019 # SCREWS RM10 0 MFR # 7241328017 # HOLDER MFR # 2002796007 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007 # PIN,RETAINING MFR # 2001281019 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # SCREW USE 7295344407 MFR # 7295344118 Superseded: see description # WASHER,LOCK F/UPPER HINGE MFR # 7352160019 # RADIATOR FLANGE MFR # 2002302004 # SCREW MFR # 7295414119 # SNAP SPRING MFR # 2000547006 # SCREW MFR # 7295281658 # STOP,SHELF MFR # 2002635007 # APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017 # CABINET BASE MFR # 2002533079 # NUT MFR # 2001674007 # APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007 # APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002 # ROLLER MFR # 171886005 # WARNING LABEL MFR # 2007048008 # APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097 # SHUTTER USE 172319097 MFR # 172319071 Superseded: see description # GASKET, FREEZER SHUTTER MFR # 171893001 # SHELF MFR # 2002651095 # PROTECTION PLATE MFR # 2002625008 # APPLIANCE COMPONENTS RV; Label Instruction MFR # 2002354005 # SHELF, LOWER 9 1/2"W X 16 3/4"L MFR # 2002652044 # WASHER MFR # 2000341020 # PLUG MFR # 2002376008 # APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001 # TRAY,ICE W/RELEASER MFR # 2002337000 # COVER MFR # 2002358006 # INSULATION MFR # 2002403000 # INSULATION MFR # 2002402002 # LOCK NUT SNJ 1915 MFR # 7337813062 # INSTRUCTION PLATE FOR GAS/ELEC. OPERATION MFR # 2007295005 # KNOB,PIEZO MFR # 2002669006 # APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027 # Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032 # KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024 # Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description # S,KNOB 3-W SWITCH,BRN/BLK MFR # 2002423057 # PANEL,CONTROL YELLOW MFR # 2002664056 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
Gas-electric Parts RM36E

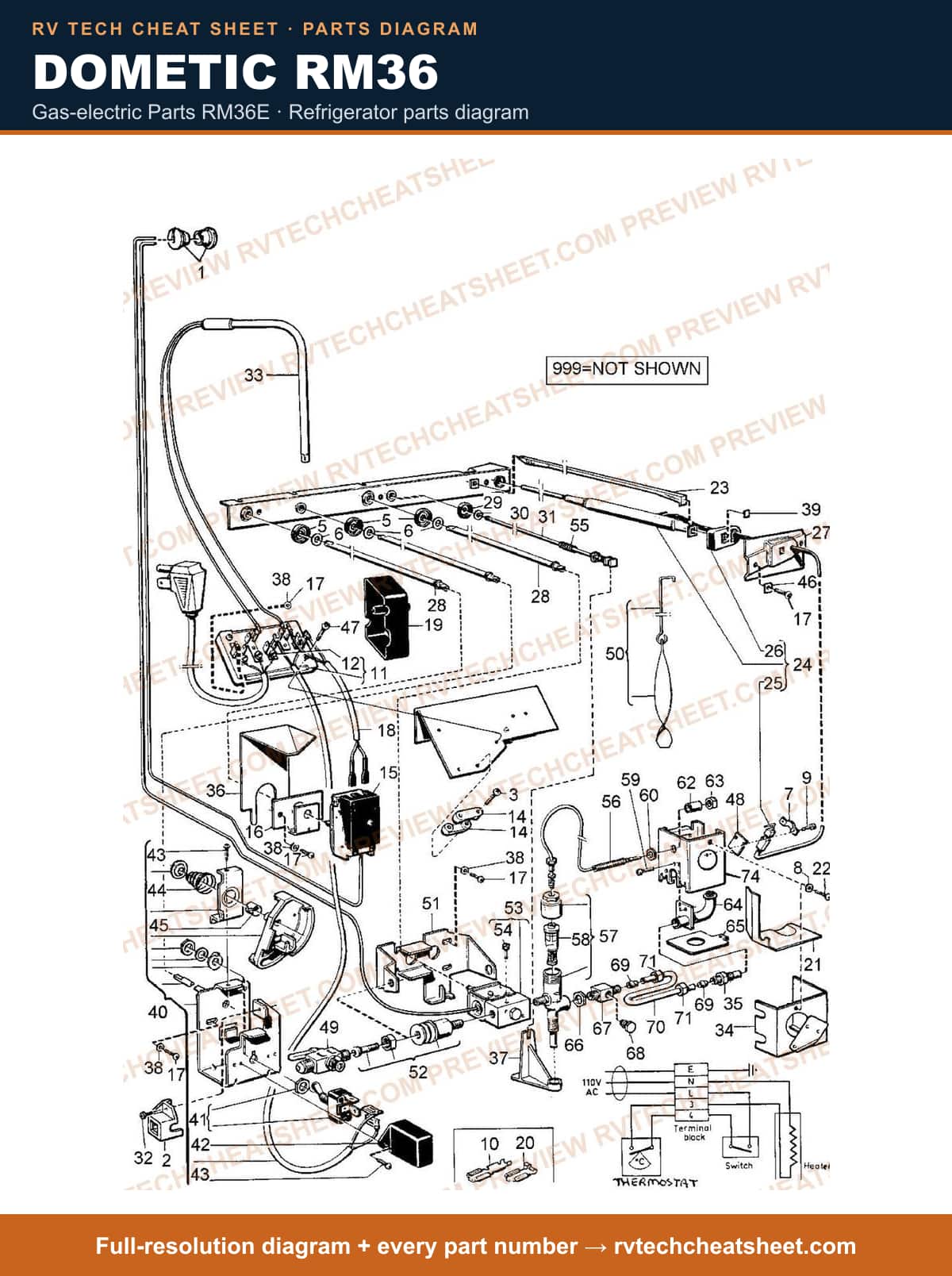

Dometic RM36 gas-electric parts rm36e — parts list sheet Full-resolution diagram + every part number →
Components 106 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # TURN PROTECTION MFR # 2002766000 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW MFR # 7298285402 # COVER MFR # 2007170000 # SEALING RING MFR # 2002224018 # WASHER RM36E MFR # 7344974014 # APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006 # SCREW RXS B6X5 MFR # 7295275015 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # BLOCK, TERMINAL RM36 - RM100 MFR # 581557709 # SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032 # T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description # T-STAT USE K50P1291 MFR # 2890032002 Superseded: see description # APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012 # BRACKET T-STAT MFR # 2890034008 # SCREW #17 MFR # 7241289011 # CABLE F/T-STAT MFR # 173193020 # APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728 # TAB CONNECTOR, ANGLE MFR # 7604855002 # BOTTOM FOR BURNER PROTECTION MFR # 2007169002 # SCREWS RM10 0 MFR # 7241328017 # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2002222012 # PIEZO LIGHTER MFR # 440 # IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028 # Igniter; Use On Dometic Refrigerators; Piezo Spark MFR # 2002609036MC Superseded: see description # IGNITER,PIEZO USE 2002609036 IM3, HR3, MFR # 2002609002 Superseded: see description # LIGHTER,PIEZO ALT 2002609036MC MFR # 2002609036 # ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description # Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description # ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description # APPLIANCE COMPONENTS RV; Packing MFR # 2002304000 # APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007 # APPLIANCE COMPONENTS RV; Shaft MFR # 2002300016 # RING,SEALING MFR # 2002224000 # WASHER RM66 MFR # 7344908012 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # HEATING ELEMENT-12VDC/135W MFR # 173723016 # ELEMENT,HEATING, ALT 48-9502 135w/110V 2WIRE 5/16 X 4 1/2 MFR # 173718016 # ELEMENT,HEATING USE 173718016 MFR # 173717018 Superseded: see description # ELEMENT,HEATING USE 173723016 MFR # 173722018 Superseded: see description # BURNER PROTECTION MFR # 2007166008 # APPLIANCE COMPONENTS RV; Orifice #38 MFR # 2002660146 # N/A ORIFICE,BURNER #32 (BUTANE) MFR # 2002660138 # PROTECTION PLATE MFR # 2002445001 # Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003 # SPRING WASHER MFR # 7351136010 # APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008 # APPLIANCE COMPONENTS RV; Control Switch 2 Way MFR # 2002670012 # APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007 # COVER MFR # 173101007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SWITCH ASM 3 WAY MFR # 2007176007 # SEALING RING MFR # 7356819115 # WASHER MFR # 2002351001 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # INSULATION - NLA MFR # 2002442008 # VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000 # VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description # BAFFLE,FLUE MFR # 2007172006 # BRACKET MFR # 2002469001 # APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004 # T-STAT, GAS MFR # V35P0111013 # T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description # T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description # Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC # APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021 # APPLIANCE COMPONENTS RV; Spring MFR # 2002381008 # THERMOCOUPLE, 18" MFR # 169372002MC # QUICK CHECK MFR # 423 # THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description # T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description # Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC # THERMOCOUPLE MFR # 169372000MC # T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description # T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description # VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100 # VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description # Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description # VALVE, SAFETY MFR # 293165 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description # S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017 # MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019 # NUT, T-COUPLE ALT 45-3744 MFR # 169386000 # Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description # SPACER SLEEVE MFR # 173344011 # SPACER NUT MFR # 170827000 # TUBE, BURNER MFR # 2890010008 # APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000 # APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000 # NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description # APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009 # NUT, UNION FEMALE MFR # 2902553003 # NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description # BRACKET,BURNER MFR # 2002493001
Door Assembly RM36D

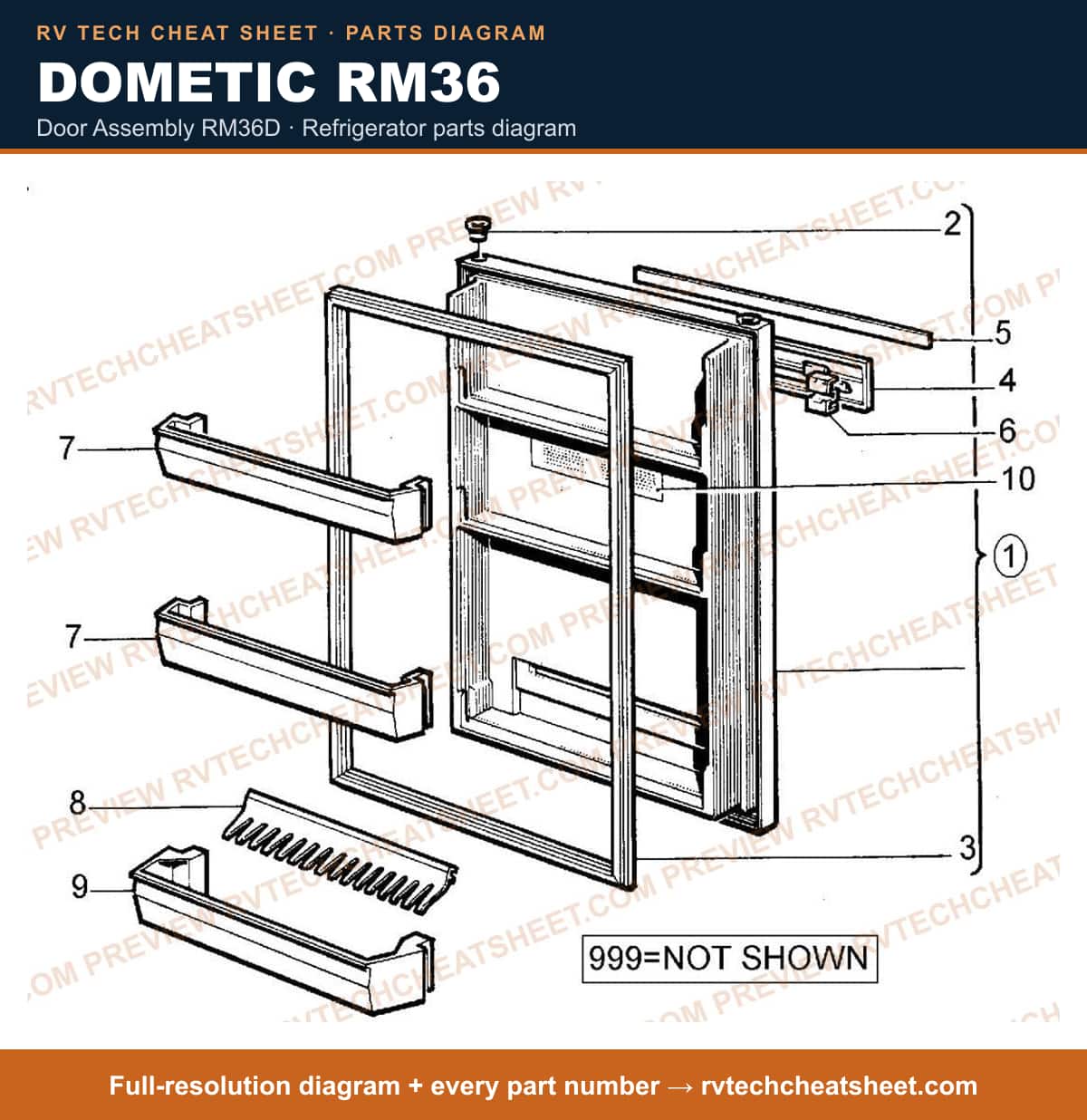

Dometic RM36 door assembly rm36d — parts list sheet Full-resolution diagram + every part number →
Components 16 items # DOOR WITHOUT COMPARTMENTS MFR # 2002771042 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # GASKET, DOOR 21" X 26-1/2" MFR # 2002626048 # DECORATION STRIP RM36 E MFR # 2002675037 # NAME PLATE "DOMETIC GAS-ELECTRIC" MFR # 2002777007 # FASTENING PLATE MFR # 2002707004 # SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # HOLDER, BOTTLE USE 2002794168 MFR # 2002794002 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # SHELF, DOOR SMOK E RM3 MFR # 2002262042 # WARNING LABEL MFR # 2002365000
Cabinet Assembly

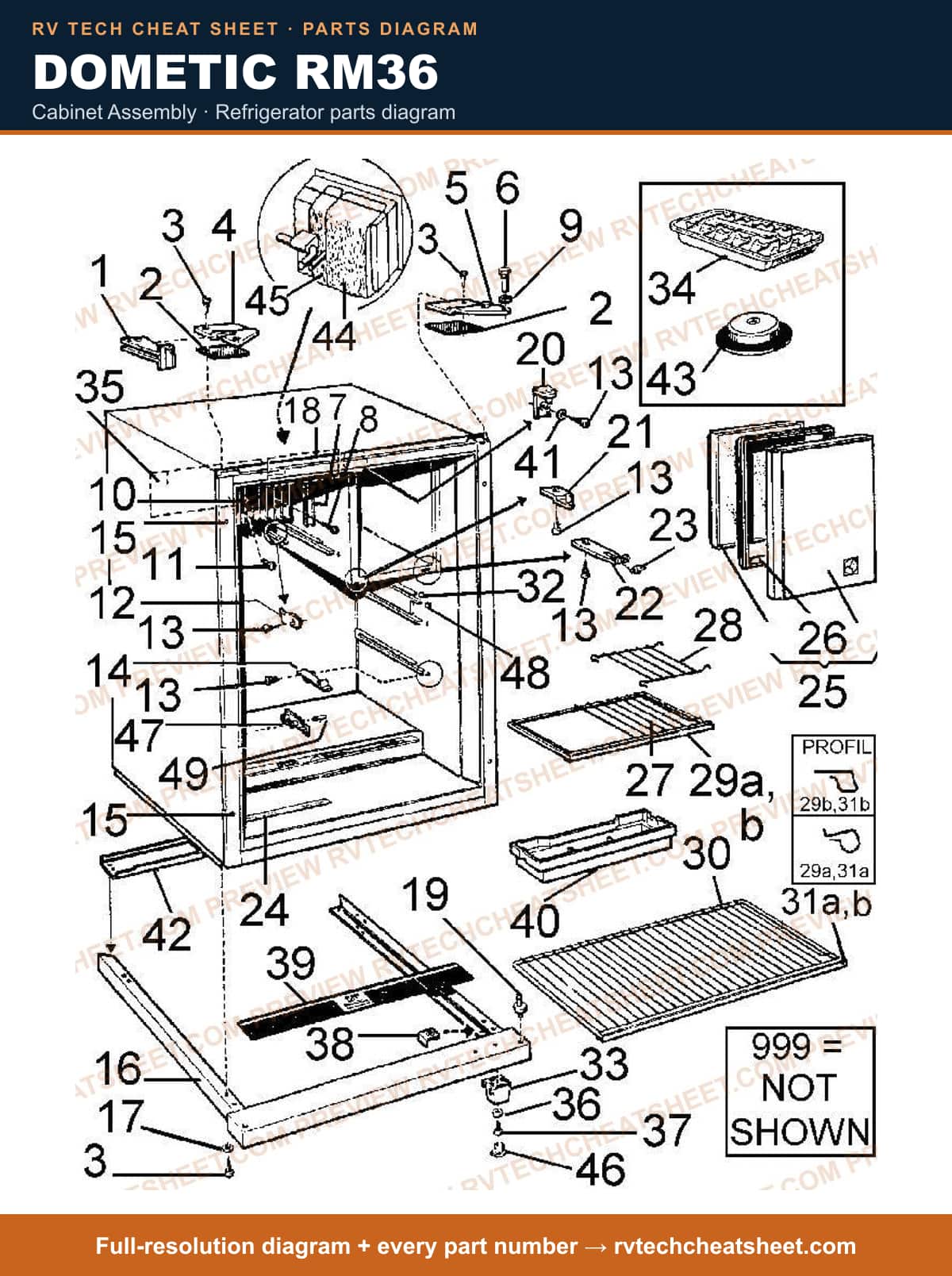

Dometic RM36 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 58 items # APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005 # SPACER MFR # 2002266019 # SCREW, RX 5X10 Z. PL. MFR # 7241325013 # APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002350011 # APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # WASHER,LOCK F/UPPER HINGE MFR # 7352160019 # RADIATOR FLANGE MFR # 2002302004 # SCREW, RX5X16, STAINLESS (LATER VERSION) MFR # 7241329403 # SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402 # SNAP SPRING MFR # 2000547006 # SCREW MFR # 7295281658 # STOP,SHELF MFR # 2002635007 # PLUG, FACE WHITE MFR # 2002352009 # CABINET BASE MFR # 2002393003 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # COVER MFR # 2002395016 # APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007 # APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002 # APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009 # BRACKET, ROLLER MFR # 171885007 # ROLLER MFR # 171886005 # WARNING LABEL MFR # 2002235006 # SHUTTER USE 172319097 MFR # 172319071 Superseded: see description # APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097 # GASKET, FREEZER SHUTTER MFR # 171893001 # SHELF MFR # 2002651095 # FLAP MFR # 2001659024 # SHELF MFR # 2002479000 # SHELF MFR # 2002398044 # SHELF, LOWER 9 1/2"W X 16 3/4"L MFR # 2002652044 # SHELF MFR # 2002398036 # SHELF MFR # 2002479018 # PLUG MFR # 2002376008 # APPLIANCE COMPONENTS RV; S, FOOT, LEVELING MFR # 2004003006 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # COVER MFR # 2002358006 # S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022 # WASHER USE 3858010022 MFR # 7344880013 Superseded: see description # SCREW, RX5X12, Z. PL. MFR # 7241327019 # WASHER MFR # 2002389001 # N/A PLATE, INSTRUCTION MFR # 2002234009 # APPLIANCE COMPONENTS RV; Label Instruction MFR # 2002354005 # WASHER MFR # 2000341022 # PROTECTION PLATE MFR # 2002625008 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # INSULATION MFR # 2002402002 # INSULATION MFR # 2002403000 # INSULATION MFR # 2004013005 # APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001 # NUT MFR # 2001674007 # PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description # PIN,RETAINING MFR # 2001281019
