Diagrams › Dometic › RM360 Dometic RM360 Parts Diagram · Gas-electric
Refrigerator · 4 assemblies · 4 diagram sheets · 198 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM360 RV refrigerator: 4 assemblies (Gas-electric, Cabinet Assembly, Door Assembly, Replacement Refrigerator) and 198 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Gas-electric
Dometic RM360 gas-electric — parts list sheet Full-resolution diagram + every part number →
Components 100 items # Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # S,THERMOCOUPLE-232MM MFR # 2931496042 # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # Screw MFR # 7295340017 # S,SWITCH,RM2410-2810 MFR # 2007432004 # Appliance Components RV; Cover Switch MFR # 2007439009 # Screw MFR # 170730014 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # TAB CONNECTOR MFR # 7602885217 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW MFR # 7298285402 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Igniter, Piezo MFR # 2007423003 # Appliance Components RV; Retainer MFR # 2007424001 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw - RXS B4X6 - NI. PL. MFR # 7295221118 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Catch, Snap Use 2930071010 MFR # 2007454008 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # SNAP CATCH FOR 115V MFR # 20077428002 # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # BURNER USE 2007503036 MFR # 2007503010 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Fuse 16 Amp MFR # 2002578009 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # Orifice #29 MFR # 2007419100 # ORIFICE, JET #29 MFR # 2890039106 # ORIFICE #32 BUTANE 360 MFR # 2007419134 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934334091N # Refrigerator Cooling Unit; Use With Dometic RM2300/ RM 2301/ RM360/ RM361 Model Refrigerators; Steel Tubing MFR # 5536 Superseded: see description # COOLING UNIT USE 2934334091N RM360 MFR # 9283349000N Superseded: see description # REMAN C/U USE 5536R (UPS) RM2300/2301 RM336/361 MFR # 9283349000R Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Element, Heating (25) 150W 110V 3/8X5 RM360,361 Bend MFR # 173734013 # ELEMENT, HEATING 125W 12V MFR # CS000045 # Element, Heating 150W 110V 3/8X5 RM360,361 Bend MFR # CS000033 # ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Channel MFR # 2007588003 # FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description # S,CAP,FLUE MFR # 2007598010 # Protection Hose MFR # 2007069046 # CONDUCTOR, LIGHT USE 2007478023 MFR # 2007478007 Superseded: see description # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2007478023 # APPLIANCE COMPONENTS RV; Rod Push MFR # 2007468024 # APPLIANCE COMPONENTS RV; Rod Push RM360 MFR # 2007468032 # APPLIANCE COMPONENTS RV; Shaft T-Stat RM360 MFR # 2007471010 # APPLIANCE COMPONENTS RV; Shaft Switch RM360 MFR # 2007475011 # Lead for 12V MFR # 2007453000 # APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009 # PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Lock, Burner Mounting MFR # 2007458025 # LABEL FOR 12/115V MFR # 2007573005 # Plate "Install Only with Kit #2-A" MFR # 2007574003 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # Locking Washer MFR # 7352146018
Cabinet Assembly

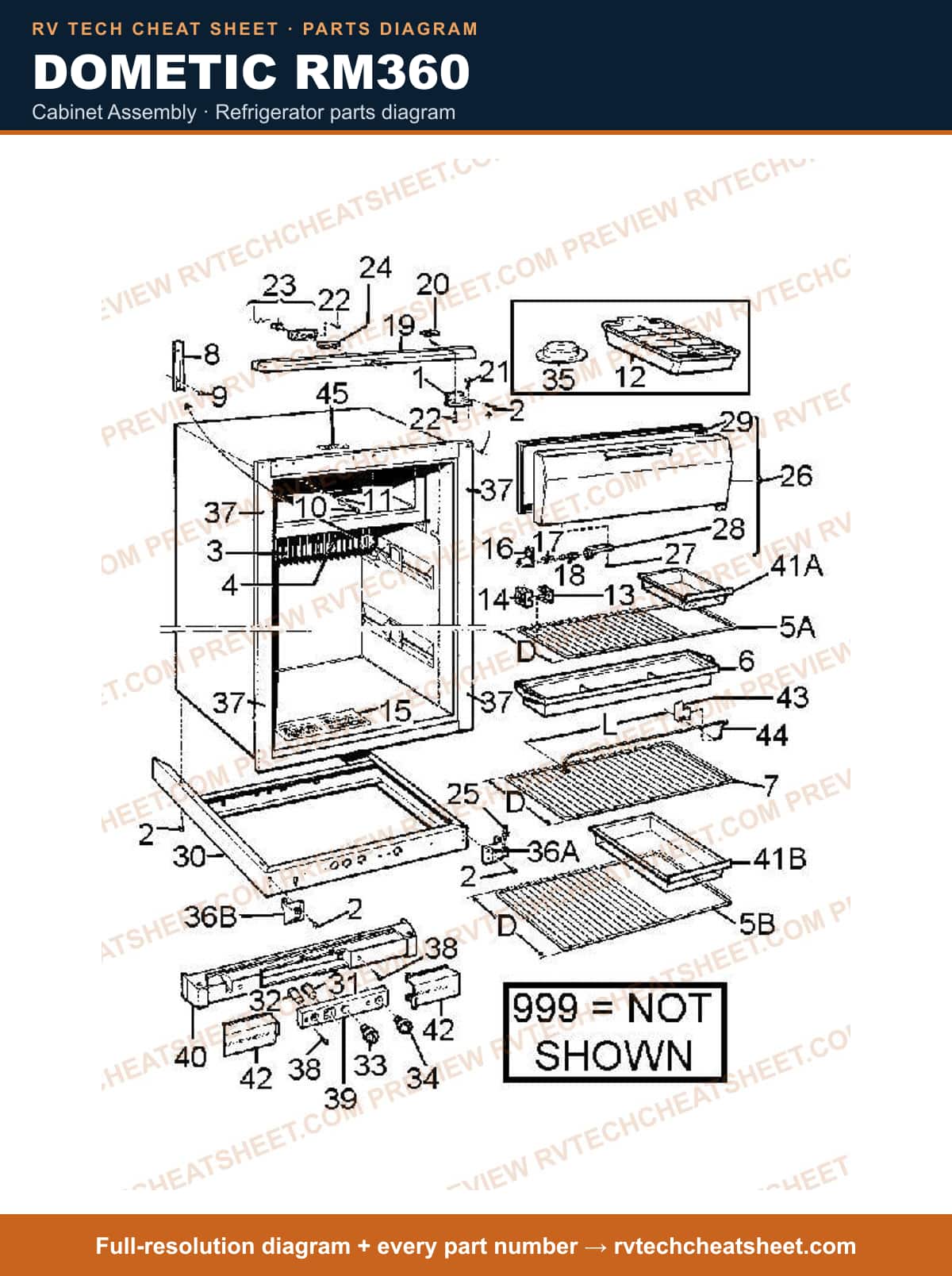

Dometic RM360 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 77 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Appliance Components RV; Flange Cooling MFR # 2007394006 # SCREW MFR # 7295414119 # Appliance Components RV; Shelf 7" 2301 7"W X 17 7 MFR # 2002650139 # SHELF, WIRE USE 2002650139 MFR # 2002650089 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description # SHELF, 10" MFR # 2002652101 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # SCREW USE 7295344407 MFR # 7295344118 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # WASHER MFR # 7344888206 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # HOLDER, RACK USE 2007393024 MFR # 2007393008 Superseded: see description # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # INTERLOCK,SHELF USE 2007392018 MFR # 2007392000 Superseded: see description # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # INSTRUCTION PLATE MFR # 2007483007 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # N/A DECOR FRONT UPPER RM360 MFR # 2007545003 # APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005 # Pin, Hinge MFR # 2007271006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # SCREW USE 7295281401 MFR # 7295281013 Superseded: see description # LATCH USE 2007546027 MFR # 2007546001 Superseded: see description # APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027 # KEY, LATCH USE 2930135021 MFR # 2007559004 Superseded: see description # APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description # Door, Freezer Use 2002239271 Brown MFR # 2002239131 Superseded: see description # S,LID,FRZ,RM2410,RM2350 MFR # 2002239271 # SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description # SCREW USE 7295286657 MFR # 7295285659 Superseded: see description # APPLIANCE COMPONENTS RV; Screw MFR # 7295286657 # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019 # Cabinet Base MFR # 2007465012 # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # APPLIANCE COMPONENTS RV; Button Push MFR # 2007479005 # BUTTON, PUSH MFR # 2007479013 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description # Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094 # Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177 # Appliance Components RV; Knob Selector 115V MFR # 2007480029 # KNOB, SELECTOR MFR # 2007480011 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # APPLIANCE COMPONENTS RV; Hinge Lower LH MFR # 2007501006 # APPLIANCE COMPONENTS RV; Hinge Lower RH MFR # 2007500008 # PLUG, FACE BROWN MFR # 2002352033 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # SCREW MFR # 7298285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # PANEL, GREY MFR # 2007463009 # PANEL, GREY MFR # 32007463058 # N/A BASE FRONT RM360 MFR # 2007461003 # DRAWER USE 2007625011 MFR # 2007625003 Superseded: see description # BOX MFR # 2007625011 # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # APPLIANCE COMPONENTS RV; Bar L Approx 14.5" Rm360 MFR # 2007337021 # LABEL RM760 MFR # 2007572007 # APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028 # CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
Door Assembly

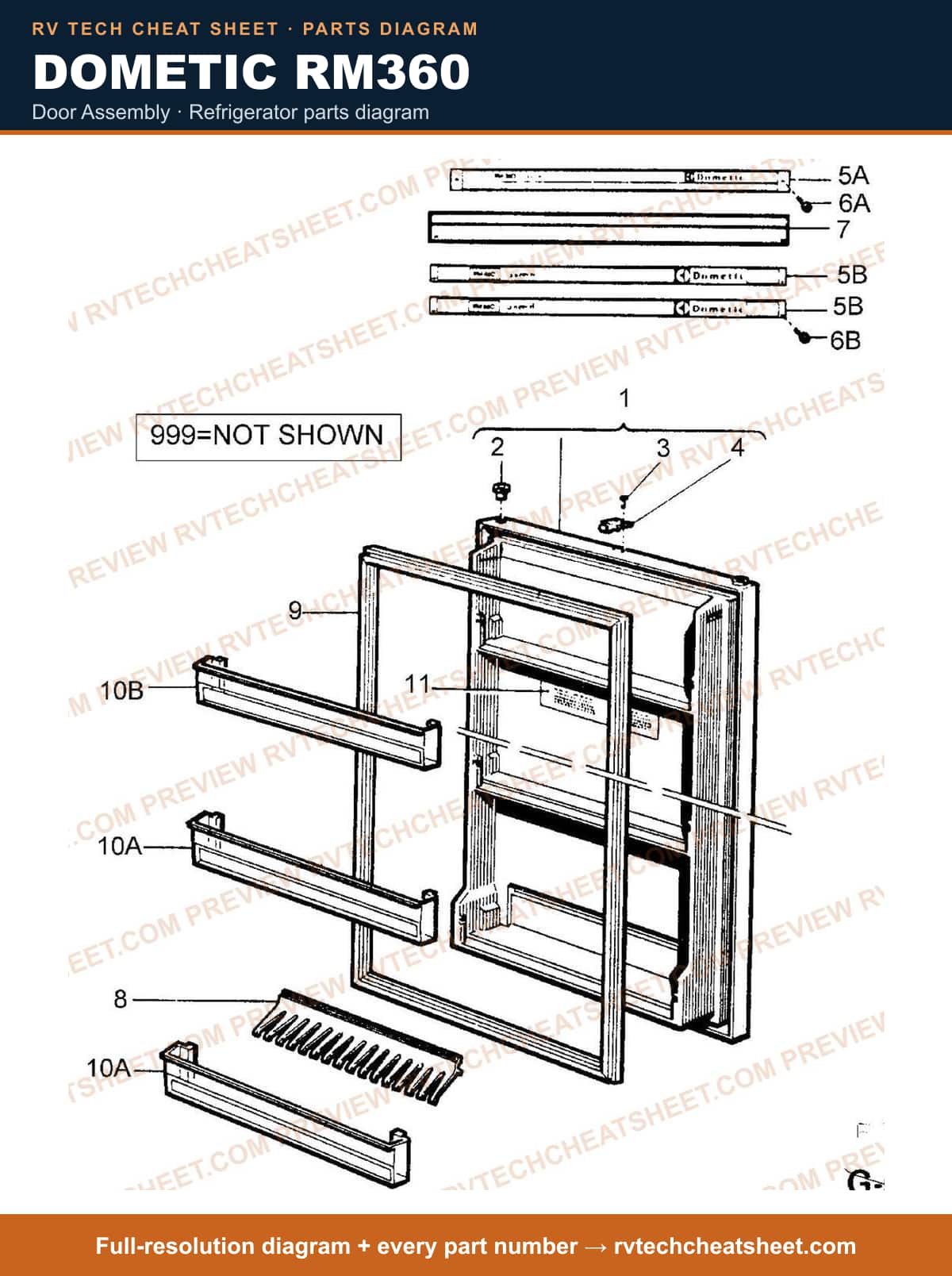

Dometic RM360 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 18 items # GASKET KIT, DOOR USE 3103689 MFR # 3103689000 Superseded: see description # Door Without Compartments RM360 MFR # 2007623073 # GASKET KIT, DOOR MFR # 3103689 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # RIVET, POP MFR # 7227835027 # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # Strip, Decor MFR # 2002685077 # Decoration Strip N MFR # 2002685192 # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # APPLIANCE COMPONENTS RV; Gasket Door MFR # 2002626113 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # LABEL, INSTRUCTION MFR # 2002356000 # HANDLE,FREEZER RM76 0 MFR # 2007542010
Replacement Refrigerator
Dometic RM360 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 7 items # REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N # REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description # Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N # Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB # REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N # REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description # 64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
