Refrigerator · 4 assemblies · 4 diagram sheets · 173 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM3600 RV refrigerator: 4 assemblies (Cabinet Assembly, Refrigerator Replacement, Door Assembly, Gas-electric Assembly) and 173 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Cabinet Assembly
Dometic RM3600 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 81 items # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description # NO PART # GIVEN BY VENDOR MFR # NPG # Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # SHELF USE 2002652226 MFR # 2002652135 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234 # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052 # LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # LATCH, TRAVEL USE 2930706052 MFR # 2930706029 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CARD, SWITCH MUST ALSO HAVE 2930710013 MFR # 4980572004 # KEY FOR SWITCH CARD MFR # 2930710013 # HOUSING, CATCH GREY/BROWN MFR # 2930707050 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # FRONT DECORATION, CPL., BROWN MFR # 2930729029 # APPLIANCE COMPONENTS RV; Trim Off Panel RM3600 MFR # 2930746025 # FRONT,DECORATION MFR # 2930749078 # HINGE, RH MFR # 2930708017 # APPLIANCE COMPONENTS RV; Hinge LH RM3600 MFR # 2930709015 # SUPPORT MFR # 2930774019 # Appliance Components RV MFR # 2007519008 # COVER, LIGHT SWITCH MFR # 2004044109 # COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description # 2004044091 MFR # 2004044091 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Pin, Hinge Upper MFR # 2930612003 # Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM3500 MFR # 2930625013 Superseded: see description # T-STAT; USE 2930814013 MFR # 2930523010 Superseded: see description # T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # Refrigerator Door Hinge; Replacement For Dometic RM2803/ RM4801/ RM2601 Refrigerators; Fits Upper Door Side MFR # 2930613001 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # Washer; Replacement For Dometic RM2301/ RM2600/ RM3600 Model Refrigerator MFR # 2930714015 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # APPLIANCE COMPONENTS RV; Bar L Approx. 13.5" Rm76 MFR # 2007337005 # APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # RETAINER USE 2930693029 MFR # 2930693011 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # SCREW MFR # 7295283407 # SCREW USE 7295283407 MFR # 7295283118 Superseded: see description # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # SCREW USE 7295344407 MFR # 7295344118 Superseded: see description # SCREW F/LID MFR # 7296279115 # APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016 # PLATE, COVER FREEZER MFR # 2930486028 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # STRIP, DECOR USE 2005111071 MFR # 2005111014 Superseded: see description # PLATE, LEFT SIDE MFR # 2930603002 # GABLE, RH MFR # 2930604000 # SCREW M5X12 Z. PL. MFR # 7243327611 # Refrigerator Support Rail; Replacement For Dometic RM3501/ RM3800/ RM2603 Refrigerators; Right Hand Side MFR # 2930602004 # Refrigerator Support Rail; Replacement For Dometic RM3801/ RM2603/ RM3800 Refrigerators; Left Hand Side MFR # 2930601006 # APPLIANCE COMPONENTS RV; Base Front 3500/3600 MFR # 2930600008 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # PIN,RETAINING MFR # 2001281019 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description # Refrigerator Vent Cover Back Plate MFR # 2930664012 # APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
Refrigerator Replacement

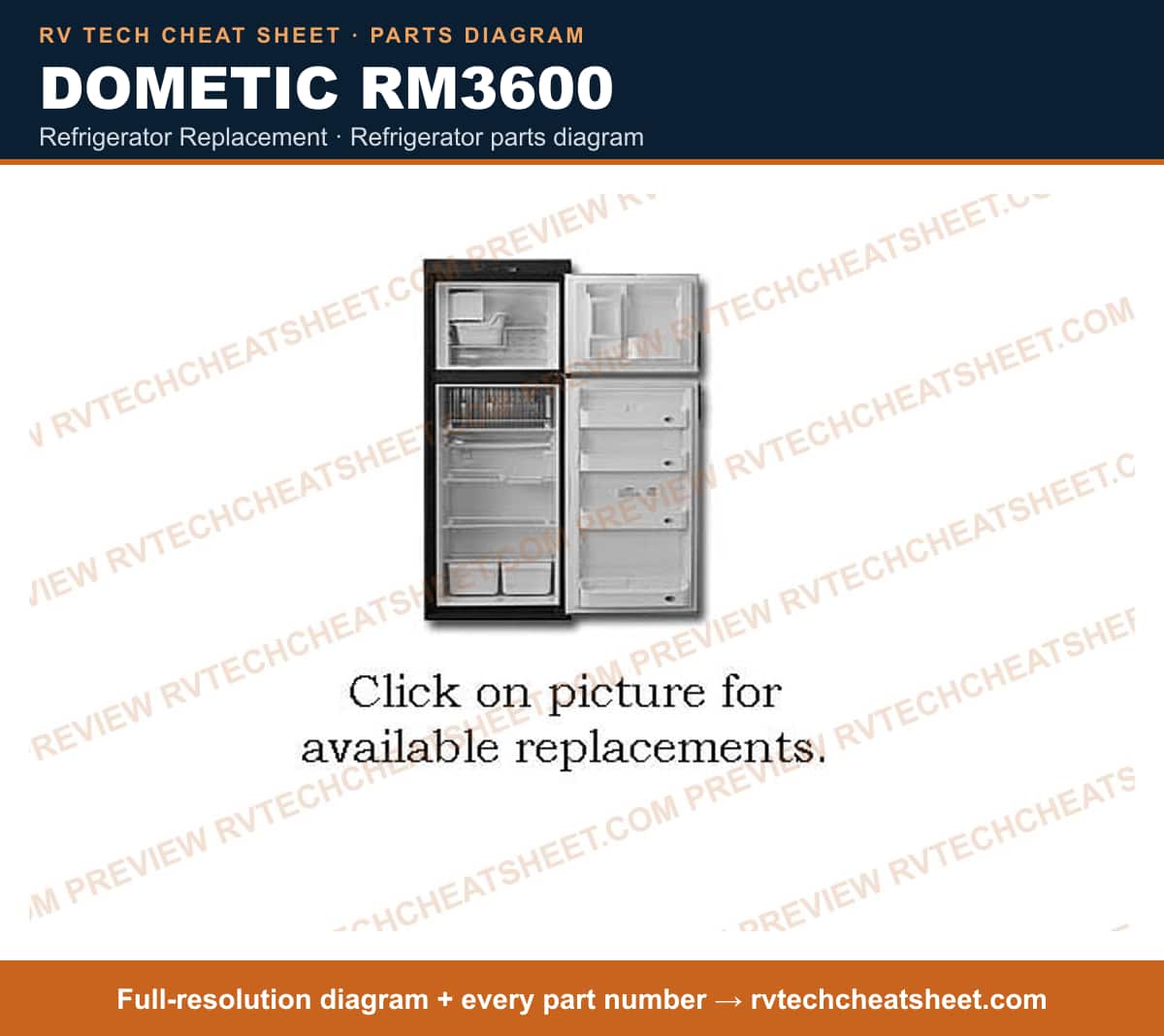

Dometic RM3600 refrigerator replacement — parts list sheet Full-resolution diagram + every part number →
Components 12 items # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS # REFER,6 CU FT USE RM2663B BLACK FRAME 3-WAY; DIMENSIONS: 53 3/4 X 23 11/16 X 24; 3-WAY DOUBLE DOOR WITH BLACK METAL FRAME. FOR BEIGE METAL FRAME USE RM3663N IS A USE # FOR RM3663N FOR BLA... MFR # RM2663BN Superseded: see description # REFER,6 CU FT 2 WAY BLK FRM 53 3/4" X 23 11/16" X 24" MFR # RM2662B # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black; With Crispers/ Shelving And Door Bins MFR # N6413N # REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description # REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH # REFER,6 CU FT. 2 WAY BLK FRAME MFR # RM3662BN # REFER,6 CU FT USE RM3663BN 53 3/4 X 23 11/16 X 24 3-WAY MFR # RM3663N Superseded: see description # PANELS,DOOR USE RM2652BA STAINLESS STEEL MFR # RM2652SS Superseded: see description # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK # REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R # Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # RM2652BA
Door Assembly

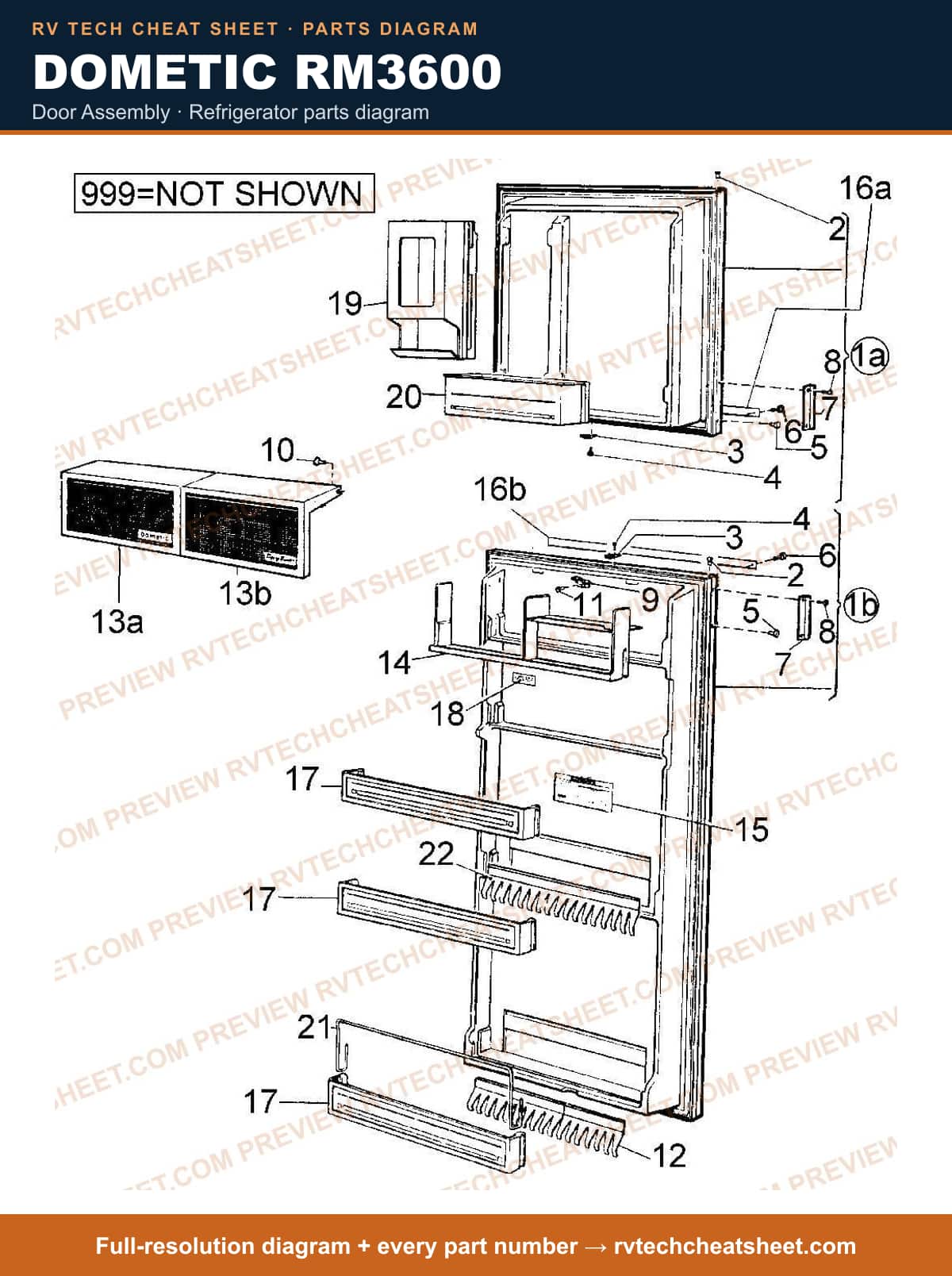

Dometic RM3600 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 40 items # Refrigerator Door; Use With Dometic Refrigerator Models RM3601/ RM3600/ RM2600; Upper MFR # 2930926130 Superseded: see description # DOOR, LOWER USE 2930927112; FOR GASKET KIT USE PART # 3103688002 MFR # 2930927120 Superseded: see description # DOOR, MAIN; MEASURES 33-7/8 LONG X 22-1/2 WIDE INSIDE DOOR LINER A REFER GASKET IS LIGHT BEIGE. FRAME IS SILVER. MFR # 2930927112 # DOOR, FREEZER USE 2930928110. FOR GASKET KIT USE 3103688002 MFR # 2930682071 Superseded: see description # APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002 # DOOR, UPPER USE 2930926130 F/GSKT KIT RM3600, 3601; THIS DOOR HAS A CREAM COLORED LINER AND GASKET. THE REPLACEMENT DOOR, PART # 2930926130, HAS A BEIGE LINER WITH BROWN GASKET. MFR # 2930928110 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # APPLIANCE COMPONENTS RV; Catch Retainer MFR # 2930609017 # NO PART # GIVEN BY VENDOR MFR # NPG # PLUG MFR # 2930736026 # APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description # SCREW RM3600 MFR # 7296227015 # HANDLE USE 45-9988 MFR # 2930763020 Superseded: see description # APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012 # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019 # RETAINER RM3601, 3500, 3501, 3600 MFR # 2930593005 # Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014 # RIVET, EXPANSION MFR # 165521022 # HOLDER,BOTTLE 7" BROWN MFR # 2930715012 # APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020 # SHUTTER LH MFR # 230541046 # DOOR USE 2930531013 RM3500 MFR # 2930541053 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930531013 # APPLIANCE COMPONENTS RV; Door Dairy S MFR # 2930541046 # APPLIANCE COMPONENTS RV; Compartment Butter MFR # 2930530015 # APPLIANCE COMPONENTS RV; Shelf Butter MFR # 2930530007 # STRIP, DECORATION RM36 00, RM3601 MFR # 2930639089 # STRIP, DECORATION MFR # 2930639063 # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # Shelf, Door; Use 2000571220 MFR # 2000571204 Superseded: see description # Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description # HOLDER, JUICE USE 2930533019 MFR # 2930533001 Superseded: see description # SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057 # DOOR RACK MFR # 200723000 # Holder, Bottle Use 2002794168; Can Use 2002794010 For Brown MFR # 2002794069 Superseded: see description # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # PANELS, DOOR PLEXIGLASS TOP & BOTTOM PANELS MFR # RM3600L
Gas-electric Assembly
Dometic RM3600 gas-electric assembly — parts list sheet Full-resolution diagram + every part number →
Components 43 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # NO PART # GIVEN BY VENDOR MFR # NPG # APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # BOARD, MODULE MFR # 3106375015 # VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description # VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description # APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272 # Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS # APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5 # APPLIANCE COMPONENTS RV; Coil Solenoid Only MFR # 2007715010 # Thermocouple MFR # 2931496091MC # T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description # Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description # T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description # THERMOCOUPLE (350MM) MFR # 2931496091 # Washer; Replacement For Dometic RM3500/ RM3600/ RM3604 Model Refrigerator MFR # 2930364001 # Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description # APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006 # COMPONENT BOX 3600 ,3500 MFR # 2930642018 # RETAINER MFR # 2930648018 # Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019 # COVER MFR # 2930653015 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # HOLDER, FUSE MFR # 7628801230 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Retainer MFR # 2930661018 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191 # ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183
