Diagrams › Dometic › RM361 Dometic RM361 Parts Diagram · Cabinet Assembly
Refrigerator · 4 assemblies · 4 diagram sheets · 200 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM361 RV refrigerator: 4 assemblies (Cabinet Assembly, Replacement Refrigerator, Gas-electric Parts, Door Assembly) and 200 manufacturer part numbers. 55 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Cabinet Assembly

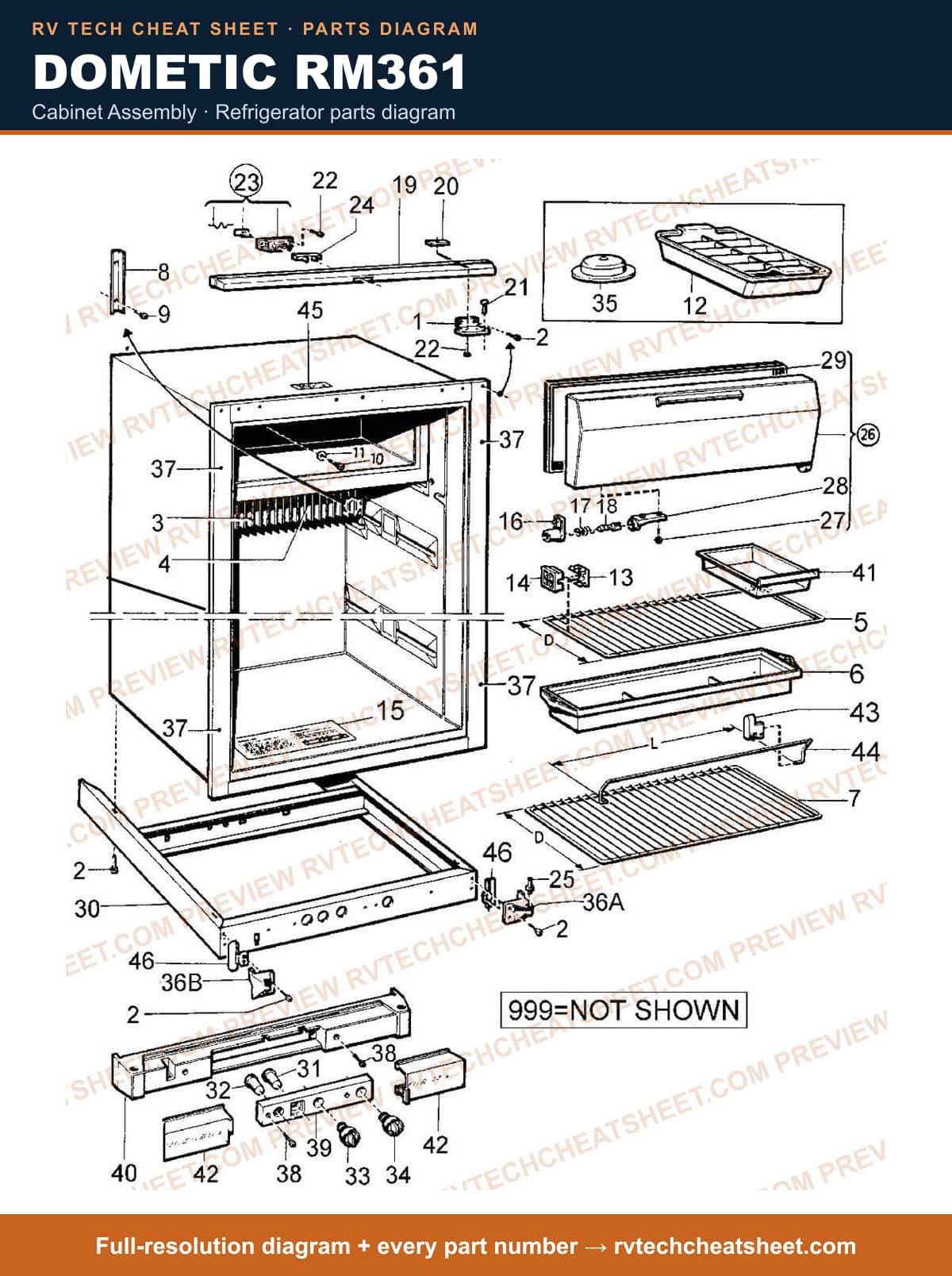

Dometic RM361 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 72 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Appliance Components RV; Flange Cooling MFR # 2007394006 # SCREW MFR # 7295414119 # SHELF, WIRE USE 2002650139 MFR # 2002650089 Superseded: see description # Appliance Components RV; Shelf 7" 2301 7"W X 17 7 MFR # 2002650139 # Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # SHELF, 10" MFR # 2002652101 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # SCREW USE 7295344407 MFR # 7295344118 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # WASHER MFR # 7344888206 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # Shelf Lock - Inner MFR # 2007392019 # INSTRUCTION PLATE MFR # 2007693001 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Spring, Freezer Door RH MFR # 2002237010 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Decoration, Front MFR # 2007545029 # APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005 # Pin, Hinge MFR # 2007271006 # SCREW USE 7295281401 MFR # 7295281013 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # LATCH USE 2007546027 MFR # 2007546019 Superseded: see description # APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027 # APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021 # KEY USE 2930135021 MFR # 2930135005 Superseded: see description # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description # SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description # Door, Freezer Use 2002239271 Brown MFR # 2002239131 Superseded: see description # S,LID,FRZ,RM2410,RM2350 MFR # 2002239271 # APPLIANCE COMPONENTS RV; Screw MFR # 7295286657 # SCREW USE 7295286657 MFR # 7295285659 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019 # Cabinet Base MFR # 2007465012 # Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # BUTTON, PUSH MFR # 2007479013 # Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description # Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094 # KNOB, SELECTOR MFR # 2007480011 # Appliance Components RV; Knob Selector 115V MFR # 2007480029 # Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000 # APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW MFR # 7298285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description # Base Front w/0 Re-Ignitor MFR # 2007461086 # BOX MFR # 2007625011 # DRAWER USE 2007625011 MFR # 2007625003 Superseded: see description # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # APPLIANCE COMPONENTS RV; Bar L Approx 14.5" Rm360 MFR # 2007337021 # LABEL MFR # 2007688001 # Plate, Sealing MFR # 2930074006
Replacement Refrigerator
Dometic RM361 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 7 items # 64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N # Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB # REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N # REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description # REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N # Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N # REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description
Gas-electric Parts
Dometic RM361 gas-electric parts — parts list sheet Full-resolution diagram + every part number →
Components 105 items # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SCREW - RXS B8X13 - Z. PL. MFR # 7295342013 # S,SWITCH,RM2410-2810 MFR # 2007432004 # Appliance Components RV; Cover Switch MFR # 2007439009 # Screw MFR # 140730011 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # TAB CONNECTOR MFR # 7602896701 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SCREW MFR # 7298285402 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Igniter, Piezo MFR # 2007423003 # Appliance Components RV; Retainer MFR # 2007424001 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw - RXS B4X6 - NI. PL. MFR # 7295221118 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch, Snap Use 2930071010 MFR # 2007454008 Superseded: see description # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # BURNER USE 2007503036 MFR # 2007503010 Superseded: see description # Burner Housing MFR # 2007502012 # APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # Orifice #29 MFR # 2007419100 # ORIFICE #32 BUTANE 360 MFR # 2007419134 # ORIFICE, JET #29 MFR # 2890039106 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW #17 MFR # 7241289011 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # REMAN C/U USE 9283349000R (UPS) RM360/2310 MFR # 2934334091R Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2300/ RM 2301/ RM360/ RM361 Model Refrigerators; Steel Tubing MFR # 5536 Superseded: see description # REMAN C/U USE 5536R (UPS) RM2300/2301 RM336/361 MFR # 9283349000R Superseded: see description # COOLING UNIT USE 2934334091N RM360 MFR # 9283349000N Superseded: see description # APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934334091N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # ELEMENT, HEATING 125W 12V MFR # CS000045 # Element, Heating 150W 110V 3/8X5 RM360,361 Bend MFR # CS000033 # ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description # Element, Heating (25) 150W 110V 3/8X5 RM360,361 Bend MFR # 173734013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Channel MFR # 2007588003 # Lock, Burner Mounting MFR # 2007458025 # Locking Washer MFR # 7352146018 # S,CAP,FLUE MFR # 2007598010 # FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description # Protection Hose MFR # 2007069046 # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2007478023 # APPLIANCE COMPONENTS RV; Rod Push MFR # 2007468024 # APPLIANCE COMPONENTS RV; Rod Push RM360 MFR # 2007468032 # Shaft - Thermostat MFR # 2007471011 # APPLIANCE COMPONENTS RV; Shaft Switch RM360 MFR # 2007475011 # Plate "Install Only with Kit #2-A" MFR # 2007574003 # LABEL, IMPORTANT MFR # 2007689009 # PLUG MFR # 2001192000 # Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # 3858022019 MFR # 3858022019 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Lead for 12V MFR # 2007453000 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description
Door Assembly

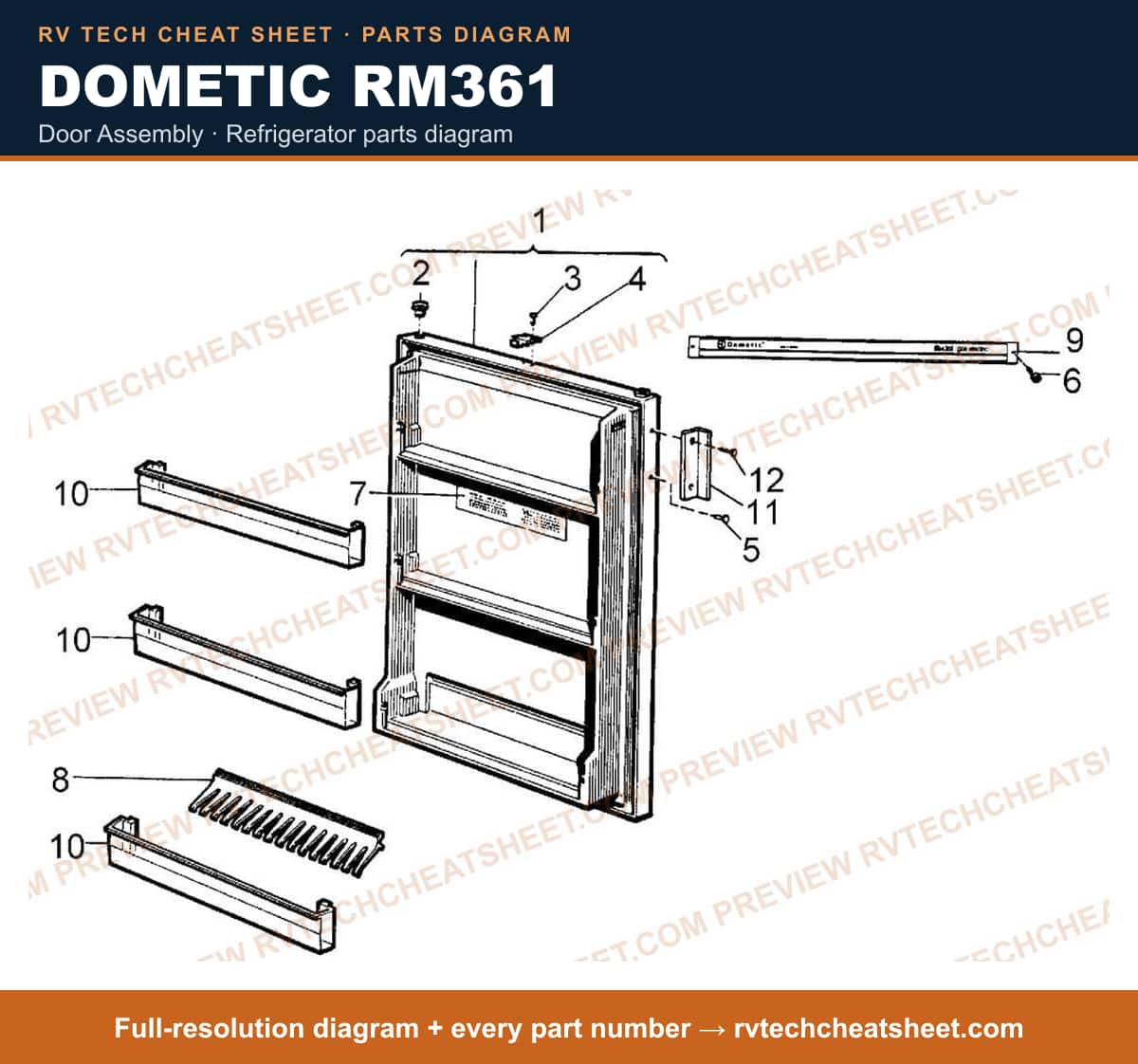

Dometic RM361 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 21 items # GASKET KIT, DOOR MFR # 3103689 # Door, Main MFR # 2930124066 # GASKET KIT, DOOR USE 3103689 MFR # 3103689000 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # RIVET, POP MFR # 7227835027 # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description # Plug Beige MFR # 20026460279 # PLUG, GREY USE 2006460055 MFR # 2006460071 Superseded: see description # Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description # Screw - RXS B4X9 - 5 Z.PL. MFR # 7295225028 # LABEL, INSTRUCTION MFR # 2002356000 # HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Decoration Strip N MFR # 2002685192 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # Appliance Components RV; Handle Door RM1303 MFR # 2930283003 # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
