Dometic RM3662 Royale Product # 921144045 Black Parts Diagram · Rear View

Refrigerator · 11 assemblies · 11 diagram sheets · 223 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3662 Royale Product # 921144045 Black RV refrigerator: 11 assemblies (Rear View, Door Assembly, Before Serial# 204XXXXXX - Burner & Controls, After Serial# 204XXXXXX - Burner & Controls, Cabinet Exterior and more) and 223 manufacturer part numbers. 64 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

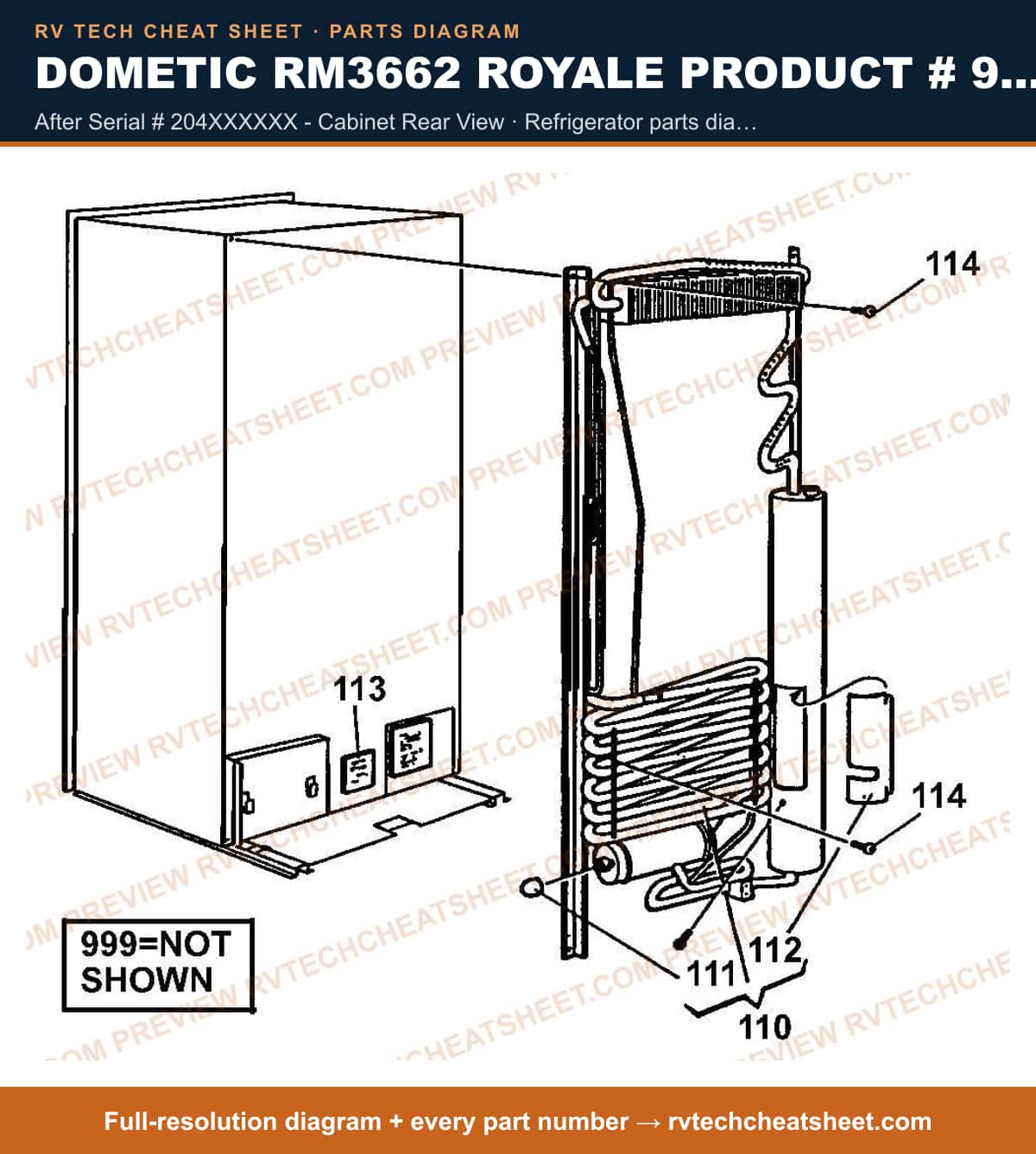

Rear View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
6. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
7. #HEATER KIT ICEMAKER MFR # 3106868015
8. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
9. #TERMINAL BLOCK,Y MFR # 2931963017
10. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
11. #WARNING LABEL MFR # 2931975003
12. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
14. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
15. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
16. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
17. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
19. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
20. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
21. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
22. #RING, HOG MFR # 3107614012
23. #VALVE KIT WATER MFR # 3108706114

Door Assembly

Components

37 items

1. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ RM2662/ RM2663/ RM2852 Model Refrigerator; Right Hand Side; Upper; Black MFR # 2932561190
2. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # 3662G
3. #Refrigerator Gasket; Replacement For Dometic RM2652/ RM3662/ RM3663 Model Refrigerators; Door Gasket MFR # 3108704374
4. #KIT, ACCESS DOOR PANEL BLACK RM2652/2662 MFR # 3106863.073C
5. #S,DOOR ASM,FF,R-6CF MFR # 2932563055
6. #DOOR PANELS, RAISED, ALUMINUM F/DM2652/2662; USE 3311889.020A MFR # 3311889.020A Superseded: see description
7. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # 3662BA
8. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # 3662L
9. #Refrigerator Door Panel; Upper/ Lower Door Panel Fits Dometic DM2652/ DM2662 Model Refrigerator MFR # 3311889.020C
10. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
11. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
12. #RACK,JUICE WHITE MFR # 2932578020
13. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
14. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
15. #Refrigerator Door Handle; Replacement For Dometic DM2862/ DM2663/ DM2652/ RM2663/ RM2852/ RM2662/ RM3662/ RM3863/ RM3663/ RM3862 Model Refrigerator; Fits Upper/ Lower Door; Black MFR # 3851174031
16. #HANDLE,DOOR USE 3851174023 BLACK MFR # 2932093038 Superseded: see description
17. #Refrigerator Door Handle; Replacement For Dometic DM2862/ DM2663/ DM2652/ RM2663/ RM2852/ RM2662/ RM3662/ RM3863/ RM3663/ RM3862 Model Refrigerator; Fits Upper/ Lower Door; Black; Also Use New Number 38511740311 MFR # 3851174023 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Screw 5 X 20 Black MFR # 2801048022
19. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
20. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
21. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
22. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
23. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
24. #Trim, Deco Use 3850381165 Black MFR # 2932642248 Superseded: see description
25. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
26. #TRIM,DECORATION USE 3850381199 W/LOGO BLACK MFR # 2932642271 Superseded: see description
27. #APPLIANCE COMPONENTS RV; TRIM, DECORATION BLACK MFR # 3850381199
28. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
29. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
30. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
31. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
32. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
33. #Refrigerator Door Panel; Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrigerator MFR # 2652BA
34. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
35. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
36. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
37. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005

Before Serial# 204XXXXXX - Burner & Controls

Components

49 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #SCREW M4 X 10 S MFR # 7241289615
5. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
6. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
7. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
8. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
10. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
12. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
13. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
14. #ELECTRODE MFR # 2932781012
15. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
16. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
17. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
18. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
19. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
20. #Nut, T-Couple MFR # 2801043015
21. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
22. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
23. #S,COVER,LESS DECALS MFR # 2931858019
24. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
25. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
26. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
27. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
28. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
29. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
30. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
31. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
32. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
33. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
34. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
35. #3858022019 MFR # 3858022019
36. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
37. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
38. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
39. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
40. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
41. #2932667039 MFR # 2932667039
42. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
43. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
44. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
45. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
46. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
47. #Fuse, 35 AMP MFR # 955036124
48. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
49. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

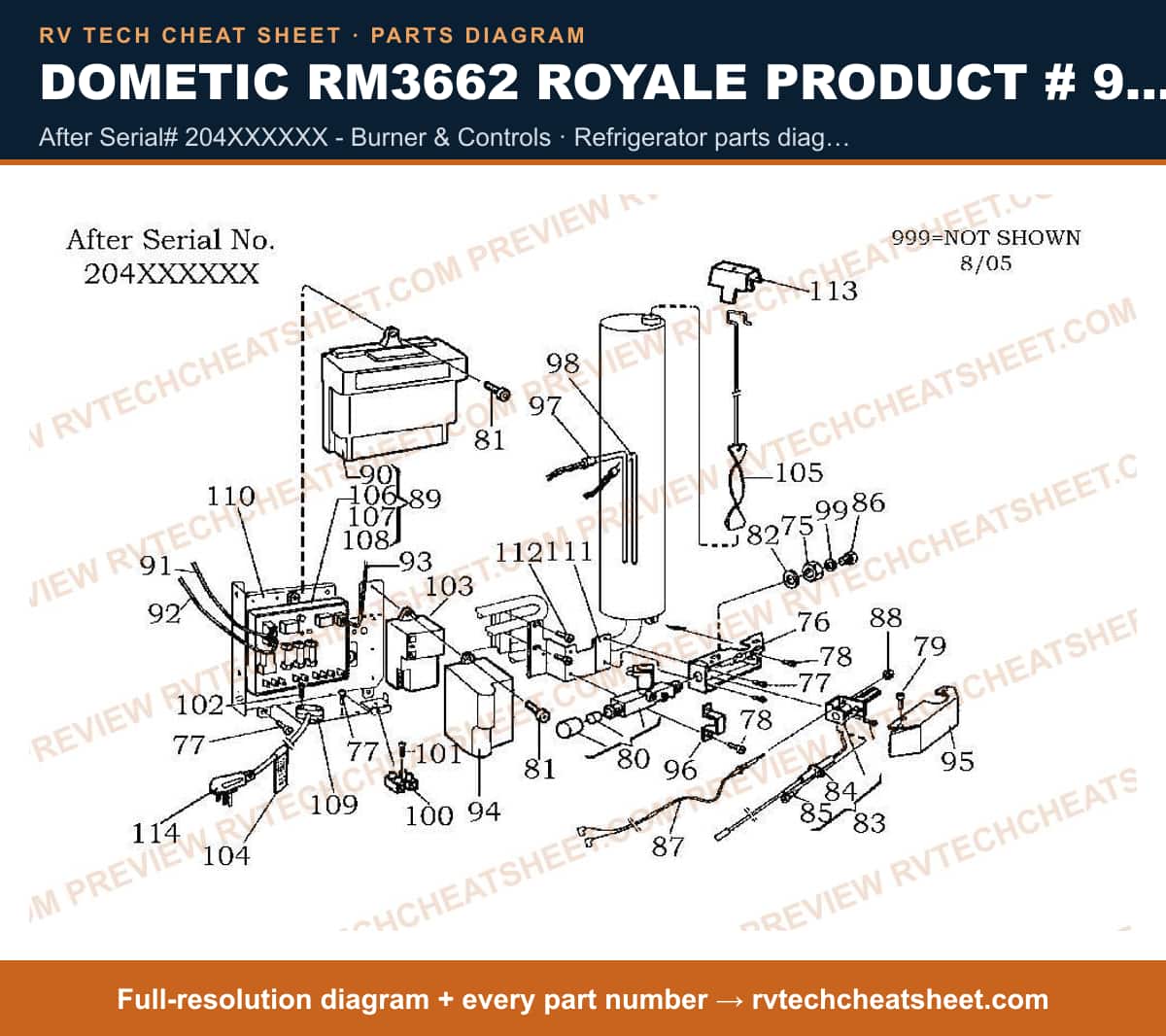

After Serial# 204XXXXXX - Burner & Controls

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #SCREW M4 X 10 S MFR # 7241289615
5. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
6. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
7. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
8. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
10. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
12. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
13. #ELECTRODE MFR # 2932781012
14. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
15. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
16. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
17. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
18. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
19. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
20. #Nut, T-Couple MFR # 2801043015
21. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
22. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
23. #S,COVER,LESS DECALS MFR # 2931858019
24. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
25. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
26. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
27. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
28. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
29. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
30. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
31. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
32. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
33. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
34. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
35. #3858022019 MFR # 3858022019
36. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
37. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
38. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
39. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
40. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
41. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
42. #2932667039 MFR # 2932667039
43. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
44. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
45. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
46. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
47. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
48. #Fuse, 35 AMP MFR # 955036124
49. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
50. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
51. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
52. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
53. #Appliance Components RV; Top, Flue MFR # 2930402009
54. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

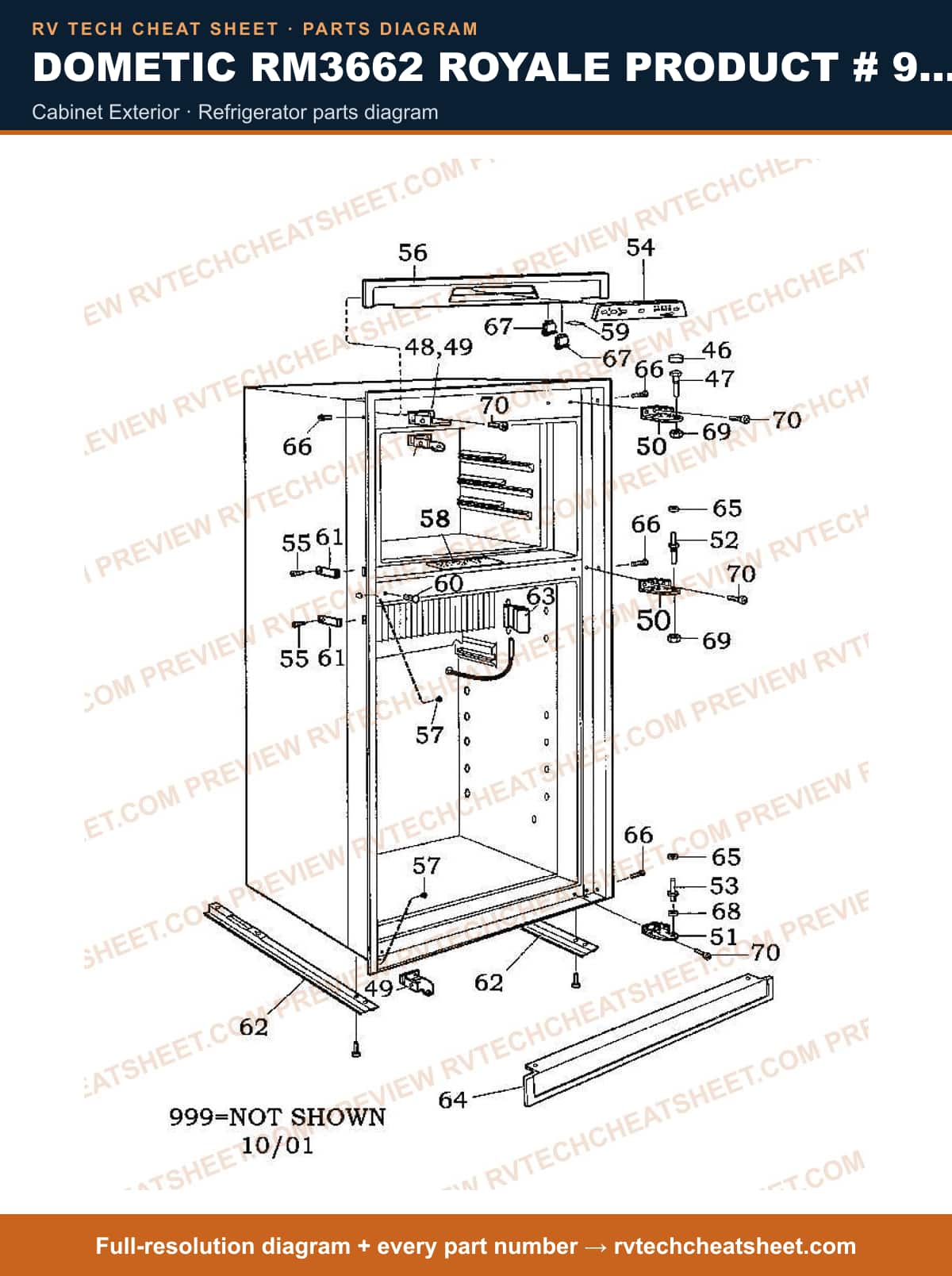

Cabinet Exterior

Components

29 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,RH,BLK MFR # 2932644046
4. #Refrigerator Door Hinge; Replacement For Dometic DM2652/ RM2852 Refrigerators; Left Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643048 Superseded: see description
5. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic Refrigerator Models DM2662/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2662/ RM2862/ RM3662/ RM3862; 2 Way Alternating Current/ LP Gas; Black;Also Use New Number 2932884097 MFR # 2932884055 Superseded: see description
9. #Dometic Refrigerator Replacement Eyebrow Circuit Board Control Panel MFR # 2932884097
10. #SCREW RXS B6X5 MFR # 7295275015
11. #APPLIANCE COMPONENTS RV; Cover Front Black MFR # 2932641042
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #LABEL MFR # 2932435007
14. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
15. #Refrigerator Door Cap; Use With Dometic Royale/ Americana/ Americana Plus Refrigerators; Black MFR # 2932742048 Superseded: see description
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
17. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
18. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
19. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
20. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
21. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
22. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
23. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
24. #SCREW MFR # 7241283014
25. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
26. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
27. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
28. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
29. #SCREW M4 X 10 S MFR # 7241289615

Replacement Refrigerator

Components

9 items

1. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
4. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
5. #REFER,6 CU FT. 2 WAY BLK FRAME MFR # RM3662BN
6. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
7. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
8. #REFER,6 CU FT 2 WAY BLK FRM 53 3/4" X 23 11/16" X 24" MFR # RM2662B
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS

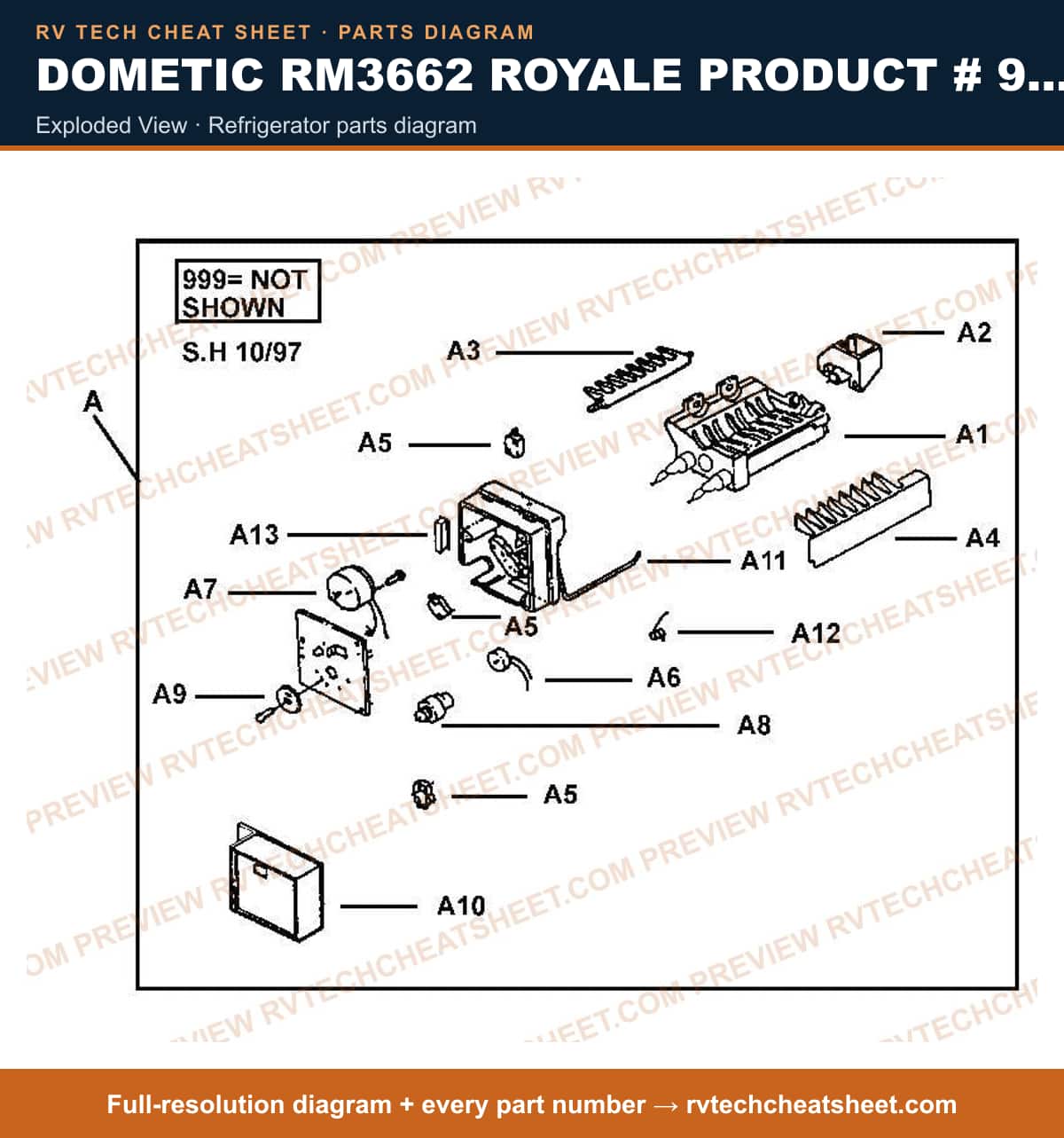

Exploded View

Components

18 items

1. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
2. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
3. #EJECTOR MFR # 3108703434
4. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
5. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
6. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
7. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
8. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #CAM MFR # 3108703483
11. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
12. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
13. #GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
15. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
16. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
17. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
18. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082

Front View

Components

14 items

1. #SHELF,ICEMAKER 6' AND 8' MFR # 3108706130
2. #SCREW, #10 X 2" MFR # 3106586005
3. #SHELF,ICE USE 3312986031 BUCKET MFR # 3106583002 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shelf Ice Bucket Kit MFR # 3312986031
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
9. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
13. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
14. #DECORATION, DOOR MFR # 3107176004

Before Serial # 204XXXXXX - Cabinet Rear View

Components

9 items

1. #REBUILT DOMETIC COOLING U MFR # 5562606A
2. #Refrigerator Cooling Unit; Replacement For Dometic RM3662/ RM3663 Model Refrigerators MFR # 2934605094N
3. #Refrigerator Cooling Unit; Use With Dometic Refrigerator RM/DM2652/ 2662/ 2663/ RM3662/ 3663; 6 Cubic Foot MFR # 3313470002 Superseded: see description
4. #Refrigerator Cooling Unit; Use With Dometic RM2652/ RM2662/ RM3652/ RM3662 Model Refrigerators MFR # NCU2652 Superseded: see description
5. #REBUILT DOMETIC COOLING U MFR # 5562605A
6. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
7. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
9. #SCREW DK4 X 16 PM MFR # 3858020013

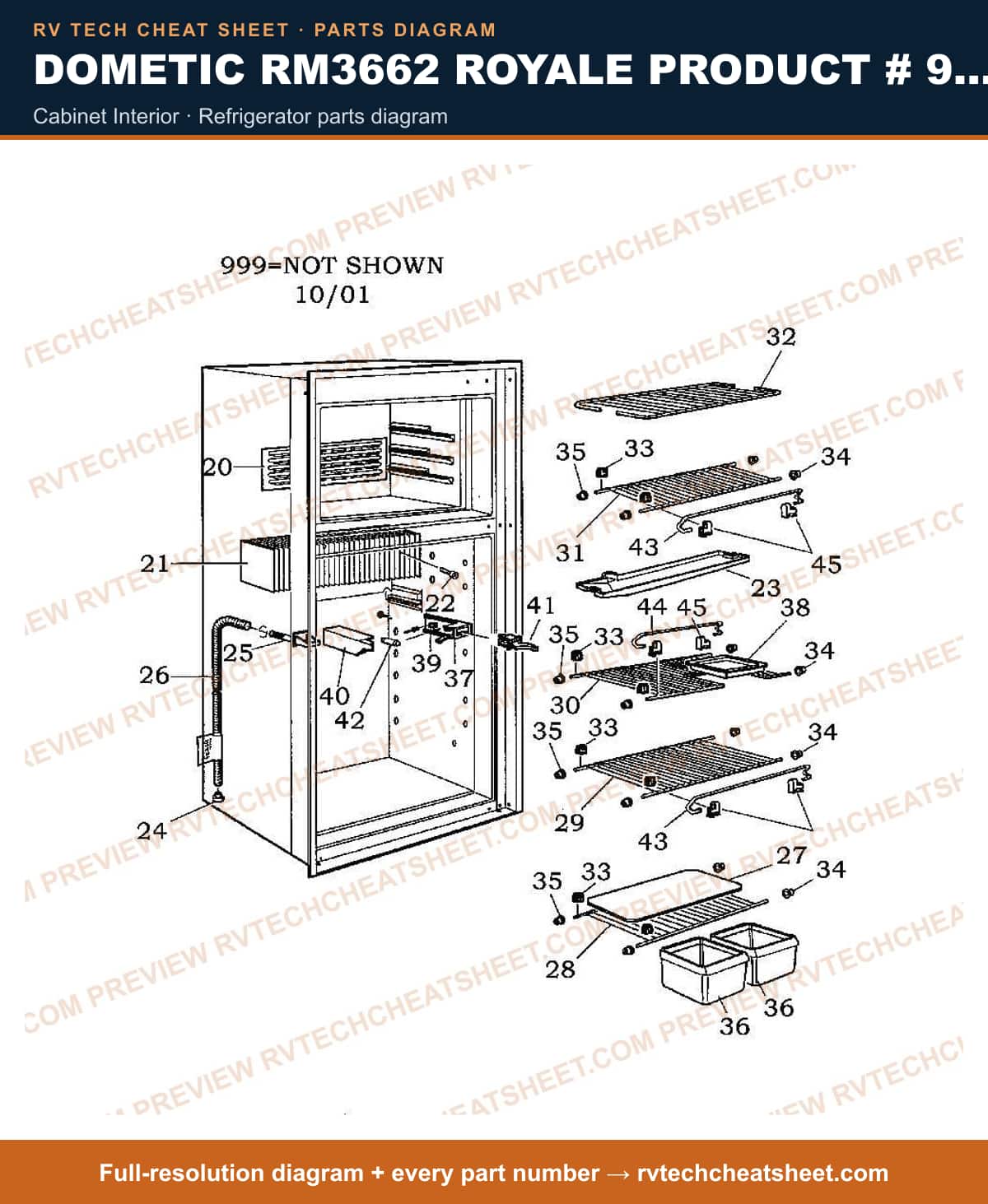

Cabinet Interior

Components

28 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
3. #APPLIANCE COMPONENTS RV; Screw B10 X 38 MFR # 2801051018
4. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #Refrigerator Shelf; Replacement For Dometic DM2862/ DM2663 Refrigerators; Clear; Plastic MFR # 2931117176
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
10. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
11. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
12. #S,SHELF,WIRE,WHT MFR # 3850324033
13. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028
18. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
19. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
20. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
21. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
22. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
23. #BULB 2/PK MFR # 2007290006
24. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
25. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

After Serial # 204XXXXXX - Cabinet Rear View

Components

9 items

1. #COOLING UNIT 606 W/THERM FUSE USE 3313470003 MFR # 2934606100 Superseded: see description
2. #Refrigerator Cooling Unit; Use With Dometic RM2652/ RM2662/ RM3652/ RM3662 Model Refrigerators MFR # NCU2652 Superseded: see description
3. #KIT SVC C/U ASM-606E/626E MFR # 3313470003
4. #REBUILT DOMETIC COOLING U MFR # 5562606A
5. #COOLING UNIT USE 2934606100 MFR # 2934606092N Superseded: see description
6. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
7. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
9. #SCREW DK4 X 16 PM MFR # 3858020013
