Dometic RM3663 Royale Product # 921144051 Beige Parts Diagram · Exploded View

Refrigerator · 10 assemblies · 10 diagram sheets · 222 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3663 Royale Product # 921144051 Beige RV refrigerator: 10 assemblies (Exploded View, Serial # 204XXXXXX & Higher - Cabinet Rear View, Serial # 204XXXXXX & Lower - Cabinet Rear View, Replacement Refrigerator, Burner & Controls and more) and 222 manufacturer part numbers. 63 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

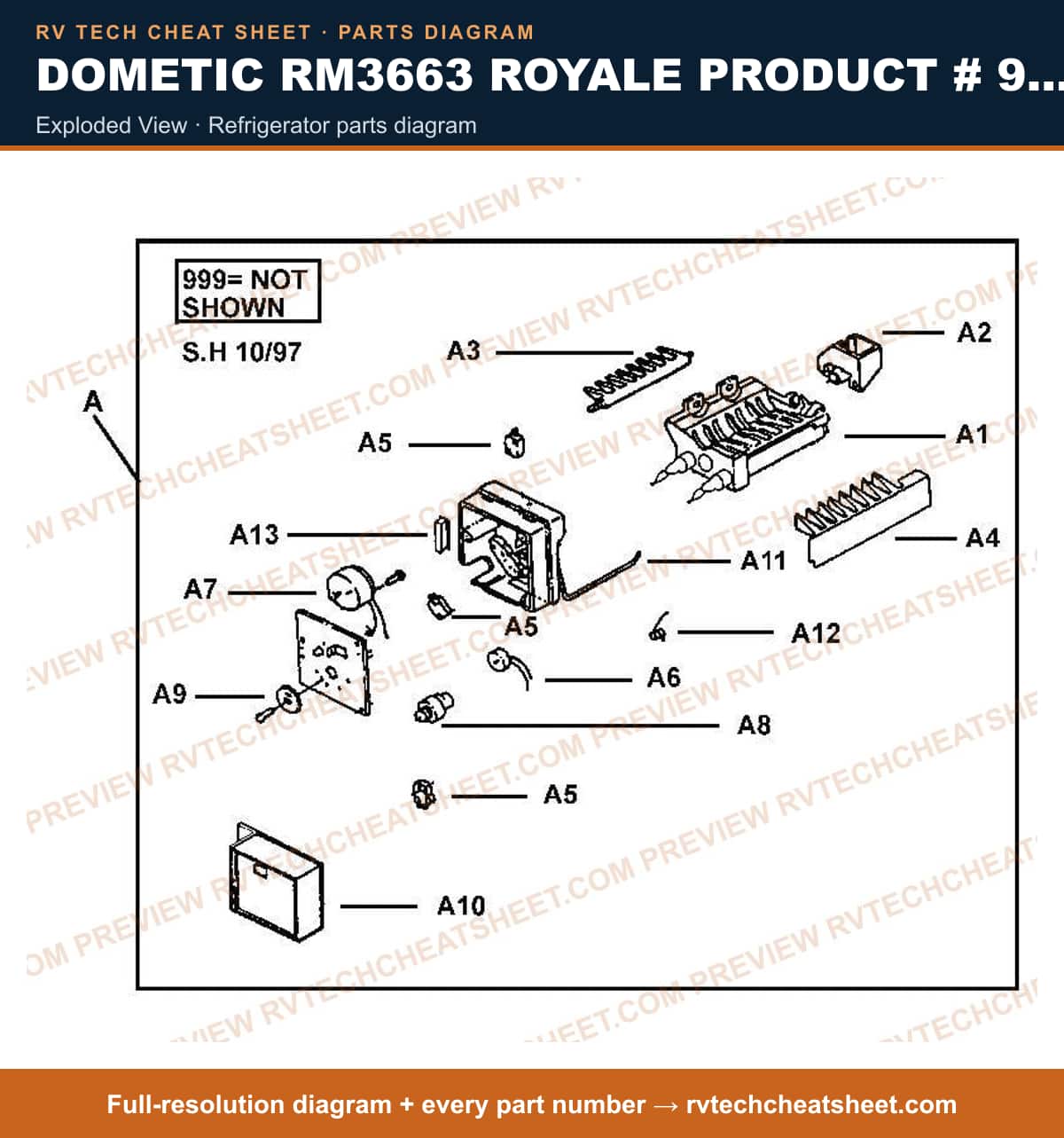

Exploded View

Components

18 items

1. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
2. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
3. #EJECTOR MFR # 3108703434
4. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
5. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
6. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
7. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #CAM MFR # 3108703483
12. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
13. #GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
15. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
16. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
17. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
18. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082

Serial # 204XXXXXX & Higher - Cabinet Rear View

Components

11 items

1. #REBUILT DOMETIC COOLING U MFR # 5562606A
2. #COOLING UNIT USE 2934606100 MFR # 2934606092N Superseded: see description
3. #COOLING UNIT 606 W/THERM FUSE USE 3313470003 MFR # 2934606100 Superseded: see description
4. #KIT SVC C/U ASM-606E/626E MFR # 3313470003
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
8. #SCREW MFR # 2801023025
9. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description
10. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
11. #MASTIC MFR # 2943397006

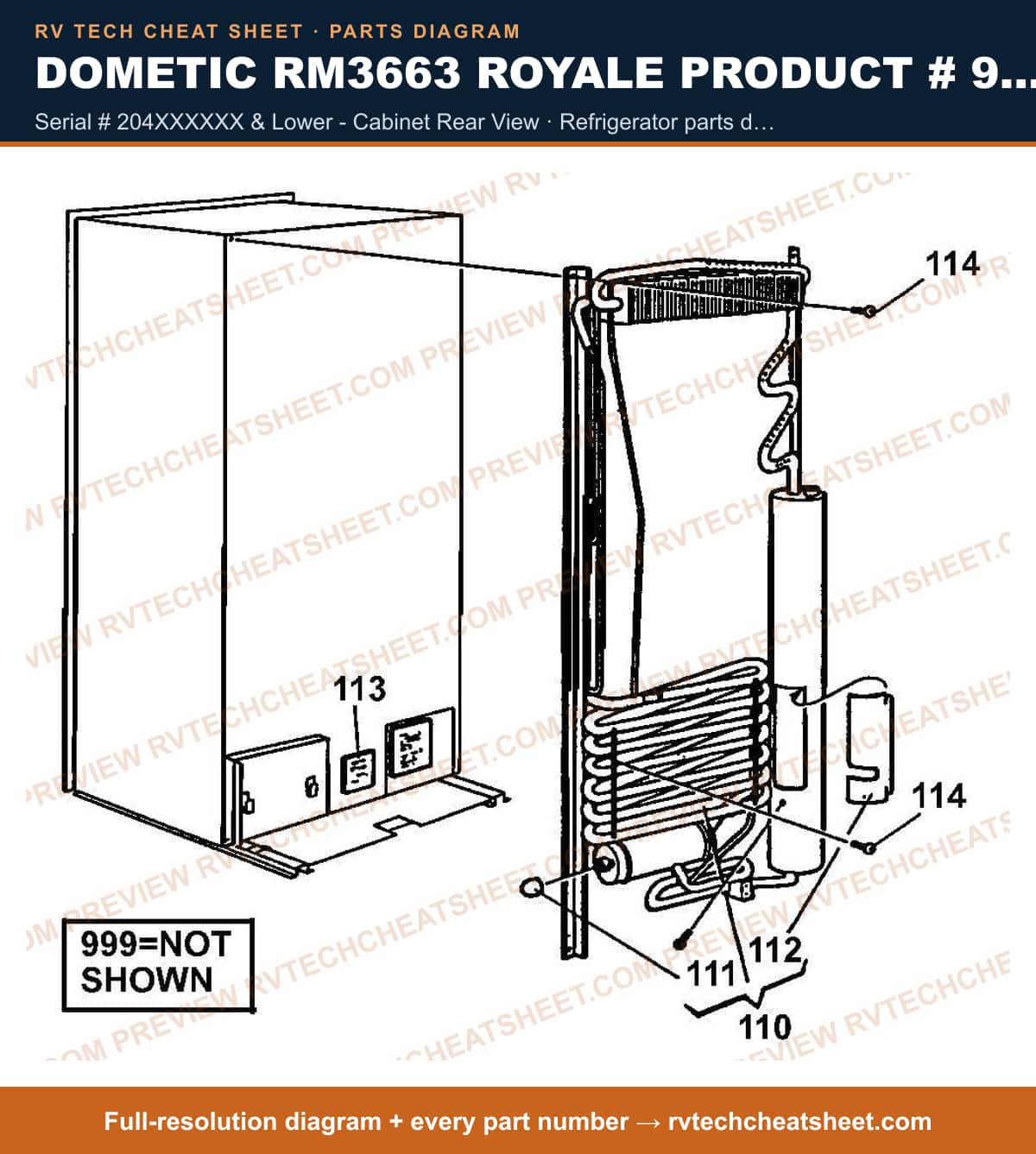

Serial # 204XXXXXX & Lower - Cabinet Rear View

Components

13 items

1. #REMAN C/U USE 5562 (UPS) RM3662/3 RM2652; THIS IS A MIDWEST COOLING UNIT MFR # 2934605094R Superseded: see description
2. #REBUILT DOMETIC COOLING U MFR # 5562605A
3. #REBUILT DOMETIC COOLING U MFR # 5562606A
4. #Refrigerator Cooling Unit; Replacement For Dometic RM3662/ RM3663 Model Refrigerators MFR # 2934605094N
5. #SIDE VIEW MIRROR MFR # 5562
6. #Refrigerator Cooling Unit; Use With Dometic Refrigerator RM/DM2652/ 2662/ 2663/ RM3662/ 3663; 6 Cubic Foot MFR # 3313470002 Superseded: see description
7. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
8. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
10. #SCREW MFR # 2801023025
11. #MASTIC MFR # 2943397006
12. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
13. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description

Replacement Refrigerator

Components

7 items

1. #REFER,6 CU.FT 3-WAY BLACK FRAME FOR BLACK DOOR PANELS USE 3106863073C FOR WOODGRAIN DOOR PANELS USE 3106863073B 3 WAY DOUBLE DOOR WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE RM... MFR # RM2663B Superseded: see description
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ LP Gas/ Direct Current; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N6413BK
3. #REFER,6 CU FT USE RM3663BN 53 3/4 X 23 11/16 X 24 3-WAY MFR # RM3663N Superseded: see description
4. #REFER,6 CU FT USE RM2663B BLACK FRAME 3-WAY DIMENSIONS: 53 3/4 X 23 11/16 X 24 3-WAY DOUBLE DOOR WITH BLACK METAL FRAME. FOR BEIGE METAL FRAME USE RM3663N. MFR # RM3663BN Superseded: see description
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ LP Gas/ Direct Current; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Door; With Crispers/ Shelving And Door Bins Cold Weather Kit Beginning October 1, 2012,.. MFR # N6413SS
6. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 24"D MFR # N6413WH
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black; With Crispers/ Shelving And Door Bins MFR # N6413N

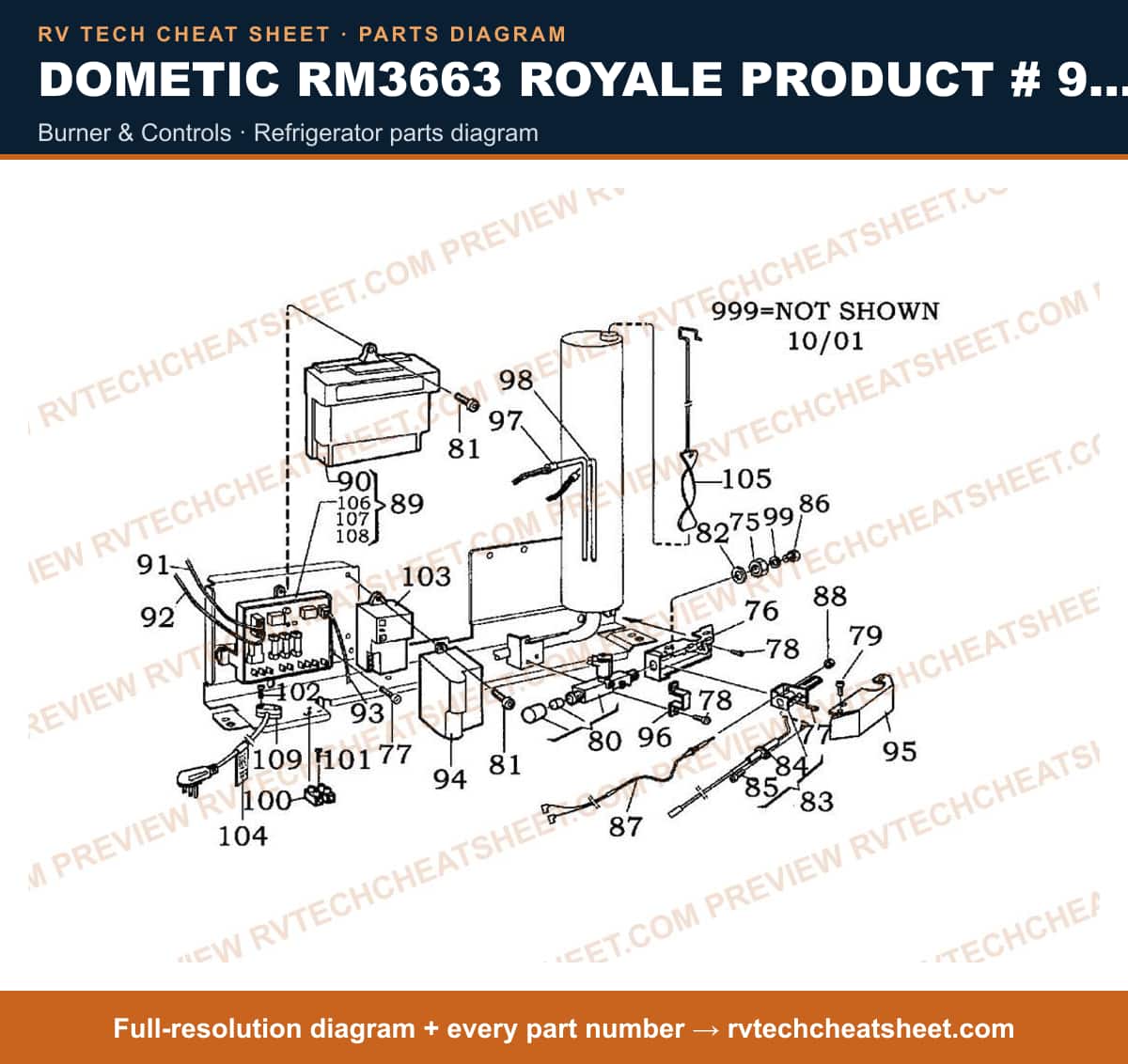

Burner & Controls

Components

59 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #SCREW M4 X 10 S MFR # 7241289615
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
6. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
7. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
9. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
10. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
11. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
14. #ELECTRODE MFR # 2932781012
15. #ELECTRODE W/WIRE LEADS MFR # 293781012MC
16. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
17. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
18. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
19. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
20. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
21. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
22. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
23. #Nut, T-Couple MFR # 2801043015
24. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
25. #DOM REPLACEMENT BRD MFR # MICROP711
26. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
27. #S,COVER,LESS DECALS MFR # 2931858019
28. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
29. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
30. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
31. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
32. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
33. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
34. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
35. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
36. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
37. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
38. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
39. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
40. #ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289
41. #ELEMENT, HEATING 120VAC 325W MFR # CH000360
42. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
43. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
44. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
45. #3858022019 MFR # 3858022019
46. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
47. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
48. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
49. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
50. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
51. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
52. #2932667039 MFR # 2932667039
53. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
54. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
55. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
56. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
57. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
58. #Fuse, 35 AMP MFR # 955036124
59. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

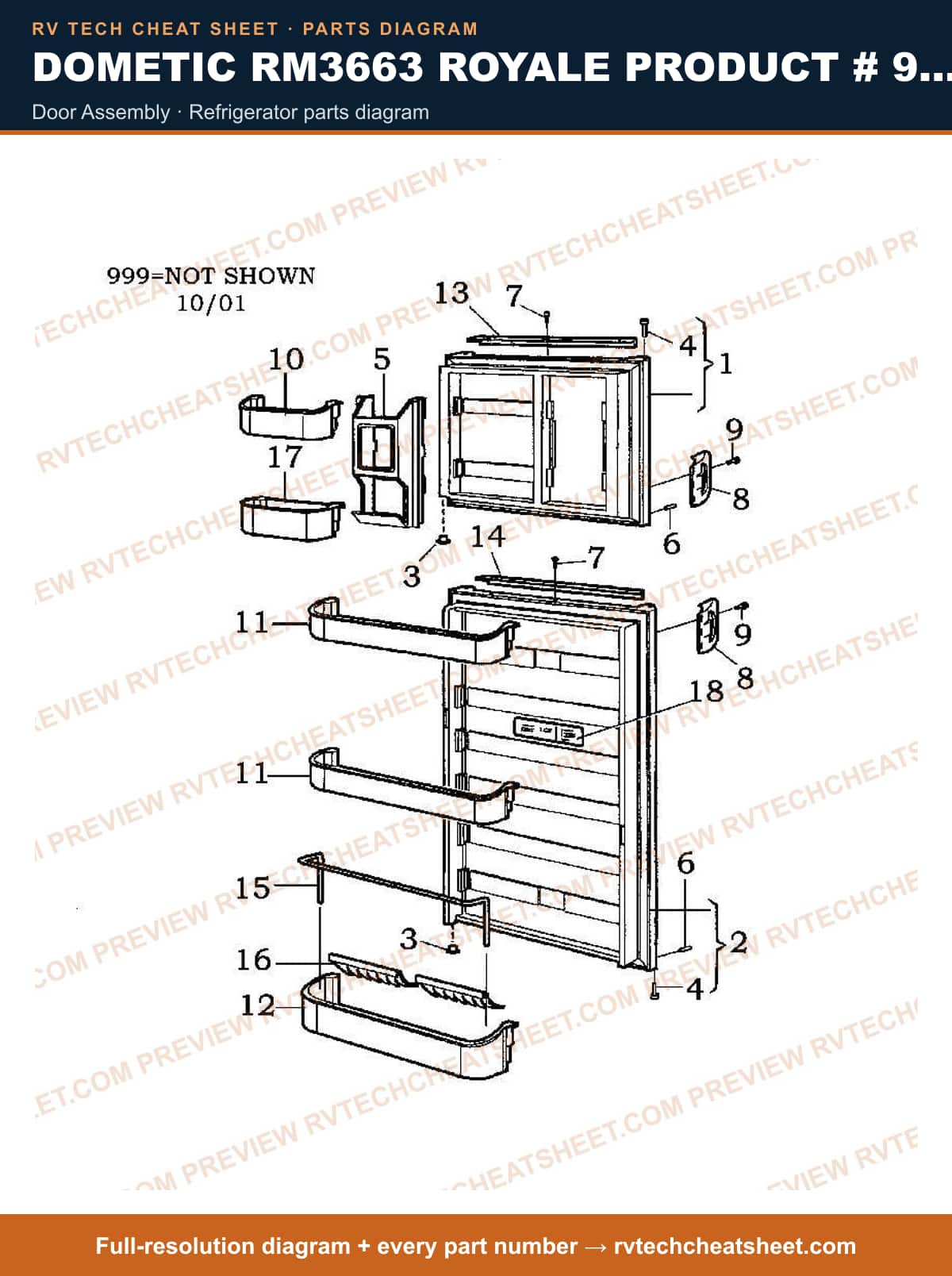

Door Assembly

Components

35 items

1. #APPLIANCE COMPONENTS RV; Door Freezer Lh MFR # 2932561091
2. #Refrigerator Door Panel; Upper/ Lower Door Panel Fits Dometic DM2652/ DM2662 Model Refrigerator MFR # 3311889.020C
3. #KIT, ACCESS DOOR PANEL BLACK RM2652/2662 MFR # 3106863.073C
4. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # 3662BA
5. #DOOR, LOWER LH MFR # 2932563030
6. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # 3662L
7. #Refrigerator Gasket; Replacement For Dometic RM2652/ RM3662/ RM3663 Model Refrigerators; Door Gasket MFR # 3108704374
8. #DOOR PANELS, RAISED, ALUMINUM F/DM2652/2662; USE 3311889.020A MFR # 3311889.020A Superseded: see description
9. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # 3662G
10. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
11. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
12. #RACK,JUICE WHITE MFR # 2932578020
13. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
14. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
15. #HANDLE, BEIGE USE 3851174106 OR 49-8525 NEW STYLE MFR # 2932093012 Superseded: see description
16. #SCREW MFR # 2801048014
17. #S,SCREW,PT,50*26 MFR # 3858000031
18. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
19. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
20. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
21. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
22. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
23. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
24. #S,DR DECOR,FRZ,BRN MFR # 3850381017
25. #Appliance Components RV; Strip, Decoration MFR # 3850919014
26. #STRIP, DECO USE 3850381058 MFR # 2932642057 Superseded: see description
27. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
28. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
29. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
30. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
31. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
32. #PANELS,DOOR WOODGRAIN F/DM2652/RM3662/RM3663 MFR # 3106863073B
33. #PANELS, DOOR BLACK; F/DM2652/RM3662/RM3663 MFR # 3106863073C
34. #Refrigerator Door Panel; Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrigerator MFR # 2652BA
35. #PANELS, DOOR WHITEWASH WOOD; TOP & BOTTOM PANELS MFR # RM3663E

Cabinet Interior

Components

27 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
3. #APPLIANCE COMPONENTS RV; Screw B10 X 38 MFR # 2801051018
4. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #Refrigerator Shelf; Replacement For Dometic DM2862/ DM2663 Refrigerators; Clear; Plastic MFR # 2931117176
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
10. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
11. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
12. #S,SHELF,WIRE,WHT MFR # 3850324033
13. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028
18. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
22. #BULB 2/PK MFR # 2007290006
23. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
24. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
25. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
26. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
27. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

Rear View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #HEATER KIT ICEMAKER MFR # 3106868015
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
9. #TERMINAL BLOCK,Y MFR # 2931963017
10. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
11. #WARNING LABEL MFR # 2931975003
12. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
14. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
15. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
16. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
17. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
19. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
20. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
21. #RING, HOG MFR # 3107614012
22. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
23. #VALVE KIT WATER MFR # 3108706114

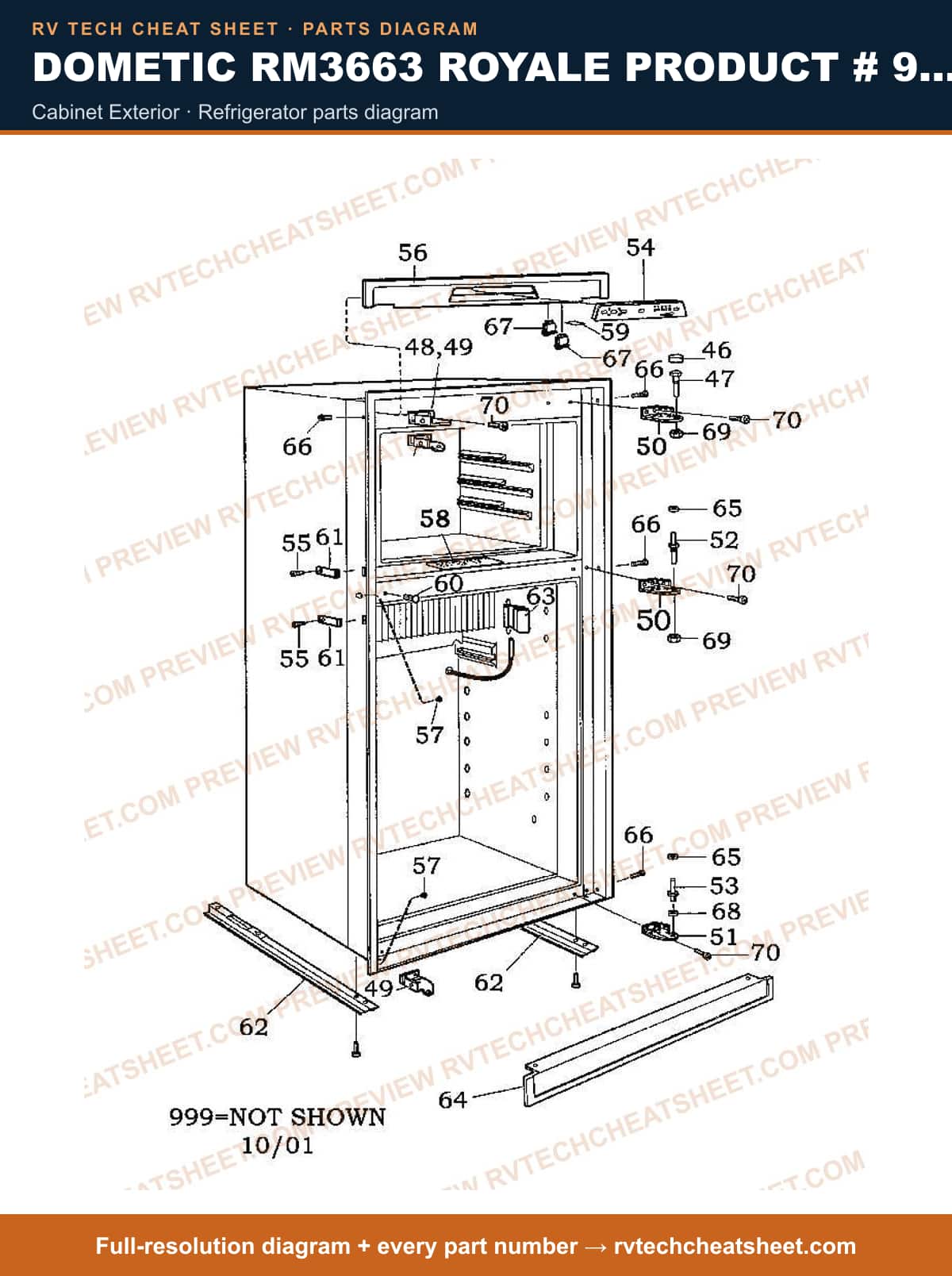

Cabinet Exterior

Components

26 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
3. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
4. #APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014
5. #APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
8. #SCREW RXS B6X5 MFR # 7295275015
9. #APPLIANCE COMPONENTS RV; Cover Front For Eyebrow MFR # 2932641026
10. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
11. #INSTRUCTION SIGN PLATE MFR # 2932436005
12. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
13. #PLUG MFR # 2932742014
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
15. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
16. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
17. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
18. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
19. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
20. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
21. #SCREW MFR # 7241283014
22. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
23. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
24. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
25. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
26. #SCREW M4 X 10 S MFR # 7241289615

Front View

Components

14 items

1. #SHELF,ICEMAKER 6' AND 8' MFR # 3108706130
2. #SCREW, #10 X 2" MFR # 3106586005
3. #SHELF,ICE USE 3312986031 BUCKET MFR # 3106583002 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shelf Ice Bucket Kit MFR # 3312986031
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
7. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
8. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
9. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
13. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
14. #DECORATION, DOOR MFR # 3107176004
