Dometic RM3804 2 Way Refrigerator Parts Diagram · Icemaker Front View

Refrigerator · 9 assemblies · 9 diagram sheets · 274 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3804 2 Way Refrigerator RV refrigerator: 9 assemblies (Icemaker Front View, Freezer Component Parts, Vibration Suppression Kit, Rear View Cabinet Assembly, Gas-electric and more) and 274 manufacturer part numbers. 71 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

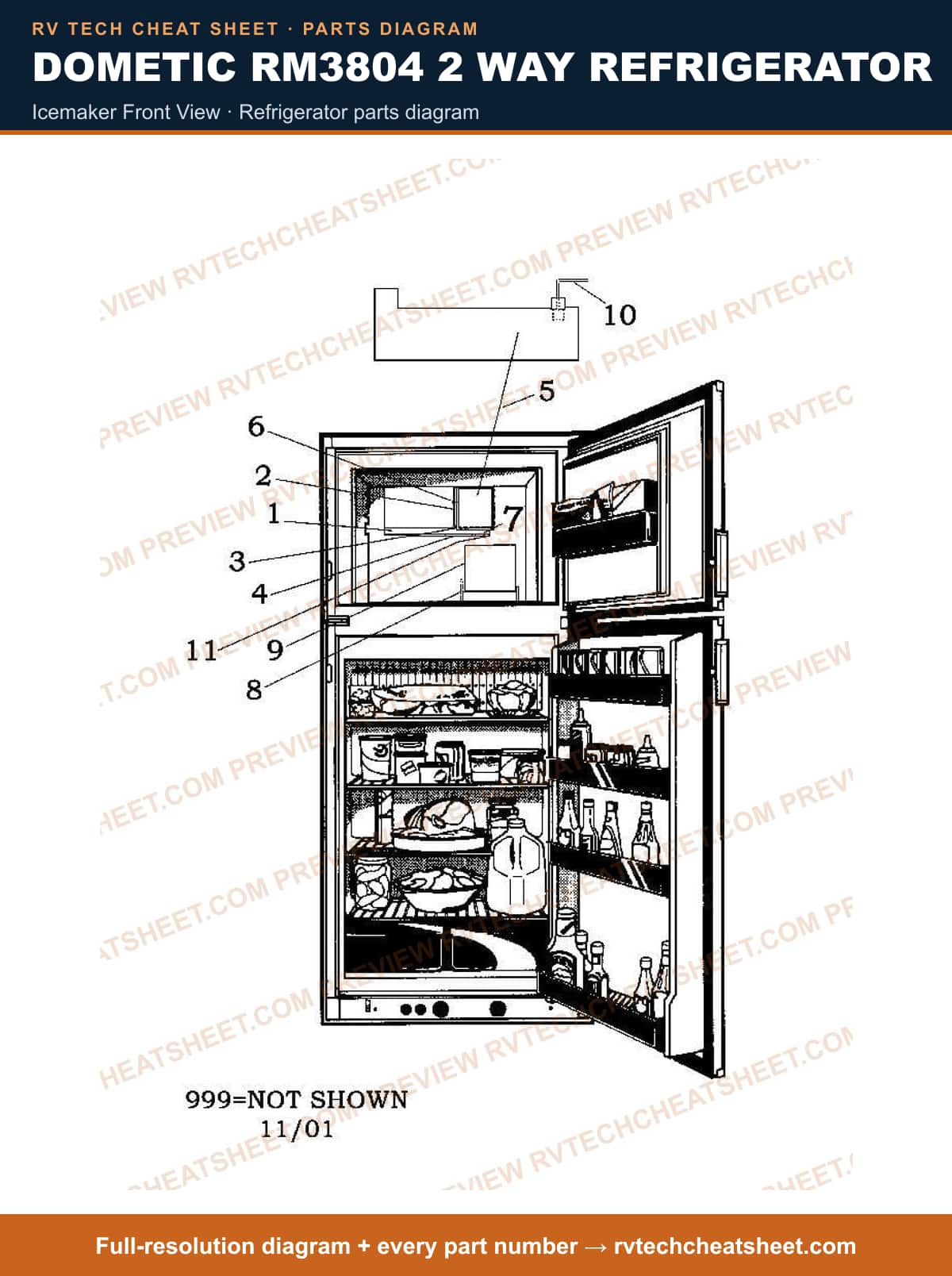

Icemaker Front View

Components

12 items

1. #Shelf MFR # 2931924019
2. #Side Plate MFR # 2931921015
3. #Pop Rivet MFR # 7727822033
4. #Plate MFR # 2007649029
5. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
6. #Icemaker; Use 3108701552 MFR # 2931971028 Superseded: see description
7. #SCREW, RX5X12, Z. PL. MFR # 7241327019
8. #APPLIANCE COMPONENTS RV; Screw Hinge MFR # 7241325617
9. #Shelf, Wire for Ice Bucket RM2807 MFR # 2931923011
10. #Bucket, Ice MFR # 2930880022
11. #Tube, Water (Metal) MFR # 2931922013
12. #Nut M6M5, Zinc Plated MFR # 7312314011

Freezer Component Parts

Components

14 items

1. #Shelf MFR # 2931924019
2. #Side Plate MFR # 2931921015
3. #Pop Rivet MFR # 7727822033
4. #Plate MFR # 2007649029
5. #Icemaker; Use 3108701552 MFR # 2931971028 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
7. #SCREW, RX5X12, Z. PL. MFR # 7241327019
8. #APPLIANCE COMPONENTS RV; Screw Hinge MFR # 7241325617
9. #Shelf, Wire for Ice Bucket RM2807 MFR # 2931923011
10. #Bucket, Ice MFR # 2930880022
11. #Tube, Water (Metal) MFR # 2931922013
12. #Nut M6M5, Zinc Plated MFR # 7312314011
13. #Ice Maker Kits Complete MFR # 2931997015
14. #Ice Maker Kits Complete MFR # 2931967018

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

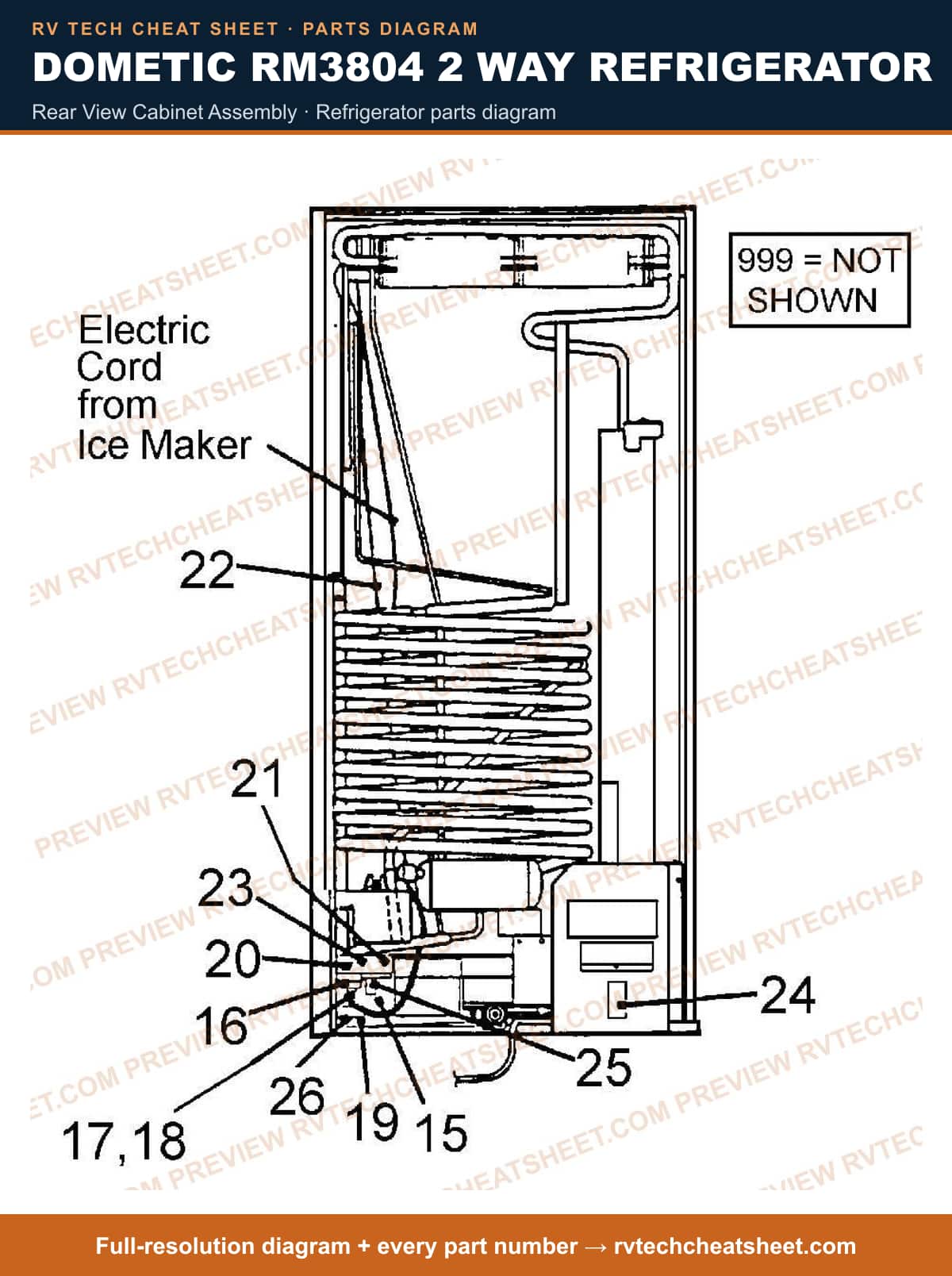

Rear View Cabinet Assembly

Components

21 items

1. #PLATE, MOUNTING MFR # 2931995019
2. #Valve, Water MFR # 2932148022
3. #VALVE, WATER USE 2932148022 RM7030 MFR # 2931972042 Superseded: see description
4. #VALVE KIT WATER MFR # 3108706114
5. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
6. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
7. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
8. #STRIP, TERMINAL 6 POS. MFR # 2930327008
9. #COVER MFR # 2931994012
10. #STRIP (PROTECTOR PLASTIC) MFR # 2930718099
11. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
12. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
13. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
14. #Hose, Water MFR # 2930905035
15. #WARNING LABEL MFR # 2931975003
16. #WIRING DIAGRAM MFR # 2931996009
17. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
18. #POP RIVET MFR # 7227836090
19. #DOOR DECORATION STRIP MFR # 2931163089
20. #TERMINAL BLOCK,Y MFR # 2931963017
21. #WIRE CONNECTOR MFR # 2400297012

Gas-electric

Components

86 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934901097N
2. #REMAN C/U USE 5528 MFR # 2934901097R Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic RM2800/ RM2801/ RM2802/ RM2803/ RM2810/ RM3800/ RM3801/ RM3802/ RM3803/ RM3804 Model Refrigerators MFR # 5528 Superseded: see description
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
7. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
8. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
9. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
10. #DECAL RM3804 MFR # 2931503003
11. #DECAL RM38 04 MFR # 2007574029
12. #LABEL, IMPORTANT MFR # 2007689009
13. #LABEL, CAUTION RM48 01 MFR # 2930750001
14. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
15. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
16. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
17. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
18. #HOSE, DRAIN MFR # 2931133017
19. #TRAY, EVAPORATION MFR # 2931134015
20. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
21. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
22. #DECAL, WARNING 2807/4801 MFR # 2002577001
23. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
24. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
25. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
26. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
27. #APPLIANCE COMPONENTS RV; Wire Lead 2604 MFR # 2007668029
28. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
29. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
30. #BOARD, MODULE MFR # 3106375015
31. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
33. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
34. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
35. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
36. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
37. #THERMOCOUPLE (350MM) MFR # 2931496091
38. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
39. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
40. #Thermocouple MFR # 2931496091MC
41. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
42. #STRIP, TERMINAL 6 POS. MFR # 2930327008
43. #Wire, Lead RM3804 MFR # 2931509018
44. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
46. #BOX, COMPONENT MFR # 2930642042
47. #RETAINER MFR # 2930648015
48. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
49. #COVER MFR # 2930653015
50. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
51. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
52. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
53. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
54. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
55. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
56. #Wire, Lead (2 Wire) MFR # 2930728023
57. #Lead, One Wire RM4801 MFR # 2930729039
58. #Appliance Components RV; Lead Wire (1 Wire) MFR # 2930729047
59. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
60. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
61. #Lead, Wire 2 Way RM3604/3804 6 Pin 5 Lead MFR # 2930799040
62. #Block Terminal Small 3 Poi MFR # 7627202562
63. #HOLDER, FUSE MFR # 7628801230
64. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
65. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
66. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
67. #Retainer MFR # 2930661018
68. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
69. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
70. #LEAD,10 WIRE MFR # 2930782095
71. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
72. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
74. #CAP FLUE MFR # 2931540013
75. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
76. #APPLIANCE COMPONENTS RV; Lead 7 Wire MFR # 2930990060
77. #ELEMENT, HEATING 120V 325W MFR # CS000022
78. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
79. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator; 2 Way MFR # MICROP242
80. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
81. #Appliance Components RV; Board MFR # 2931308023
82. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
83. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
84. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
85. #LEAD, 4 WIRE MFR # 2930783028
86. #Clip Use 2930651019 MFR # 2931325019 Superseded: see description

Replacement Refrigerator

Components

12 items

1. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841IMSSR
3. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
4. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
5. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK
7. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
10. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
11. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
12. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH

Cabinet Assembly

Components

92 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #APPLIANCE COMPONENTS RV; Board Circuit 2-Way; UPPER PC BOARD 2 WAY FOR REFER WITH T-STAT FOR LOWER BOARD USE# 2931308023 FOR REFER WITH A T-STAT FOR A REFER WITH A THERMISTER USE PART# 2931906016 MFR # 2931309021 Superseded: see description
5. #PANEL, CONTROL UPPER 2/W RM 3604,3804; FOR 3 WAY USE 2931295014 MFR # 2931295022 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Cover Front Rm3804/2 MFR # 2931294017
7. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
8. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
9. #HINGE, CENTER MFR # 2931290015
10. #SUPPORT MFR # 2930774019
11. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
12. #HINGE, LOWER LH RM26 04 MFR # 2931283010
13. #HINGE, LOWER RH MFR # 2931283028
14. #S,HINGE PIN,MID,25MM MFR # 2931287011
15. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
16. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
17. #Plate, Covering Freezer MFR # 2930486036
18. #APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014
19. #APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022
20. #COVER, PLATE RM38 04 MFR # 2931282046
21. #APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029
22. #Refrigerator Thermostat Cover MFR # 2931285015
23. #REINFORCEMENT MFR # 2931504019
24. #Refrigerator Vent Cover Back Plate MFR # 2930664012
25. #PLUG MFR # 2931284018
26. #Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description
27. #S,STRIKE 9*35*24MM MFR # 2931511014
28. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
29. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
30. #PLUG, COVER; USE 2931510032 GREY BROWN MFR # 2930736034 Superseded: see description
31. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
32. #DECAL (2-WAY) MFR # 2931315002
33. #DECAL, 3-WAY MFR # 2931314005
34. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
35. #SHELF, FREEZER MFR # 2007535012
36. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
37. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
38. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
40. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
41. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
42. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
43. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
44. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
45. #PLATE RETAINING MFR # 2007649011
46. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
47. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
48. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
49. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
50. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
51. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
52. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
53. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
54. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
55. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
56. #2004044091 MFR # 2004044091
57. #COVER, LIGHT SWITCH MFR # 2004044109
58. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
59. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
60. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
61. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
62. #Lead T-Stat MFR # 2930735010
63. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
64. #CLIP, SPRING USE 2901183026 F/KNOB MFR # 163382005 Superseded: see description
65. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
66. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
67. #SHADE, LAMP MFR # 2004043002
68. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
69. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
70. #LAMP, COMPLETE MFR # 29307440l2
71. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
72. #BULB 2/PK MFR # 2007290006
73. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
74. #Bar, L Approx 9" RM1300 MFR # 2007337070
75. #Appliance Components RV; Bar Freezer Shelf MFR # 2007537000
76. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
77. #RETAINER USE 2930693045 MFR # 2930693037 Superseded: see description
78. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
79. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
80. #INDEX,T-STAT MFR # 2001354030
81. #CLAMP 2800 MFR # 2002798003
82. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
83. #Strip, Decor Use 2005111071 MFR # 2005111113 Superseded: see description
84. #Appliance Components RV; Strip Decoration MFR # 2055366013
85. #Appliance Components RV; Decoration Strip MFR # 2005111121
86. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
87. #PIN,RETAINING MFR # 2001281019
88. #Refrigerator Thermostat Control Assembly; Use With Dometic Refrigerator Models RM2804/ RM3800/ RM3801 MFR # 2930814021MC Superseded: see description
89. #T-STAT USE 2930814021 MFR # K50P1336 Superseded: see description
90. #APPLIANCE COMPONENTS RV; T-Stat Electric MFR # 2930814021
91. #T-STAT, ELECTRIC USE 2930814021 MFR # 2930814013 Superseded: see description
92. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description

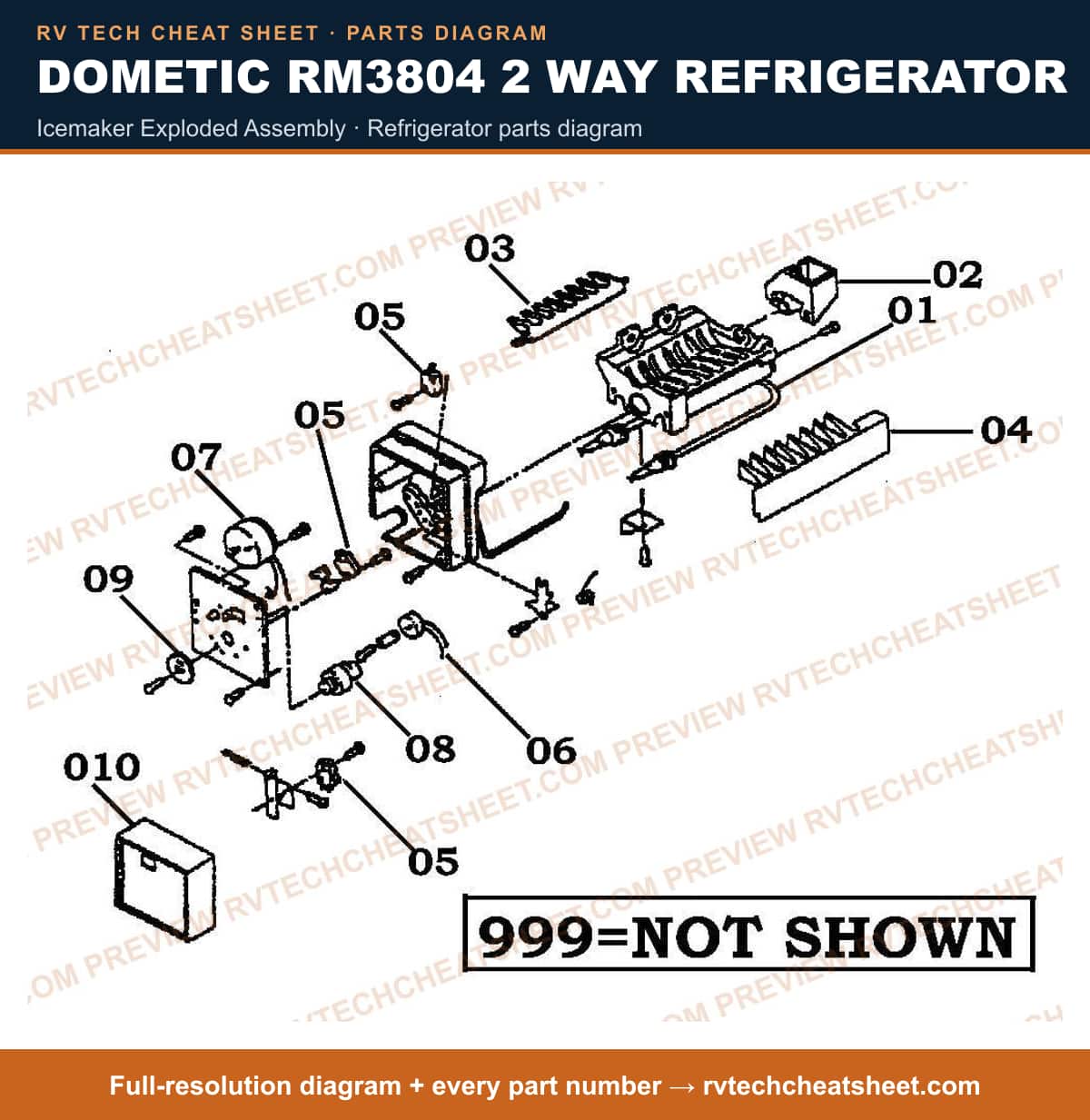

Icemaker Exploded Assembly

Components

15 items

1. #CYCLE, ICEMAKER USE 3108701552 MFR # 3101979007 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
3. #BEARING AND INLET MFR # 3101286007
4. #Ice Maker Water Cup; For U-Line 402-CO2075FF/ U-CO29FF/ 402 BI 2015 MFR # 544304
5. #APPLIANCE COMPONENTS RV; Ejector 627169 MFR # 3101287005
6. #STRIPPER, ICE MFR # 3101288003
7. #APPLIANCE COMPONENTS RV; Switch Micro Use 2506 MFR # 3102807009 Superseded: see description
8. #AXLE BRACKET EXT 2' MFR # 2506
9. #APPLIANCE COMPONENTS RV; T-Stat MFR # 3101290009
10. #T-STAT USE 3101290009 327047 MFR # 310129009 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
12. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
14. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
15. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description

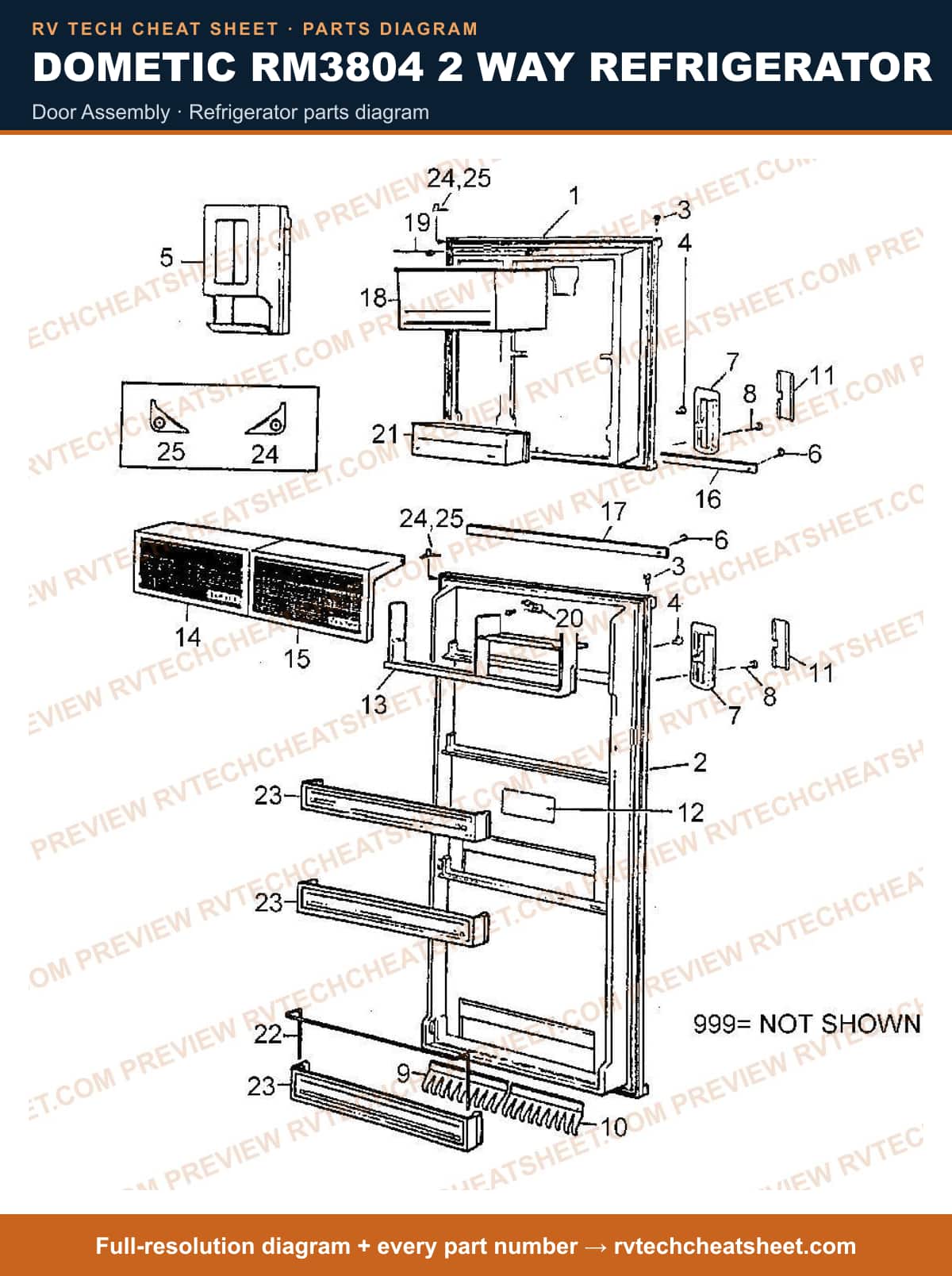

Door Assembly

Components

38 items

1. #APPLIANCE COMPONENTS RV; Door Freezer MFR # 2931182113
2. #Refrigerator Gasket; Replacement For Dometic RM2804/ RM2807/ RM2810/ RM3804 Refrigerators; Door Gasket; Brown MFR # 3108700018
3. #APPLIANCE COMPONENTS RV; Door Refer Lower Rm3804 MFR # 2931181115
4. #Gasket Kit; Contains: 1 - 3376008 Gasket 15-1/2 x 21; 1 - 3376009 Gasket 22 x 36; 1 - DC732RTV 3/16" Tube Silicone; 1 - 6141 6-Yard Gasket Tape; 1 - Instruction Sheet MFR # 3108700018D
5. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
6. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
7. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
8. #Screw, B4x16, Zinc Plated MFR # 72952290l2
9. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
11. #Screw RXS, B4x10, Zinc Plated MFR # 72952250l0
12. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
14. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
16. #Cover, Handle MFR # 29311960l4
17. #LABEL, INSTRUCTION MFR # 2002356000
18. #Shelf MFR # 29305340l7
19. #Door, Dairy; Use 2930540022 MFR # 2930541091 Superseded: see description
20. #Door, Dairy; Use 2930540014 MFR # 2930541103 Superseded: see description
21. #Door, Dairy; Use 2930540014 MFR # 2930541101 Superseded: see description
22. #Door, Dairy RH Smoked; Specs: For RM3807 Product #'s 921602301, 921602401, 921602501, 921602601; Use Part# 2930540014 MFR # 2930540014 Superseded: see description
23. #Strip, Decoration MFR # 29311630l4
24. #Strip, Deco LWR; Use For RM3804 MFR # 2931163030 Superseded: see description
25. #Strip, Decoration Upper; Use For RM3804 MFR # 2931163014 Superseded: see description
26. #BOX, ICE WHITE MFR # 2930536020
27. #Box, Freezer; Use 2930536020 MFR # 2930536012 Superseded: see description
28. #Lid MFR # 29305370l0
29. #Bracket, Butter Compartment MFR # 29305940l1
30. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
31. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
33. #APPLIANCE COMPONENTS RV; Shelf Door Use 2001732136 MFR # 2001732144 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
35. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012
36. #APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020
37. #Panels, Door Woodgrain Top & Bottom Panels MFR # RM3804G
38. #PANELS,DOOR BLACK PLEXIGLASS SET OF 2 MFR # RM3804L
