Diagrams › Dometic › RM3807 Dometic RM3807 Parts Diagram · Icemaker Asm - Icemaker Asm
Refrigerator · 30 assemblies · 31 diagram sheets · 367 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM3807 RV refrigerator: 30 assemblies (Icemaker Asm - Icemaker Asm, Product # 921602501 3 Way - Burner & Controls, Product # 921600601 2 Way - Burner & Controls, Product # 921602601 3 Way - Burner & Controls, Product # 921601601 3 Way - Cabinet Front View and more) and 367 manufacturer part numbers. 88 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Icemaker Asm - Icemaker Asm
Dometic RM3807 icemaker asm - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 15 items # APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552 # CYCLE, ICEMAKER USE 3108701552 MFR # 3101979007 Superseded: see description # Ice Maker Water Cup; For U-Line 402-CO2075FF/ U-CO29FF/ 402 BI 2015 MFR # 544304 # BEARING AND INLET MFR # 3101286007 # APPLIANCE COMPONENTS RV; Ejector 627169 MFR # 3101287005 # STRIPPER, ICE MFR # 3101288003 # AXLE BRACKET EXT 2' MFR # 2506 # APPLIANCE COMPONENTS RV; Switch Micro Use 2506 MFR # 3102807009 Superseded: see description # T-STAT USE 3101290009 327047 MFR # 310129009 Superseded: see description # APPLIANCE COMPONENTS RV; T-Stat MFR # 3101290009 # MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description # APPLIANCE COMPONENTS RV; Motor MFR # 3108703475 # APPLIANCE COMPONENTS RV; Cam MFR # 3101295008 # APPLIANCE COMPONENTS RV; Gear MFR # 46-2709 # Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
Product # 921602501 3 Way - Burner & Controls
Dometic RM3807 product # 921602501 3 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 64 items # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # S,COVER,LESS DECALS MFR # 2931858019 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL 3 - WAY MFR # 2932003003 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
Product # 921600601 2 Way - Burner & Controls
Dometic RM3807 product # 921600601 2 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 77 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002 # Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002 # Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3 # BOARD,PC CPL USE 2932695014 RM2807-2W MFR # 2931842013 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description # BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description # FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
Product # 921602601 3 Way - Burner & Controls
Dometic RM3807 product # 921602601 3 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 64 items # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # S,COVER,LESS DECALS MFR # 2931858019 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL 3 - WAY MFR # 2932003003 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description

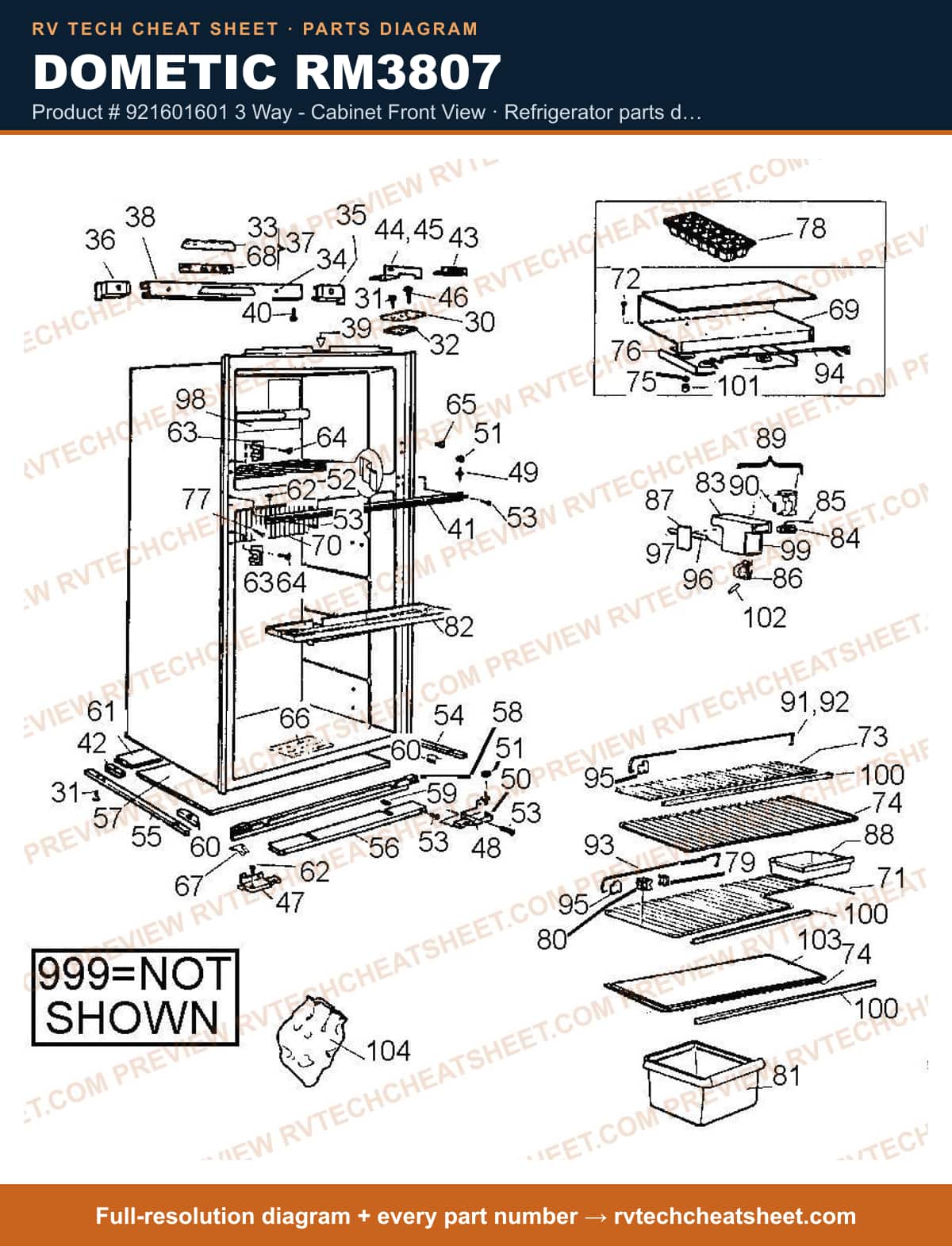

Product # 921601601 3 Way - Cabinet Front View
Dometic RM3807 product # 921601601 3 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 94 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # APPLIANCE COMPONENTS RV; Plate W/Decal Mounting MFR # 955002720 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Board Control Assm ***Us MFR # 2932884022 # BOARD, 2 WAY USE 2932884022 RM3807 MFR # 2931906016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign plate (3-way) MFR # 2931909002 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # SHELF, FREEZER MFR # 2007535012 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # 2004044091 MFR # 2004044091 # COVER, LIGHT SWITCH MFR # 2004044109 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
All Product Numbers - Cooling Unit
Dometic RM3807 all product numbers - cooling unit — parts list sheet Full-resolution diagram + every part number →
Components 20 items # Refrigerator Cooling Unit; Replacement For Dometic RM2804/ RM2811/ RM2807 Model Refrigerators MFR # 2934903093N # Refrigerator Cooling Unit; Use With Dometic Refrigerator RM2820; 8 Cubic Foot MFR # 3313470009 Superseded: see description # REMAN C/U USE 5587 (UPS) RM2807/11 MFR # 2934903093R Superseded: see description # REMAN COOLING UNIT USE 5584 RM2807, 2811, 2812, 3807, 2820 MFR # 5587 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # DECAL RM3804 MFR # 2931503003 # DECAL RM38 04 MFR # 2007574029 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # Hose MFR # 2931578047 # S,TUBE,OVERFILL MFR # 2931829010 # Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012 # Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description # Plate Protection Rm2800 MFR # 2930785015 # DECAL, WARNING 2807/4801 MFR # 2002577001 # LABEL, IMPORTANT MFR # 2007689009 # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
Product # 921601401 2 Way - Cabinet Front View
Dometic RM3807 product # 921601401 2 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 94 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Plate Mounting with Decal 2-Way MFR # 955002738 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Board, PC Use 2932697101 Upper with Mounting Plate 3 Way MFR # 2931846014 Superseded: see description # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # Appliance Components RV; Board Circuit MFR # 2932884048 # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign Plate (2-Way) MFR # 2931908004 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # SHELF, FREEZER MFR # 2007535012 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # 2004044091 MFR # 2004044091 # COVER, LIGHT SWITCH MFR # 2004044109 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
Icemaker Rear View - Icemaker Asm
Dometic RM3807 icemaker rear view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 22 items # Refrigerator Wiring Harness; Replacement For Dometic RM2807/ RM3807 Refrigerators; Black Wire MFR # 2931961029 # WIRE CPL. ( WHITE) MFR # 2931961037 # WIRING DIAGRAM MFR # 2931966002 # TERMINAL BLOCK,Y MFR # 2931963017 # APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078 # Valve, Water MFR # 2932148022 # VALVE KIT WATER MFR # 3108706114 # VALVE, WATER MFR # 2931972026 # APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185 # INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description # S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010 # COVER,WATER VALVE MFR # 2931974014 # WARNING LABEL MFR # 2931975003 # STRIP (PROTECTOR PLASTIC) MFR # 2930718099 # APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024 # Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637 # Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869 # HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description # Hose, Water MFR # 2930905035 # Screw MFR # 7295340017 # DOOR DECORATION STRIP MFR # 2931163113 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
Product # 921601501 2 Way - Cabinet Front View
Dometic RM3807 product # 921601501 2 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 88 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Plate Mounting with Decal 2-Way MFR # 955002738 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # Appliance Components RV; Board Circuit MFR # 2932884048 # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign Plate (2-Way) MFR # 2931908004 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # SHELF, FREEZER MFR # 2007535012 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # COVER, LIGHT SWITCH MFR # 2004044109 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
Product # 921600601 2 Way - Cabinet Front View
Dometic RM3807 product # 921600601 2 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 90 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Plate Mounting with Decal 2-Way MFR # 955002738 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Appliance Components RV; Board Circuit MFR # 2932884048 # Board, PC Use 2932697101 Upper with Mounting Plate 3 Way MFR # 2931846014 Superseded: see description # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign Plate (2-Way) MFR # 2931908004 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # COVER, LIGHT SWITCH MFR # 2004044109 # 2004044091 MFR # 2004044091 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
Product # 921602601 3 Way - Cabinet Front View
Dometic RM3807 product # 921602601 3 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 79 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # APPLIANCE COMPONENTS RV; Plate W/Decal Mounting MFR # 955002720 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Appliance Components RV; Board Circuit MFR # 2932884048 # Board, PC Use 2932697101 Upper with Mounting Plate 3 Way MFR # 2931846014 Superseded: see description # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign plate (3-way) MFR # 2931909002 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # SHELF, FREEZER MFR # 2007535012 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # Appliance Components RV; Parts Bag MFR # 2931317016 # DECAL MFR # 2932165000 # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
Product # 921601701 3 Way - Burner & Controls
Dometic RM3807 product # 921601701 3 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 74 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO PART # GIVEN BY VENDOR MFR # NPG
Product # 921601601 3 Way - Burner & Controls
Dometic RM3807 product # 921601601 3 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 51 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # 2931826016MC MFR # 46-0452 # MICROP711 MFR # 80-8635 # 3308742000 MFR # 46-6659 # 2931858019 MFR # 46-0473 # 2954542037 MFR # 46-1427 # 2932164011 MFR # 46-0588 # 2931863019 MFR # 46-0477 # 3307872006 MFR # 46-6530 # 3108702675 MFR # 46-4571 # 2931864017 MFR # 46-0497 # 2931913012 MFR # 46-0501 # 2931572016 MFR # 46-0373 # 173742164 MFR # 45-4109 # 173757063 MFR # 45-4140 # 2007457001 MFR # 45-5711 # 3858022019 MFR # 46-8823 # Screw MFR # 47-8367 # Refrigerator Support Rail Screw MFR # 47-8364 # 2931132019MC MFR # 39-1015 # 2931132019 MFR # 46-0165 # 7295279405 MFR # 47-8355 # 7295279512 MFR # 47-8356 # 2007590066 MFR # 45-5824 # 2931540013 MFR # 46-0361 # BPAGC5 MFR # 55-9692

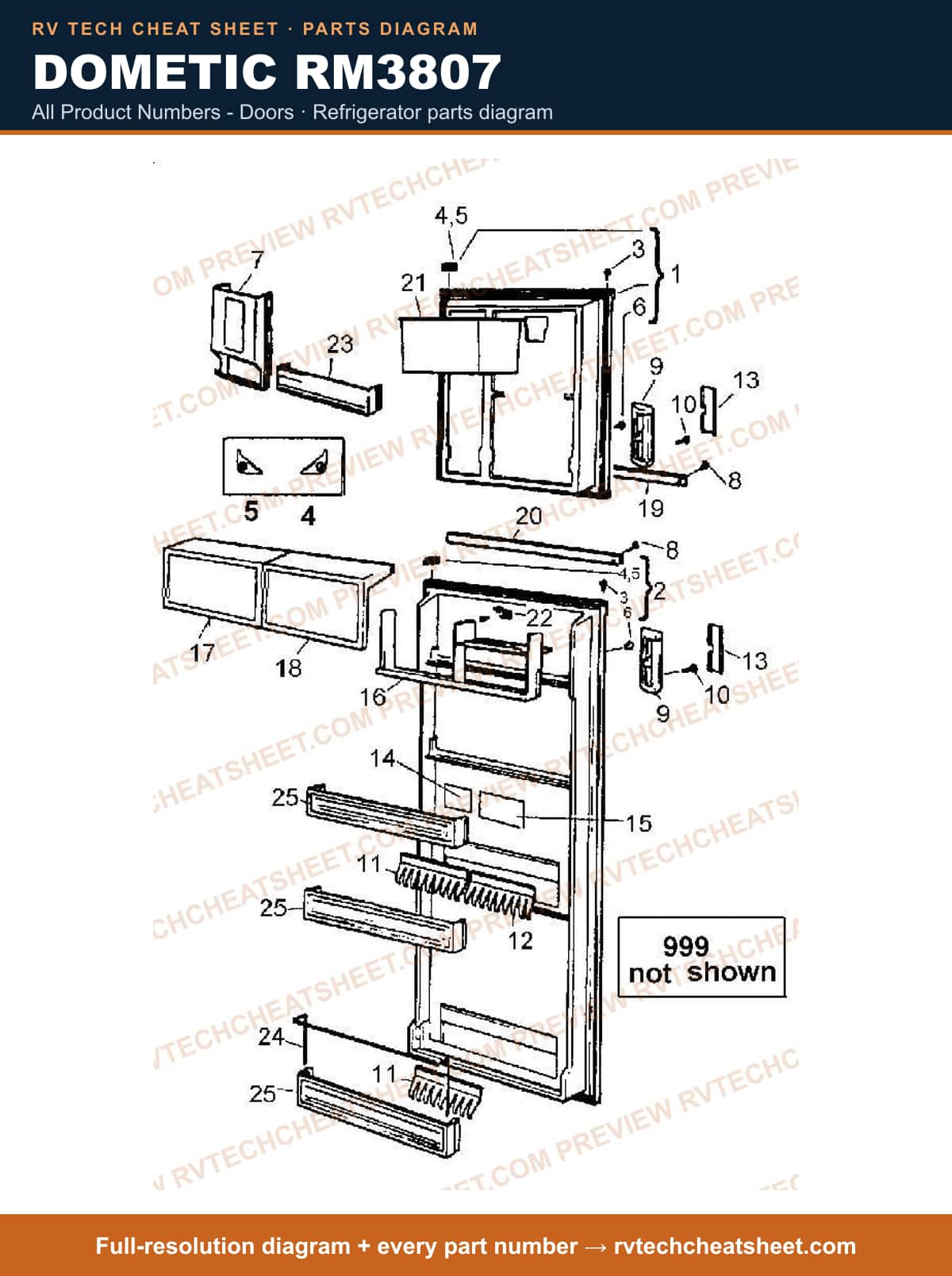

All Product Numbers - Doors
Dometic RM3807 all product numbers - doors — parts list sheet 1 of 2 Full-resolution diagram + every part number →
Dometic RM3807 all product numbers - doors — parts list sheet 2 of 2 Full-resolution diagram + every part number →
Components 42 items # APPLIANCE COMPONENTS RV; Door Upper MFR # 2931642116 # DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L # DOOR, LOWER RM3804 PLASTIC FRAME MFR # 2931641118 # DOOR PANEL - OAK PANEL AL MFR # RM3862G # PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B # APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C # Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017 # APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512012 # APPLIANCE COMPONENTS RV; Insert Hinge (Beige) MFR # 2931512020 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description # Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400 # APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026 # HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description # Handle Kit Door MFR # 3107766010 # Plate Cover MFR # 2931571018 # LABEL, WARNING FOR DOOR MFR # 2931620005 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2930534017 # DOOR, DAIRY USE 2930540022 MFR # 2930540063 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930540022 # APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930540048 # Door, Dairy RH Smoked; Specs: For RM3807 Product #'s 921602301, 921602401, 921602501, 921602601; Use Part# 2930540014 MFR # 2930540014 Superseded: see description # Strip, Decoration Upper; Use For RM3804 MFR # 2931163014 Superseded: see description # STRIP, DECORATION MFR # 2931163139 # STRIP, DECO MAIN DOOR RM3807 MFR # 2931163097 # BOX, ICE WHITE MFR # 2930536020 # Box, Freezer; Use 2930536020 MFR # 2930536012 Superseded: see description # BRACKET, FLAP RM 3 804 MFR # 2930594011 # APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057 # SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description # APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009 # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # APPLIANCE COMPONENTS RV; Shelf Door Use 2001732136 MFR # 2001732144 Superseded: see description # Refrigerator Gasket; Replacement For Dometic RM2804/ RM2807/ RM2810/ RM3804 Refrigerators; Door Gasket; Brown MFR # 3108700018 # APPLIANCE COMPONENTS RV; Service Kit Hinge Plate MFR # 3108703640 # Gasket Kit; Contains: 1 - 3376008 Gasket 15-1/2 x 21; 1 - 3376009 Gasket 22 x 36; 1 - DC732RTV 3/16" Tube Silicone; 1 - 6141 6-Yard Gasket Tape; 1 - Instruction Sheet MFR # 3108700018D
Product # 921600701 2 Way - Burner & Controls
Dometic RM3807 product # 921600701 2 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 77 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002 # Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002 # FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description # FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description # Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3 # BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # BOARD,PC CPL USE 2932695014 RM2807-2W MFR # 2931842013 Superseded: see description # S,COVER,LESS DECALS MFR # 2931858019 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
Product # 921601501 2 Way - Burner & Controls
Dometic RM3807 product # 921601501 2 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 75 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3 # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description # FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002 # FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description # BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009

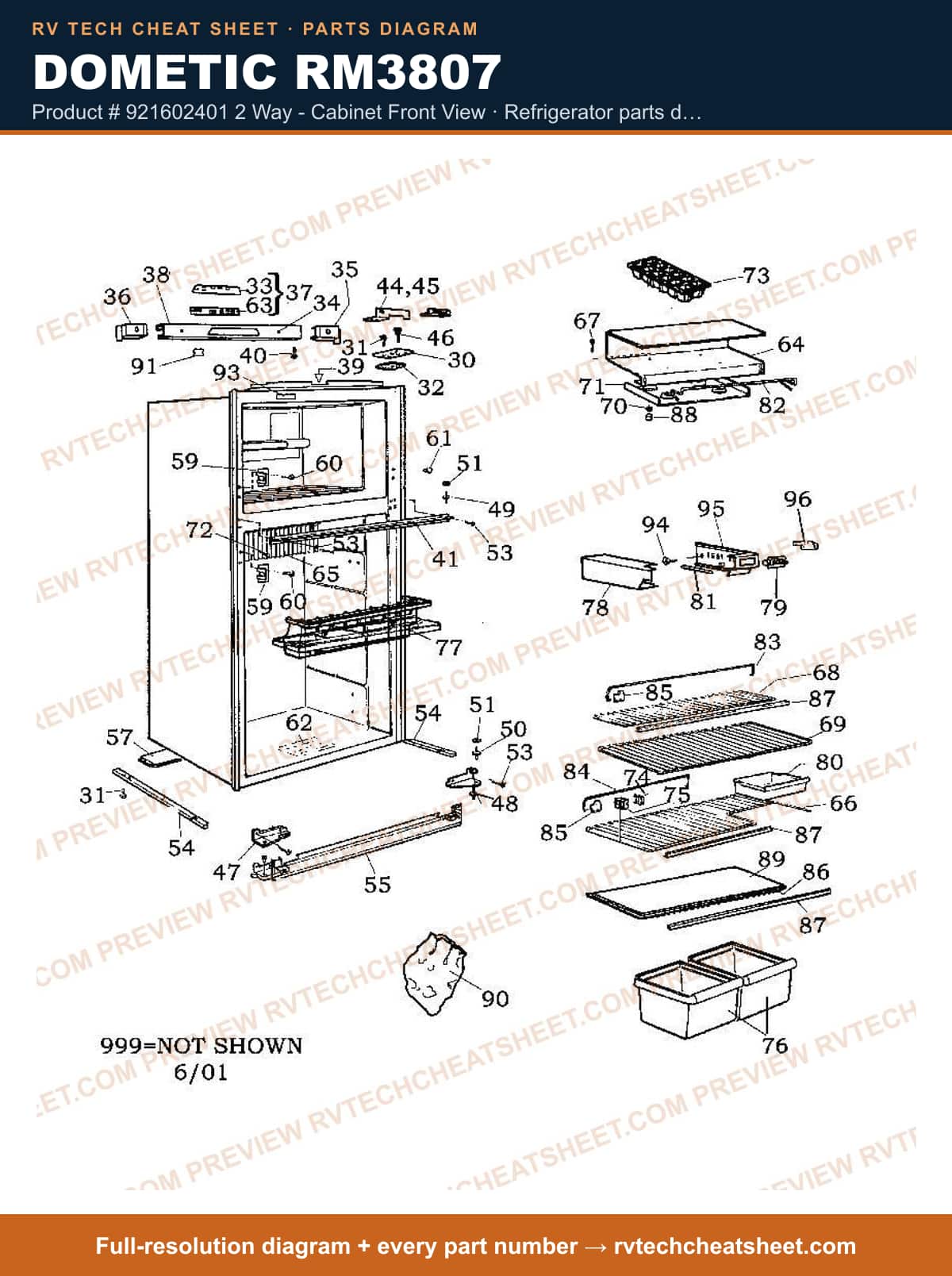

Product # 921602401 2 Way - Cabinet Front View
Dometic RM3807 product # 921602401 2 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 79 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Plate Mounting with Decal 2-Way MFR # 955002738 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # BOARD, 2 WAY USE 2932884022 RM3807 MFR # 2931906016 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign Plate (2-Way) MFR # 2931908004 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # SHELF, FREEZER MFR # 2007535012 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # Appliance Components RV; Parts Bag MFR # 2931317016 # DECAL MFR # 2932165000 # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025

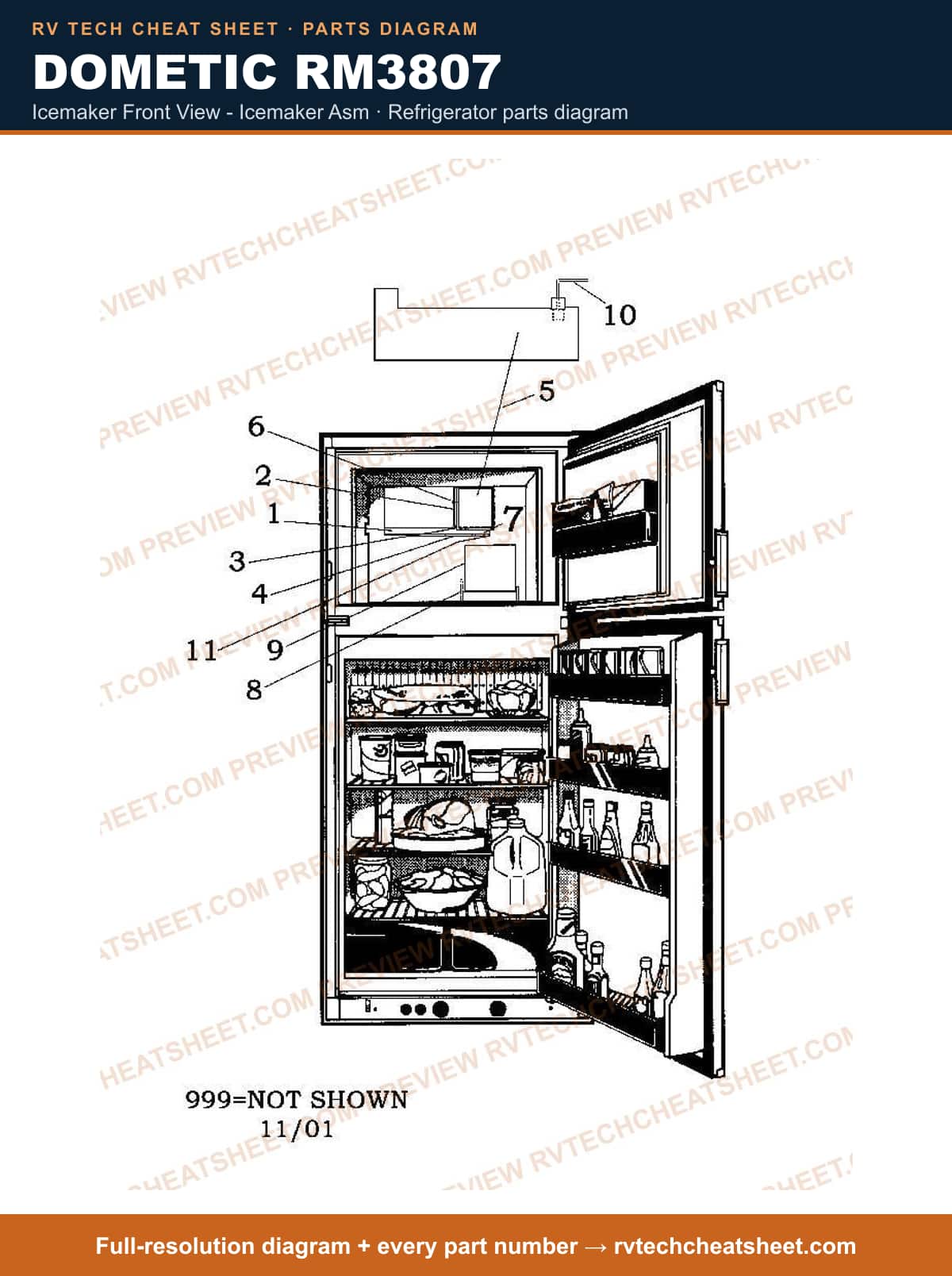

Icemaker Front View - Icemaker Asm
Dometic RM3807 icemaker front view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 12 items # Shelf MFR # 2931924019 # Side Plate MFR # 2931921015 # Pop Rivet MFR # 7727822033 # Plate MFR # 2007649029 # APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552 # Icemaker; Use 3108701552 MFR # 2931971028 Superseded: see description # SCREW, RX5X12, Z. PL. MFR # 7241327019 # APPLIANCE COMPONENTS RV; Screw Hinge MFR # 7241325617 # Shelf, Wire for Ice Bucket RM2807 MFR # 2931923011 # Bucket, Ice MFR # 2930880022 # Tube, Water (Metal) MFR # 2931922013 # Nut M6M5, Zinc Plated MFR # 7312314011
Product # 921601701 3 Way - Cabinet Front View
Dometic RM3807 product # 921601701 3 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 94 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # APPLIANCE COMPONENTS RV; Plate W/Decal Mounting MFR # 955002720 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Board Control Assm ***Us MFR # 2932884022 # BOARD, 2 WAY USE 2932884022 RM3807 MFR # 2931906016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign plate (3-way) MFR # 2931909002 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # SHELF, FREEZER MFR # 2007535012 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # 2004044091 MFR # 2004044091 # COVER, LIGHT SWITCH MFR # 2004044109 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
Product # 921601401 2 Way - Burner & Controls
Dometic RM3807 product # 921601401 2 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 75 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description # FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description # Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3 # BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description # BOARD,PC CPL USE 2932695014 RM2807-2W MFR # 2931842013 Superseded: see description # BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002 # DOM REPLACEMENT BRD MFR # MICROP711 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002 # S,COVER,LESS DECALS MFR # 2931858019 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
Product # 921602301 2 Way - Cabinet Front View
Dometic RM3807 product # 921602301 2 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 75 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # Plate Mounting with Decal 2-Way MFR # 955002738 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # BOARD, 2 WAY USE 2932884022 RM3807 MFR # 2931906016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # Appliance Components RV MFR # 2931289017 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign Plate (2-Way) MFR # 2931908004 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # SHELF, FREEZER MFR # 2007535012 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # Appliance Components RV; Parts Bag MFR # 2931317016 # DECAL MFR # 2932165000 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025

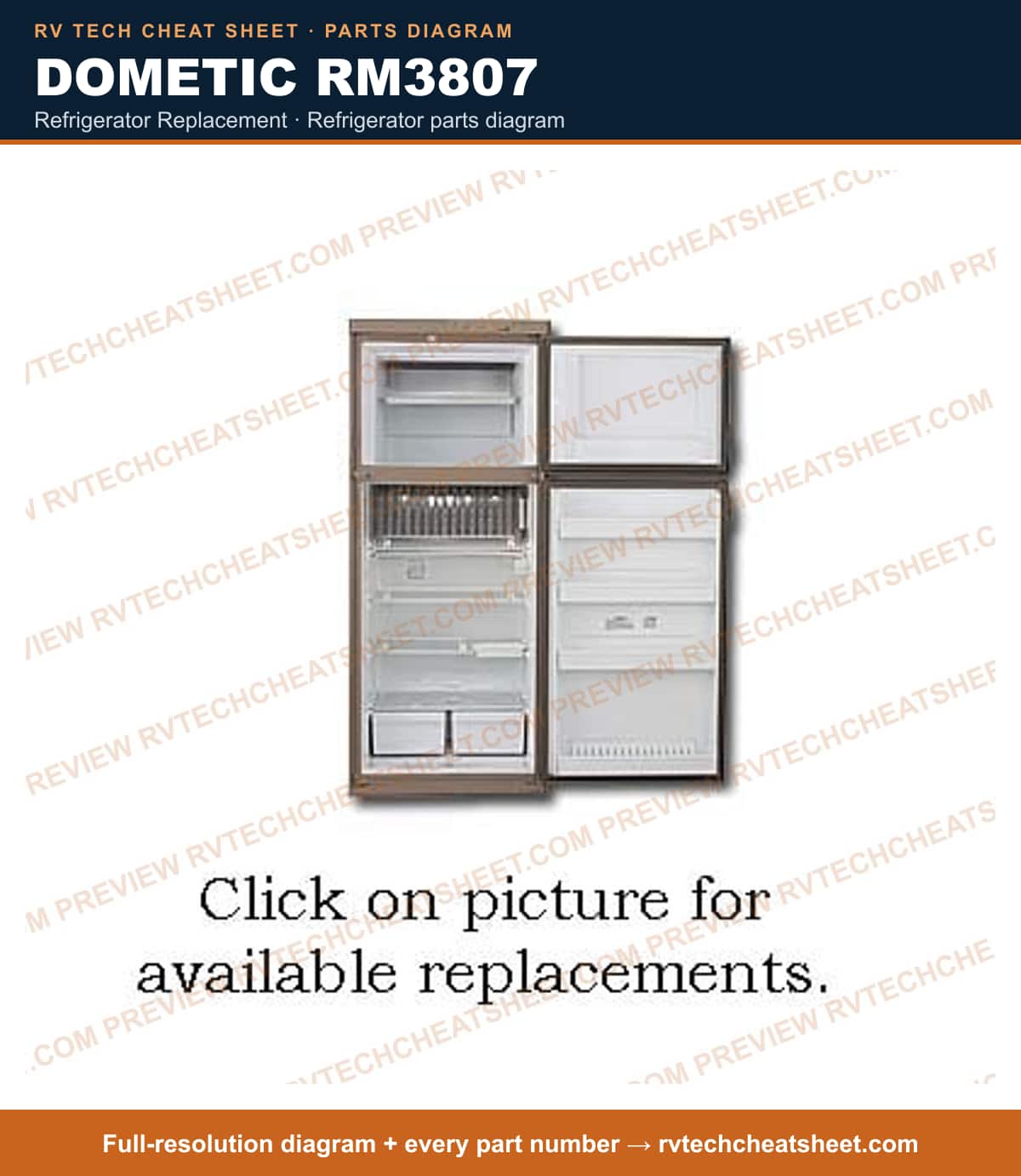

Refrigerator Replacement
Dometic RM3807 refrigerator replacement — parts list sheet Full-resolution diagram + every part number →
Components 12 items # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR # REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK # REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description # Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK # Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Ft MFR # N8413SS
Product # 921602401 2 Way - Burner & Controls
Dometic RM3807 product # 921602401 2 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 70 items # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description # FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3 # FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002 # Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002 # BOARD,PC USE 2932695014 MFR # 2931842039 Superseded: see description # S,COVER,LESS DECALS MFR # 2931858019 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # APPLIANCE COMPONENTS RV; Bracket Manual Gas Valve MFR # 2932116011 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
Product # 921600801 3 Way - Burner & Controls
Dometic RM3807 product # 921600801 3 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 74 items # Nut MFR # 140107044 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Label 12VDC MFR # 2931827006 # DOM REPLACEMENT BRD MFR # MICROP711 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, PC USE 2931843037 MFR # 2931843011 Superseded: see description # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
Product # 921602301 2 Way - Burner & Controls
Dometic RM3807 product # 921602301 2 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 47 items # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023 # Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RM3807 MFR # 2932117019 Superseded: see description # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # 2930379009 MFR # 45-9742 # 3858002052 MFR # 46-8808 # 2007419217 MFR # 45-5690 # 2931824011 MFR # 46-0449 # 2932063015 MFR # 46-0550 # 2931826016MC MFR # 46-0452 # BPAGC5 MFR # 55-9692 # BPAGC3 MFR # 55-9690 # MICROP711 MFR # 80-8635 # 3308897002 MFR # 46-6667 # 3308741002 MFR # 46-6658 # 2931858019 MFR # 46-0473 # 3108702675 MFR # 46-4571 # 2931864017 MFR # 46-0497 # 2931913012 MFR # 46-0501 # 2931572016 MFR # 46-0373 # 2932116011 MFR # 46-0576 # 173742164 MFR # 45-4109 # 2930660010 MFR # 45-9897 # 2007457001 MFR # 45-5711 # 3858022019 MFR # 46-8823 # Screw MFR # 47-8367 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 47-2815 # Refrigerator Support Rail Screw MFR # 47-8364 # 2931132019 MFR # 46-0165 # 2931132019MC MFR # 39-1015 # 7295279512 MFR # 47-8356 # 7295279405 MFR # 47-8355 # 2007590066 MFR # 45-5824 # 2931540013 MFR # 46-0361 # Refrigerator Power Cord; For Use With Dometic M70/ MA40C/ NDR1272/ RM100/ RM1303/ RM182A/ RM2192/ RM2200A/ RM24/ RM2410/ RM2604/ RM2804/ RM36/ RM360/ RM361/ RM36A/ RM36C/ RM36D/ RM45/ RM45A Model Refrigerators; 39 Inch Length MFR # 45-5451 Superseded: see description
Vibration Suppression Kit
Product # 921602501 3 Way - Cabinet Front View
Dometic RM3807 product # 921602501 3 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 79 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # APPLIANCE COMPONENTS RV; Plate W/Decal Mounting MFR # 955002720 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Board, PC Use 2932697101 Upper with Mounting Plate 3 Way MFR # 2931846014 Superseded: see description # Appliance Components RV; Board Circuit MFR # 2932884048 # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # Refrigerator Trim; Use With Dometic Refrigerator Model RM3807; Top MFR # 2931865113 Superseded: see description # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # Appliance Components RV MFR # 2931289017 # S,HINGE,MID,CLASSIC 6/8CF,PNTD MFR # 3850957014 # BRACKET, MOUNTING RH MFR # 2932125012 # BRACKET, MOUNTING LH MFR # 2932125020 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # S,HINGE,LWR,L,CLASSIC 6/8,PNTD MFR # 2932111012 # S,HINGE,LWR,R,CLASSIC 6/8,PNTD MFR # 2932111020 # S,HINGE PIN,MID,25MM MFR # 2931287011 # Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # Refrigerator Door Rail; Replacement For Dometic RM3807/ RM2620/ RM2607 Refrigerators; Lower Door MFR # 2932110014 # Refrigerator Trim; Replacement For Dometic RM3807/ RM2820/ RM2812 Refrigerators; Front Lower MFR # 2932112044 # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign plate (3-way) MFR # 2931909002 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # SHELF, FREEZER MFR # 2007535012 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SHELF,WIRE 12" USE 2930133117 MFR # 2930133976 Superseded: see description # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # Appliance Components RV; Parts Bag MFR # 2931317016 # DECAL MFR # 2932165000 # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description

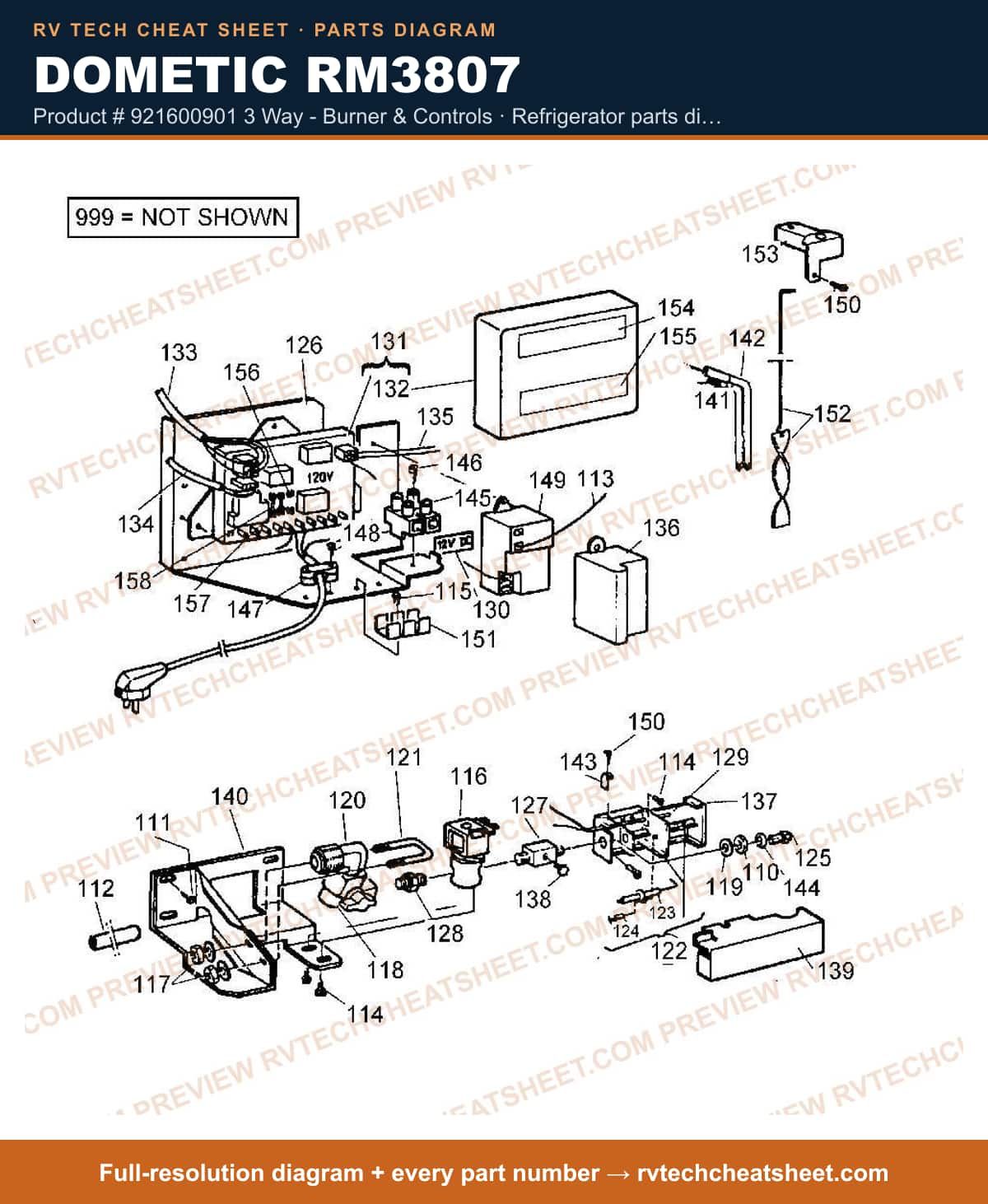

Product # 921600901 3 Way - Burner & Controls
Dometic RM3807 product # 921600901 3 way - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 73 items # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHIELD, THERMOCOUPLE LEAD MFR # 2932001015 # APPLIANCE COMPONENTS RV; Wire Electrode MFR # 2007668052 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # SCREW M4 X 10 S MFR # 7241289615 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description # APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022 # SOLENOID,VALVE USE 2943298030 RM2611 MFR # 2943298006 Superseded: see description # VALVE, SOLENOID USE 2943298022 MFR # 2943298014 Superseded: see description # NUT MFR # 2943286001 # S,VALVE,GAS SHUT-OFF,RM3807 MFR # 2943299004 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # ELBOW,BRASS (90 DEG.) S182 1-31 MFR # 2931916015 # APPLIANCE COMPONENTS RV; Bolt U MFR # 2943285003 # APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # BRACKET, MOUNTING MFR # 2931822015 # APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011 # NIPPLE,SOLENOID VALVE RM28 07 MFR # 2931825026 # THERMOCOUPLE FOR DOMETIC MFR # 2931826016 # Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description # Label 12VDC MFR # 2931827006 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # DOM REPLACEMENT BRD MFR # MICROP711 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, 3-WAY USE 2931843037 MFR # 2931843029 Superseded: see description # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # S,COVER,LESS DECALS MFR # 2931858019 # LEAD,5 WIRE USE 2931862037 RM2807 MFR # 2931862011 Superseded: see description # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # S,THERMISTOR,W/LEAD 64" MFR # 2931863019 # Refrigerator Thermistor Adjuster; Replacement For Dometic RM3807/ RM2611/ RM2852 Model Refrigerators MFR # 2932164011 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # LEAD,GAS VALVE USE 3108702675 MFR # 2931864017 Superseded: see description # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # HOUSING BURNER MFR # 2931913012 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Burner Box Cover; Replacement For Dometic RM3807/ RM2620 Refrigerators MFR # 2931572016 # BRACKET, GAS VALVE MFR # 2931915017 # ELEMENT,HEATING 325W 120V 2WIRE 3/8 X 7 1/4 MFR # CS000020 # APPLIANCE COMPONENTS RV; Element Heating Use Cs00 MFR # 173742164 Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 215W/12V 1 17.9 AMPS MFR # 173757063 # Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Anti-strain Clip MFR # 581014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # STRIP, TERMINAL 6 POS. MFR # 2930327008 # Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066 # CAP FLUE MFR # 2931540013 # DECAL RM3804 MFR # 2931503003 # FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
Product # 921600801 3 Way - Cabinet Front View
Dometic RM3807 product # 921600801 3 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 93 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # APPLIANCE COMPONENTS RV; Plate W/Decal Mounting MFR # 955002720 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Appliance Components RV; Board Circuit MFR # 2932884048 # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # Board, PC Use 2932697101 Upper with Mounting Plate 3 Way MFR # 2931846014 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign Plate (2-Way) MFR # 2931908004 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # SHELF, FREEZER MFR # 2007535012 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # SHELF, WIRE 12" USE 2930133117 MFR # 2930133-97/6 2002652-29/1 000002002652291 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # 2004044091 MFR # 2004044091 # COVER, LIGHT SWITCH MFR # 2004044109 # SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
Product # 921600901 3 Way - Cabinet Front View
Dometic RM3807 product # 921600901 3 way - cabinet front view — parts list sheet Full-resolution diagram + every part number →
Components 90 items # S,HINGE,UPR,CLASSIC MFR # 2931291013 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011 # APPLIANCE COMPONENTS RV; Plate W/Decal Mounting MFR # 955002720 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Dometic RM2820 Series Refrigerator Main Control Board MFR # 2931866012 # Refrigerator Door Hinge Cover; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator; Fits Top Hinge Left Hand MFR # 2931866020 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # BOARD, 2 WAY USE 2932884022 RM3807 MFR # 2931906016 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Control Panel RM280 MFR # 2931865055 # APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006 # Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113 # HINGE, CENTER MFR # 2931290015 # SUPPORT MFR # 2930774019 # APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012 # PLATE,MOUNTING LH MFR # 2931459016 # PLATE,MOUNTING RH MFR # 2931459024 # S,HINGE PIN,UPR,RM2604 MFR # 2931288019 # HINGE, LOWER LH RM26 04 MFR # 2931283010 # HINGE, LOWER RH MFR # 2931283028 # S,HINGE PIN,MID,25MM MFR # 2931287011 # S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013 # APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619 # APPLIANCE COMPONENTS RV; Runner Right MFR # 2931281014 # APPLIANCE COMPONENTS RV; Runner Left MFR # 2931281022 # BASE,FRONT USE 2931282061 RM3807 MFR # 2931282087 Superseded: see description # APPLIANCE COMPONENTS RV; Base Front RM2804-2 MFR # 2931282061 # APPLIANCE COMPONENTS RV; Insulation RM3801 MFR # 2930711029 # STRIP,TRIM MFR # 2931628024 # Refrigerator Thermostat Cover MFR # 2931285015 # REINFORCEMENT MFR # 2931504019 # Refrigerator Vent Cover Back Plate MFR # 2930664012 # Screw Cover; Replacement For RM2611/ RM2620/ RM2607 Refrigerators; Use To Cover Screws For A Finished Look; Press On; Round; Dark Gray MFR # 2931284026 Superseded: see description # S,STRIKE 9*35*24MM MFR # 2931511014 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032 # Sign plate (3-way) MFR # 2931909002 # BRACKET,MOUNTING MFR # 2931298018 # Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013 # Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038 # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # PLATE RETAINING MFR # 2007649011 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # COVER, LIGHT SWITCH MFR # 2004044109 # 2004044091 MFR # 2004044091 # S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010 # Lead T-Stat MFR # 2930735010 # RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004 # SHADE, LAMP MFR # 2004043002 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # SCREW MFR # 7295283407 # APPLIANCE COMPONENTS RV; Plate Cover MFR # 2931006015 # Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description # Appliance Components RV; Parts Bag MFR # 2931317016
