Dometic RM3863 Royale Product # 921146009 Beige Parts Diagram · Cabinet Exterior

Refrigerator · 10 assemblies · 10 diagram sheets · 253 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3863 Royale Product # 921146009 Beige RV refrigerator: 10 assemblies (Cabinet Exterior, Cabinet Interior, Front View, Replacement Refrigerator, Door Assembly and more) and 253 manufacturer part numbers. 75 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Exterior

Components

41 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014
6. #APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
9. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
10. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
11. #BOARD, CIRCUIT USE 2932884030 3 WAY MFR # 2932697093 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Label Pc Board 3 Way MFR # 955024492
13. #Button Pushbutton On/Off MFR # 955024138
14. #Appliance Components RV; Cover, Front MFR # 2932641018
15. #APPLIANCE COMPONENTS RV; Cover Front For Eyebrow MFR # 2932641026
16. #Decal; Use With Dometic RM3863 Refrigerator; 3 Way MFR # 2932685007 Superseded: see description
17. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
18. #PLUG MFR # 2932742014
19. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
21. #LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description
22. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
23. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
24. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
25. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
26. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
27. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
28. #SCREW MFR # 7241283014
29. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
30. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
31. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
32. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
33. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
34. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
35. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
36. #Refrigerator Door Sag Repair Kit; Replacement For Dometic RM3862/ RM3863/ RM2652/ DM2652 Model Refrigerator MFR # 293275008
37. #KIT, DOOR REVERSING (LEFT TO RIGHT) MFR # 2932750051
38. #Hinge Kit L to R; Use 293275003 RM2453, RM3862 MFR # 3106922010 Superseded: see description
39. #Bearing Race; LM-67010; 2.328 Inch Outer Diameter; Set Of 2; Use With LM67048 Bearing; Clamshell Pack; Folding Carton Package MFR # 2932750041 Superseded: see description
40. #Appliance Components RV; Hinge Kit Left To Right MFR # 293275003
41. #Bearing Race; 25520; 3.265 Inch Outer Diameter; Set Of 2; Use With 25580 Bearing; Clamshell Package MFR # 293275004 Superseded: see description

Cabinet Interior

Components

39 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
3. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #SHELF, WIRE USE 2932625029 MFR # 2932625011 Superseded: see description
8. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
9. #Refrigerator Shelf; Replacement For Dometic RM2652/ RM4873/ RM4872 Refrigerators; Fresh Food Compartment; Wire MFR # 2932625045
10. #SHELF,WIRE USE 2932625045 MFR # 2932625037 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Shelf Wire F/Rm4872 MFR # 2932625086
12. #Shelf, Wire Use 2932625086 MFR # 2932625078 Superseded: see description
13. #SHELF,WIRE USE 2932626027 MFR # 2932626019 Superseded: see description
14. #Refrigerator Shelf; Replacement For Dometic RM3663/ RM4872/ RM3863 Refrigerators; Milk Compartment; Wire MFR # 2932626027
15. #S,CVR,CRISPER SHLF,CLR-400/410 MFR # 2931117085
16. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
17. #Shelf, Wire Use 2932627025 Freezer; Dimensions: 8 3/8" X 16 3/4" MFR # 2932627017 Superseded: see description
18. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
19. #APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
21. #SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description
22. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
23. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
24. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
25. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
26. #BULB 2/PK MFR # 2007290006
27. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
28. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
29. #Refrigerator Content Brace; Replacement For Dometic RM3662/ RM3663/ RM3863/ RM3862 Royale Model Refrigerator; 9-1/2 Inch Length Bar MFR # 2007337104
30. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
31. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
32. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
33. #COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description
34. #Appliance Components RV; Lead Light MFR # 2954432015
35. #SCREW MFR # 7295283407
36. #LABEL MFR # 2932732007
37. #SCREW USE 3858002284 MFR # 2801017068 Superseded: see description
38. #TOILET COMPONENTS RV; Screw MFR # 3858002284
39. #SCREW MFR # 2801017043

Front View

Components

14 items

1. #SHELF,ICEMAKER 6' AND 8' MFR # 3108706130
2. #SCREW, #10 X 2" MFR # 3106586005
3. #APPLIANCE COMPONENTS RV; Shelf Ice Bucket Kit MFR # 3312986031
4. #SHELF,ICE USE 3312986031 BUCKET MFR # 3106583002 Superseded: see description
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
9. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
13. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
14. #DECORATION, DOOR MFR # 3107176004

Replacement Refrigerator

Components

6 items

1. #REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
2. #Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N
3. #REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK
5. #Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Ft MFR # N8413SS
6. #REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH

Door Assembly

Components

42 items

1. #APPLIANCE COMPONENTS RV; Door Freezer Lh MFR # 2932561133
2. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
3. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
4. #Refrigerator Door; Use With Dometic RM2553/ RM2551 Refrigerators; Right Hand Side MFR # 2932562123 Superseded: see description
5. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
6. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
7. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
8. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
9. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
10. #APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020
11. #RACK,JUICE WHITE MFR # 2932578020
12. #RACK, JUICE MFR # 2932578012
13. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
14. #Appliance Components RV; Strip, Decoration MFR # 3850919014
15. #S,DR DECOR,FRZ,BRN MFR # 3850381017
16. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
17. #APPLIANCE COMPONENTS RV; TRIM, DECORATION BLACK MFR # 3850381199
18. #STRIP, DECO USE 3850381058 MFR # 2932642057 Superseded: see description
19. #STRIP, DECO, USE 3850381199 MFR # 3850381058 Superseded: see description
20. #Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017
21. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
22. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
23. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
24. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
25. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
26. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
27. #SHELF, REFRIGERATOR MFR # 2932585017
28. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
29. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
30. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
31. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
32. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
33. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
34. #Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description
35. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005
36. #DOOR PANEL - OAK PANEL AL MFR # RM3862G
37. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
38. #Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382
39. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
40. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
41. #DOOR PANEL - BRUSHED ALUM MFR # 3862BA
42. #DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L

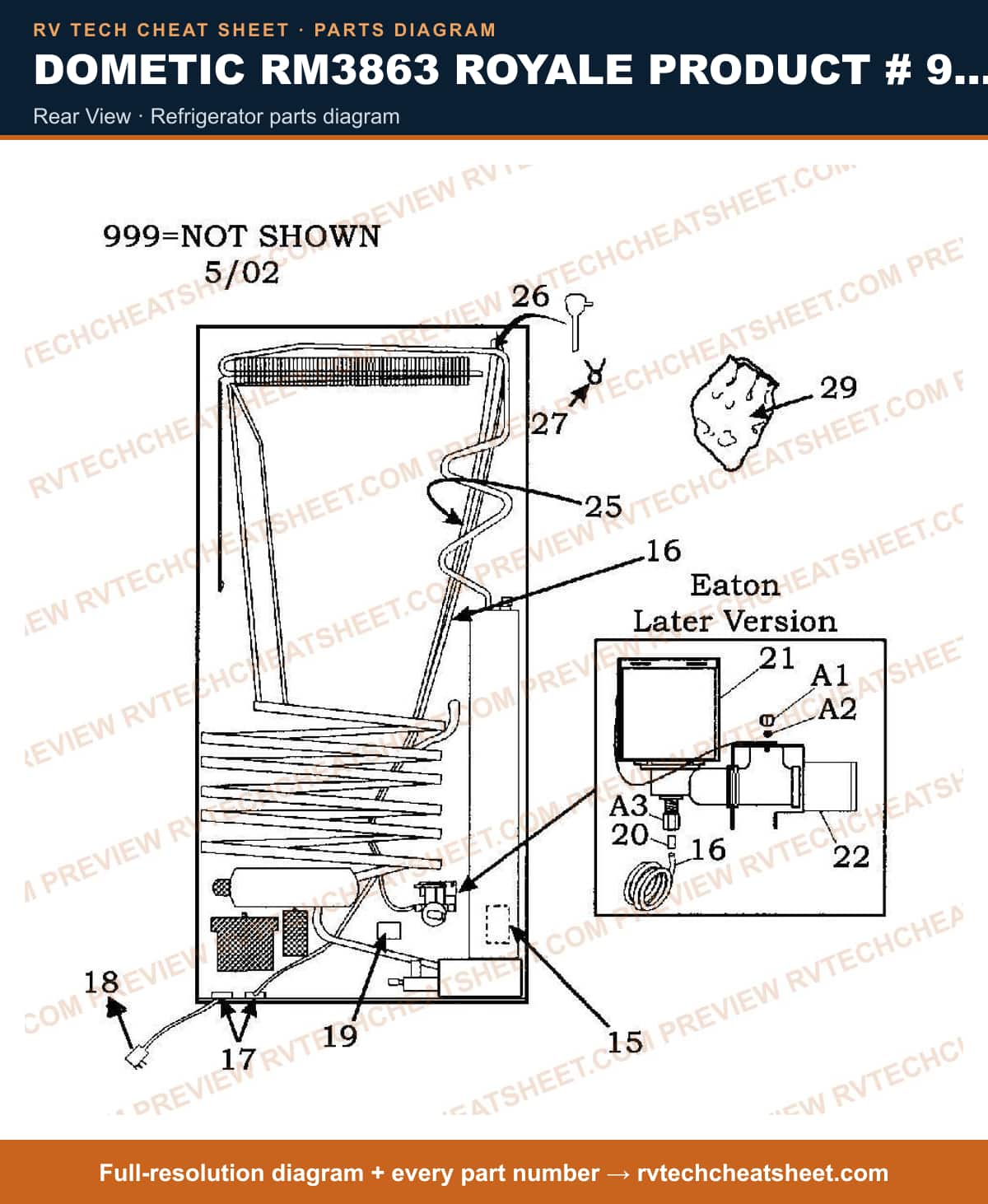

Cabinet Rear View

Components

12 items

1. #REMAN C/U USE 5582 RM2852,3852-3 MFR # 2934805090R Superseded: see description
2. #APPLIANCE COMPONENTS RV; Cooling Unit 805 (Ups) MFR # 2934805090N
3. #REBUILT DOMETIC COOLING U MFR # 5582805A
4. #REBUILT DOMETIC COOLING U MFR # 5582806A
5. #GRAY PRIMER MFR # 5582
6. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
7. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
9. #SCREW MFR # 2801023025
10. #MASTIC MFR # 2943397006
11. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
12. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description

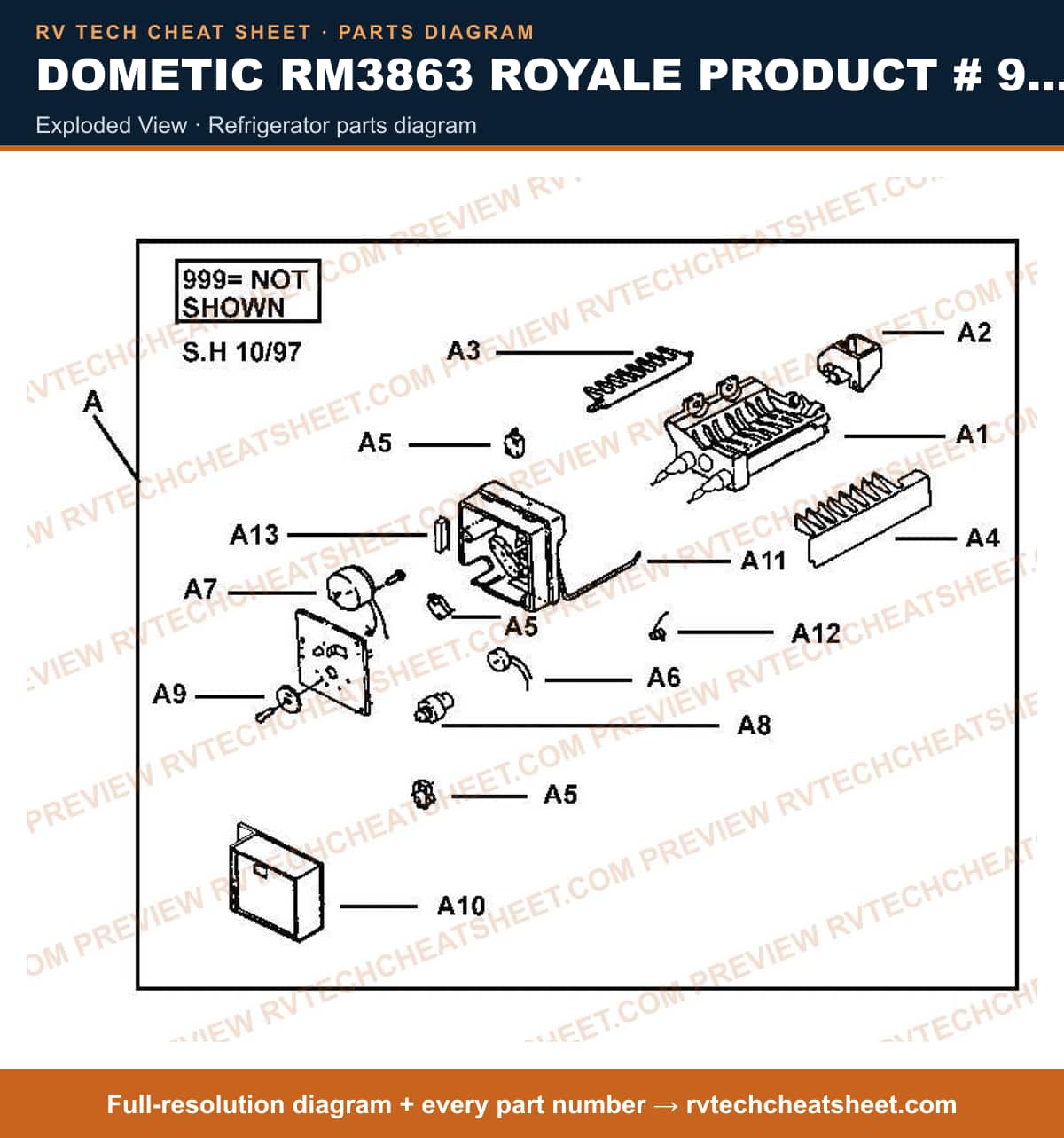

Exploded View

Components

18 items

1. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
2. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
3. #EJECTOR MFR # 3108703434
4. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
5. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
6. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
7. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #CAM MFR # 3108703483
11. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
12. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
13. #GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
15. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
16. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
17. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
18. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082

Rear View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
6. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
7. #HEATER KIT ICEMAKER MFR # 3106868015
8. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
9. #TERMINAL BLOCK,Y MFR # 2931963017
10. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
11. #WARNING LABEL MFR # 2931975003
12. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
14. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
15. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
16. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
18. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
19. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
20. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
21. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
22. #RING, HOG MFR # 3107614012
23. #VALVE KIT WATER MFR # 3108706114

Icemaker Kit

Components

6 items

1. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
2. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
3. #SCREW, #10 X 2" MFR # 3106586005
4. #SCREW # 8 X 1/2" TA MFR # 3106317005
5. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description

Burner & Controls

Components

58 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
3. #ELECTRODE MFR # 2932781012
4. #ELECTRODE W/WIRE LEADS MFR # 293781012MC
5. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
6. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
7. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
8. #SCREW M4 X 10 S MFR # 7241289615
9. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
10. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
11. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
12. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
13. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
14. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
15. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
16. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
17. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
18. #Nut, T-Couple MFR # 2801043015
19. #DOM REPLACEMENT BRD MFR # MICROP711
20. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
21. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
22. #Board, PC 3-Way Use 2932882018 Ames W. Cover MFR # 2931843045 Superseded: see description
23. #S,COVER,LESS DECALS MFR # 2931858019
24. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
25. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
26. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
27. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
28. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
29. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
30. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
31. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
32. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
33. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
34. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
35. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
36. #ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289
37. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
38. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
39. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
40. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
41. #3858022019 MFR # 3858022019
42. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
43. #PLATE,DC WIRE CONN MFR # 2932687011
44. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
45. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
46. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
47. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
48. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
49. #2932667047 MFR # 2932667047
50. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
51. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
52. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
53. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
54. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
55. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
56. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
57. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
58. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
