Dometic RM3863 Royale Product # 921146064 Beige Parts Diagram · Replacement Refrigerator

Refrigerator · 10 assemblies · 10 diagram sheets · 227 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3863 Royale Product # 921146064 Beige RV refrigerator: 10 assemblies (Replacement Refrigerator, Serial # 204XXXXXX & Higher - Cabinet Rear View, Rear View, Front View, Door Assembly and more) and 227 manufacturer part numbers. 62 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

6 items

1. #REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
2. #Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Ft MFR # N8413SS
3. #REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK
5. #Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N
6. #REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH

Serial # 204XXXXXX & Higher - Cabinet Rear View

Components

8 items

1. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
2. #COOLING UNIT USE 2934806106 MFR # 2934806098N Superseded: see description
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
6. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description
7. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
8. #MASTIC MFR # 2943397006

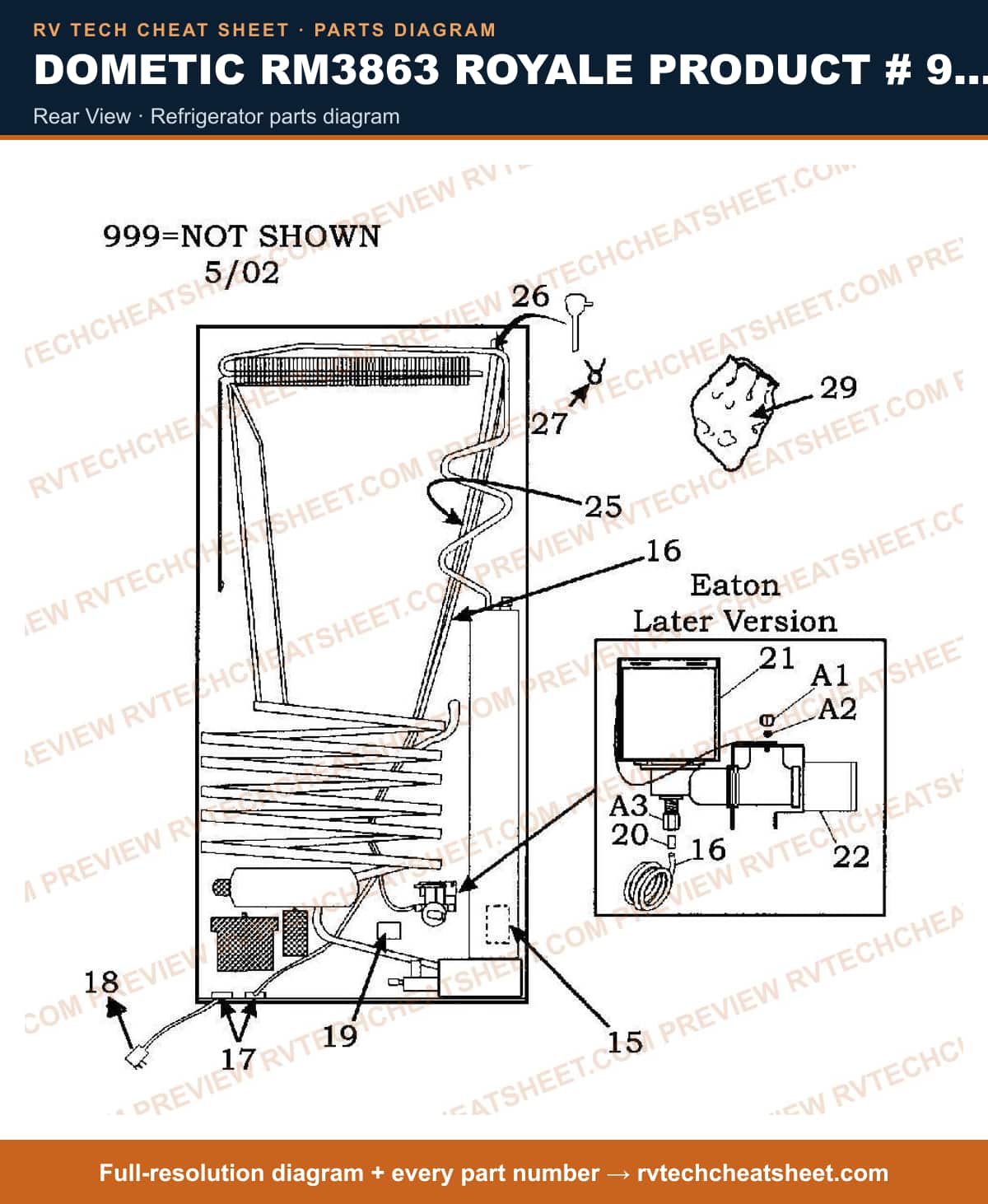

Rear View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #HEATER KIT ICEMAKER MFR # 3106868015
8. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
9. #TERMINAL BLOCK,Y MFR # 2931963017
10. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
11. #WARNING LABEL MFR # 2931975003
12. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
14. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
15. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
16. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
18. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
19. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
20. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
21. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
22. #RING, HOG MFR # 3107614012
23. #VALVE KIT WATER MFR # 3108706114

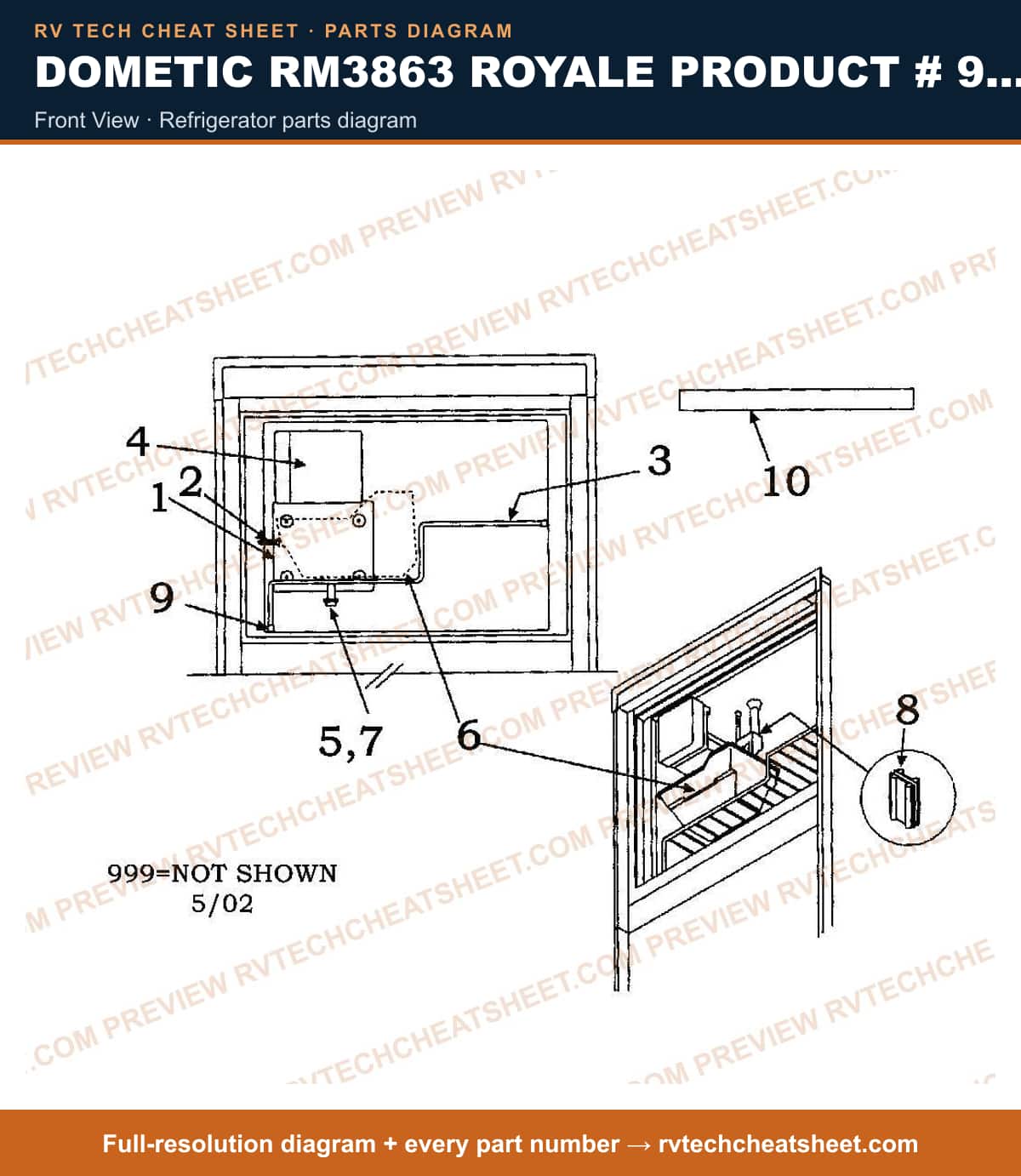

Front View

Components

14 items

1. #SHELF,ICEMAKER 6' AND 8' MFR # 3108706130
2. #SCREW, #10 X 2" MFR # 3106586005
3. #APPLIANCE COMPONENTS RV; Shelf Ice Bucket Kit MFR # 3312986031
4. #SHELF,ICE USE 3312986031 BUCKET MFR # 3106583002 Superseded: see description
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
9. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
13. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
14. #DECORATION, DOOR MFR # 3107176004

Door Assembly

Components

40 items

1. #APPLIANCE COMPONENTS RV; Door Freezer Lh MFR # 2932561091
2. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
3. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
4. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
5. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
6. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
7. #Refrigerator Door; Use With Dometic RM2852/ RM3863 Refrigerators; Left Hand Lower MFR # 2932562032 Superseded: see description
8. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
9. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
10. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
11. #RACK,JUICE WHITE MFR # 2932578020
12. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
13. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
14. #HANDLE, BEIGE USE 3851174106 OR 49-8525 NEW STYLE MFR # 2932093012 Superseded: see description
15. #S,SCREW,PT,50*26 MFR # 3858000031
16. #SCREW MFR # 2801048014
17. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
18. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
19. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
20. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
21. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
22. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
23. #S,DR DECOR,FRZ,BRN MFR # 3850381017
24. #Appliance Components RV; Strip, Decoration MFR # 3850919014
25. #APPLIANCE COMPONENTS RV; TRIM, DECORATION BLACK MFR # 3850381199
26. #STRIP, DECO, USE 3850381199 MFR # 3850381058 Superseded: see description
27. #STRIP, DECO USE 3850381058 MFR # 2932642057 Superseded: see description
28. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
29. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
30. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
31. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
32. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
33. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005
34. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
35. #DOOR PANEL - OAK PANEL AL MFR # RM3862G
36. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
37. #DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L
38. #DOOR PANEL - BRUSHED ALUM MFR # 3862BA
39. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
40. #Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382

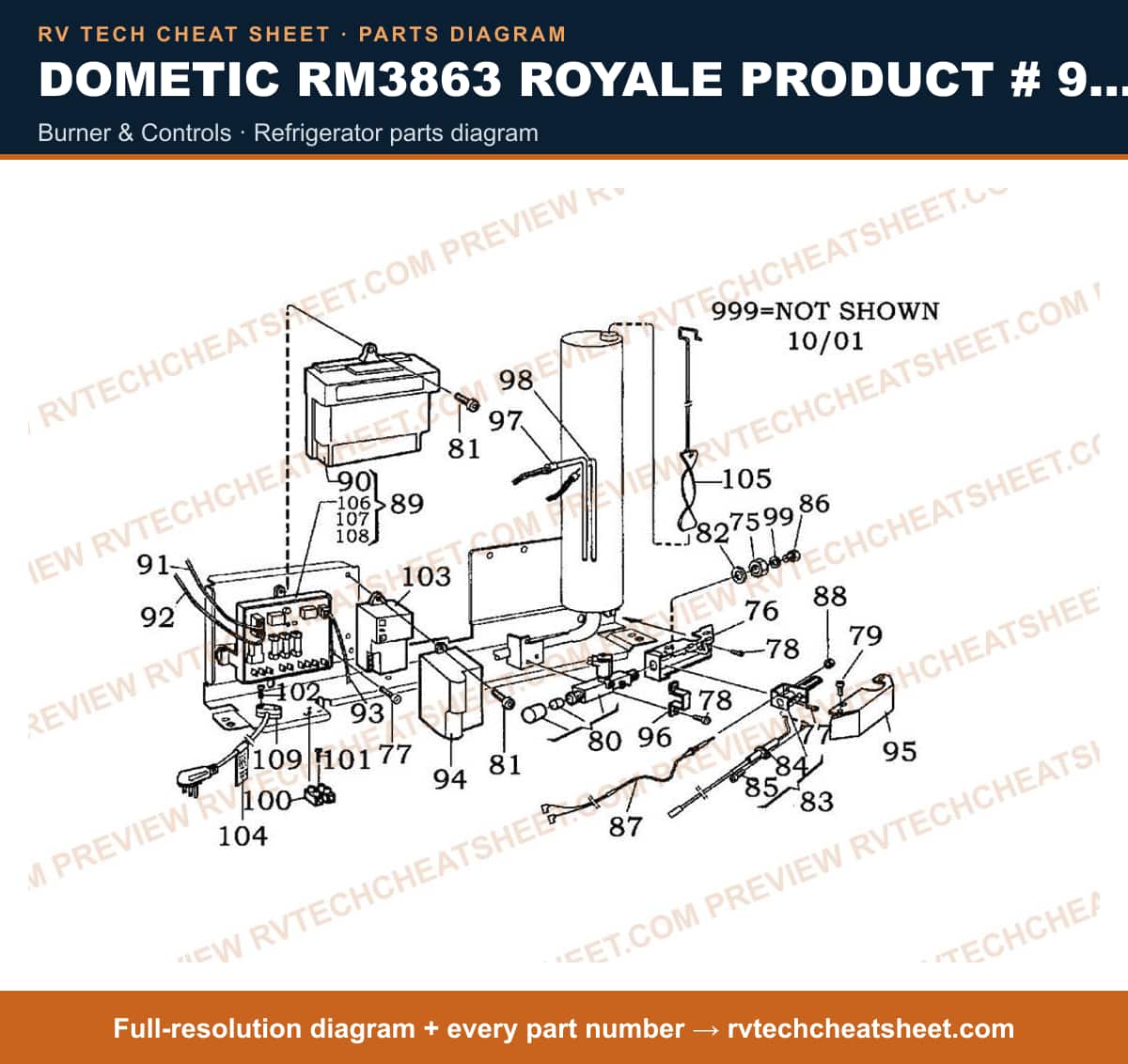

Burner & Controls

Components

61 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #SCREW M4 X 10 S MFR # 7241289615
5. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
6. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
7. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
9. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
10. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
11. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
12. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
13. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
14. #ELECTRODE W/WIRE LEADS MFR # 293781012MC
15. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
16. #ELECTRODE MFR # 2932781012
17. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
18. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
19. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
20. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
21. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
22. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
23. #Nut, T-Couple MFR # 2801043015
24. #DOM REPLACEMENT BRD MFR # MICROP711
25. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000
26. #BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description
27. #S,COVER,LESS DECALS MFR # 2931858019
28. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
29. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
30. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
31. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
32. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
33. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
34. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
35. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
36. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
37. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
38. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
39. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
40. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
41. #ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289
42. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
43. #ELEMENT, HEATING 120VAC 325W MFR # CH000360
44. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
45. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
46. #3858022019 MFR # 3858022019
47. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
48. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
49. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
50. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
51. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
52. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
53. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
54. #2932667039 MFR # 2932667039
55. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
56. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
57. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
58. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
59. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
60. #Fuse, 35 AMP MFR # 955036124
61. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

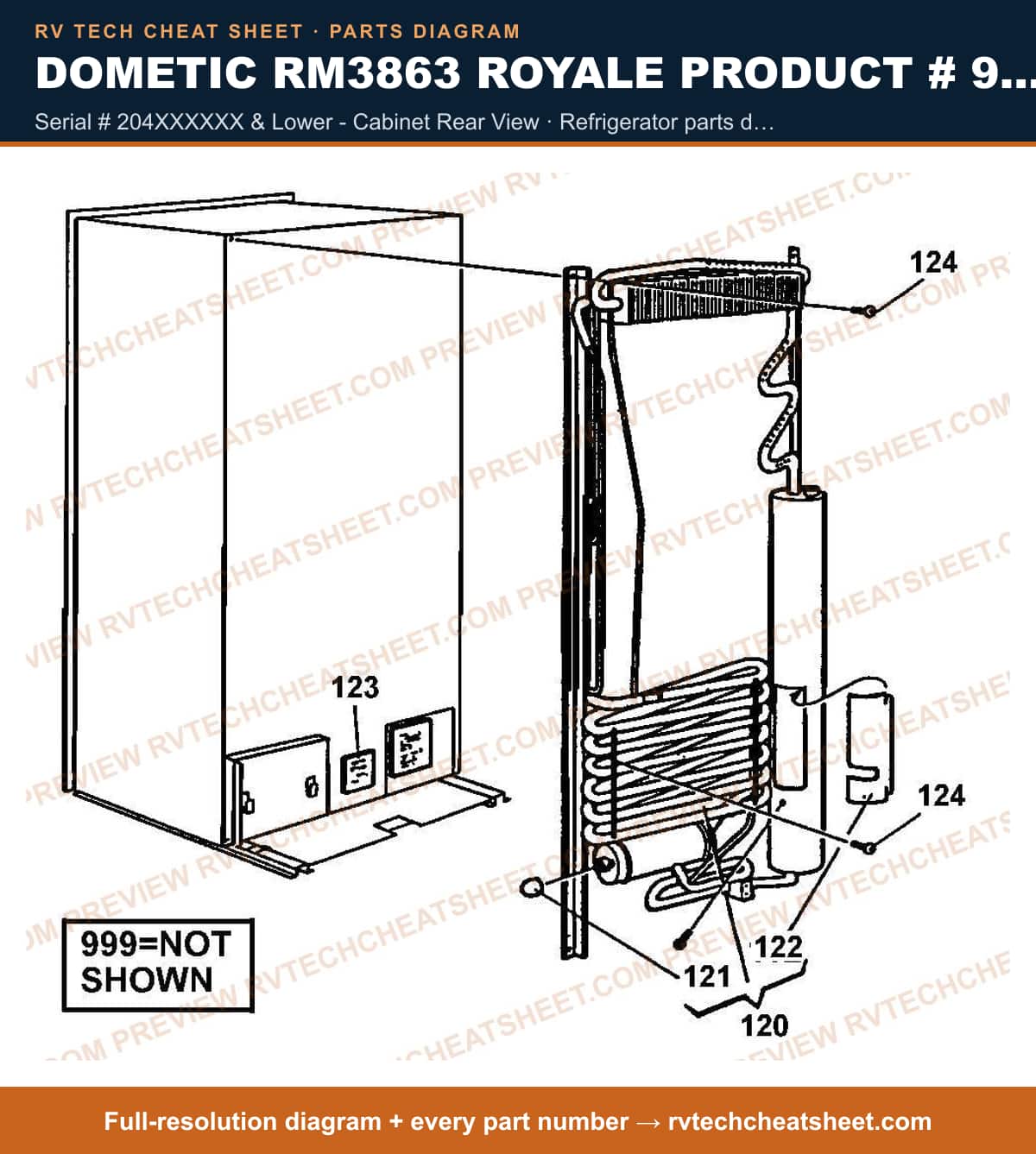

Serial # 204XXXXXX & Lower - Cabinet Rear View

Components

11 items

1. #GRAY PRIMER MFR # 5582
2. #REBUILT DOMETIC COOLING U MFR # 5582805A
3. #REBUILT DOMETIC COOLING U MFR # 5582806A
4. #APPLIANCE COMPONENTS RV; Cooling Unit 805 (Ups) MFR # 2934805090N
5. #REMAN C/U USE 5582 RM2852,3852-3 MFR # 2934805090R Superseded: see description
6. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
7. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
9. #MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description
10. #CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015
11. #MASTIC MFR # 2943397006

Exploded View

Components

18 items

1. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
2. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
3. #EJECTOR MFR # 3108703434
4. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
5. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
6. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
7. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
8. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
9. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
10. #CAM MFR # 3108703483
11. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
12. #GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
14. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
15. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
16. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
17. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
18. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082

Cabinet Interior

Components

28 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
3. #APPLIANCE COMPONENTS RV; Screw B10 X 38 MFR # 2801051018
4. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #Refrigerator Shelf; Replacement For Dometic DM2862/ DM2663 Refrigerators; Clear; Plastic MFR # 2931117176
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
10. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
11. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
12. #S,SHELF,WIRE,WHT MFR # 3850324033
13. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028
18. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
19. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
20. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
21. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
22. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
23. #BULB 2/PK MFR # 2007290006
24. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
25. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
26. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

Cabinet Exterior

Components

27 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014
6. #APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 3 Way MFR # 2932884030 Superseded: see description
9. #SCREW RXS B6X5 MFR # 7295275015
10. #APPLIANCE COMPONENTS RV; Cover Front For Eyebrow MFR # 2932641026
11. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
12. #INSTRUCTION SIGN PLATE MFR # 2932436005
13. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
14. #PLUG MFR # 2932742014
15. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
17. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
20. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
21. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
22. #SCREW MFR # 7241283014
23. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
24. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
25. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
26. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
27. #SCREW M4 X 10 S MFR # 7241289615
