Dometic RM3962 Product # 921146202 Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 142 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3962 Product # 921146202 RV refrigerator: 6 assemblies (Replacement Refrigerator, Cabinet Exterior, Burner & Controls, Cabinet Interior, Door Assembly and more) and 142 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

6 items

1. #RM3962RBS MFR # RM3962RBS
2. #RM3962RSS MFR # RM3962RSS
3. #RM3962RBIMF MFR # RM3962RBIMF
4. #RM3962RSSIMF MFR # RM3962RSSIMF
5. #RM3962RBSIMF MFR # RM3962RBSIMF
6. #RM3962RB MFR # RM3962RB

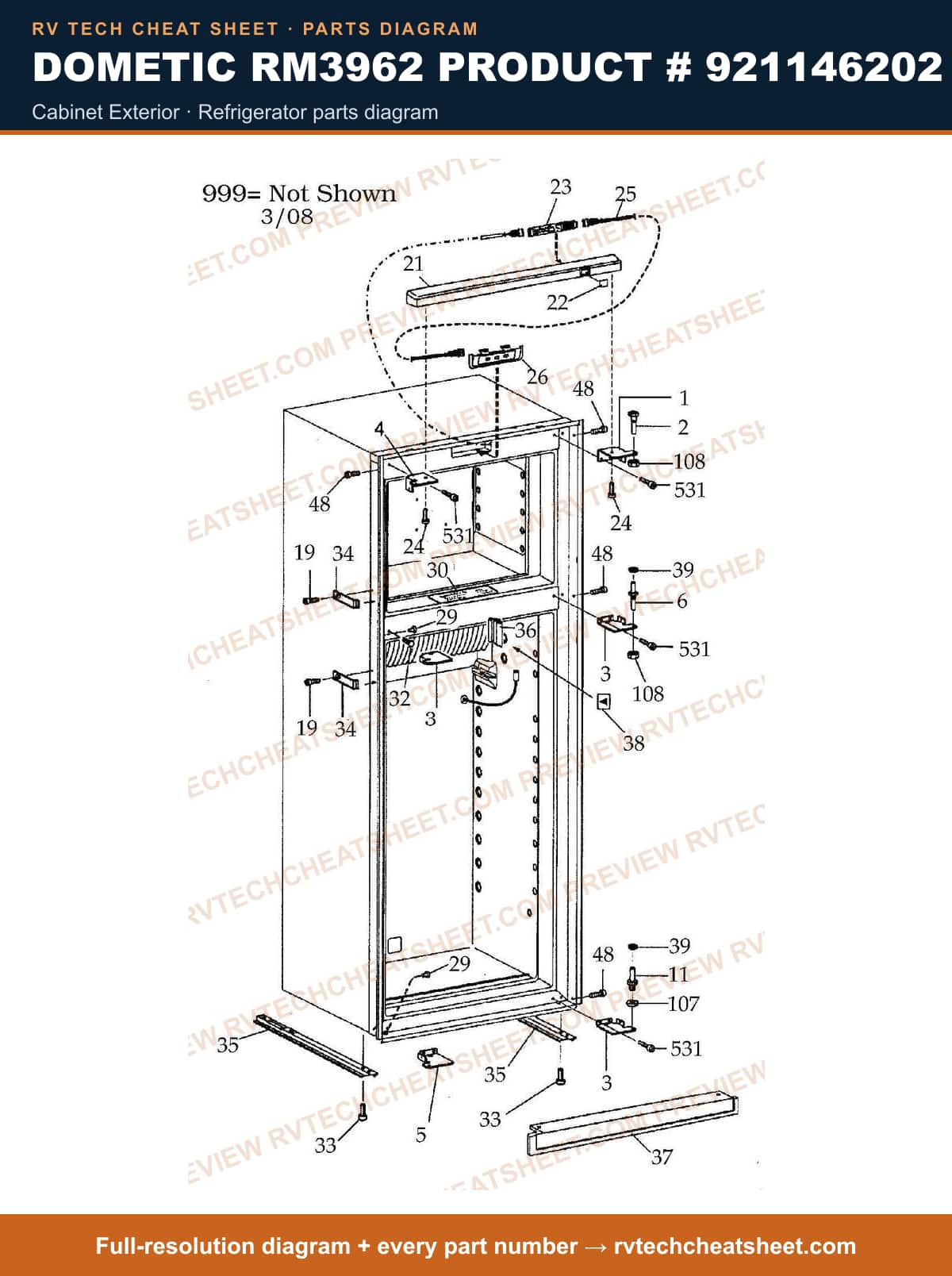

Cabinet Exterior

Components

32 items

1. #3850989025 MFR # 3850989025
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #3850988027 MFR # 3850988027
4. #3850989017 MFR # 3850989017
5. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
7. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
8. #3850967013 MFR # 3850967013
9. #S,LENS-SMOKE GREY MFR # 3850970017
10. #3850969019 MFR # 3850969019
11. #SCREW,PT PH 4 X 10 MFR # 3858006012
12. #S,CABLE,CONTROL MFR # 2954568016
13. #3850964010 MFR # 3850964010
14. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
15. #3851035000 MFR # 3851035000
16. #PLUG,BLACK MFR # 3850585039
17. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
18. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
19. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
20. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
21. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
22. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
23. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
24. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
25. #LABEL MFR # 2933180016
26. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
27. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
28. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
29. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
30. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
31. #S,DOOR,REV KIT LH TO RH MFR # 3851044028
32. #S,DOOR,REV KIT RH TO LH MFR # 3851044010

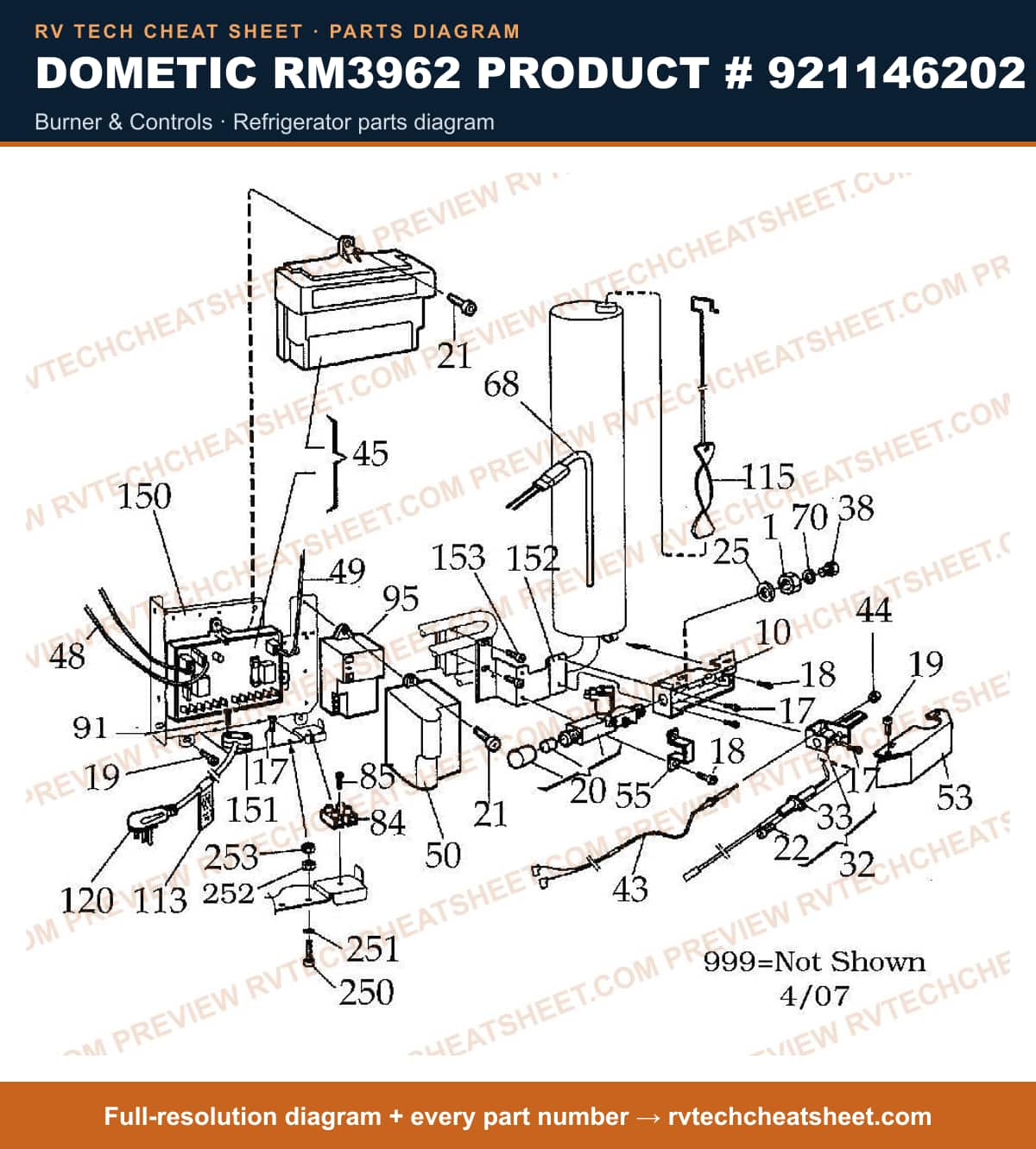

Burner & Controls

Components

43 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
10. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
11. #ELECTRODE MFR # 2932781012
12. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
13. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
14. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #Nut, T-Couple MFR # 2801043015
17. #3851005011 MFR # 3851005011
18. #3851005029 MFR # 3851005029
19. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
20. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
21. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Conductor Solenoid Valve MFR # 2954539017
23. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
24. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
25. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
26. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
27. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
28. #3858022019 MFR # 3858022019
29. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
30. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
31. #Reigniter - NLA MFR # 2931132027
32. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
33. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
34. #2932667047 MFR # 2932667047
35. #2002699094 MFR # 2002699094
36. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
37. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
38. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
39. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
40. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
41. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
42. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
43. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

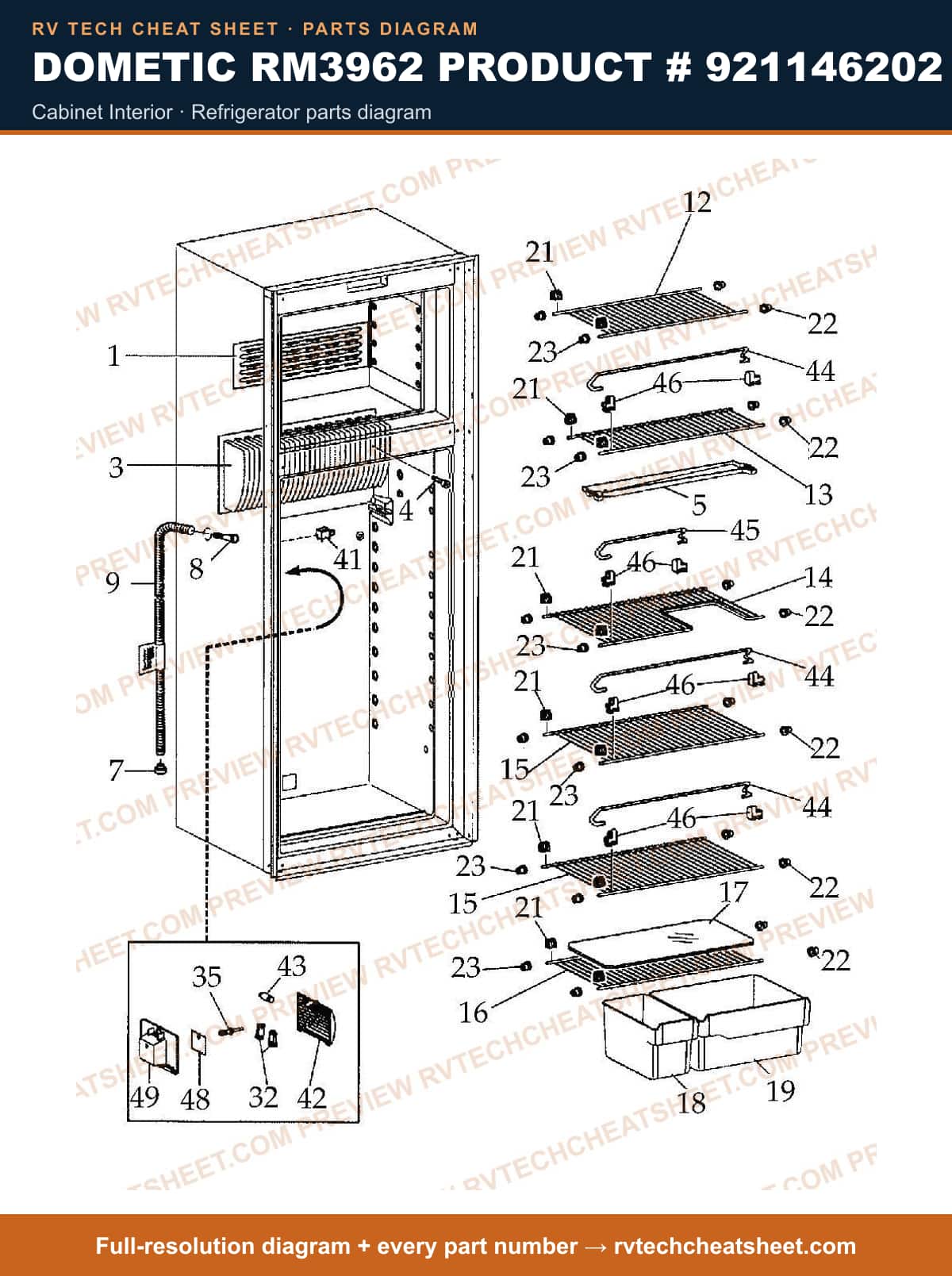

Cabinet Interior

Components

30 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #COOLING FINS MFR # 3851121016
3. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
4. #3851040018 MFR # 3851040018
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #DRAIN PIPE MFR # 3851041016
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #S,SHELF,WIRE,FRZ-WHT,NDR1292 MFR # 2932022011
9. #S,SHELF,WIRE,UPR,WHT-7/9CF MFR # 3850994017
10. #S,SHELF,WIRE,MILK,WHT-7/9CF MFR # 3850995014
11. #3850994033 MFR # 3850994033
12. #S,SHELF,WIRE,LWR,WHT-7/9CF MFR # 3850994025
13. #2931117218 MFR # 2931117218
14. #CRISPER, CLEAR SMALL MFR # 3850992011
15. #S,BIN,CRISPER,LG,CLR-7/9CF MFR # 3850993019
16. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
17. #293101013 MFR # 293101013
18. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #165521030 MFR # 165521030
21. #3851000012 MFR # 3851000012
22. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
23. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
24. #BULB 2/PK MFR # 2007290006
25. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
26. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
27. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
28. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
29. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
30. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016

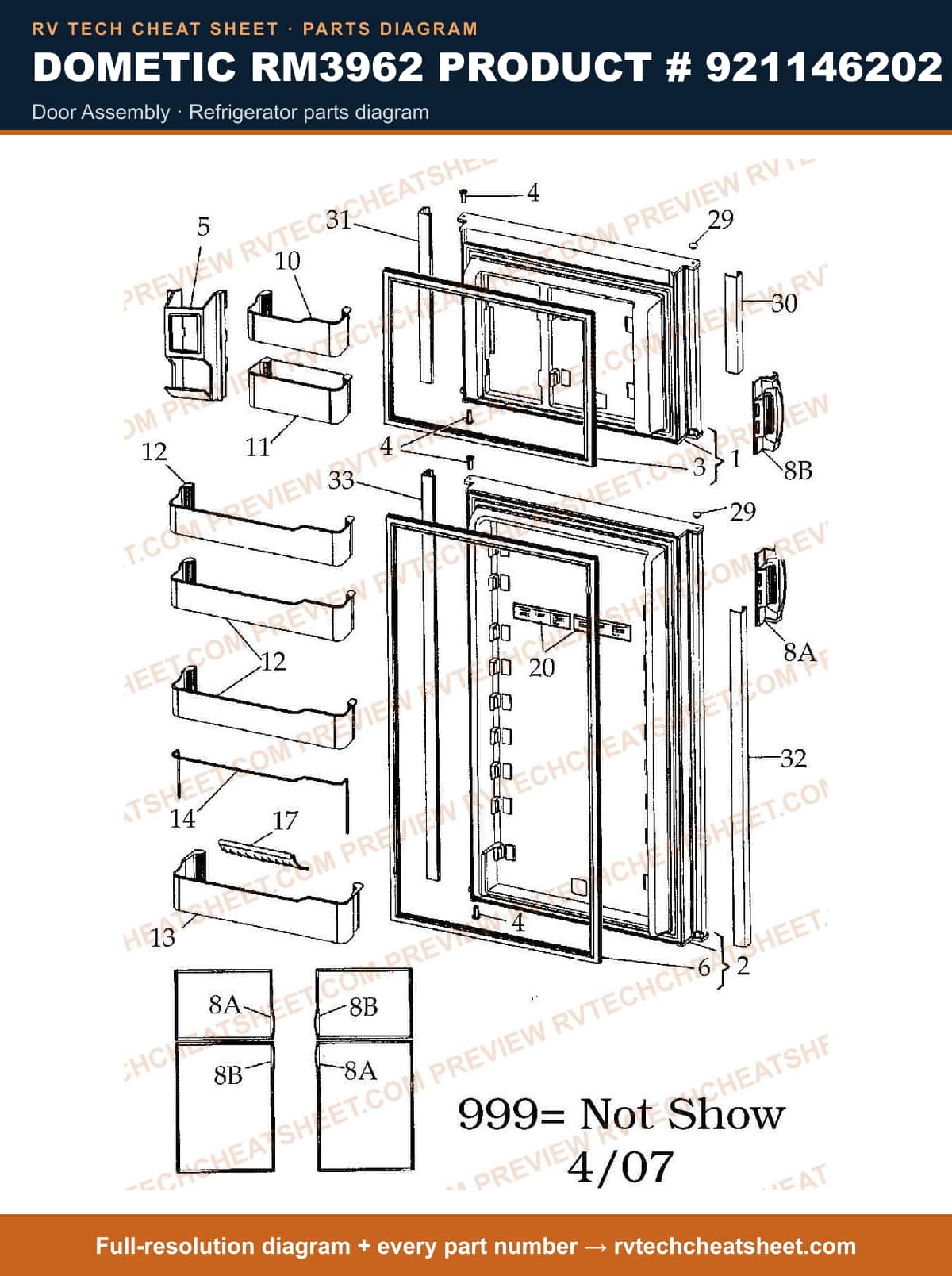

Door Assembly

Components

27 items

1. #3850998018 MFR # 3850998018
2. #3850999016 MFR # 3850999016
3. #3850990031 MFR # 3850990031
4. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
6. #3850990015 MFR # 3850990015
7. #3851047021 MFR # 3851047021
8. #3851047013 MFR # 3851047013
9. #3850973011 MFR # 3850973011
10. #3850972013 MFR # 3850972013
11. #Refrigerator Shelf; Replacement For Dometic DMH1072/ RM3762/ RM3962 Model Refrigerator; Door Shelf; Transparent MFR # 3850974019
12. #Refrigerator Door Bin; Replacement For Dometic RM3962/ RM3762 Model Refrigerator; Lower Door; Clear MFR # 3850975016
13. #RACK MFR # 3850976014
14. #2932658038 MFR # 2932658038
15. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
16. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
17. #3850982012 MFR # 3850982012
18. #3850982020 MFR # 3850982020
19. #3850982053 MFR # 3850982053
20. #S,PRFL,TRIM,FF DR,BLK 9000-9CF MFR # 3850982137
21. #3850982061 MFR # 3850982061
22. #S,PRFL,TRIM,FF DR,HNG,BLK9000 MFR # 3850982145
23. #3311065020C MFR # 3311065020C
24. #3106863164B MFR # 3106863164B
25. #3106863164C MFR # 3106863164C
26. #3311065020A MFR # 3311065020A
27. #3311065020D MFR # 3311065020D

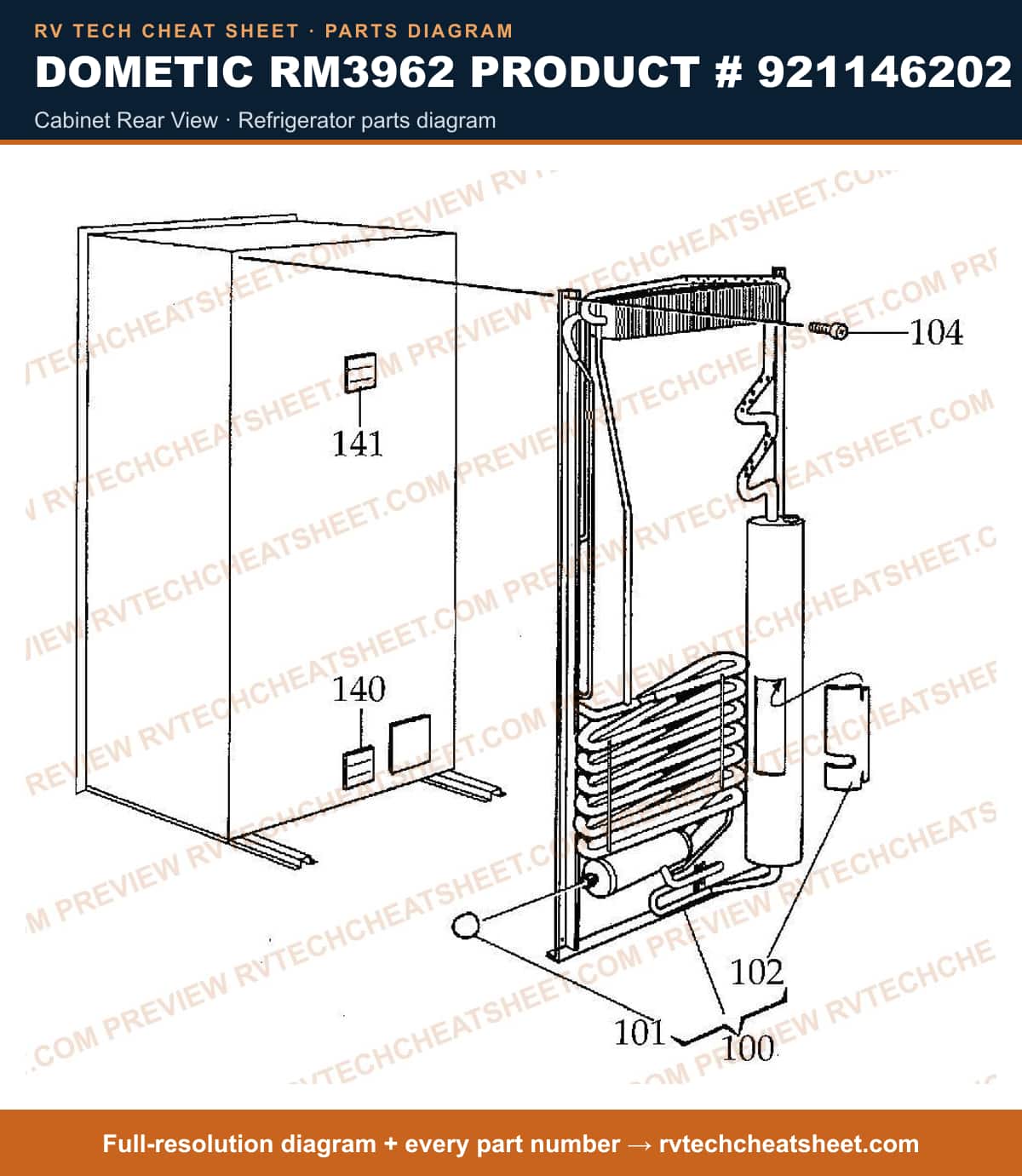

Cabinet Rear View

Components

6 items

1. #2934906104 MFR # 2934906104
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000
