Dometic RM3962 Product # 921146206 Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 135 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3962 Product # 921146206 RV refrigerator: 6 assemblies (Replacement Refrigerator, Cabinet Interior, Cabinet Rear View, Cabinet Exterior, Door Assembly and more) and 135 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

6 items

1. #RM3962RSS MFR # RM3962RSS
2. #RM3962RBS MFR # RM3962RBS
3. #RM3962RBSIMF MFR # RM3962RBSIMF
4. #RM3962RB MFR # RM3962RB
5. #RM3962RBIMF MFR # RM3962RBIMF
6. #RM3962RSSIMF MFR # RM3962RSSIMF

Cabinet Interior

Components

31 items

1. #COVER STRIP,WHITE L=300MM MFR # 3851202022
2. #COVERS STRIP,WHITE L=210MM MFR # 3851202014
3. #COOLING FINS MFR # 3851121016
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
5. #3851040018 MFR # 3851040018
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #DRAIN PIPE MFR # 3851041016
8. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
9. #S,SHELF,WIRE,FRZ-WHT,NDR1292 MFR # 2932022011
10. #S,SHELF,WIRE,UPR,WHT-7/9CF MFR # 3850994017
11. #S,SHELF,WIRE,MILK,WHT-7/9CF MFR # 3850995014
12. #3850994033 MFR # 3850994033
13. #S,SHELF,WIRE,LWR,WHT-7/9CF MFR # 3850994025
14. #2931117218 MFR # 2931117218
15. #CRISPER, CLEAR SMALL MFR # 3850992011
16. #S,BIN,CRISPER,LG,CLR-7/9CF MFR # 3850993019
17. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
18. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
19. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
20. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
21. #165521030 MFR # 165521030
22. #3851000012 MFR # 3851000012
23. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
24. #BULB 2/PK MFR # 2007290006
25. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
26. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
27. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
28. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
29. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
30. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
31. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016

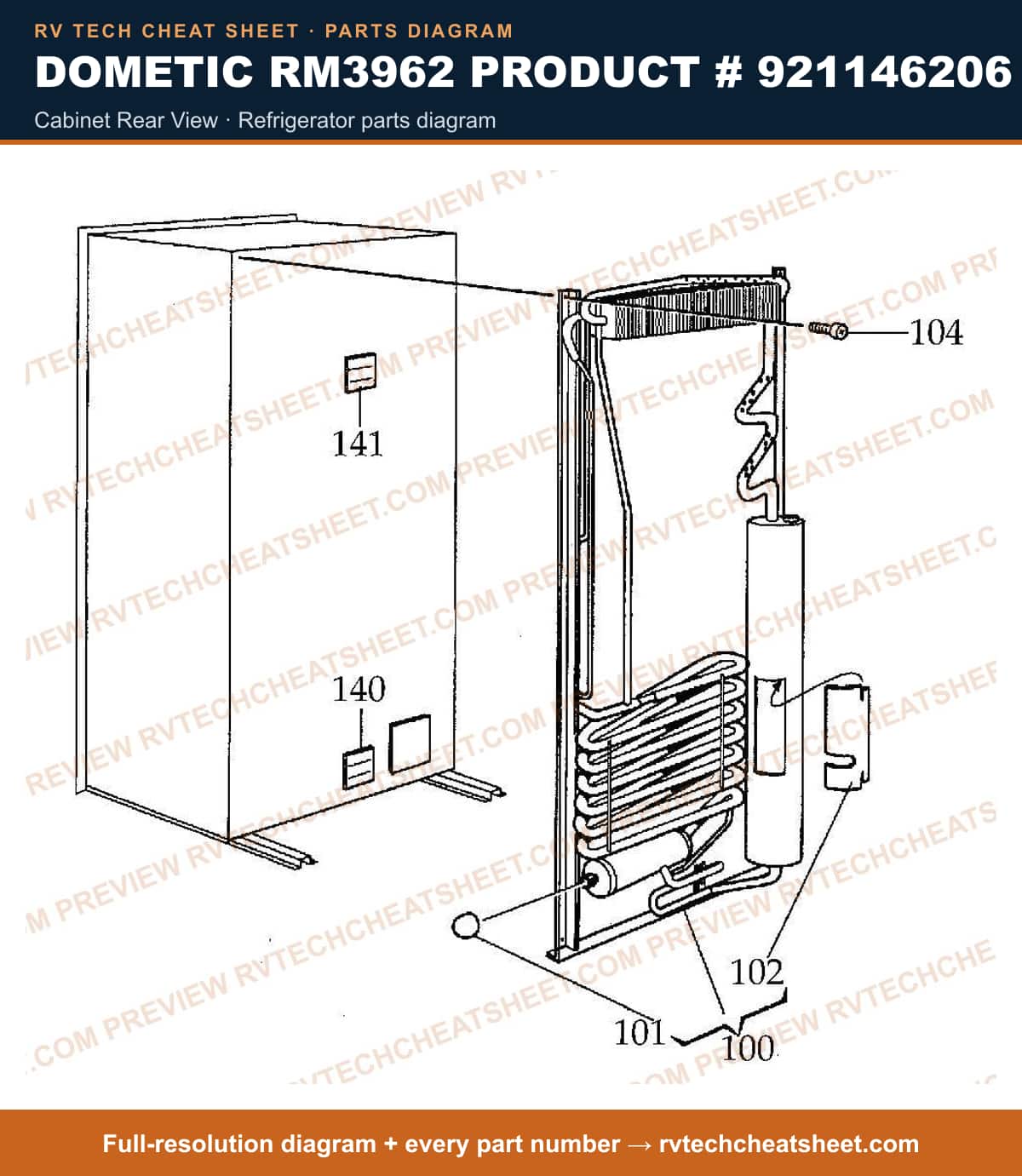

Cabinet Rear View

Components

6 items

1. #2934906104 MFR # 2934906104
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000

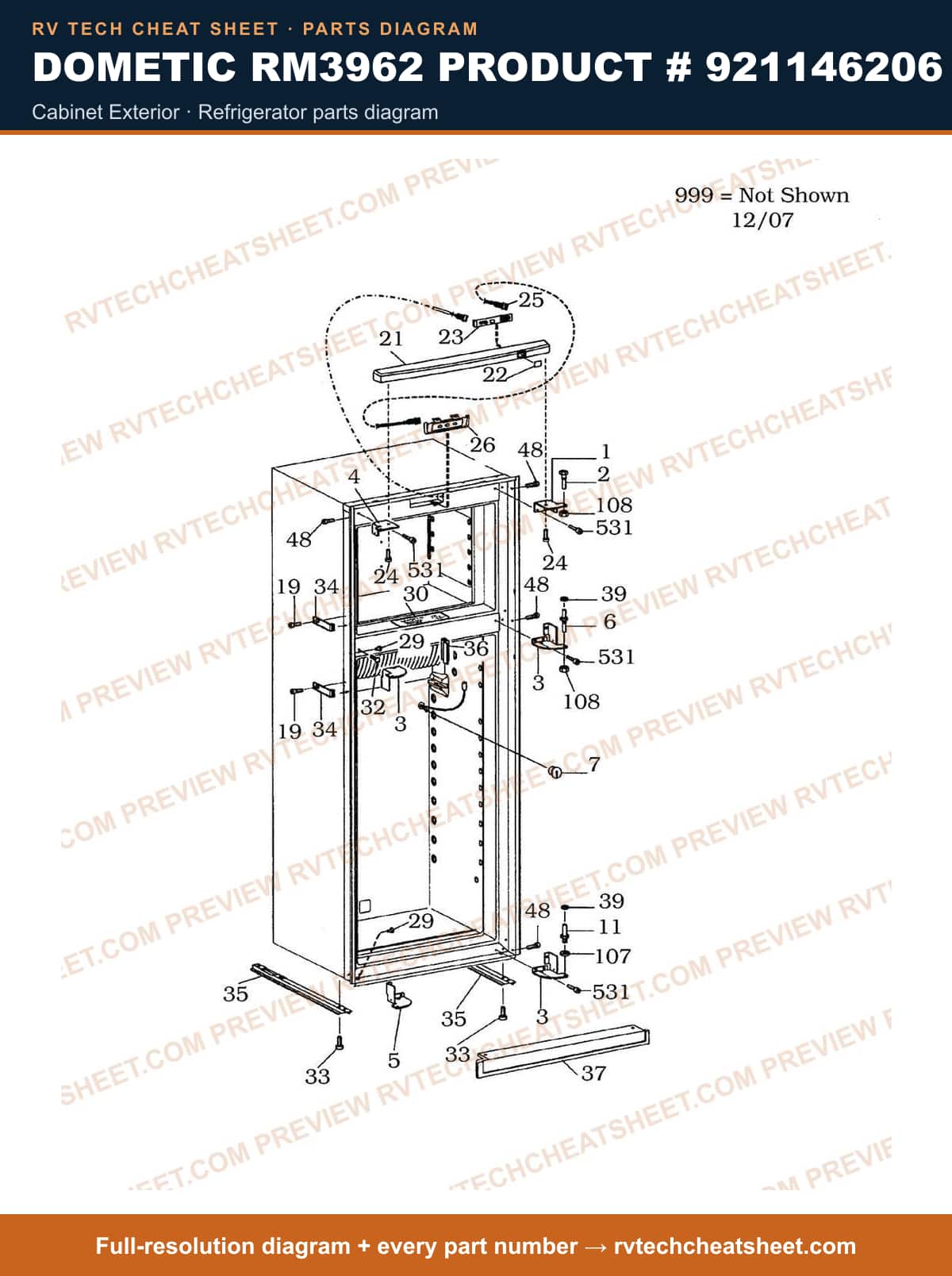

Cabinet Exterior

Components

29 items

1. #3850989025 MFR # 3850989025
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #3851187025 MFR # 3851187025
4. #3850989017 MFR # 3850989017
5. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
6. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #3850968011 MFR # 3850968011
10. #S,LENS-SMOKE GREY MFR # 3850970017
11. #3850969019 MFR # 3850969019
12. #SCREW,PT PH 4 X 10 MFR # 3858006012
13. #S,CABLE,CONTROL MFR # 2954568016
14. #3850964010 MFR # 3850964010
15. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
16. #3851035000 MFR # 3851035000
17. #PLUG,BLACK MFR # 3850585039
18. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
19. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
20. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
21. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
22. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
23. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
24. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
25. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
26. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
27. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
28. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
29. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

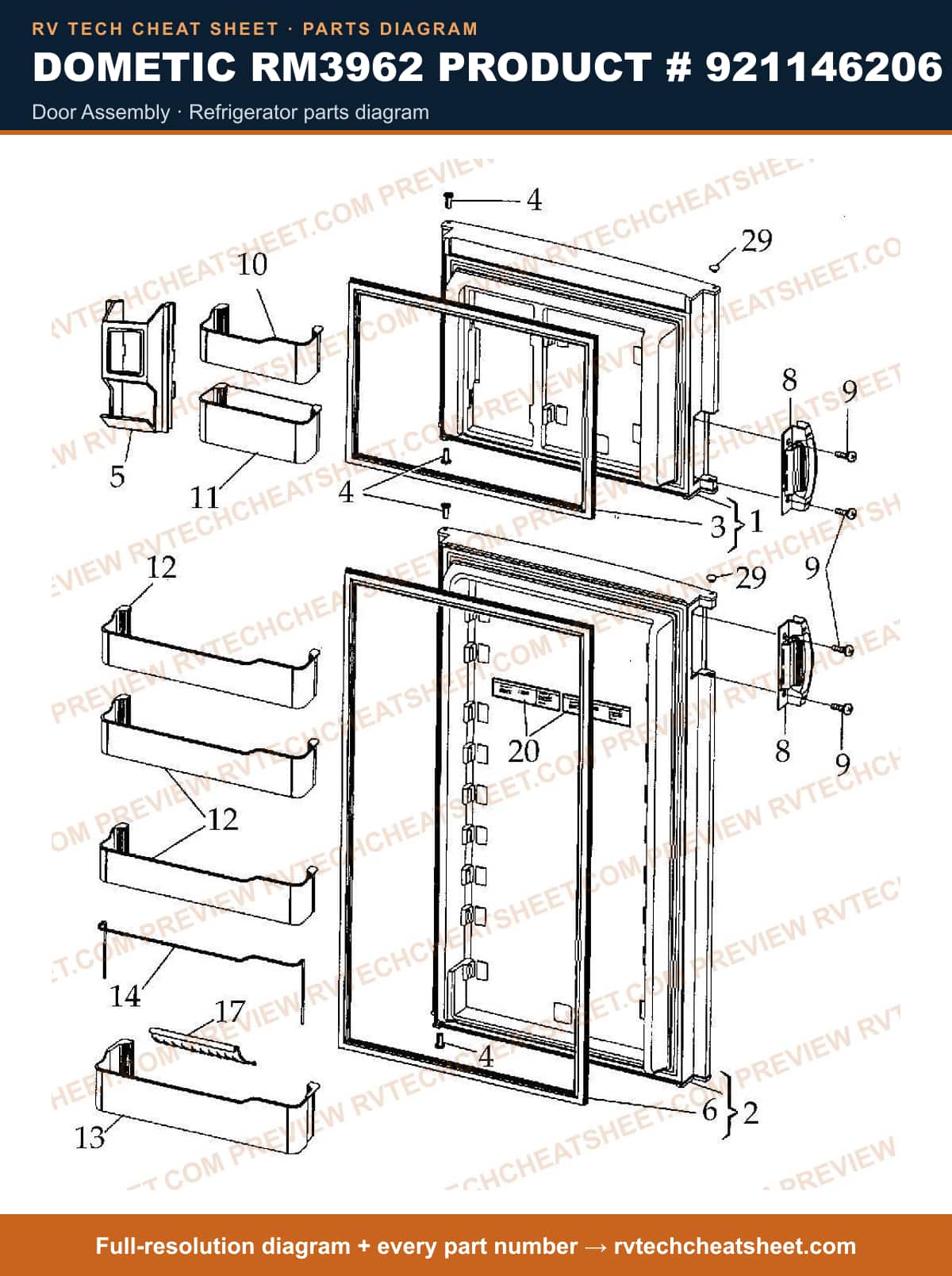

Door Assembly

Components

22 items

1. #3311065020C MFR # 3311065020C
2. #3311065020D MFR # 3311065020D
3. #3851002026 MFR # 3851002026
4. #3311065020A MFR # 3311065020A
5. #3106863164C MFR # 3106863164C
6. #3106863164B MFR # 3106863164B
7. #3851004022 MFR # 3851004022
8. #3850990031 MFR # 3850990031
9. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
10. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
11. #3850990015 MFR # 3850990015
12. #3851048011 MFR # 3851048011
13. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
14. #3850973011 MFR # 3850973011
15. #3850972013 MFR # 3850972013
16. #Refrigerator Shelf; Replacement For Dometic DMH1072/ RM3762/ RM3962 Model Refrigerator; Door Shelf; Transparent MFR # 3850974019
17. #Refrigerator Door Bin; Replacement For Dometic RM3962/ RM3762 Model Refrigerator; Lower Door; Clear MFR # 3850975016
18. #RACK MFR # 3850976014
19. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
20. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
21. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
22. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077

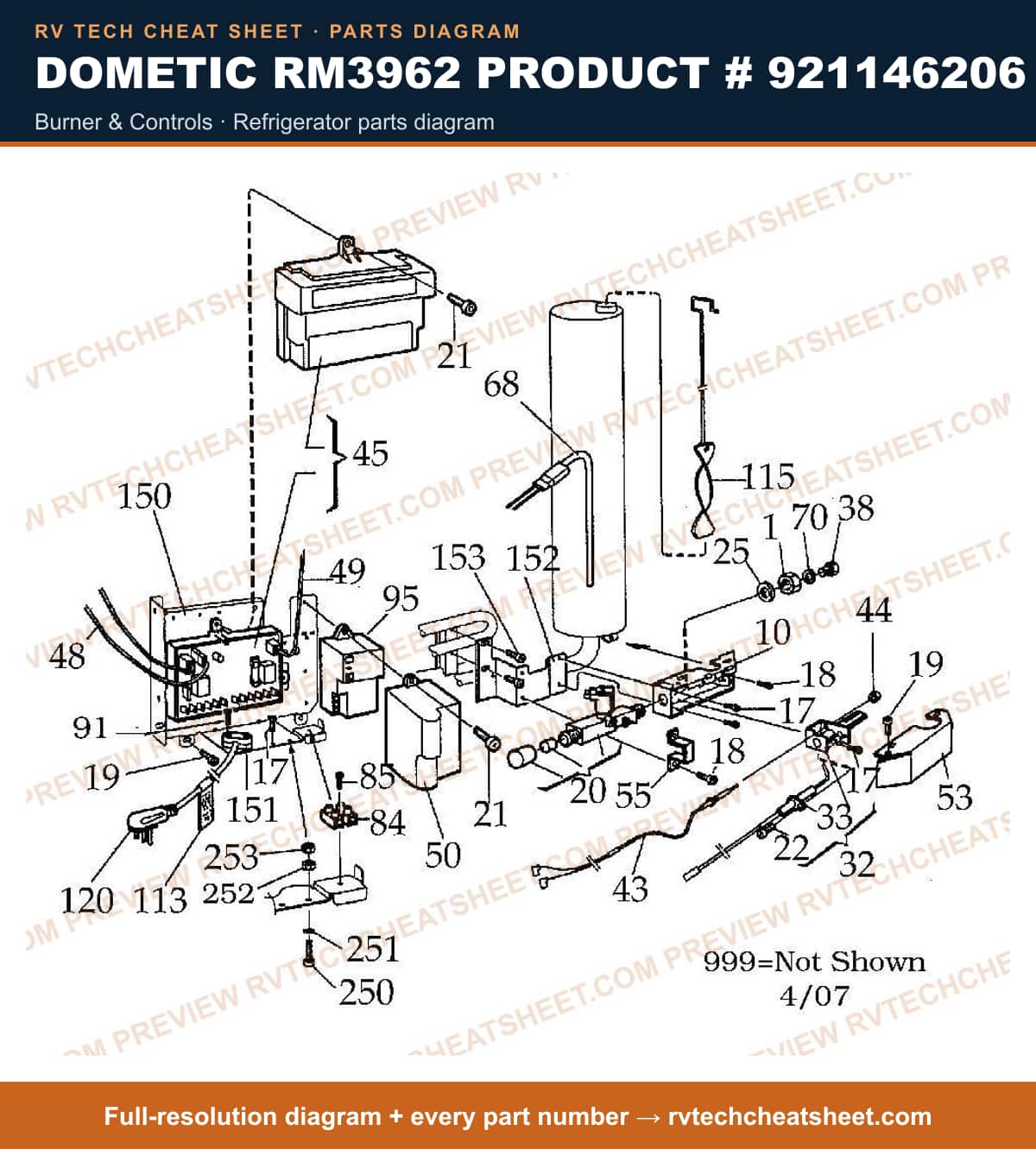

Burner & Controls

Components

43 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #ELECTRODE MFR # 2932781012
12. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
13. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
14. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
17. #Nut, T-Couple MFR # 2801043015
18. #3851005029 MFR # 3851005029
19. #3851005011 MFR # 3851005011
20. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
21. #APPLIANCE COMPONENTS RV; Conductor Solenoid Valve MFR # 2954539017
22. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
23. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
24. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
25. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
26. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
27. #3858022019 MFR # 3858022019
28. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
29. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
30. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
31. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
32. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
33. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
34. #2932667047 MFR # 2932667047
35. #2002699094 MFR # 2002699094
36. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
37. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
38. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
39. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
40. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
41. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
42. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
43. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
