Dometic RM3962 Product # 958601374 Parts Diagram · Door Assembly

Refrigerator · 7 assemblies · 7 diagram sheets · 142 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM3962 Product # 958601374 RV refrigerator: 7 assemblies (Door Assembly, Burner & Controls, Replacement Refrigerator, Cabinet Rear View, Cabinet Exterior and more) and 142 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

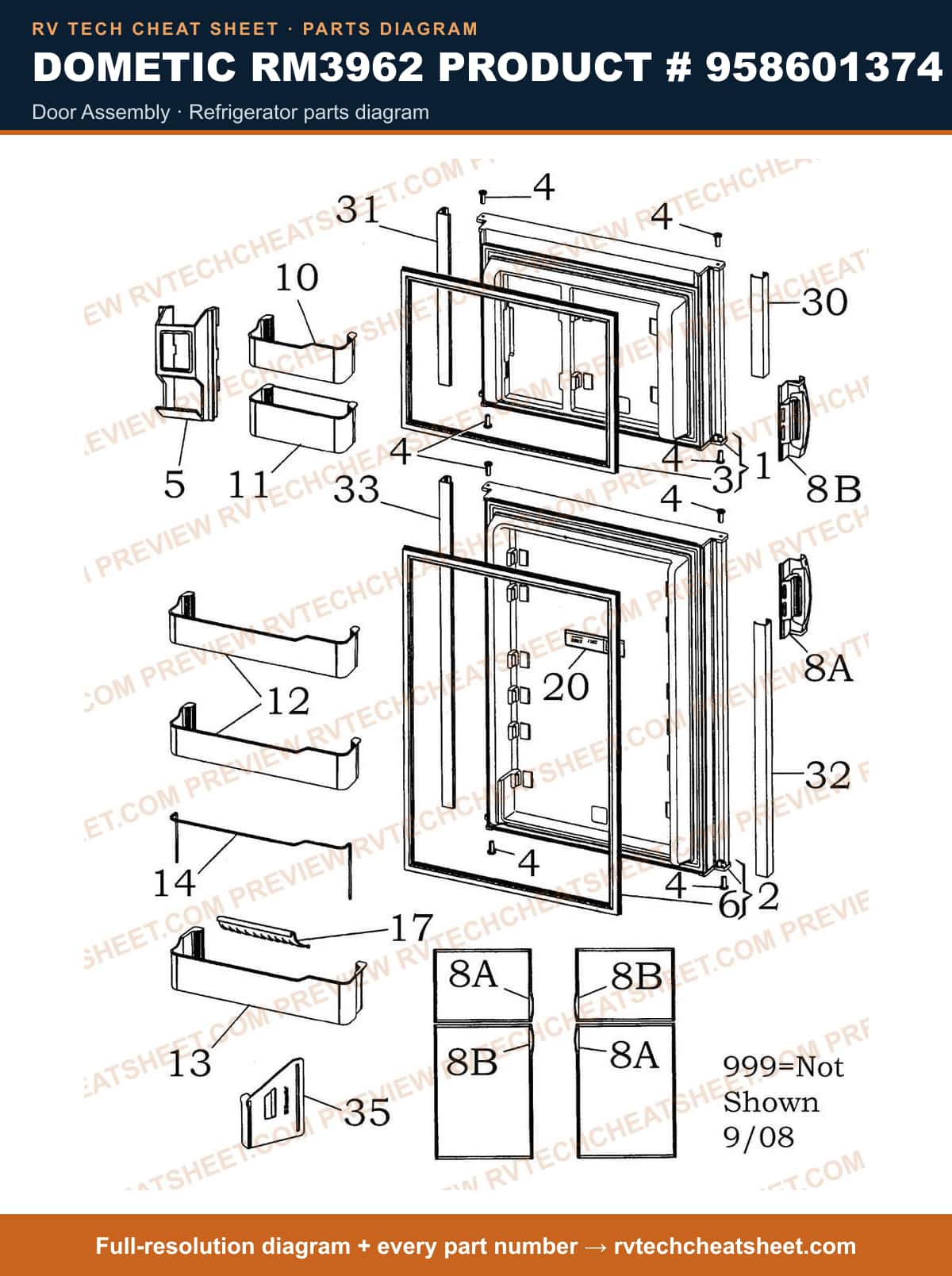

Door Assembly

Components

25 items

1. #3850998026 MFR # 3850998026
2. #S,DOOR ASM,FF-RM3962 FOAM MFR # 3850999024
3. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
4. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
5. #3851047021 MFR # 3851047021
6. #3851047013 MFR # 3851047013
7. #3850973011 MFR # 3850973011
8. #Refrigerator Shelf; Replacement For Dometic DMH1072/ RM3762/ RM3962 Model Refrigerator; Door Shelf; Transparent MFR # 3850974019
9. #Refrigerator Door Bin; Replacement For Dometic RM3962/ RM3762 Model Refrigerator; Lower Door; Clear MFR # 3850975016
10. #RACK MFR # 3850976014
11. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
12. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
13. #LABEL MFR # 3851235014
14. #3850982012 MFR # 3850982012
15. #3850982020 MFR # 3850982020
16. #S,PRFL,TRIM,FF DR,BLK 9000-9CF MFR # 3850982137
17. #3850982053 MFR # 3850982053
18. #S,PRFL,TRIM,FF DR,HNG,BLK9000 MFR # 3850982145
19. #3850982061 MFR # 3850982061
20. #Refrigerator Door Chain; Replacement For Dometic RM3962/ RM3762 Model Refrigerators MFR # 3851206015
21. #3311065030D MFR # 3311065030D
22. #3311065030C MFR # 3311065030C
23. #3311065030A MFR # 3311065030A
24. #3762L MFR # 3762L
25. #3762G MFR # 3762G

Burner & Controls

Components

27 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
8. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
9. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
10. #ELECTRODE MFR # 2932781012
11. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
12. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
13. #Dometic Series 8 Refrigerator Door Bin White MFR # 3851331011
14. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
15. #S,WIRE ASM,SOLENOID VALVE MFR # 2954607012
16. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
17. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
18. #S,HEATER,120V,325W-7/9CF MFR # 3850644612
19. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
20. #APPLIANCE COMPONENTS RV; S, TERMINAL BLOCK/WIRE PROT, VL3 MFR # 3858022027
21. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
22. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
23. #2932667047 MFR # 2932667047
24. #S,CORD,AC POWER,1000MM,7,9,13, MFR # 2002699219
25. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM3762 MFR # 3851474019 Superseded: see description
26. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
27. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017

Replacement Refrigerator

Components

6 items

1. #RM3962RSS MFR # RM3962RSS
2. #RM3962RBS MFR # RM3962RBS
3. #RM3962RSSIMF MFR # RM3962RSSIMF
4. #RM3962RBSIMF MFR # RM3962RBSIMF
5. #RM3962RBIMF MFR # RM3962RBIMF
6. #RM3962RB MFR # RM3962RB

Cabinet Rear View

Components

17 items

1. #3313470010 MFR # 3313470010
2. #Refrigerator Power Cord Fuse; Use With Dometic DM2652/ RM1350/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ RM3762/ RM3962 Refrigerators MFR # 3313711000 Superseded: see description
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #SCREW 4.8 X 16 MFR # 3858068012
6. #Dometic RM2652 Refrigerator Main Control Board MFR # 3851409023
7. #COVER, HEATER MFR # 3851397012
8. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
9. #APPLIANCE COMPONENTS RV; SBRACKETFAN-6/7/8/9 CF MFR # 3851390017
10. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
11. #S,WIRE ASM,FUSED 3A,FAN MFR # 3850085022
12. #S,FAN,92MM,T=25MM MFR # 3851183016
13. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,FOR 1/FAN MFR # 2954599011
14. #LABEL MFR # 3850583000
15. #COVER PLATE MFR # 3851300016
16. #COVER PLATE,SIDE MFR # 3851301014
17. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012

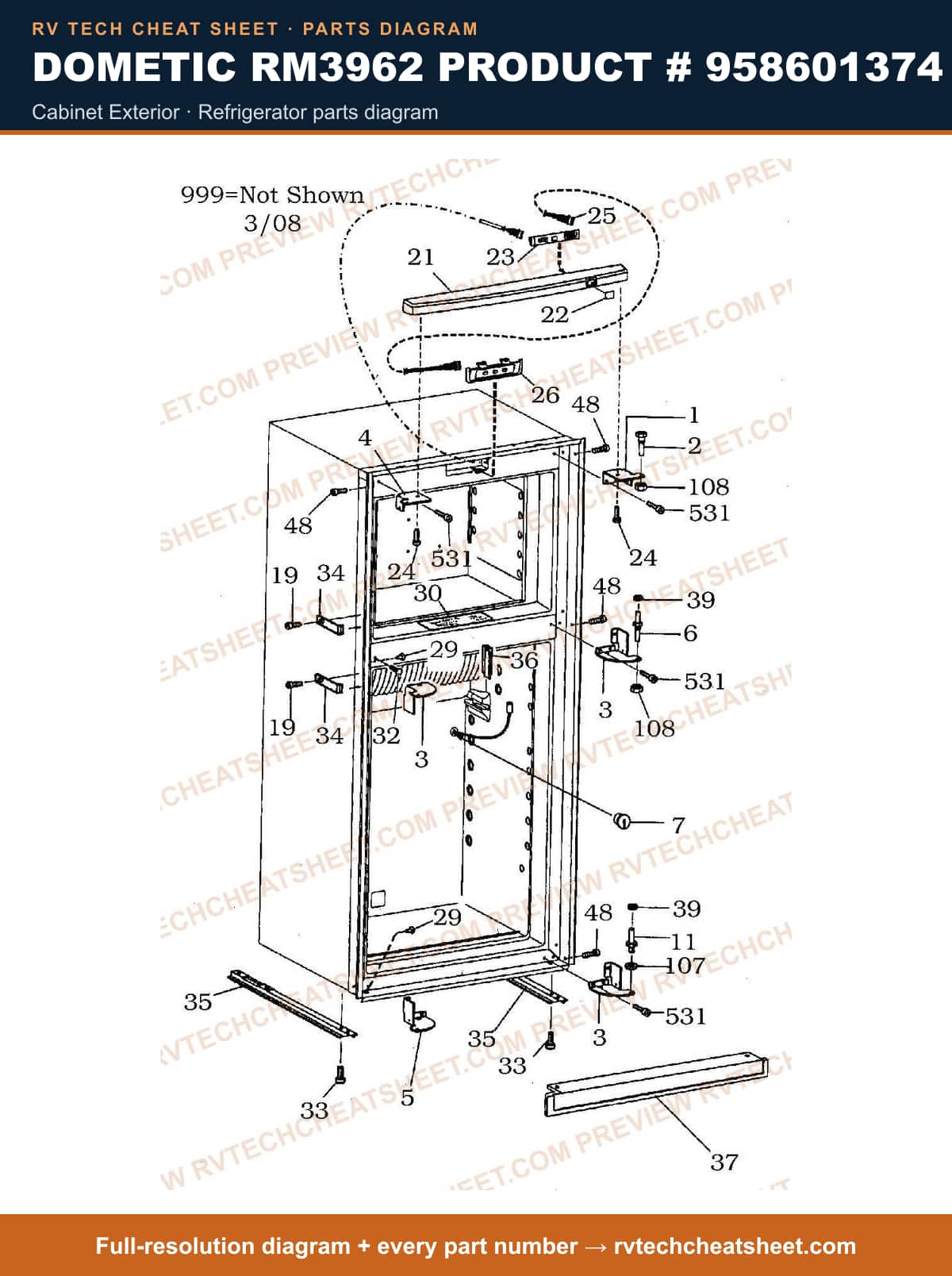

Cabinet Exterior

Components

30 items

1. #3850989025 MFR # 3850989025
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #3851187025 MFR # 3851187025
4. #3850989017 MFR # 3850989017
5. #3851187017 MFR # 3851187017
6. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
7. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
8. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #3850967013 MFR # 3850967013
11. #S,LENS-SMOKE GREY MFR # 3850970017
12. #S,DISPLAY CARD,PCB-7/9CF MFR # 3851485015
13. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DMH1072/ NDA1402/ NEA1402/ RM1350/ RM3762/ RM3962 Model Refrigerator; Black MFR # 3858071024
14. #S,CABLE,CONTROL MFR # 2954568016
15. #3850964010 MFR # 3850964010
16. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
17. #3851035000 MFR # 3851035000
18. #PLUG,BLACK MFR # 3312986106
19. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
20. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
21. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
22. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
23. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
24. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
25. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
26. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
27. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
28. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
29. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
30. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Cabinet Interior

Components

29 items

1. #3312986114 MFR # 3312986114
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #3851040026 MFR # 3851040026
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Tube;;Fits All Dometic RV Refrigerates; 54 Inch Length MFR # DMT2932749159
6. #S,SHELF,WIRE,FRZ-WHT,NDR1292 MFR # 2932022011
7. #S,SHELF,WIRE,UPR,WHT-7/9CF MFR # 3850994017
8. #S,SHELF,WIRE,MILK,WHT-7/9CF MFR # 3850995014
9. #3850994033 MFR # 3850994033
10. #S,SHELF,WIRE,LWR,WHT-7/9CF MFR # 3850994025
11. #2931117218 MFR # 2931117218
12. #CRISPER, CLEAR SMALL MFR # 3850992011
13. #S,BIN,CRISPER,LG,CLR-7/9CF MFR # 3850993019
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
18. #165521030 MFR # 165521030
19. #3851000012 MFR # 3851000012
20. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
21. #BULB 2/PK MFR # 2007290006
22. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
23. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
24. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
25. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
26. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
27. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
28. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016
29. #WASHER MFR # 3858010147

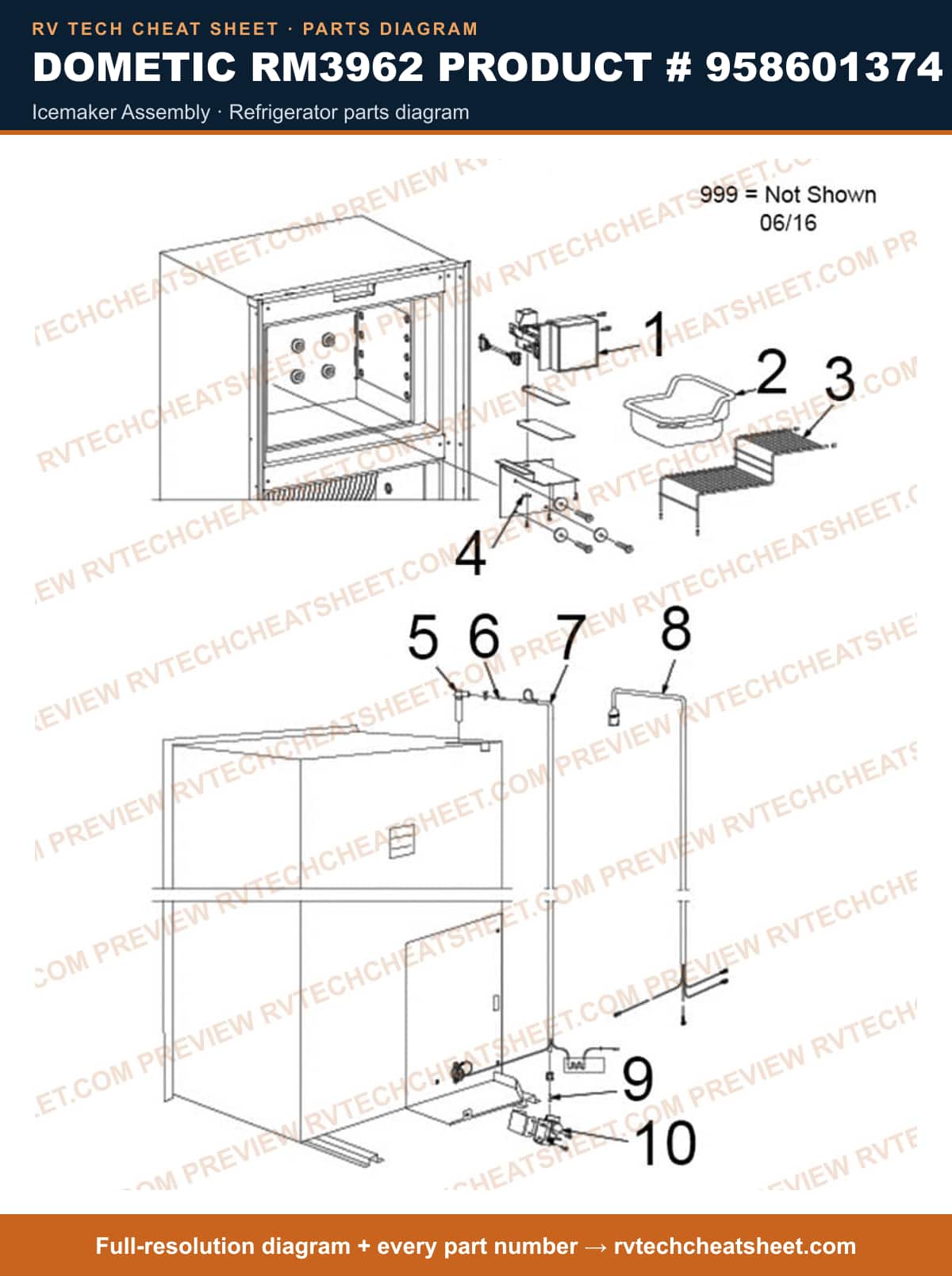

Icemaker Assembly

Components

10 items

1. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
2. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
3. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,ICE BUCKET MFR # 3313470091
4. #WASHER MFR # 3858010147
5. #3851203012 MFR # 3851203012
6. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
7. #3313470092 MFR # 3313470092
8. #3313470093 MFR # 3313470093
9. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
10. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
