Dometic RM4180M Product # 921075598 Parts Diagram · Cabinet Front View

Refrigerator · 4 assemblies · 4 diagram sheets · 83 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM4180M Product # 921075598 RV refrigerator: 4 assemblies (Cabinet Front View, Rear View, Front View Components, Door Assembly) and 83 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Front View

Components

21 items

1. #HINGE, LOWER RH BLACK MFR # 2951626205
2. #HINGE, LOWER LH BLACK MFR # 2951625207
3. #PIN, LOWER HINGE MFR # 2951629001
4. #APPLIANCE COMPONENTS RV; LOCK, DOOR PUSH BUTTON MFR # 2952700009
5. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2202/ RM4180M/ RM4290/ RM4292 Model Refrigerator; M6 x 6 MFR # 2952169007
6. #FOOT MFR # 2923297028
7. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
8. #TUBE, SIGHT MFR # 2924524008
9. #WASHER, SIGHT TUBE MFR # 2926724002
10. #HOLDER, SIGHT TUBE MFR # 2926004009
11. #PLATE, COOLING MFR # 2106440007
12. #SHELF, ZINC-PLATED MFR # 2951411251
13. #PLUG MFR # 2951221023
14. #SCREWS MFR # 2926544004
15. #HINGE, UPPER RH MFR # 2951649009
16. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
17. #COVER, HINGE LOWER MFR # 2951630009
18. #HINGE, DOOR LOCK MFR # 2952271308
19. #SCREW, COUNTERSUNK C3.9X16 MFR # 2926710019
20. #SCREW, SHEET METAL MFR # 2951230008
21. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM4180M Model Refrigerator MFR # 2926611001

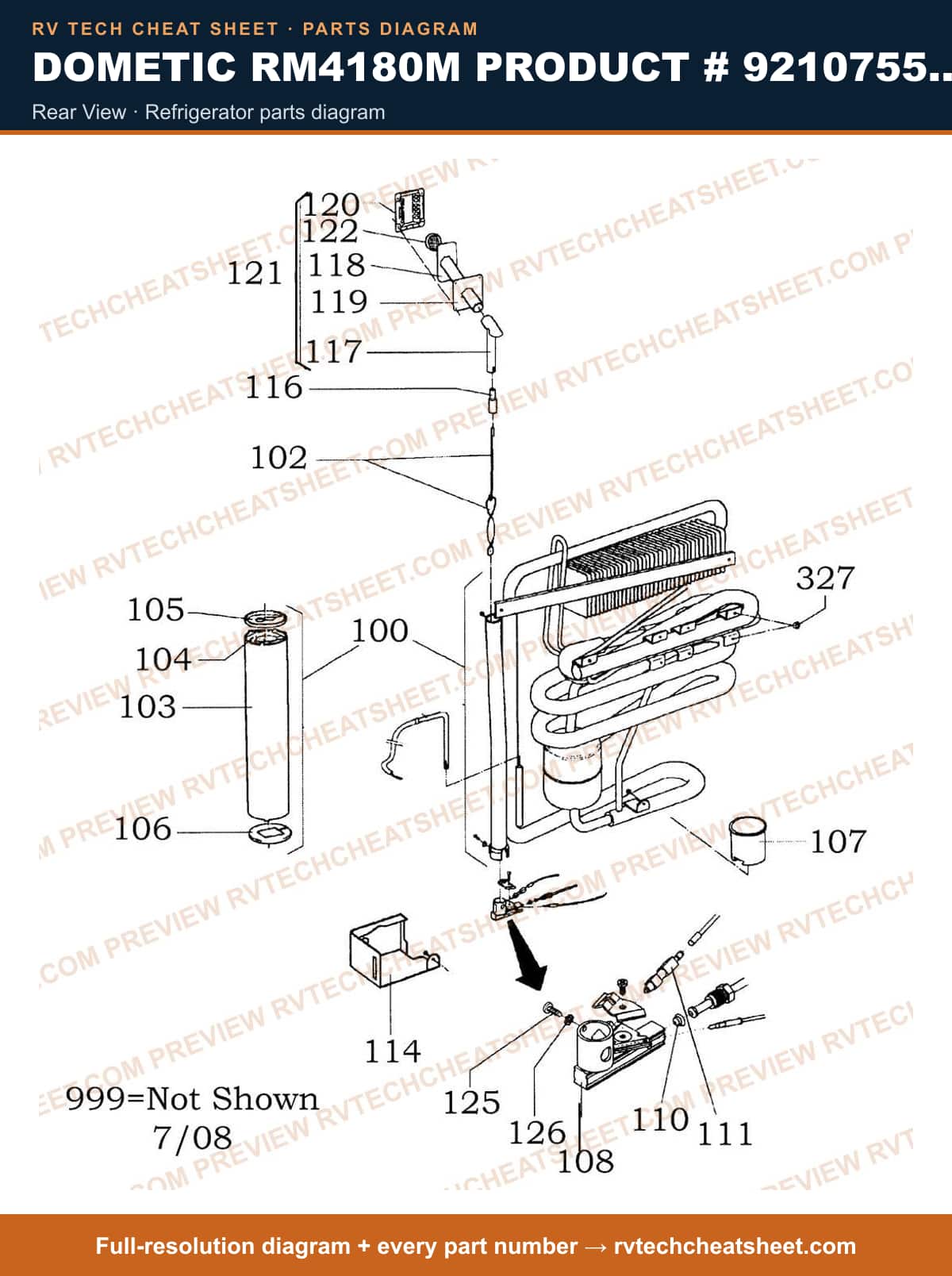

Rear View

Components

23 items

1. #COOLING UNIT MFR # 2952307706
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #TUBE MFR # 2924082205
4. #INSULATION, BOILER MFR # 2926680139
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #LID LOWER BOILER MFR # 2924089002
7. #TRAY, EVAPORATION MFR # 2923862003
8. #BURNER USE 49-9405 MFR # 2923430603 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Burner Gas MFR # 2923430504
10. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
11. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
12. #COVER, BURNER MFR # 2952083208
13. #APPLIANCE COMPONENTS RV; Connection Flue MFR # 2935491007
14. #TEE, FLUE 75MM MFR # 2952444400
15. #TUBE, EXHAUST MFR # 2923032003
16. #TUBE, EXHAUST; USE 2923032003 MFR # 2935652004 Superseded: see description
17. #PLATE, FIXING MFR # 2924749001
18. #COVER, EXHAUST BEIGE MFR # 2951055009
19. #EXHAUST PIPE COMPLETE MFR # 2935549002
20. #APPLIANCE COMPONENTS RV; Cap Exhaust Tube MFR # 2935667002
21. #SCREW MFR # 2952435408
22. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
23. #NUT, INSERT FOR C/U MFR # 2106626001

Front View Components

Components

27 items

1. #PANEL, CONTROL MFR # 2952280010
2. #KNOB, ROTARY GAS VALVE MFR # 2923334540
3. #Dometic RM2820 Series Refrigerator Door Handle Black MFR # 2923468140
4. #SWITCH, ROCKER W/GREEN LIGHT MFR # 2926274107
5. #SWITCH, 12 VDC W/RED LIGHT MFR # 2926273505
6. #Switch Plate Cover Mounting Bracket; Use With Dometic Refrigerator RM4223; 2 Openings; Gray/ Brown MFR # 2923815134 Superseded: see description
7. #COVER, BLACK MFR # 2928204003
8. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
9. #NUT M10 RH25 MFR # 2927881009
10. #PLATE, INSULATING BLACK MFR # 2928272026
11. #BLOCK, TERMINAL 6-POLE MFR # 2951747019
12. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
13. #CLAMP, GAS INLET MFR # 2935451001
14. #VALVE, GAS REGULATING MFR # 2926276128
15. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
16. #NUT, UNION M15X1 MFR # 2923189001
17. #FERRELL .8MM DIA. MFR # 2923190009
18. #PIPE, GAS INLET MFR # 2952311005
19. #Appliance Components RV; Thermocouple MFR # 2923435321
20. #CONNECTION, GAS COMPLETE MFR # 2106715002
21. #PIEZO MFR # 2923024109
22. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
23. #CABLE, IGNITION 1200MM MFR # 2927880340
24. #ELEMENT, HEATING 12V 100W MFR # 2923331306
25. #ELEMENT, HEATING 110V 105W MFR # 2952173314
26. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
27. #Appliance Components RV; Filter, Gas MFR # 2923191007

Door Assembly

Components

12 items

1. #DOOR, COMPLETE MFR # 2952298509
2. #TRIM, DOOR MFR # 2951624333
3. #SHELF, BOTTLE WHITE MFR # 2952313001
4. #SHELF, WHITE MFR # 2923947051
5. #PLATE, DECORATION MFR # 2952303002
6. #BAR, SHELF CHROME MFR # 2923948208
7. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
8. #Refrigerator Trim Hole Plug; Cap; Use With Dometic RM4290/ RM4292/ RM4180M/ RM2202 Compact Refrigerators; Gray/ Brown MFR # 2951296009 Superseded: see description
9. #SPRING, DOOR LOCK MFR # 2951170105
10. #PIN, COMPLETE DOOR LOCK MFR # 2952181309
11. #DOOR, LESS SHELVES MFR # 2936802004
12. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
