Dometic RM4202 Parts Diagram · Door Assembly

Refrigerator · 4 assemblies · 4 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM4202 RV refrigerator: 4 assemblies (Door Assembly, Controls, Cooling Unit, Cabinet Assembly) and 54 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

9 items

1. #DOOR, MAIN MFR # 2936570908
2. #Trim, Door Gray/Brown MFR # 2951240106
3. #Refrigerator Content Brace; Replacement For Dometic RM2202/ RM4202/ RM4223/ RM4290/ RM4292 Refrigerators MFR # 2951237003
4. #Shelf, Door White MFR # 2951238100
5. #Refrigerator Door Bin; Replacement For Dometic RM2202/ RM4223/ RM2202 Model Refrigerator; Upper Door; Plastic MFR # 2951239009
6. #WIRE, SHELF MFR # 2951875000
7. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
8. #LINER ASM, DOOR MFR # 2936829007
9. #LABEL MFR # 8212688017

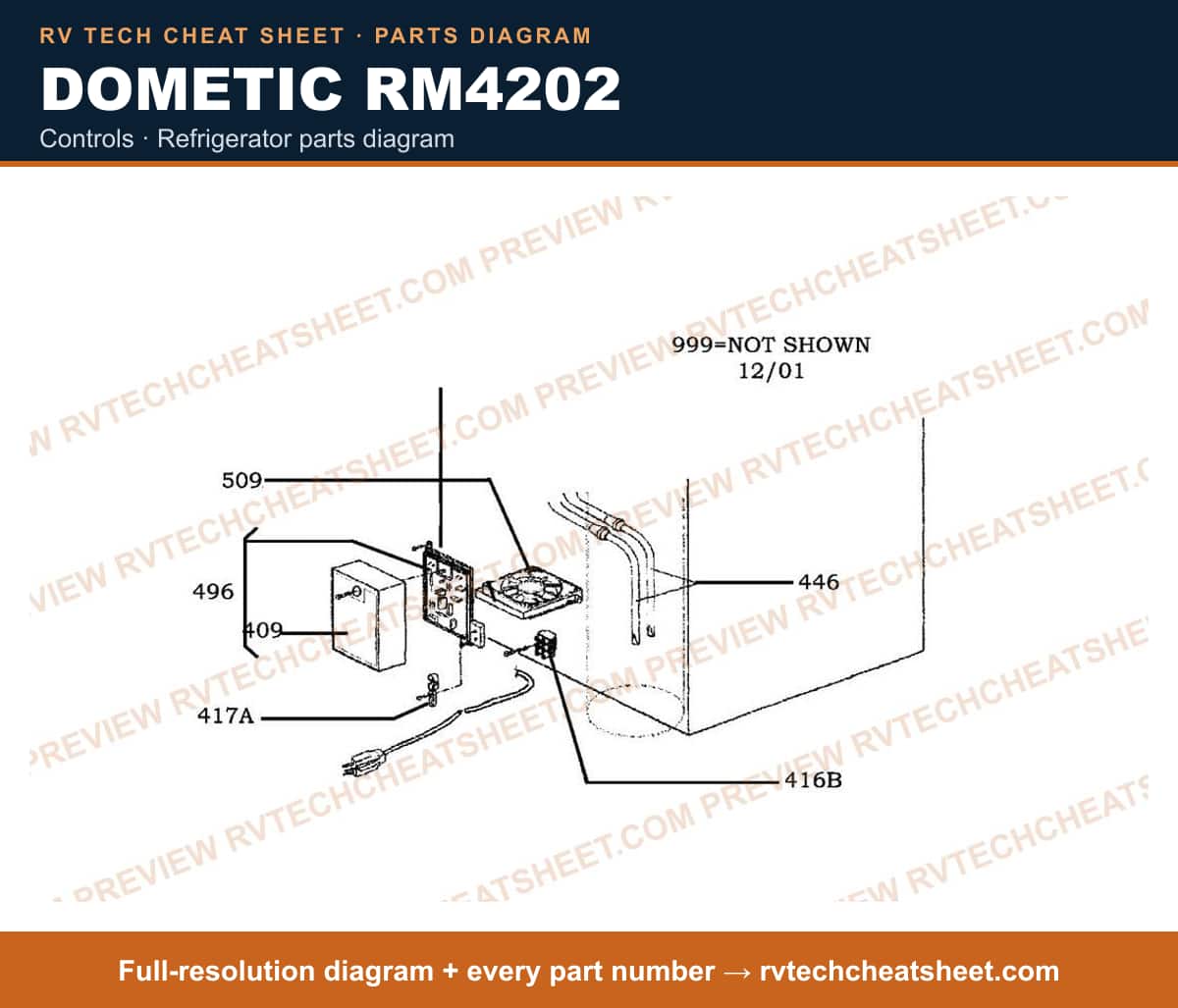

Controls

Components

10 items

1. #COVER, CONTROL MFR # 2952472203
2. #COVER, CONTROL MFR # 2952472302
3. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
5. #APPLIANCE COMPONENTS RV; Element Heating 110V 105W MFR # 2951998315
6. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4202; 12 Volt MFR # 2951997309 Superseded: see description
7. #CONTROLS, USE 2106802107 MFR # 2106802008 Superseded: see description
8. #S,CONTROLS,ELECTRONIC MFR # 2106802107
9. #FAN, COMPLETE 12V MFR # 2106511104
10. #FAN, COMPLETE 24V DC MFR # 2106511500

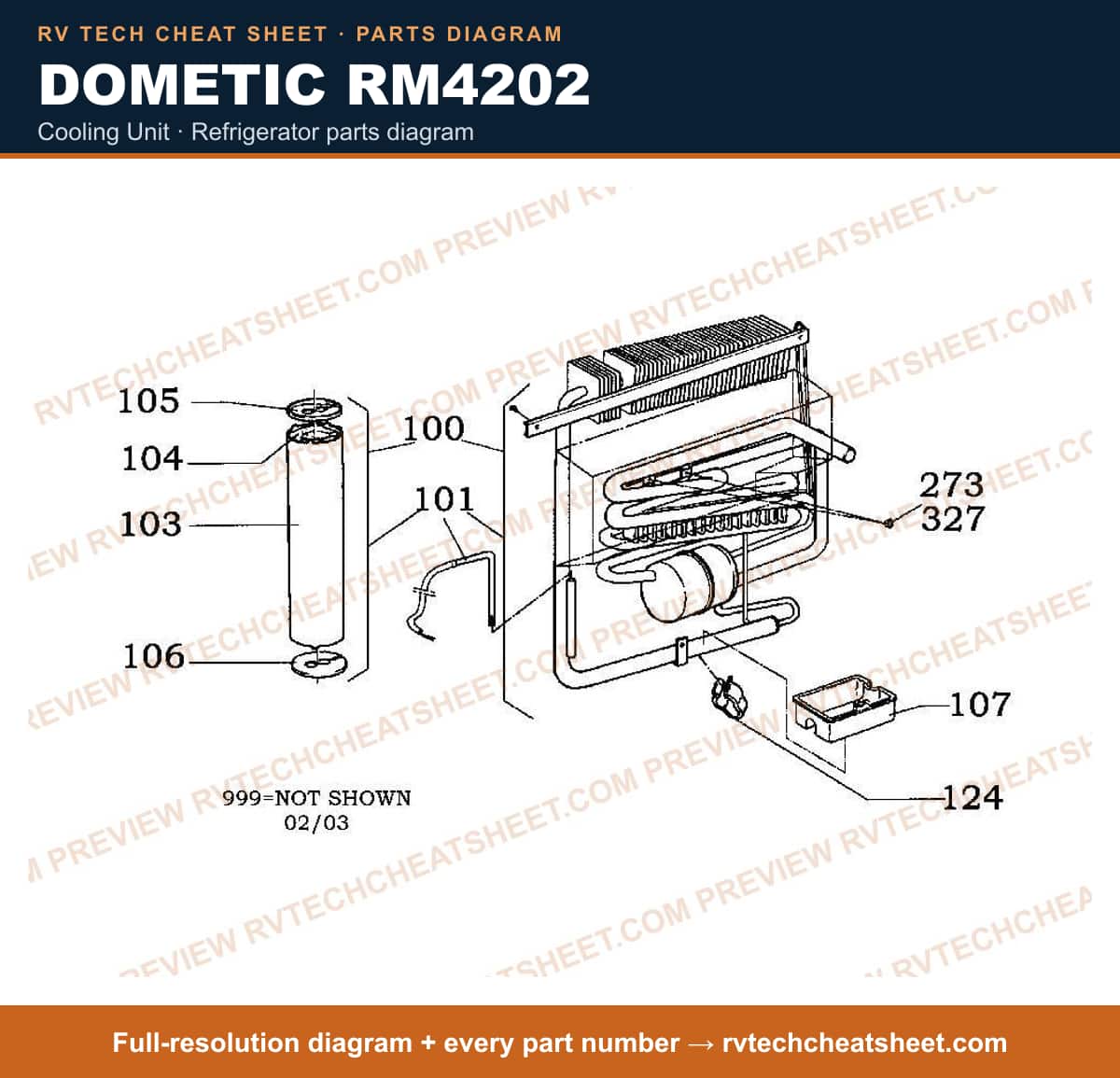

Cooling Unit

Components

8 items

1. #COOLING UNIT MFR # 2106825009N
2. #COVER, BOILING MFR # 2924061308
3. #INSULATION MFR # 2926680113
4. #LID, UPPER, BOILER MFR # 2924063007
5. #LID, LOWER MFR # 2924062009
6. #EVAPORATOR TRAY MFR # 2923709006
7. #Coolant Temperature Sensor Retaining Clip; Use With Dometic Refrigerator RA125HD/ RM4202/ RA138H1 MFR # 2923708008 Superseded: see description
8. #Nut; Replacement For Dometic RM2193/ RM4292/ RML855 Model refrigerator; Fits Cooling Unit; Push-In MFR # 2926545209

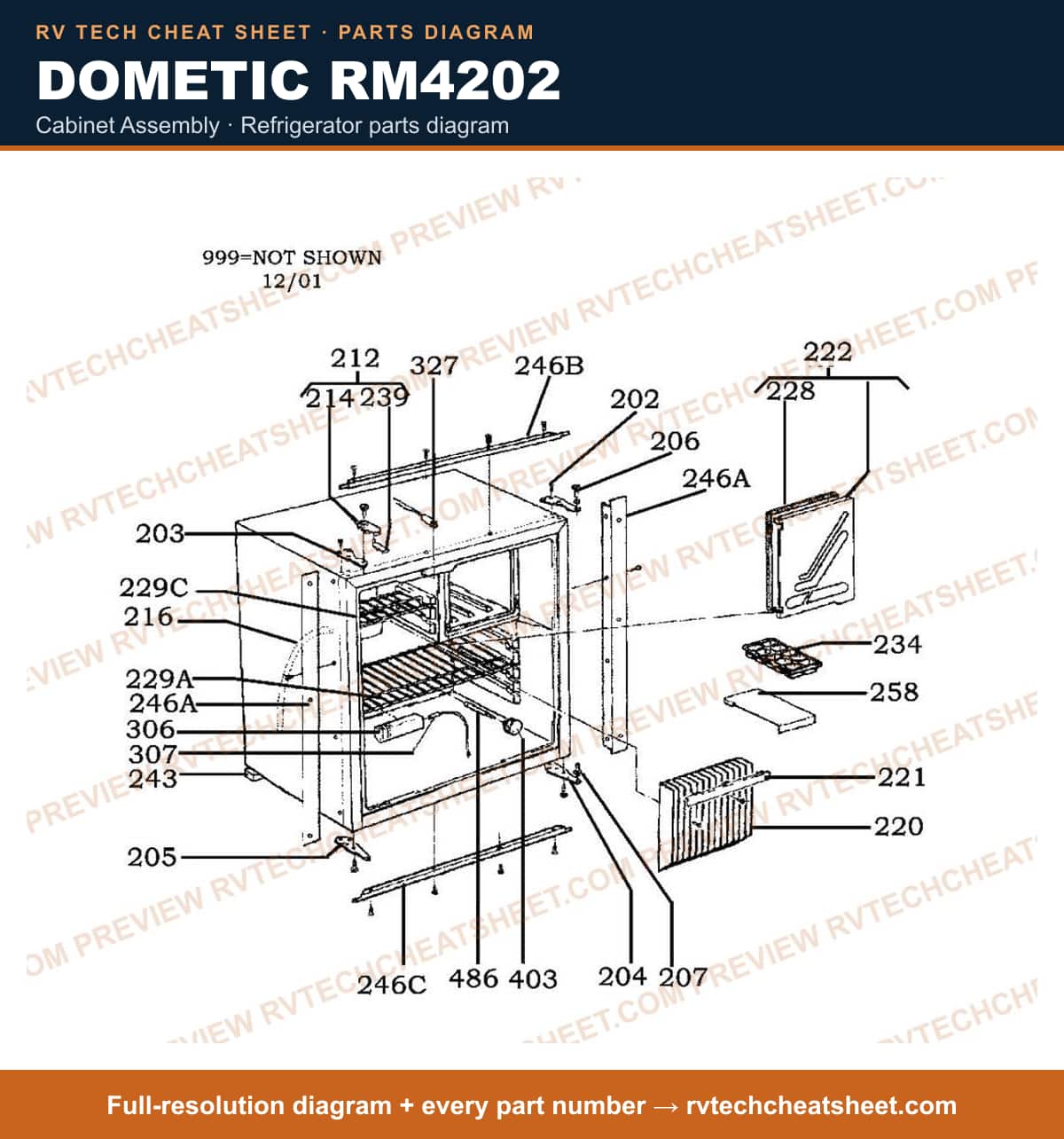

Cabinet Assembly

Components

27 items

1. #Hinge, Upper RH MFR # 2951246400
2. #Hinge, Upper LH MFR # 2951247408
3. #Refrigerator Door Hinge; Replacement For Dometic RM4223/ RM4202 Model Refrigerators; Fits Bottom Cabinet Side; Lower Right Hand MFR # 2951248000
4. #Refrigerator Door Hinge; Replacement For Dometic RM2202/ RM4223/ RM4290/ RM4292 Model Refrigerators; Fits Bottom Cabinet Side; Lower Left Hand MFR # 2951249008
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #APPLIANCE COMPONENTS RV; BOLT HINGE CHROME PLATED MFR # 2926265204
8. #Refrigerator Door Latch; Complete Door Lock; Use With Dometic RM4223 Refrigerators; Gray/Brown MFR # 2952140008 Superseded: see description
9. #LATCH; USE 2952700009 MFR # 2952141006 Superseded: see description
10. #HOSE, DRAIN MFR # 2926441185
11. #Fins, Evaporator MFR # 2927993101
12. #RETAINER MFR # 2926235132
13. #DOOR, EVAPORATOR MFR # 2951280508
14. #Gasket, Freezer Door MFR # 2926152006
15. #Appliance Components RV; Shelf Wire MFR # 2951281159
16. #Refrigerator Shelf; Replacement For Dometic RM2202/ RM4202 Model Refrigerator; Freezer Compartment; Wire MFR # 2951282157
17. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
18. #SUPPORT, LATCH USE 2952140008 MFR # 2952139000 Superseded: see description
19. #Frame, Lower MFR # 2951887203
20. #Frame RH/LH MFR # 2951886106
21. #Frame, Upper MFR # 2951887104
22. #Shelf, Ice Tray MFR # 2951979000
23. #SENSOR, WHITE MFR # 2952238505
24. #SENSOR, ARM, TEMP CONTROL MFR # 2952248009
25. #L.E.D, GREEN MFR # 2106596006
26. #KNOB, GAS T-STAT BLACK MFR # 2923530212
27. #T-STAT EXTENSION SHAFT MFR # 2952033500
