Dometic RM45 Parts Diagram · Gas-electric Parts

Refrigerator · 5 assemblies · 5 diagram sheets · 225 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM45 RV refrigerator: 5 assemblies (Gas-electric Parts, Replacement Refrigerator, Cabinet Assembly, Gas-electric Parts II, Door Assembly) and 225 manufacturer part numbers. 48 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Gas-electric Parts

Components

64 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #SCREW MFR # 7295281658
3. #Appliance Components RV; Knob Electric T-Stat; White Knob with Gray Writing MFR # 2002423016
4. #SEALING RING MFR # 2002224018
5. #WASHER RM36E MFR # 7344974014
6. #SCREWS RM10 0 MFR # 7241328017
7. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
8. #Screw, LKXS B6X8, Z. PL. MFR # 7295277516
9. #Lock Nut SNJ 1915 MFR # 7331813062
10. #TERMINAL BLOCK MFR # 51577709
11. #Screw, KCS 3.5X5, N1. PL. MFR # 7232250030
12. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
13. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
14. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
15. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
16. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
17. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
18. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
19. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
20. #BRACKET T-STAT MFR # 2890034008
21. #SCREW #17 MFR # 7241289011
22. #CABLE F/T-STAT MFR # 173193020
23. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
24. #Refrigerator Control Knob; Replacement For Dometic RM75/ RM36/ RM45A; Thermostat Control Knob; White MFR # 2002423008
25. #Knob, Pull Orange MFR # 2002426001
26. #Appliance Components RV; Knob Turn Lighter MFR # 2002425003
27. #CONDUCTOR, LIGHT MFR # 2002222004
28. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
29. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
30. #SHAFT, LIGHTER RM45 -60 MFR # 2890019009
31. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
32. #APPLIANCE COMPONENTS RV; Shaft 15" MFR # 2002300008
33. #RING,SEALING MFR # 2002224000
34. #WASHER RM66 MFR # 7344908012
35. #APPLIANCE COMPONENTS RV; Rod Pull 4-6 Cubic Feet MFR # 2002226005
36. #Igniter Striker MFR # 944023001
37. #Support For Flue MFR # 2890027002
38. #FLUE TOP RM45 A MFR # 2890026004
39. #PROTECTION PLATE MFR # 2002445001
40. #SPRING WASHER MFR # 7351136010
41. #Appliance Components RV; Wheel Igniter Knurled MFR # 2890016005
42. #Baffle, Flue MFR # 2890028000
43. #FLINT MFR # 270127004
44. #SPRING MFR # 2890018001
45. #Refrigerator Evaporator Door Spring Holder; Use With Dometic Refrigerator Model RM45 MFR # 2890008002 Superseded: see description
46. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
47. #WASHER MFR # 2002351001
48. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
49. #SCREW MFR # 7298285402
50. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
52. #REMAN COOLING UNIT RM47, RM47D (UPS) MFR # 9283154004R
53. #N/A COOLING UNIT RM45 MFR # 9283154004N
54. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
55. #NO PART # GIVEN BY VENDOR MFR # NPG
56. #N/A MFR # 271020000
57. #ELEMENT, HEATING (25) 135W/110V 2WIRE 11/16 X 4 3/4; SUGGESTED ALTERNATE FOR DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173712019. MFR # CS000029
58. #APPLIANCE COMPONENTS RV; Element Heating *Alt 48-9; WHEN INVENTORY IS DEPLETED ON THIS ITEM, PLEASE ORDER SUGGESTED ALTERNATE P# CS000029. 11/16 D X 4 3/4 L~ IS A USE # FOR 170677017, 173712019 MFR # 173712019 Superseded: see description
59. #BUSHING MFR # 149585010D
60. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
61. #Connection Block RM45 MFR # 2400298004
62. #Bushing for Guide Pin MFR # 2890022003
63. #Spring for Guide Pin RM36 MFR # 2890021005
64. #N/A Guide Pin for Lighter MFR # 2890020007

Replacement Refrigerator

Components

11 items

1. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer; DIMENSIONS: 36-9/16" H X 23-11/16" W X 24" D; REPLACES: IS A USE # FOR N400N MFR # N410UR Superseded: see description
2. #REFER, 4 CU FT 2 WAY 32 7/16"H X 21 3/16"W X 24; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B; 2 WAY SMALL SINGLE DOOR 7/29/02 - ON B/O W/DOMETIC UNTIL 9/1/02. JDH ... MFR # RM24102N Superseded: see description
3. #REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
4. #REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N
5. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410UL
6. #REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description
7. #REFER USE 72-4906 OR 72-4907 N400.3 MFR # N4003N Superseded: see description
8. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB
9. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker MFR # N300R
10. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
11. #REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description

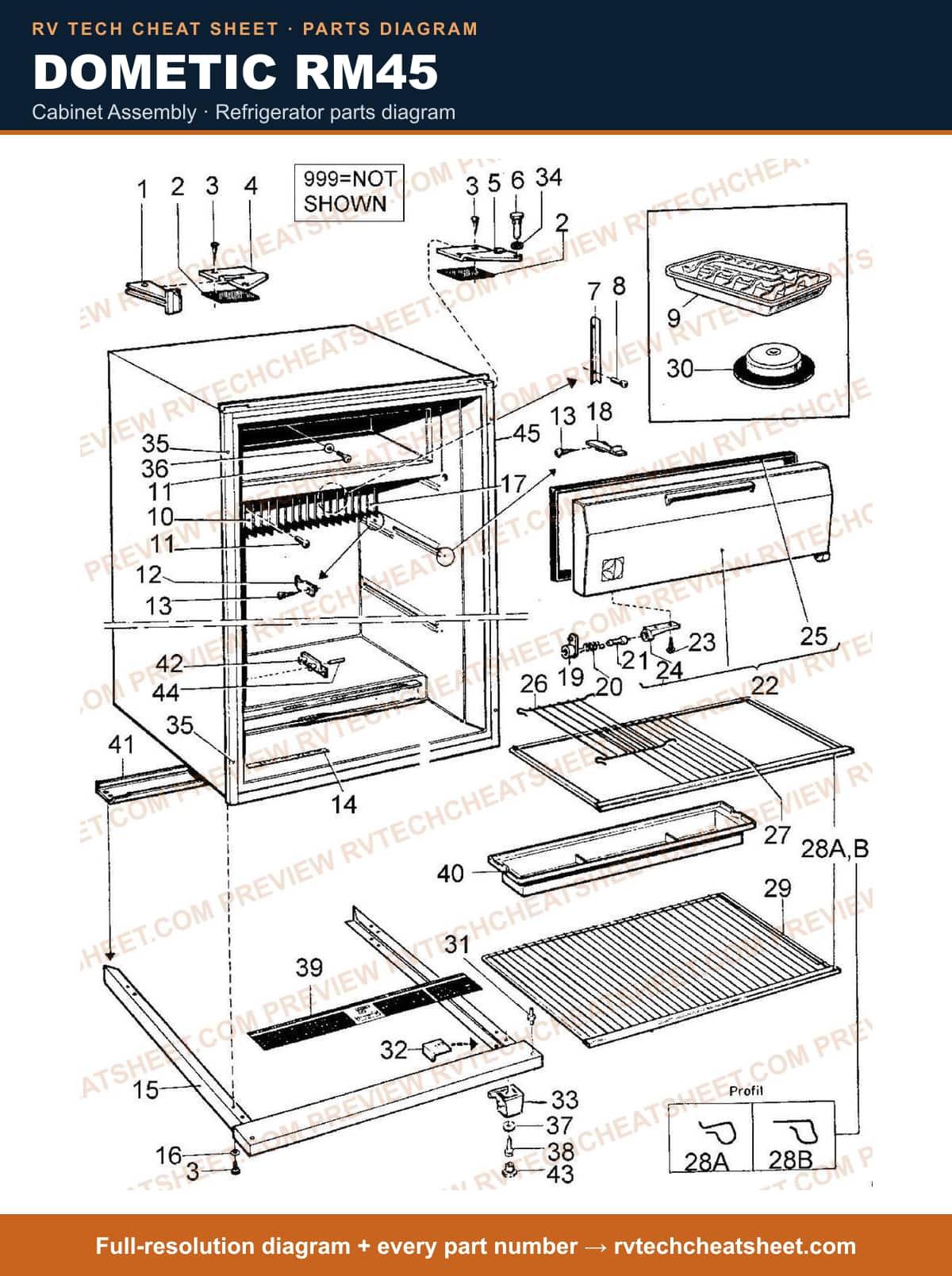

Cabinet Assembly

Components

58 items

1. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005
2. #SPACER MFR # 2002266019
3. #SCREW, RX 5X10 Z. PL. MFR # 7241325013
4. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
5. #PIN,RETAINING MFR # 2001281019
6. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003
7. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
8. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
9. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
10. #TRAY,ICE W/RELEASER MFR # 2002337000
11. #RADIATOR FLANGE MFR # 2002298004
12. #SCREW, RXS 5X16, STAINLESS (LATER VERSION) MFR # 7291329403
13. #SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402
14. #SNAP SPRING MFR # 2000547006
15. #SCREW MFR # 7295281658
16. #WARNING LABEL MFR # 2002235006
17. #CABINET BASE MFR # 2002533087
18. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
19. #RADIATOR FLANGE, RH MFR # 2002299002
20. #STOP,SHELF MFR # 2002635007
21. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
22. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
23. #Spring, Freezer Door RH MFR # 2002237010
24. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
25. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
26. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
27. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
28. #DOOR,FREEZER USE 2002239271 BROWN MFR # 2002239032 Superseded: see description
29. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
31. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
32. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
33. #FLAP MFR # 2001659016
34. #SHELF MFR # 2002651137
35. #N/A MFR # 2002398028
36. #N/A DECORATION STRIP MFR # 2002479026
37. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
38. #SHELF,LOWER USE 2002652226 MFR # 2002652002 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
40. #LEVEL USE 2007645019 MFR # 2002875009 Superseded: see description
41. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
43. #WASHER MFR # 2002389001
44. #APPLIANCE COMPONENTS RV; S, FOOT, LEVELING MFR # 2004003006
45. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
46. #PLUG, FACE WHITE MFR # 2002352009
47. #WASHER, 5.2X15X1, STAINLESS MFR # 7344885400
48. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
49. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
50. #SCREW, RX5X12, Z. PL. MFR # 7241327019
51. #N/A PLATE, INSTRUCTION MFR # 2002234009
52. #TRAY,DRIP WHITE MFR # 2000919056
53. #TRAY,DRIP MFR # 2000919023
54. #PLATE,PROTECTION MFR # 2002625016
55. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
56. #INSULATION MFR # 2004013005
57. #PIN,LOCKING USE 2001281019 *SEE NOTES * MFR # 2001281004 Superseded: see description
58. #FRONT FACE, BEIGE MFR # 2002346100

Gas-electric Parts II

Components

64 items

1. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
2. #SCREW #17 MFR # 7241289011
3. #SCREW, RX 5X10, Z.PL. MFR # 72413525001
4. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
5. #SPRING WASHER MFR # 7351136010
6. #IGNITER, SPARK MFR # 2890030010
7. #COVER MFR # 173101007
8. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
9. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
10. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
11. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
12. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
13. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
14. #Screw MFR # 7295340017
15. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
16. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
17. #T-STAT, GAS MFR # V35P0111013
18. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
19. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
20. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
21. #Thermostat Bypass Screw; Replaces #11 Bypass Screw On Ranco Gas Thermostat MFR # 172819047MC
22. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
23. #APPLIANCE COMPONENTS RV; Screw Bypass S11 Alt 45- MFR # 172819047
24. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
25. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
26. #THERMOCOUPLE, 18" MFR # 169372002MC
27. #QUICK CHECK MFR # 423
28. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
29. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
30. #THERMOCOUPLE MFR # 169372000MC
31. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
32. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
33. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
34. #VALVE, SAFETY MFR # 293165
35. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
36. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
37. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
38. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
39. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
40. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
41. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
42. #LID MFR # 2890053008
43. #SPACER SLEEVE MFR # 173344011
44. #SPACER NUT MFR # 170827000
45. #TUBE, BURNER MFR # 2890010008
46. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
47. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
48. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
49. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
50. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
51. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
52. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009
54. #NUT, UNION FEMALE MFR # 2902553003
55. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
56. #Orifice, #51 Use 2002660187 MFR # 2002660179 Superseded: see description
57. #ORIFICE, #52 MFR # 2002660187
58. #BRACKET MFR # 2002469001
59. #HOLDER, VALVE BRACKET MFR # 2890033000
60. #SCREW, RX 4X8, Z. PL. MFR # 7241287015
61. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
62. #TAB CONNECTOR, ANGLE MFR # 7604855002
63. #BRACKET,BURNER MFR # 2002493001
64. #COVER, BURNER MFR # 2002476014

Door Assembly

Components

34 items

1. #APPLIANCE COMPONENTS RV; Gasket Door MFR # 2001111059
2. #DOOR LINER RM45A MFR # 2002379002
3. #INSERT,HINGE PIN MFR # 171563000
4. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
5. #DOOR FRAME, VERTICAL MFR # 2002342000
6. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
7. #DOOR FRAME, HORIZONTAL - UPPER COMPLETE MFR # 2002343016
8. #DECORATION STRIP N/A MFR # 2002344055
9. #NAMEPLATE MFR # 2002345003
10. #N/A MFR # 2002498018
11. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
12. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
13. #NAME PLATE DOMETIC MFR # 2002256002
14. #WEAR LINER MFR # 2002263008
15. #N/A MFR # 2002264006
16. #N/A MFR # 2002264055
17. #FASTENING STRIP MFR # 581703014
18. #APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007
19. #BOTTLE HOLDER FOR DR LINE R W/ FASTENING STRIPS MFR # 581702016
20. #FASTENING STRIP INNER FOR BOTTLE HOLDER MFR # 168939007
21. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
22. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
23. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
24. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
25. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
26. #SHELF, DOOR USE 2002261143 WHITE MFR # 2002261002 Superseded: see description
27. #LABEL, INSTRUCTION MFR # 2002356000
28. #REINFORCING STRIP VERTICAL RM45A MFR # 2001585047
29. #REINFORCING STRIP HORIZONTAL RM45A MFR # 2001586029
30. #DOOR PLATE, INSULATED MFR # 2002250005
31. #FRAME, DOOR HORIZONTAL LOWER MFR # 2002340012
32. #SCREW MFR # 7295279652
33. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
34. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
