Dometic RM46 Model RM46D Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 229 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM46 Model RM46D RV refrigerator: 5 assemblies (Door Assembly, Cabinet Assembly, Switch Control, Refrigerator Replacement, Gas & Electric Parts) and 229 manufacturer part numbers. 58 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

23 items

1. #DOOR, COMPLETE 46E MFR # 2002772040
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #GASKET, DOOR; 29 MFR # 2002626055
4. #STRIP, DECOR; Use 2002675110 MFR # 2002675011 Superseded: see description
5. #STRIP, DECORATION MFR # 2002675110
6. #NAMEPLATE RM66E MFR # 2002777015
7. #FASTENING PLATE MFR # 2002707004
8. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
9. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
10. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
12. #NAME PLATE DOMETIC MFR # 2002256002
13. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
14. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
15. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
17. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
18. #HOLDER, BOTTLE USE 2002794168 MFR # 2002794002 Superseded: see description
19. #HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description
20. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
21. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
22. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
23. #LABEL, INSTRUCTION MFR # 2002356000

Cabinet Assembly

Components

67 items

1. #S,LOCK PIN MFR # 2002759005
2. #SPACER MFR # 2002266019
3. #SCREWS RM10 0 MFR # 7241328017
4. #PIN,RETAINING MFR # 2001281019
5. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
7. #HOLDER MFR # 2002796007
8. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
9. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
10. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
11. #RADIATOR FLANGE, RH, HGT 150MM (C.5-7/8") MFR # 2002756001
12. #RADIATOR FLANGE, RH MFR # 2002299002
13. #RADIATOR FLANGE MFR # 2002298004
14. #SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402
15. #SNAP SPRING MFR # 2000547006
16. #SCREW MFR # 7295281658
17. #WARNING LABEL MFR # 2007048008
18. #CABINET BASE MFR # 2002533087
19. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
20. #TRAY,ICE W/RELEASER MFR # 2002337000
21. #STOP,SHELF MFR # 2002635007
22. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
23. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
24. #Spring, Freezer Door RH MFR # 2002237010
25. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
26. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
27. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
28. #DOOR,FREEZER WHITE MFR # 2002239263
29. #DOOR,FREEZER USE 2002239271 BROWN MFR # 2002239032 Superseded: see description
30. #DOOR, FREEZER USE 45-5219 WHITE MFR # 2002239008 Superseded: see description
31. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
33. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
34. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
35. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
36. #SHELF MFR # 2002651137
37. #WIRE SHELF RM4-6'S MFR # 2002651103
38. #FLAP MFR # 2001659016
39. #N/A DECORATION STRIP MFR # 2002479026
40. #SHELF,LOWER USE 2002652226 MFR # 2002652002 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
42. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
44. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
45. #PLATE,PROTECTION MFR # 2002625016
46. #TRAY,DRIP WHITE MFR # 2000919056
47. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
48. #APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017
49. #WASHER, 5.4, STAINLESS MFR # 7344890400
50. #INSTRUCTION PLATE MFR # 2007008010
51. #KNOB,PIEZO MFR # 2002669006
52. #APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027
53. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
54. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
55. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
56. #KNOB,SWITCH USE 2002423040 2W MFR # 2002725048 Superseded: see description
57. #PANEL,CONTROL YELLOW MFR # 2002664056
58. #PANEL,CONTROL YELLOW MFR # 2002664007
59. #LOCK NUT SNJ 1915 MFR # 7337813062
60. #CRISPER MFR # 2000577011
61. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
62. #LID, CRISPER M70 RM7 MFR # 2000579009
63. #FITTING LAMP COMPLETE MFR # 2002751002
64. #LAMP,6 VOLT MFR # 140315003
65. #LAMP,GLASS MFR # 2002748008
66. #APPLIANCE COMPONENTS RV; Bracket MFR # 2002749006
67. #FRONT FACE, BEIGE MFR # 2002346100

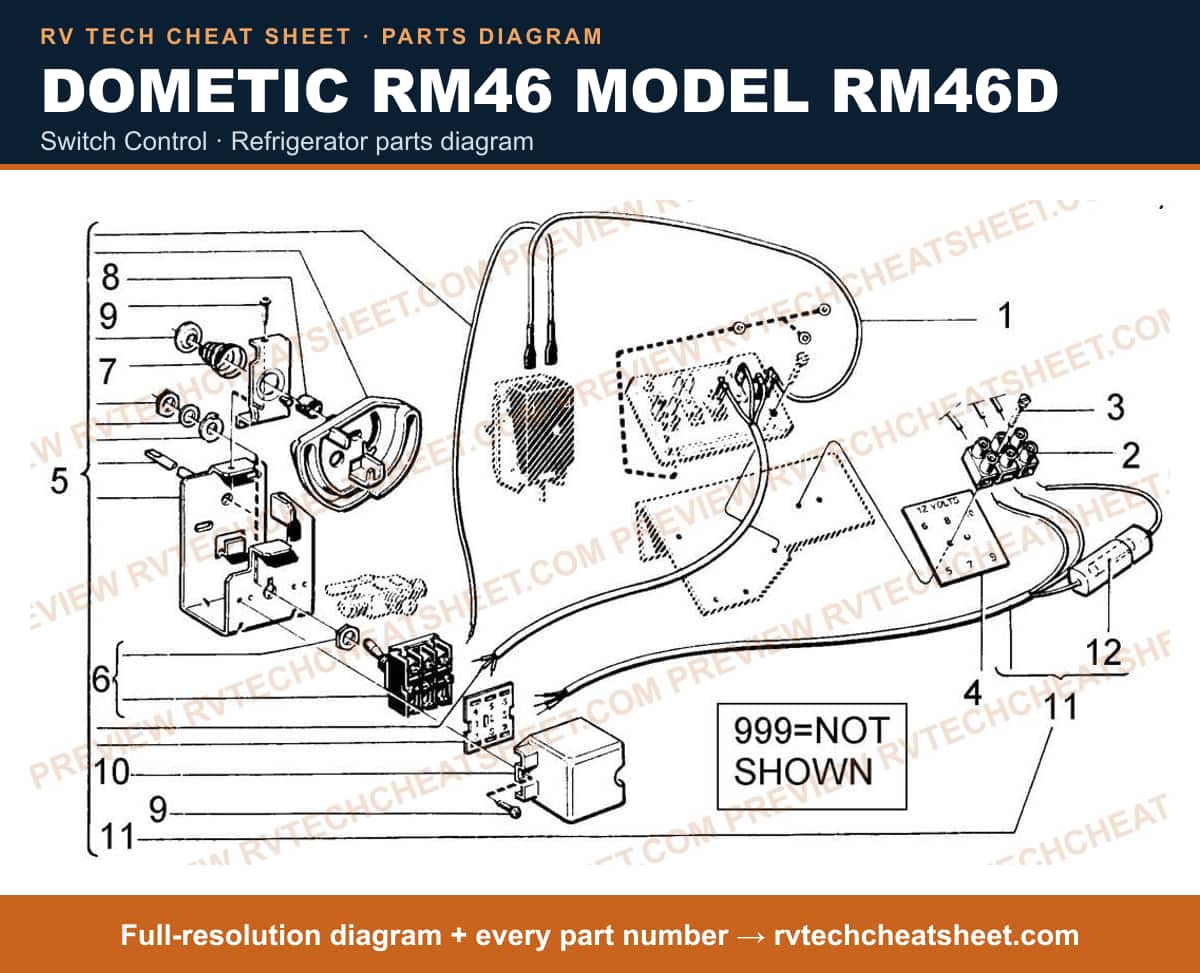

Switch Control

Components

17 items

1. #THERMOSTAT CABLE MFR # 2002591036
2. #BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
4. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
5. #PLATE USE 2007176007 MFR # 2002589006 Superseded: see description
6. #SWITCH ASM 3 WAY MFR # 2007176007
7. #SWITCH, CONTROL 3-WAY MFR # 2002681027
8. #SWITCH, SELECTOR MFR # 2007034024
9. #SWITCH MFR # 2002697007
10. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
11. #SEALING RING MFR # 7356819115
12. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
14. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
15. #PROTECTION COVER MFR # 2002698005
16. #CABLE W/FUSE RM66 MFR # 2002702005
17. #APPLIANCE COMPONENTS RV; Fuse 16 Amp MFR # 2002578009

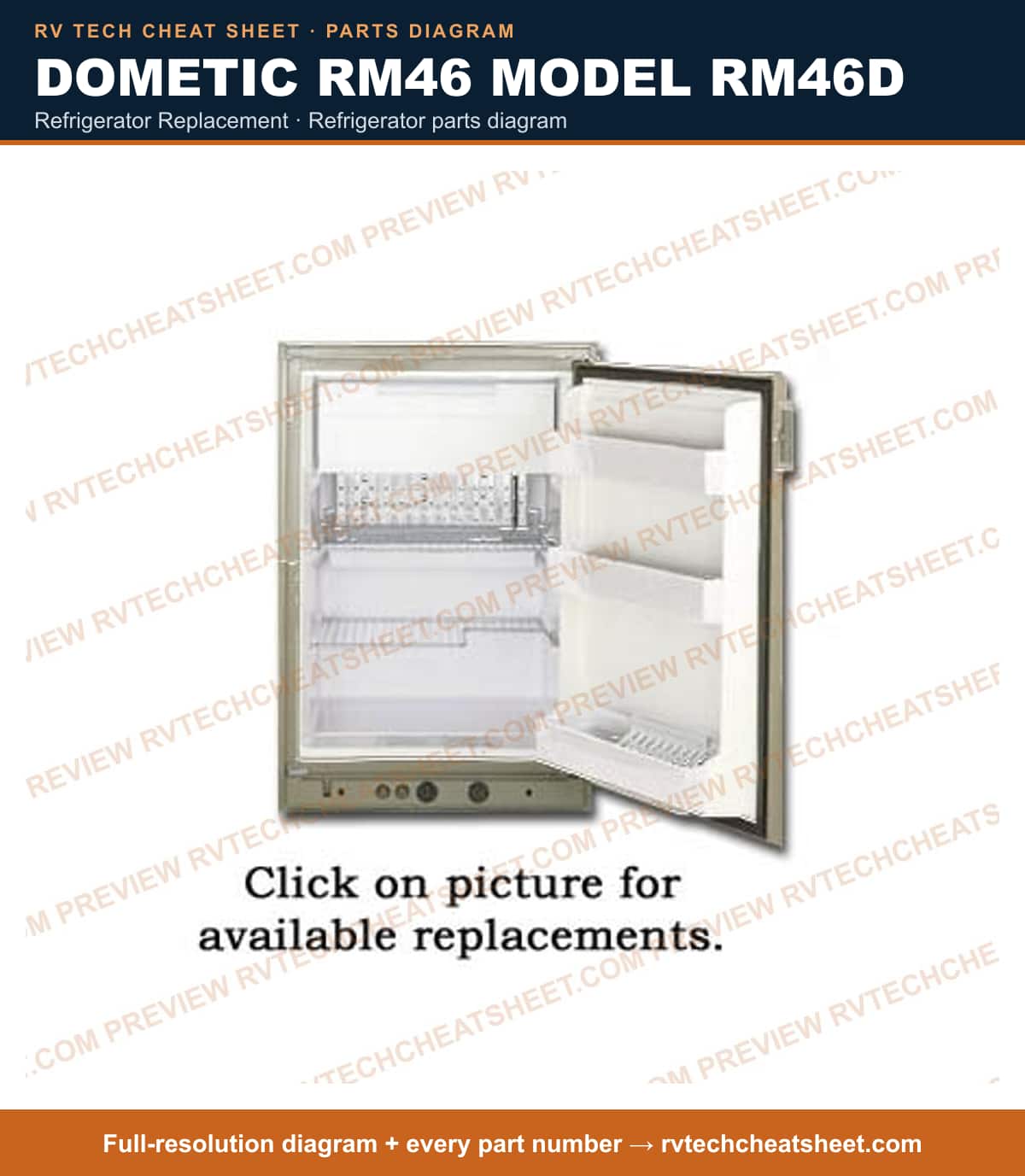

Refrigerator Replacement

Components

12 items

1. #Refrigerator; Single Compartment Refrigerator With Freezer; Portable; 3.8 Cubic Foot; 22.83 Inch Width x 33-1/2 Inch Height x 24-7/8 Inch Depth; 120 Volt AC/ 1.3 Amp; 2-Way Alternating Current/ LP Gas; Right Hand Door Hinge Location; Taupe; Door Panel Must Be Ordered Separately; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B MFR # RM24102R Superseded: see description
2. #PANEL, WOODGRAIN, USE N510G F/N510UR MFR # N510URG Superseded: see description
3. #REFER, 5.5 CUFT. USE N5103UR 42 5/8H X 23 11/16W X 24D MFR # N5103U Superseded: see description
4. #REFER, 4.3CUFT USE N510URN; 43 1/4H X 23 1/2W X 24D 2-WAY. MFR # 6052N Superseded: see description
5. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
6. #REFER, 4.3 CU FT USE N5103U; 3 WAY 43 1/4H X 23 1/2W X 24D. MFR # 6053N Superseded: see description
7. #Refrigerator Door Panel; Fits Norcold Refrigerator N510 Series; Woodgrain MFR # N510G
8. #RECON REFER 3.1CUFT.2WAY; 30 7/8H X 23 1/2W X 24D. MFR # 442R
9. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
10. #REFER 3.1CU FT USE 72-4880; 30 7/8" X 23 1/2" X 24" 3WAY MFR # 443N Superseded: see description
11. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker MFR # N3003R
12. #RECON REFER 4.3 CU FT 2 WAY, 43 1/4H X 23 1/2W X 24D. MFR # 6052R

Gas & Electric Parts

Components

119 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #TURN PROTECTION MFR # 2002766000
3. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
4. #SCREW MFR # 7298285402
5. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
6. #SEALING RING MFR # 2002224018
7. #WASHER RM36E MFR # 7344974014
8. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
9. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
10. #SCREW RXS B6X5 MFR # 7295275015
11. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
12. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
13. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
14. #BOX, FLUE MFR # 2002472005
15. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
16. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
17. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
18. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
19. #BRACKET T-STAT MFR # 2890034008
20. #SCREW #17 MFR # 7241289011
21. #CABLE F/T-STAT MFR # 173193020
22. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
23. #TAB CONNECTOR, ANGLE MFR # 7604855002
24. #CONNECTION BLOCK MFR # 2400297004
25. #SCREWS RM10 0 MFR # 7241328017
26. #CONDUCTOR, LIGHT MFR # 2002222004
27. #Igniter; Use On Dometic Refrigerators; Piezo Spark MFR # 2002609036MC Superseded: see description
28. #PIEZO LIGHTER MFR # 440
29. #LIGHTER,PIEZO ALT 2002609036MC MFR # 2002609036
30. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
31. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
32. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
33. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
35. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
36. #APPLIANCE COMPONENTS RV; Shaft 15" MFR # 2002300008
37. #RING,SEALING MFR # 2002224000
38. #WASHER RM66 MFR # 7344908012
39. #APPLIANCE COMPONENTS RV; Rod Pull 4-6 Cubic Feet MFR # 2002226005
40. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
42. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009
44. #Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034
45. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description
46. #BUSHING MFR # 149585010
47. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
48. #PROTECTION PLATE MFR # 2002445001
49. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
50. #SPRING WASHER MFR # 7351136010
51. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
52. #SWITCH 2 WAY RM46-66 MFR # 2002670020
53. #SWITCH, CONTROL 3-WAY MFR # 2002681027
54. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
55. #COVER MFR # 173101007
56. #SWITCH ASM 3 WAY MFR # 2007176007
57. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
58. #SEALING RING MFR # 7356819115
59. #WASHER MFR # 2002351001
60. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
61. #INSULATION - NLA MFR # 2002442008
62. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
64. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
65. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
66. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
67. #Baffle, Flue MFR # 2890028000
68. #Screw MFR # 7295340017
69. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
70. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
71. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
72. #T-STAT, GAS MFR # V35P0111013
73. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
74. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
75. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
76. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
77. #THERMOCOUPLE MFR # 169372000MC
78. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
79. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
80. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
81. #QUICK CHECK MFR # 423
82. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
83. #THERMOCOUPLE, 18" MFR # 169372002MC
84. #VALVE, SAFETY MFR # 293165
85. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
86. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
87. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
88. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
89. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
90. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
91. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
92. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
93. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
94. #LID MFR # 2890053008
95. #SPACER SLEEVE MFR # 173344011
96. #SPACER NUT MFR # 170827000
97. #TUBE, BURNER MFR # 2890010008
98. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
99. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
100. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
101. #CONNECTION PIECE MFR # 2002479009
102. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
103. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
104. #APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009
105. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
106. #NUT, UNION FEMALE MFR # 2902553003
107. #ORIFICE, #52 MFR # 2002660187
108. #Orifice, #51 Use 2002660187 MFR # 2002660179 Superseded: see description
109. #BRACKET MFR # 2002469001
110. #COVER, BURNER MFR # 2002476014
111. #REMAN COOLING UNIT RM46, 46D (UPS) MFR # 9283171008R
112. #COOLING UNIT RM 46 RM45 & RM45A 317A 30-7/8" X 21-9/16" X 24-7/8". CAN REPLACE WITH NEW REFER: DOMETIC RM 2310/2 OR NORCOLD 442N. MFR # 9283171008N
113. #COOLING UNIT MFR # 9283171008
114. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
115. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
116. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
117. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
118. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
119. #BRACKET,BURNER MFR # 2002493001
