Diagrams › Dometic › RM461 Dometic RM461 Parts Diagram · Gas-electric Parts
Refrigerator · 4 assemblies · 4 diagram sheets · 208 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM461 RV refrigerator: 4 assemblies (Gas-electric Parts, Cabinet Assembly, Door Assembly, Replacement Refrigerator) and 208 manufacturer part numbers. 59 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

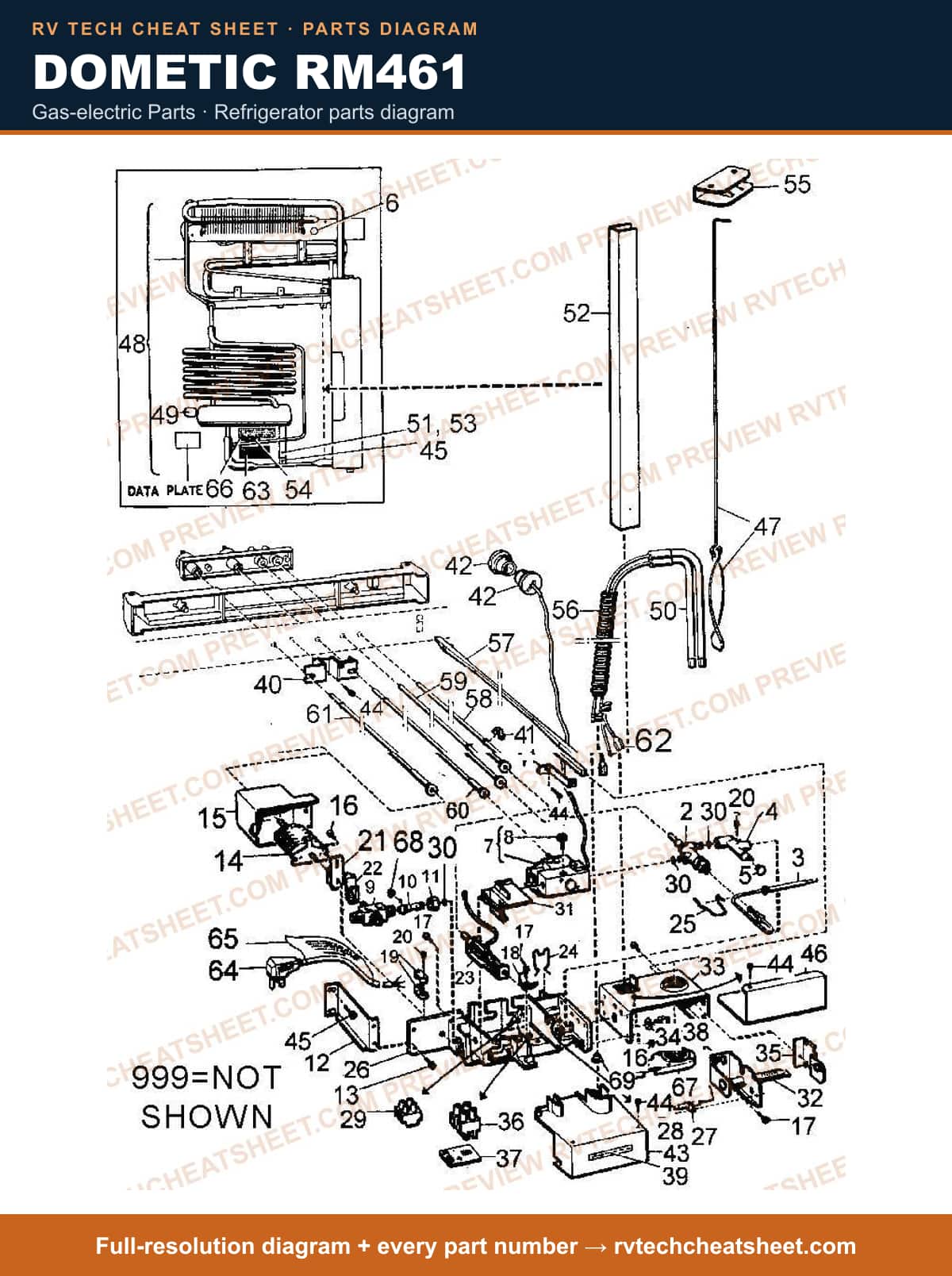

Gas-electric Parts
Dometic RM461 gas-electric parts — parts list sheet Full-resolution diagram + every part number →
Components 104 items # Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005 # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # PLUG MFR # 2001192000 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SCREW - RXS B8X13 - Z. PL. MFR # 7295342013 # S,SWITCH,RM2410-2810 MFR # 2007432004 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Appliance Components RV; Cover Switch MFR # 2007439009 # Screw MFR # 140730011 # N/A Screw MRX 4 X 8 Zinc Plated MFR # 7421287015 # TAB CONNECTOR MFR # 7602896701 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW MFR # 7298285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Igniter, Piezo MFR # 2007423003 # Appliance Components RV; Retainer MFR # 2007424001 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # Screw - RXS B4X6 - NI. PL. MFR # 7295221118 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # BURNER USE 2007503036 MFR # 2007503010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # Burner Housing MFR # 2007502012 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # 3858022019 MFR # 3858022019 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159 # ORIFICE #32 BUTANE 360 MFR # 2007419134 # LABEL, IMPORTANT MFR # 2007689009 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # SCREW #17 MFR # 7241289011 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # Remanufactured Cooling Unit MFR # 9283359009R # FLAT BLACK MFR # 5546 # Appliance Components RV; Cooling Unit MFR # 2934335098N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # ELEMENT, HEATING 125W 12V MFR # CS000045 # ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description # ELEMENT, HEATING USE 173756016 135W 120V 2W RM460 MFR # 173736018 Superseded: see description # ELEMENT, HEATING USE 173756016 MFR # 173736018D Superseded: see description # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2300/ RM2400; 120 Volt; 160 Watts MFR # 173756016MC Superseded: see description # ELEMENT,HEATING 120V MFR # CS000012 # ELEMENT, HEATING USE 173735010 150W 12V MFR # 173737016 Superseded: see description # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Channel MFR # 2007588003 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description # S,CAP,FLUE MFR # 2007598010 # Protection Hose MFR # 2007069046 # Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description # APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # Lead for 12V MFR # 2007453000 # APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Lock, Burner Mounting MFR # 2007458025 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001

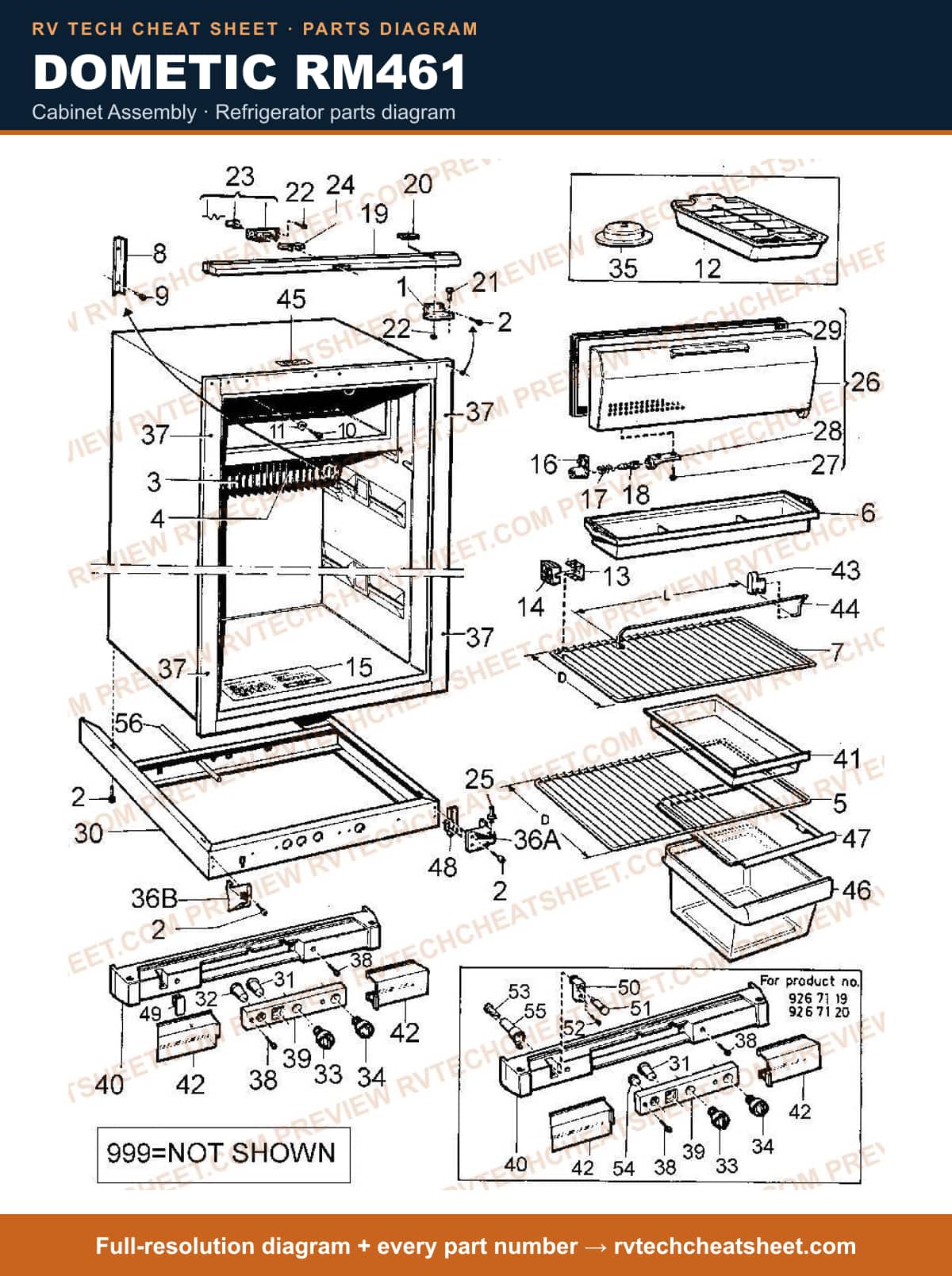

Cabinet Assembly
Dometic RM461 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 77 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # Appliance Components RV; Flange Cooling MFR # 2007394006 # SCREW MFR # 7295414119 # Shelf, 763 (use MFR# 2930133067) MFR # 2002650063 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # SHELF, WIRE USE 2002652242 MDL#660 9.5" DEEP MFR # 2002652150 Superseded: see description # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # SCREW USE 7295344407 MFR # 7295344118 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # WASHER MFR # 7344888206 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # INSTRUCTION PLATE MFR # 2007693001 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # DECORATION, FRONT MFR # 2007545037 # APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005 # Pin, Hinge MFR # 2007271006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # SCREW USE 7295281401 MFR # 7295281013 Superseded: see description # LATCH USE 2007546027 MFR # 2007546019 Superseded: see description # APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027 # KEY USE 2930135021 MFR # 2930135005 Superseded: see description # APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description # S,LID,FRZ,RM2510 MFR # 2002239289 # Door, Freezer; Use STAG# 45-5220; Is a use # for MFR# 2002239123, MFR# 2002239214 MFR # 2002239180 Superseded: see description # APPLIANCE COMPONENTS RV; Screw MFR # 7295286657 # SCREW USE 7295286657 MFR # 7295285659 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019 # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # BUTTON, PUSH MFR # 2007479013 # Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094 # Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description # Appliance Components RV; Knob Selector 115V MFR # 2007480029 # KNOB, SELECTOR MFR # 2007480011 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # Refrigerant Gasket; Replacement for Dometic RM360/ RM380/ RM663/ RM460/ RM760/ RM750/ RM700/ RM3604/ RM3610 Series Refrigerators; Gasket; 29 3/4" L x 23" W MFR # 2007517024 # Screws; Use MFR# 2007494003 MFR # 2007494003 Superseded: see description # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description # Base Front; Use MFR# 2930591090 & 2930557000 MFR # 2007461094 Superseded: see description # Base Front W/Reigniter MFR # 2007461102 # Retainer, Lamp MFR # 2930557000 # APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049 # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # LABEL MFR # 2007688001 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028 # Plate, Sealing MFR # 2930074006 # Appliance Components RV; Plug Grey/Brown MFR # 2930083031 # Appliance Components RV; Socket Lamp MFR # 2007674001 # Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Hose, Protecting MFR # 2007349026 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description

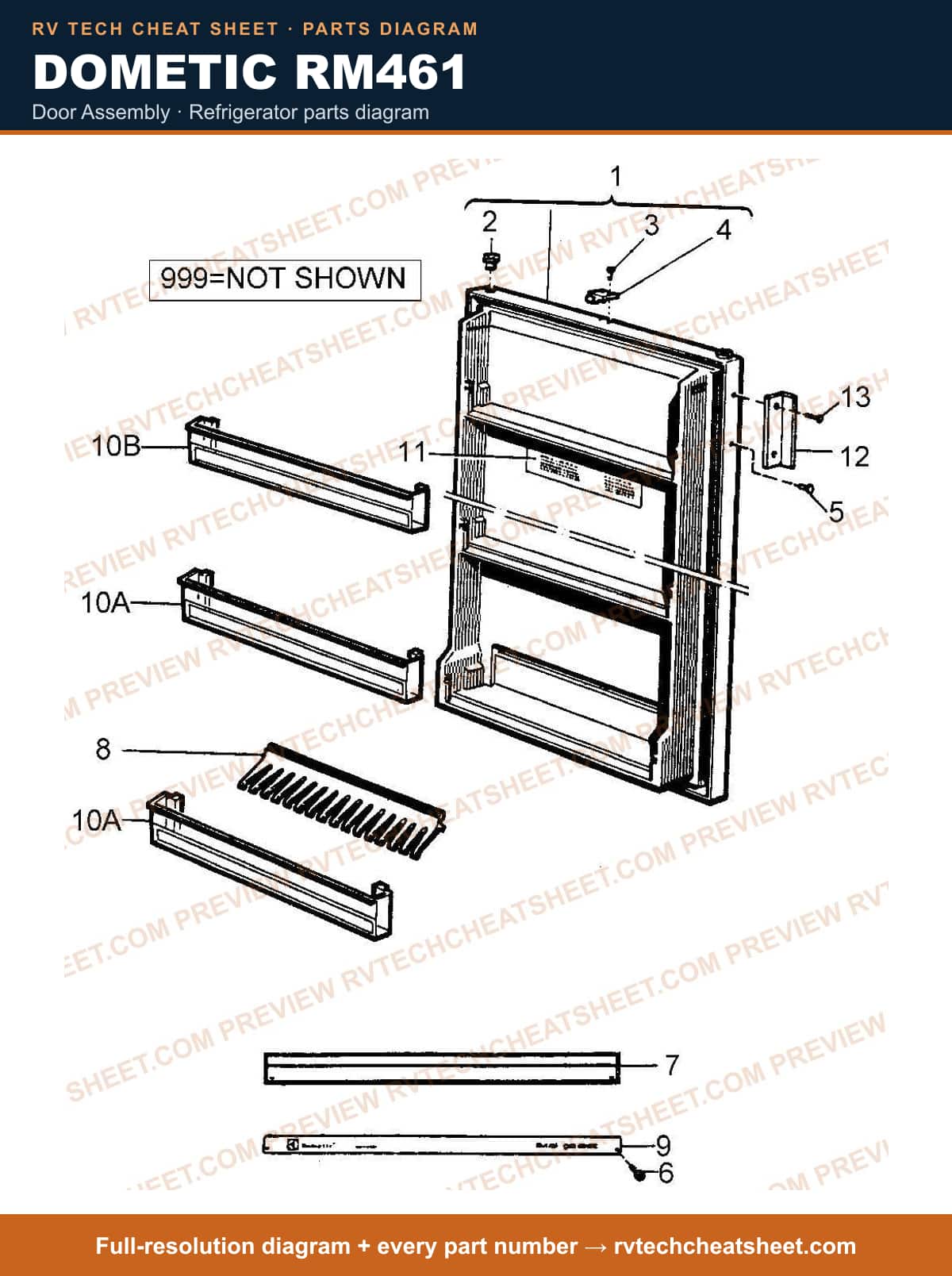

Door Assembly
Dometic RM461 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 25 items # Appliance Components RV; Gasket Kit MFR # 3103691006 # APPLIANCE COMPONENTS RV; Door Main MFR # 2930922113 # Door w/Gasket; Use MFR# 2930922113 MFR # 2930125048 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # RIVET, POP MFR # 7227835027 # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # Plug Beige MFR # 20026460279 # Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description # PLUG, GREY USE 2006460055 MFR # 2006460071 Superseded: see description # Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Strip, Decoration RM461 MFR # 2930137092 # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER MFR # 2000571170 Superseded: see description # LABEL, INSTRUCTION MFR # 2002356000 # Appliance Components RV; Handle Door RM1303 MFR # 2930283003 # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
Replacement Refrigerator
Dometic RM461 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 5 items # 64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N # REFER, 4 CU FT 3 WAY 32 7/16"H X 22 13/16"W MFR # RM24103N # Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N # Refrigerator; Single Compartment Refrigerator With Freezer; Portable; 3.8 Cubic Foot; 22.83 Inch Width x 33-1/2 Inch Height x 24-7/8 Inch Depth; 120 Volt AC/ 1.3 Amp; 2-Way Alternating Current/ LP Gas; Right Hand Door Hinge Location; Taupe; Door Panel Must Be Ordered Separately; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B MFR # RM24102R Superseded: see description # REFER, 4 CU FT 2 WAY 32 7/16"H X 21 3/16"W X 24; FOR BLACK DOOR PANELS USE 3106863008C FOR WOODGRAIN DOOR PANELS USE 3106863008B; 2 WAY SMALL SINGLE DOOR 7/29/02 - ON B/O W/DOMETIC UNTIL 9/1/02. JDH ... MFR # RM24102N Superseded: see description
