Diagrams › Dometic › RM47 Model RM47 Dometic RM47 Model RM47 Parts Diagram · Replacement Refrigerator
Refrigerator · 4 assemblies · 4 diagram sheets · 160 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM47 Model RM47 RV refrigerator: 4 assemblies (Replacement Refrigerator, Cabinet Assembly, Gas & Electric Parts, Door Assembly) and 160 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Replacement Refrigerator

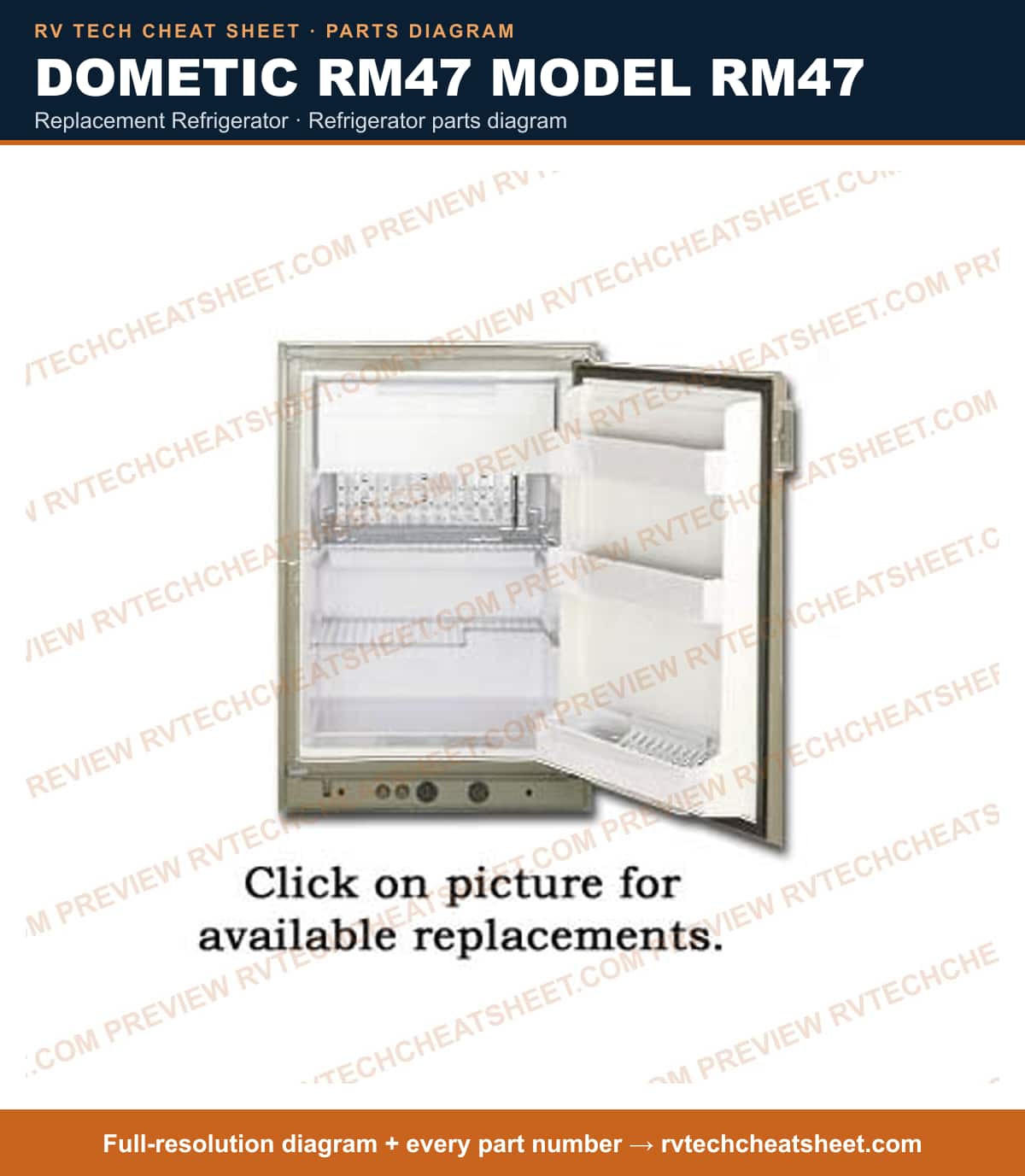

Dometic RM47 Model RM47 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 7 items # 64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N # Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N # REFER 30 7/8 21 9/16 24 7/8 MFR # RM47N # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UR # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer; DIMENSIONS: 36-9/16" H X 23-11/16" W X 24" D; REPLACES: IS A USE # FOR N400N MFR # N410UR Superseded: see description # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N410UL # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 4.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 36-9/16 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Without Door Panels/ Not Sold By Manufacturer MFR # N4103UL
Cabinet Assembly

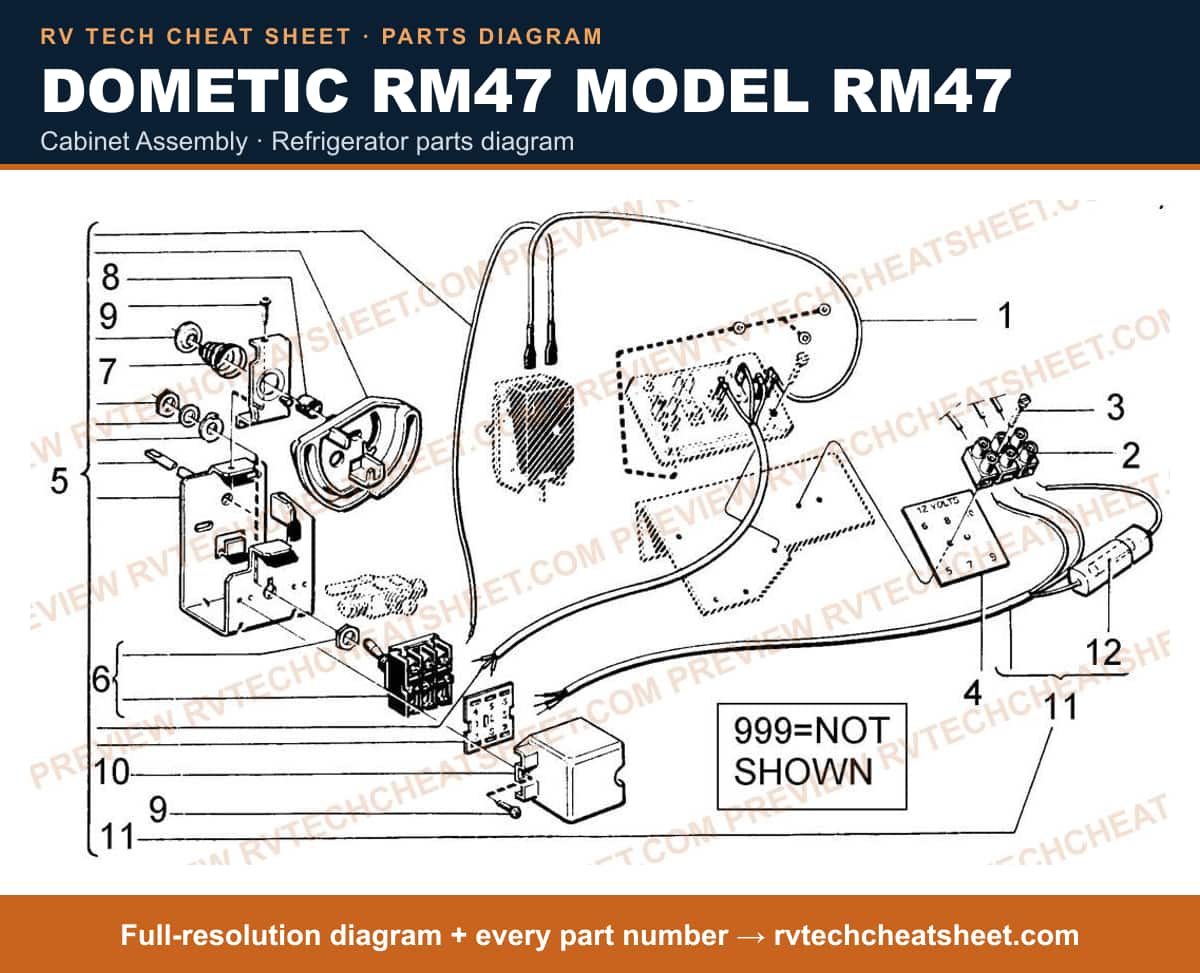

Dometic RM47 Model RM47 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 17 items # THERMOSTAT CABLE MFR # 2002591036 # APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001 # BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # SWITCH ASM 3 WAY MFR # 2007176007 # PLATE USE 2007176007 MFR # 2002589006 Superseded: see description # SWITCH, CONTROL 3-WAY MFR # 2002681027 # SWITCH, SELECTOR MFR # 2007034024 # SWITCH MFR # 2002697007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SEALING RING MFR # 7356819115 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # PROTECTION COVER MFR # 2002698005 # CABLE W/FUSE RM66 MFR # 2002702005 # APPLIANCE COMPONENTS RV; Fuse 16 Amp MFR # 2002578009
Gas & Electric Parts
Dometic RM47 Model RM47 gas & electric parts — parts list sheet Full-resolution diagram + every part number →
Components 117 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # TURN PROTECTION MFR # 2002766000 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW MFR # 7298285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SEALING RING MFR # 2002224018 # WASHER RM36E MFR # 7344974014 # APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # SCREW RXS B6X5 MFR # 7295275015 # TAB CONNECTOR, STRAIGHT MFR # 7603857009 # BLOCK, TERMINAL RM36 - RM100 MFR # 581557709 # SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311 # BOX, FLUE MFR # 2002472005 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012 # T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description # T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description # BRACKET T-STAT MFR # 2890034008 # SCREW #17 MFR # 7241289011 # CABLE F/T-STAT MFR # 173193020 # APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728 # TAB CONNECTOR, ANGLE MFR # 7604855002 # CONNECTION BLOCK MFR # 2400297004 # SCREWS RM10 0 MFR # 7241328017 # CONDUCTOR, LIGHT MFR # 2002222004 # IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028 # PIEZO LIGHTER MFR # 440 # Igniter; Use On Dometic Refrigerators; Piezo Spark MFR # 2002609036MC Superseded: see description # ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description # ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description # Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description # APPLIANCE COMPONENTS RV; Packing MFR # 2002304000 # APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007 # APPLIANCE COMPONENTS RV; Shaft 15" MFR # 2002300008 # RING,SEALING MFR # 2002224000 # WASHER RM66 MFR # 7344908012 # APPLIANCE COMPONENTS RV; Rod Pull 4-6 Cubic Feet MFR # 2002226005 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009 # Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034 # BUSHING MFR # 149585010 # Screw, RXS B6X25, Z. Pl. MFR # 7295287010 # PROTECTION PLATE MFR # 2002445001 # Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003 # SPRING WASHER MFR # 7351136010 # APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008 # SWITCH, CONTROL 3-WAY MFR # 2002681027 # SWITCH 2 WAY RM46-66 MFR # 2002670020 # APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007 # COVER MFR # 173101007 # SWITCH ASM 3 WAY MFR # 2007176007 # SPRING USE 2007176007 MFR # 2002665004 Superseded: see description # SEALING RING MFR # 7356819115 # WASHER MFR # 2002351001 # Screw, RXS B6X16, Z.PL. MFR # 7295283019 # INSULATION - NLA MFR # 2002442008 # VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description # VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000 # Baffle, Flue MFR # 2890028000 # Screw MFR # 7295340017 # APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004 # T-STAT, GAS MFR # V35P0111013 # T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description # T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021 # Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC # APPLIANCE COMPONENTS RV; Spring MFR # 2002381008 # T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description # T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description # THERMOCOUPLE, 18" MFR # 169372002MC # T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description # QUICK CHECK MFR # 423 # THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description # THERMOCOUPLE MFR # 169372000MC # Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC # VALVE, SAFETY MFR # 293165 # VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100 # VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description # Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description # S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017 # MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019 # NUT, T-COUPLE ALT 45-3744 MFR # 169386000 # Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description # LID MFR # 2890053008 # SPACER SLEEVE MFR # 173344011 # SPACER NUT MFR # 170827000 # TUBE, BURNER MFR # 2890010008 # APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000 # APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000 # NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description # CONNECTION PIECE MFR # 2002479009 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description # APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009 # NUT, UNION FEMALE MFR # 2902553003 # NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description # ORIFICE, #52 MFR # 2002660187 # Orifice, #51 Use 2002660187 MFR # 2002660179 Superseded: see description # BRACKET MFR # 2002469001 # COVER, BURNER MFR # 2002476014 # N/A COOLING UNIT RM45 MFR # 9283154004N # REMAN COOLING UNIT RM47, RM47D (UPS) MFR # 9283154004R # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # BRACKET,BURNER MFR # 2002493001
Door Assembly

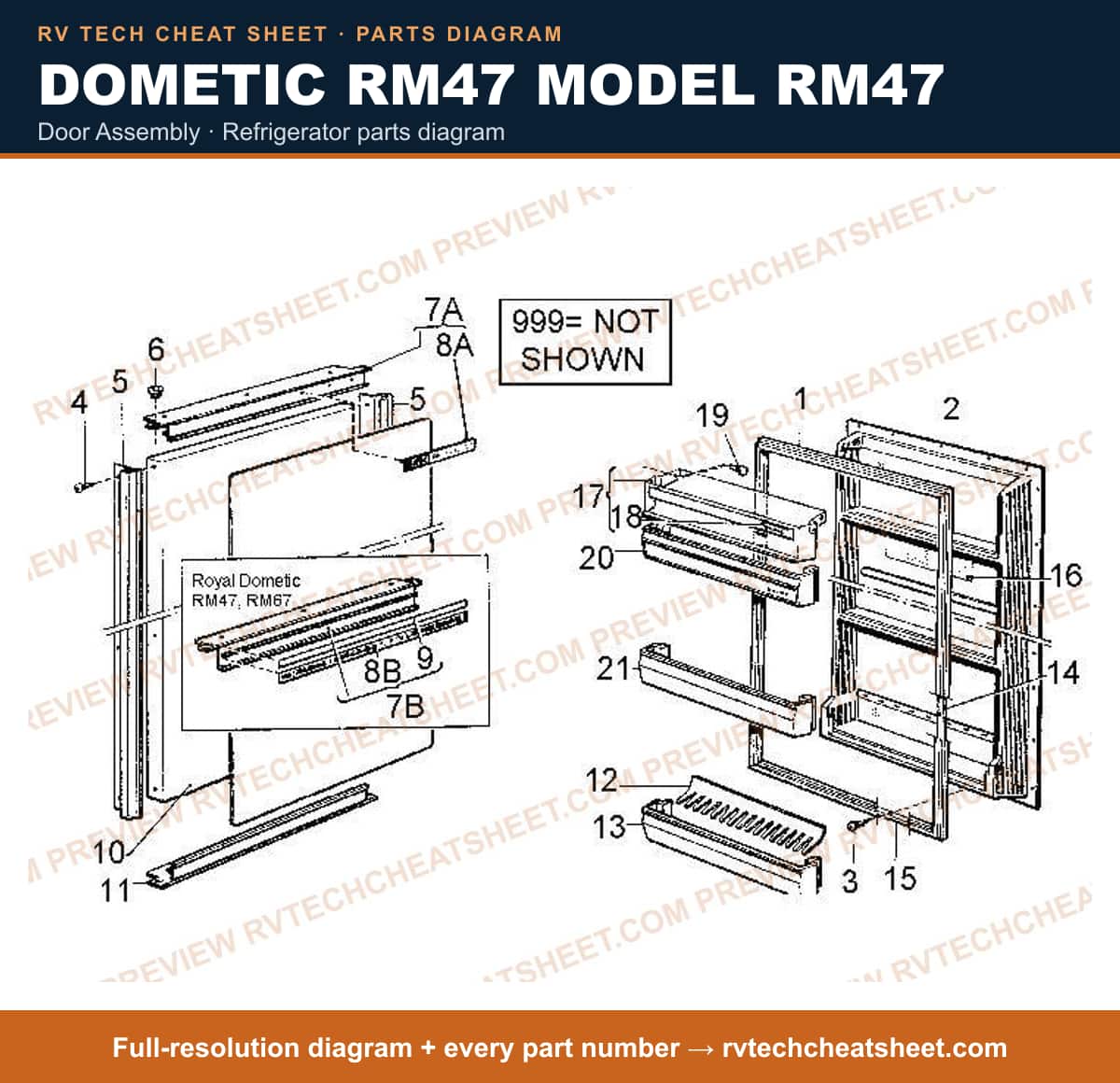

Dometic RM47 Model RM47 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 28 items # APPLIANCE COMPONENTS RV; Gasket Door MFR # 2001111059 # DOOR LINER MFR # 2002379044 # SCREW MFR # 7295279652 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # DOOR FRAME, ANODIZED ALM., GOLD MFR # 2002342075 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # DOOR FRAME, COMPLETE ANODIZED ALUM. MFR # 2002343107 # DOOR FRAME, COMPL., ANODIZED ALUM., GOLD MFR # 2002632038 # NAME PLATE (GAS/ELECTRIC DOMETIC) MFR # 2002708002 # NAMEPLATE MFR # 2002627012 # DECORATION STRIP MFR # 2002628010 # DOOR PLATE, INSULATED MFR # 2002250005 # DOOR FRAME, LOWER ANODIZED ALM., GOLD MFR # 2002340079 # APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007 # SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # REINFORCING STRIP VERTICAL RM45A MFR # 2001585047 # REINFORCING STRIP HORIZONTAL RM45A MFR # 2001586029 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149 # DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description # NAME PLATE DOMETIC MFR # 2002256002 # Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014 # SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
