Dometic RM4801 Parts Diagram · Gas-electric Asm

Refrigerator · 7 assemblies · 7 diagram sheets · 247 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM4801 RV refrigerator: 7 assemblies (Gas-electric Asm, Door Asm, Replacement Refrigerator, Base Asm, Cabinet Asm and more) and 247 manufacturer part numbers. 75 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

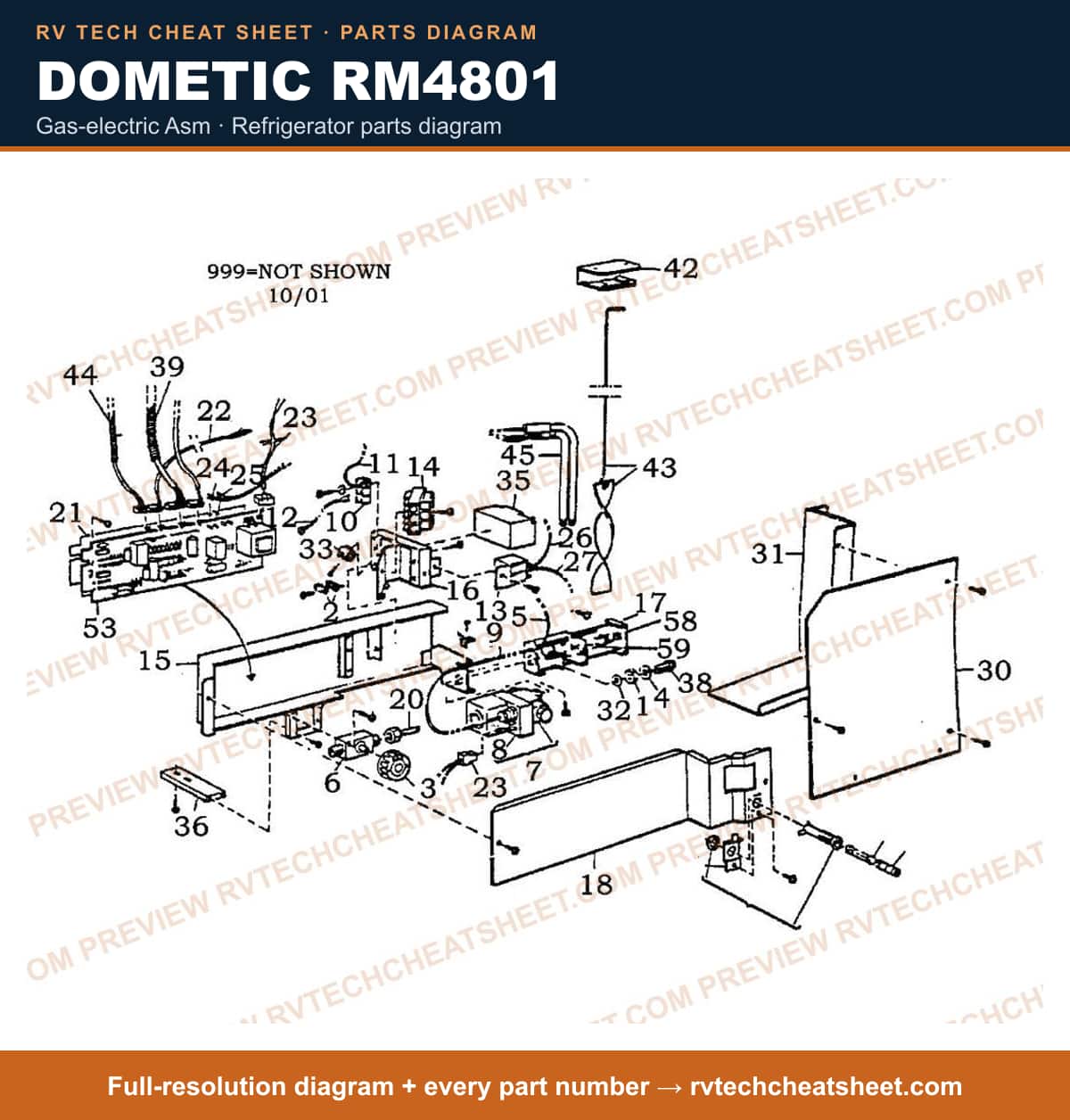

Gas-electric Asm

Components

66 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
3. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
4. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
5. #APPLIANCE COMPONENTS RV; Wire Lead 2604 MFR # 2007668029
6. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
8. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
9. #BOARD, MODULE MFR # 3106375015
10. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
11. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
12. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
14. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
15. #SOLENOID USE 2007719012 MFR # 2007714013 Superseded: see description
16. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
17. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
18. #Thermocouple MFR # 2931496091MC
19. #THERMOCOUPLE (350MM) MFR # 2931496091
20. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
21. #STRIP, TERMINAL 6 POS. MFR # 2930327008
22. #LEAD MFR # 2930894015
23. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
24. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
25. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
26. #BOX, COMPONENT MFR # 2930642042
27. #RETAINER MFR # 2930648015
28. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
29. #COVER MFR # 2930653015
30. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
31. #APPLIANCE COMPONENTS RV; Insulator Circuit Board MFR # 2931007013
32. #Lead, 3 Way 6 Pin (Has 6 Wire) RM3801 MFR # 2930799024
33. #Wire, Lead (2 Wire) MFR # 2930728023
34. #Lead, One Wire RM4801 MFR # 2930729039
35. #Appliance Components RV; Lead Wire (1 Wire) MFR # 2930729047
36. #LEAD,WIRE RM48 01 3600 MFR # 2930730011
37. #WIRE,LEAD MFR # 2930731019
38. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
39. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
40. #Block Terminal Small 3 Poi MFR # 7627202562
41. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
42. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
43. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
44. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
45. #Retainer MFR # 2930661018
46. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
47. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
48. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
49. #LEAD,10 WIRE MFR # 2930782095
50. #LEAD,WIRE USE 2930782095 10 PIN 7' LONG MFR # 2930782061 Superseded: see description
51. #S,CAP,FLUE MFR # 2007598010
52. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
53. #Refrigerator Evaporator Thermistor; Use With Dometic Refrigerator Model RM4801 MFR # 2930990037 Superseded: see description
54. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
55. #ELEMENT, HEATING **ALT 72-8720 215W 12V; 17.9 Amps 3/8" DIA 4 1/4" LONG; Is a use # for 173757022D MFR # 173757022 Superseded: see description
56. #ELEMENT, HEATING 120V 325W MFR # CS000022
57. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM3600/ RM3800; 12 Volt; 215 Watts MFR # 173757022MC Superseded: see description
58. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
59. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
60. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerators; 3 Way MFR # MICROP243
61. #BOARD, CIRCUIT USE 2931308015 MFR # 87500350241 Superseded: see description
62. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
63. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
64. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
65. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
66. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC

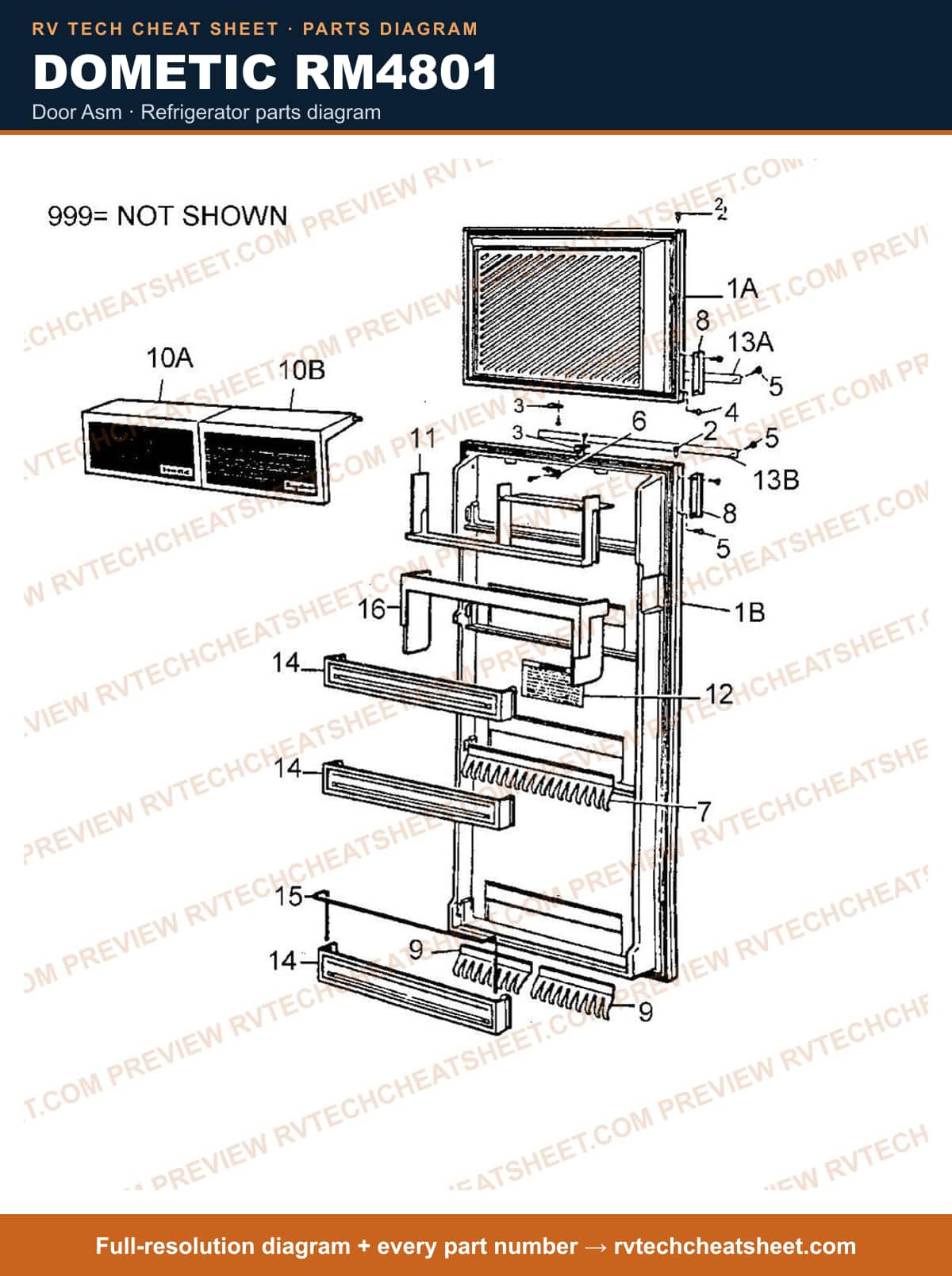

Door Asm

Components

30 items

1. #Gasket Kit (100) Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008D
2. #Gasket Kit Use 3103690008D Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008 Superseded: see description
3. #DOOR, LOWER MFR # 2930933110
4. #APPLIANCE COMPONENTS RV; Door Upperrm4801 MFR # 2930934118
5. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
6. #CATCH, RETAINER USE 2931093021 MFR # 2930817024 Superseded: see description
7. #APPLIANCE COMPONENTS RV; RETAINER, CATCH MFR # 2931093021
8. #Refrigerator Trim Screw; Replacement For Dometic RM2301/ RM2310/ RM2333/ RM2401/ RM2501/ RM4801 Model Refrigerator MFR # 7296229011
9. #RETAINER MFR # 2930594003
10. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
11. #Holder, Bottle Use 2002794168; Can Use 2002794010 For Brown MFR # 2002794069 Superseded: see description
12. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
13. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
14. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
15. #HANDLE USE 45-9988 MFR # 2930763020 Superseded: see description
16. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012
17. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
18. #Door, Dairy RH Smoked; Specs: For RM3807 Product #'s 921602301, 921602401, 921602501, 921602601; Use Part# 2930540014 MFR # 2930540014 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930540022
20. #DOOR USE 2930540022 MFR # 2930541020 Superseded: see description
21. #DOOR,DAIRY USE 2930540014 MFR # 2930541012 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Shelf Dairy MFR # 2930534025
23. #SHELF,BUTTER USE 2930534025 MFR # 2930534009 Superseded: see description
24. #LABEL, INSTRUCTION MFR # 2002356000
25. #DECORATION,LOWER DOOR 4801 MFR # 2930639238
26. #APPLIANCE COMPONENTS RV; Decoration Upper Door4801 MFR # 2930639162
27. #Shelf, Door Use 2001732136 MFR # 2001732128 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
29. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
30. #APPLIANCE COMPONENTS RV; Shelf Door Rm3800 MFR # 2930535006

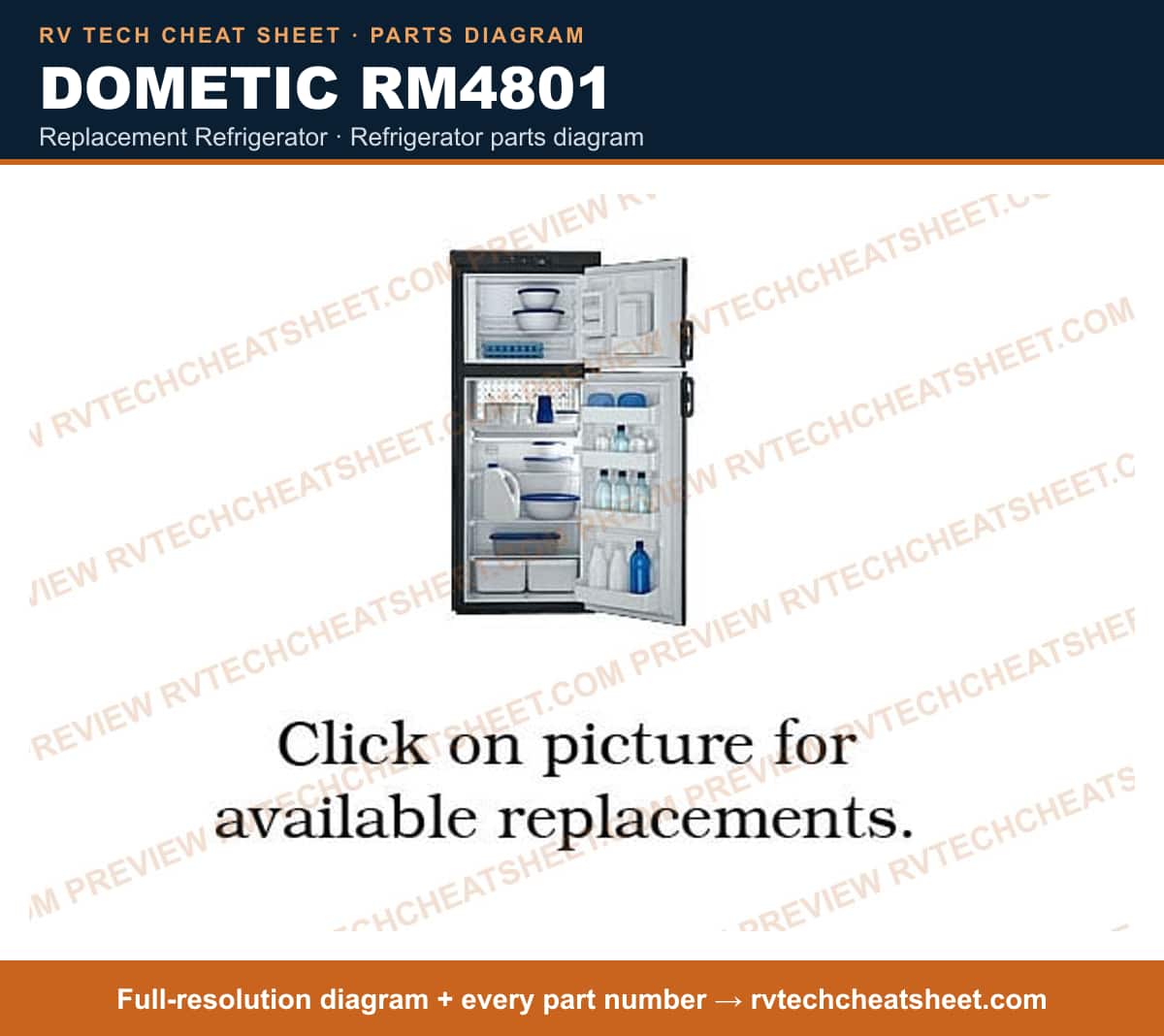

Replacement Refrigerator

Components

4 items

1. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
2. #Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description
3. #REFER USE RM3862N 63 3/4HX24 15/16X24 11/16 MFR # RM4801N Superseded: see description
4. #REFER,8 CU FT 2 WAY BLK FRM 59 15/16" X 23 11/16" MFR # RM2862B

Base Asm

Components

34 items

1. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
2. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
3. #DRIER, FILTER USE 948184007 MFR # 2006378026 Superseded: see description
4. #DRIER, FILTER USE 2053836033 MFR # 948184007 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Drier MFR # 2053836033
6. #APPLIANCE COMPONENTS RV; Plate Protection Rm4801 MFR # 2930860016
7. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
8. #COMPRESSOR USE 46-0022 MFR # 2930850025 Superseded: see description
9. #COMPRESSOR USE 2930850025 MFR # 2930850017 Superseded: see description
10. #Refrigerator Relay; Replacement For Dometic RM4801 Refrigerator MFR # 50087050006
11. #OVERLOAD, COMPRESSOR RM4801 MFR # 50116147005
12. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
13. #Valve, Water MFR # 2932148022
14. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122
15. #SOLENOID, WATER USE 2932148022 MFR # 2930902016 Superseded: see description
16. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
17. #Water Heater Access Door; Use With Dometic Refrigerator Model RM4801 MFR # 2930890013 Superseded: see description
18. #SWITCH, ICEMAKER MFR # 2930891011
19. #T-STAT, ICEMAKER 4801 MFR # 2930892035
20. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
21. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
22. #LEG, LH MFR # 2930857012
23. #LEG RH MFR # 2930856014
24. #BASE MFR # 2930855016
25. #APPLIANCE COMPONENTS RV; Condenser Icemaker 4801 MFR # 2930851015
26. #APPLIANCE COMPONENTS RV; Hose Solenoid Rm4801 & MFR # 2930843012
27. #BASE F/COND & COMP MFR # 2930849019
28. #MOTOR USE 2943588000 MFR # 2930852021 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
30. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
31. #KNOB, DRAIN F/ICEMAKER RM48 01 MFR # 2930904012
32. #NIPPLE, DRAIN F/ICEMAKER RM48 01 MFR # 2930903014
33. #CONNECTION USE 2930916024 MFR # 2930916016 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024

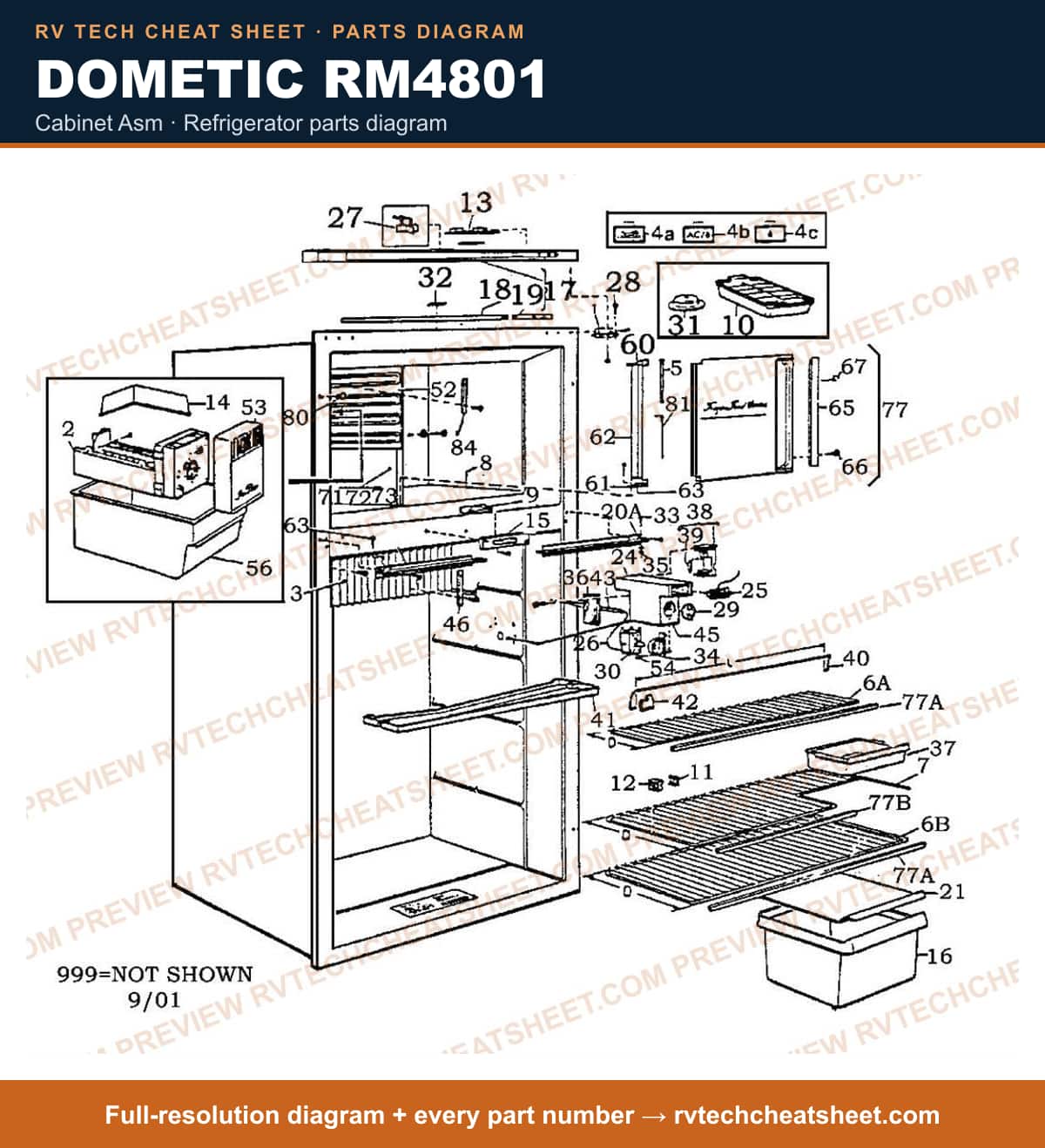

Cabinet Asm

Components

95 items

1. #ICEMAKER USE 3108701552 MFR # 2930889015 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
3. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
4. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
5. #Push Button Switch; On/ Off Switch; Middle; Panel Mount MFR # 2930980020
6. #APPLIANCE COMPONENTS RV; Pushbutton Lh MFR # 2930980012
7. #Refrigerator Control Knob; For Use With Dometic RM2602/ RM2603/ RM2802/ RM2803/ RM3501/ RM3601/ RM3801 And RM4801 Refrigerator Models; Push Button MFR # 2930980038 Superseded: see description
8. #SHAFT, DOOR MFR # 2930899014
9. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
10. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
11. #Shelf, Middle Use 2002652259 MFR # 2002652168 Superseded: see description
12. #Shelf, Upper Use 2002652267 MFR # 2002652176 Superseded: see description
13. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
14. #Shelf, Milk Use 2930133042 11-3/4" W X 19-7/8" Long RM1303 MFR # 2930133018 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
16. #PLATE, FREEZER MFR # 2930829011
17. #LATCH, TRAVEL USE 2930706052 MFR # 2930706045 Superseded: see description
18. #LATCH, TRAVEL USE 2930706052 MFR # 2930706029 Superseded: see description
19. #Refrigerator Door Latch; Travel Latch; Replacement For Dometic RM2802/ RM2803/ RM3800 Refrigerators MFR # 2930706052
20. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
21. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
22. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
23. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
24. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
26. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
27. #APPLIANCE COMPONENTS RV; Card Switch On Circ. Boar MFR # 87500350258
28. #COLLAR FOR ICEMAKER RM48 01 MFR # 2930881012
29. #HOUSING, CATCH GREY/BROWN MFR # 2930707050
30. #HOUSING, LATCH USE 2930707050 MFR # 2930707027 Superseded: see description
31. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
32. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
33. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
34. #DECORATION, FRONT MFR # 2930983016
35. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930989021
36. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2930987017
37. #Refrigerator Door Hinge; Replacement for Dometic RM3800/ RM4801/ RM3801 Refrigerators MFR # 2930708025
38. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
39. #COVER,CRISPER USE 2002727077 MFR # D7E2002727010 Superseded: see description
40. #COVER, LIGHT SWITCH MFR # 2004044109
41. #2004044091 MFR # 2004044091
42. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
43. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
44. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
45. #Lead T-Stat MFR # 2930735010
46. #APPLIANCE COMPONENTS RV; Key MFR # 2930982018
47. #Pin, Hinge Upper MFR # 2930612003
48. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
49. #KNOB, T-STAT USE 2930625039 MFR # 2930625021 Superseded: see description
50. #T-STAT MFR # 2007712033
51. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
52. #PLATE,MOUNTING UPPER RM48 01 MFR # 2930812009
53. #Refrigerator Door Hinge; Replacement For Dometic RM2803/ RM4801/ RM2601 Refrigerators; Fits Upper Door Side MFR # 2930613001
54. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
55. #Washer; Replacement For Dometic RM2301/ RM2600/ RM3600 Model Refrigerator MFR # 2930714015
56. #SHADE, LAMP MFR # 2004043002
57. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
58. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
59. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
60. #BULB 2/PK MFR # 2007290006
61. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
62. #Bar, L Approx 9" RM1300 MFR # 2007337070
63. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
64. #Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description
65. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
66. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
67. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
68. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
69. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
71. #INDEX MFR # 2001354022
72. #CLAMP 2800 MFR # 2002798003
73. #EVAPORATOR MFR # 2930865015
74. #APPLIANCE COMPONENTS RV; Cover Ice Tray Brown MFR # 2930874017
75. #PIN,RETAINING MFR # 2001281019
76. #DRAWER, ICE MFR # 2930880014
77. #HINGE, UPPER USE 2930867029 MFR # 2930867011 Superseded: see description
78. #HINGE, UPPER RM4804 MFR # 2930867029
79. #HINGE, LOWER RM4801 MFR # 2930868019
80. #COLUMN, FRONT F/LID MFR # 2930906017
81. #PIN, HINGE BOTTOM MFR # 2930877010
82. #APPLIANCE COMPONENTS RV; Handle Lid Rm4801 MFR # 2930872011
83. #SCREW F/LID MFR # 7296279115
84. #APPLIANCE COMPONENTS RV; Spring Lid Rm4801 MFR # 2930871013
85. #APPLIANCE COMPONENTS RV; Wall Middle Rh Rm4801 MFR # 2930862020
86. #APPLIANCE COMPONENTS RV; Wall Middle Lh MFR # 2930861014
87. #APPLIANCE COMPONENTS RV; Retainer Middle Wall MFR # 2930863010
88. #Appliance Components RV; Decoration Strip MFR # 2005111121
89. #Strip, Decor Use 2005111071 MFR # 2005111113 Superseded: see description
90. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
91. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
92. #Appliance Components RV; Strip Decoration MFR # 2055366013
93. #PLUG, FACE MFR # 2930740010
94. #SPRING MFR # 2930898016
95. #APPLIANCE COMPONENTS RV; Clamp T-Stat Captube MFR # 2930914011

Cooling Unit

Components

17 items

1. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
2. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
3. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
4. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
5. #REMAN COOLING UNIT (UPS) RM4801/4804<br/ MFR # 2934902095R
6. #APPLIANCE COMPONENTS RV; Cooling Unit<br/ MFR # 2934902095N
7. #LABEL, IMPORTANT MFR # 2007689009
8. #DECAL, WARNING 2807/4801 MFR # 2002577001
9. #LABEL, CAUTION RM48 01 MFR # 2930750001
10. #WIRING DIAGRAM MFR # 2930897000
11. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009
12. #DECAL RM38 04 MFR # 2007574029
13. #TRAY, EVAPORATION MFR # 2931134015
14. #TRAY, EVAP. MFR # 2930950015
15. #APPLIANCE COMPONENTS RV; Spillway MFR # 2930951013
16. #Refrigerator Drain Tube; Replacement For Dometic RM2801/ RM2802 Model Refrigerators MFR # 2930952011
17. #CLAMP 2800 ,3601,4801 MFR # 2930953019

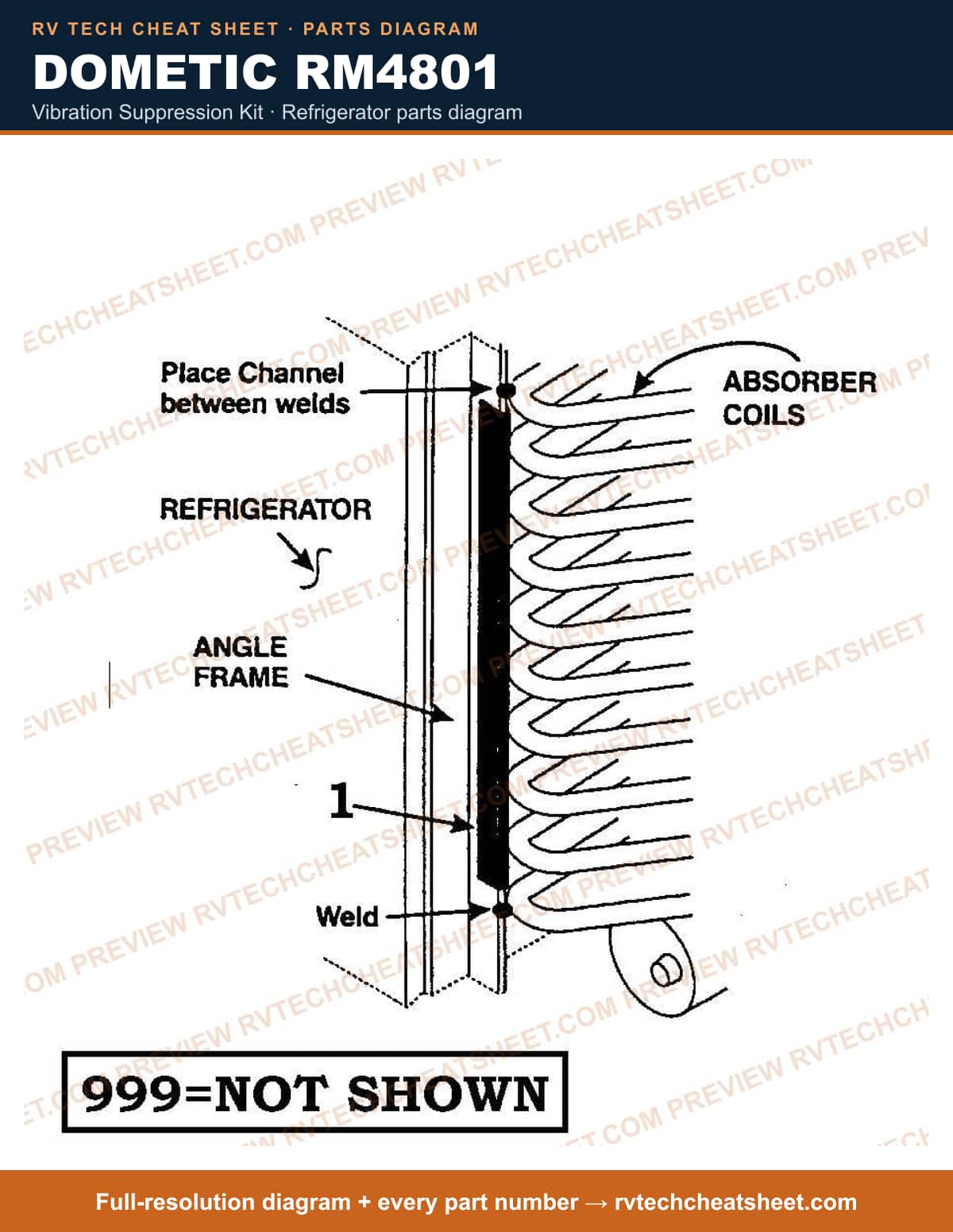

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515
