Dometic RM4804 2 Way Refrigerator Parts Diagram · Door Asm

Refrigerator · 10 assemblies · 10 diagram sheets · 243 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM4804 2 Way Refrigerator RV refrigerator: 10 assemblies (Door Asm, Cabinet, Cooling Unit, Cooling Unit RM4804002, Light Asm and more) and 243 manufacturer part numbers. 57 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

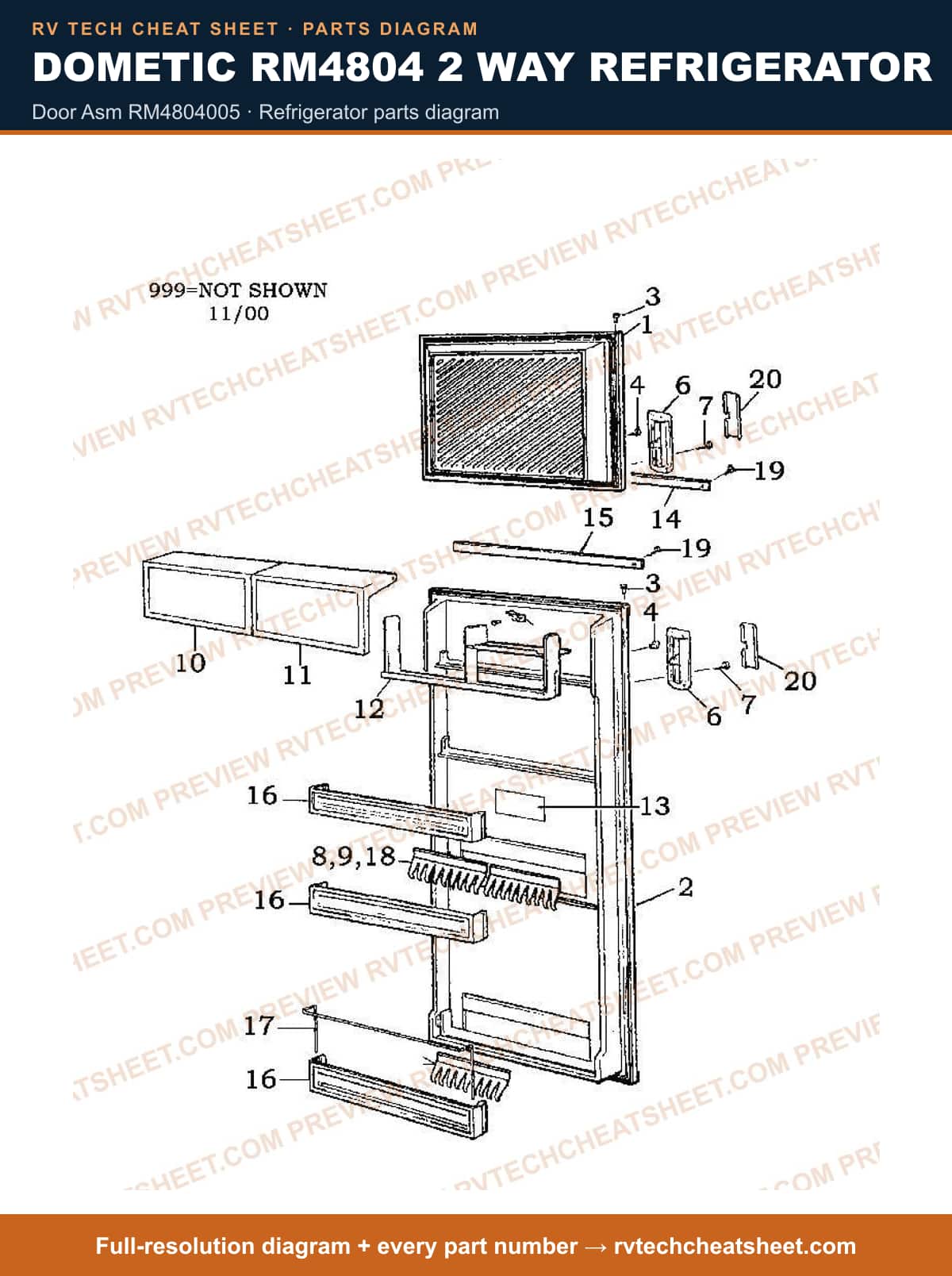

Door Asm

Components

27 items

1. #APPLIANCE COMPONENTS RV; Door Upper MFR # 2931642116
2. #DOOR, UPPER USE 2931642116 MFR # 2931183012 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Refer Lower Rm3804 MFR # 2931181115
4. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
5. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
6. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
8. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
9. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
10. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
11. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
12. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
13. #Door, Dairy; Use 2930540022 MFR # 2930541129 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930540022
15. #Door, Dairy RH Smoked; Specs: For RM3807 Product #'s 921602301, 921602401, 921602501, 921602601; Use Part# 2930540014 MFR # 2930540014 Superseded: see description
16. #Door, Dairy; Use 2930540014 MFR # 2930541103 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2930534017
18. #LABEL, INSTRUCTION MFR # 2002356000
19. #Strip, Decoration Upper; Use For RM3804 MFR # 2931163014 Superseded: see description
20. #STRIP, DECORATION MFR # 2943485009
21. #APPLIANCE COMPONENTS RV; Shelf Door Use 2001732136 MFR # 2001732144 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
23. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
24. #HOLDER, BOTTLE-BRN MFR # 2002794101
25. #Plate Cover MFR # 2931571018
26. #Handle Kit Door MFR # 3107766010
27. #Refrigerator Gasket; Replacement For Dometic RM2804/ RM2807/ RM2810/ RM3804 Refrigerators; Door Gasket; Brown MFR # 3108700018

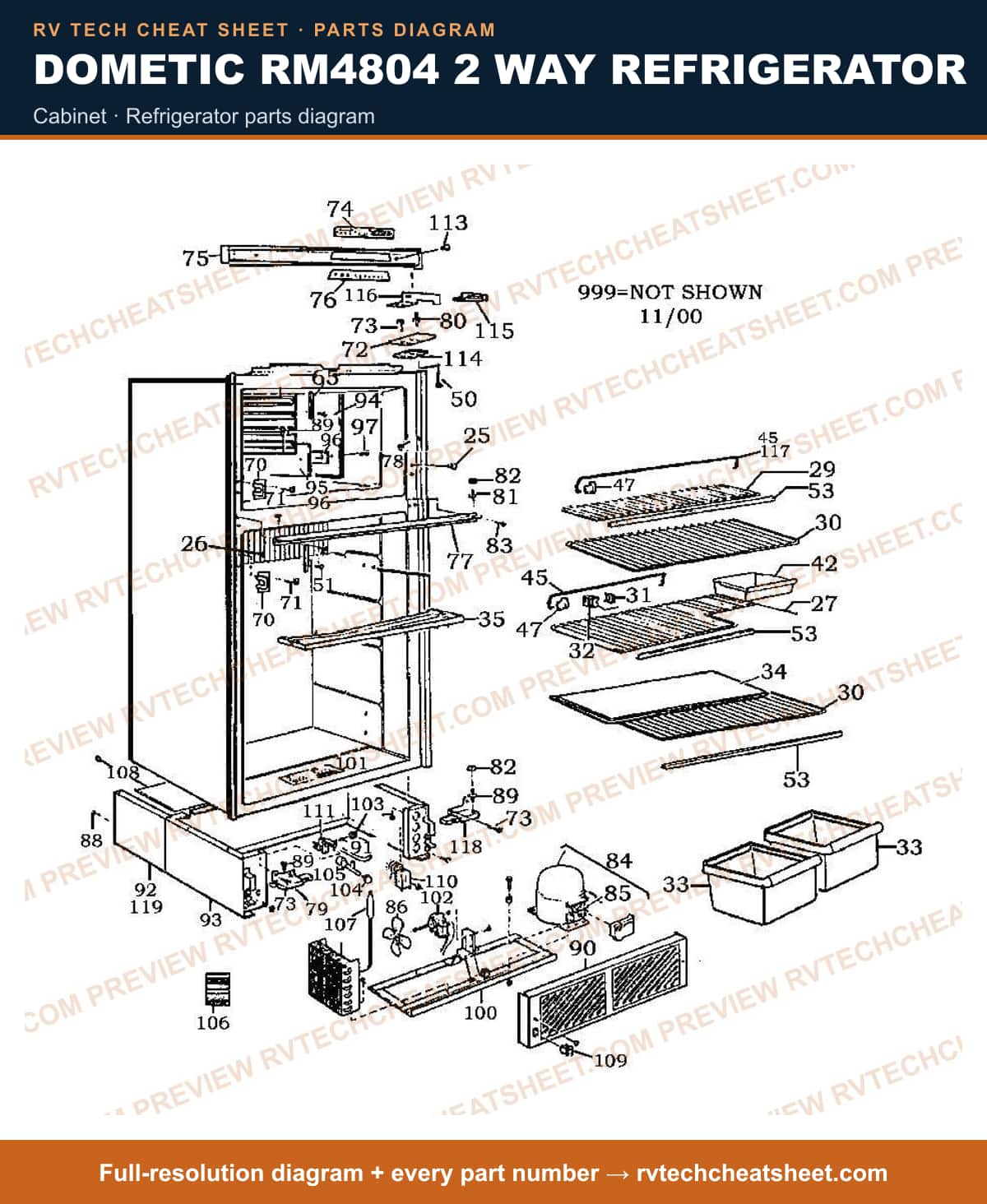

Cabinet

Components

83 items

1. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
2. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
4. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
6. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
7. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
8. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
9. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
10. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
11. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
12. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
13. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
14. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
15. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
16. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
17. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
18. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
19. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
20. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
21. #APPLIANCE COMPONENTS RV; Screw 6-20 X .50 Phcr MFR # 312096026
22. #SCREW USE 312096026 MFR # 2943699005 Superseded: see description
23. #CLAMP 2800 MFR # 2002798003
24. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
25. #Appliance Components RV; Strip Decoration MFR # 2055366013
26. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
27. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Clamp T-Stat Captube MFR # 2930914011
29. #S,STRIKE 9*35*24MM MFR # 2931511014
30. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
31. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
32. #S,HINGE,UPR,CLASSIC MFR # 2931291013
33. #SCREW, #10X1/2 HWH "D" POINT MFR # 2943711008
34. #APPLIANCE COMPONENTS RV; Board Circuit 2-Way; UPPER PC BOARD 2 WAY FOR REFER WITH T-STAT FOR LOWER BOARD USE# 2931308023 FOR REFER WITH A T-STAT FOR A REFER WITH A THERMISTER USE PART# 2931906016 MFR # 2931309021 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Cover Front Rm3804/2 MFR # 2931294017
36. #PANEL, CONTROL UPPER 2/W RM 3604,3804; FOR 3 WAY USE 2931295014 MFR # 2931295022 Superseded: see description
37. #HINGE, CENTER MFR # 2931290015
38. #SCREW #6-20X1 PHIL PAN/ MFR # 2943314001
39. #HINGE, LOWER LH RM26 04 MFR # 2931283010
40. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
41. #S,HINGE PIN,MID,25MM MFR # 2931287011
42. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
43. #SCREW MFR # 7243287617
44. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
45. #COMPRESSOR USE 46-0022 MFR # 2930850025 Superseded: see description
46. #RELAY ASM USE 955809009 DN1070 MFR # 3100499007 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
48. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
49. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
50. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
51. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
52. #PANEL,FRONT LOWER MFR # 2931300012
53. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
55. #LEG RH MFR # 2930856014
56. #Refrigerator Trim; Replacement For Dometic RM2410 Refrigerator; Left Hand Side MFR # 2931299016
57. #APPLIANCE COMPONENTS RV; Wall Middle Rh Rm4801 MFR # 2930862020
58. #WALL, LEFT MFR # 2930862012
59. #APPLIANCE COMPONENTS RV; Retainer Middle Wall MFR # 2930863010
60. #SCREW #10X3/4 FLT. HD. C.R. NICKEL PLT. MFR # 7296414118
61. #BASE F/COND & COMP MFR # 2930849019
62. #DECAL (2-WAY) MFR # 2931315002
63. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
64. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
65. #KNOB, DRAIN F/ICEMAKER RM48 01 MFR # 2930904012
66. #NIPPLE, DRAIN F/ICEMAKER RM48 01 MFR # 2930903014
67. #CONNECTION USE 2930916024 WATER FITTING MFR # 3100586019 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
69. #APPLIANCE COMPONENTS RV; Drier MFR # 2053836033
70. #CONDENSER,ICEMAKER MFR # 2930651015
71. #DRIER, FILTER USE 2053836033 MFR # 948184007 Superseded: see description
72. #PLATE,PROTECTION MFR # 2930866016
73. #SWITCH, ICEMAKER MFR # 2930891011
74. #T-STAT, ICEMAKER 4801 MFR # 2930892035
75. #VALVE,WATER USE 2932148022 MFR # 3100490006 Superseded: see description
76. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
77. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
78. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
79. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description
80. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description
81. #HINGE, LOWER RH MFR # 2931283028
82. #LEG, LH MFR # 2930857012
83. #EVAPORATOR MFR # 2930865015

Cooling Unit

Components

19 items

1. #REMAN COOLING UNIT (UPS) RM4801/4804<br/ MFR # 2934902095R
2. #APPLIANCE COMPONENTS RV; Cooling Unit<br/ MFR # 2934902095N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #DECAL RM3804 MFR # 2931503003
6. #DECAL RM38 04 MFR # 2007574029
7. #LABEL, IMPORTANT MFR # 2007689009
8. #LABEL, CAUTION RM48 01 MFR # 2930750001
9. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
10. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
11. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
12. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
13. #TRAY, EVAPORATION MFR # 2931134015
14. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #DECAL, WARNING 2807/4801 MFR # 2002577001
17. #HOSE, DRAIN MFR # 2931133017
18. #POWER CORD - ICE MAKER MFR # 2943842001
19. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003

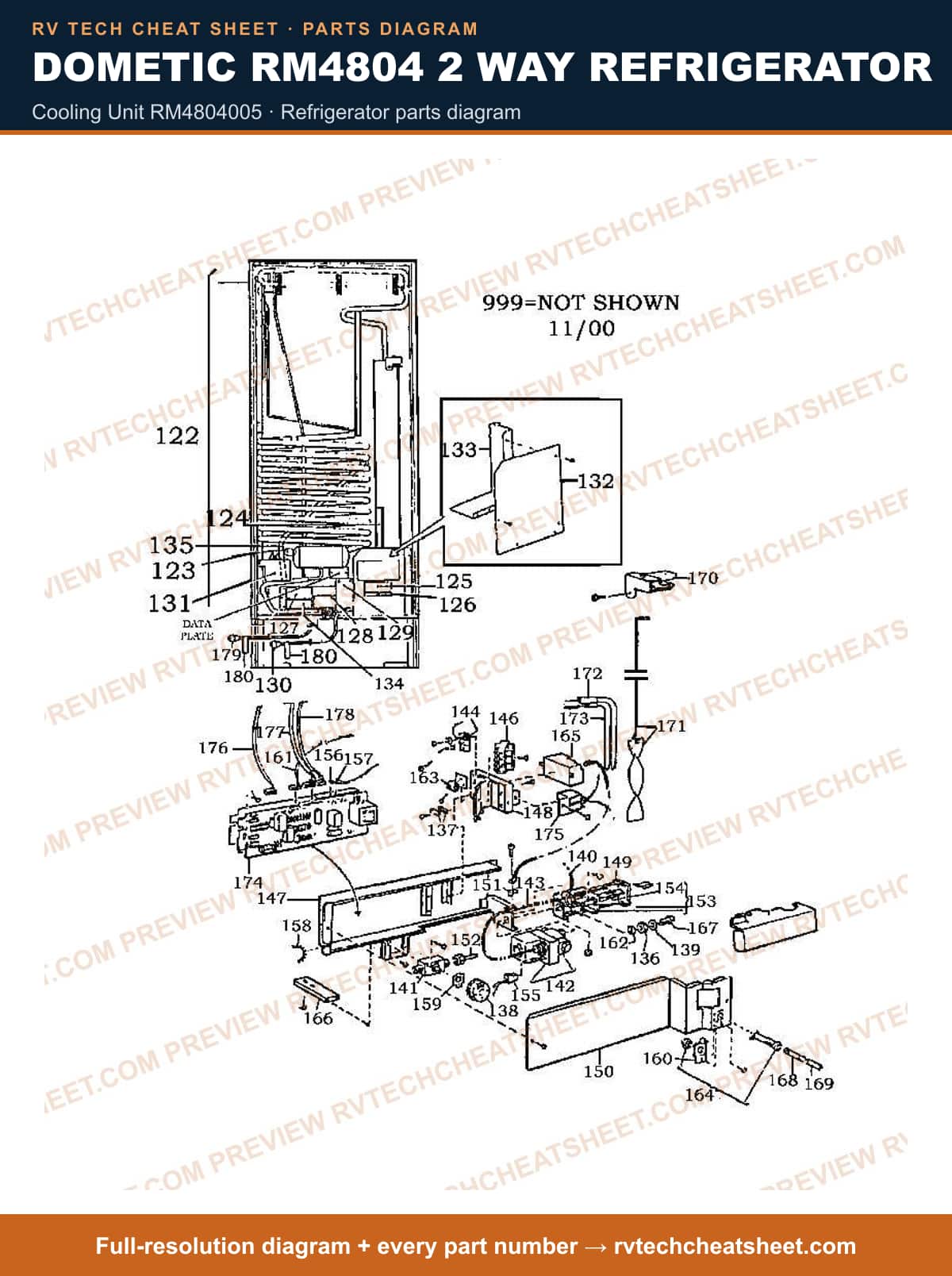

Cooling Unit RM4804002

Components

79 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit<br/ MFR # 2934902095N
2. #REMAN COOLING UNIT (UPS) RM4801/4804<br/ MFR # 2934902095R
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #DECAL RM3804 MFR # 2931503003
6. #DECAL RM38 04 MFR # 2007574029
7. #LABEL, IMPORTANT MFR # 2007689009
8. #LABEL, CAUTION RM48 01 MFR # 2930750001
9. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
10. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
11. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
12. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
13. #TRAY, EVAPORATION MFR # 2931134015
14. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #DECAL, WARNING 2807/4801 MFR # 2002577001
17. #HOSE, DRAIN MFR # 2931133017
18. #NUT, ORIFICE MFR # 146207044
19. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
20. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
21. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
22. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
23. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
25. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
26. #BOARD, MODULE MFR # 3106375015
27. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
28. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
29. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
31. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
32. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
33. #T-COUPLE USE 2931496026 MFR # 2931496034 Superseded: see description
34. #Thermocouple MFR # 2931496091MC
35. #THERMOCOUPLE (350MM) MFR # 2931496091
36. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
37. #STRIP, TERMINAL 6 POS. MFR # 2930327008
38. #BOX, COMPONENT MFR # 2930642042
39. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
40. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
41. #COVER MFR # 2930653015
42. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
43. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
44. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
45. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
46. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
47. #Wire, Lead (2 Wire) MFR # 2930728023
48. #Lead, One Wire RM4801 MFR # 2930729039
49. #LEAD, WIRE MFR # 2930729647
50. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
51. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
52. #RETAINER MFR # 2936737016
53. #Lead, 3 Way 6 Pin (Has 6 Wire) RM3801 MFR # 2930799024
54. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
55. #Block Terminal Small 3 Poi MFR # 7627202562
56. #HOLDER, FUSE MFR # 7628801230
57. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
58. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
59. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
60. #Retainer MFR # 2930661018
61. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
62. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
63. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
64. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
66. #S,CAP,FLUE MFR # 2007598010
67. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
68. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
69. #ELEMENT, HEATING 120V 325W MFR # CS000022
70. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator; 2 Way MFR # MICROP242
71. #Appliance Components RV; Board MFR # 2931308023
72. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
73. #RELAY MFR # 2930385066
74. #APPLIANCE COMPONENTS RV; Lead 7 Wire MFR # 2930990060
75. #LEAD,10 WIRE MFR # 2930782095
76. #LEAD, 4 WIRE MFR # 2930783028
77. #POWER CORD - ICE MAKER MFR # 2943842001
78. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
79. #PROTECTION MFR # 2930881020

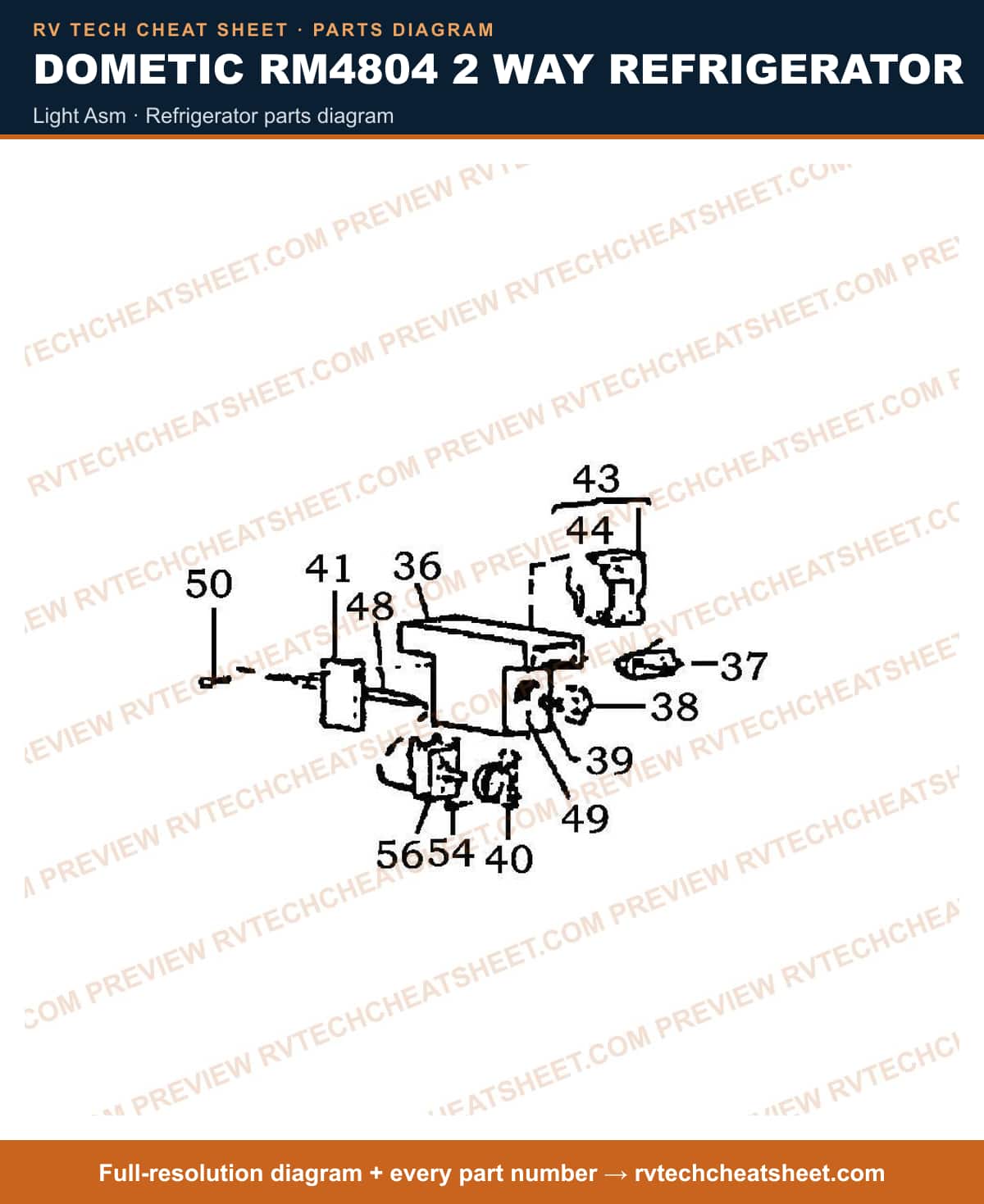

Light Asm

Components

18 items

1. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
2. #2004044091 MFR # 2004044091
3. #COVER, LIGHT SWITCH MFR # 2004044109
4. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
5. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
6. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
7. #CLIP, SPRING USE 2901183026 F/KNOB MFR # 163382005 Superseded: see description
8. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
9. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
10. #SHADE, LAMP MFR # 2004043002
11. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
12. #BULB 2/PK MFR # 2007290006
13. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
14. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
15. #INDEX,T-STAT MFR # 2001354030
16. #SCREW MFR # 7295283407
17. #PIN,RETAINING MFR # 2001281019
18. #T-STAT MFR # 2007712033

Cooling Unit RM4804005

Components

77 items

1. #REMAN COOLING UNIT (UPS) RM4801/4804<br/ MFR # 2934902095R
2. #APPLIANCE COMPONENTS RV; Cooling Unit<br/ MFR # 2934902095N
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #DECAL RM3804 MFR # 2931503003
6. #DECAL RM38 04 MFR # 2007574029
7. #LABEL, IMPORTANT MFR # 2007689009
8. #LABEL, CAUTION RM48 01 MFR # 2930750001
9. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
10. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
11. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
12. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
13. #TRAY, EVAPORATION MFR # 2931134015
14. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #DECAL, WARNING 2807/4801 MFR # 2002577001
17. #Hose, complete MFR # 2931579011
18. #NUT, ORIFICE MFR # 146207044
19. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
20. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
21. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
22. #APPLIANCE COMPONENTS RV; Wire Lead 2604 MFR # 2007668029
23. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
24. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
25. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
27. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
28. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
29. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
30. #BOARD, MODULE MFR # 3106375015
31. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
32. #THERMOCOUPLE (350MM) MFR # 2931496091
33. #Thermocouple MFR # 2931496091MC
34. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
35. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
36. #STRIP, TERMINAL 6 POS. MFR # 2930327008
37. #BOX, COMPONENT MFR # 2930642042
38. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
39. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
40. #COVER MFR # 2930653015
41. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
42. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
43. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
44. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
45. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
46. #Wire, Lead (2 Wire) MFR # 2930728023
47. #Lead, One Wire RM4801 MFR # 2930729039
48. #LEAD, WIRE MFR # 2930729647
49. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
50. #RETAINER MFR # 2936737016
51. #Lead, Wire 2 Way RM3604/3804 6 Pin 5 Lead MFR # 2930799040
52. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
53. #Block Terminal Small 3 Poi MFR # 7627202562
54. #HOLDER, FUSE MFR # 7628801230
55. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
56. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
57. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
58. #Retainer MFR # 2930661018
59. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
60. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
61. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
62. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
63. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
64. #CAP FLUE MFR # 2931540013
65. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
66. #ELEMENT, HEATING 120V 325W MFR # CS000022
67. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
68. #Appliance Components RV; Board MFR # 2931308023
69. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator; 2 Way MFR # MICROP242
70. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
71. #RELAY MFR # 2930385066
72. #APPLIANCE COMPONENTS RV; Lead 7 Wire MFR # 2930990060
73. #LEAD,10 WIRE MFR # 2930782095
74. #LEAD, 4 WIRE MFR # 2930783028
75. #POWER CORD - ICE MAKER MFR # 2943842001
76. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
77. #PROTECTION MFR # 2930881020

Door Asm RM4804005

Components

27 items

1. #DOOR, UPPER RM4804 MFR # 2931643114
2. #DOOR, LOWER RM3804 PLASTIC FRAME MFR # 2931641118
3. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
4. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2931199026
6. #HANDLE RM2804 USE 2931199026 MFR # 2931199018 Superseded: see description
7. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
8. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
9. #HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description
10. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
11. #HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930540048
13. #Door, Dairy RH Smoked; Specs: For RM3807 Product #'s 921602301, 921602401, 921602501, 921602601; Use Part# 2930540014 MFR # 2930540014 Superseded: see description
14. #DOOR, DAIRY USE 2930540022 MFR # 2930540063 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Cover Butter Rh MFR # 2930540022
16. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2930534017
17. #LABEL, INSTRUCTION MFR # 2002356000
18. #Strip, Decoration Upper; Use For RM3804 MFR # 2931163014 Superseded: see description
19. #STRIP, DECORATION MFR # 2931163055
20. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
21. #APPLIANCE COMPONENTS RV; Shelf Door Use 2001732136 MFR # 2001732144 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
23. #HOLDER, BOTTLE-BRN MFR # 2002794101
24. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
25. #Plate Cover MFR # 2931571018
26. #Handle Kit Door MFR # 3107766010
27. #BRACKET, FLAP RM 3 804 MFR # 2930594011

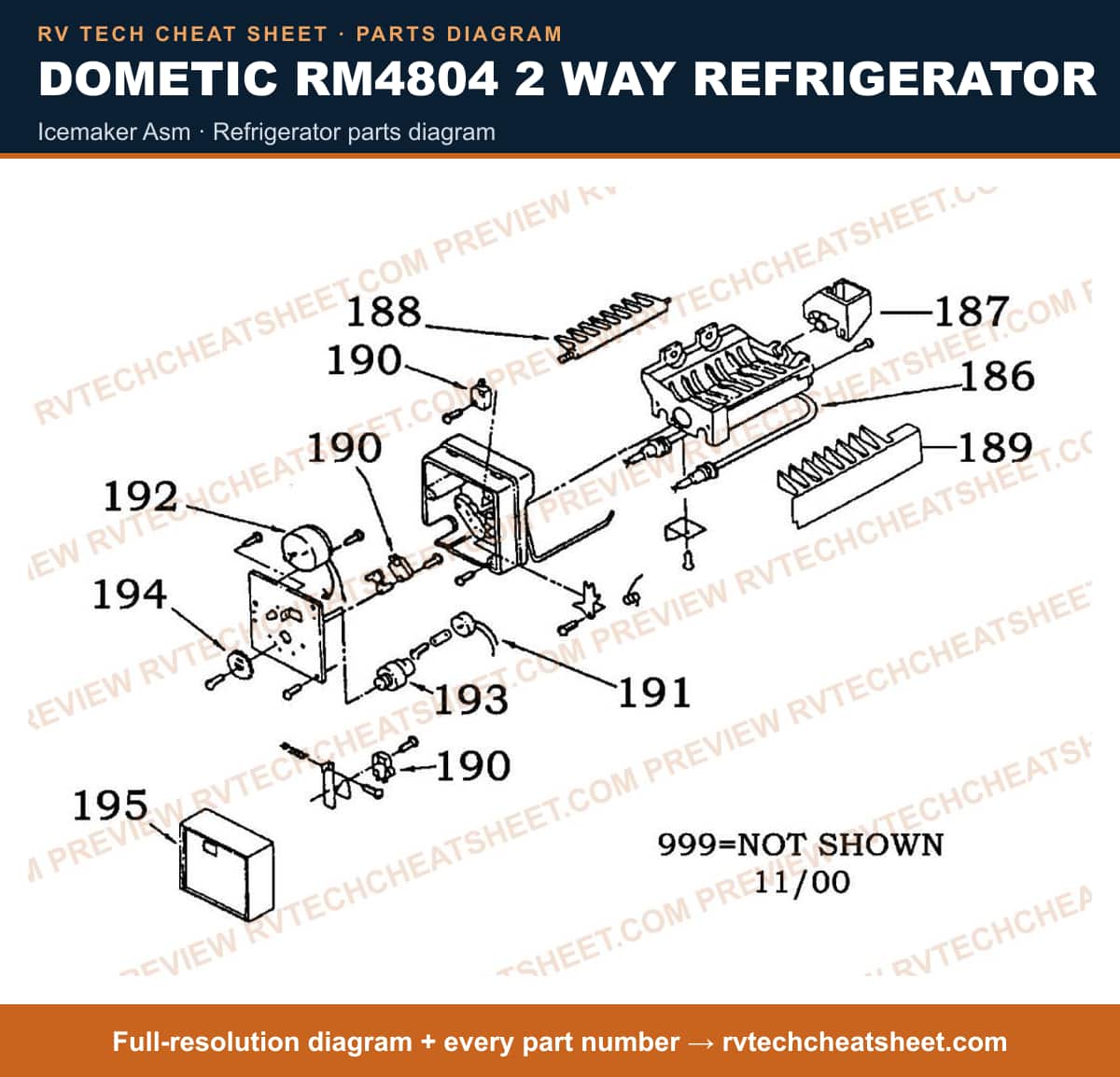

Icemaker Asm

Components

12 items

1. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
2. #CYCLE, ICEMAKER USE 3108701552 MFR # 3101979007 Superseded: see description
3. #BEARING AND INLET MFR # 3101286007
4. #APPLIANCE COMPONENTS RV; Ejector 627169 MFR # 3101287005
5. #STRIPPER, ICE MFR # 3101288003
6. #AXLE BRACKET EXT 2' MFR # 2506
7. #APPLIANCE COMPONENTS RV; Switch Micro Use 2506 MFR # 3102807009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; T-Stat MFR # 3101290009
9. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description

Replacement Refrigerator

Components

12 items

1. #REFER,8 CU FT BLK 59 15/16" X 23 11/16" X 24" MFR # RM2852B
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black; With Crispers/ Shelving And Door Bins MFR # N841IMR
3. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841IMR
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR
5. #REFRIGERATORS & ICE MAKERS RV; Refrigerator/Lp-Ac/Im-Ss MFR # N841IMSSR
6. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
7. #REFRIGERATORS & ICE MAKERS RV; Refrigerator/Lp-Ac/Blk MFR # N841BKR
8. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 9.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # N1095R
10. #REFRIGERATORS & ICE MAKERS RV; Refrigerator/Lp-Ac/Im-Bk MFR # N841IMBKR
11. #REFRIGERATORS & ICE MAKERS RV; Refrigerator/Lp-Ac/Ss MFR # N841SSR
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841IMSSR

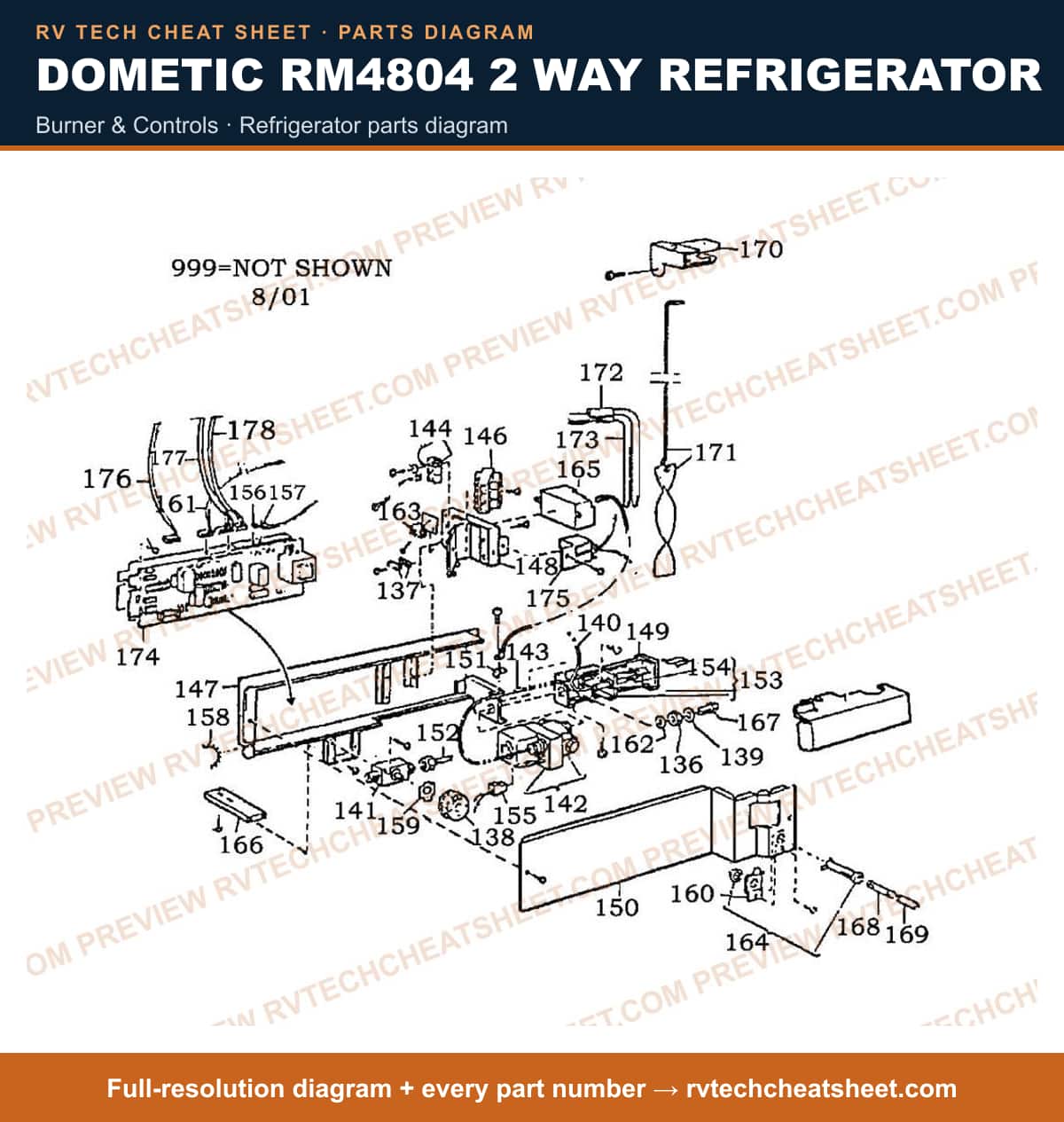

Burner & Controls

Components

59 items

1. #NUT, ORIFICE MFR # 146207044
2. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
3. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
4. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
5. #APPLIANCE COMPONENTS RV; Wire Lead 2604 MFR # 2007668029
6. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
7. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
8. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
9. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
10. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
11. #BOARD, MODULE MFR # 3106375015
12. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
13. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
14. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
15. #T-COUPLE USE 2931496026 MFR # 2931496034 Superseded: see description
16. #Thermocouple MFR # 2931496091MC
17. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
18. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
19. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
20. #THERMOCOUPLE (350MM) MFR # 2931496091
21. #STRIP, TERMINAL 6 POS. MFR # 2930327008
22. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
23. #BOX, COMPONENT MFR # 2930642042
24. #RETAINER MFR # 2930648015
25. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
26. #COVER MFR # 2930653015
27. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
28. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
29. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
30. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
31. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
32. #Wire, Lead (2 Wire) MFR # 2930728023
33. #Lead, One Wire RM4801 MFR # 2930729039
34. #LEAD, WIRE MFR # 2930729647
35. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
36. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
37. #RETAINER MFR # 2936737016
38. #Lead, 3 Way 6 Pin (Has 6 Wire) RM3801 MFR # 2930799024
39. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
40. #Block Terminal Small 3 Poi MFR # 7627202562
41. #HOLDER, FUSE MFR # 7628801230
42. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
43. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
44. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
45. #Retainer MFR # 2930661018
46. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
47. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
48. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
49. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
51. #S,CAP,FLUE MFR # 2007598010
52. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
53. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
54. #ELEMENT, HEATING 120V 325W MFR # CS000022
55. #Appliance Components RV; Board MFR # 2931308023
56. #RELAY MFR # 2930385066
57. #APPLIANCE COMPONENTS RV; Lead 7 Wire MFR # 2930990060
58. #LEAD,10 WIRE MFR # 2930782095
59. #LEAD, 4 WIRE MFR # 2930783028
