Dometic RM4804 3 Way Refrigerator Parts Diagram · Cooling Unit PR# 926890301

Refrigerator · 10 assemblies · 10 diagram sheets · 230 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM4804 3 Way Refrigerator RV refrigerator: 10 assemblies (Cooling Unit PR# 926890301, Cooling Unit PR# 926890401, Upper Inner Door Asm, Icemaker Asm, Replacement Refrigerator and more) and 230 manufacturer part numbers. 56 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cooling Unit PR# 926890301

Components

83 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit<br/ MFR # 2934902095N
2. #REMAN COOLING UNIT (UPS) RM4801/4804<br/ MFR # 2934902095R
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #DECAL RM3804 MFR # 2931503003
6. #DECAL RM38 04 MFR # 2007574029
7. #LABEL, IMPORTANT MFR # 2007689009
8. #LABEL, CAUTION RM48 01 MFR # 2930750001
9. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
10. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
11. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
12. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
13. #TRAY, EVAPORATION MFR # 2931134015
14. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #DECAL, WARNING 2807/4801 MFR # 2002577001
17. #HOSE, DRAIN MFR # 2931133017
18. #NUT, ORIFICE MFR # 146207044
19. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
20. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
21. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
22. #APPLIANCE COMPONENTS RV; Wire Lead 2604 MFR # 2007668029
23. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
25. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
26. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
28. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
29. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
30. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
31. #BOARD, MODULE MFR # 3106375015
32. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
33. #THERMOCOUPLE (350MM) MFR # 2931496091
34. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
35. #T-COUPLE USE 2931496026 MFR # 2931496034 Superseded: see description
36. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
37. #Thermocouple MFR # 2931496091MC
38. #STRIP, TERMINAL 6 POS. MFR # 2930327008
39. #BOX, COMPONENT MFR # 2930642042
40. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
41. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
42. #COVER MFR # 2930653015
43. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
44. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
45. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
46. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
47. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
48. #Wire, Lead (2 Wire) MFR # 2930728023
49. #Lead, One Wire RM4801 MFR # 2930729039
50. #LEAD, WIRE MFR # 2930729647
51. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
52. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
53. #RETAINER MFR # 2936737016
54. #Lead, 3 Way 6 Pin (Has 6 Wire) RM3801 MFR # 2930799024
55. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
56. #Block Terminal Small 3 Poi MFR # 7627202562
57. #HOLDER, FUSE MFR # 7628801230
58. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
59. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
60. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
61. #Retainer MFR # 2930661018
62. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
63. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
64. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
65. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
67. #S,CAP,FLUE MFR # 2007598010
68. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
69. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
70. #ELEMENT, HEATING 120V 325W MFR # CS000022
71. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM3600/ RM3800; 12 Volt; 215 Watts MFR # 173757022MC Superseded: see description
72. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
73. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
74. #ELEMENT, HEATING **ALT 72-8720 215W 12V; 17.9 Amps 3/8" DIA 4 1/4" LONG; Is a use # for 173757022D MFR # 173757022 Superseded: see description
75. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
76. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerators; 3 Way MFR # MICROP243
77. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
78. #RELAY MFR # 2930385066
79. #APPLIANCE COMPONENTS RV; Lead 7 Wire MFR # 2930990060
80. #LEAD,10 WIRE MFR # 2930782095
81. #LEAD, 4 WIRE MFR # 2930783028
82. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
83. #PROTECTION MFR # 2930881020

Cooling Unit PR# 926890401

Components

85 items

1. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
2. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
4. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
6. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
7. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
8. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
9. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
10. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
11. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
12. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
13. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
14. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
15. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
16. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
17. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
19. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
20. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
21. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
22. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
23. #APPLIANCE COMPONENTS RV; Screw 6-20 X .50 Phcr MFR # 312096026
24. #SCREW USE 312096026 MFR # 2943699005 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
26. #CLAMP 2800 MFR # 2002798003
27. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
28. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
29. #Appliance Components RV; Strip Decoration MFR # 2055366013
30. #APPLIANCE COMPONENTS RV; Clamp T-Stat Captube MFR # 2930914011
31. #S,STRIKE 9*35*24MM MFR # 2931511014
32. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
33. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
34. #S,HINGE,UPR,CLASSIC MFR # 2931291013
35. #SCREW, #10X1/2 HWH "D" POINT MFR # 2943711008
36. #BOARD, CIRCUIT UPPER 3/W MFR # 2931309013
37. #APPLIANCE COMPONENTS RV; Cover Front Rm3804/2 MFR # 2931294017
38. #APPLIANCE COMPONENTS RV; Panel Operating 3/W Upper; FOR 2 WAY USE 2931295022 MFR # 2931295014 Superseded: see description
39. #HINGE, CENTER MFR # 2931290015
40. #SCREW #6-20X1 PHIL PAN/ MFR # 2943314001
41. #HINGE, LOWER LH RM26 04 MFR # 2931283010
42. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
43. #S,HINGE PIN,MID,25MM MFR # 2931287011
44. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
45. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
46. #COMPRESSOR USE 46-0022 MFR # 2930850025 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
48. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
49. #RELAY ASM USE 955809009 DN1070 MFR # 3100499007 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
51. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
52. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
53. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
54. #PANEL,FRONT LOWER MFR # 2931300012
55. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
57. #LEG RH MFR # 2930856014
58. #Refrigerator Trim; Replacement For Dometic RM2410 Refrigerator; Left Hand Side MFR # 2931299016
59. #APPLIANCE COMPONENTS RV; Wall Middle Rh Rm4801 MFR # 2930862020
60. #APPLIANCE COMPONENTS RV; Wall Middle Lh MFR # 2930861014
61. #APPLIANCE COMPONENTS RV; Retainer Middle Wall MFR # 2930863010
62. #SCREW #10X3/4 FLT. HD. C.R. NICKEL PLT. MFR # 7296414118
63. #BASE F/COND & COMP MFR # 2930849019
64. #DECAL, 3-WAY MFR # 2931316000
65. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
66. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
67. #KNOB, DRAIN F/ICEMAKER RM48 01 MFR # 2930904012
68. #NIPPLE, DRAIN F/ICEMAKER RM48 01 MFR # 2930903014
69. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
70. #CONNECTION USE 2930916024 WATER FITTING MFR # 3100586019 Superseded: see description
71. #APPLIANCE COMPONENTS RV; Drier MFR # 2053836033
72. #DRIER, FILTER USE 2053836033 MFR # 948184007 Superseded: see description
73. #CONDENSER,ICEMAKER MFR # 2930651015
74. #PLATE,PROTECTION MFR # 2930866016
75. #SWITCH, ICEMAKER MFR # 2930891011
76. #T-STAT, ICEMAKER 4801 MFR # 2930892035
77. #VALVE,WATER USE 2932148022 MFR # 3100490006 Superseded: see description
78. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
79. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
80. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
81. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description
82. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description
83. #HINGE, LOWER RH MFR # 2931283028
84. #LEG, LH MFR # 2930857012
85. #EVAPORATOR MFR # 2930865015

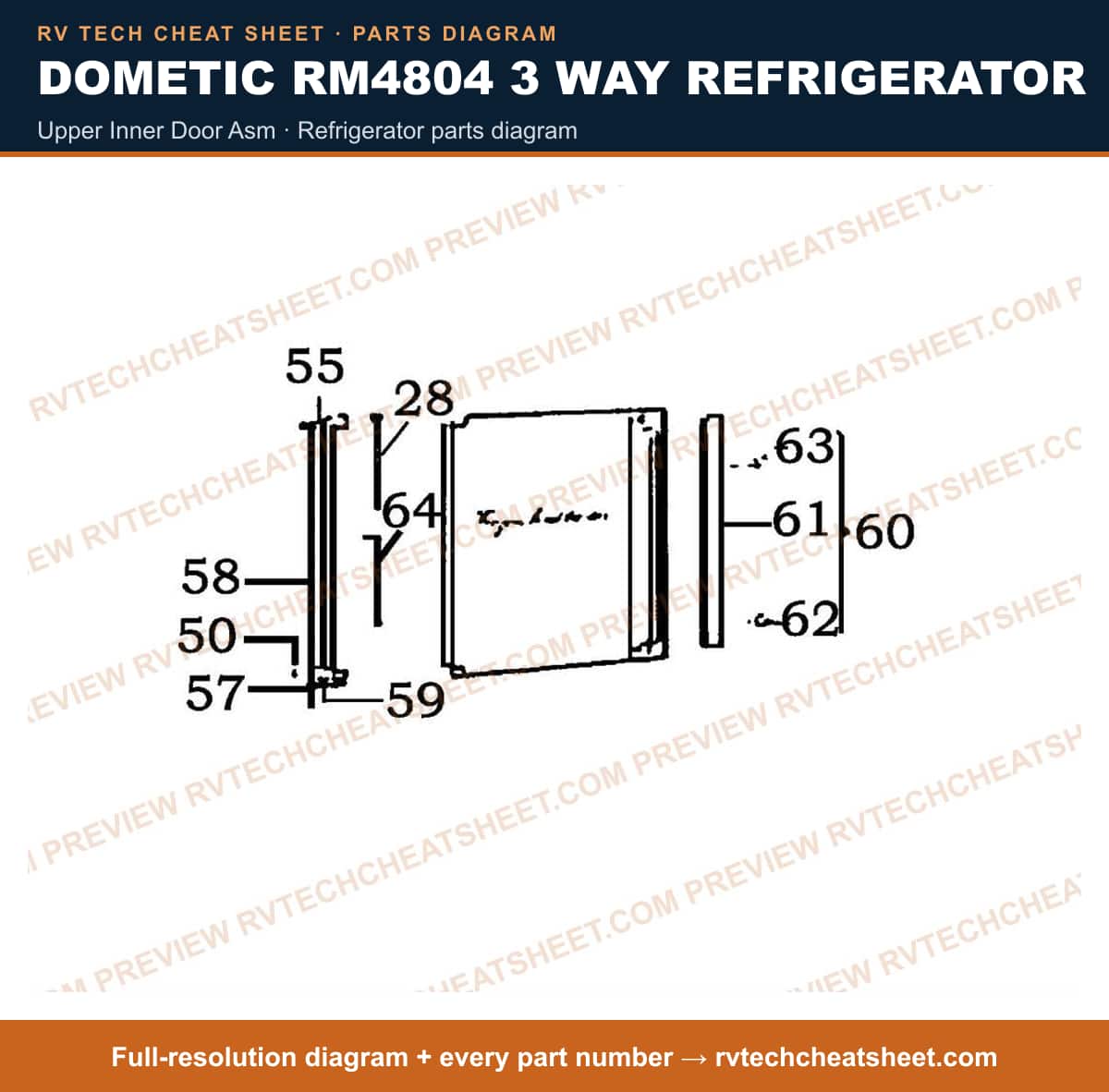

Upper Inner Door Asm

Components

11 items

1. #SHAFT, DOOR MFR # 2930899014
2. #SCREW MFR # 7295283407
3. #HINGE, UPPER RM4804 MFR # 2930867029
4. #HINGE, LOWER RM4804 MFR # 2930868027
5. #SUPPORT, FREEZER MFR # 2930906025
6. #PIN, HINGE BOTTOM MFR # 2930877010
7. #APPLIANCE COMPONENTS RV; Door Freezer RM4804 MFR # 2930873027
8. #APPLIANCE COMPONENTS RV; Handle Lid Rm4801 MFR # 2930872011
9. #SCREW F/LID MFR # 7296279115
10. #APPLIANCE COMPONENTS RV; Spring Lid Rm4801 MFR # 2930871013
11. #SPRING MFR # 2930898016

Icemaker Asm

Components

12 items

1. #CYCLE, ICEMAKER USE 3108701552 MFR # 3101979007 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
3. #BEARING AND INLET MFR # 3101286007
4. #APPLIANCE COMPONENTS RV; Ejector 627169 MFR # 3101287005
5. #STRIPPER, ICE MFR # 3101288003
6. #AXLE BRACKET EXT 2' MFR # 2506
7. #APPLIANCE COMPONENTS RV; Switch Micro Use 2506 MFR # 3102807009 Superseded: see description
8. #APPLIANCE COMPONENTS RV; T-Stat MFR # 3101290009
9. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description

Replacement Refrigerator

Components

6 items

1. #Refrigerator / Freezer;;2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413R
2. #REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
3. #REFRIGERATORS & ICE MAKERS RV; Refrigerator-LP/AC-DC/SS MFR # N8413SSR
4. #REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
5. #REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH
6. #REFRIGERATORS & ICE MAKERS RV; Refrigerator-LP/AC-DC/BLK MFR # N8413BKR

Cabinet Product # 926890301

Components

85 items

1. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
2. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
5. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
7. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
8. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
9. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
10. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
11. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
12. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
13. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
14. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
15. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
16. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
17. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
18. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
19. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
20. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
21. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
22. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
23. #SCREW USE 312096026 MFR # 2943699005 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Screw 6-20 X .50 Phcr MFR # 312096026
25. #CLAMP 2800 MFR # 2002798003
26. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
27. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
28. #Appliance Components RV; Strip Decoration MFR # 2055366013
29. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Clamp T-Stat Captube MFR # 2930914011
31. #S,STRIKE 9*35*24MM MFR # 2931511014
32. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
33. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
34. #S,HINGE,UPR,CLASSIC MFR # 2931291013
35. #SCREW, #10X1/2 HWH "D" POINT MFR # 2943711008
36. #BOARD, CIRCUIT UPPER 3/W MFR # 2931309013
37. #APPLIANCE COMPONENTS RV; Cover Front Rm3804/2 MFR # 2931294017
38. #APPLIANCE COMPONENTS RV; Panel Operating 3/W Upper; FOR 2 WAY USE 2931295022 MFR # 2931295014 Superseded: see description
39. #HINGE, CENTER MFR # 2931290015
40. #SCREW #6-20X1 PHIL PAN/ MFR # 2943314001
41. #HINGE, LOWER LH RM26 04 MFR # 2931283010
42. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
43. #S,HINGE PIN,MID,25MM MFR # 2931287011
44. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
45. #SCREW MFR # 7243287617
46. #COMPRESSOR USE 46-0022 MFR # 2930850025 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
48. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
49. #RELAY ASM USE 955809009 DN1070 MFR # 3100499007 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
51. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
52. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
53. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
54. #PANEL,FRONT LOWER MFR # 2931300012
55. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
57. #LEG RH MFR # 2930856014
58. #Refrigerator Trim; Replacement For Dometic RM2410 Refrigerator; Left Hand Side MFR # 2931299016
59. #APPLIANCE COMPONENTS RV; Wall Middle Rh Rm4801 MFR # 2930862020
60. #APPLIANCE COMPONENTS RV; Wall Middle Lh MFR # 2930861014
61. #APPLIANCE COMPONENTS RV; Retainer Middle Wall MFR # 2930863010
62. #SCREW #10X3/4 FLT. HD. C.R. NICKEL PLT. MFR # 7296414118
63. #BASE F/COND & COMP MFR # 2930849019
64. #DECAL, 3-WAY MFR # 2931316000
65. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
66. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
67. #KNOB, DRAIN F/ICEMAKER RM48 01 MFR # 2930904012
68. #NIPPLE, DRAIN F/ICEMAKER RM48 01 MFR # 2930903014
69. #CONNECTION USE 2930916024 WATER FITTING MFR # 3100586019 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
71. #DRIER, FILTER USE 2053836033 MFR # 948184007 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Drier MFR # 2053836033
73. #CONDENSER,ICEMAKER MFR # 2930651015
74. #PLATE,PROTECTION MFR # 2930866016
75. #SWITCH, ICEMAKER MFR # 2930891011
76. #T-STAT, ICEMAKER 4801 MFR # 2930892035
77. #VALVE,WATER USE 2932148022 MFR # 3100490006 Superseded: see description
78. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
79. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
80. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
81. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description
82. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description
83. #HINGE, LOWER RH MFR # 2931283028
84. #LEG, LH MFR # 2930857012
85. #EVAPORATOR MFR # 2930865015

Gas-electric

Components

84 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit<br/ MFR # 2934902095N
2. #REMAN COOLING UNIT (UPS) RM4801/4804<br/ MFR # 2934902095R
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #DECAL MFR # 2931503011
6. #DECAL RM38 04 MFR # 2007574029
7. #LABEL, IMPORTANT MFR # 2007689009
8. #LABEL, CAUTION RM48 01 MFR # 2930750001
9. #APPLIANCE COMPONENTS RV; Protect Splash MFR # 2930810011
10. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
11. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
12. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
13. #TRAY, EVAPORATION MFR # 2931134015
14. #APPLIANCE COMPONENTS RV; Plate Protection 3800/36 MFR # 2930786013
15. #Refrigerator Vent Cover Back Plate; Use With Dometic RM2807/ RM2812/ RM4804 Refrigerators MFR # 2930784018 Superseded: see description
16. #DECAL, WARNING 2807/4801 MFR # 2002577001
17. #HOSE, DRAIN MFR # 2931133017
18. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
19. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
20. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
21. #APPLIANCE COMPONENTS RV; Wire Lead 2604 MFR # 2007668029
22. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
23. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
24. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
26. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
27. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
28. #BOARD, MODULE MFR # 3106375015
29. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
30. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Valve Kit Gas MFR # 3108705280
32. #Thermocouple MFR # 2931496091MC
33. #THERMOCOUPLE (350MM) MFR # 2931496091
34. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
35. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
36. #T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description
37. #STRIP, TERMINAL 6 POS. MFR # 2930327008
38. #Refrigerator Insulation; Use With Dometic RM3804/4804/2802 Series Refrigerators MFR # 2931052019 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
40. #BOX, COMPONENT MFR # 2930642042
41. #RETAINER MFR # 2930648015
42. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
43. #COVER MFR # 2930653015
44. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
45. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2930685017
46. #APPLIANCE COMPONENTS RV; Burner W/Electrode MFR # 2930697020
47. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
48. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
49. #Wire, Lead (2 Wire) MFR # 2930728023
50. #WIRE, LEAD USE 2930728023 MFR # 2930728031 Superseded: see description
51. #Lead, One Wire RM4801 MFR # 2930729039
52. #Appliance Components RV; Lead Wire (1 Wire) MFR # 2930729047
53. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
54. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
55. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
56. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
57. #Block Terminal Small 3 Poi MFR # 7627202562
58. #HOLDER, FUSE MFR # 7628801230
59. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
60. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
61. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
62. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
63. #Retainer MFR # 2930661018
64. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
65. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
66. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
67. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
68. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
69. #S,CAP,FLUE MFR # 2007598010
70. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RM2811/ RM2812/ RM3807/ RM2801/ RM3801/ RM4804/ RM3607 Series Refrigerators MFR # 2007590066
71. #APPLIANCE COMPONENTS RV; Element Heating Use 48-9 MFR # 173742081 Superseded: see description
72. #ELEMENT, HEATING 120V 325W MFR # CS000022
73. #ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description
74. #ELEMENT, HEATING **ALT 72-8720 215W 12V; 17.9 Amps 3/8" DIA 4 1/4" LONG; Is a use # for 173757022D MFR # 173757022 Superseded: see description
75. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM3600/ RM3800; 12 Volt; 215 Watts MFR # 173757022MC Superseded: see description
76. #ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748
77. #BOARD, MODULE 3W USE 3108705272 MFR # 2931308015 Superseded: see description
78. #Appliance Components RV; Board MFR # 2931308023
79. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
80. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
81. #APPLIANCE COMPONENTS RV; Lead 7 Wire MFR # 2930990060
82. #LEAD,10 WIRE MFR # 2930782095
83. #LEAD, 4 WIRE MFR # 2930783028
84. #POWER CORD - ICE MAKER MFR # 2943842001

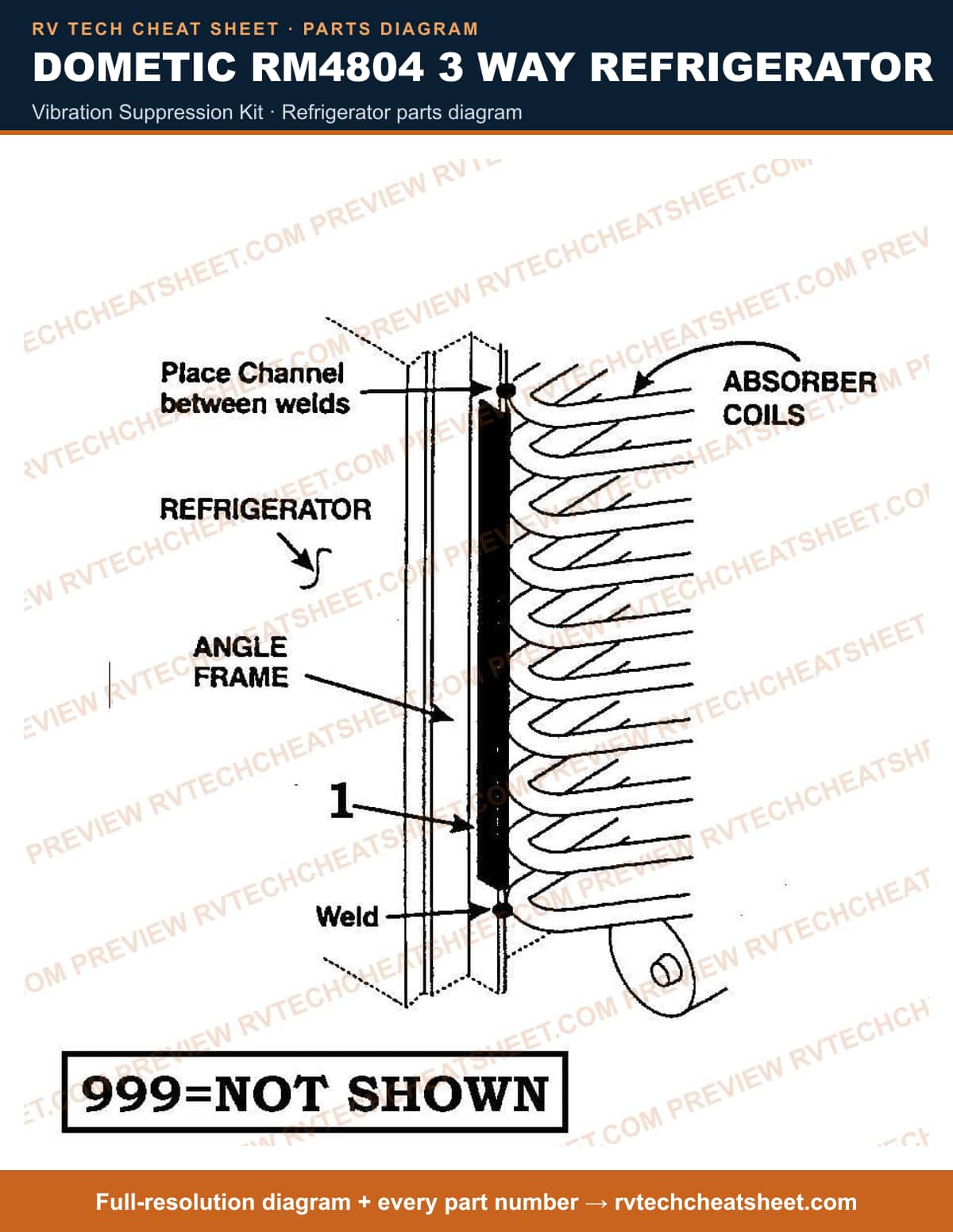

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

Cabinet Product # 926890401

Components

80 items

1. #Refrigerator Door Handle Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2604/ RM2607/ RM2811/ RM3604/ RM3804/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006 Model Refrigerator MFR # 2931510032
2. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
3. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
5. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
6. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
7. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
8. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
9. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
10. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
11. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
12. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
13. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
14. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
15. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
16. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
17. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
18. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
19. #SCREW USE 312096026 MFR # 2943699005 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Screw 6-20 X .50 Phcr MFR # 312096026
21. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
22. #CLAMP 2800 MFR # 2002798003
23. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
24. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
25. #Appliance Components RV; Strip Decoration MFR # 2055366013
26. #APPLIANCE COMPONENTS RV; Clamp T-Stat Captube MFR # 2930914011
27. #S,STRIKE 9*35*24MM MFR # 2931511014
28. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
29. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
30. #S,HINGE,UPR,CLASSIC MFR # 2931291013
31. #SCREW, #10X1/2 HWH "D" POINT MFR # 2943711008
32. #BOARD, CIRCUIT UPPER 3/W MFR # 2931309013
33. #APPLIANCE COMPONENTS RV; Cover Front Rm3804/2 MFR # 2931294017
34. #APPLIANCE COMPONENTS RV; Panel Operating 3/W Upper; FOR 2 WAY USE 2931295022 MFR # 2931295014 Superseded: see description
35. #HINGE, CENTER MFR # 2931290015
36. #SCREW #6-20X1 PHIL PAN/ MFR # 2943314001
37. #HINGE, LOWER LH RM26 04 MFR # 2931283010
38. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
39. #S,HINGE PIN,MID,25MM MFR # 2931287011
40. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
41. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2410/ RM2604/ RM2612/ RM2620/ RM2804/ RM2807/ RM2820/ RM3604/ RM3607/ RM3804/ RM4804005/ RM4804006 Model Refrigerator; M4 x 12; Zinc Plated MFR # 7243291619
42. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
43. #RELAY ASM USE 955809009 DN1070 MFR # 3100499007 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
45. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
46. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
47. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
48. #S,HINGE PIN,LWR,RM2604,24-2810 MFR # 2931286013
49. #PANEL,FRONT LOWER MFR # 2931300012
50. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
52. #LEG RH MFR # 2930856014
53. #Refrigerator Trim; Replacement For Dometic RM2410 Refrigerator; Left Hand Side MFR # 2931299016
54. #APPLIANCE COMPONENTS RV; Wall Middle Rh Rm4801 MFR # 2930862020
55. #APPLIANCE COMPONENTS RV; Wall Middle Lh MFR # 2930861014
56. #APPLIANCE COMPONENTS RV; Retainer Middle Wall MFR # 2930863010
57. #SCREW #10X3/4 FLT. HD. C.R. NICKEL PLT. MFR # 7296414118
58. #BASE F/COND & COMP MFR # 2930849019
59. #DECAL, 3-WAY MFR # 2931316000
60. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
61. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
62. #KNOB, DRAIN F/ICEMAKER RM48 01 MFR # 2930904012
63. #NIPPLE, DRAIN F/ICEMAKER RM48 01 MFR # 2930903014
64. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
65. #CONNECTION USE 2930916024 WATER FITTING MFR # 3100586019 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Drier MFR # 2053836033
67. #DRIER, FILTER USE 2053836033 MFR # 948184007 Superseded: see description
68. #CONDENSER,ICEMAKER MFR # 2930651015
69. #PLATE,PROTECTION MFR # 2930866016
70. #SWITCH, ICEMAKER MFR # 2930891011
71. #T-STAT, ICEMAKER 4801 MFR # 2930892035
72. #VALVE,WATER USE 2932148022 MFR # 3100490006 Superseded: see description
73. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
74. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
75. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
76. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerator; Fits Right Hand Top; FOR LEFT MOUNTING PLATE USE 2931297028 MFR # 2931297010 Superseded: see description
77. #Refrigerator Door Hinge Plate; Replacement For Dometic RM2410/ RM2610/ RM2810 Model Refrigerators; Fits Left Hand Top; FOR RIGHT MOUNTING PLATE, USE PART NUMBER 2931297010 MFR # 2931297028 Superseded: see description
78. #HINGE, LOWER RH MFR # 2931283028
79. #LEG, LH MFR # 2930857012
80. #EVAPORATOR MFR # 2930865015

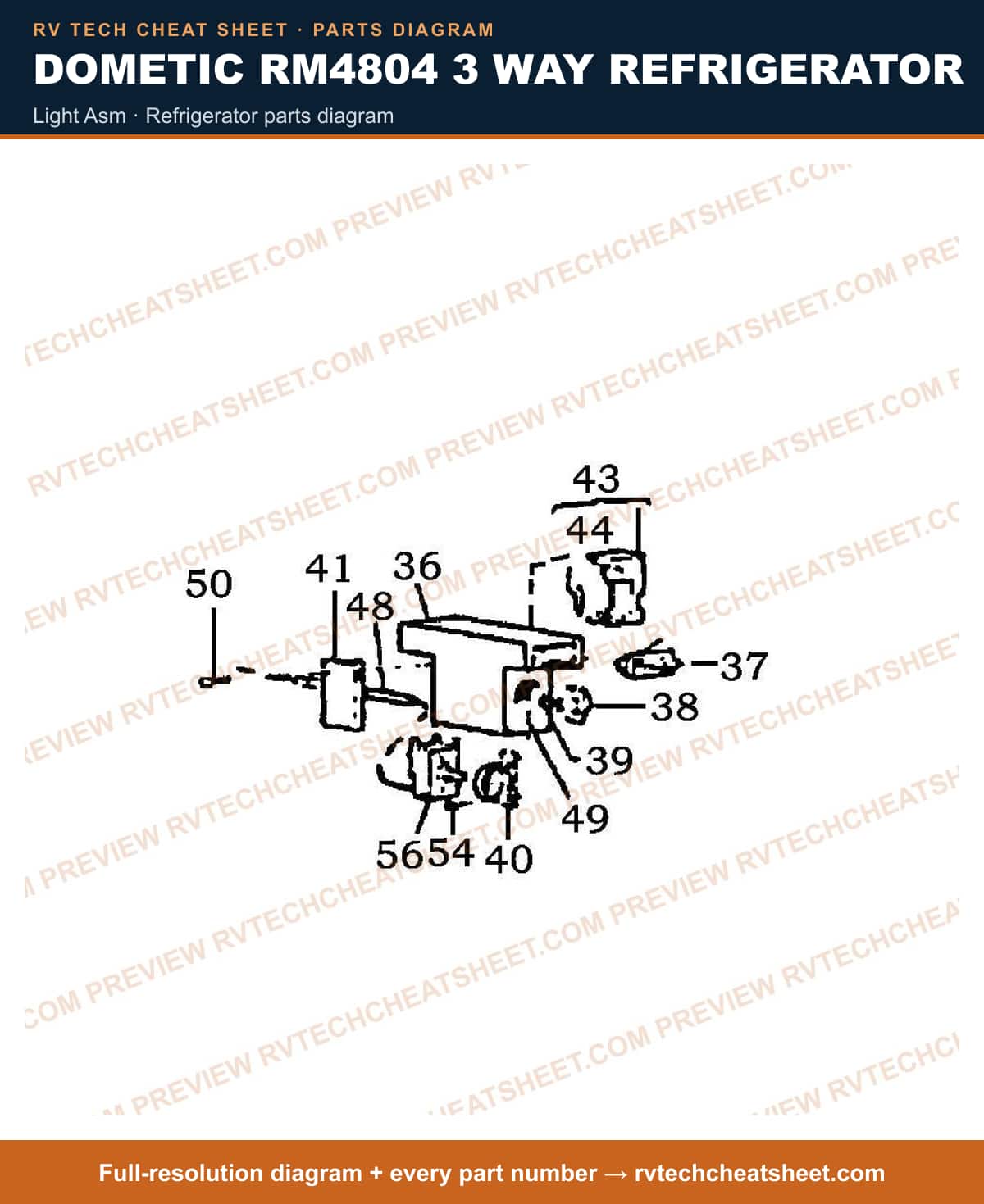

Light Asm

Components

20 items

1. #COVER, LIGHT SWITCH MFR # 2004044109
2. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
3. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
4. #2004044091 MFR # 2004044091
5. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
6. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
7. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RM2603 MFR # 2930625039 Superseded: see description
8. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
9. #CLIP, SPRING USE 2901183026 F/KNOB MFR # 163382005 Superseded: see description
10. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
11. #SHADE, LAMP MFR # 2004043002
12. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
13. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
14. #BULB 2/PK MFR # 2007290006
15. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
16. #INDEX,T-STAT MFR # 2001354030
17. #INDEX MFR # 2001354022
18. #SCREW MFR # 7295283407
19. #PIN,RETAINING MFR # 2001281019
20. #T-STAT MFR # 2007712033
