Diagrams › Dometic › RM4872 Dometic RM4872 Parts Diagram · All Product Numbers - Cabinet Interior
Refrigerator · 17 assemblies · 17 diagram sheets · 280 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM4872 RV refrigerator: 17 assemblies (All Product Numbers - Cabinet Interior, All Product Numbers - Cabinet, Rear View, Product # 921146027 - Cabinet Exterior, All Product Numbers - Burner & Controls, Icemaker, Rear View - Icemaker Asm and more) and 280 manufacturer part numbers. 77 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
All Product Numbers - Cabinet Interior

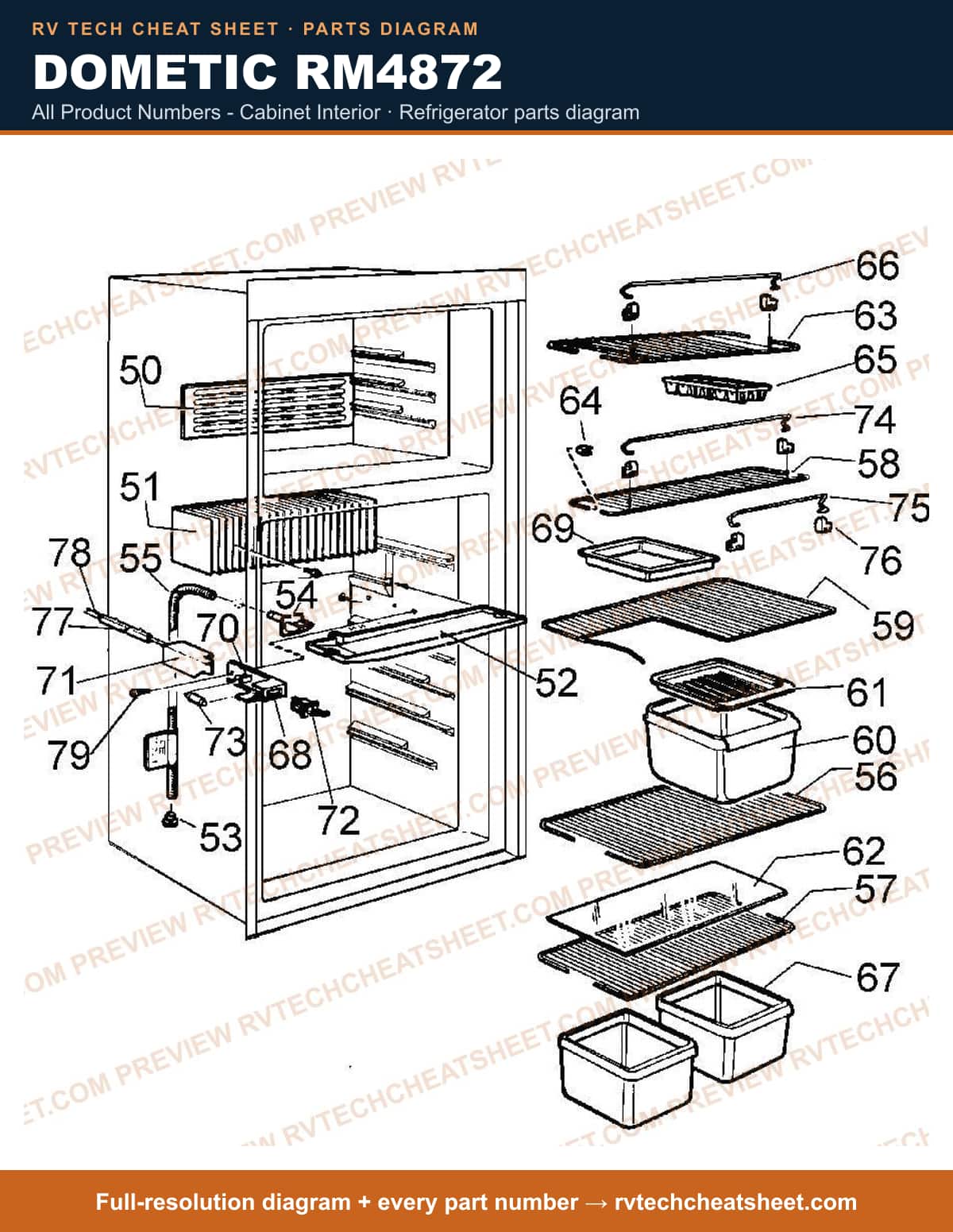

Dometic RM4872 all product numbers - cabinet interior — parts list sheet Full-resolution diagram + every part number →
Components 35 items # Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013 # Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011 # Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description # Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019 # Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029 # Refrigerator Shelf; Replacement For Dometic RM2652/ RM4873/ RM4872 Refrigerators; Fresh Food Compartment; Wire MFR # 2932625045 # APPLIANCE COMPONENTS RV; Shelf Wire F/Rm4872 MFR # 2932625086 # Refrigerator Shelf; Replacement For Dometic RM3663/ RM4872/ RM3863 Refrigerators; Milk Compartment; Wire MFR # 2932626027 # APPLIANCE COMPONENTS RV; Meat Locker Kit MFR # 3106749009 # LOCKER, MEAT MFR # 31067490009 # APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018 # S,CVR,CRISPER SHLF,CLR-400/410 MFR # 2931117085 # Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028 # APPLIANCE COMPONENTS RV; Rack Wire Shelf MFR # 2007337146 # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018 # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # Appliance Components RV; Lead Light MFR # 2954432015 # SCREW MFR # 7295283407

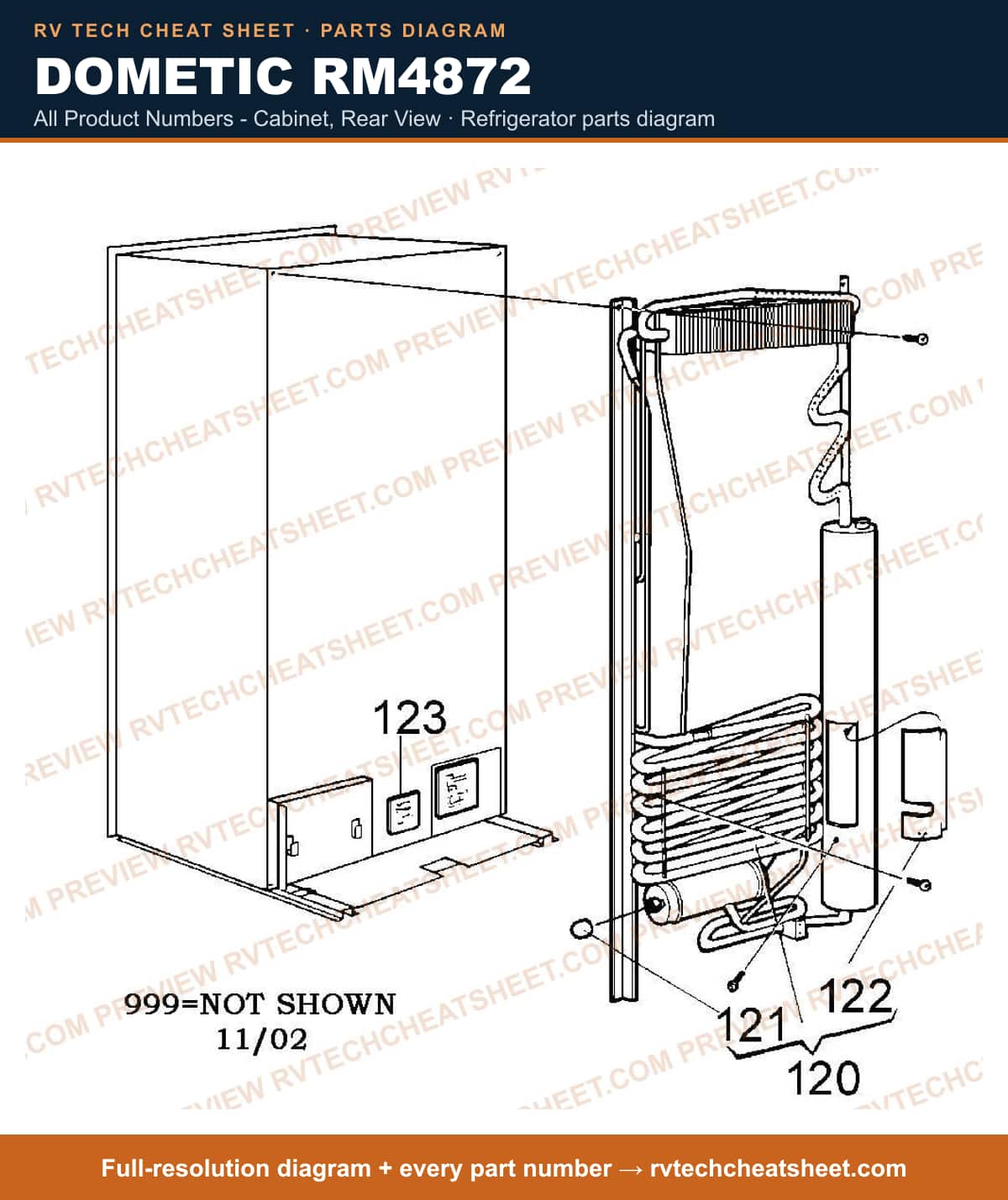

All Product Numbers - Cabinet, Rear View
Dometic RM4872 all product numbers - cabinet, rear view — parts list sheet Full-resolution diagram + every part number →
Components 11 items # REMAN C/U USE 5582 RM2852,3852-3 MFR # 2934805090R Superseded: see description # REBUILT DOMETIC COOLING U MFR # 5582805A # GRAY PRIMER MFR # 5582 # APPLIANCE COMPONENTS RV; Cooling Unit 805 (Ups) MFR # 2934805090N # REBUILT DOMETIC COOLING U MFR # 5582806A # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # APPLIANCE COMPONENTS RV; Label MFR # 2932723006 # MASTIC MFR # 2943397006 # CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015 # MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description

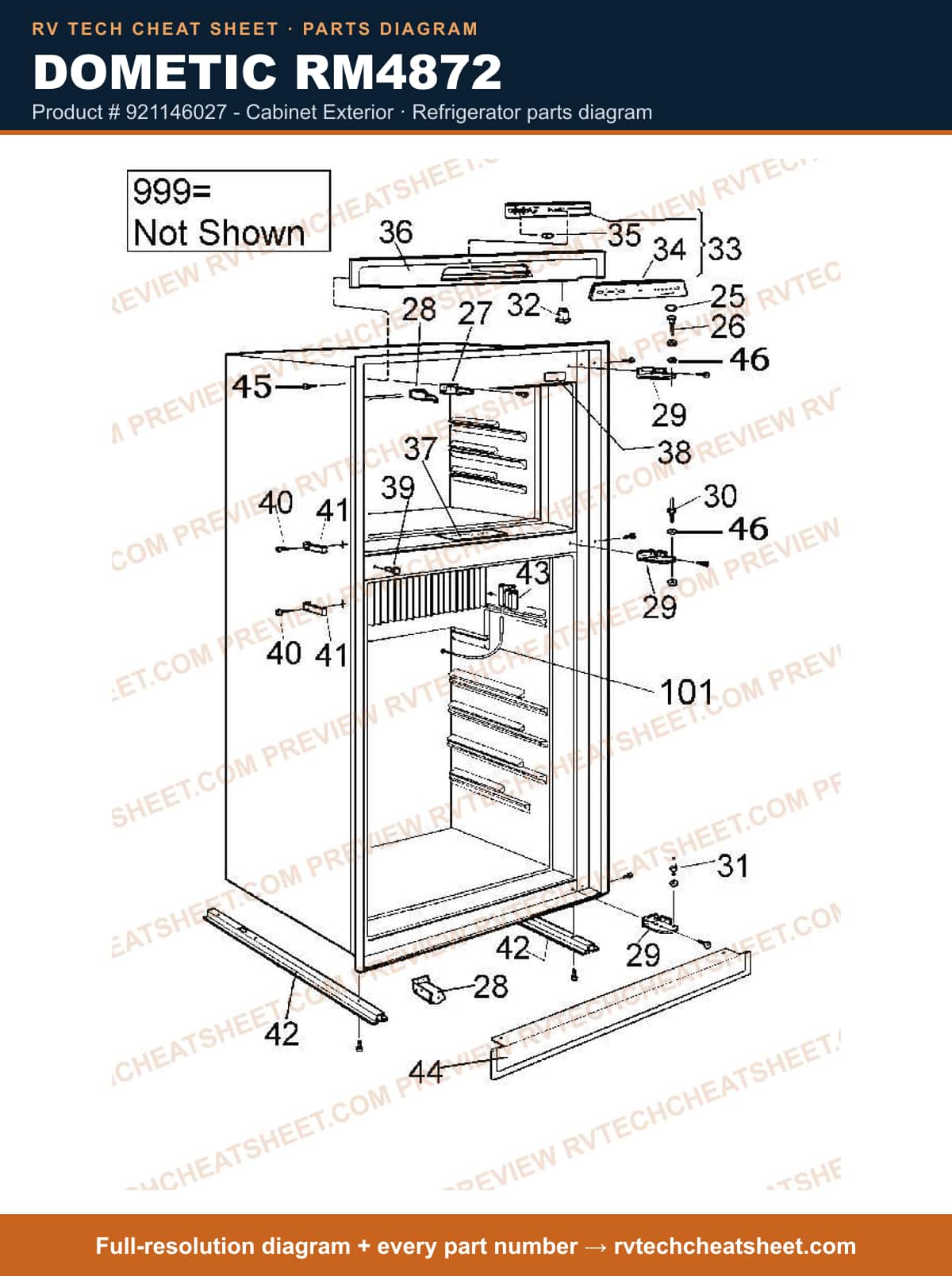

Product # 921146027 - Cabinet Exterior
Dometic RM4872 product # 921146027 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 38 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # COVER, UPPER CONTROL W/DECAL MFR # 955024534 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # Decal; For Use With Dometic RM4872/ RM7732 And RM4872 Model Refrigerators MFR # 2932698000 Superseded: see description # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # SCREW MFR # 7241283014 # APPLIANCE COMPONENTS RV; Washer MFR # 7341153018 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014 # Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044 # Appliance Components RV; Hinge Kit Left To Right MFR # 293275003 # Hinge Kit L to R; Use 293275003 RM2453, RM3862 MFR # 3106922010 Superseded: see description
All Product Numbers - Burner & Controls
Dometic RM4872 all product numbers - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 65 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Lead Electrode MFR # 2007668078 # Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079 # ELECTRODE W/WIRE LEADS MFR # 293781012MC # ELECTRODE MFR # 2932781012 # Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # THERMOCOUPLE FOR DOMETIC MFR # 2932052018 # THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC # Nut, T-Couple MFR # 2801043015 # BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002 # DOM REPLACEMENT BRD MFR # MICROP711 # FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description # FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description # BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002 # Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3 # S,COVER,LESS DECALS MFR # 2931858019 # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016 # Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014 # ELEMENT, HEATING 120VAC 325W MFR # CH000360 # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description # ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289 # ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description # ELEMENT,HEATING <SL> 325W 120V MFR # CHX17737 # ELEMENT,HEATING USE CHX17737 325W 120V (DUPLICATE PART #) MFR # 173742180 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # PLATE,DC WIRE CONN MFR # 2932687011 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # 2932667047 MFR # 2932667047 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3 # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009

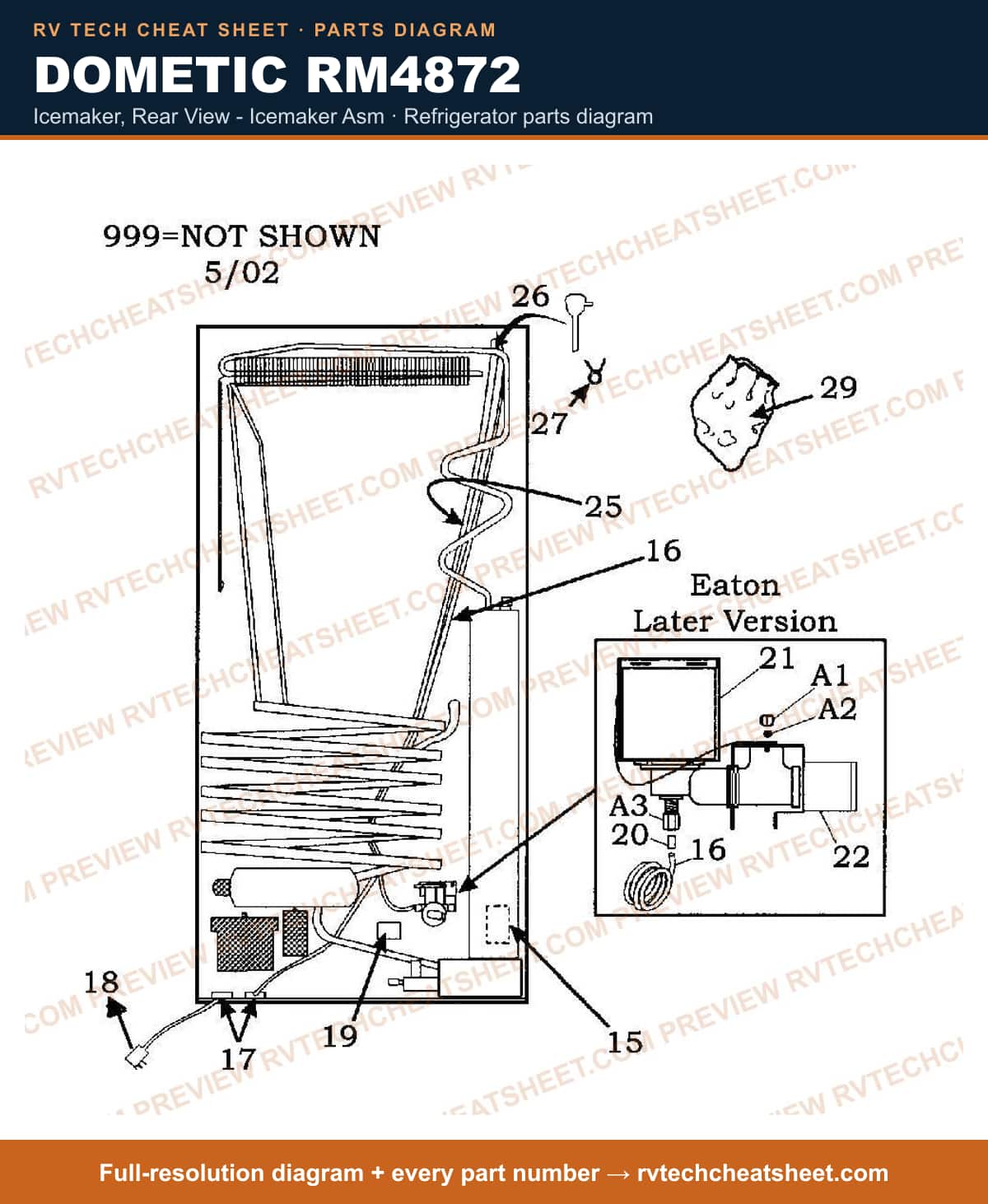

Icemaker, Rear View - Icemaker Asm
Dometic RM4872 icemaker, rear view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 23 items # APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296 # NUT, WATER VALVE MFR # 3108706288 # S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010 # WIRING DIAGRAM MFR # 2931966002 # Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869 # Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007 # Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637 # HEATER KIT ICEMAKER MFR # 3106868015 # TERMINAL BLOCK,Y MFR # 2931963017 # APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078 # WARNING LABEL MFR # 2931975003 # INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description # APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185 # Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270 # Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description # APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080 # HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description # HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description # Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description # TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description # Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description # RING, HOG MFR # 3107614012 # VALVE KIT WATER MFR # 3108706114
Product # 921146030 - Door
Dometic RM4872 product # 921146030 - door — parts list sheet Full-resolution diagram + every part number →
Components 38 items # APPLIANCE COMPONENTS RV; Door Freezer Rh MFR # 2932561067 # Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382 # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA # Refrigerator Door; Use With Dometic RM4872/ RM2852RM3863 Refrigerators; Right Hand Lower MFR # 2932562040 Superseded: see description # KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C # Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G # Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A # S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041 # SCREW MFR # 2801048014 # S,SCREW,PT,50*26 MFR # 3858000031 # RACK,JUICE WHITE MFR # 2932578020 # RACK, JUICE MFR # 2932578012 # Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011 # Appliance Components RV; Strip, Decoration MFR # 3850919014 # S,DR DECOR,FRZ,BRN MFR # 3850381017 # Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description # APPLIANCE COMPONENTS RV; Decoration MFR # 2932642065 # HANDLE, DOOR USE 2932093012 MFR # 2932852011 Superseded: see description # HANDLE, BEIGE USE 3851174106 OR 49-8525 NEW STYLE MFR # 2932093012 Superseded: see description # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024 # Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016 # Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description # SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description # Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033 # Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description # Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description # Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010 # Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008 # Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018 # Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016 # APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014 # BRACKET MFR # 2932634013 # RIVET MFR # 2932679018 # Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018

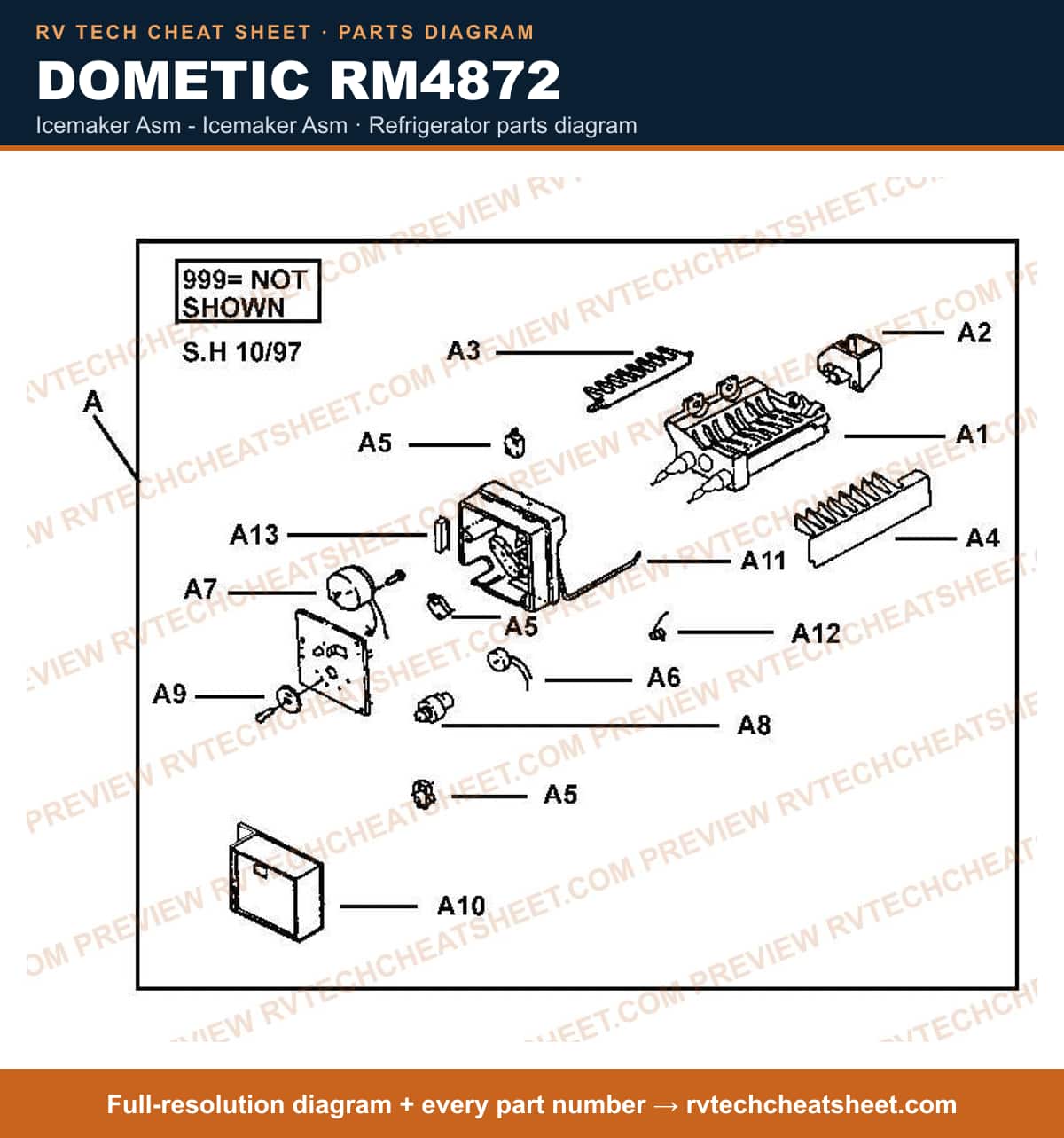

Icemaker Asm - Icemaker Asm
Dometic RM4872 icemaker asm - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915 # APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426 # EJECTOR MFR # 3108703434 # APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442 # APPLIANCE COMPONENTS RV; Switch MFR # 3108703459 # APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467 # APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552 # MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description # APPLIANCE COMPONENTS RV; Motor MFR # 3108703475 # CAM MFR # 3108703483 # APPLIANCE COMPONENTS RV; Cam MFR # 3101295008 # APPLIANCE COMPONENTS RV; Gear MFR # 3101296006 # GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873 # APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881 # Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899 # PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907 # Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082 # APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445
Product # 921146028 - Cabinet Exterior
Dometic RM4872 product # 921146028 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 37 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # COVER, UPPER CONTROL W/DECAL MFR # 955024534 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # Decal; For Use With Dometic RM4872/ RM7732 And RM4872 Model Refrigerators MFR # 2932698000 Superseded: see description # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # SCREW RXS B6X5 MFR # 7295275015 # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # SCREW MFR # 7241283014 # APPLIANCE COMPONENTS RV; Washer MFR # 7341153018 # APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Door Hinge; Replacement For Dometic RM2852/ RM2652/ RM4872 Model Refrigerators; Left To Right MFR # 293275009 # Bearing Race; L-68111; 2.362 Inch Outer Diameter; Set Of 2; Clamshell Pack; Folding Carton Package MFR # 293275005

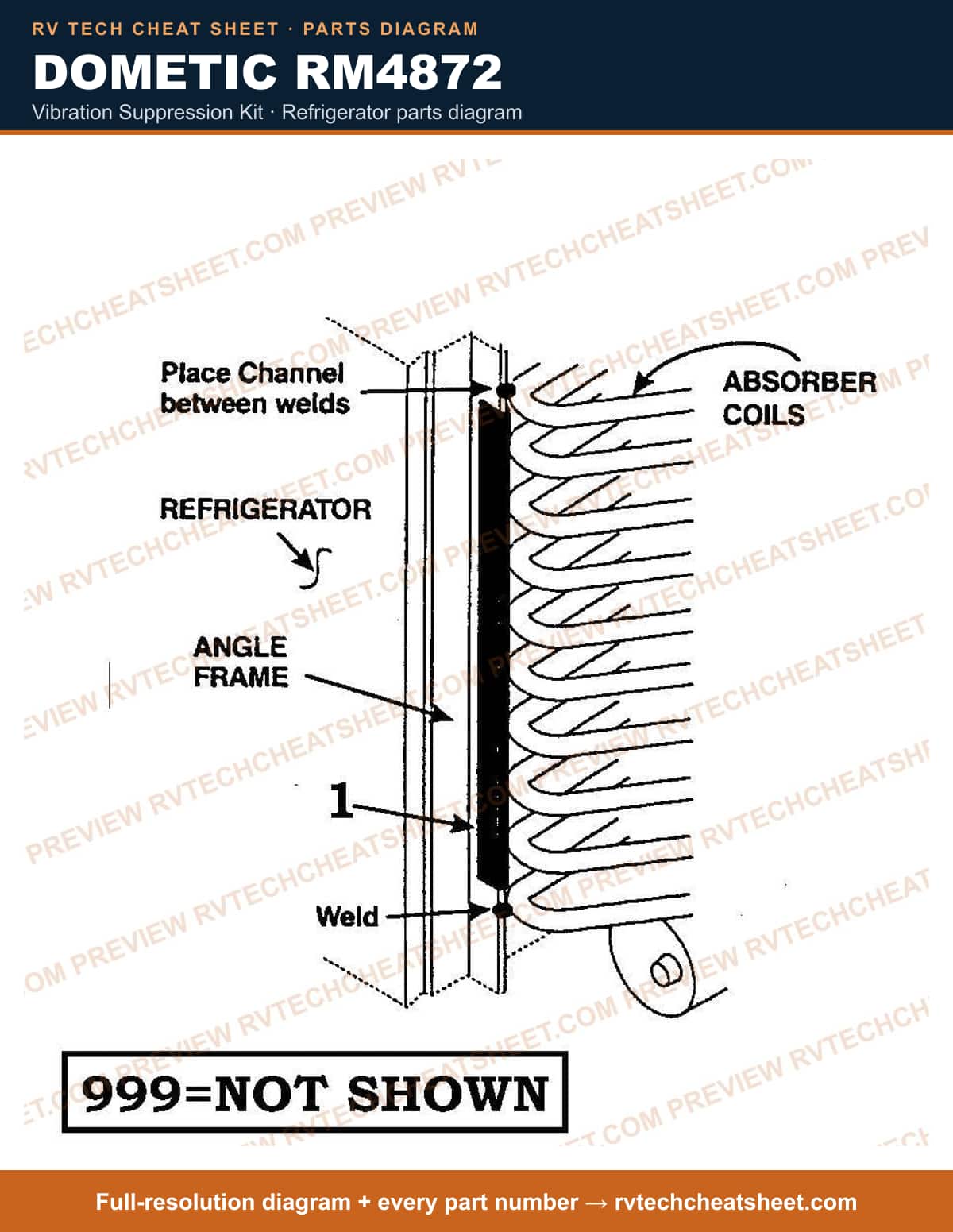

Vibration Suppression Kit
Product # 921146030 - Cabinet Exterior
Dometic RM4872 product # 921146030 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 40 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # Refrigerator Door Hinge Plate; Use With Dometic Refrigerator Models RM2852 Americana; Fits Left Hand Top MFR # 2932644012 Superseded: see description # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # COVER, UPPER CONTROL W/DECAL MFR # 955024534 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # Decal; For Use With Dometic RM4872/ RM7732 And RM4872 Model Refrigerators MFR # 2932698000 Superseded: see description # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # SCREW MFR # 7241283014 # APPLIANCE COMPONENTS RV; Washer MFR # 7341153018 # APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Door Sag Repair Kit; Replacement For Dometic RM3862/ RM3863/ RM2652/ DM2652 Model Refrigerator MFR # 293275008 # KIT, DOOR REVERSING (LEFT TO RIGHT) MFR # 2932750051 # Bearing Race; LM-67010; 2.328 Inch Outer Diameter; Set Of 2; Use With LM67048 Bearing; Clamshell Pack; Folding Carton Package MFR # 2932750041 Superseded: see description # Bearing Race; 25520; 3.265 Inch Outer Diameter; Set Of 2; Use With 25580 Bearing; Clamshell Package MFR # 293275004 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044

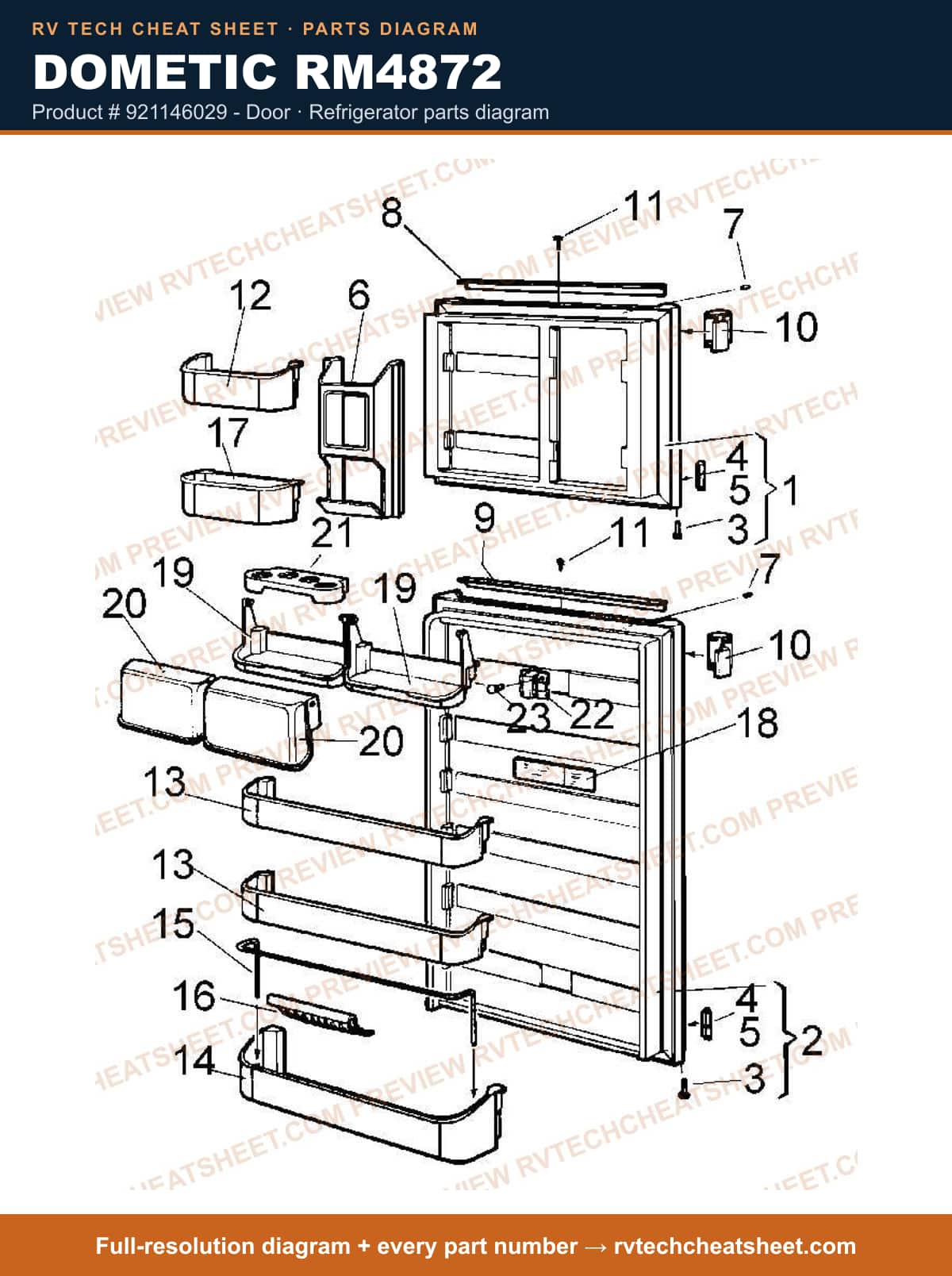

Product # 921146029 - Door
Dometic RM4872 product # 921146029 - door — parts list sheet Full-resolution diagram + every part number →
Components 40 items # DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L # DOOR PANEL - OAK PANEL AL MFR # RM3862G # APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C # PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B # Refrigerator Door; Replacement For Dometic RM2652/ RM4873/ RM2852 Model Refrigerators; Upper MFR # 2932561141 # Refrigerator Door; Use With Dometic RM2553/ RM2551 Refrigerators; Right Hand Side MFR # 2932562123 Superseded: see description # KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C # Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G # Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382 # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L # Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D # S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041 # Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020 # RACK, JUICE MFR # 2932578012 # RACK,JUICE WHITE MFR # 2932578020 # Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011 # Appliance Components RV; Strip, Decoration MFR # 3850919014 # S,DR DECOR,FRZ,BRN MFR # 3850381017 # Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description # APPLIANCE COMPONENTS RV; Decoration MFR # 2932642065 # Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017 # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016 # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024 # Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description # SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description # Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033 # Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description # Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description # Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010 # Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008 # Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018 # Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016 # APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014 # BRACKET MFR # 2932634013 # RIVET MFR # 2932679018
Product # 921146027 - Door
Dometic RM4872 product # 921146027 - door — parts list sheet Full-resolution diagram + every part number →
Components 38 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description # Board Control Assm ***Us MFR # 2932884022 # COVER, UPPER CONTROL W/DECAL MFR # 955024534 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # Decal; For Use With Dometic RM4872/ RM7732 And RM4872 Model Refrigerators MFR # 2932698000 Superseded: see description # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # SCREW MFR # 7241283014 # APPLIANCE COMPONENTS RV; Washer MFR # 7341153018 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Hinge Kit L to R; Use 293275003 RM2453, RM3862 MFR # 3106922010 Superseded: see description # Appliance Components RV; Hinge Kit Left To Right MFR # 293275003 # Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044 # APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
Surge Protector
Dometic RM4872 surge protector — parts list sheet Full-resolution diagram + every part number →
Components 4 items # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # PROTECTOR KIT USE 3108703582 ELECTRIC SURGE<br>KIT CONTAINS: 1 WIRE HARNESS 1 SURGE PROTECTOR BOX (BLACK APPROX SIZE OF 2 X 3") 1 INSTRUCTION SHEET<br>FITS: RM2607, RM2811, RM3663, RM3863, RM2611, R... MFR # 3108703574 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description # APPLIANCE COMPONENTS RV; Protector Kit<br>FITS MD# 7030, 7130, 7732, 7832 PER DOMETIC, THIS PART IS NO LONGER AVAILABLE. HOWEVER, IT CAN BE REPLACED WITH PART # 3108702675 AND THE LOWER CI... MFR # 3108703582

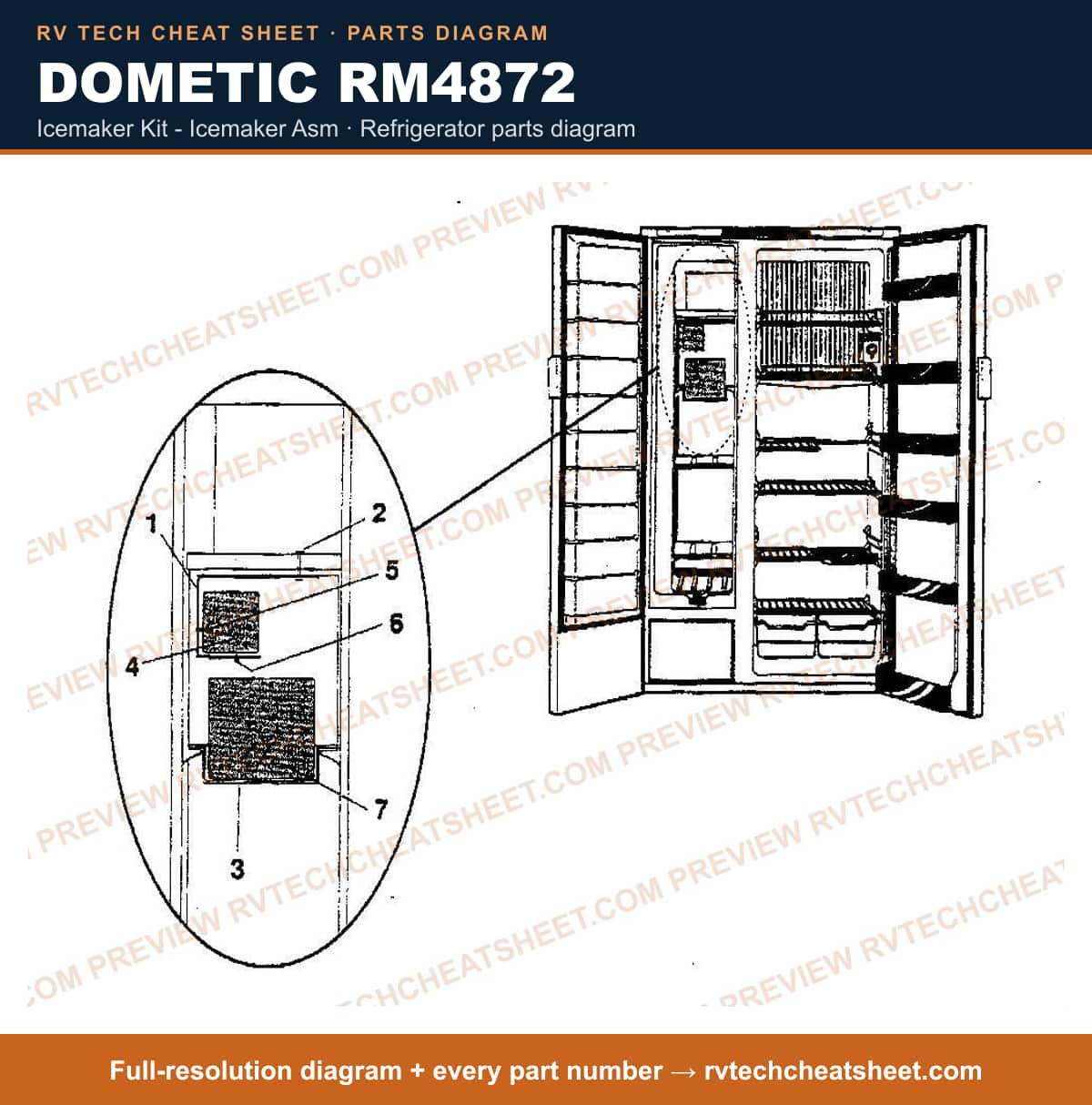

Icemaker Kit - Icemaker Asm
Dometic RM4872 icemaker kit - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 10 items # SHELF,ICEMAKER 6' AND 8' MFR # 3108706130 # SHELF, ICEMAKER USE 3108706130 MFR # 3106584000 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133 # SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010 # ICE MAKER SVC KIT NO WIN MFR # 3313470080 # APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517 # SCREW, #10 X 2" MFR # 3106586005 # SCREW # 8 X 1/2" TA MFR # 3106317005 # Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description # APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
Refrigerator Replacement

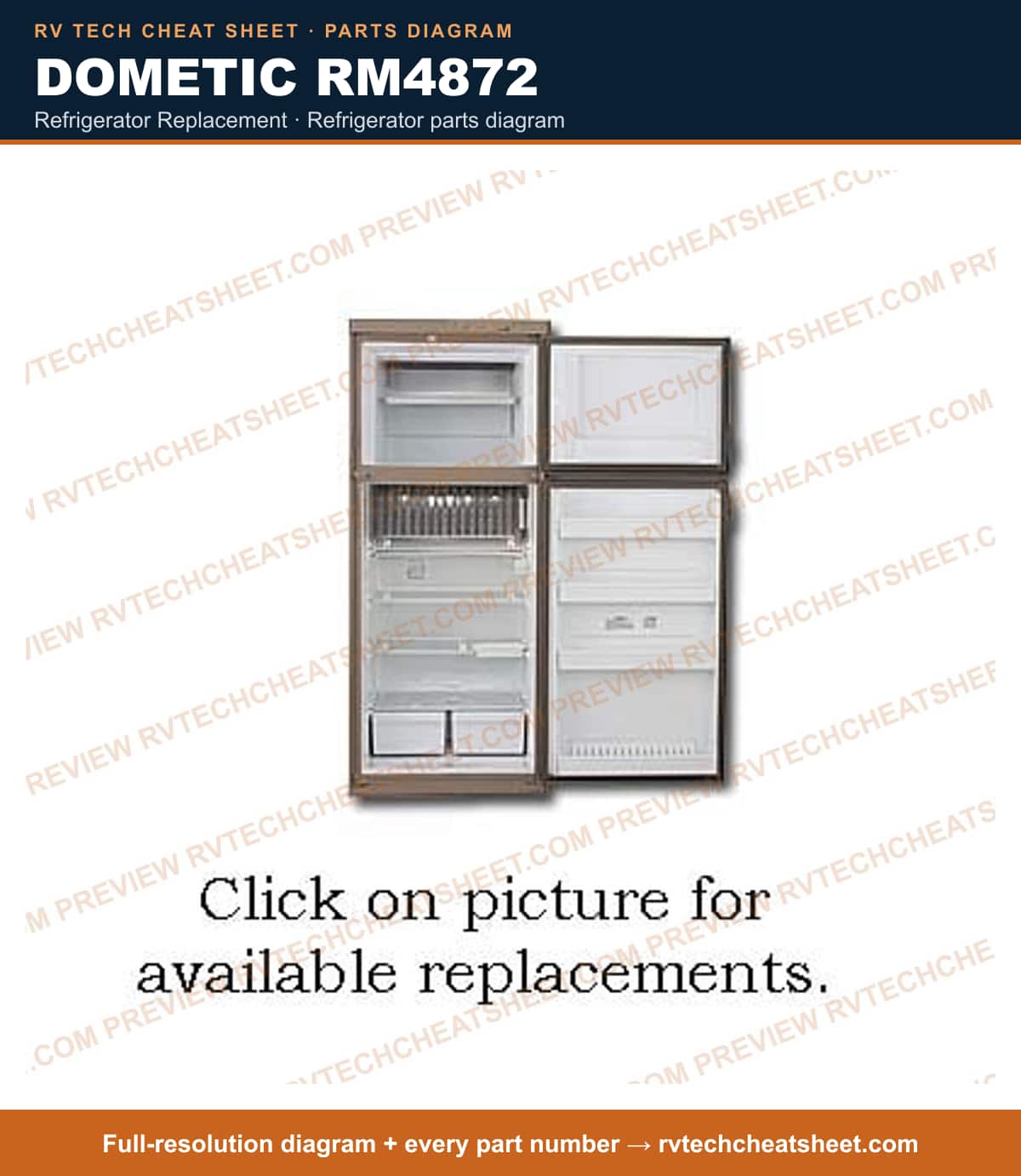

Dometic RM4872 refrigerator replacement — parts list sheet Full-resolution diagram + every part number →
Components 12 items # Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N # REFER,8 CF 59 15/16" X 23 11/16" X 24" MFR # RM4872N # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK # REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS # Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841IMSSR # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R # Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS # Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
Product # 921146029 - Cabinet Exterior
Dometic RM4872 product # 921146029 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 41 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # Board Control Assm ***Us MFR # 2932884022 # Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description # BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description # COVER, UPPER CONTROL W/DECAL MFR # 955024534 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # Decal; For Use With Dometic RM4872/ RM7732 And RM4872 Model Refrigerators MFR # 2932698000 Superseded: see description # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017 # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # SCREW MFR # 7241283014 # APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014 # APPLIANCE COMPONENTS RV; Washer MFR # 7341153018 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044 # Bearing Race; LM-67010; 2.328 Inch Outer Diameter; Set Of 2; Use With LM67048 Bearing; Clamshell Pack; Folding Carton Package MFR # 2932750041 Superseded: see description # KIT, DOOR REVERSING (LEFT TO RIGHT) MFR # 2932750051 # Refrigerator Door Sag Repair Kit; Replacement For Dometic RM3862/ RM3863/ RM2652/ DM2652 Model Refrigerator MFR # 293275008 # Bearing Race; 25520; 3.265 Inch Outer Diameter; Set Of 2; Use With 25580 Bearing; Clamshell Package MFR # 293275004 Superseded: see description

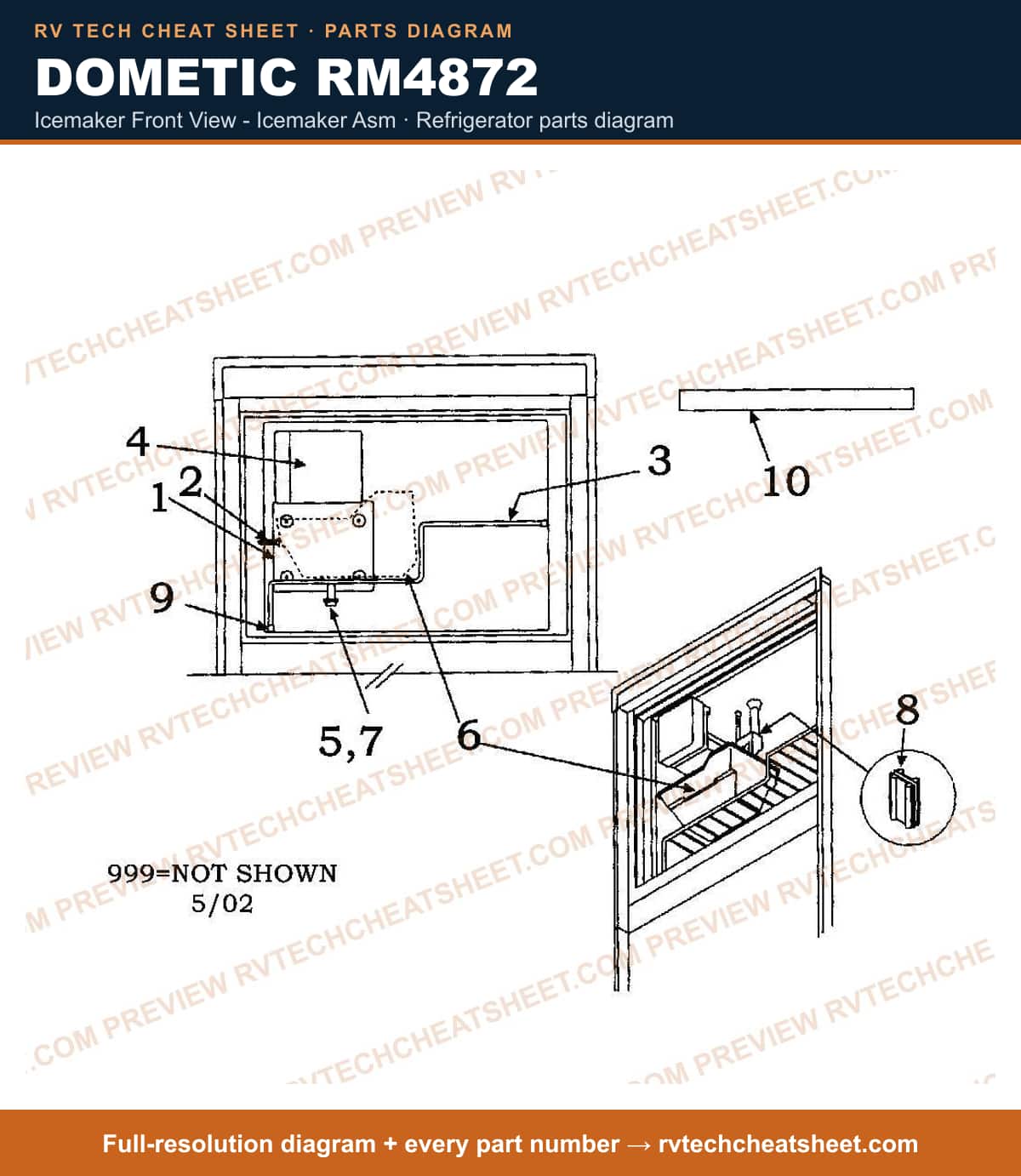

Icemaker Front View - Icemaker Asm
Dometic RM4872 icemaker front view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 14 items # SHELF,ICEMAKER 6' AND 8' MFR # 3108706130 # SCREW, #10 X 2" MFR # 3106586005 # SHELF,ICE USE 3312986031 BUCKET MFR # 3106583002 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Ice Bucket Kit MFR # 3312986031 # Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082 # Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064 # SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description # BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description # APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015 # WASHER MFR # 3108706007 # FILL PIECE, WATER TUBE MFR # 3106324001 # Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description # CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description # DECORATION, DOOR MFR # 3107177002
