Diagrams › Dometic › RM4873 Dometic RM4873 Parts Diagram · All Product Numbers - Cabinet Interior
Refrigerator · 18 assemblies · 18 diagram sheets · 255 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM4873 RV refrigerator: 18 assemblies (All Product Numbers - Cabinet Interior, Product # 921146033 - Cabinet Exterior, Surge Protector, Product # 921146034 - Cabinet Exterior, Icemaker Kit - Icemaker Asm and more) and 255 manufacturer part numbers. 70 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

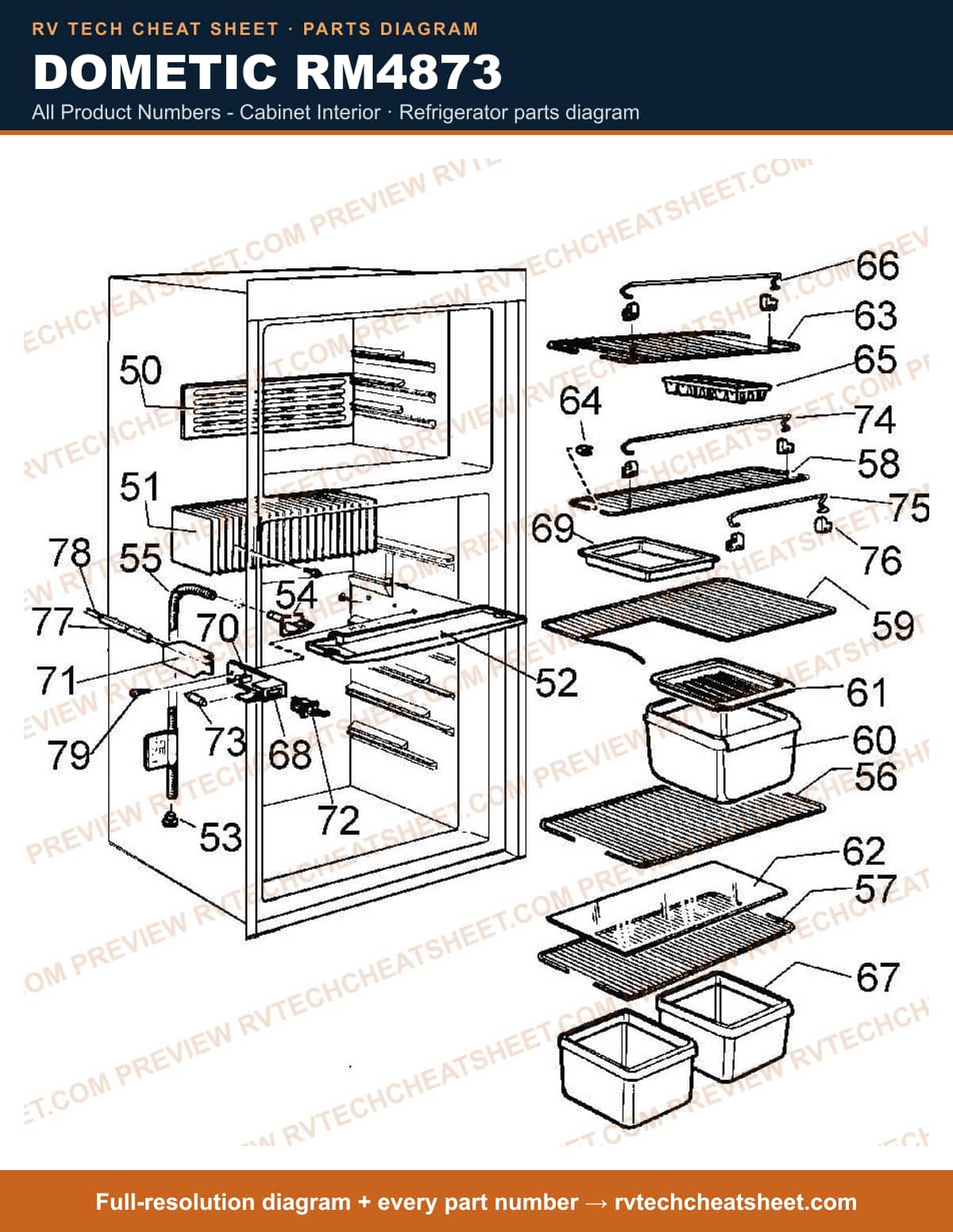

All Product Numbers - Cabinet Interior
Dometic RM4873 all product numbers - cabinet interior — parts list sheet Full-resolution diagram + every part number →
Components 36 items # Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013 # Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011 # Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description # Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description # Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description # Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019 # Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029 # Refrigerator Shelf; Replacement For Dometic RM2652/ RM4873/ RM4872 Refrigerators; Fresh Food Compartment; Wire MFR # 2932625045 # APPLIANCE COMPONENTS RV; Shelf Wire F/Rm4872 MFR # 2932625086 # Refrigerator Shelf; Replacement For Dometic RM3663/ RM4872/ RM3863 Refrigerators; Milk Compartment; Wire MFR # 2932626027 # LOCKER, MEAT USE 3106749009 MFR # 2932621036 Superseded: see description # LOCKER, MEAT MFR # 31067490009 # APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018 # S,CVR,CRISPER SHLF,CLR-400/410 MFR # 2931117085 # Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # APPLIANCE COMPONENTS RV; Rack Wire Shelf MFR # 2007337146 # APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028 # SOCKET, LAMP; Use 2932523018 on Models RM4872 & RM4873 MFR # 2932107010 Superseded: see description # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description # S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018 # Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018 # Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012 # Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138 # S WIRE SHELF RAILS/HOLDERS MFR # 2007372111 # S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120 # Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045 # COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012 # Appliance Components RV; Lead Light MFR # 2954432015 # SCREW MFR # 7295283407

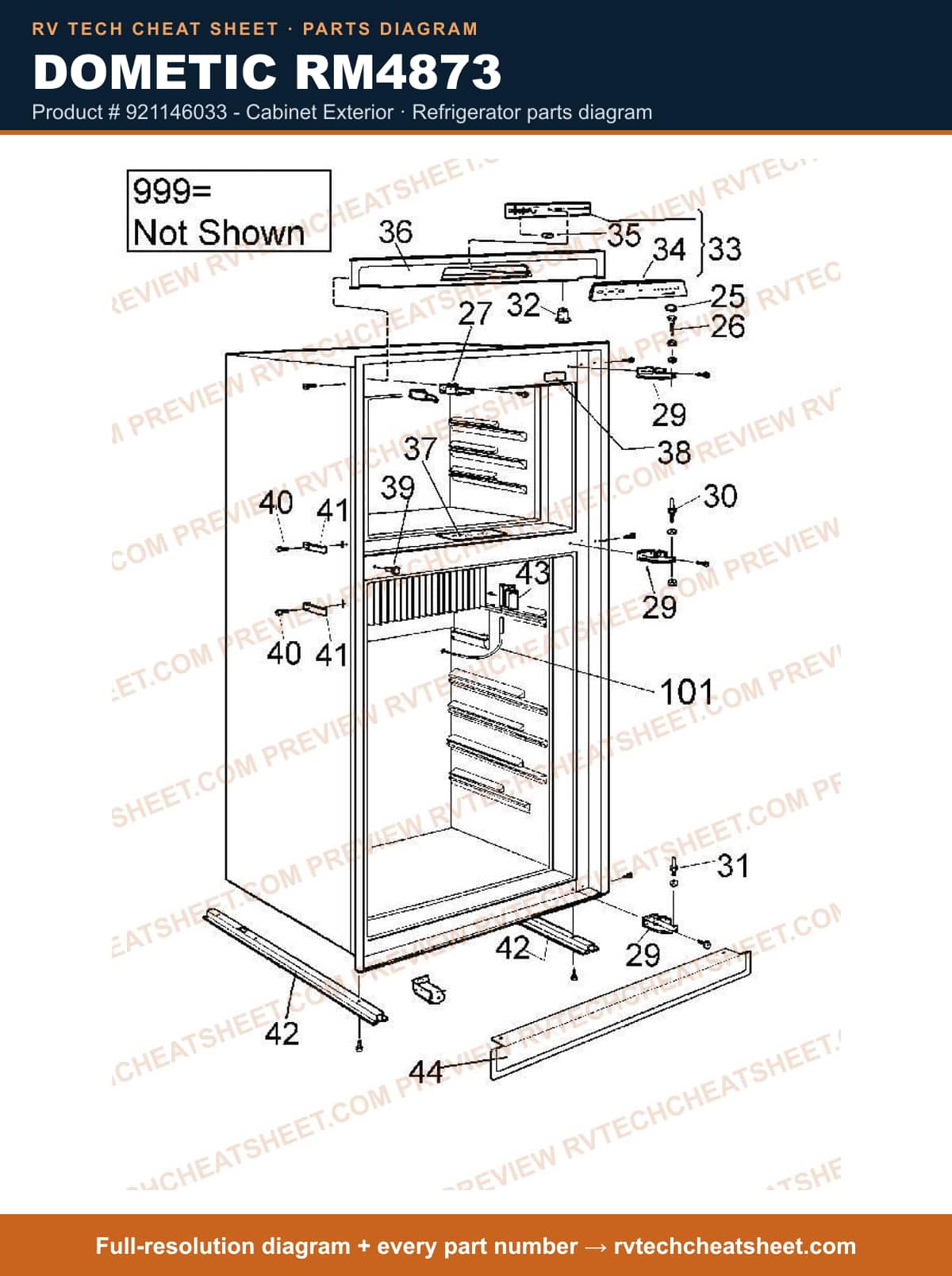

Product # 921146033 - Cabinet Exterior
Dometic RM4873 product # 921146033 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 31 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # Refrigerator Door Hinge Plate; Use With Dometic Refrigerator Models RM2852 Americana; Fits Left Hand Top MFR # 2932644012 Superseded: see description # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # Appliance Components RV; Board Circuit MFR # 2932884048 # APPLIANCE COMPONENTS RV; Decoration Strip 3 Way MFR # 955024542 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # SIGN PLATE, 3-WAY MFR # 2932686005 # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # REVERSE KIT DOOR MFR # 3106518
Surge Protector
Dometic RM4873 surge protector — parts list sheet Full-resolution diagram + every part number →
Components 4 items # APPLIANCE COMPONENTS RV; Protector Kit<br>FITS MD# 7030, 7130, 7732, 7832 PER DOMETIC, THIS PART IS NO LONGER AVAILABLE. HOWEVER, IT CAN BE REPLACED WITH PART # 3108702675 AND THE LOWER CI... MFR # 3108703582 # APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675 # PROTECTOR KIT USE 3108703582 ELECTRIC SURGE<br>KIT CONTAINS: 1 WIRE HARNESS 1 SURGE PROTECTOR BOX (BLACK APPROX SIZE OF 2 X 3") 1 INSTRUCTION SHEET<br>FITS: RM2607, RM2811, RM3663, RM3863, RM2611, R... MFR # 3108703574 Superseded: see description # HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description
Product # 921146034 - Cabinet Exterior
Dometic RM4873 product # 921146034 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 32 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # Appliance Components RV; Board Circuit MFR # 2932884048 # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # APPLIANCE COMPONENTS RV; Decoration Strip 3 Way MFR # 955024542 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # SIGN PLATE, 3-WAY MFR # 2932686005 # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Door Sag Repair Kit; Replacement For Dometic RM3862/ RM3863/ RM2652/ DM2652 Model Refrigerator MFR # 293275008 # Bearing Race; 25520; 3.265 Inch Outer Diameter; Set Of 2; Use With 25580 Bearing; Clamshell Package MFR # 293275004 Superseded: see description

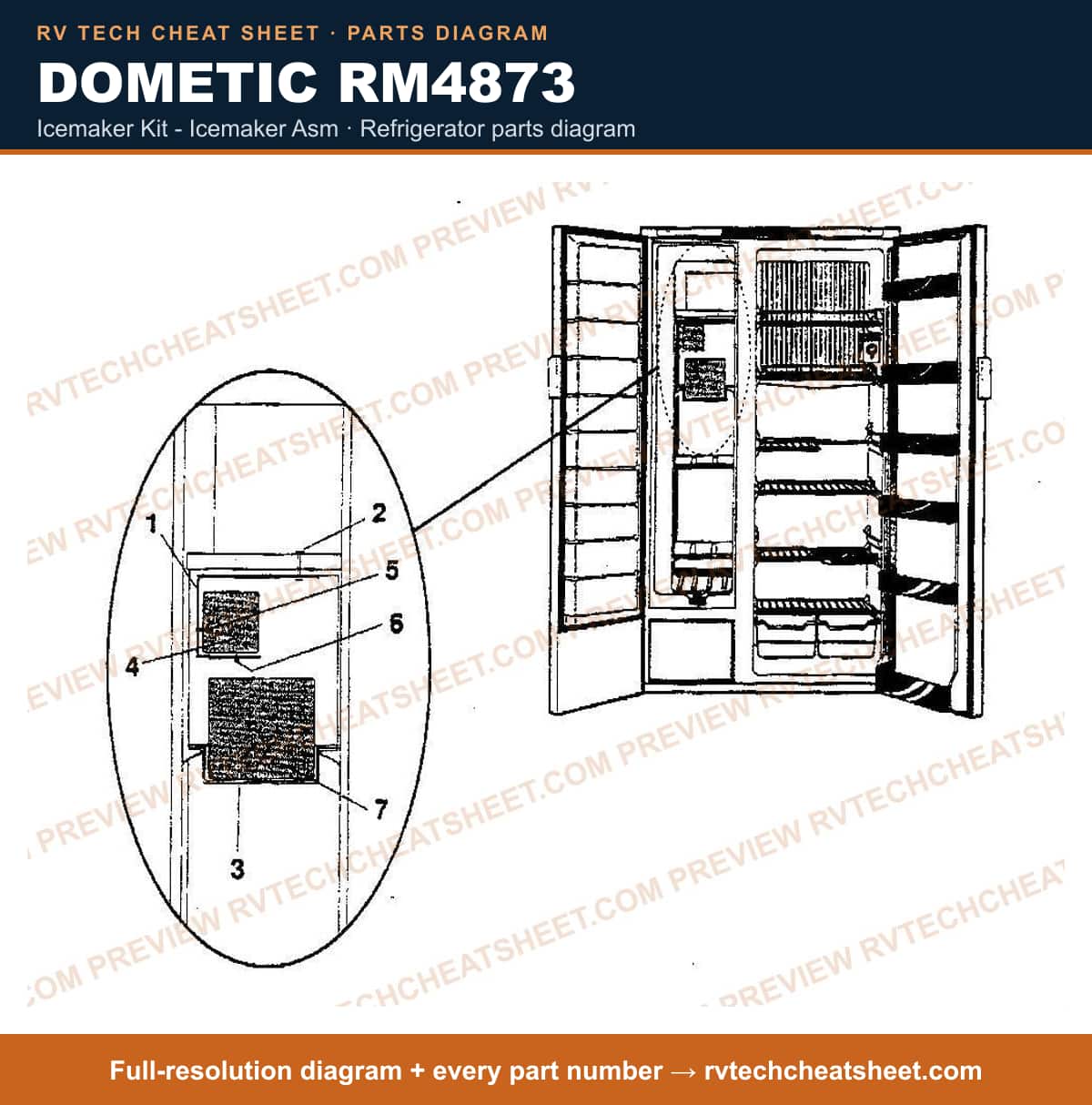

Icemaker Kit - Icemaker Asm
Dometic RM4873 icemaker kit - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 10 items # SHELF,ICEMAKER 6' AND 8' MFR # 3108706130 # SHELF, ICEMAKER USE 3108706130 MFR # 3106584000 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133 # SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010 # APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517 # ICE MAKER SVC KIT NO WIN MFR # 3313470080 # SCREW, #10 X 2" MFR # 3106586005 # SCREW # 8 X 1/2" TA MFR # 3106317005 # APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description # Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
Product # 921146031 - Cabinet Exterior
Dometic RM4873 product # 921146031 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 29 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # Appliance Components RV; Board Circuit MFR # 2932884048 # APPLIANCE COMPONENTS RV; Decoration Strip 3 Way MFR # 955024542 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # SIGN PLATE, 3-WAY MFR # 2932686005 # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # REVERSE KIT DOOR MFR # 3106518
Product # 921146031 - Door
Dometic RM4873 product # 921146031 - door — parts list sheet Full-resolution diagram + every part number →
Components 42 items # DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L # PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B # DOOR PANEL - OAK PANEL AL MFR # RM3862G # APPLIANCE COMPONENTS RV; Door Freezer Lh MFR # 2932561133 # APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G # Refrigerator Door; Use With Dometic RM2553/ RM2551 Refrigerators; Right Hand Side MFR # 2932562123 Superseded: see description # Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A # KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C # Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382 # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L # DOOR,LOWER USE 2932562123 MD# RM3862 MFR # 2932564111 Superseded: see description # Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA # Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017 # Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020 # RACK, JUICE MFR # 2932578012 # RACK,JUICE WHITE MFR # 2932578020 # Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018 # Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011 # S,DR DECOR,FRZ,BRN MFR # 3850381017 # Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description # Appliance Components RV; Strip, Decoration MFR # 3850919014 # APPLIANCE COMPONENTS RV; Decoration MFR # 2932642065 # Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017 # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016 # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024 # Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description # SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description # Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033 # Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description # Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description # Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010 # Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008 # Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018 # Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016 # APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014 # BRACKET MFR # 2932634013 # RIVET MFR # 2932679018
Product # 921146032 - Door
Dometic RM4873 product # 921146032 - door — parts list sheet Full-resolution diagram + every part number →
Components 40 items # APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C # PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B # DOOR PANEL - OAK PANEL AL MFR # RM3862G # DOOR, FREEZER LFT HAND MFR # 2932561059 # DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA # Refrigerator Door; Use With Dometic RM2852/ RM3863 Refrigerators; Left Hand Lower MFR # 2932562032 Superseded: see description # KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C # Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382 # Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G # Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D # Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017 # Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020 # RACK,JUICE WHITE MFR # 2932578020 # RACK, JUICE MFR # 2932578012 # Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011 # Appliance Components RV; Strip, Decoration MFR # 3850919014 # Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description # S,DR DECOR,FRZ,BRN MFR # 3850381017 # APPLIANCE COMPONENTS RV; Decoration MFR # 2932642065 # Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017 # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024 # Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016 # SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description # Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033 # Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description # Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description # Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010 # Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008 # Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018 # Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016 # APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014 # BRACKET MFR # 2932634013 # RIVET MFR # 2932679018
Product # 921146034 - Door
Dometic RM4873 product # 921146034 - door — parts list sheet Full-resolution diagram + every part number →
Components 40 items # PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B # APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C # DOOR PANEL - OAK PANEL AL MFR # RM3862G # DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L # Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G # Refrigerator Door; Use With Dometic RM4872/ RM2852RM3863 Refrigerators; Right Hand Lower MFR # 2932562040 Superseded: see description # KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L # APPLIANCE COMPONENTS RV; Door Freezer Rh MFR # 2932561067 # Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382 # Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA # Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017 # Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020 # RACK, JUICE MFR # 2932578012 # RACK,JUICE WHITE MFR # 2932578020 # Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011 # Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description # Appliance Components RV; Strip, Decoration MFR # 3850919014 # S,DR DECOR,FRZ,BRN MFR # 3850381017 # APPLIANCE COMPONENTS RV; Decoration MFR # 2932642065 # Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017 # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024 # Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016 # Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description # SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description # Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033 # Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description # Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description # Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010 # Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008 # Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018 # Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016 # APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014 # BRACKET MFR # 2932634013 # RIVET MFR # 2932679018
Vibration Suppression Kit

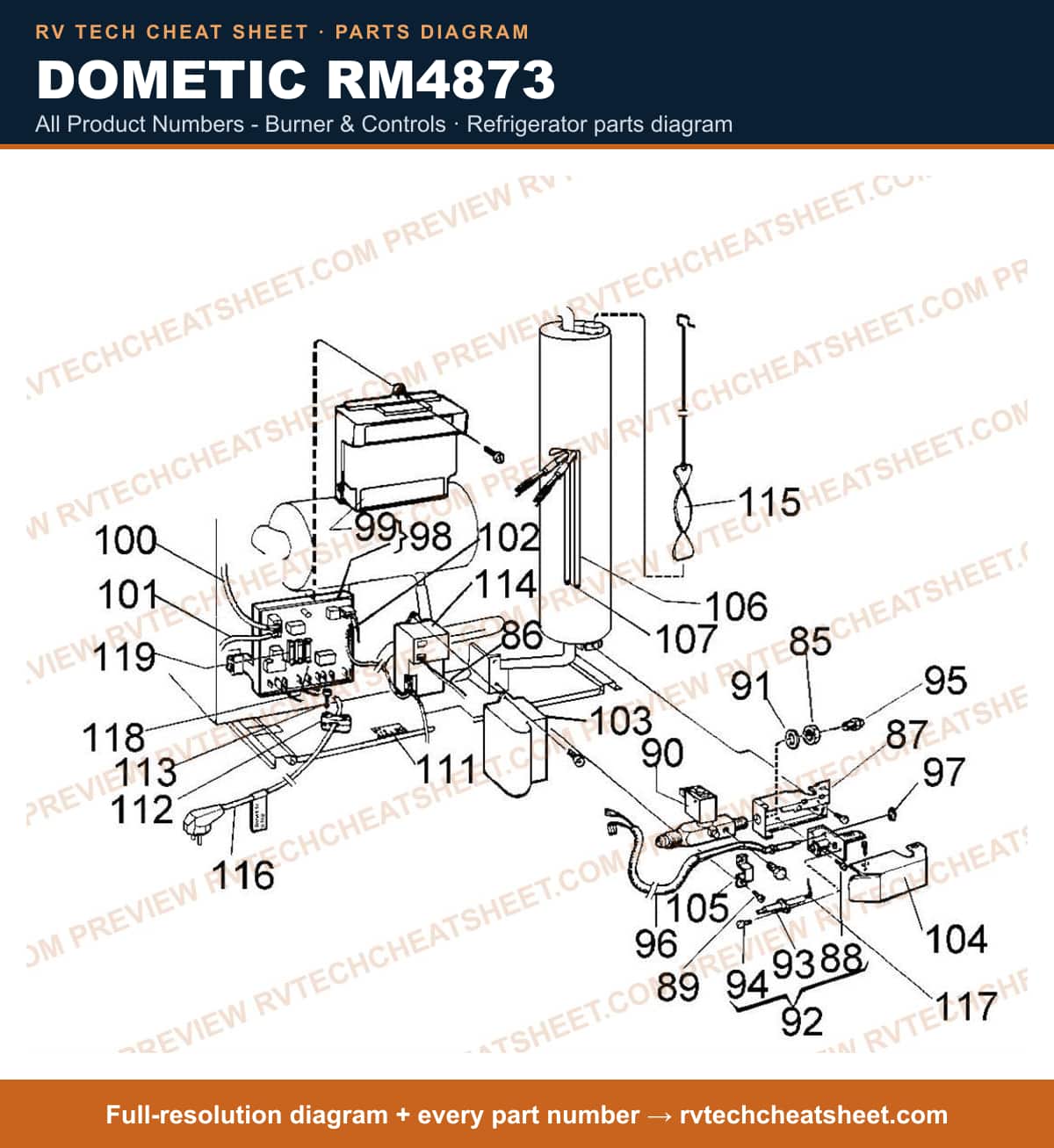

All Product Numbers - Burner & Controls
Dometic RM4873 all product numbers - burner & controls — parts list sheet Full-resolution diagram + every part number →
Components 58 items # APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044 # APPLIANCE COMPONENTS RV; Lead Electrode MFR # 2007668078 # Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018 # Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619 # Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description # SCREW M4 X 10 S MFR # 7241289615 # Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012 # APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012 # S,BURNER ASM,RM4601,4605,4805 MFR # 2930697061 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # THERMOCOUPLE FOR DOMETIC MFR # 2932052018 # THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC # Nut, T-Couple MFR # 2801043015 # Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000 # BOARD, PC LOWER USE 3308742000 3-WAY MFR # 2932882018 Superseded: see description # BOARD, PC W/CVR USE 2932882018 MFR # 2931843037 Superseded: see description # DOM REPLACEMENT BRD MFR # MICROP711 # S,COVER,LESS DECALS MFR # 2931858019 # LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description # Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037 # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030 # Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010 # Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016 # Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014 # ELEMENT,HEATING USE CHX17737 325W 120V (DUPLICATE PART #) MFR # 173742180 Superseded: see description # ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289 # ELEMENT, HEATING 120VAC 325W MFR # CH000360 # ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description # ELEMENT,HEATING <SL> 325W 120V MFR # CHX17737 # ELEMENT, HEATING 215W 12V; Suggested Alternate P# CHX17748 is available if original is out of stock; Is a use # for 173757022 MFR # 173757089 Superseded: see description # ELEMENT, HEATING *ALT 72-8720 215W 12V; Suggested Alternate For Dometic: This part is not a Dometic original but can be used as an alternate to the Dometic P#173757089. MFR # CHX17748 # PLATE,DC WIRE CONN MFR # 2932687011 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # 2932667047 MFR # 2932667047 # CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description # Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5 # FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description # APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009 # NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3

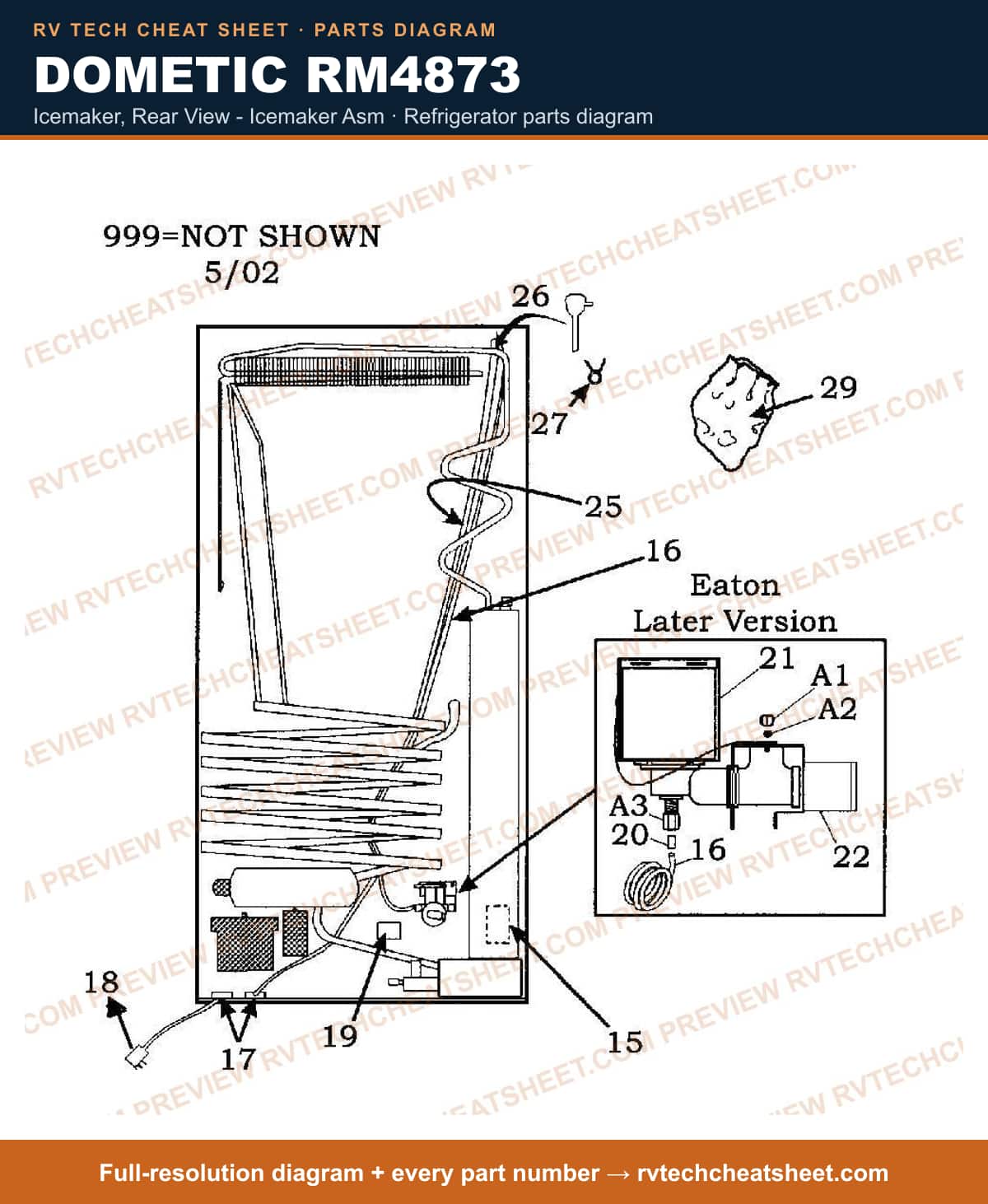

Icemaker, Rear View - Icemaker Asm
Dometic RM4873 icemaker, rear view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 22 items # APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296 # NUT, WATER VALVE MFR # 3108706288 # S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010 # WIRING DIAGRAM MFR # 2931966002 # Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637 # Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869 # Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007 # HEATER KIT ICEMAKER MFR # 3106868015 # TERMINAL BLOCK,Y MFR # 2931963017 # APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078 # WARNING LABEL MFR # 2931975003 # APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185 # INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description # Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270 # Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description # HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description # APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080 # Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description # TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description # Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description # RING, HOG MFR # 3107614012 # VALVE KIT WATER MFR # 3108706114

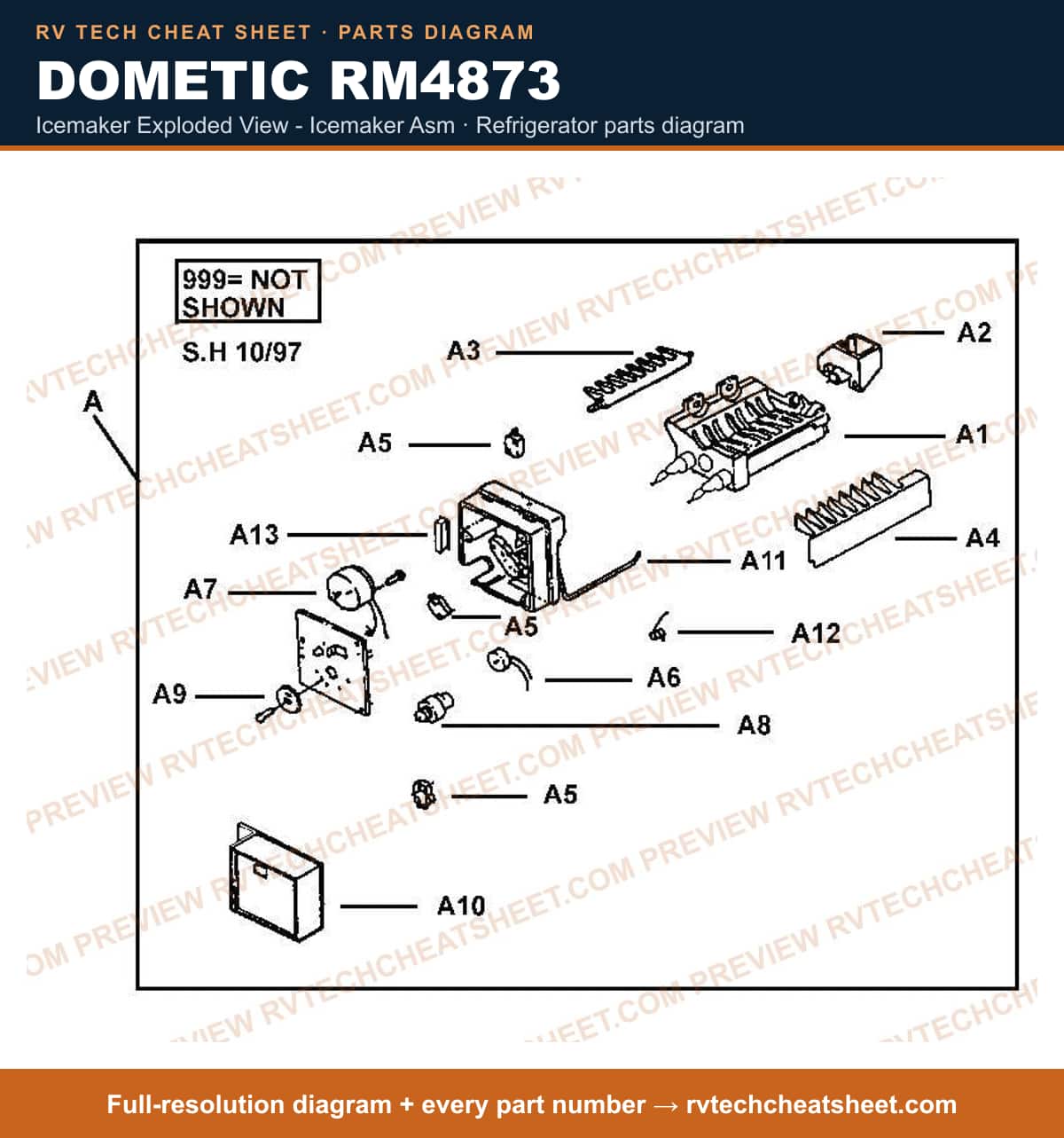

Icemaker Exploded View - Icemaker Asm
Dometic RM4873 icemaker exploded view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 18 items # APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915 # APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426 # EJECTOR MFR # 3108703434 # APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442 # APPLIANCE COMPONENTS RV; Switch MFR # 3108703459 # APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467 # APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552 # MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description # APPLIANCE COMPONENTS RV; Motor MFR # 3108703475 # APPLIANCE COMPONENTS RV; Cam MFR # 3101295008 # CAM MFR # 3108703483 # APPLIANCE COMPONENTS RV; Gear MFR # 3101296006 # GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873 # APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881 # Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899 # PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907 # Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
All Product Numbers - Cabinet, Rear View
Dometic RM4873 all product numbers - cabinet, rear view — parts list sheet Full-resolution diagram + every part number →
Components 11 items # REBUILT DOMETIC COOLING U MFR # 5582806A # REMAN C/U USE 5582 RM2852,3852-3 MFR # 2934805090R Superseded: see description # GRAY PRIMER MFR # 5582 # REBUILT DOMETIC COOLING U MFR # 5582805A # APPLIANCE COMPONENTS RV; Cooling Unit 805 (Ups) MFR # 2934805090N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description # APPLIANCE COMPONENTS RV; Label MFR # 2932723006 # CLIP, HOSE DRAIN CONDENSATION MFR # 3106590015 # MASTIC MFR # 2943397006 # MASTIC USE 2943397006 (504); FOR C/U SEALER USE ALT# 311COMPOUND MFR # 310COMPOUND Superseded: see description

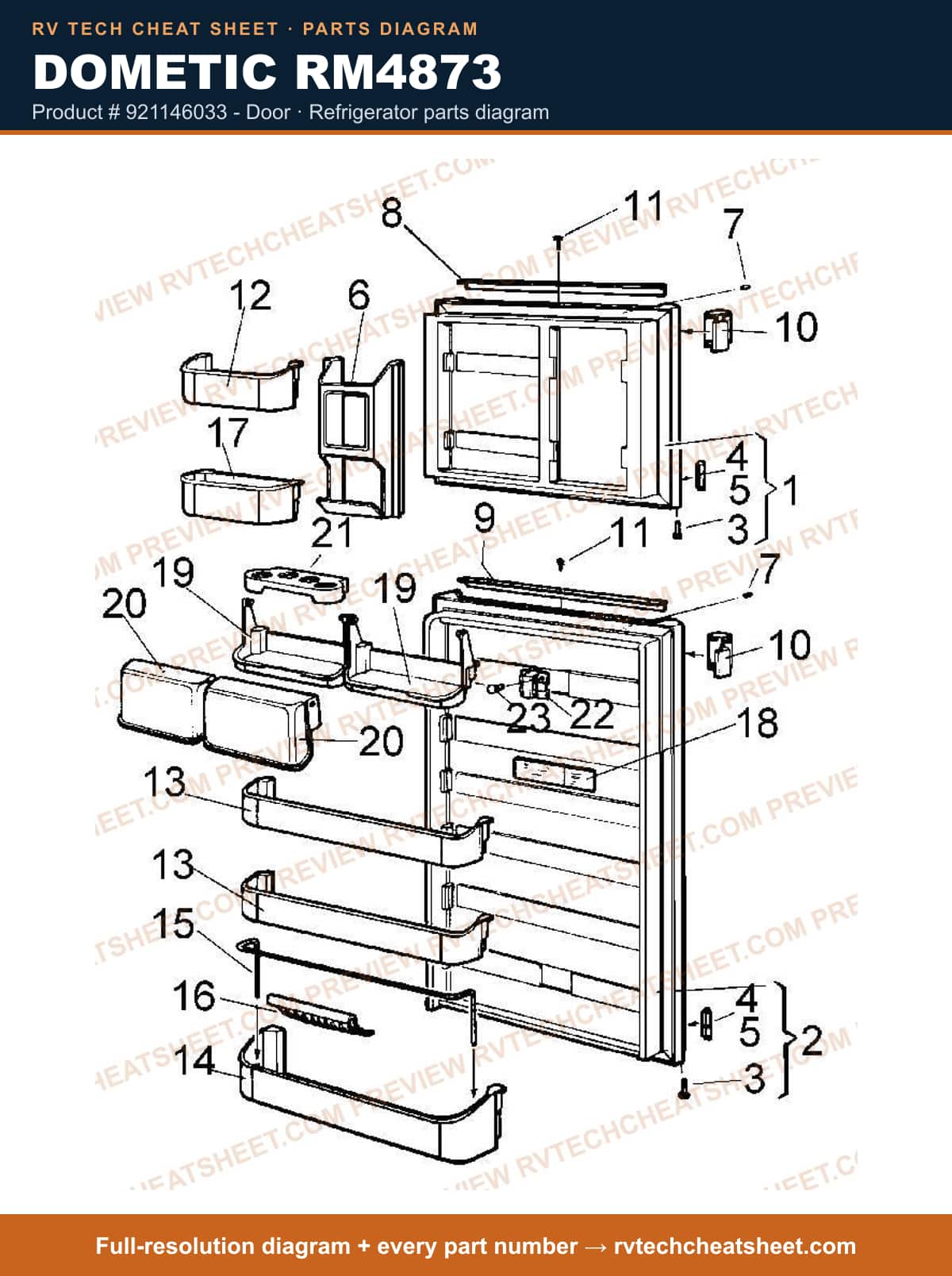

Product # 921146033 - Door
Dometic RM4873 product # 921146033 - door — parts list sheet Full-resolution diagram + every part number →
Components 41 items # PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B # DOOR PANEL - OAK PANEL AL MFR # RM3862G # DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L # Refrigerator Door; Replacement For Dometic RM2652/ RM4873/ RM2852 Model Refrigerators; Upper MFR # 2932561141 # APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C # KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA # Refrigerator Door; Use With Dometic RM2553/ RM2551 Refrigerators; Right Hand Side MFR # 2932562123 Superseded: see description # Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L # Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382 # DOOR,LOWER USE 2932562123 MD# RM3862 MFR # 2932564111 Superseded: see description # Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G # Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A # Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017 # Refrigerator Door; Use With Dometic Refrigerator Model RM2652 Americana; Fits Lower Door Left Hand Side MFR # 2932682012 Superseded: see description # APPLIANCE COMPONENTS RV; Plug Decoration Rh MFR # 2932682020 # RACK, JUICE MFR # 2932578012 # RACK,JUICE WHITE MFR # 2932578020 # Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011 # S,DR DECOR,FRZ,BRN MFR # 3850381017 # Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description # Appliance Components RV; Strip, Decoration MFR # 3850919014 # APPLIANCE COMPONENTS RV; Decoration MFR # 2932642065 # Handle/Latch, Door; For RM3862/3, RM3662/3, RM4872/3, RM7030/7732, 7832, and all NDR models only. For RM2652/3 this note does not apply. Must check style of customer's... MFR # 2932670017 # Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010 # Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024 # Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016 # SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description # Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033 # Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description # Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description # Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010 # Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008 # Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018 # Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016 # APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014 # BRACKET MFR # 2932634013 # RIVET MFR # 2932679018

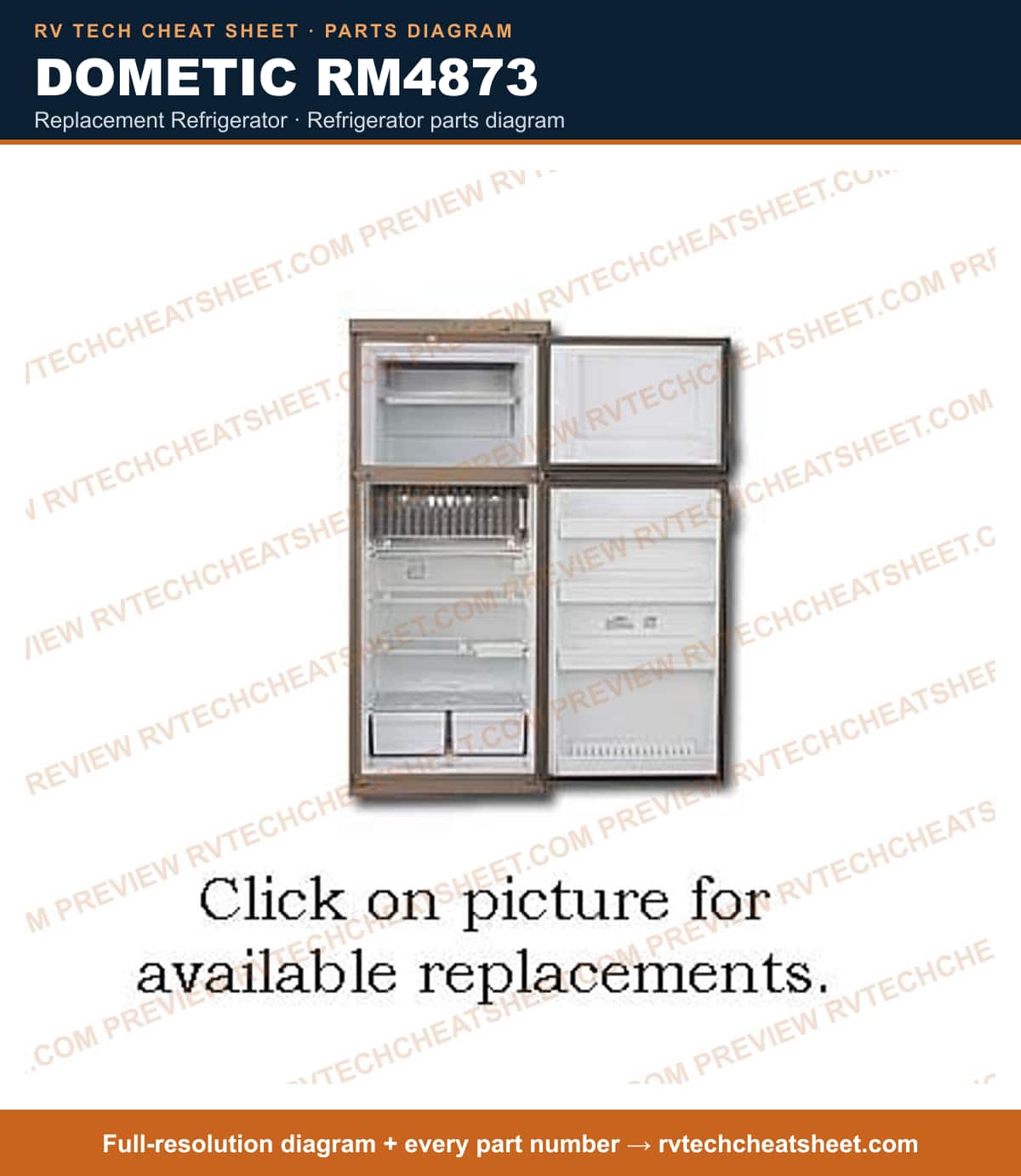

Replacement Refrigerator
Dometic RM4873 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 7 items # REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N # REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH # Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N # Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Ft MFR # N8413SS # REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK # REFER,8 CU FT 3 WAY 59 15/16" X 23 11/16" X 24" MFR # RM4873N
Product # 921146032 - Cabinet Exterior
Dometic RM4873 product # 921146032 - cabinet exterior — parts list sheet Full-resolution diagram + every part number →
Components 31 items # Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016 # Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description # APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020 # APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014 # APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013 # Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description # SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description # APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024 # Appliance Components RV; Board Circuit MFR # 2932884048 # Board, Circuit Use 2932884048 MFR # 2932697101 Superseded: see description # APPLIANCE COMPONENTS RV; Decoration Strip 3 Way MFR # 955024542 # Button Pushbutton On/Off MFR # 955024138 # Appliance Components RV; Cover, Front MFR # 2932641018 # SIGN PLATE, 3-WAY MFR # 2932686005 # DECAL MFR # 2932165000 # PLUG MFR # 2932742014 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description # Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description # LEVER, CATCH USE 2932855014 MFR # 2932637016 Superseded: see description # Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018 # BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description # BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description # Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023 # Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025 # Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042 # Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006 # Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description # THERMISTER USE 2931863035 MFR # 2931863068 Superseded: see description # Bearing Race; L-68111; 2.362 Inch Outer Diameter; Set Of 2; Clamshell Pack; Folding Carton Package MFR # 293275005

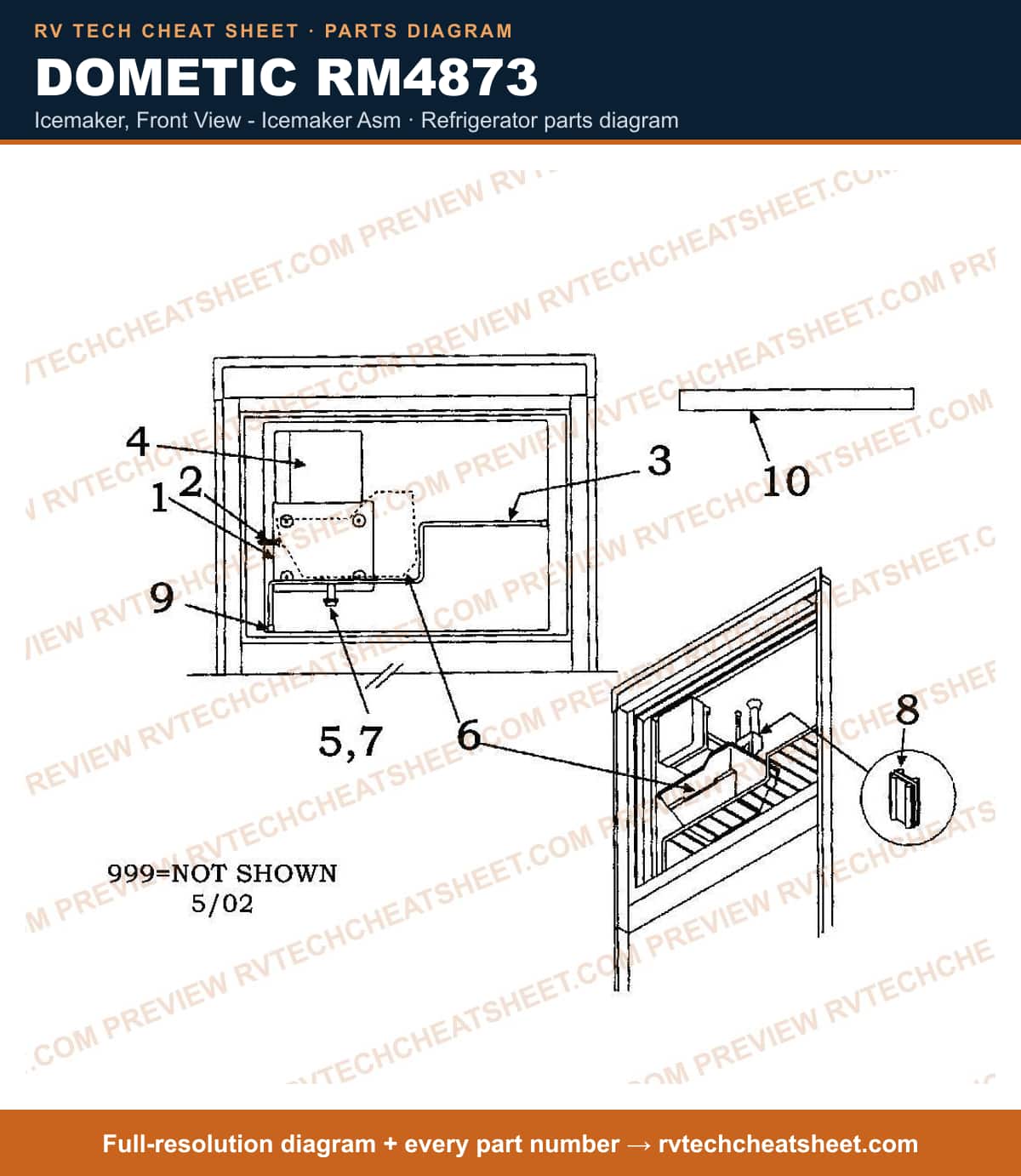

Icemaker, Front View - Icemaker Asm
Dometic RM4873 icemaker, front view - icemaker asm — parts list sheet Full-resolution diagram + every part number →
Components 14 items # SHELF,ICEMAKER 6' AND 8' MFR # 3108706130 # SCREW, #10 X 2" MFR # 3106586005 # SHELF,ICE USE 3312986031 BUCKET MFR # 3106583002 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Ice Bucket Kit MFR # 3312986031 # Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082 # Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064 # SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description # BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description # APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015 # WASHER MFR # 3108706007 # FILL PIECE, WATER TUBE MFR # 3106324001 # Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description # CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description # DECORATION, DOOR MFR # 3107177002
