Dometic RM60 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 225 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM60 RV refrigerator: 5 assemblies (Door Assembly, Gas-electric Parts, Cabinet Assembly, Replacement Refrigerator, Gas-electric Parts II) and 225 manufacturer part numbers. 47 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

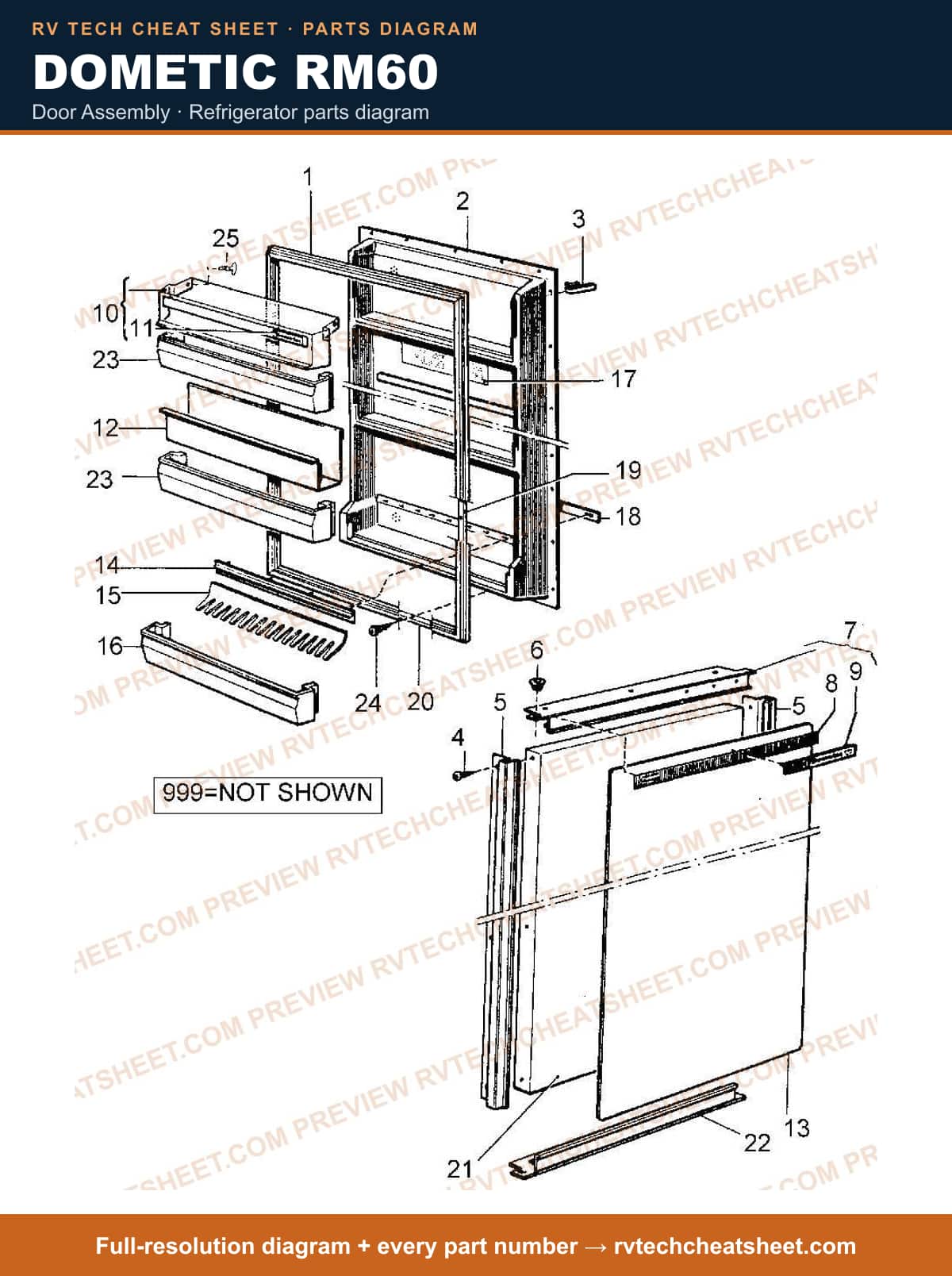

Door Assembly

Components

33 items

1. #APPLIANCE COMPONENTS RV; Gasket Doorscrew-In 21 1/ MFR # 2001111067
2. #DOOR LINER RM60 A MFR # 2002379010
3. #INSERT,HINGE PIN MFR # 171563000
4. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
5. #DOOR FRAME, ANODIZED ALUM. MFR # 2002342018
6. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
7. #DOOR FRAME, HORIZONTAL - UPPER COMPLETE MFR # 2002343016
8. #DECORATION STRIP N/A MFR # 2002344055
9. #N/A MFR # 2002498018
10. #NAMEPLATE MFR # 2002345003
11. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
12. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
13. #NAME PLATE DOMETIC MFR # 2002256002
14. #WEAR LINER MFR # 2002263008
15. #N/A MFR # 2002264014
16. #N/A MFR # 2002264063
17. #FASTENING STRIP MFR # 581703014
18. #APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007
19. #BOTTLE HOLDER FOR DR LINE R W/ FASTENING STRIPS MFR # 581702016
20. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
21. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
22. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
23. #SHELF, DOOR USE 2002261143 WHITE MFR # 2002261002 Superseded: see description
24. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
25. #LABEL, INSTRUCTION MFR # 2002356000
26. #FASTENING STRIP INNER FOR BOTTLE HOLDER MFR # 168939007
27. #REINFORCING STRIP MFR # 2001585054
28. #REINFORCING STRIP HORIZONTAL RM45A MFR # 2001586029
29. #DOOR PLATE, INSULATED MFR # 2002250013
30. #FRAME, DOOR HORIZONTAL LOWER MFR # 2002340012
31. #SCREW MFR # 7295279652
32. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
33. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description

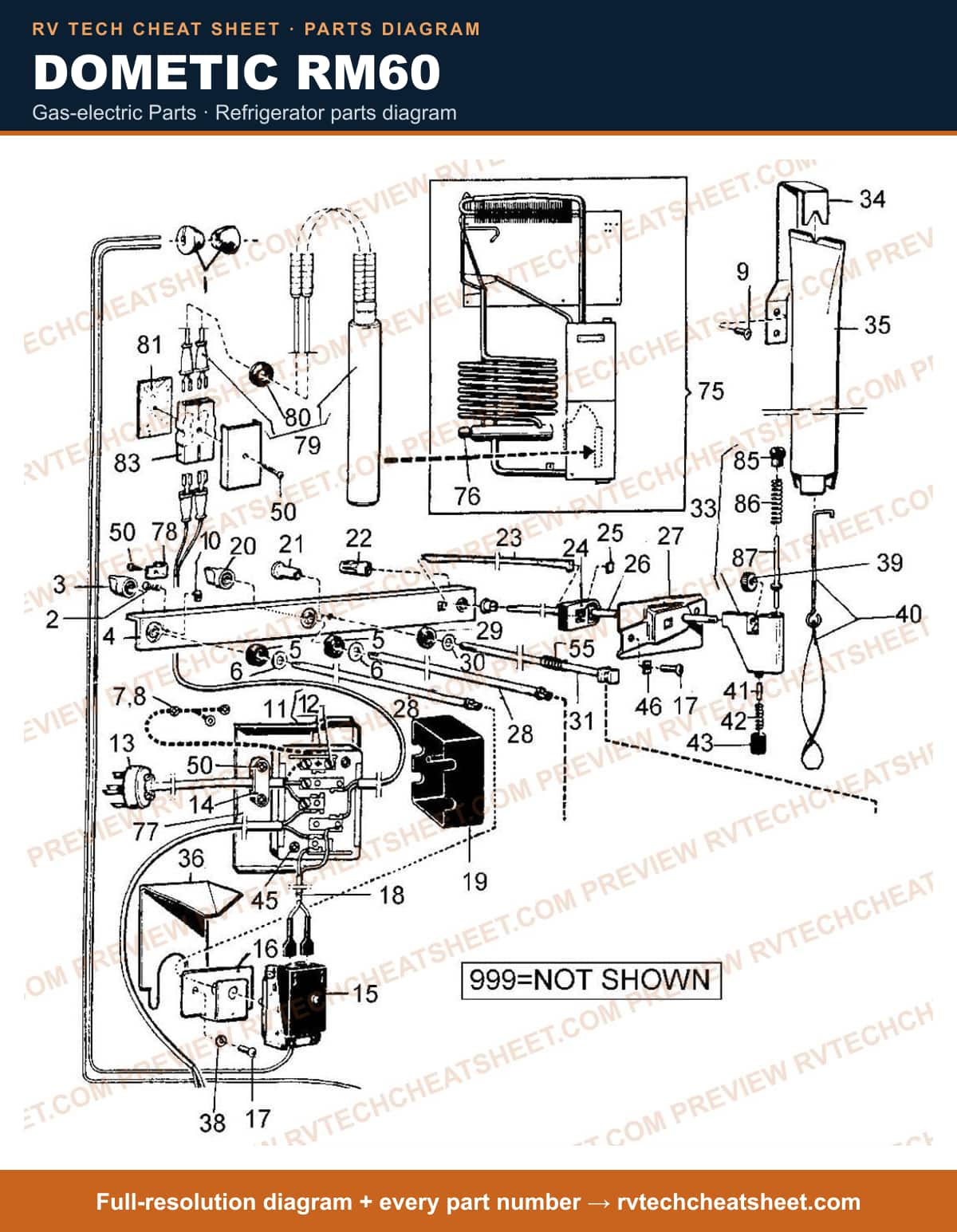

Gas-electric Parts

Components

68 items

1. #SCREW MFR # 7295281658
2. #Appliance Components RV; Knob Electric T-Stat; White Knob with Gray Writing MFR # 2002423016
3. #Panel, Control MFR # 2002228001
4. #SEALING RING MFR # 2002224018
5. #WASHER RM36E MFR # 7344974014
6. #SCREWS RM10 0 MFR # 7241328017
7. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
8. #Screw, LKXS B6X8, Z. PL. MFR # 7295277516
9. #Lock Nut SNJ 1915 MFR # 7331813062
10. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
11. #Screw, KCS 3.5X5, N1. PL. MFR # 7232250030
12. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
13. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
14. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
15. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
16. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
17. #T-STAT, ELECTRIC MFR # 2890032010
18. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
19. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
20. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
21. #BRACKET T-STAT MFR # 2890034008
22. #SCREW #17 MFR # 7241289011
23. #CABLE, COMPLETE FOR THERMOSTAT MFR # 173193020D
24. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
25. #Refrigerator Control Knob; Replacement For Dometic RM75/ RM36/ RM45A; Thermostat Control Knob; White MFR # 2002423008
26. #Knob, Pull Orange MFR # 2002426001
27. #Appliance Components RV; Knob Turn Lighter MFR # 2002425003
28. #CONDUCTOR, LIGHT MFR # 2002222004
29. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
30. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
31. #SHAFT, LIGHTER RM45 -60 MFR # 2890019009
32. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
33. #APPLIANCE COMPONENTS RV; Shaft 15" MFR # 2002300008
34. #RING,SEALING MFR # 2002224000
35. #WASHER RM66 MFR # 7344908012
36. #APPLIANCE COMPONENTS RV; Rod Pull 4-6 Cubic Feet MFR # 2002226005
37. #Igniter Striker MFR # 944023001
38. #Support For Flue MFR # 2890027002
39. #FLUE TOP MFR # 2890026012
40. #PROTECTION PLATE MFR # 2002445001
41. #SPRING WASHER MFR # 7351136010
42. #Appliance Components RV; Wheel Igniter Knurled MFR # 2890016005
43. #Baffle, Flue MFR # 2890028000
44. #FLINT MFR # 270127004
45. #SPRING MFR # 2890018001
46. #Refrigerator Evaporator Door Spring Holder; Use With Dometic Refrigerator Model RM45 MFR # 2890008002 Superseded: see description
47. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
48. #WASHER MFR # 2002351001
49. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
50. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
51. #SCREW MFR # 7298285402
52. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
53. #COOLING UNIT MFR # 9283514009
54. #REMAN COOLING UNITS RM67 R&R (UPS) MFR # 9283514009R
55. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
56. #Fastening Plate MFR # 2002447007
57. #N/A MFR # 271020000
58. #Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034
59. #ELEMENT, HEATING USE 45-4030 MFR # 173709007 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Element Heating 150W/110V; WHEN INVENTORY IS DEPLETED, ORDER ALTERNATE P# CS000017 MFR # 173713017
61. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description
62. #APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009
63. #ELEMENT, HEATING 150W/110V 2WIRE 11/16 X 4 3/4; SUGGESTED ALTERNATE FOR DOMETIC: NOT A DOMETIC ORIGINAL MFR # CS000017
64. #BUSHING MFR # 149585010
65. #NO PART # GIVEN BY VENDOR MFR # NPG
66. #Bushing for Guide Pin MFR # 2890022003
67. #Spring for Guide Pin RM36 MFR # 2890021005
68. #N/A Guide Pin for Lighter MFR # 2890020007

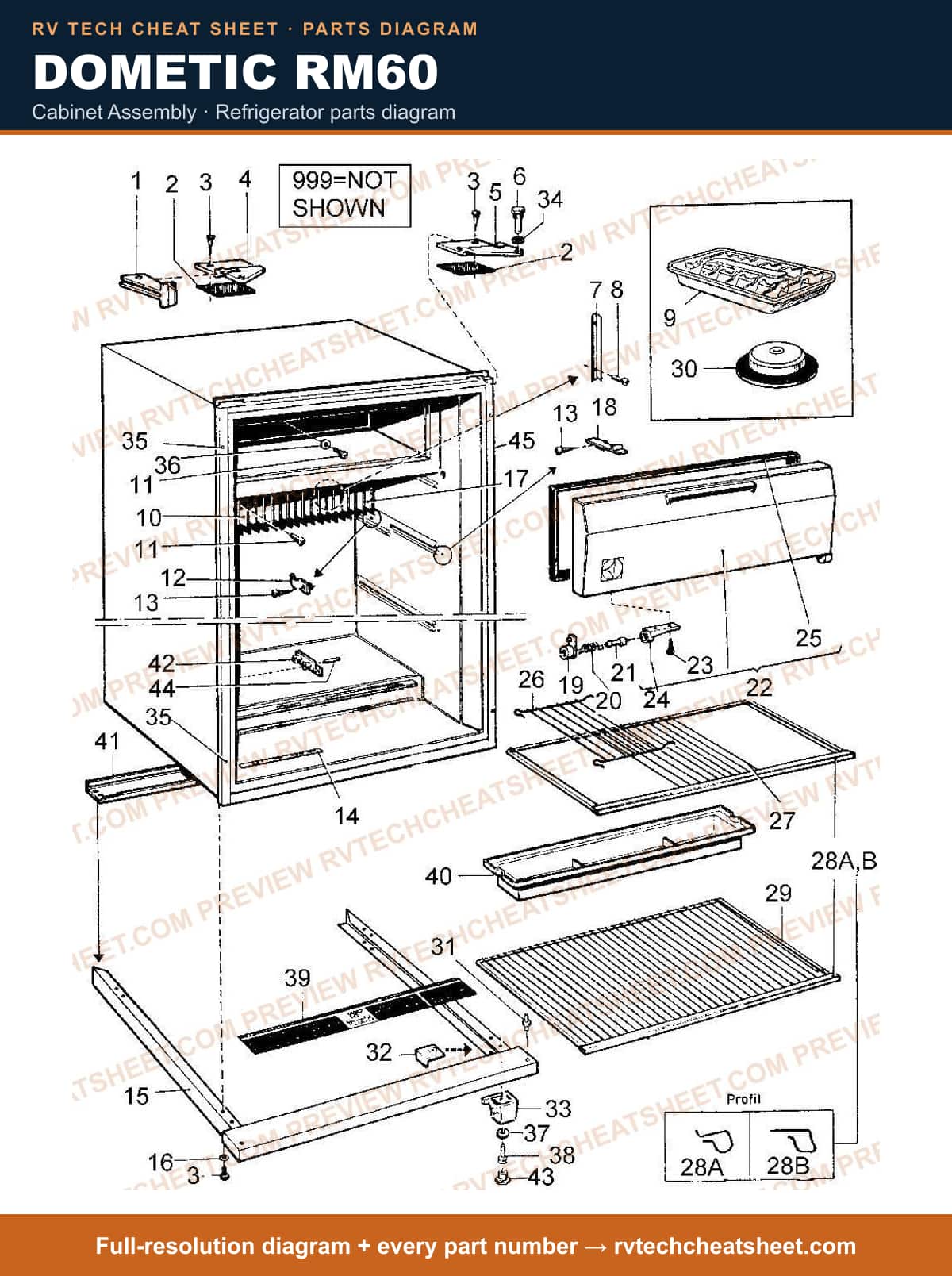

Cabinet Assembly

Components

57 items

1. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005
2. #SPACER MFR # 2002266019
3. #SCREW, RX 5X10 Z. PL. MFR # 7241325013
4. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002350011
5. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003
6. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
7. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
8. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
9. #TRAY,ICE W/RELEASER MFR # 2002337000
10. #RADIATOR FLANGE MFR # 2002298004
11. #SCREW, RXS 5X16, STAINLESS (LATER VERSION) MFR # 7291329403
12. #SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402
13. #SNAP SPRING MFR # 2000547006
14. #SCREW MFR # 7295281658
15. #WARNING LABEL MFR # 2002235006
16. #CABINET BASE MFR # 2002393011
17. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
18. #RADIATOR FLANGE, RH MFR # 2002299002
19. #STOP,SHELF MFR # 2002635007
20. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
21. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
22. #Spring, Freezer Door RH MFR # 2002237010
23. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
24. #DOOR,FREEZER USE 2002239271 BROWN MFR # 2002239032 Superseded: see description
25. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
26. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
27. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
28. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
29. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
30. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
31. #FLAP MFR # 2001659016
32. #SHELF MFR # 2002651137
33. #N/A DECORATION STRIP MFR # 2002479026
34. #N/A MFR # 2002398028
35. #SHELF,LOWER USE 2002652226 MFR # 2002652002 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
37. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
38. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
39. #LEVEL USE 2007645019 MFR # 2002875009 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
41. #WASHER MFR # 2002389001
42. #APPLIANCE COMPONENTS RV; S, FOOT, LEVELING MFR # 2004003006
43. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
44. #PLUG, FACE WHITE MFR # 2002352009
45. #WASHER, 5.2X15X1, STAINLESS MFR # 7344885400
46. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
47. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
48. #SCREW, RX5X12, Z. PL. MFR # 7241327019
49. #N/A PLATE, INSTRUCTION MFR # 2002234009
50. #TRAY,DRIP WHITE MFR # 2000919056
51. #TRAY,DRIP MFR # 2000919023
52. #PLATE,PROTECTION MFR # 2002625016
53. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
54. #INSULATION MFR # 2004013005
55. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
56. #PIN,RETAINING MFR # 2001281019
57. #FACE, FRONT BEIGE MFR # 2002346118

Replacement Refrigerator

Components

11 items

1. #REFER, 5.5 CUFT USE N5103URN 3-WAY MFR # N5003N Superseded: see description
2. #REFER,5.5CU FT USE N510URN 2-WAY MFR # N500N Superseded: see description
3. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510UR
4. #Refrigerator Model MFR # RM60A
5. #REFER, 4.3CUFT USE N510URN; 43 1/4H X 23 1/2W X 24D 2-WAY. MFR # 6052N Superseded: see description
6. #PANEL, WOODGRAIN, USE N510G F/N510UR MFR # N510URG Superseded: see description
7. #Refrigerator Door Panel; Fits Norcold Refrigerator N510 Series; Woodgrain MFR # N510G
8. #39 3\16 X 21 7\8 X 23 5\8 MFR # RM60
9. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
10. #REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R
11. #REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N

Gas-electric Parts II

Components

61 items

1. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
2. #SCREW #17 MFR # 7241289011
3. #SCREW, RX 5X10, Z.PL. MFR # 72413525001
4. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
5. #SPRING WASHER MFR # 7351136010
6. #IGNITER, SPARK MFR # 2890030010
7. #COVER MFR # 173101007
8. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
9. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
10. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
11. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
12. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
13. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
14. #Screw MFR # 7295340017
15. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
16. #T-STAT, GAS MFR # V35P0111013
17. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
18. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
19. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
20. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
21. #THERMOCOUPLE, 18" MFR # 169372002MC
22. #THERMOCOUPLE MFR # 169372000MC
23. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
24. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
25. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
26. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
27. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
28. #QUICK CHECK MFR # 423
29. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
30. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
31. #VALVE, SAFETY MFR # 293165
32. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
33. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
34. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
35. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
36. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
37. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
38. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
39. #LID MFR # 2890053008
40. #SPACER SLEEVE MFR # 173344011
41. #SPACER NUT MFR # 170827000
42. #TUBE, BURNER MFR # 2890010008
43. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
44. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
45. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
46. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
47. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
48. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
49. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009
51. #NUT, UNION FEMALE MFR # 2902553003
52. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
53. #Orifice, #51 Use 2002660187 MFR # 2002660179 Superseded: see description
54. #ORIFICE, #52 MFR # 2002660187
55. #HOLDER, VALVE BRACKET MFR # 2890033000
56. #BRACKET MFR # 2002469001
57. #SCREW, RX 4X8, Z. PL. MFR # 7241287015
58. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
59. #TAB CONNECTOR, ANGLE MFR # 7604855002
60. #BRACKET,BURNER MFR # 2002493001
61. #COVER, BURNER MFR # 2002476014
