Dometic RM66 Model RM66 Parts Diagram · Door Assembly

Refrigerator · 4 assemblies · 4 diagram sheets · 225 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM66 Model RM66 RV refrigerator: 4 assemblies (Door Assembly, Replacement Refrigerator, Gas & Electric Parts, Cabinet Assembly) and 225 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

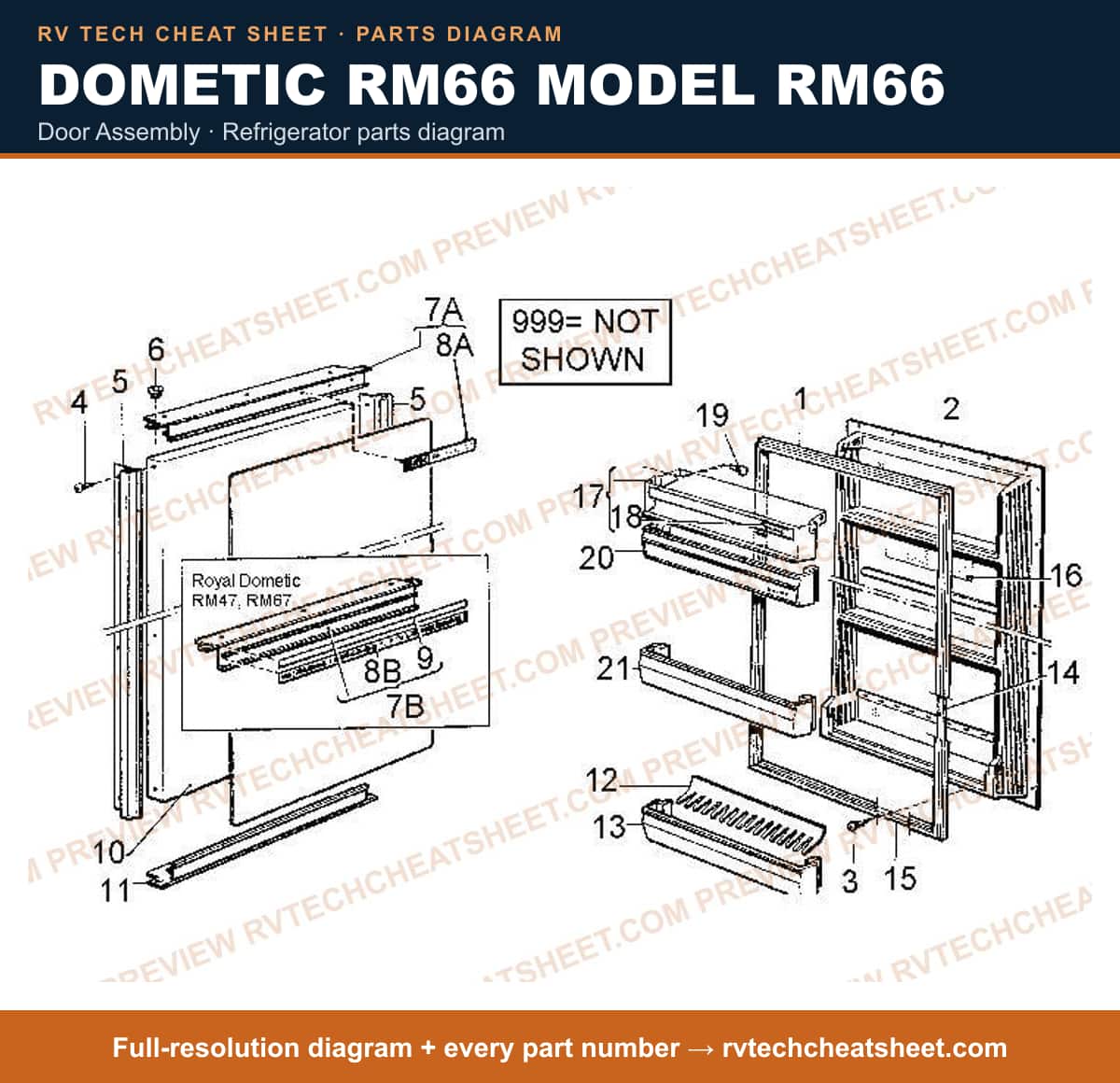

Door Assembly

Components

24 items

1. #APPLIANCE COMPONENTS RV; Gasket Doorscrew-In 21 1/ MFR # 2001111067
2. #DOOR LINER MFR # 2002379093
3. #SCREW MFR # 7295279652
4. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
5. #DOOR FRAME, ANODIZED ALUMINUM-GOLD MFR # 2002342083
6. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
7. #DOOR FRAME, COMPLETE ANODIZED ALUM. MFR # 2002343107
8. #NAME PLATE (GAS/ELECTRIC DOMETIC) MFR # 2002708002
9. #DOOR PLATE, INSULATED MFR # 2002250013
10. #FRAME, DOOR HORIZONTAL LOWER MFR # 2002340012
11. #APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007
12. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
13. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
14. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
15. #REINFORCING STRIP MFR # 2001585054
16. #REINFORCING STRIP HORIZONTAL RM45A MFR # 2001586029
17. #LABEL, INSTRUCTION MFR # 2002356000
18. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
20. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
21. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
22. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
23. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
24. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description

Replacement Refrigerator

Components

7 items

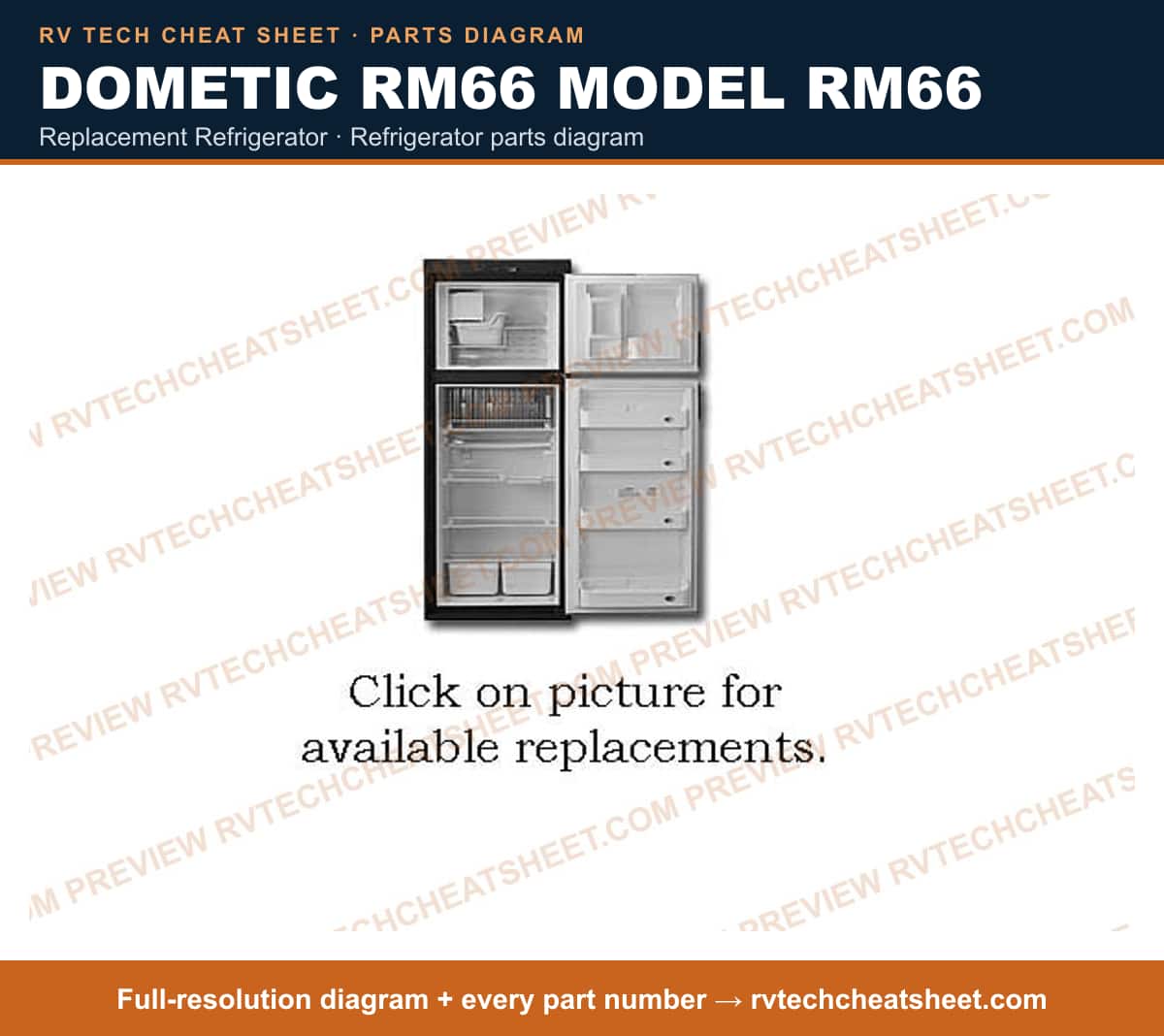

1. #REFER 38 13/16 21 9/16 24 7/8 MFR # RM66N
2. #Refrigerator Door Panel; Fits Norcold Refrigerator N510 Series; Woodgrain MFR # N510G
3. #REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R
4. #REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description
5. #Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U
6. #REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N
7. #PANEL, WOODGRAIN, USE N510G F/N510UR MFR # N510URG Superseded: see description

Gas & Electric Parts

Components

121 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #TURN PROTECTION MFR # 2002766000
3. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
4. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
5. #SCREW MFR # 7298285402
6. #SEALING RING MFR # 2002224018
7. #WASHER RM36E MFR # 7344974014
8. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
9. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
10. #SCREW RXS B6X5 MFR # 7295275015
11. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
12. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
13. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
14. #BOX, FLUE MFR # 2002472005
15. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
16. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
17. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
18. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
19. #BRACKET T-STAT MFR # 2890034008
20. #SCREW #17 MFR # 7241289011
21. #CABLE F/T-STAT MFR # 173193020
22. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
23. #TAB CONNECTOR, ANGLE MFR # 7604855002
24. #CONNECTION BLOCK MFR # 2400297004
25. #SCREWS RM10 0 MFR # 7241328017
26. #CONDUCTOR, LIGHT MFR # 2002222004
27. #Igniter; Use On Dometic Refrigerators; Piezo Spark MFR # 2002609036MC Superseded: see description
28. #LIGHTER,PIEZO ALT 2002609036MC MFR # 2002609036
29. #PIEZO LIGHTER MFR # 440
30. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
31. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
32. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
33. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
35. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
36. #APPLIANCE COMPONENTS RV; Shaft 15" MFR # 2002300008
37. #RING,SEALING MFR # 2002224000
38. #WASHER RM66 MFR # 7344908012
39. #APPLIANCE COMPONENTS RV; Rod Pull 4-6 Cubic Feet MFR # 2002226005
40. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
42. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
43. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM4; 110/12 Volt; 135 Watts MFR # 173708009MC Superseded: see description
44. #Element, Heating 135W 110/12V 3WR 11/16 X 4 3/4 MFR # CS000034
45. #ELEMENT, HEATING USE 45-4030 MFR # 173709007 Superseded: see description
46. #ELEMENT, HEATING 150W/110V 2WIRE 11/16 X 4 3/4; SUGGESTED ALTERNATE FOR DOMETIC: NOT A DOMETIC ORIGINAL MFR # CS000017
47. #APPLIANCE COMPONENTS RV; Element Heating Alts Ava MFR # 173708009
48. #APPLIANCE COMPONENTS RV; Element Heating 150W/110V; WHEN INVENTORY IS DEPLETED, ORDER ALTERNATE P# CS000017 MFR # 173713017
49. #BUSHING MFR # 149585010
50. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
51. #PROTECTION PLATE MFR # 2002445001
52. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
53. #SPRING WASHER MFR # 7351136010
54. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
55. #SWITCH, CONTROL 3-WAY MFR # 2002681027
56. #SWITCH 2 WAY RM46-66 MFR # 2002670020
57. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
58. #COVER MFR # 173101007
59. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
60. #SWITCH ASM 3 WAY MFR # 2007176007
61. #SEALING RING MFR # 7356819115
62. #WASHER MFR # 2002351001
63. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
64. #INSULATION - NLA MFR # 2002442008
65. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
66. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
67. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
68. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
69. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
70. #Baffle, Flue MFR # 2890028000
71. #Screw MFR # 7295340017
72. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
73. #T-STAT, GAS MFR # V35P0111013
74. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
75. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
76. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
77. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
78. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
79. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
80. #QUICK CHECK MFR # 423
81. #THERMOCOUPLE MFR # 169372000MC
82. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
83. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
84. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
85. #THERMOCOUPLE, 18" MFR # 169372002MC
86. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
87. #VALVE, SAFETY MFR # 293165
88. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
89. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
90. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
91. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
92. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
93. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
94. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
95. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
96. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
97. #LID MFR # 2890053008
98. #SPACER SLEEVE MFR # 173344011
99. #SPACER NUT MFR # 170827000
100. #TUBE, BURNER MFR # 2890010008
101. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
102. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
103. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
104. #CONNECTION PIECE MFR # 2002479009
105. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
106. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
107. #APPLIANCE COMPONENTS RV; Line Gas Inlet MFR # 2890024009
108. #NUT, UNION FEMALE MFR # 2902553003
109. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
110. #ORIFICE, #52 MFR # 2002660187
111. #BRACKET MFR # 2002469001
112. #COVER, BURNER MFR # 2002476014
113. #COOLING UNIT RM66 32LBS. MFR # 9283521004N
114. #REMAN COOLING UNIT RM66 (UPS) MFR # 9283521004R
115. #COOLING UNIT MFR # 9283521004
116. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
117. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
118. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
119. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
120. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
121. #BRACKET,BURNER MFR # 2002493001

Cabinet Assembly

Components

75 items

1. #S,LOCK PIN MFR # 2002759005
2. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005
3. #SPACER MFR # 2002266019
4. #SCREWS RM10 0 MFR # 7241328017
5. #PIN,RETAINING MFR # 2001281019
6. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
7. #HOLDER MFR # 2002796007
8. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
9. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
10. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
11. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
12. #RADIATOR FLANGE, RH, HGT 150MM (C.5-7/8") MFR # 2002756001
13. #RADIATOR FLANGE, RH MFR # 2002299002
14. #RADIATOR FLANGE, LH, HGT. 150MM (C.5-7/8") MFR # 2002755003
15. #RADIATOR FLANGE MFR # 2002298004
16. #SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402
17. #SNAP SPRING MFR # 2000547006
18. #SCREW MFR # 7295281658
19. #WARNING LABEL MFR # 2007048008
20. #CABINET BASE MFR # 2002533087
21. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
22. #TRAY,ICE W/RELEASER MFR # 2002337000
23. #STOP,SHELF MFR # 2002635007
24. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
25. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
26. #Spring, Freezer Door RH MFR # 2002237010
27. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
28. #DOOR,FREEZER WHITE MFR # 2002239263
29. #DOOR, FREEZER USE 45-5219 WHITE MFR # 2002239008 Superseded: see description
30. #DOOR,FREEZER USE 2002239271 BROWN MFR # 2002239032 Superseded: see description
31. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
32. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
34. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
35. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
36. #WIRE SHELF RM4-6'S MFR # 2002651103
37. #SHELF MFR # 2002651137
38. #FLAP MFR # 2001659016
39. #N/A DECORATION STRIP MFR # 2002479026
40. #SHELF,LOWER USE 2002652226 MFR # 2002652002 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
42. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
43. #LEVEL USE 2007645019 MFR # 2002875009 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
45. #PLATE,PROTECTION MFR # 2002625016
46. #TRAY,DRIP WHITE MFR # 2000919056
47. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
48. #APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017
49. #PLUG, FACE WHITE MFR # 2002352009
50. #WASHER, 5.4, STAINLESS MFR # 7344890400
51. #INSTRUCTION PLATE MFR # 2007008010
52. #KNOB,LIGHTER YELLOW MFR # 2002724009
53. #KNOB,PIEZO MFR # 2002669006
54. #APPLIANCE COMPONENTS RV; Knob Pull Off MFR # 3002168031
55. #KNOB USE 3002168031 MFR # 2002722003 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027
57. #KNOB,T-STAT GAS USE 2002423024 YELLOW MFR # 2002725022 Superseded: see description
58. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
59. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
60. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
61. #KNOB, SWITCH *USE 2002423057 3W YEL MFR # 2002725055 Superseded: see description
62. #S,KNOB 3-W SWITCH,BRN/BLK MFR # 2002423057
63. #KNOB,SWITCH USE 2002423040 2W MFR # 2002725048 Superseded: see description
64. #KNOB,ELECTRIC USE 2002423032 T-STAT YELLOW MFR # 2002725030 Superseded: see description
65. #PANEL,CONTROL YELLOW MFR # 2002664056
66. #PANEL,CONTROL YELLOW MFR # 2002664007
67. #LOCK NUT SNJ 1915 MFR # 7337813062
68. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
69. #CRISPER MFR # 2000577011
70. #LID, CRISPER M70 RM7 MFR # 2000579009
71. #FITTING LAMP COMPLETE MFR # 2002751002
72. #LAMP,6 VOLT MFR # 140315003
73. #LAMP,GLASS MFR # 2002748008
74. #PLUG MFR # 2007097005
75. #BRACKET MFR # D7E2002749006
