Diagrams › Dometic › RM661 Dometic RM661 Parts Diagram · Cabinet Assembly
Refrigerator · 4 assemblies · 4 diagram sheets · 239 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM661 RV refrigerator: 4 assemblies (Cabinet Assembly, Gas-electric Parts, Refrigerator Replacement, Door Assembly) and 239 manufacturer part numbers. 71 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Cabinet Assembly

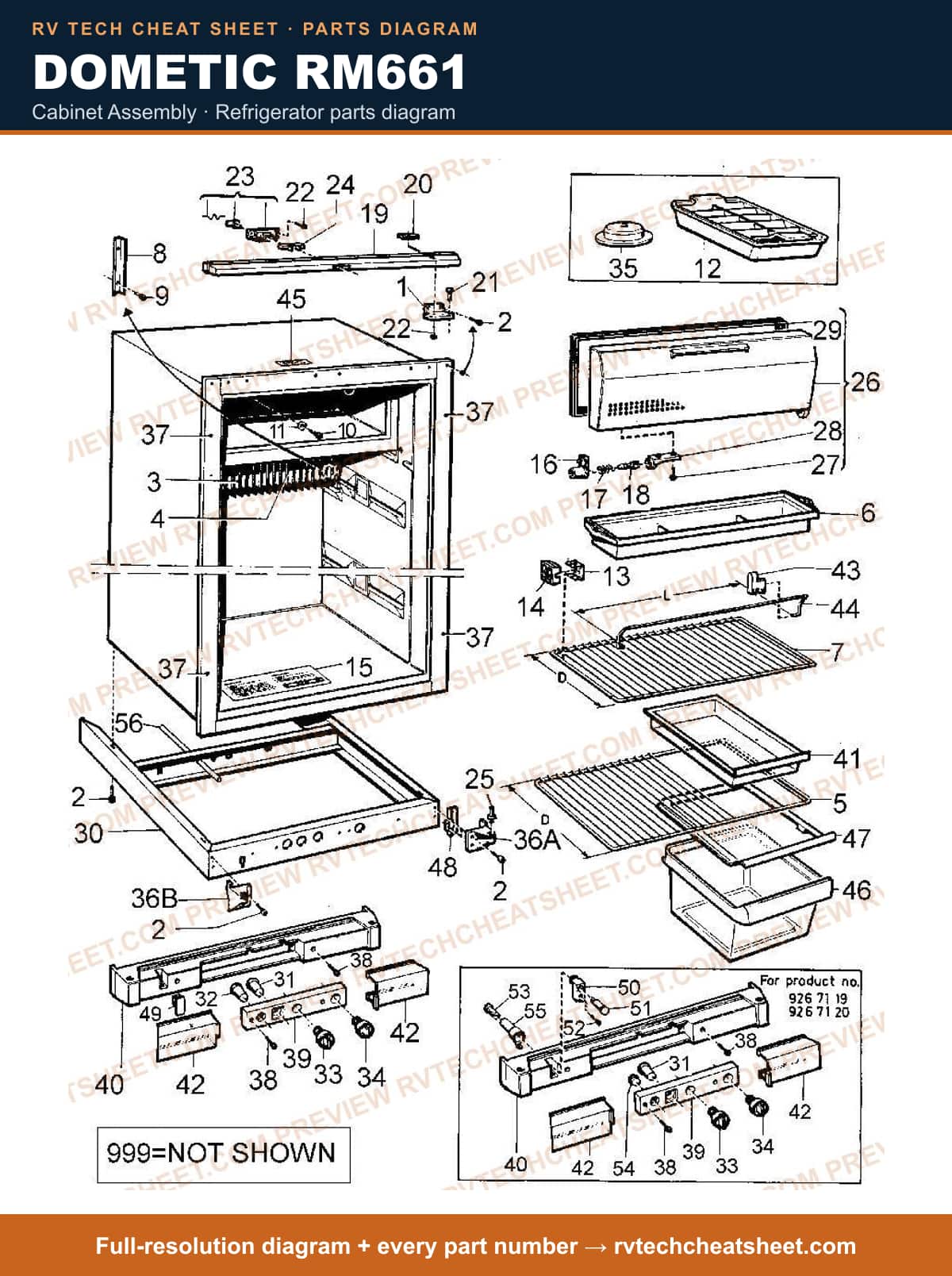

Dometic RM661 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 93 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # FLANGE, COOLING MFR # 2007558006 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Shelf, 763 (use MFR# 2930133067) MFR # 2002650063 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description # SHELF, WIRE USE 2002652242 MDL#660 9.5" DEEP MFR # 2002652150 Superseded: see description # SHELF, 9.5" X 17 7/8" MFR # 2002652242 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # APPLIANCE COMPONENTS RV; Screw MFR # 7295344407 # SCREW USE 7295344407 MFR # 7295344118 Superseded: see description # WASHER MFR # 7344888206 # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Instruction Plate MFR # 2007690007 # INSTRUCTION PLATE MFR # 2007693001 # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Spring, Freezer Door RH MFR # 2002237010 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # DECORATION, FRONT MFR # 2007545037 # APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005 # Pin, Hinge MFR # 2007271006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # SCREW USE 7295281401 MFR # 7295281013 Superseded: see description # LATCH USE 2007546027 MFR # 2007546019 Superseded: see description # APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027 # KEY USE 2930135021 MFR # 2930135005 Superseded: see description # APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description # DOOR,FREEZER USE 45-5220 MFR # 2002239214 Superseded: see description # DOOR,FREEZER USE45-5220 BROWN MFR # 2002239123 # S,LID,FRZ,RM2510 MFR # 2002239289 # Door, Freezer; Use STAG# 45-5220; Is a use # for MFR# 2002239123, MFR# 2002239214 MFR # 2002239180 Superseded: see description # APPLIANCE COMPONENTS RV; Screw MFR # 7295286657 # SCREW USE 7295286657 MFR # 7295285659 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # Refrigerator Gasket; Replacement For Dometic RM660/ RM661/ RM2510/ RM663/ RM2501/ RM3500/ RM3501/ RM2500 Series Refrigerators Cabinet Assembly; 7-1/4 Inch Width x 17 Inch Height MFR # 2000917027 # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # BUTTON, PUSH MFR # 2007479013 # Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094 # Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description # Appliance Components RV; Knob Selector 115V MFR # 2007480029 # Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177 # KNOB, SELECTOR MFR # 2007480011 # APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000 # APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW MFR # 7298285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # Base Front W/Reigniter MFR # 2007461102 # Base Front; Use MFR# 2930591090 & 2930557000 MFR # 2007461094 Superseded: see description # Retainer, Lamp MFR # 2930557000 # BASE FRONT RM24 00, 2500 MFR # 2930591090 # APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049 # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # LABEL MFR # 2007688001 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description # APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028 # Plate, Sealing MFR # 2930074006 # Appliance Components RV; Plug Grey/Brown MFR # 2930083031 # Plug Use 2930083031 MFR # 2930083023 Superseded: see description # Appliance Components RV; Socket Lamp MFR # 2007674001 # Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # SCREW MFR # 7295231018 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # Plug, Grey/Brown MFR # 2007662022 # Plug, Beige Use 2007662022 MFR # 2007662014 Superseded: see description # Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003 # Hose, Protecting MFR # 2007349026 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
Gas-electric Parts
Dometic RM661 gas-electric parts — parts list sheet Full-resolution diagram + every part number →
Components 114 items # Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # S,THERMOCOUPLE-232MM MFR # 2931496042 # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # PLUG MFR # 2001192000 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SCREW - RXS B8X13 - Z. PL. MFR # 7295342013 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # SWITCH, SELECTOR MFR # 2007664002 # Appliance Components RV; Cover Switch MFR # 2007439009 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # SCREW, RX 4X8, Z. PL. MFR # 7241287015 # TAB CONNECTOR MFR # 7602896701 # SADDLE CLIP MFR # 561014014 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW MFR # 7298285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Igniter, Piezo MFR # 2007423003 # IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # SCREW MFR # 7295231018 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Screw - RXS B4X6 - NI. PL. MFR # 7295221118 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Catch, Snap Use 2930071010 MFR # 2007454008 Superseded: see description # Burner Use 2007503036 MFR # 2007503028 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038 # APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # 3858022019 MFR # 3858022019 # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183 # Refrigerator Burner Orifice; Replacement For Dometic RM2510/ RM2452/ RM2453/ RM2554/ RM2551/ RM2451/ RM2454 Series Refrigerators; #43 MFR # 2007419167 # SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # SCREW #17 MFR # 7241289011 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # S,BAFFLE ASM,551.5MM MFR # 2007590017 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # Reman C/U Use 9283609007R RM660/663 RM2500 MFR # 2934360096R Superseded: see description # Refrigerator Cooling Unit; Replacement For Dometic RM663/ RM660/ RM2500 Model Refrigerators MFR # 2934360096N # REMAN C/U USE 9283609007R RM660/663 RM2500 MFR # 9283609007R Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2500/ RM2501/ RM660/ RM661/ RM663 Model Refrigerators; Steel Tubing MFR # 5525 Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Igniter Electrode; Replacement For Dometic RM661/ RM2453/ RM2453/ RM2553 Refrigerators; 175 Watt; 12 Volt; Dual Electrode MFR # 173739012 # SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#0173738014. SINCE THIS IS NOT AN ORIGINAL PART, I... MFR # 173738014MC # ELEMENT,HEATING 175W/115V 2WIRE 3/8 X 5 SUGGESTED ALTERNATE F/DOMETIC THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173738014. MFR # CH000020 # APPLIANCE COMPONENTS RV; Element Heating Alt Avail ALTERNATES AVAILABLE: 173738014MC OR CH000020 MFR # 173738014 # Element, Heating 175W/12V 1Wire 3/8 x 5 MFR # CH000186 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description # CHANNEL MFR # 2007588011 # FLUE TOP MFR # 2007598011 # PLATE,12V MFR # 2007686005 # LABEL, IMPORTANT MFR # 2007689009 # Protection Hose MFR # 2007069046 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # APPLIANCE COMPONENTS RV; Plate Sign MFR # 2007574011 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # Lead for 12V MFR # 2007453000 # APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009 # PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description # Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005 # APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008 # Appliance Components RV; Retainer MFR # 2007424001
Refrigerator Replacement

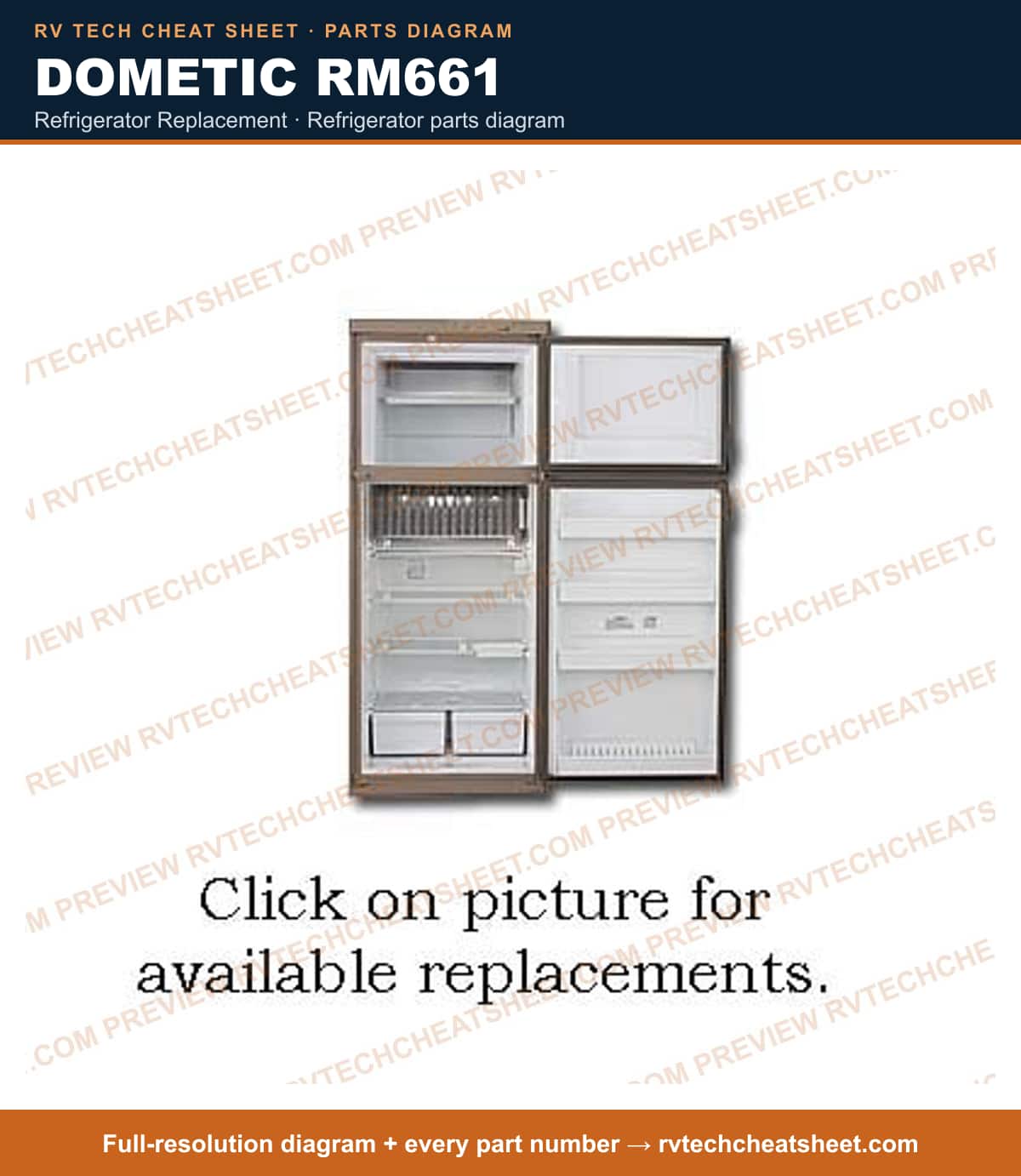

Dometic RM661 refrigerator replacement — parts list sheet Full-resolution diagram + every part number →
Components 12 items # REFER, 5.5 CU FT 2WAY USE N510U 42 5/8H X 23 11/16W X 24D MFR # N510URN Superseded: see description # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Left Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N5103UL # REFER, 5 CU FT 2 WAY 40 5/16"H X 21 13/16"W X 24" MFR # RM25102N # REFER 5 CF, 2 WAY, TAUPE, 40 5/16" X 21 13/16" X 24" MFR # RM25102R # REFER, 4.3 CU FT USE N5103U; 3 WAY 43 1/4H X 23 1/2W X 24D. MFR # 6053N Superseded: see description # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC/ 14.2 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N5103UR # REFER, 4.3CUFT USE N510URN; 43 1/4H X 23 1/2W X 24D 2-WAY. MFR # 6052N Superseded: see description # Refrigerator; Dual Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 5.5 Cubic Foot; 23-11/16 Inch Width x 24 Inch Depth x 42-5/8 Inch Height; 2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N510U # Refrigerator Door Panel; Fits Norcold Refrigerator N510 Series; Woodgrain MFR # N510G # REFER, 5.5 CUFT. USE N5103UR 42 5/8H X 23 11/16W X 24D MFR # N5103U Superseded: see description # PANEL, WOODGRAIN, USE N510G F/N510UR MFR # N510URG Superseded: see description # REFER,5.5CU FT USE N510URN 2-WAY MFR # N500N Superseded: see description
Door Assembly

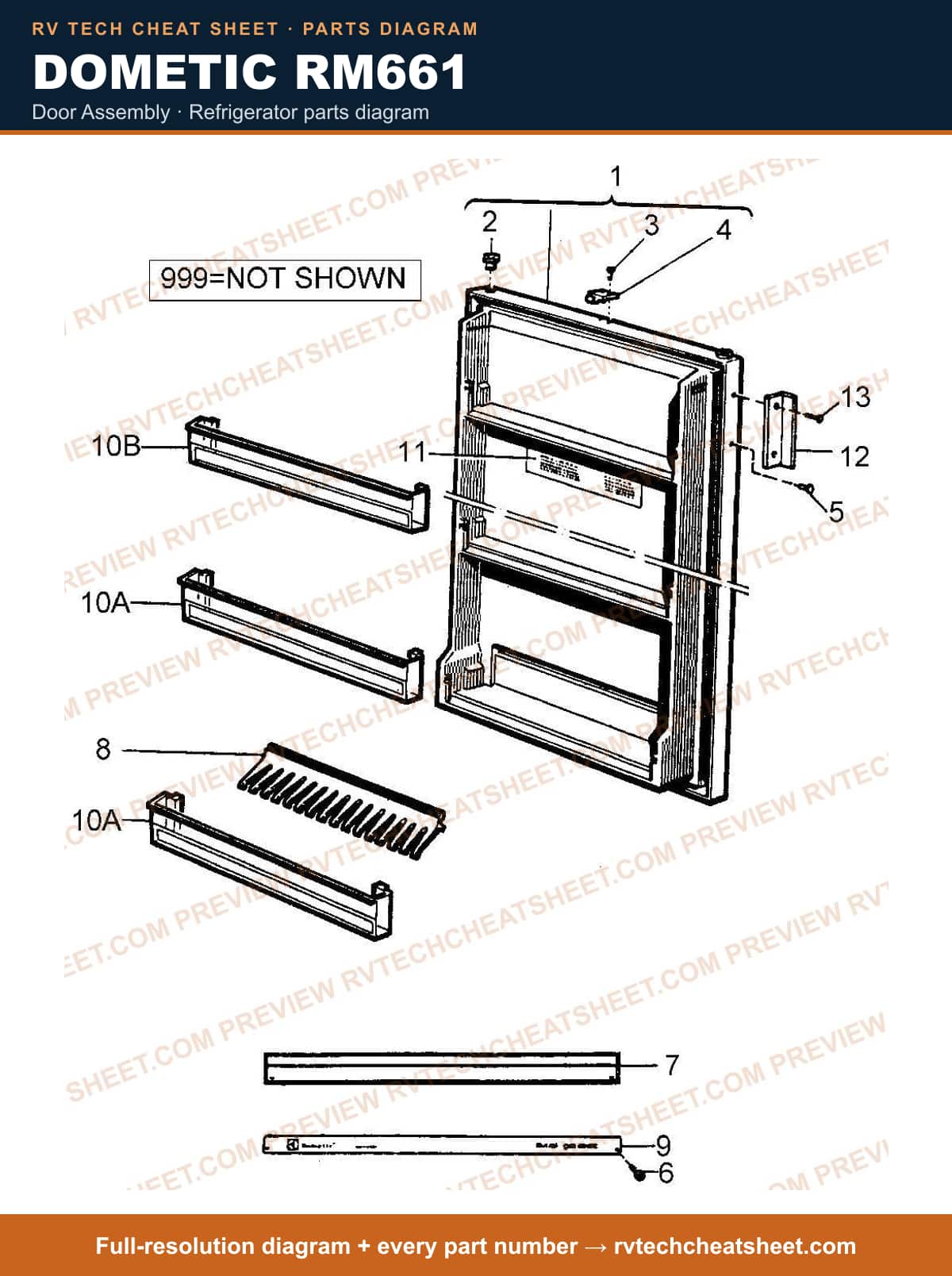

Dometic RM661 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 27 items # APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103692004 # APPLIANCE COMPONENTS RV; Door RM2501 MFR # 2930923137 # DOOR, MAIN USE 2930923137 MFR # 2930923111 Superseded: see description # DOOR,MAIN USE 2930923137 N MFR # 2930126079 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # RIVET, POP MFR # 7227835027 # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # Plug Beige MFR # 20026460279 # Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description # PLUG, GREY USE 2006460055 MFR # 2006460071 Superseded: see description # Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # STRIP, DECORATION MFR # 2002675110 # HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # DECORATION STRIP "RM661" MFR # 2930137100 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER MFR # 2000571170 Superseded: see description # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # LABEL, INSTRUCTION MFR # 2002356000 # Appliance Components RV; Handle Door RM1303 MFR # 2930283003 # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
