Dometic RM7030 Product # 921890301 Parts Diagram · Cabinet Front View

Refrigerator · 8 assemblies · 8 diagram sheets · 254 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7030 Product # 921890301 RV refrigerator: 8 assemblies (Cabinet Front View, Replacement Refrigerator, Burner & Controls, Rear View - Icemaker, Doors and more) and 254 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Front View

Components

86 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #Refrigerator Door Panel Retainer; Replacement For Dometic RM7030 Model Refrigerator; Fits Upper Door MFR # 2931490011
5. #STRIP, DECORATION FRONT MFR # 2931463018
6. #APPLIANCE COMPONENTS RV; Decoration Upper Rh Cnr MFR # 2931462010
7. #DECORATION, UPPER LH CNR RM7030 MFR # 2931462028
8. #APPLIANCE COMPONENTS RV; Board Circuit 2-Way; UPPER PC BOARD 2 WAY FOR REFER WITH T-STAT FOR LOWER BOARD USE# 2931308023 FOR REFER WITH A T-STAT FOR A REFER WITH A THERMISTER USE PART# 2931906016 MFR # 2931309021 Superseded: see description
9. #PANEL, CONTROL UPPER 2/W RM 3604,3804; FOR 3 WAY USE 2931295014 MFR # 2931295022 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
11. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
12. #PLATE,MOUNTING LH MFR # 2931459016
13. #PLATE,MOUNTING RH MFR # 2931459024
14. #PIN, UPPER HINGE RM7030 MFR # 2931624015
15. #HINGE, LOWER RM7030 MFR # 2931458018
16. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
17. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
18. #S,COVER,NEA1402 MFR # 2931715011
19. #APPLIANCE COMPONENTS RV; Trim Bottom MFR # 2931464016
20. #COVER, LOWER FREEZER SIDE MFR # 2931488015
21. #PLATE, LOCKING F/LATCH RM7030 MFR # 2931716019
22. #COVER, LOCK 7030 MFR # 2931718015
23. #DECAL (2-WAY) MFR # 2931315002
24. #PLATE,ICE TRAY SHELTER MFR # 2931476010
25. #Shelf MFR # 2931477026
26. #APPLIANCE COMPONENTS RV; Shelf MFR # 2931477018
27. #Plate Lower Freezer Tube MFR # 2931478016
28. #SCREW MFR # 2801014016
29. #SCREW MFR # 2801015013
30. #SCREW MFR # 2801015021
31. #FREEZER UNIT MFR # 2931474015
32. #Refrigerator Shelf; Replacement For Dometic NDR1272/ RM1272/ RM7030 Model Refrigerators; Freezer Compartment MFR # 2931983023
33. #SHELF,FREEZER USE 2931983023 MFR # 2931983015 Superseded: see description
34. #SHELF,MIDDLE FREEZER RM70 30 MFR # 2931481010
35. #SHELF,FREEZER USE 2931477026 MFR # 2931482018 Superseded: see description
36. #Plate Cover MFR # 2931483016
37. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
38. #Drain Hose MFR # 2931579037
39. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
40. #Cooling Flange MFR # 2931661025
41. #Flange, Cooling use 2932761014 MFR # 2931661017 Superseded: see description
42. #Appliance Components RV; Decoration Upper Shelf MFR # 2005111402
43. #Appliance Components RV; Decoration Lower Shelf MFR # 2005111410
44. #Refrigerator Crisper Bin Cover; Use With Dometic Refrigerator Models RM7832/ RM7830 MFR # 2931117069 Superseded: see description
45. #Shelf, Wire MFR # 2931541011
46. #Appliance Components RV; Shelf Wire MFR # 2931541029
47. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM7832/ RM7130; Wire MFR # 2931541052 Superseded: see description
48. #Shelf use 2931541052 MFR # 2931541037 Superseded: see description
49. #Appliance Components RV; Shelf Wire White MFR # 2931542027
50. #Shelf, Milk use 2931542027 MFR # 2931542019 Superseded: see description
51. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
52. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
53. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
54. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
55. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
56. #Tray, Drip MFR # 2931663013
57. #COVER, LIGHT SWITCH MFR # 2004044109
58. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
59. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
60. #LEAD,DOOR SWITCH CPL RM7030 MFR # 2930735036
61. #APPLIANCE COMPONENTS RV; Knob T-Stat Rm7030 MFR # 2930625047
62. #CLIP, SPRING USE 2901183026 F/KNOB MFR # 163382005 Superseded: see description
63. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
64. #SWITCH, LAMP USE 4903055012 MFR # 2931049015 Superseded: see description
65. #Dometic 2-Way RM2193 Refrigerator Door Shelf MFR # 4903055012
66. #SHADE, LAMP MFR # 2004043002
67. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
68. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
69. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
70. #BULB 2/PK MFR # 2007290006
71. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
72. #Retainer, Shelf MFR # 2007337088
73. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
74. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
75. #INDEX,T-STAT MFR # 2001354030
76. #SCREW MFR # 7295283407
77. #Clamp MFR # 2002796003
78. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
79. #PIN,RETAINING MFR # 2001281019
80. #Refrigerator Thermostat Control Assembly; For Dometic RM7030 Refrigerator MFR # 2930814039
81. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
82. #S,RAIL,SHELF,164MM MFR # 2007337161
83. #Rack use 45-5658 MFR # 2007337096 Superseded: see description
84. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
85. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
86. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000

Replacement Refrigerator

Components

12 items

1. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
2. #Refer Use RM7732N 57 1/2 X 32 3/8 X 23 5/8 MFR # RM7030N Superseded: see description
3. #REFER,12 CU FT USE NDR1292BN 59 1/16" X 32 3/4" X 24" MFR # NDR1292N Superseded: see description
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK
5. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
6. #REFER USE NDR1292N 58 31/32"H X 32 11/16"W X 24"D MFR # RM7732N Superseded: see description
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841IMSSR
8. #REFER, 12 CU FT USE NDR1292BF 59 1/16" X 32 3/4" X 24" MFR # NDR1292BN Superseded: see description
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
10. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
11. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR

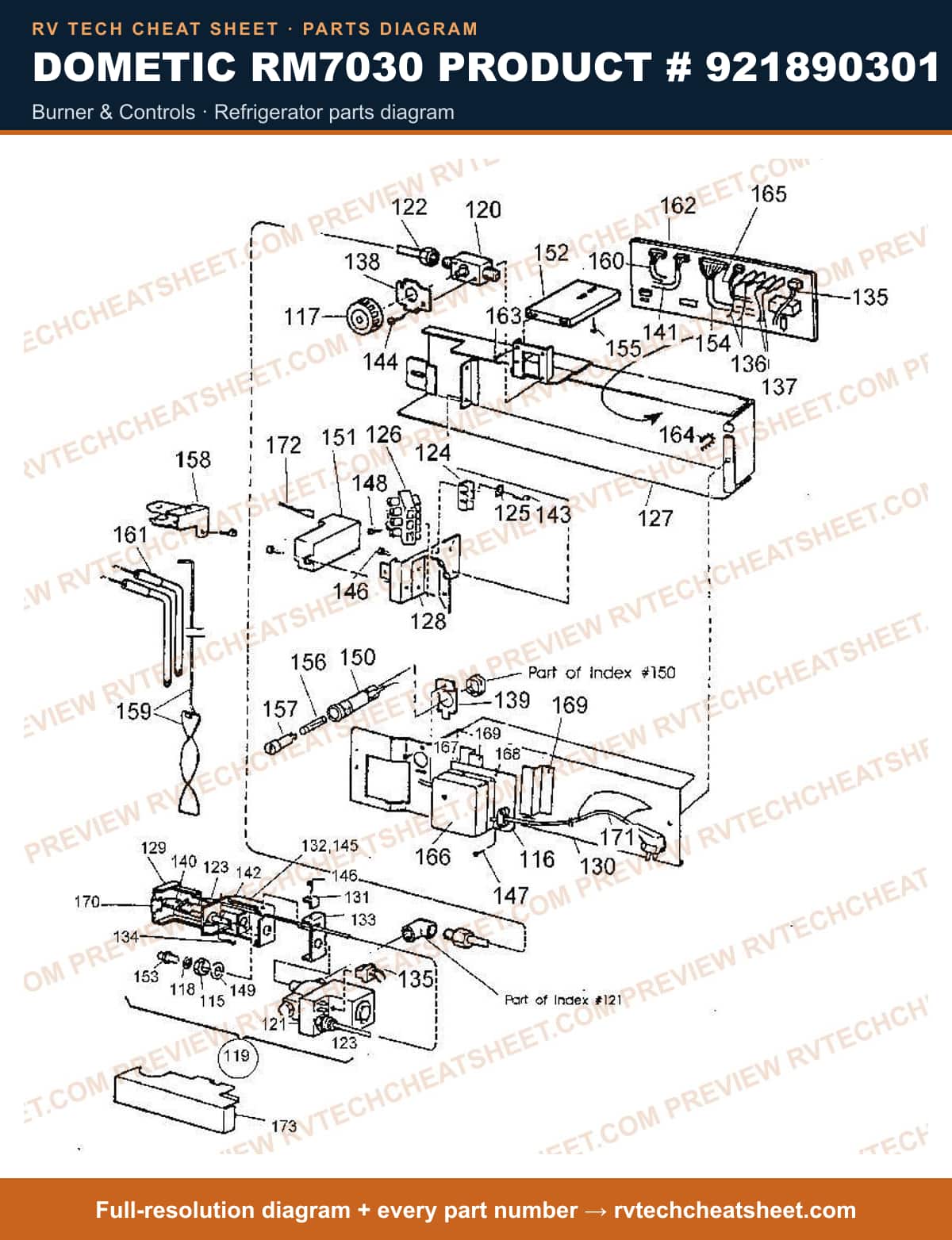

Burner & Controls

Components

78 items

1. #Nut MFR # 140107044
2. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
3. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
4. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
5. #SOLENOID/BURNER ASSM MFR # 2931491019
6. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
8. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
9. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Valve Kit Gas MFR # 3108705280
11. #TUBE, GAS MFR # 2931399014
12. #THERMOCOUPLE USE 2931496075 MFR # 2931496018 Superseded: see description
13. #THERMOCOUPLE USE 2931496042 MFR # 2931496075 Superseded: see description
14. #S,THERMOCOUPLE-232MM MFR # 2931496042
15. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
16. #STRIP, TERMINAL 6 POS. MFR # 2930327008
17. #Washer; Replacement For Dometic RM3500/ RM3600/ RM3604 Model Refrigerator MFR # 2930364001
18. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
19. #APPLIANCE COMPONENTS RV; Box Igniter MFR # 2931692012
20. #RETAINER MFR # 2930648015
21. #BURNER HOUSING MFR # 2931493015
22. #LID MFR # 2930653031
23. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
24. #RETAINER MFR # 2931494013
25. #DEVICE,GUINDING MFR # 2931400010
26. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
27. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
28. #Power Cord; Extension Cord For Use With RV Power Supply Cords; 2 Pin MFR # 2930728056 Superseded: see description
29. #AC LEADS, COMPLETE MFR # 2930772013
30. #HEATER LEADS, COMPLETE MFR # 2931695015
31. #APPLIANCE COMPONENTS RV; Protector Washer MFR # 2930811019
32. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
33. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
34. #Lead, Wire 2 Way RM3604/3804 6 Pin 5 Lead MFR # 2930799040
35. #ELECTRODE RM7030 MFR # 2931495010
36. #Igniter Electrode; Use With Dometic Refrigerator Models RM1272/ NDR1272/ RM1282/ NDR1282/ NDR1292/ NDR1492/ RM7030/ RM7130/ RM7732/ RM7832 MFR # 2931495010MC Superseded: see description
37. #SCREW M4 X 10 S MFR # 7241289615
38. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
39. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
40. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
41. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
43. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
44. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
46. #HOLDER, FUSE MFR # 7628801230
47. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
48. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
49. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
50. #Retainer MFR # 2930661018
51. #APPLIANCE COMPONENTS RV; Orifice #73 RM7030 MFR # 2007419308
52. #10-Pin Lead, Complete MFR # 2930782103
53. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
54. #APPLIANCE COMPONENTS RV; Link Fuse 3 Amp Use AGC3 MFR # 7628211943 Superseded: see description
55. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
56. #APPLIANCE COMPONENTS RV; Insert MFR # 7628802212
57. #TOP, FLUE MOD# RM7030 MFR # 2931540039
58. #BAFFLE, FLUE RM7030 MFR # 2007590074
59. #Lead, 7-Pin Complete MFR # 2930990078
60. #Igniter Electrode; Replacement For Dometic RM7030 Refrigerator MFR # 173758020
61. #Refrigerator Cooling Unit Heater Element; Short Lead; 120 Volt; 210 Watts MFR # 173758020MC
62. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator; 2 Way MFR # MICROP242
63. #Refrigerator Interface Circuit Board; Replacement Control Board For Dometic Refrigerators; AC/ DC/ Gas Operation MFR # MICROP246
64. #Appliance Components RV; Board MFR # 2931308023
65. #Screw MFR # 7295340017
66. #APPLIANCE COMPONENTS RV; Strip MFR # 2930718024
67. #Lead, 4 Pin SPL RM7030 MFR # 2930783044
68. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
69. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
70. #Mounting Plate MFR # 2930767013
71. #Bracket MFR # 2930768011
72. #Clip Use 2930651019 MFR # 2931325019 Superseded: see description
73. #Refrigerator Burner Box Cover; Replacement For Dometic RM2600/ S520014/ RM7030 Refrigerators MFR # 2930651019
74. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
75. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
76. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
77. #APPLIANCE COMPONENTS RV; Wire Leadreignitor/Elect MFR # 2007668045
78. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

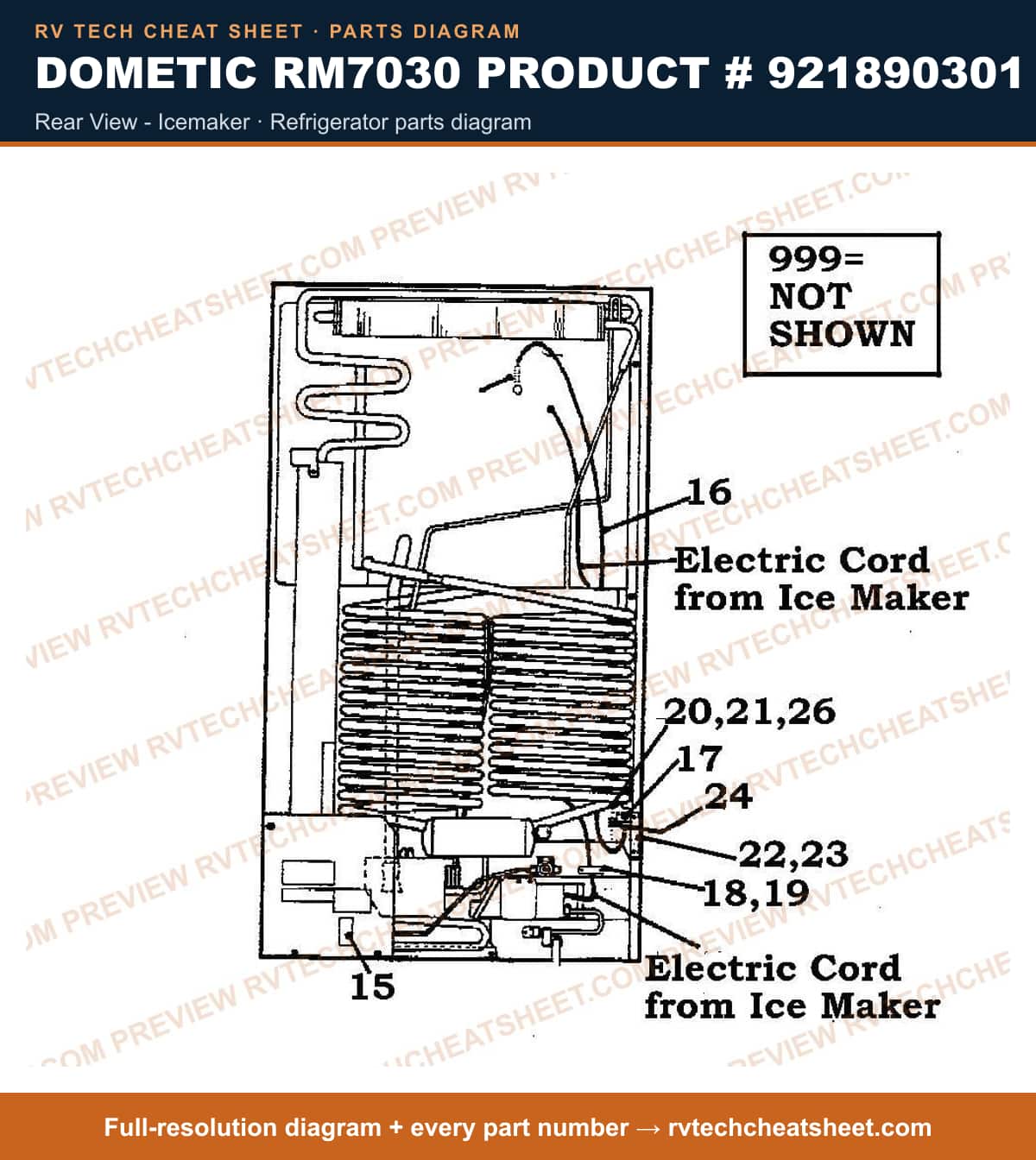

Rear View - Icemaker

Components

18 items

1. #APPLIANCE COMPONENTS RV; Diagram Wiring MFR # 2931988006
2. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
3. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
4. #HOSE, WATER USE 3108705306 MFR # 2930905043 Superseded: see description
5. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
6. #Valve, Water MFR # 2932148022
7. #VALVE KIT WATER MFR # 3108706114
8. #VALVE,WATER USE 2932148022 MFR # 2931972034 Superseded: see description
9. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
10. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
11. #COVER,WATER VALVE MFR # 2931974014
12. #WARNING LABEL MFR # 2931975003
13. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
14. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
15. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
16. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
17. #STRIP (PROTECTOR PLASTIC) MFR # 2930718099
18. #DECORATION, STRIP MFR # 2931163121

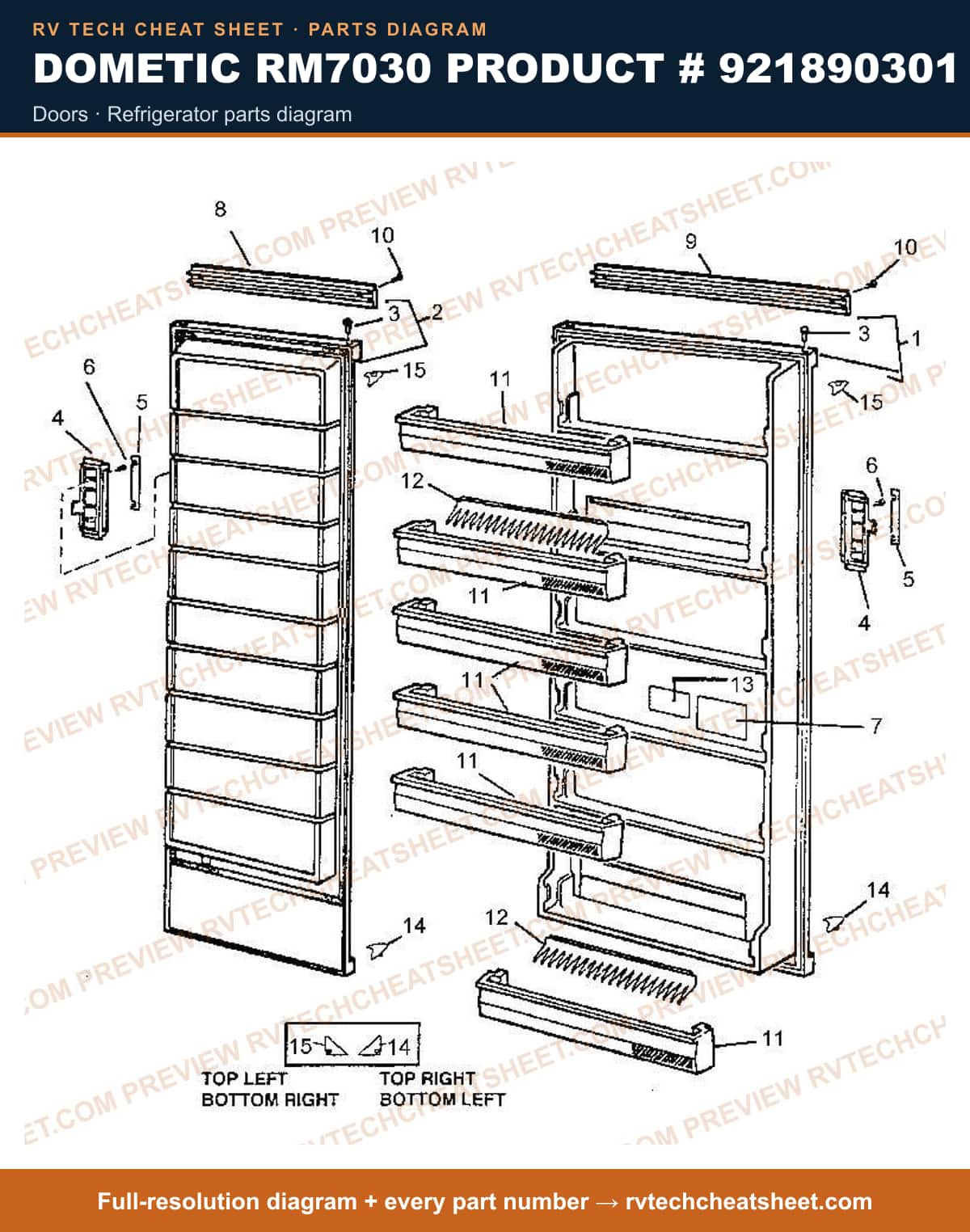

Doors

Components

23 items

1. #PANELS, DOOR WOODGRAIN TOP & BOTTOM PANELS MFR # RM7030G
2. #Appliance Components RV; Door Lower MFR # 2931419119
3. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM PANELS MFR # RM7030L
4. #GASKET, DOOR RM7030 MFR # 2931419119G
5. #APPLIANCE COMPONENTS RV; Gasket Kit Door MFR # 3108704242
6. #GASKET KIT, FREEZER DOOR RM7030 MFR # 2931420117G
7. #Appliance Components RV; Door Freezer MFR # 2931420117
8. #Bushing, Door Use 2931171017 Hinge MFR # 2931171025 Superseded: see description
9. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
10. #HANDLE KIT, DOOR BEIGE MFR # 3107766002
11. #Handle, Door Grey MFR # 2931398024
12. #Appliance Components RV; Insert Handle RM7030 MFR # 2931393017
13. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
14. #LABEL, INSTRUCTION MFR # 2002356000
15. #Strip, Freezer MFR # 2931163063
16. #Trim, Refer MFR # 2931163071
17. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
18. #Shelf, Door Use 2931418038 RM7030 MFR # 2931418012 Superseded: see description
19. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
20. #Appliance Components RV; Holder Bottle MFR # 2931497016
21. #LABEL, WARNING FOR DOOR MFR # 2931620005
22. #Insert, Hinge (Grey) RH/Top or LH/Lower MFR # 2931512038
23. #Appliance Components RV; Insert Hinge (Grey) MFR # 2931512046

Front View - Icemaker

Components

11 items

1. #MOUNTING, SHELF MFR # 2931984013
2. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
3. #SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010
4. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
5. #MOLD ASM USE 3108701552 MFR # 2931971036 Superseded: see description
6. #SPACER PLATE MFR # 2931987016
7. #Screw MFR # 7295340017
8. #SCREW, M5 X 14 ZINC PLATED MFR # 7291328611
9. #LINE,WATER USE 3105349017 RM7030 METAL F/ICEMAKER MFR # 2931986018 Superseded: see description
10. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011

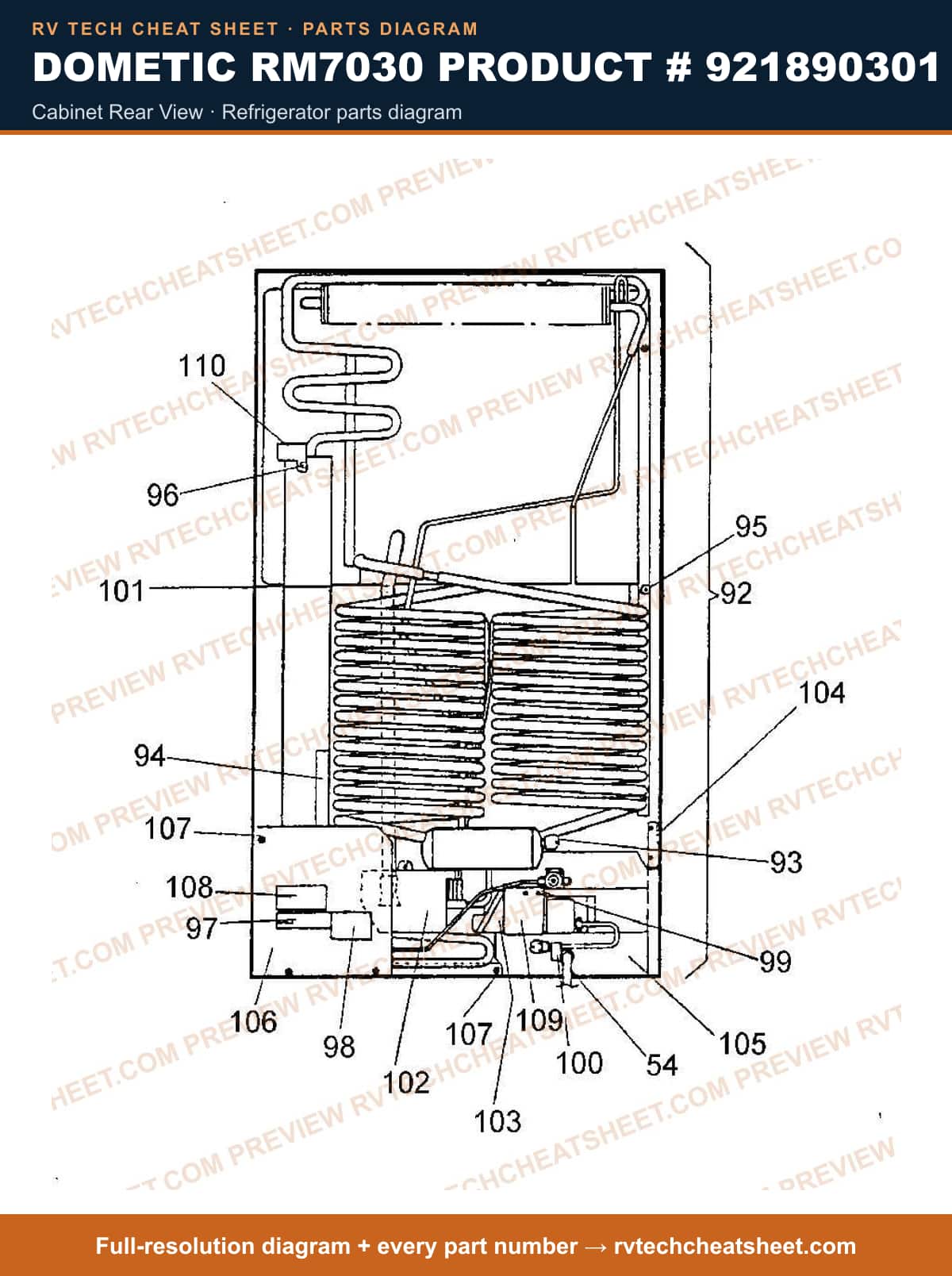

Cabinet Rear View

Components

23 items

1. #Drain Hose MFR # 2931579037
2. #Appliance Components RV; Cooling Unit RM7030/7130 MFR # 2934940996N
3. #COOLING UNIT USE 2934940996N MFR # 2934940095N Superseded: see description
4. #Reman C/U Use 5530 RM7030; This is a Midwest Reman C/U. It carries a Midwest warranty. For a Nordic Reman C/U, use PT#5530. MFR # 2934940996R Superseded: see description
5. #FILLING CAP MFR # 173558008
6. #COVER,HEATER MFR # 2933557023
7. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
8. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
10. #DECAL, WARNING 2807/4801 MFR # 2002577001
11. #LABEL, CAUTION RM48 01 MFR # 2930750001
12. #Screw,BOxg,S,zincplated (2 req.) MFR # 7298279113
13. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
14. #Defroster Duct Hose; Use With Dometic RM7030 Refrigerator MFR # 2931579029 Superseded: see description
15. #Refrigerator Drip Tray; Use With Dometic Refrigerator Model RM7030 MFR # 2931492017 Superseded: see description
16. #PROTECTION PLATE MFR # 2931473017
17. #Bracket MFR # 2931499012
18. #PLATE MFR # 2931608018
19. #APPLIANCE COMPONENTS RV; Plate Protection MFR # 2931485011
20. #Screw MFR # 7295340017
21. #LABEL, IMPORTANT MFR # 2007689009
22. #PROTECTION MFR # 2931486019
23. #TOP, FLUE MOD# RM7030 MFR # 2931540039

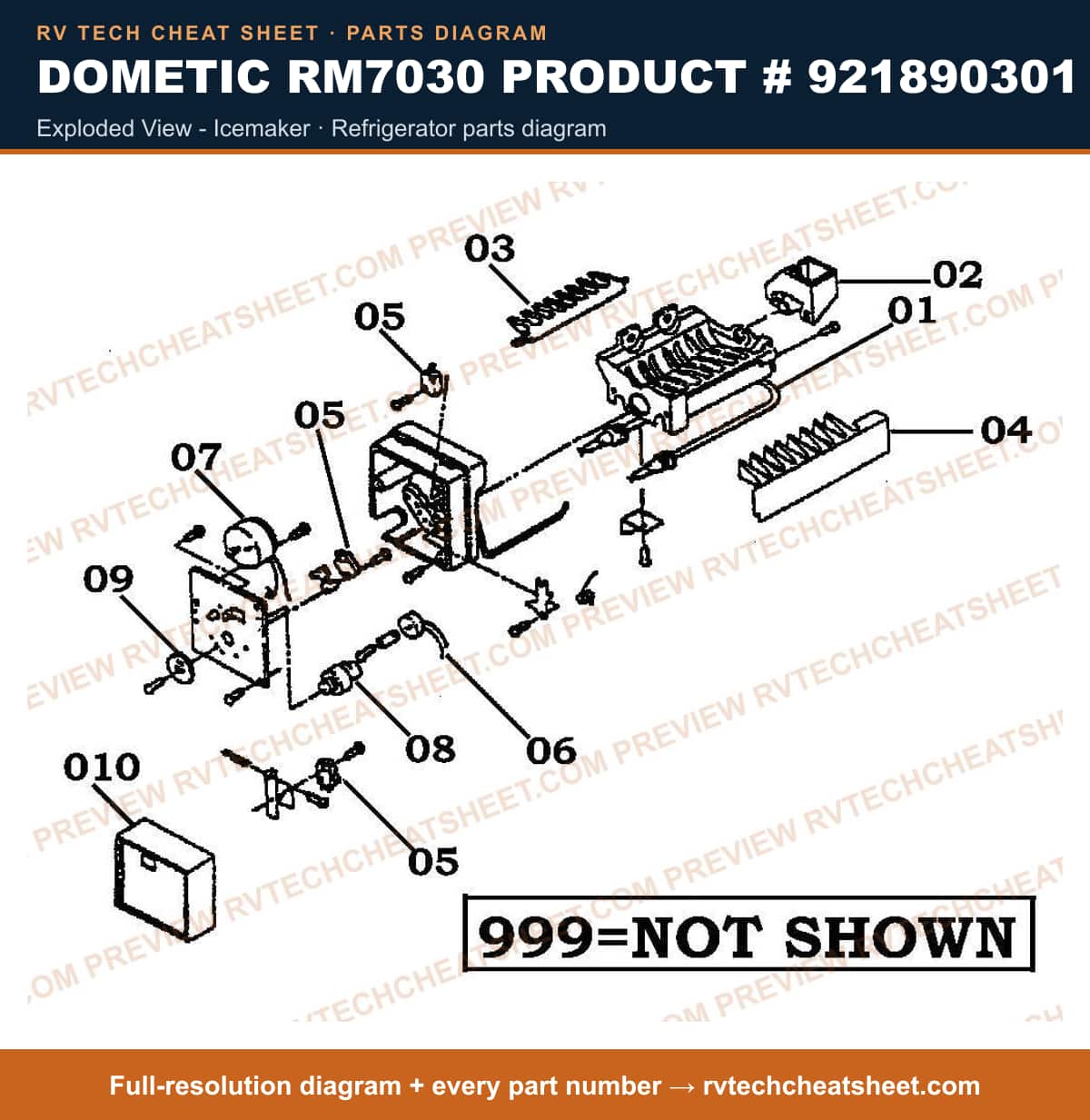

Exploded View - Icemaker

Components

15 items

1. #CYCLE, ICEMAKER USE 3108701552 MFR # 3101979007 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
3. #BEARING AND INLET MFR # 3101286007
4. #Ice Maker Water Cup; For U-Line 402-CO2075FF/ U-CO29FF/ 402 BI 2015 MFR # 544304
5. #APPLIANCE COMPONENTS RV; Ejector 627169 MFR # 3101287005
6. #STRIPPER, ICE MFR # 3101288003
7. #AXLE BRACKET EXT 2' MFR # 2506
8. #APPLIANCE COMPONENTS RV; Switch Micro Use 2506 MFR # 3102807009 Superseded: see description
9. #APPLIANCE COMPONENTS RV; T-Stat MFR # 3101290009
10. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
11. #MOTOR/TIMER USE 3108701552 RM4804 MFR # 3101292005 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
13. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
14. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Fitting Elbow MFR # 3108059001
