Dometic RM7030 Product # 921890401 Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 186 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7030 Product # 921890401 RV refrigerator: 5 assemblies (Replacement Refrigerator, Cabinet Front View, Cabinet Rear View, Burner & Controlsburner & Controls, Door Assembly) and 186 manufacturer part numbers. 35 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

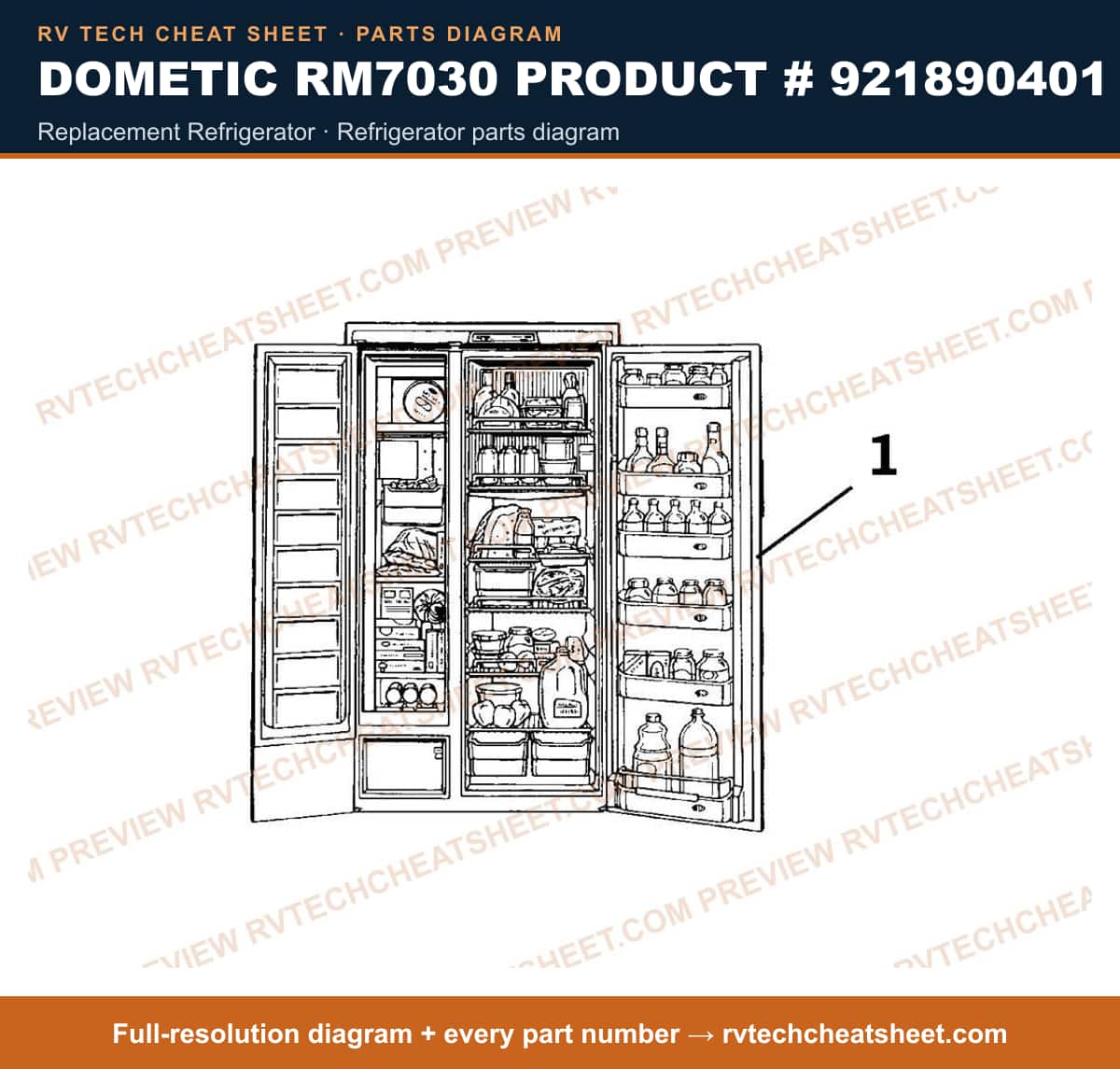

Replacement Refrigerator

Components

12 items

1. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
2. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
3. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
4. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK
5. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
7. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR
9. #Refer, 12 Cu Ft 2 Way W/Icemaker 59 1/16" X 32 3/4" X 24" MFR # NDR1292BIMHN
10. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK
11. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N

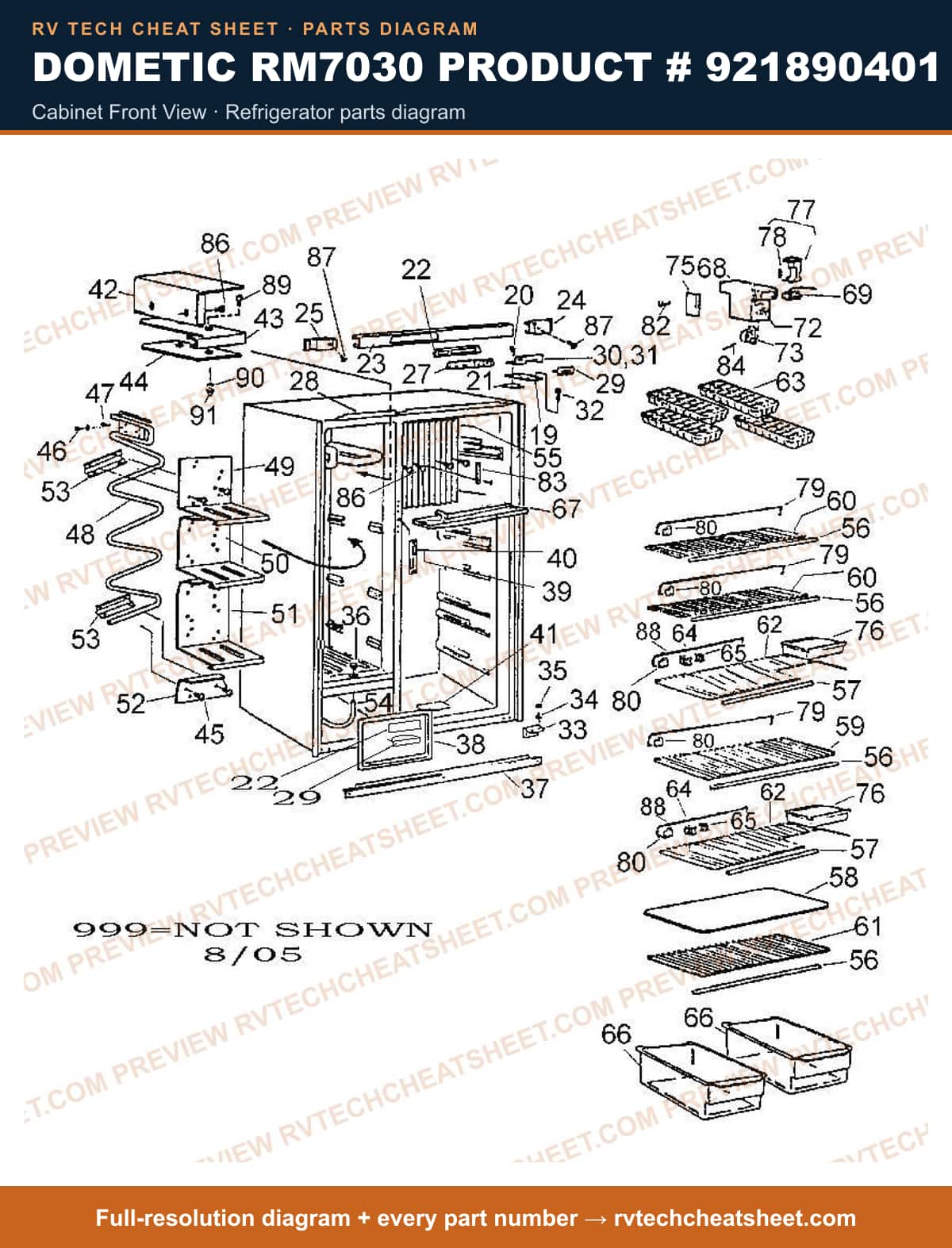

Cabinet Front View

Components

78 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
4. #BOARD, 2 WAY USE 2932884022 RM3807 MFR # 2931906016 Superseded: see description
5. #DECAL,ON/OFF SWITCH MFR # 2931877001
6. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
7. #Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013
8. #Board Control Assm ***Us MFR # 2932884022
9. #STRIP, DECORATION FRONT MFR # 2931463018
10. #APPLIANCE COMPONENTS RV; Decoration Upper Rh Cnr MFR # 2931462010
11. #DECORATION, UPPER LH CNR RM7030 MFR # 2931462028
12. #Plate Mounting with Decal 2-Way MFR # 955002738
13. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
14. #SWITCH,CLIMATE CONTROL (300) MFR # 19011103
15. #APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011
16. #PLATE,MOUNTING LH MFR # 2931459016
17. #PLATE,MOUNTING RH MFR # 2931459024
18. #PIN, UPPER HINGE RM7030 MFR # 2931624015
19. #HINGE, LOWER RM7030 MFR # 2931458018
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
21. #S,COVER,NEA1402 MFR # 2931715011
22. #APPLIANCE COMPONENTS RV; Trim Bottom MFR # 2931464016
23. #COVER MFR # 2931488031
24. #PLATE, LOCKING F/LATCH RM7030 MFR # 2931716019
25. #COVER, LOCK 7030 MFR # 2931718015
26. #Sign Plate (2-Way) MFR # 2931908004
27. #Plate Freezer MFR # 2931476028
28. #Shelf MFR # 2931477026
29. #Plate Lower Freezer Tube MFR # 2931478016
30. #SCREW MFR # 2801014016
31. #SCREW MFR # 2801015013
32. #SCREW MFR # 2801015021
33. #FREEZER UNIT MFR # 2931474015
34. #Refrigerator Shelf; Replacement For Dometic NDR1272/ RM1272/ RM7030 Model Refrigerators; Freezer Compartment MFR # 2931983023
35. #SHELF MFR # 2931982025
36. #SHELF MFR # 2931482026
37. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
38. #Hose, Drain (725 MM) MFR # 2931578013
39. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
40. #Flange, Cooling use 2932761014 MFR # 2931661017 Superseded: see description
41. #Appliance Components RV; Decoration Upper Shelf MFR # 2005111402
42. #Appliance Components RV; Decoration Lower Shelf MFR # 2005111410
43. #Refrigerator Crisper Bin Cover; Use With Dometic Refrigerator Models RM7832/ RM7830 MFR # 2931117069 Superseded: see description
44. #Shelf, Wire MFR # 2931541011
45. #Appliance Components RV; Shelf Wire MFR # 2931541029
46. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM7832/ RM7130; Wire MFR # 2931541052 Superseded: see description
47. #Shelf use 2931541052 MFR # 2931541037 Superseded: see description
48. #Shelf, Milk use 2931542027 MFR # 2931542019 Superseded: see description
49. #Appliance Components RV; Shelf Wire White MFR # 2931542027
50. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
51. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
52. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
53. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
54. #Tray, Drip MFR # 2931663013
55. #COVER, LIGHT SWITCH MFR # 2004044109
56. #2004044091 MFR # 2004044091
57. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
58. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
60. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
61. #SHADE, LAMP MFR # 2004043002
62. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
64. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
65. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
66. #BULB 2/PK MFR # 2007290006
67. #Retainer, Shelf MFR # 2007337088
68. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
69. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
70. #SCREW MFR # 7295283407
71. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
72. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
73. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
74. #S,RAIL,SHELF,164MM MFR # 2007337161
75. #Rack use 45-5658 MFR # 2007337096 Superseded: see description
76. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
77. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
78. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000

Cabinet Rear View

Components

21 items

1. #Hose, Drain (725 MM) MFR # 2931578013
2. #Appliance Components RV; Cooling Unit RM7030/7130 MFR # 2934940996N
3. #Reman C/U Use 5530 RM7030; This is a Midwest Reman C/U. It carries a Midwest warranty. For a Nordic Reman C/U, use PT#5530. MFR # 2934940996R Superseded: see description
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #COVER,HEATER MFR # 2933557023
6. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
8. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009
9. #Sign Plate MFR # 2007574037
10. #DECAL, WARNING 2807/4801 MFR # 2002577001
11. #LABEL, CAUTION RM48 01 MFR # 2930750001
12. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
13. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
14. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
15. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
16. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
17. #HOSE,DRAIN (725MM) MFR # 2931578054
18. #Coupler, Hose MFR # 2932158013
19. #Bracket MFR # 2931499012
20. #S,PROTECTION PLATE,REAR MFR # 2932155019
21. #LABEL, IMPORTANT MFR # 2007689009

Burner & Controlsburner & Controls

Components

63 items

1. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
2. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
3. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
5. #APPLIANCE COMPONENTS RV; Wire Leadreignitor/Elect MFR # 2007668045
6. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
8. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
9. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932061019
10. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
11. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
12. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
13. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
15. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
16. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
17. #Igniter Electrode; Use With Dometic Refrigerator Models RM1272/ NDR1272/ RM1282/ NDR1282/ NDR1292/ NDR1492/ RM7030/ RM7130/ RM7732/ RM7832 MFR # 2931495010MC Superseded: see description
18. #ELECTRODE RM7030 MFR # 2931495010
19. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
20. #BRACKET, MTG USE 2932759018 MFR # 2932146018 Superseded: see description
21. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
22. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
23. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
24. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
25. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
26. #Label 12VDC MFR # 2931827006
27. #BOARD,MODULE USE 2932881010 2-WAY MFR # 2932695014 Superseded: see description
28. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
29. #BOARD,PC USE 2932695014 MFR # 2931842039 Superseded: see description
30. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
31. #S,COVER,LESS DECALS MFR # 2931858019
32. #LEAD,PC BOARD MFR # 2931862029
33. #LEAD, GAS VALVE MFR # 2931864025
34. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
35. #APPLIANCE COMPONENTS RV; Orifice #73 RM7030 MFR # 2007419308
36. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
37. #TOP, FLUE MOD# RM7030 MFR # 2931540039
38. #BAFFLE, FLUE RM7030 MFR # 2007590074
39. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
40. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
41. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
42. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
43. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
44. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
45. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
46. #3858022019 MFR # 3858022019
47. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
48. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
49. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
50. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
51. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
52. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
53. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
55. #STRIP, TERMINAL 6 POS. MFR # 2930327008
56. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
57. #Decal, 2-Way MFR # 2932002005
58. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
59. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
60. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
61. #FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description
62. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
63. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009

Door Assembly

Components

18 items

1. #APPLIANCE COMPONENTS RV; Gasket Kit Door MFR # 3108704242
2. #Appliance Components RV; Door Lower MFR # 2931419119
3. #Appliance Components RV; Door Freezer MFR # 2931420117
4. #Bushing, Door Use 2931171017 Hinge MFR # 2931171025 Superseded: see description
5. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
6. #Handle, Door Grey MFR # 2931398024
7. #Appliance Components RV; Insert Handle RM7030 MFR # 2931393017
8. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
9. #LABEL, INSTRUCTION MFR # 2002356000
10. #Strip, Freezer MFR # 2931163063
11. #Trim, Refer MFR # 2931163071
12. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
13. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
14. #Shelf, Door Use 2931418038 RM7030 MFR # 2931418012 Superseded: see description
15. #Appliance Components RV; Holder Bottle MFR # 2931497016
16. #LABEL, WARNING FOR DOOR MFR # 2931620005
17. #Insert, Hinge (Grey) RH/Top or LH/Lower MFR # 2931512038
18. #Appliance Components RV; Insert Hinge (Grey) MFR # 2931512046
