Dometic RM7130 Parts Diagram · Rear View Cabinet Assy

Refrigerator · 8 assemblies · 9 diagram sheets · 242 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7130 RV refrigerator: 8 assemblies (Rear View Cabinet Assy, Front View Food Compartment, Front View Freezer Compartment, Surge Protector, Replacement Refrigerator and more) and 242 manufacturer part numbers. 49 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

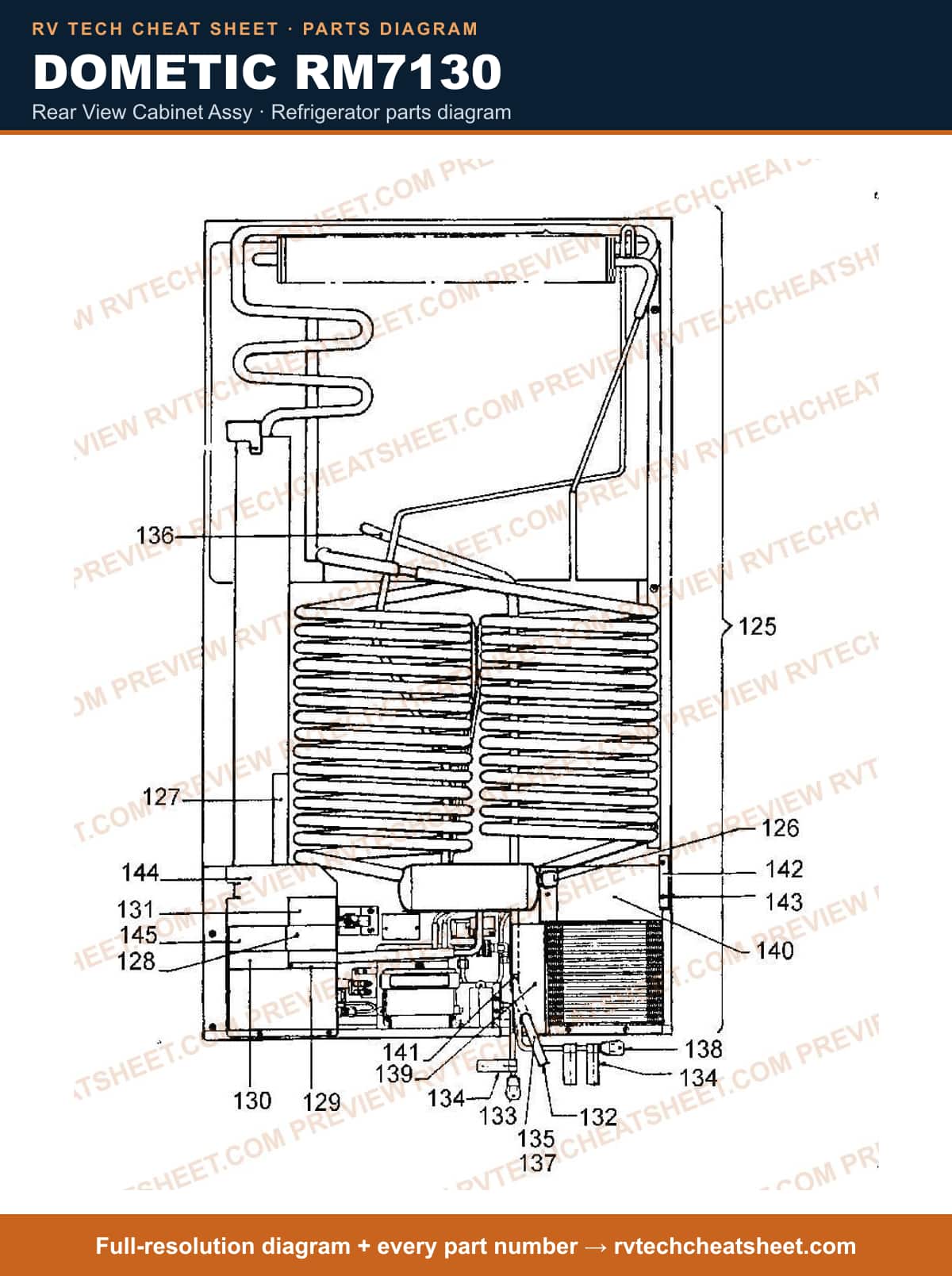

Rear View Cabinet Assy

Components

24 items

1. #Appliance Components RV; Cooling Unit RM7030/7130 MFR # 2934940996N
2. #COOLING UNIT USE 2934940996N MFR # 2934940095N Superseded: see description
3. #Reman C/U Use 5530 RM7030; This is a Midwest Reman C/U. It carries a Midwest warranty. For a Nordic Reman C/U, use PT#5530. MFR # 2934940996R Superseded: see description
4. #FILLING CAP MFR # 173558008
5. #COVER,HEATER MFR # 2933557023
6. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009
7. #Sign Plate MFR # 2007574037
8. #DECAL, WARNING 2807/4801 MFR # 2002577001
9. #LABEL, CAUTION RM48 01 MFR # 2930750001
10. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
11. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
12. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
13. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
14. #Hose, Drain (725 MM) MFR # 2931578013
15. #HOSE,DRAIN (725MM) MFR # 2931578054
16. #HOSE DRAIN-, L=255 MFR # 2931578062
17. #CORD, POWER MFR # 2002699052
18. #PLATE MFR # 2932176015
19. #PLATE MFR # 2932185016
20. #Coupler, Hose MFR # 2932158013
21. #Bracket MFR # 2931499012
22. #SCREW, RXS, B8X9 (5 REQ.) MFR # 7295340405
23. #S,PROTECTION PLATE,REAR MFR # 2932155019
24. #LABEL, IMPORTANT MFR # 2007689009

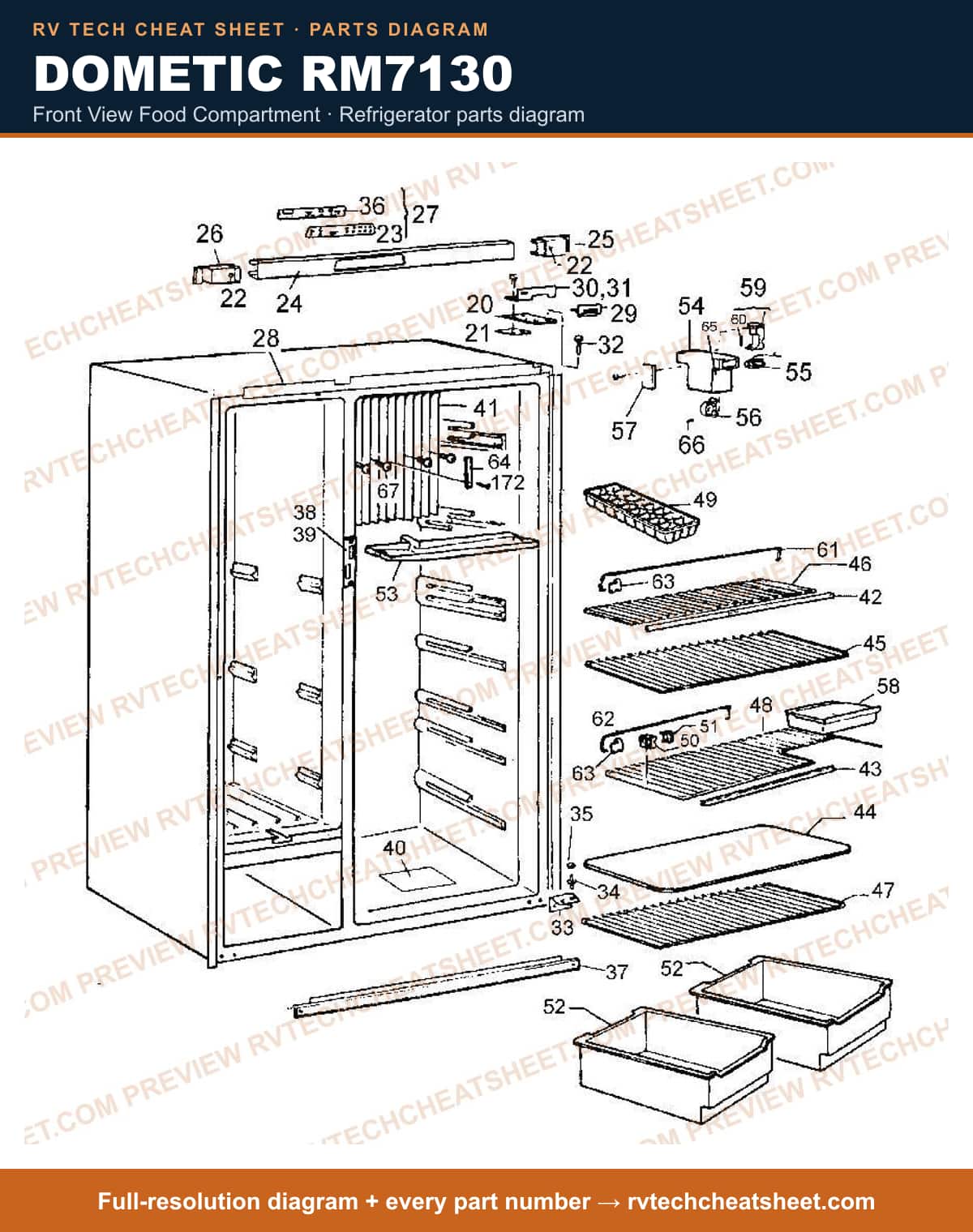

Front View Food Compartment

Components

65 items

1. #S,HINGE,UPR,CLASSIC MFR # 2931291013
2. #S,WASHER,ADJUSTABLE,28*33MM MFR # 2931292011
3. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
4. #Plate Mounting with Decal 2-Way MFR # 955002738
5. #STRIP, DECORATION FRONT MFR # 2931463018
6. #APPLIANCE COMPONENTS RV; Decoration Upper Rh Cnr MFR # 2931462010
7. #DECORATION, UPPER LH CNR RM7030 MFR # 2931462028
8. #BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description
9. #Board Control Assm ***Us MFR # 2932884022
10. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Label Installation MFR # 2931304006
12. #APPLIANCE COMPONENTS RV; Gasket Hinge MFR # 2931574012
13. #PLATE,MOUNTING LH MFR # 2931459016
14. #PLATE,MOUNTING RH MFR # 2931459024
15. #PIN, UPPER HINGE RM7030 MFR # 2931624015
16. #HINGE, LOWER RM7030 MFR # 2931458018
17. #Refrigerator Door Hinge Pin; Replacement For Dometic RM7030/ RM2607/ RM2811 Refrigerator; Fits Bottom Hinge MFR # 2931623017
18. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
19. #Dometic RM2193 Refrigerator Control Board Assembly MFR # 2931856013
20. #APPLIANCE COMPONENTS RV; Trim Bottom MFR # 2931464016
21. #PLATE, LOCKING F/LATCH RM7030 MFR # 2931716019
22. #COVER, LOCK 7030 MFR # 2931718015
23. #DECAL MFR # 2932154004
24. #Flange, Cooling use 2932761014 MFR # 2931661017 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
26. #Cooling Flange MFR # 2931661025
27. #DECORATION, UPPER SHELF (3 REQ.) MFR # 200511402
28. #Appliance Components RV; Decoration Lower Shelf MFR # 2005111410
29. #COVER, CRISPER MFR # 2993117069
30. #Shelf, Wire MFR # 2931541011
31. #Appliance Components RV; Shelf Wire MFR # 2931541029
32. #Shelf use 2931541052 MFR # 2931541037 Superseded: see description
33. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM7832/ RM7130; Wire MFR # 2931541052 Superseded: see description
34. #Shelf, Milk use 2931542027 MFR # 2931542019 Superseded: see description
35. #Appliance Components RV; Shelf Wire White MFR # 2931542027
36. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
37. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
38. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
39. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
40. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
41. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
42. #Tray, Drip MFR # 2931663013
43. #COVER, LIGHT SWITCH MFR # 2004044109
44. #2004044091 MFR # 2004044091
45. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
46. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
47. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
48. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
49. #SHADE, LAMP MFR # 2004043002
50. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
52. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
53. #BULB 2/PK MFR # 2007290006
54. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
55. #Retainer, Shelf MFR # 2007337088
56. #S,RAIL,SHELF,164MM MFR # 2007337161
57. #Rack use 45-5658 MFR # 2007337096 Superseded: see description
58. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
59. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
60. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
61. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
62. #Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description
63. #SCREW MFR # 2801015013
64. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
65. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006

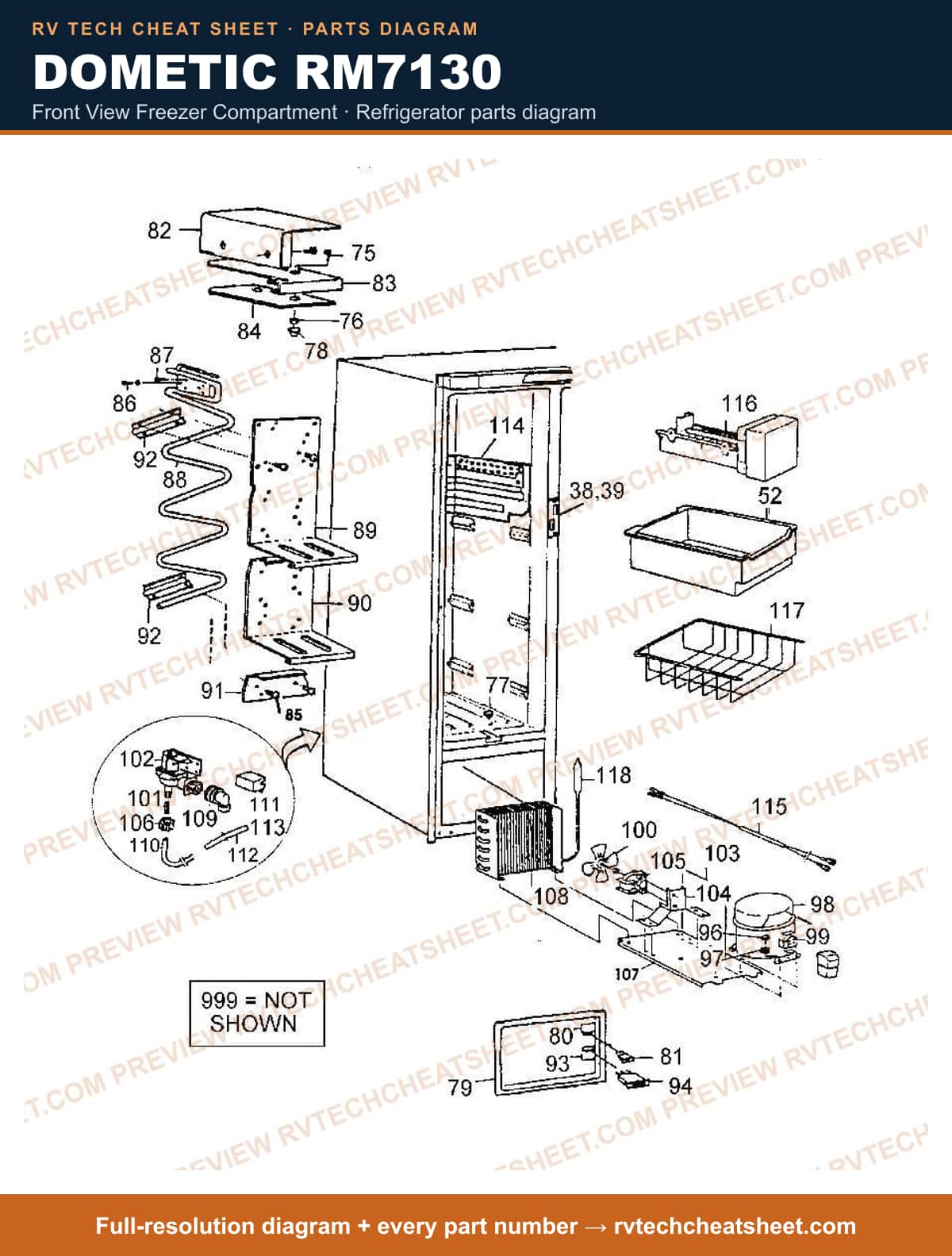

Front View Freezer Compartment

Components

56 items

1. #PLATE, LOCKING F/LATCH RM7030 MFR # 2931716019
2. #COVER, LOCK 7030 MFR # 2931718015
3. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
4. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
7. #S,COVER,NEA1402 MFR # 2931715011
8. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
9. #COVER, COMPRESSOR COMPARTMENT MFR # 2931488023
10. #DECAL,ON/OFF SWITCH MFR # 2931877001
11. #SWITCH,CLIMATE CONTROL (300) MFR # 19011103
12. #APPLIANCE COMPONENTS RV; Switch Climate Control MFR # 2931876011
13. #Plate Freezer MFR # 2931476028
14. #Shelf MFR # 2931477026
15. #Plate Lower Freezer Tube MFR # 2931478016
16. #SCREW MFR # 2801014016
17. #SCREW MFR # 2801015013
18. #SCREW MFR # 2801015021
19. #FREEZER UNIT MFR # 2931474015
20. #SHELF MFR # 2931982025
21. #SHELF MFR # 2931482026
22. #PLATE, FREEZER MFR # 2931483024
23. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
24. #DECAL MFR # 2932060003
25. #SWITCH, ICEMAKER MFR # 2930891011
26. #Spacer Screw MFR # 2001759006
27. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
29. #RELAY ASM USE 955809009 DN1070 MFR # 3100499007 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
31. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
32. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
33. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
34. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122
35. #Valve, Water MFR # 2932148022
36. #Plate, Divider MFR # 2932174010
37. #Bracket, Fan Motor MFR # 2931138016
38. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
39. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
40. #Plate, MTG. Comp./Fan MFR # 2932137017
41. #Coil, Condenser MFR # 2943926002
42. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
43. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
44. #Hose, Water MFR # 2930905035
45. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
46. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
47. #WARNING LABEL MFR # 2931975003
48. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
49. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
50. #Cover MFR # 2932145010
51. #Coil, Evap. MFR # 2932134014
52. #Wire Harness MFR # 2932144013
53. #ICEMAKER ASM USE 3108703517 MFR # 2932147016 Superseded: see description
54. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM7832 MFR # 2932160019 Superseded: see description
55. #Drier MFR # 2053836025
56. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445

Surge Protector

Components

3 items

1. #APPLIANCE COMPONENTS RV; Harness Kit MFR # 3108702675
2. #APPLIANCE COMPONENTS RV; Protector Kit<br>FITS MD# 7030, 7130, 7732, 7832 PER DOMETIC, THIS PART IS NO LONGER AVAILABLE. HOWEVER, IT CAN BE REPLACED WITH PART # 3108702675 AND THE LOWER CI... MFR # 3108703582
3. #HARNESS KIT USE 46-4571 MFR # 6256 Superseded: see description

Replacement Refrigerator

Components

12 items

1. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK
3. #REFER, 12 CU FT USE NDR1292BF 59 1/16" X 32 3/4" X 24" MFR # NDR1292BN Superseded: see description
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
5. #Refer, 12 Cu Ft 2 Way W/Icemaker 59 1/16" X 32 3/4" X 24" MFR # NDR1292BIMHN
6. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841IMSSR
8. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
9. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
10. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
11. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N

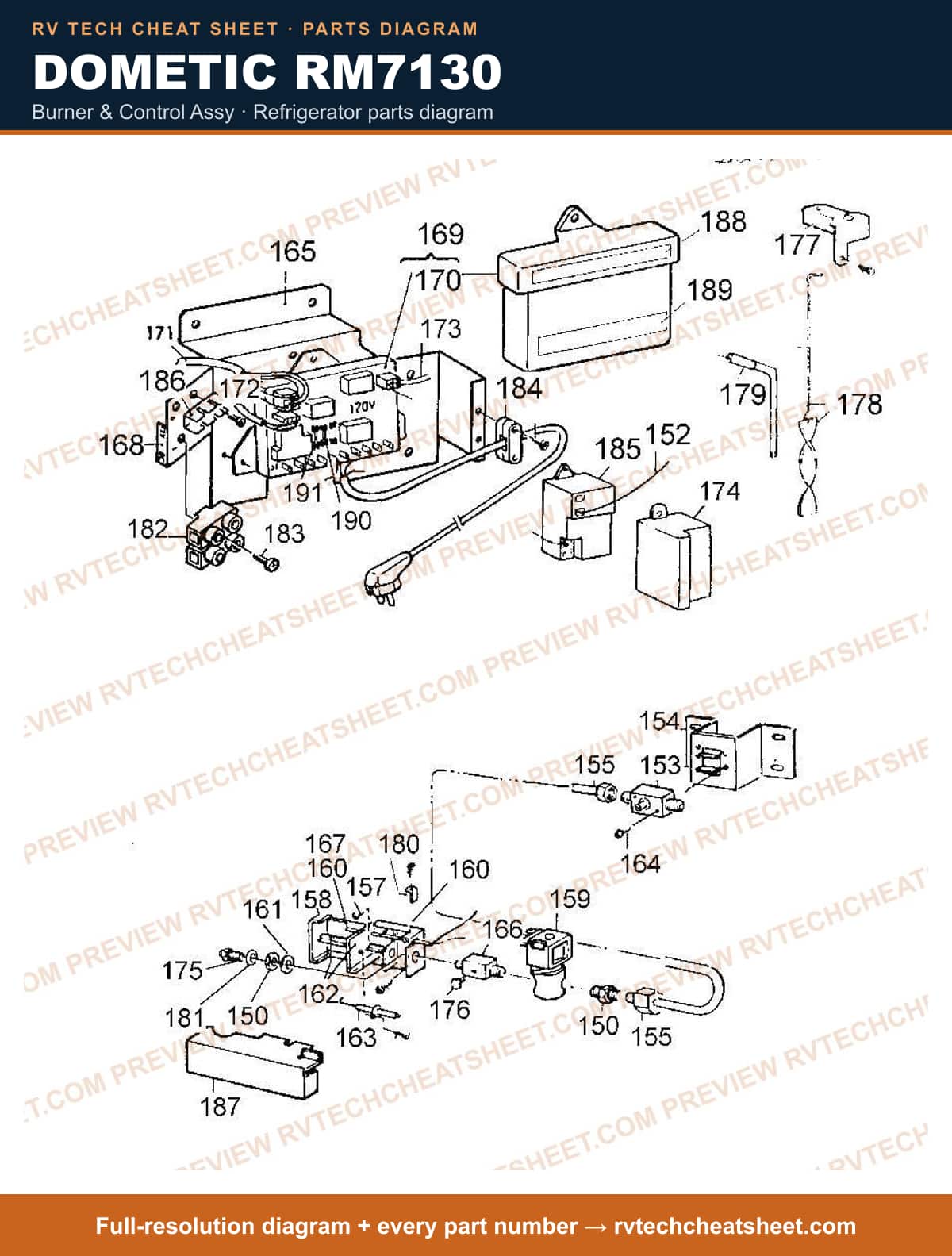

Burner & Control Assy

Components

64 items

1. #Nut MFR # 140107044
2. #APPLIANCE COMPONENTS RV; Wire Leadreignitor/Elect MFR # 2007668045
3. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
4. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
5. #BOARD, MODULE MFR # 3106375015
6. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
8. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
9. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
10. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932061019
11. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
12. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
13. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
15. #RETAINER MFR # 2931494013
16. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
17. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
18. #ELECTRODE RM7030 MFR # 2931495010
19. #Igniter Electrode; Use With Dometic Refrigerator Models RM1272/ NDR1272/ RM1282/ NDR1282/ NDR1292/ NDR1492/ RM7030/ RM7130/ RM7732/ RM7832 MFR # 2931495010MC Superseded: see description
20. #Screw; Replacement For Dometic RM2452/ RM7030/ RM2333 Refrigerator Models; Gas Valve Screw; M4 x 25; Zinc MFR # 7241297618
21. #BRACKET, MTG USE 2932759018 MFR # 2932146018 Superseded: see description
22. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
23. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
24. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
25. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
26. #Label 12VDC MFR # 2931827006
27. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
28. #DOM REPLACEMENT BRD MFR # MICROP711
29. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
30. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
31. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
32. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
33. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
34. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
35. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
36. #S,COVER,LESS DECALS MFR # 2931858019
37. #Lead, PC Board MFR # 2931862026
38. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
39. #LEAD, GAS VALVE MFR # 2931864025
40. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
41. #APPLIANCE COMPONENTS RV; Orifice #73 RM7030 MFR # 2007419308
42. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
43. #TOP, FLUE MOD# RM7030 MFR # 2931540039
44. #BAFFLE, FLUE RM7030 MFR # 2007590074
45. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
46. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
47. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
48. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
49. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
50. #3858022019 MFR # 3858022019
51. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
52. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
53. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
54. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
55. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
56. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
57. #STRIP, TERMINAL 6 POS. MFR # 2930327008
58. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
59. #Decal, 2-Way MFR # 2932002005
60. #NO PART # GIVEN BY VENDOR MFR # NPG
61. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
62. #FUSE, 5 AMP USE 2943542007 MFR # 2943542001 Superseded: see description
63. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
64. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3

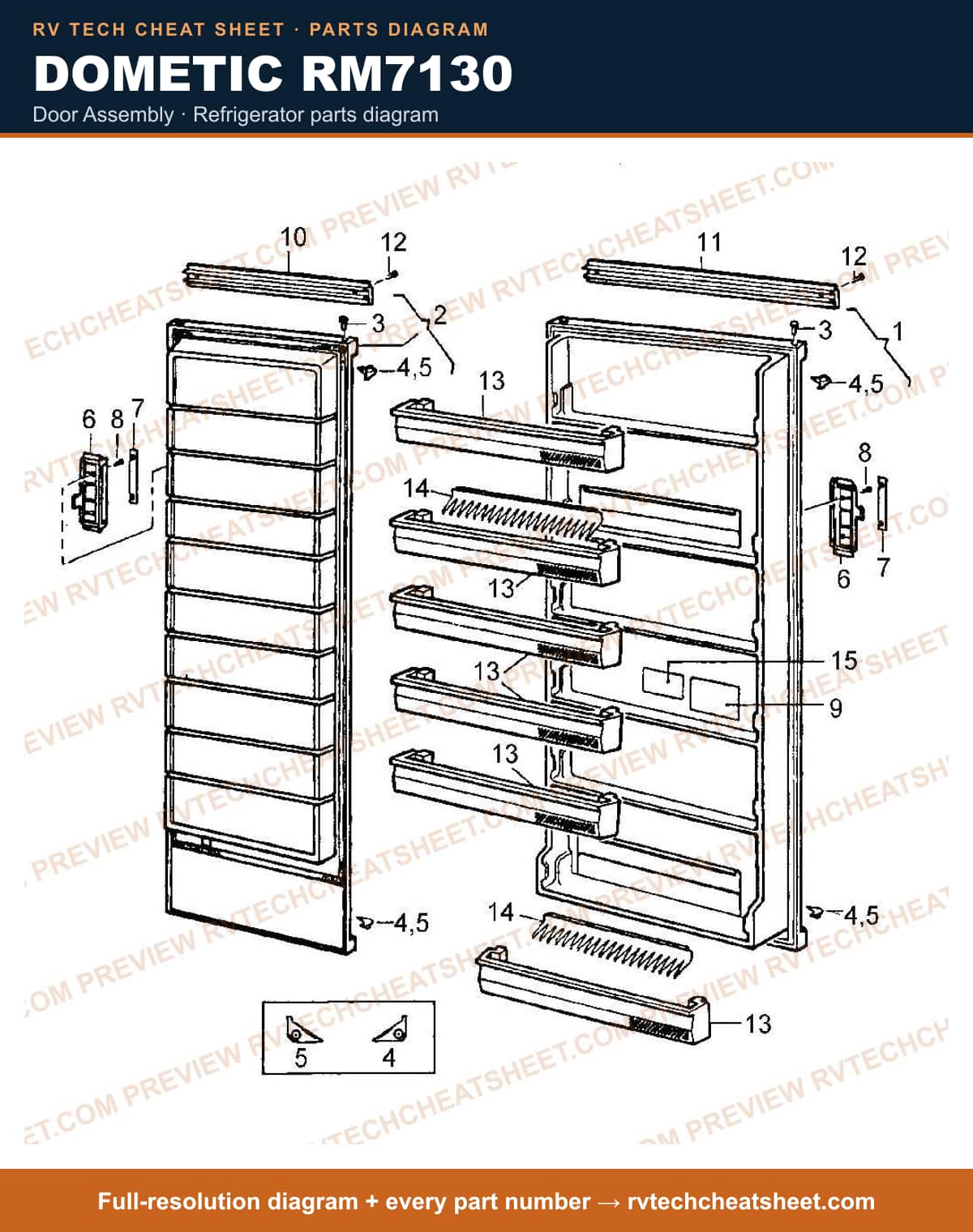

Door Assembly

Components

22 items

1. #GASKET TAPE 100" USE 6141 SINGLE DOOR REFER MFR # TAPE1 Superseded: see description
2. #GASKET, DOOR RM7030 MFR # 2931419119G
3. #APPLIANCE COMPONENTS RV; Gasket Kit Door MFR # 3108704242
4. #TAPE, GASKET KIT 1/32" X 3/4" X 18' MFR # 6141
5. #Appliance Components RV; Door Lower MFR # 2931419119
6. #GASKET KIT, FREEZER DOOR RM7030 MFR # 2931420117G
7. #Appliance Components RV; Door Freezer MFR # 2931420117
8. #Bushing, Door Use 2931171017 Hinge MFR # 2931171025 Superseded: see description
9. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
10. #Insert, Hinge (Grey) RH/Top or LH/Lower MFR # 2931512038
11. #Appliance Components RV; Insert Hinge (Grey) MFR # 2931512046
12. #Handle, Door Grey MFR # 2931398024
13. #Appliance Components RV; Insert Handle RM7030 MFR # 2931393017
14. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
15. #LABEL, INSTRUCTION MFR # 2002356000
16. #DECORATION, STRIP MFR # 2931163121
17. #STRIP, DECORATION MFR # 2931163139
18. #Refrigerator Trim Screw; Replacement For Dometic RM2310/ RM2410/ RM2510/ RM2804/ RM2807/ RM2812/ RM2820/ RM3604/ RM3607/ RM4804002/ RM4804005/ RM4804006 Model Refrigerator MFR # 7295229400
19. #S,DOOR COMPART,WHT,2820R/2620R MFR # 2931418038
20. #Shelf, Door Use 2931418038 RM7030 MFR # 2931418012 Superseded: see description
21. #Appliance Components RV; Holder Bottle MFR # 2931497016
22. #LABEL, WARNING FOR DOOR MFR # 2931620005

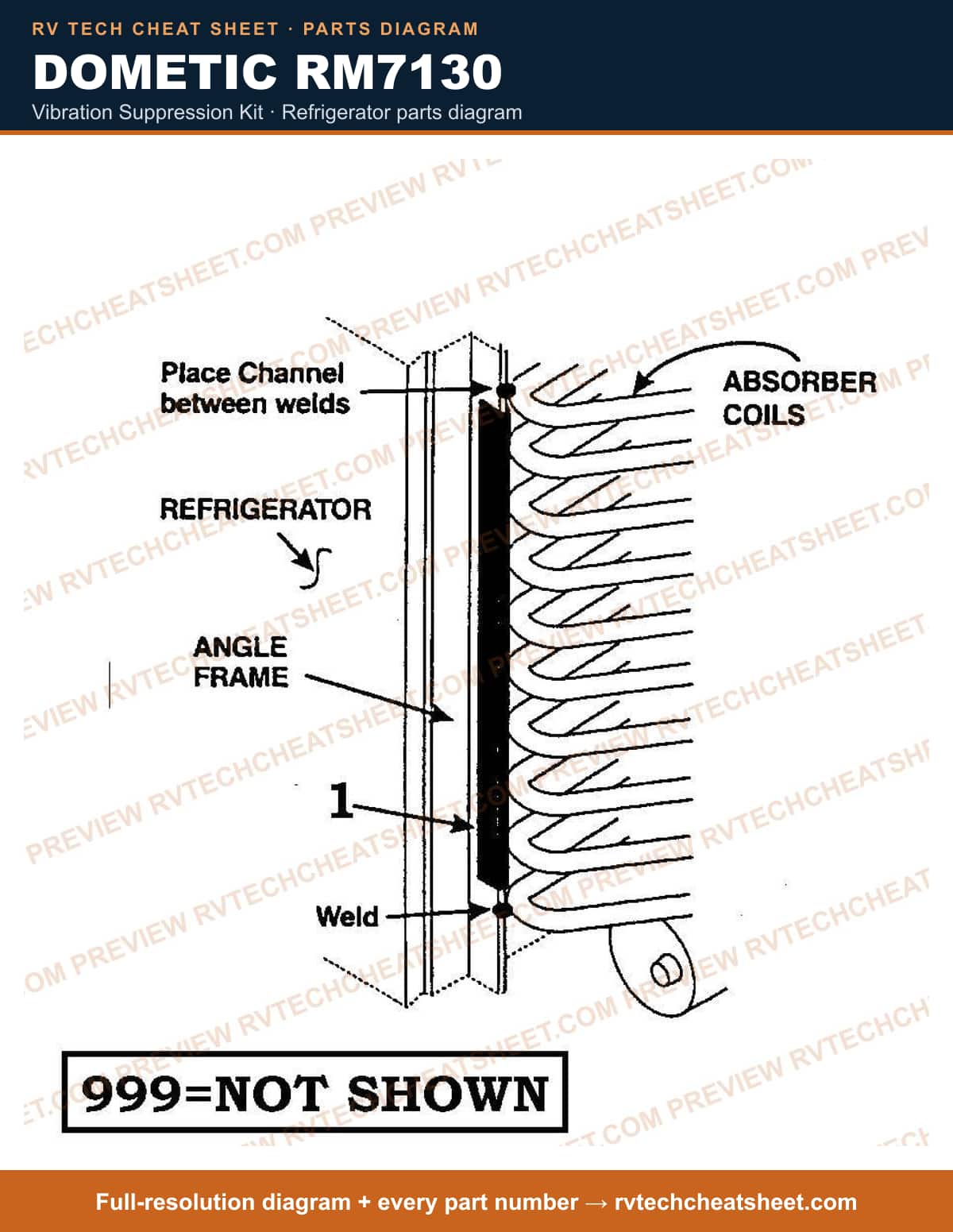

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515
