Dometic RM7401 Product # 921086475 Parts Diagram · Cabinet Components

Refrigerator · 4 assemblies · 4 diagram sheets · 82 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7401 Product # 921086475 RV refrigerator: 4 assemblies (Cabinet Components, Gas-electric, Door Assembly, Rear Components) and 82 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

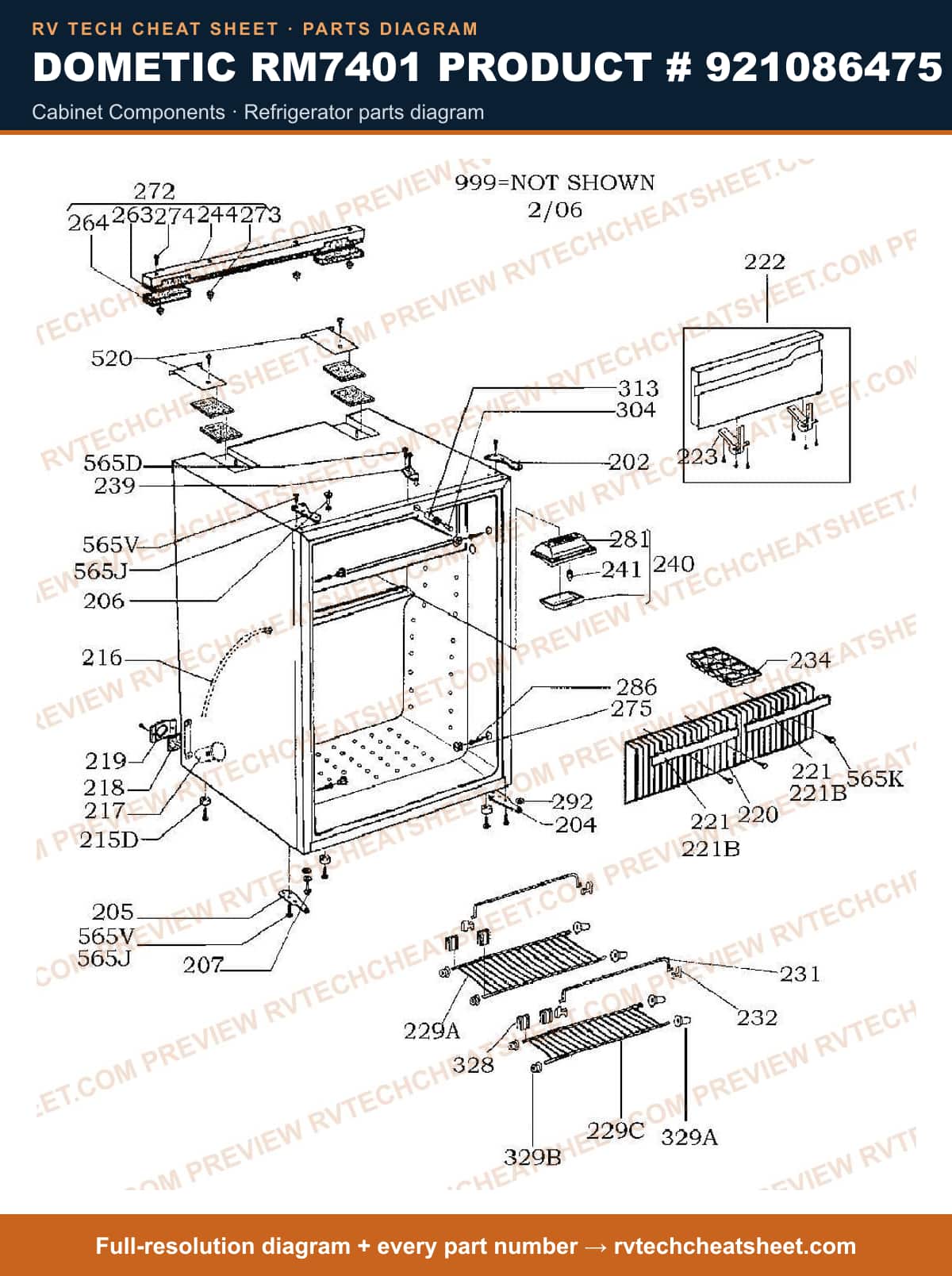

Cabinet Components

Components

33 items

1. #HINGE, UPPER RH CHROME MFR # 2412096204
2. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
3. #APPLIANCE COMPONENTS RV; HINGE LOWER LEFT CHROME PLATED MFR # 2412099109
4. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE MFR # 2926265006
7. #FOOT MFR # 2923297028
8. #FINS, EVAPORATOR MFR # 2412606408
9. #CANOPY COOLING FINS WHITE MFR # 2926235140
10. #DOOR, FREEZER USE 3312986130 MFR # 2412195204 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Door Freezer MFR # 3312986130
12. #APPLIANCE COMPONENTS RV; HINGE, FREEZER DOOR MFR # 2412125003
13. #SHELF, TOP MFR # 2412080109
14. #SHELF, BOTTOM MFR # 2412080000
15. #BRACKET, SHELF MFR # 2951106331
16. #HOLDER, CLAMP WHITE MFR # 2926011020
17. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
18. #BRACKET, DOOR LOCK MFR # 2412884005
19. #LIGHTING, COMPLETE WHITE MFR # 2951641220
20. #LAMP, 12V 1.5W AC 50HZ MFR # 2951388202
21. #COVER CAP, FIXING WHITE MFR # 2951221031
22. #REFLECTOR MFR # 2951643127
23. #SCREWS MFR # 2926544004
24. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
25. #SENSOR, LIGHT MFR # 2951380506
26. #SENSOR, SHEATH BLACK MFR # 2951379110
27. #LOCK, SHELF WHITE MFR # 2412082006
28. #GUIDE, SHELF LH WHITE MFR # 2412083103
29. #APPLIANCE COMPONENTS RV; Guide Shelf Rh MFR # 2412083004
30. #GROMMET, CANOPY CABLE BLACK MFR # 2412095008
31. #SCREW B8 X 13 MFR # 7296342012
32. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
33. #SCREW, SHEET METAL MFR # 2951230008

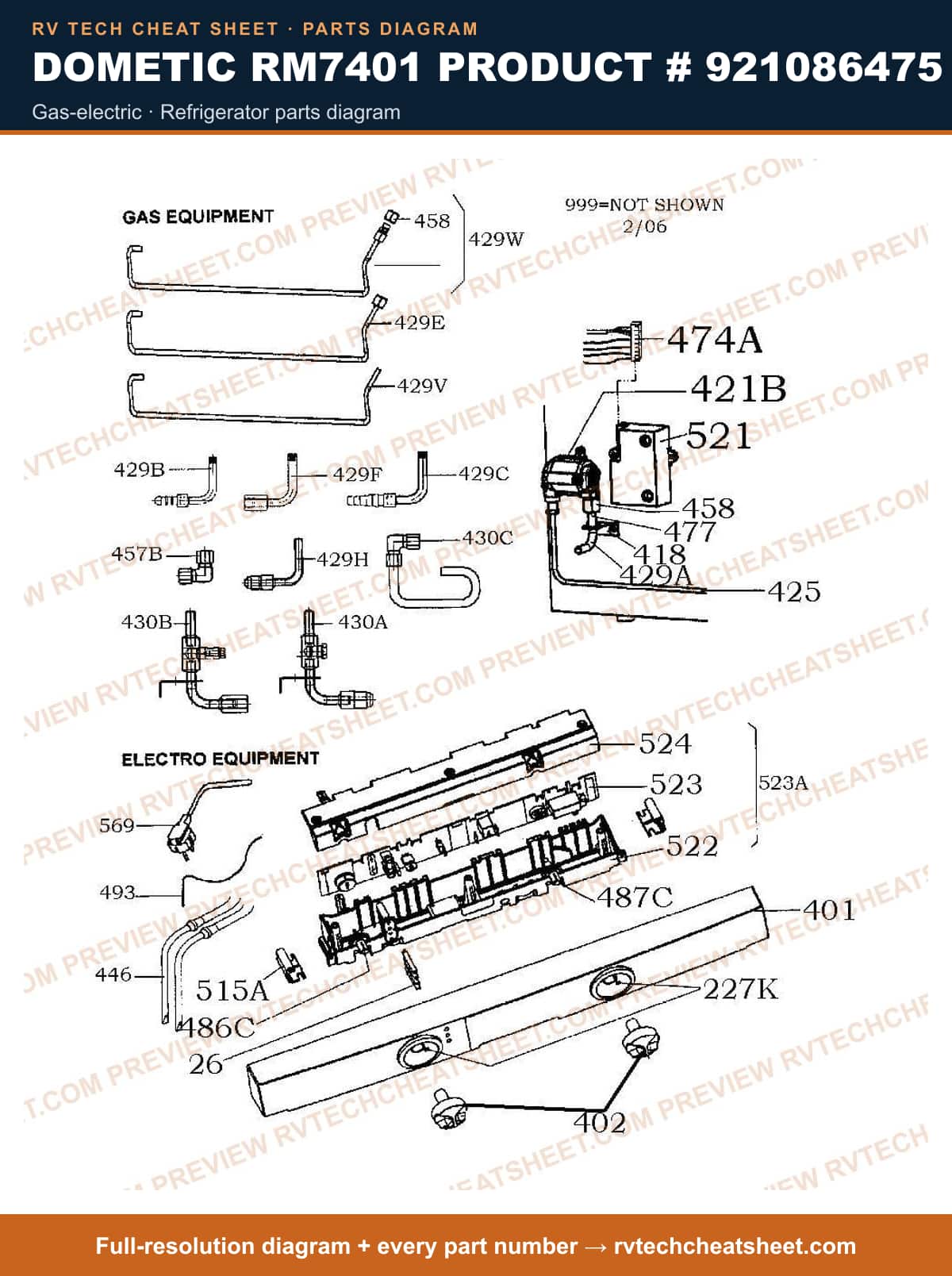

Gas-electric

Components

22 items

1. #CONDUCTOR, LIGHT CONTROL PANEL MFR # 2412788503
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #PANEL, CONTROL GRAY MFR # 2412933406
4. #APPLIANCE COMPONENTS RV; TURNING KNOB SILVER-GREY MFR # 2412787000
5. #VALVE, GAS HEA-TEC MFR # 2412798205
6. #PIPE, GAS INLET MFR # 2412593507
7. #CONNECTION, GAS COMPLETE MFR # 2412300879
8. #RV REFRIGERATOR HEATING ELEMENT, 120VAC 135W MFR # 2952170559
9. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
10. #NUT, UNION M14X1.5 MFR # 2927903100
11. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796308
12. #Appliance Components RV; Filter, Gas MFR # 2923191007
13. #SHAFT, SELECTOR SWITCH BLACK MFR # 2412784106
14. #APPLIANCE COMPONENTS RV; SHAFT, TEMPERATURE YELLOW MFR # 2412785103
15. #SHAFT, TEMPERATURE GRAY USE 2412785103 MFR # 2412785004 Superseded: see description
16. #THERMISTOR KIT, RM8501 MFR # 2952248504
17. #BRACKET, FIXING MFR # 2412786002
18. #IGNITER MFR # 2412789105
19. #CABINET LOWER ELECTRONIC MFR # 2412769008
20. #CONTROLS, COMPLETE ELECTRONIC EYEBROW MFR # 2412771301
21. #CABINET, TOP ELECTRONIC MFR # 2412770006
22. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BLACK MFR # 2412840338

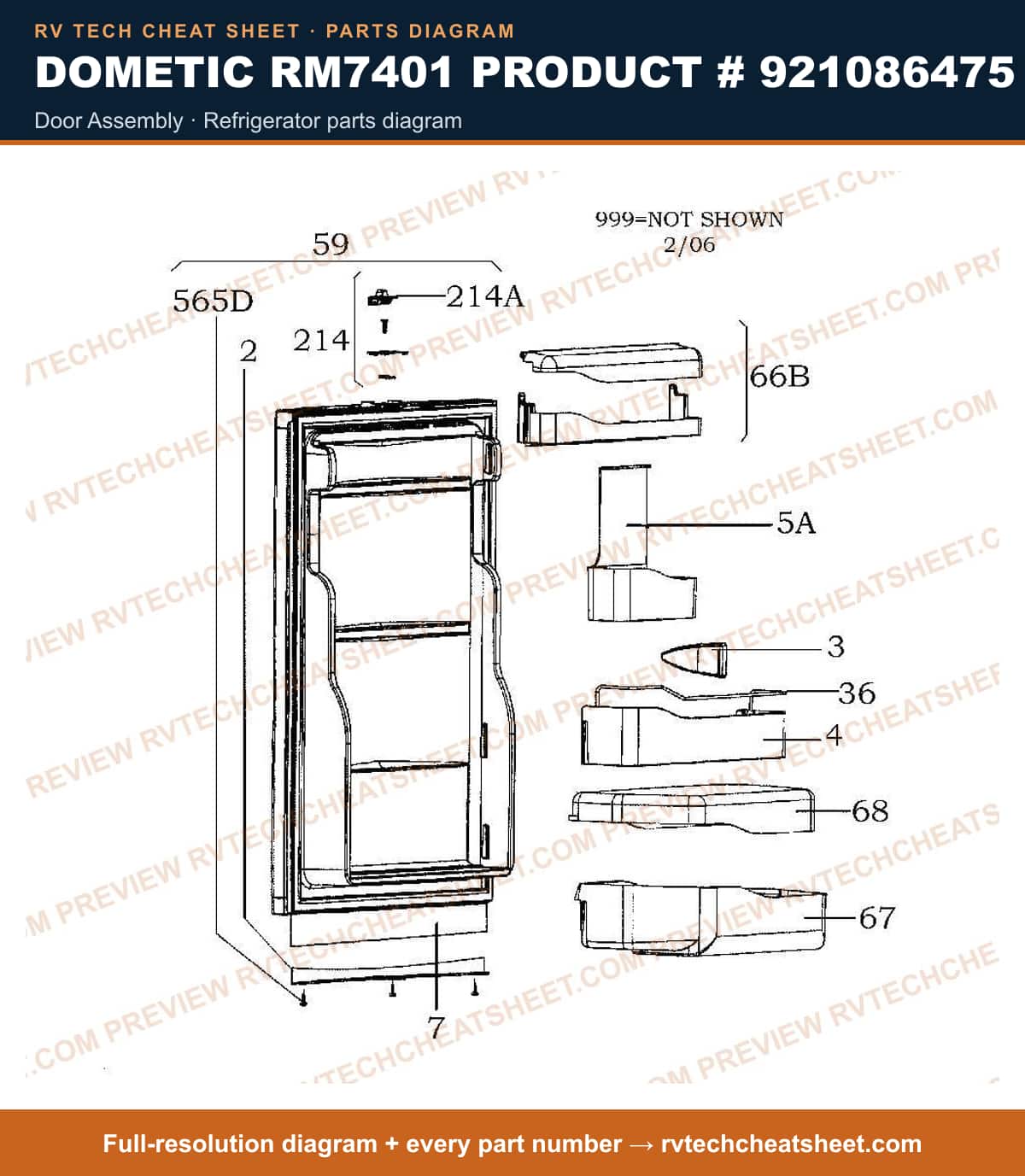

Door Assembly

Components

13 items

1. #DOORS RV; COVER LEDGE DOOR LIGHT GREY MFR # 2412737005
2. #HOLDER, BOTTLE BLUE MFR # 2412084002
3. #SHELF, BOTTOM WHITE MFR # 2412077105
4. #SHELF, MIDDLE WHITE MFR # 2412075109
5. #PLATE, DECORATION SILVER MFR # 2412113918
6. #HOLDER, BOTTLE WIRE SILVER MFR # 2412104131
7. #Refrigerator Door; Replacement For Dometic RM7401/ RM7551L Series Refrigerators MFR # 2412768307
8. #APPLIANCE COMPONENTS RV; SHELF, TOP GRAY MFR # 2412382117
9. #CRISPER, GRAY MFR # 2412078111
10. #DOORS RV; SLIDER, DOOR LOCK MFR # 2413272002
11. #SLIDER, DOOR LCK USE 2413272002 GRAY MFR # 2412883304 Superseded: see description
12. #APPLIANCE COMPONENTS RV; LOCK, DOOR GREY MFR # 2412757300
13. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016

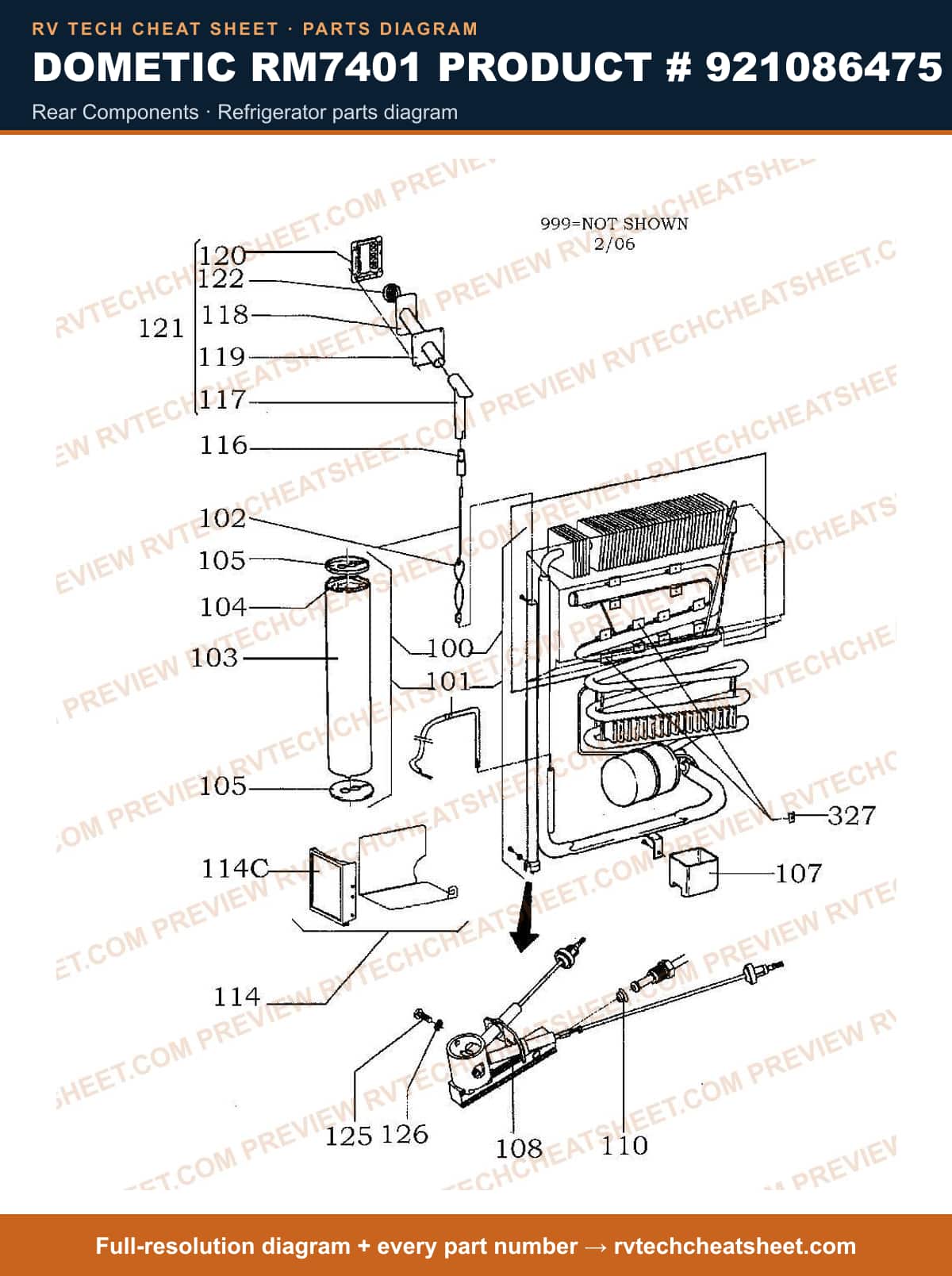

Rear Components

Components

15 items

1. #COOLING UNIT COMPLETE MFR # 2952986046
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #Appliance Components RV; Helix Complete MFR # 2926212206
4. #COVER, BOILER MFR # 2924082304
5. #INSULATION MFR # 2926680113
6. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
7. #TRAY, EVAPORATOR MFR # 2926019304
8. #BURNER, GAS W/ELECTRODE MFR # 2412802809
9. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
10. #BRACKET, COVER MFR # 2925057107
11. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #NUT, INSERT FOR C/U MFR # 2106626001
