Dometic RM7401 Product # 921086529 Parts Diagram · Gas-electric

Refrigerator · 4 assemblies · 4 diagram sheets · 47 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7401 Product # 921086529 RV refrigerator: 4 assemblies (Gas-electric, Rear Components, Cabinet Components, Door Assembly) and 47 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

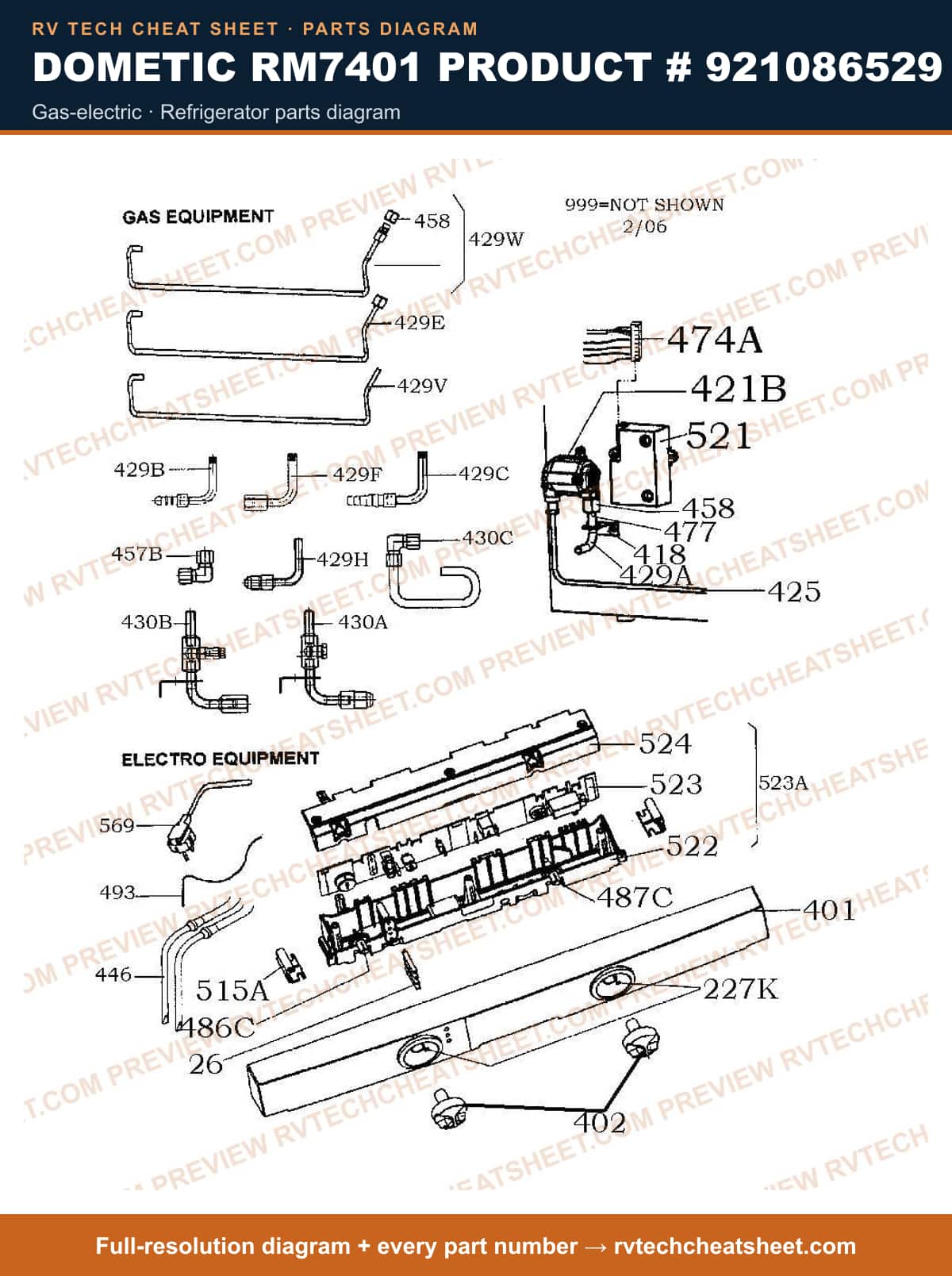

Gas-electric

Components

21 items

1. #CONDUCTOR, LIGHT CONTROL PANEL MFR # 2412788503
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #APPLIANCE COMPONENTS RV; CONTROL PANEL PLASTIC BENT MFR # 2412933901
4. #Refrigerator Control Knob; Replacement For Dometic RM460/ RA1302/ RM660/ RM661/ RM760/ RM761/ RM1301/ RM360 Series Refrigerator; Power Selector Knob; Gray MFR # 2412787208
5. #VALVE, GAS HEA-TEC MFR # 2412798205
6. #PIPE, GAS INLET MFR # 2412593507
7. #CONNECTION, GAS COMPLETE MFR # 2412300879
8. #RV REFRIGERATOR HEATING ELEMENT, 120VAC 135W MFR # 2952170559
9. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
10. #NUT, UNION M14X1.5 MFR # 2927903100
11. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796308
12. #Appliance Components RV; Filter, Gas MFR # 2923191007
13. #SHAFT, SELECTOR SWITCH BLACK MFR # 2412784106
14. #APPLIANCE COMPONENTS RV; SHAFT, TEMPERATURE YELLOW MFR # 2412785103
15. #THERMISTOR KIT, RM8501 MFR # 2952248504
16. #BRACKET, FIXING MFR # 2412786002
17. #IGNITER MFR # 2412789105
18. #CABINET LOWER ELECTRONIC MFR # 2412769008
19. #CONTROLS, COMPLETE ELECTRONIC EYEBROW MFR # 2412771301
20. #CABINET, TOP ELECTRONIC MFR # 2412770006
21. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BLACK MFR # 2412840338

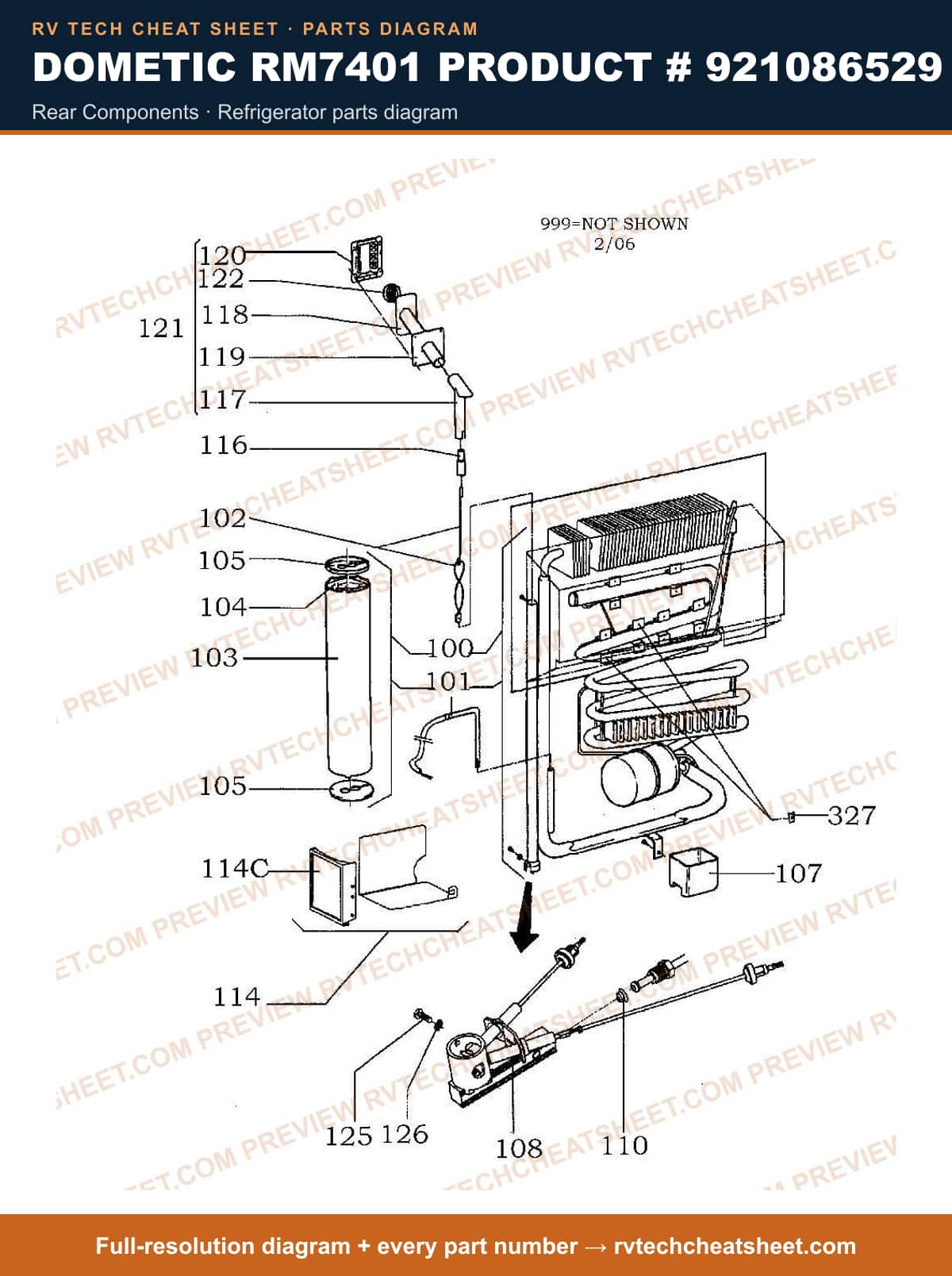

Rear Components

Components

15 items

1. #COOLING UNIT COMPLETE MFR # 2952986046
2. #Appliance Components RV; Helix Complete MFR # 2926212206
3. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
4. #COVER, BOILER MFR # 2924082304
5. #INSULATION MFR # 2926680113
6. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
7. #TRAY, EVAPORATOR MFR # 2926019304
8. #BURNER, GAS W/ELECTRODE MFR # 2412802809
9. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
10. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
11. #BRACKET, COVER MFR # 2925057107
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #NUT, INSERT FOR C/U MFR # 2106626001

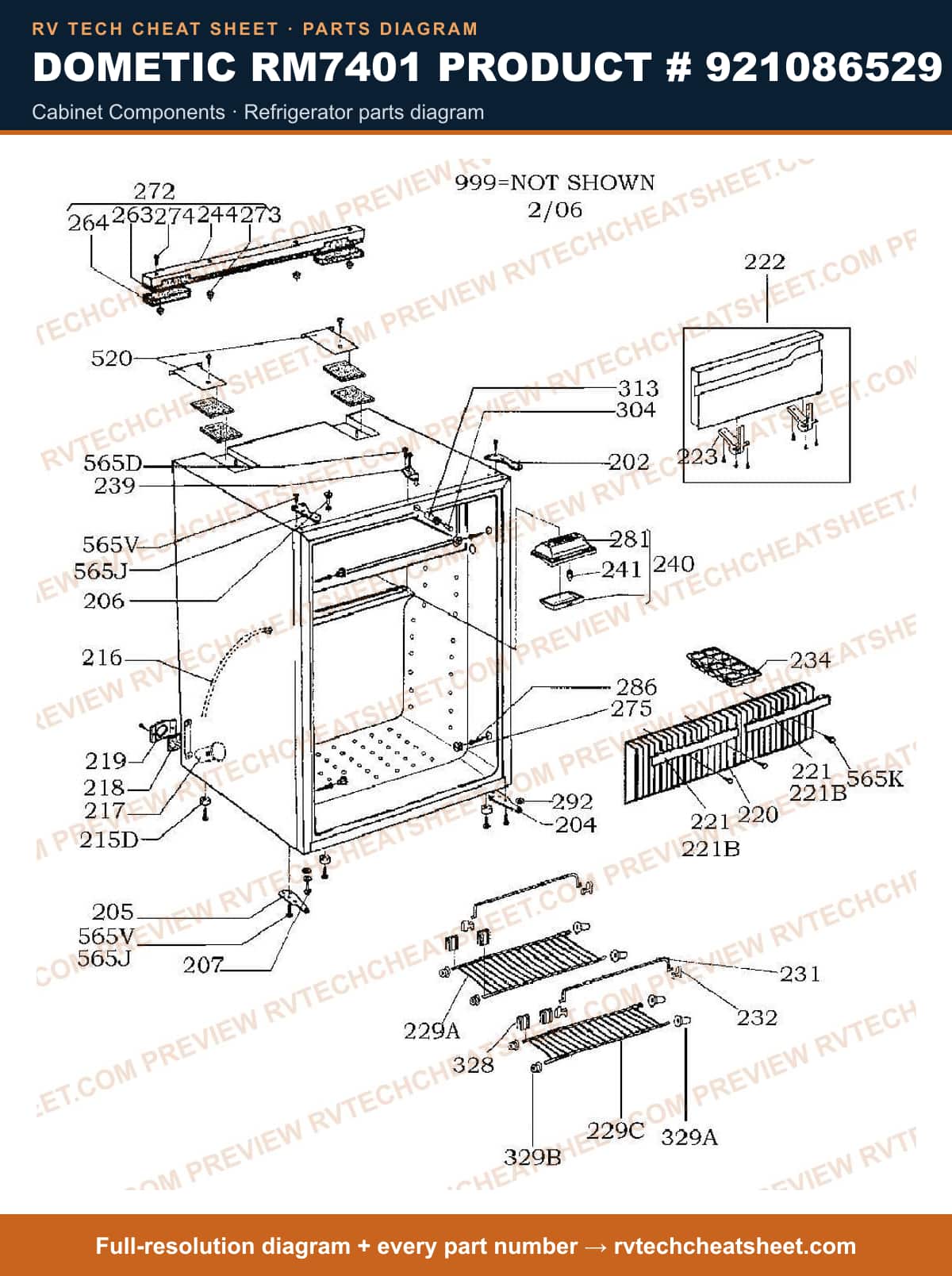

Cabinet Components

Components

11 items

1. #DOORS RV; COVER LEDGE DOOR LIGHT GREY MFR # 2412737005
2. #HOLDER, BOTTLE BLUE MFR # 2412084002
3. #SHELF, BOTTOM WHITE MFR # 2412077105
4. #SHELF, MIDDLE WHITE MFR # 2412075109
5. #HOLDER, BOTTLE WIRE SILVER MFR # 2412104131
6. #Refrigerator Door; Replacement For Dometic RM7401/ RM7551L Series Refrigerators MFR # 2412768307
7. #APPLIANCE COMPONENTS RV; SHELF, TOP GRAY MFR # 2412382117
8. #CRISPER, GRAY MFR # 2412078111
9. #S, LOCK ASM, DOOR, GREY MFR # 2412757607
10. #SLIDER USE 2412883908 F/DOOR LOCK GRAY MFR # 2412883403 Superseded: see description
11. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016

Door Assembly

Components

11 items

1. #DOORS RV; COVER LEDGE DOOR LIGHT GREY MFR # 2412737005
2. #HOLDER, BOTTLE BLUE MFR # 2412084002
3. #SHELF, BOTTOM WHITE MFR # 2412077105
4. #SHELF, MIDDLE WHITE MFR # 2412075109
5. #HOLDER, BOTTLE WIRE SILVER MFR # 2412104131
6. #Refrigerator Door; Replacement For Dometic RM7401/ RM7551L Series Refrigerators MFR # 2412768307
7. #APPLIANCE COMPONENTS RV; SHELF, TOP GRAY MFR # 2412382117
8. #CRISPER, GRAY MFR # 2412078111
9. #S, LOCK ASM, DOOR, GREY MFR # 2412757607
10. #SLIDER USE 2412883908 F/DOOR LOCK GRAY MFR # 2412883403 Superseded: see description
11. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
