Dometic RM75 Parts Diagram · Cabinet Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 230 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM75 RV refrigerator: 5 assemblies (Cabinet Assembly, Gas-electric Parts II, Gas-electric Parts, Replacement Refrigerator, Door Assembly) and 230 manufacturer part numbers. 44 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Assembly

Components

56 items

1. #SPACER MFR # 2002266019
2. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002350011
3. #SCREW, RX 5X10 Z. PL. MFR # 7241325013
4. #HOLDER, LATCH MFR # 2002324008
5. #SCREW, RX5X12, Z. PL. MFR # 7241327019
6. #RIVET NUT MFR # 149370017
7. #LATCH RM 75 MFR # 2002325005
8. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003
9. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
10. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
11. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
12. #HINGE, MIDDLE RM75 A MFR # 2002323000
13. #STOP,SHELF MFR # 2002635007
14. #SCREW MFR # 7295281658
15. #SHELF, UPPER MFR # 2002652036
16. #DECOR. STRIP - EARLIER VERSION MFR # 2002398051
17. #DECOR. STRIP - LATER VERSION MFR # 2002479034
18. #COVER, DRIP TRAY MFR # 2000543005
19. #DRIP TRAY MFR # 2000542007
20. #N/A MFR # 2001659032
21. #SHELF MFR # 2002651111
22. #INSTRUCTION PLATE MFR # 2002234017
23. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
24. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
25. #LID, CRISPER M70 RM7 MFR # 2000579009
26. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
27. #CRISPER USE 2000578043 MFR # 2000578019 Superseded: see description
28. #CABINET BASE MFR # 2002533095
29. #WASHER MFR # 2002389001
30. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
31. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
32. #WARNING LABEL MFR # 2002235006
33. #LINING MFR # 2000538005
34. #SCREW, KFXS B8X16, STAINLESS MFR # 7297344405
35. #SCREW, FXS 5X16 BRASS, Z. PL. MFR # 7243327132
36. #TRAY MFR # 2000533006
37. #SNAP SPRING MFR # 2000547006
38. #LINING MFR # 2002316004
39. #FRONT FRAME MFR # 2002317002
40. #PLUG, FACE WHITE MFR # 2002352009
41. #COVERING FRAME MFR # 2000541017
42. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
43. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
44. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
45. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
46. #FOOT MFR # 200400306
47. #CLAMP MFR # 200096608
48. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
49. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
50. #PROTECTION PLATE FOR RM75A MFR # 2002625024
51. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
52. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
53. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
54. #INSULATION MFR # 2004013005
55. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
56. #PIN,RETAINING MFR # 2001281019

Gas-electric Parts II

Components

64 items

1. #SCREW #17 MFR # 7241289011
2. #SCREW, RX 5X10, Z. PL. MFR # 7241325015
3. #SPRING WASHER MFR # 7251146019
4. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
5. #SPRING WASHER MFR # 7351136010
6. #COVER MFR # 173101007
7. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
8. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
10. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
11. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
12. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
13. #TAB CONNECTOR, ANGLE MFR # 7604855002
14. #Screw MFR # 7295340017
15. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
16. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
17. #T-STAT, GAS MFR # V35P0111013
18. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
19. #Thermostat Bypass Screw; Replaces #11 Bypass Screw On Ranco Gas Thermostat MFR # 172819047MC
20. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
21. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
22. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Screw Bypass S11 Alt 45- MFR # 172819047
24. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
25. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
26. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
27. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
28. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
29. #THERMOCOUPLE MFR # 169372000MC
30. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
31. #QUICK CHECK MFR # 423
32. #THERMOCOUPLE, 18" MFR # 169372002MC
33. #VALVE, SAFETY MFR # 293165
34. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
35. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
36. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
37. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
38. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
39. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
40. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
41. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
42. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
43. #LID MFR # 2890053008
44. #SPACER SLEEVE MFR # 173344011
45. #SPACER NUT MFR # 170827000
46. #TUBE, BURNER MFR # 2890010008
47. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
48. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
49. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
50. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
51. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
52. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
53. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
54. #LINE,GAS INLET RM7'S MFR # 2890051002
55. #NUT, UNION FEMALE MFR # 2902553003
56. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
57. #ORIFICE, #52 MFR # 2002660187
58. #ORIFICE, #53 MFR # 2002660195
59. #BRACKET MFR # 2002469001
60. #HOLDER, VALVE BRACKET MFR # 2890033000
61. #SCREW, RX 4X8, Z. PL. MFR # 7241287015
62. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
63. #BURNER PROTECTION MFR # 2002476006
64. #BRACKET,BURNER MFR # 2002493001

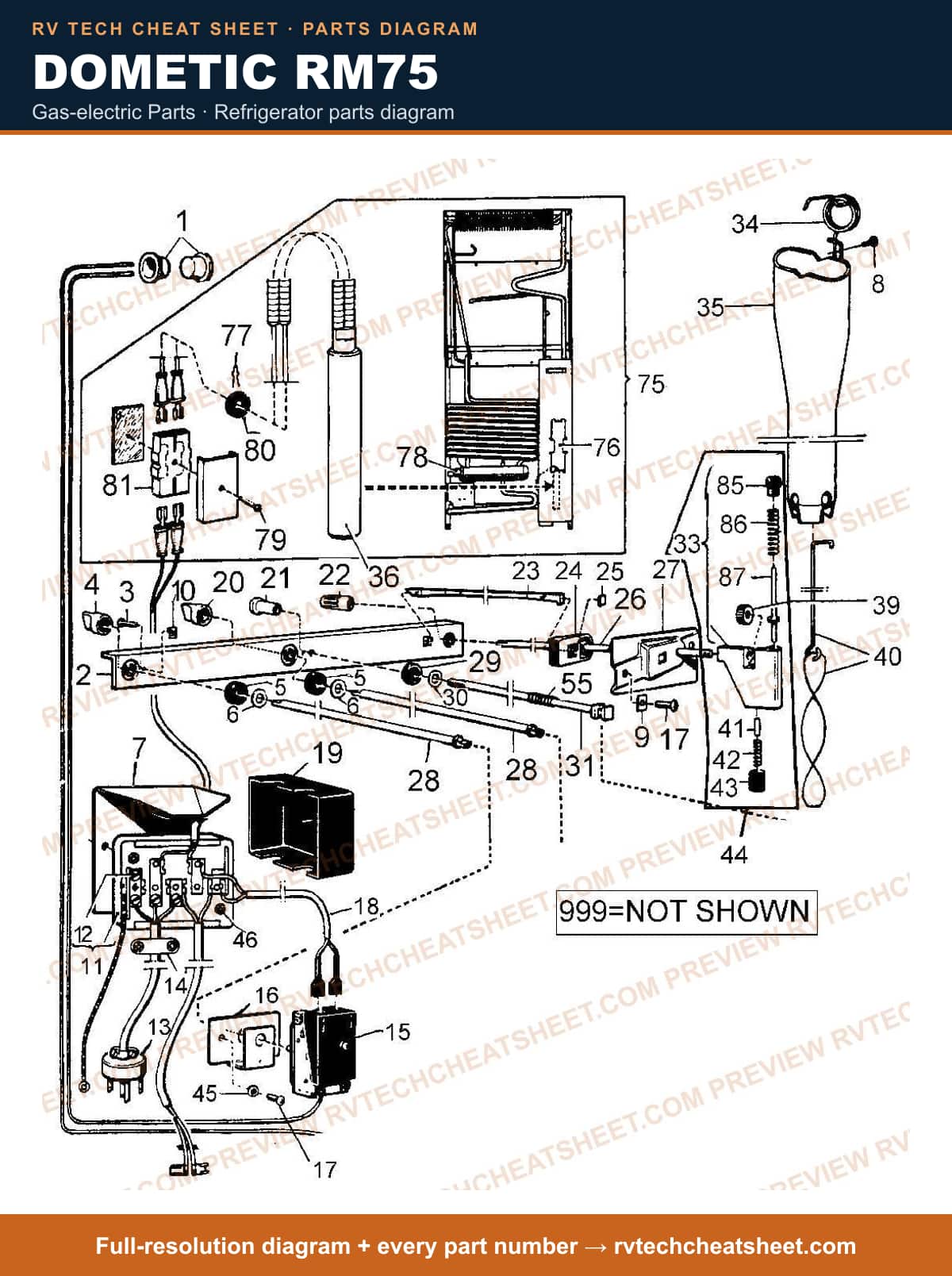

Gas-electric Parts

Components

64 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #Panel, Control MFR # 2002228001
3. #SCREW MFR # 7295281658
4. #Appliance Components RV; Knob Electric T-Stat; White Knob with Gray Writing MFR # 2002423016
5. #SEALING RING MFR # 2002224018
6. #WASHER RM36E MFR # 7344974014
7. #PROTECTION PLATE MFR # 2002445001
8. #SCREW - LKXS B8X10 - Z.PL. MFR # 7295340512
9. #WASHER MFR # 2002351001
10. #LOCK NUT SNJ 1915 MFR # 7337813062
11. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
12. #SCREW - KCS 3.5X5 - BRASS MFR # 7232250105
13. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
14. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
15. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
16. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
17. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
18. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
19. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
20. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
21. #BRACKET T-STAT MFR # 2890034008
22. #SCREW #17 MFR # 7241289011
23. #CABLE - COMPLETE - FOR THERMOSTAT MFR # 173193046D
24. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
25. #Refrigerator Control Knob; Replacement For Dometic RM75/ RM36/ RM45A; Thermostat Control Knob; White MFR # 2002423008
26. #Knob, Pull Orange MFR # 2002426001
27. #Appliance Components RV; Knob Turn Lighter MFR # 2002425003
28. #APPLIANCE COMPONENTS RV; Conductor Light 7' MFR # 2002222020
29. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
30. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
31. #APPLIANCE COMPONENTS RV; Shaft Lighter Rm75 MFR # 2890019025
32. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
33. #SHAFT RM7'S MFR # 2002300024
34. #RING,SEALING MFR # 2002224000
35. #WASHER RM66 MFR # 7344908012
36. #APPLIANCE COMPONENTS RV; Rod Pull Rm76 76D 77 MFR # 2002226021
37. #Igniter Striker MFR # 944023001
38. #SPRING FOR FLUE MFR # 2890038009
39. #FLUE TOP MFR # 2890040007
40. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
41. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
42. #Appliance Components RV; Wheel Igniter Knurled MFR # 2890016005
43. #BAFFLE, FLUE MFR # 172174013
44. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
45. #FLINT MFR # 270127004
46. #SPRING MFR # 2890018001
47. #Refrigerator Evaporator Door Spring Holder; Use With Dometic Refrigerator Model RM45 MFR # 2890008002 Superseded: see description
48. #LIGHTER, SPARK MFR # 2890030020
49. #SPRING WASHER MFR # 7351136010
50. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
51. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
52. #COOLING UNIT RM77 USE 49-4752 MFR # 9285134004N Superseded: see description
53. #REMAN C/U USE 5575 RM75,76D,77 MFR # 9285134004R Superseded: see description
54. #COVER N/A MFR # 173430000
55. #LOCKING SPRING MFR # 170692008
56. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
57. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
58. #SCREW MFR # 7298285402
59. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
60. #BUSHING MFR # 149585010
61. #CONNECTION BLOCK MFR # 2400297004
62. #Bushing for Guide Pin MFR # 2890022003
63. #Spring for Guide Pin RM36 MFR # 2890021005
64. #N/A Guide Pin for Lighter MFR # 2890020007

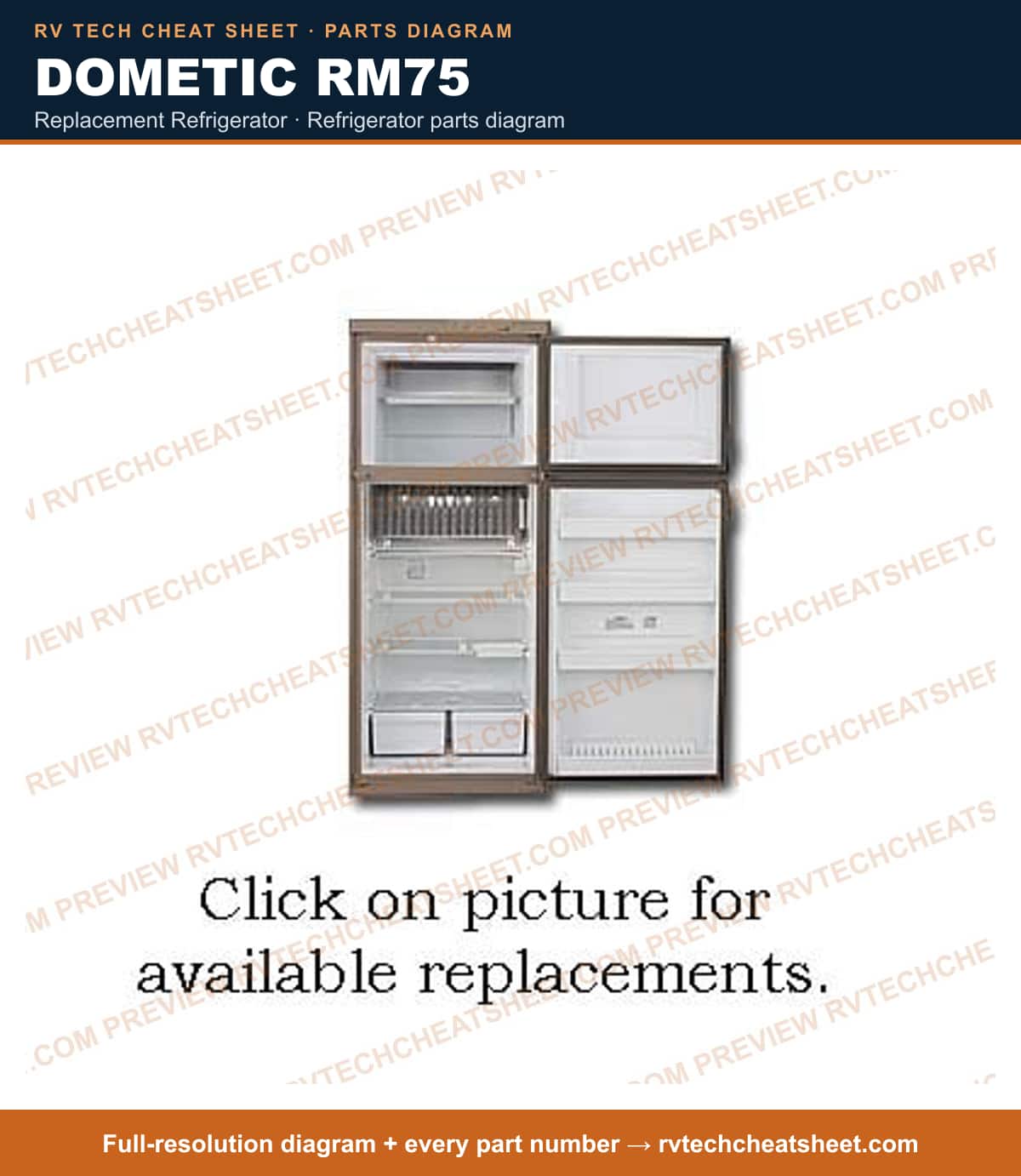

Replacement Refrigerator

Components

12 items

1. #Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641R
2. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
3. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
4. #REFER,8 CU FT BLK 59 15/16" X 23 11/16" X 24" MFR # RM2852B
5. #REFER,8 CU.FT USE RM2852B 2-WAY BEIGE MFR # RM2852N Superseded: see description
6. #REFER,8 CU FT 2 WAY BLK FRM 59 15/16" X 23 11/16" MFR # RM2862B
7. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
8. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
9. #Refrigerator / Freezer; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641SSR
10. #Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description
11. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
12. #REFRIGERATORS & ICE MAKERS RV; Refrigerator/Lp-Ac/Im-Blk MFR # N641IMBKL

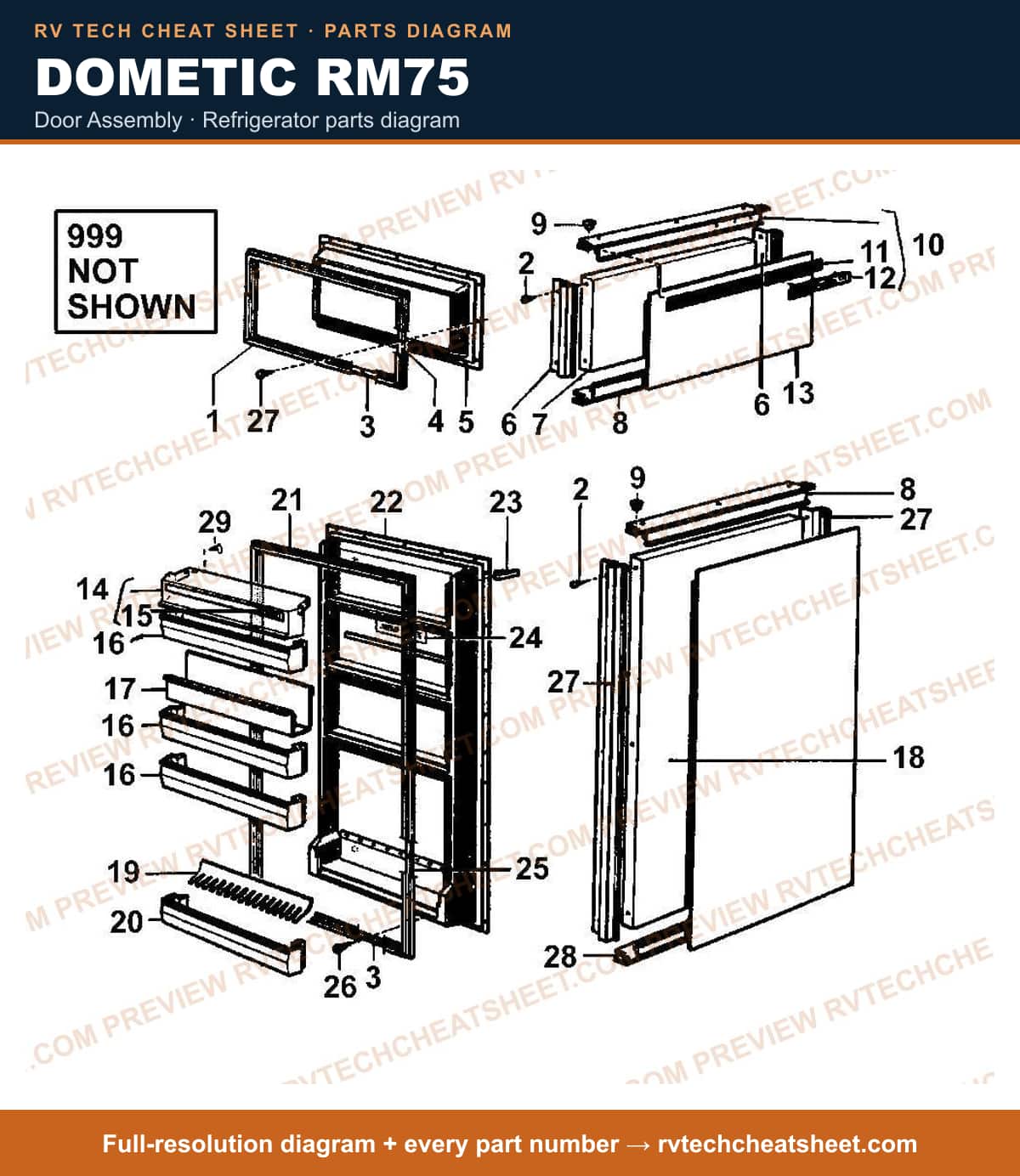

Door Assembly

Components

38 items

1. #APPLIANCE COMPONENTS RV; Gasket Freezer RM75 MFR # 2001111091
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #REINFORCING STRIP, HORIZONTAL MFR # 2001586003
4. #REINFORCING STRIP, VERTICAL MFR # 2001585088
5. #DOOR PAN UPPER YELLOW MFR # 2002330039
6. #DOOR FRAME, VERTICAL MFR # 2002342042
7. #DOOR PLATE INSULATED MFR # 2002328009
8. #DOOR PLATE, INSULATED MFR # 2002341002
9. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
10. #DOOR FRAME - HORIZONTAL, UPPER - COMPLETE MFR # 2002343024
11. #NOT AVAILABLE MFR # 2002498026
12. #DECORATION STRIP MFR # 2002344063
13. #NAMEPLATE MFR # 2002345003
14. #NOT AVAILABLE MFR # 2002501001
15. #N/A MFR # 2002355002
16. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
18. #NAME PLATE DOMETIC MFR # 2002256002
19. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
20. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
21. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
22. #WEAR LINER MFR # 2002263008
23. #N/A MFR # 2002334007
24. #APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007
25. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
26. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
27. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
28. #Refrigerator Gasket; Replacement For Dometic RM75/ RM76/ RM77 Model Refrigerator; Lower Door Gasket MFR # 2001111083
29. #DOOR LINER RM75 A MFR # 2002378020
30. #INSERT,HINGE PIN MFR # 171563000
31. #LABEL, INSTRUCTION MFR # 2002356000
32. #REINFORCING STRIP, VERT. MFR # 2001585070
33. #SCREW MFR # 7295279652
34. #DOOR FRAME, VERTICAL MFR # 2002342034
35. #DOOR FRAME - HORIZ. MFR # 2002340020
36. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
37. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
38. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # RM75L
