Dometic RM7551L Product # 921086596 Parts Diagram · Cabinet Rear View Breakdown

Refrigerator · 4 assemblies · 4 diagram sheets · 77 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7551L Product # 921086596 RV refrigerator: 4 assemblies (Cabinet Rear View Breakdown, Gas & Electric Breakdown, Cabinet Interior Breakdown, Door Asm Breakdown) and 77 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

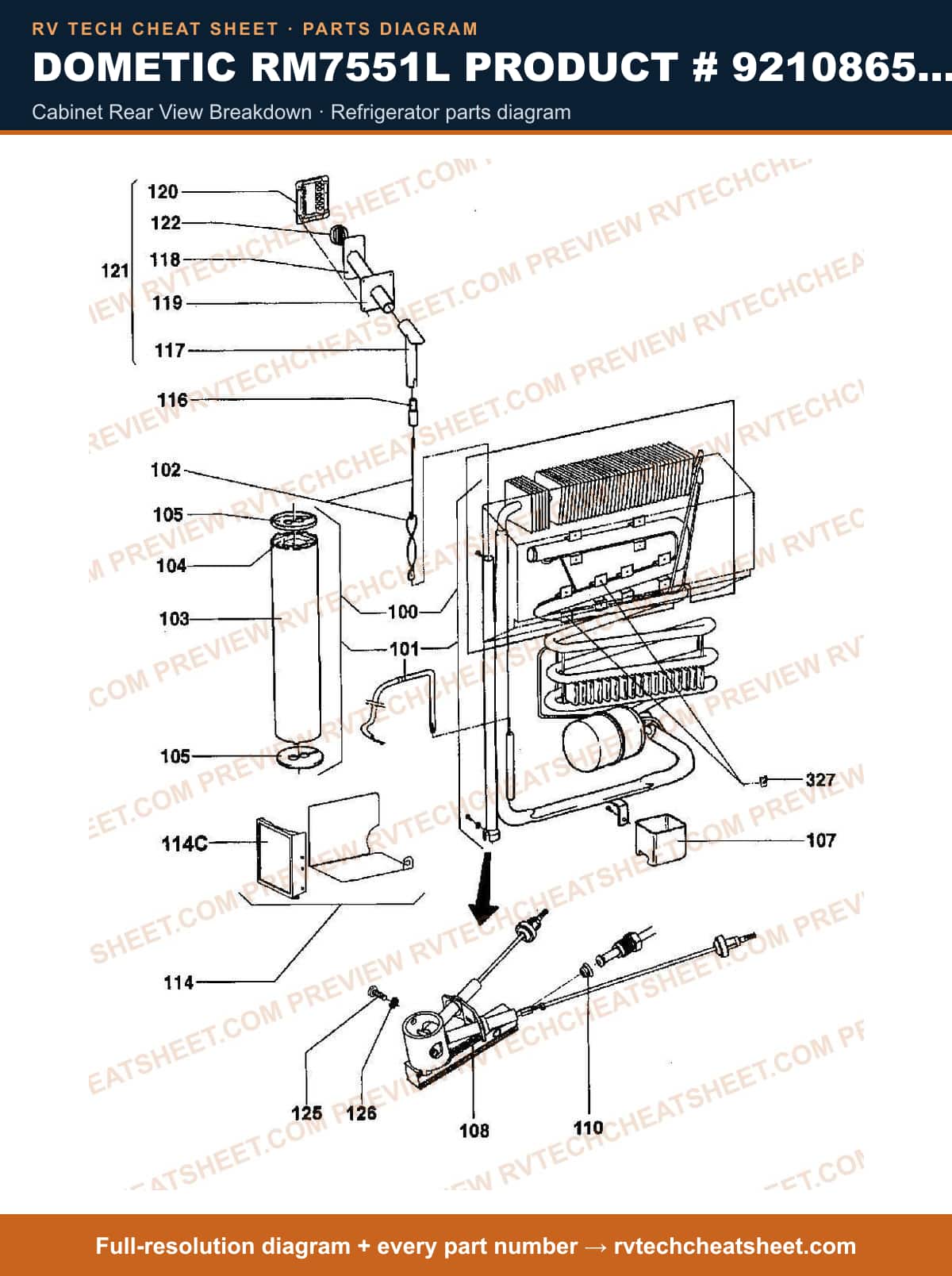

Cabinet Rear View Breakdown

Components

12 items

1. #Appliance Components RV; Helix Complete MFR # 2926212206
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #COVER, BOILER MFR # 2924082304
4. #INSULATION MFR # 2926680113
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #TRAY, EVAPORATOR MFR # 2926019304
7. #BURNER, GAS W/ELECTRODE MFR # 2412802809
8. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
9. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
10. #SCREW MFR # 2952435408
11. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
12. #NUT, INSERT FOR C/U MFR # 2106626001

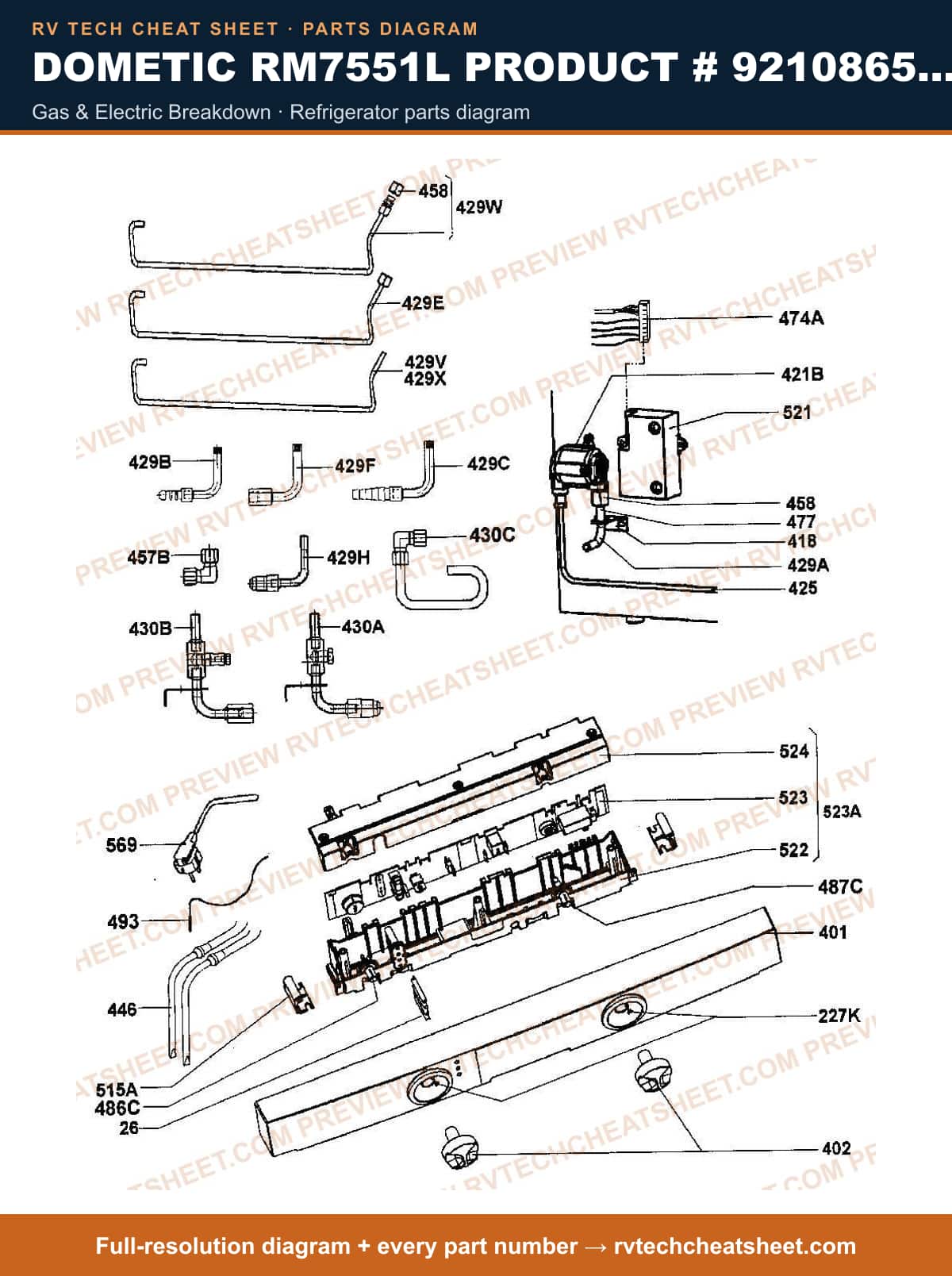

Gas & Electric Breakdown

Components

24 items

1. #CONDUCTOR, LIGHT MFR # 2412788511
2. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
4. #PANEL, CONTROL MFR # 2412933505
5. #Refrigerator Control Knob; Replacement For Dometic RM460/ RA1302/ RM660/ RM661/ RM760/ RM761/ RM1301/ RM360 Series Refrigerator; Power Selector Knob; Gray MFR # 2412787208
6. #BRACKET, GAS VALVE MFR # 2926202009
7. #VALVE, GAS HEA-TEC MFR # 2412798205
8. #PIPE, GAS INLET MFR # 2412593507
9. #CONNECTION, GAS COMPLETE MFR # 2412300879
10. #ELEMENT, HEATING 120VAC/135W MFR # 2951270559
11. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
12. #NUT, UNION M14X1.5 MFR # 2927903100
13. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796308
14. #Appliance Components RV; Filter, Gas MFR # 2923191007
15. #SHAFT, SELECTOR SWITCH BLACK MFR # 2412784106
16. #SHAFT, TEMPERATURE GRAY USE 2412785103 MFR # 2412785004 Superseded: see description
17. #APPLIANCE COMPONENTS RV; SHAFT, TEMPERATURE YELLOW MFR # 2412785103
18. #THERMISTOR KIT, RM8501 MFR # 2952248504
19. #BRACKET, FIXING MFR # 2412786002
20. #IGNITER MFR # 2412789105
21. #CABINET LOWER ELECTRONIC MFR # 2412769008
22. #CONTROLS, COMPLETE ELECTRONIC EYEBROW MFR # 2412771301
23. #CABINET, TOP ELECTRONIC MFR # 2412770006
24. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BLACK MFR # 2412840338

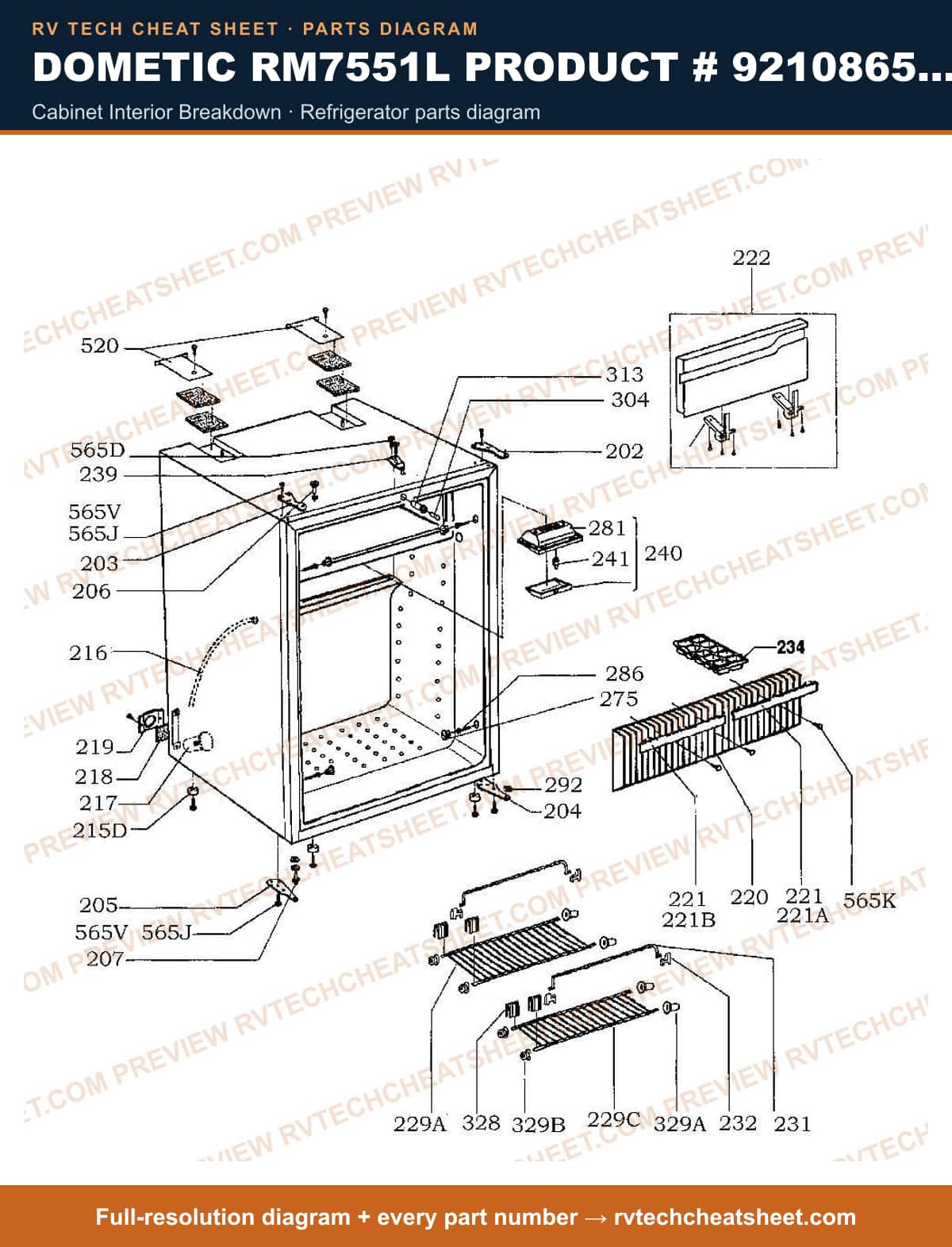

Cabinet Interior Breakdown

Components

31 items

1. #HINGE, UPPER RH CHROME MFR # 2412096204
2. #APPLIANCE COMPONENTS RV; HINGE UPPER LEFT CHROME PLATED MFR # 2412097202
3. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
4. #APPLIANCE COMPONENTS RV; HINGE LOWER LEFT CHROME PLATED MFR # 2412099109
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, HINGE MFR # 2926265402
7. #FOOT MFR # 2923297028
8. #HOSE, DRAIN MFR # 2923346205
9. #FINS, EVAPORATOR MFR # 2412606408
10. #CANOPY COOLING FINS WHITE MFR # 2926235140
11. #DOOR, FREEZER USE 3312986130 MFR # 2412195204 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Door Freezer MFR # 3312986130
13. #GRID, UPPER MFR # 2412943702
14. #GRID, BOTTOM MFR # 2412943603
15. #BRACKET, DOOR LOCK MFR # 2412884013
16. #LIGHTING, COMPLETE WHITE MFR # 2951641220
17. #LAMP, 12V 1.5W AC 50HZ MFR # 2951388202
18. #COVER CAP, FIXING WHITE MFR # 2951221031
19. #REFLECTOR MFR # 2951643127
20. #SCREWS MFR # 2926544004
21. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
22. #SENSOR, LIGHT MFR # 2951380506
23. #SENSOR, SHEATH BLACK MFR # 2951379110
24. #LOCK, SHELF WHITE MFR # 2412082006
25. #APPLIANCE COMPONENTS RV; Guide Shelf Rh MFR # 2412083004
26. #GUIDE, SHELF LH WHITE MFR # 2412083103
27. #GROMMET, CANOPY CABLE BLACK MFR # 2412095008
28. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
29. #SCREW B8 X 13 MFR # 7296342012
30. #SCREW, SHEET METAL MFR # 2951230008
31. #SCREW, COUNTERSINK MFR # 2924417021

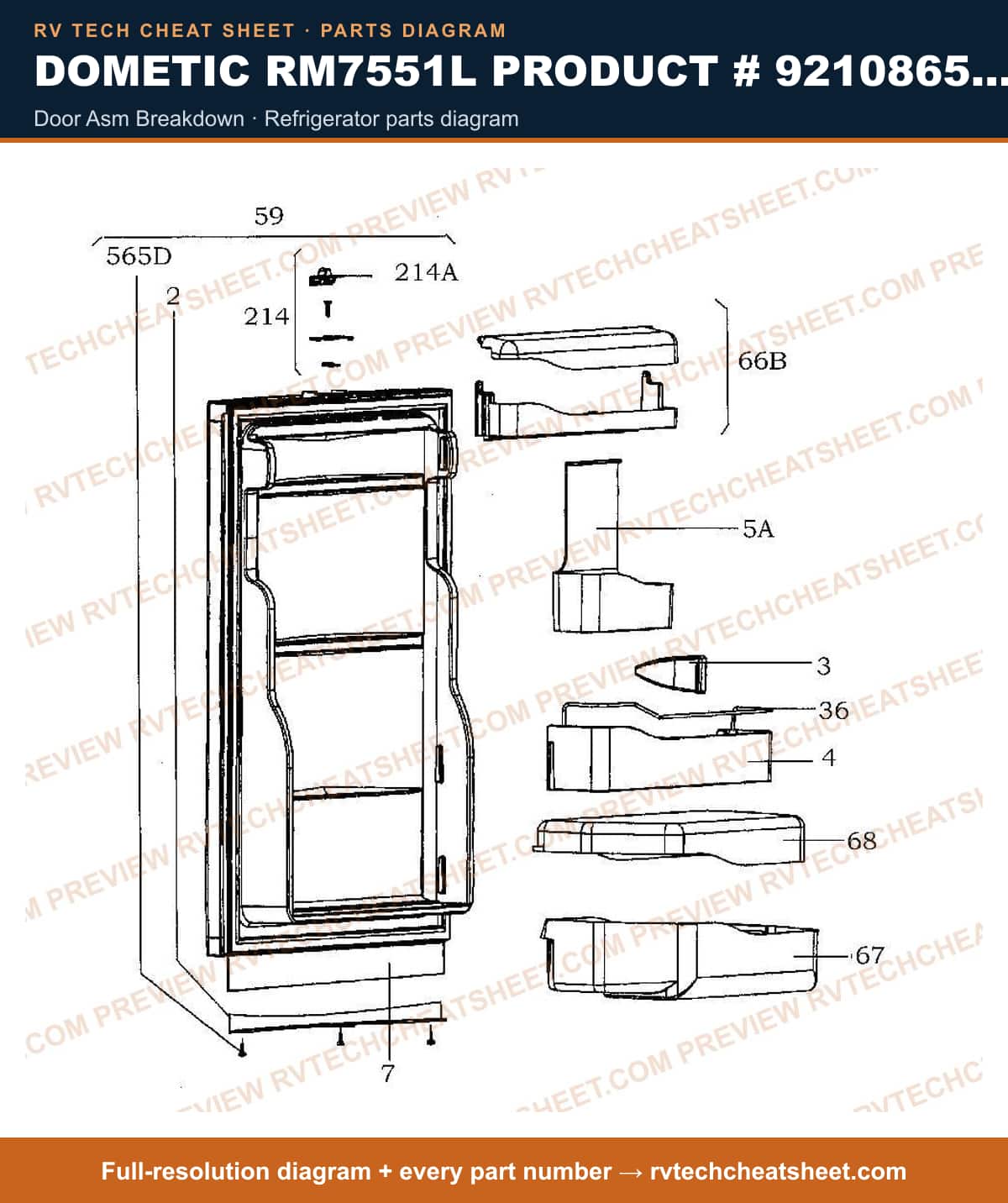

Door Asm Breakdown

Components

11 items

1. #DOORS RV; COVER LEDGE DOOR LIGHT GREY MFR # 2412737005
2. #HOLDER, BOTTLE BLUE MFR # 2412084002
3. #SHELF, BOTTOM WHITE MFR # 2412077105
4. #SHELF, MIDDLE WHITE MFR # 2412075109
5. #HOLDER, BOTTLE WIRE SILVER MFR # 2412104131
6. #Refrigerator Door; Replacement For Dometic RM7401/ RM7551L Series Refrigerators MFR # 2412768307
7. #APPLIANCE COMPONENTS RV; SHELF, TOP GRAY MFR # 2412382117
8. #CRISPER, GRAY MFR # 2412078111
9. #S, LOCK ASM, DOOR, GREY MFR # 2412757607
10. #LOCK, DOOR GRAY MFR # 2412883809
11. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
