Dometic RM76 Model RM76 Parts Diagram · Cabinet Assembly Detailed

Refrigerator · 5 assemblies · 5 diagram sheets · 222 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM76 Model RM76 RV refrigerator: 5 assemblies (Cabinet Assembly Detailed, Cabinet Assembly, Replacement Refrigerator, Gas-electric, Door Assembly) and 222 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Assembly Detailed

Components

13 items

1. #SPACER MFR # 2002266019
2. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005
3. #HOLDER, LATCH MFR # 2002324008
4. #SCREW, RX5X12, Z. PL. MFR # 7241327019
5. #RIVET NUT MFR # 149370017
6. #LATCH RM 75 MFR # 2002325005
7. #Repair Part - Refrigerators RV; Plate Hinge Rh MFR # D7E2002350003
8. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
9. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
10. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
11. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
12. #TRAY,ICE W/RELEASER MFR # 2002337000
13. #SCREWS RM10 0 MFR # 7241328017

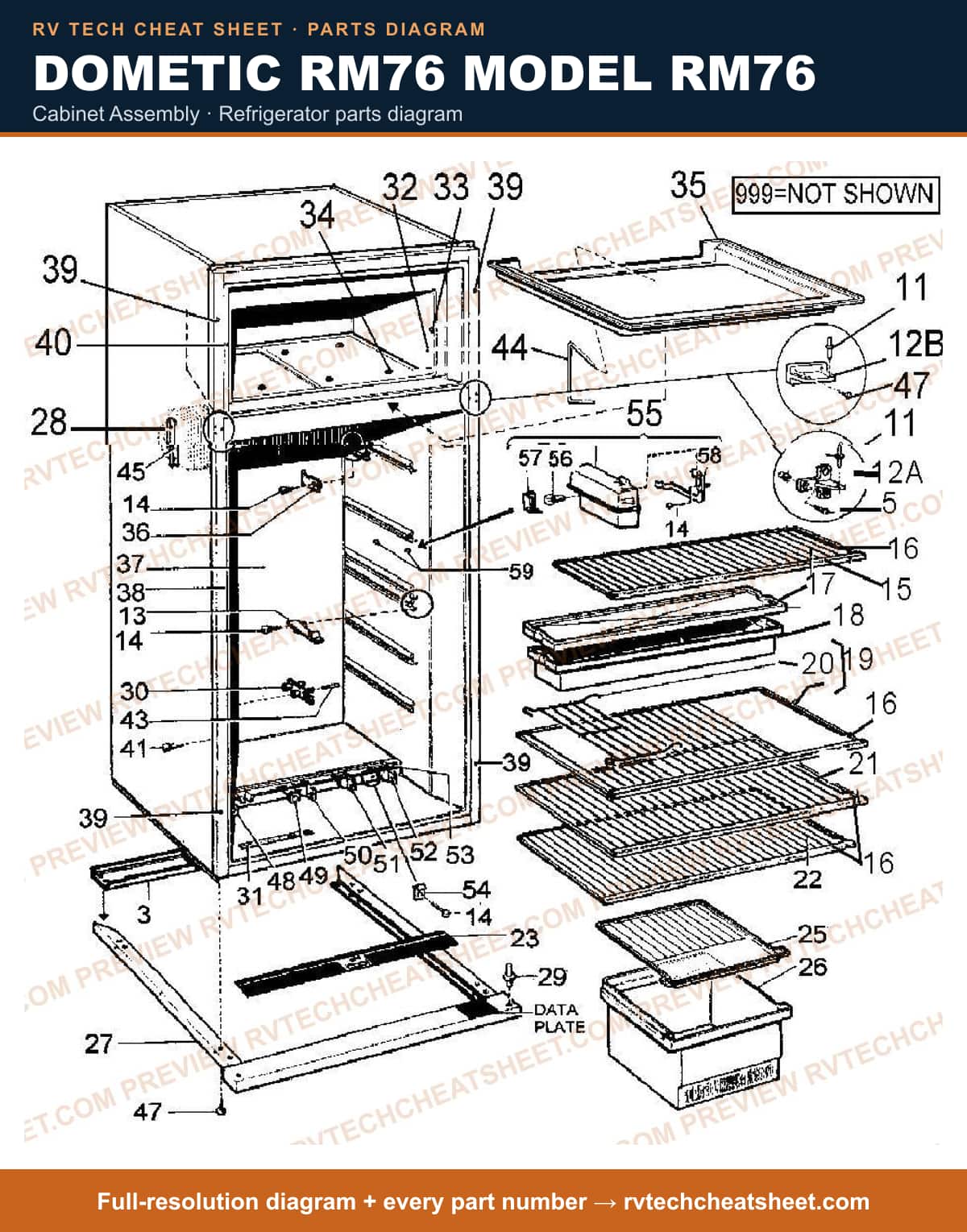

Cabinet Assembly

Components

55 items

1. #PROTECTION PLATE FOR RM75A MFR # 2002625024
2. #SCREW, RX5X12, Z. PL. MFR # 7241327019
3. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
4. #HINGE, MIDDLE MFR # 2002323026
5. #HINGE, MIDDLE MFR # 2002323018
6. #STOP,SHELF MFR # 2002635007
7. #SCREW MFR # 7295281658
8. #SHELF, UPPER MFR # 2002652036
9. #DECOR. STRIP - LATER VERSION MFR # 2002479034
10. #COVER MFR # 2000543039
11. #TRAY, DRIP WHITE MFR # 2000542031
12. #SHELF USE 2002651111 MFR # 2002651145 Superseded: see description
13. #SHELF MFR # 2002651111
14. #INSTRUCTION PLATE MFR # 2007008010
15. #LID, CRISPER M70 RM7 MFR # 2000579009
16. #CRISPER MFR # 2000577011
17. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
18. #CABINET BASE MFR # 2002533020
19. #CABINET BASE MFR # 2002533095
20. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
22. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
23. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
24. #WARNING LABEL MFR # 2007048008
25. #LINING MFR # 2000538005
26. #SCREW, KFXS B8X16, STAINLESS MFR # 7297344405
27. #SCREW - FX 5X18, NI, PL. MFR # 7243330136
28. #TRAY MFR # 2000533006
29. #SNAP SPRING MFR # 2000547006
30. #LINING MFR # 2002316004
31. #TRIM MFR # 2002317036
32. #FRONT FRAME - YELLOW, RM76, 77 MFR # 2002317028
33. #PLUG, FACE WHITE MFR # 2002352009
34. #COVERING FRAME MFR # 2000541017
35. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
36. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
37. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
38. #PIN,RETAINING MFR # 2001281019
39. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
40. #CLAMP MFR # 2000966008
41. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
42. #SCREWS RM10 0 MFR # 7241328017
43. #KNOB,PIEZO MFR # 2002669006
44. #APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027
45. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
46. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
47. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
48. #PANEL,CONTROL YELLOW MFR # 2002664007
49. #PANEL,CONTROL YELLOW MFR # 2002664056
50. #LOCK NUT SNJ 1915 MFR # 7337813062
51. #FITTING LAMP COMPLETE MFR # 2002751002
52. #LAMP,6 VOLT MFR # 140315003
53. #LAMP,GLASS MFR # 2002748008
54. #APPLIANCE COMPONENTS RV; Bracket MFR # 2002749006
55. #PLUG MFR # 2009097005

Replacement Refrigerator

Components

11 items

1. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
2. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
3. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
4. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
5. #Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description
6. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
8. #REFER,8 CU FT 2 WAY BLK FRM 59 15/16" X 23 11/16" MFR # RM2862B
9. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
10. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
11. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK

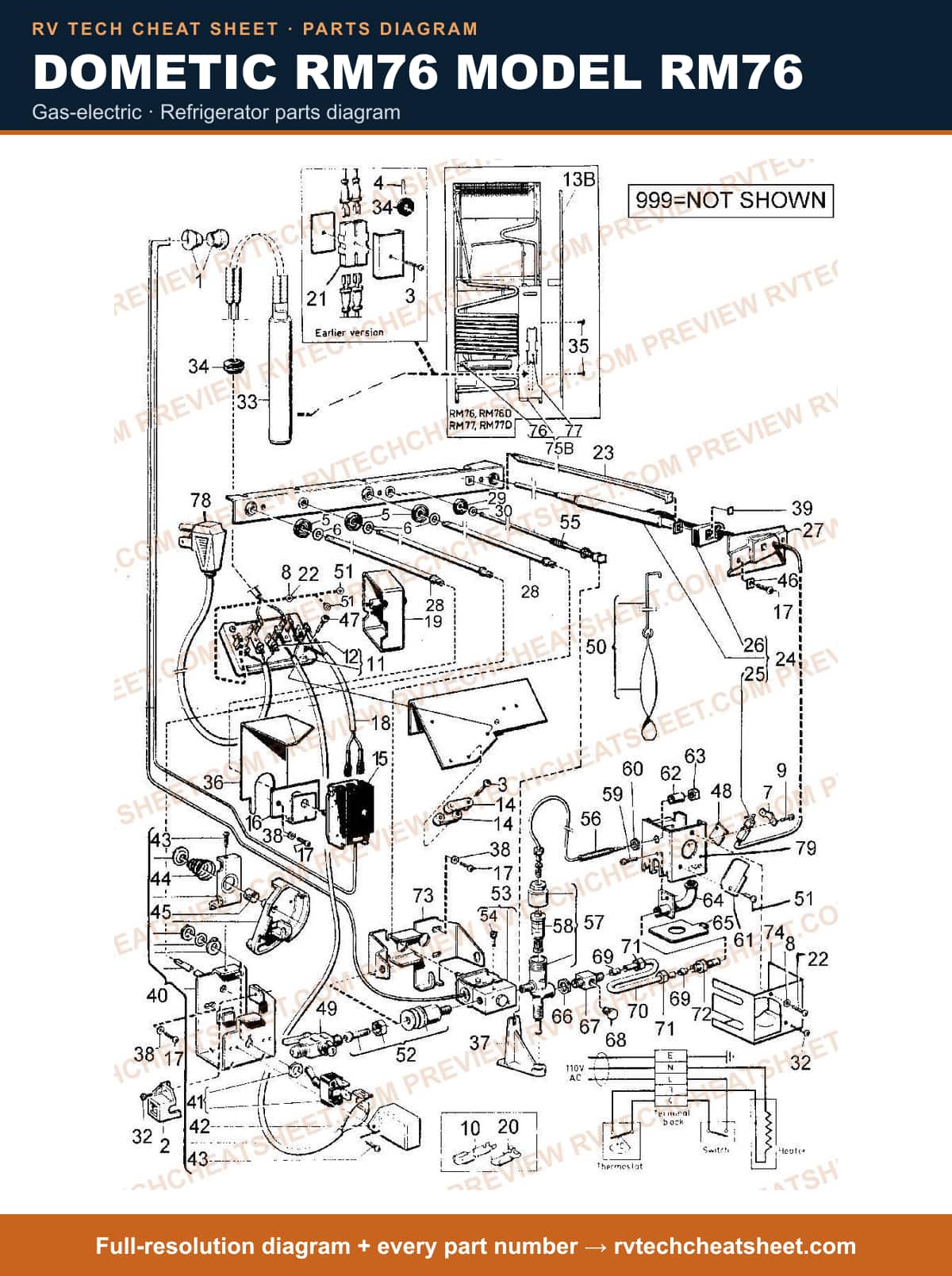

Gas-electric

Components

118 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #TURN PROTECTION MFR # 2002766000
3. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
4. #SCREW MFR # 7298285402
5. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
6. #LOCKING SPRING MFR # 170692008
7. #SEALING RING MFR # 2002224018
8. #WASHER RM36E MFR # 7344974014
9. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
10. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
11. #SCREW RXS B6X5 MFR # 7295275015
12. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
13. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
14. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
15. #FLUE N/A MFR # 2002472013
16. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
17. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
18. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
19. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
20. #BRACKET T-STAT MFR # 2890034008
21. #SCREW #17 MFR # 7241289011
22. #CABLE, COMPL., FOR T-STAT MFR # 173193046
23. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
24. #TAB CONNECTOR, ANGLE MFR # 7604855002
25. #CONNECTION BLOCK MFR # 2400297004
26. #NO PART # GIVEN BY VENDOR MFR # NPG
27. #APPLIANCE COMPONENTS RV; Conductor Light 7' MFR # 2002222020
28. #APPLIANCE COMPONENTS RV; Piezo MFR # 2002609010MC
29. #IGNITER USE 2002609028 LOT 439 MFR # 2002609010 Superseded: see description
30. #PIEZO LIGHTER MFR # 440
31. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
32. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
33. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
34. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
36. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
37. #SHAFT RM7'S MFR # 2002300024
38. #RING,SEALING MFR # 2002224000
39. #WASHER RM66 MFR # 7344908012
40. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
41. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
42. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
44. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
45. #BUSHING MFR # 149585010
46. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
47. #PROTECTION PLATE MFR # 2002445001
48. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
49. #SPRING WASHER MFR # 7351136010
50. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
51. #SWITCH, SELECTOR MFR # 2002670038
52. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
53. #COVER MFR # 173101007
54. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
55. #SWITCH ASM 3 WAY MFR # 2007176007
56. #SEALING RING MFR # 7356819115
57. #WASHER MFR # 2002351001
58. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
59. #INSULATION - NLA MFR # 2002442008
60. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
61. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
62. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
64. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
65. #BAFFLE, FLUE MFR # 172174013
66. #Screw MFR # 7295340017
67. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
68. #T-STAT, GAS MFR # V35P0111013
69. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
70. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
71. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
72. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
73. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
74. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
75. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
76. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
77. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
78. #THERMOCOUPLE MFR # 169372000MC
79. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
80. #QUICK CHECK MFR # 423
81. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
82. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
83. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
84. #VALVE, SAFETY MFR # 293165
85. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
86. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
87. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
88. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
89. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
90. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
91. #LID MFR # 2890053008
92. #SPACER SLEEVE MFR # 173344011
93. #SPACER NUT MFR # 170827000
94. #TUBE, BURNER MFR # 2890010008
95. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
96. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
97. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
98. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
99. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
100. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
101. #LINE,GAS INLET RM7'S MFR # 2890051002
102. #NUT, UNION FEMALE MFR # 2902553003
103. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
104. #ORIFICE, #52 MFR # 2002660187
105. #ORIFICE, #53 MFR # 2002660195
106. #BRACKET MFR # 2002469001
107. #BURNER PROTECTION MFR # 2002476006
108. #REMAN C/U USE 5575 RM75,76D,77 MFR # 9285134004R Superseded: see description
109. #COOLING UNIT RM77 USE 49-4752 MFR # 9285134004N Superseded: see description
110. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
111. #COVER N/A MFR # 173430000
112. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
113. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
114. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
115. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
116. #BRACKET,BURNER MFR # 2002493001
117. #Refrigerator Cooling Fan Thermostat MFR # 2007010016MC
118. #T-STAT, DUAL ALT MFR # 2007010016

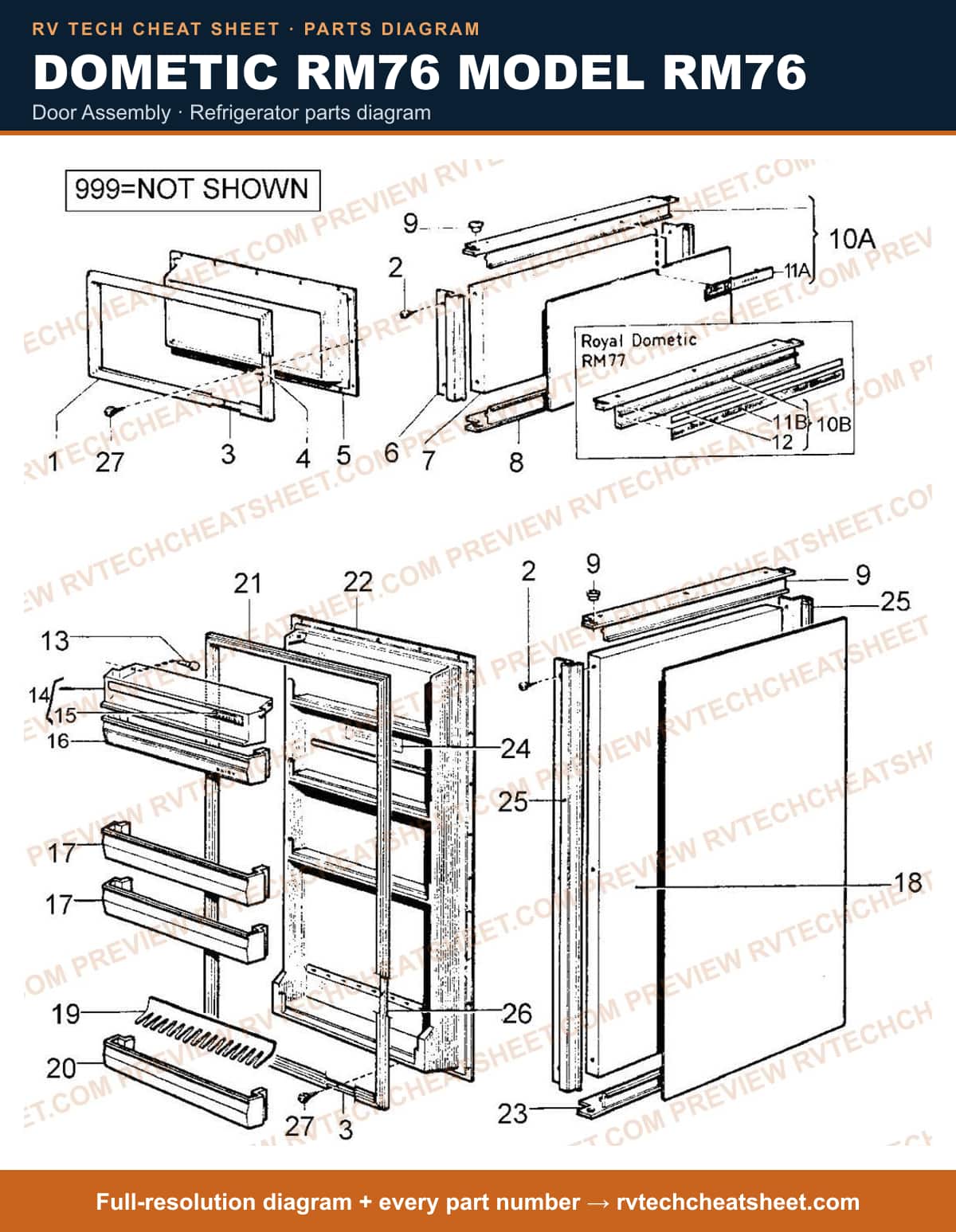

Door Assembly

Components

31 items

1. #APPLIANCE COMPONENTS RV; Gasket Freezer RM75 MFR # 2001111091
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #REINFORCING STRIP, HORIZONTAL MFR # 2001586003
4. #REINFORCING STRIP, VERTICAL MFR # 2001585088
5. #DOOR PAN UPPER YELLOW MFR # 2002330039
6. #DOOR FRAME, VERTICAL MFR # 2002342042
7. #DOOR PLATE, INSULATED MFR # 200232809
8. #DOOR PLATE, INSULATED MFR # 2002341002
9. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
10. #DOOR FRAME, COMPL., ANODIZED ALUM. MFR # 2002343115
11. #NAME PLATE (GAS/ELECTRIC DOMETIC) MFR # 2002708002
12. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
13. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
14. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
16. #NAME PLATE DOMETIC MFR # 2002256002
17. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
18. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
19. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
20. #N/A MFR # 2002334007
21. #APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007
22. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
23. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
24. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
25. #Refrigerator Gasket; Replacement For Dometic RM75/ RM76/ RM77 Model Refrigerator; Lower Door Gasket MFR # 2001111083
26. #DOOR LINER RM76 MFR # 2002378038
27. #DOOR FRAME - HORIZ. MFR # 2002340020
28. #LABEL, INSTRUCTION MFR # 2002356000
29. #DOOR FRAME, VERTICAL MFR # 2002342034
30. #REINFORCING STRIP MFR # 20001585070
31. #SCREW MFR # 7295279652
