Dometic RM76 Model RM76D Parts Diagram · Cabinet Assembly Detailed

Refrigerator · 5 assemblies · 5 diagram sheets · 215 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM76 Model RM76D RV refrigerator: 5 assemblies (Cabinet Assembly Detailed, Gas-electric, Replacement Refrigerator, Door Assembly, Cabinet Assembly) and 215 manufacturer part numbers. 49 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

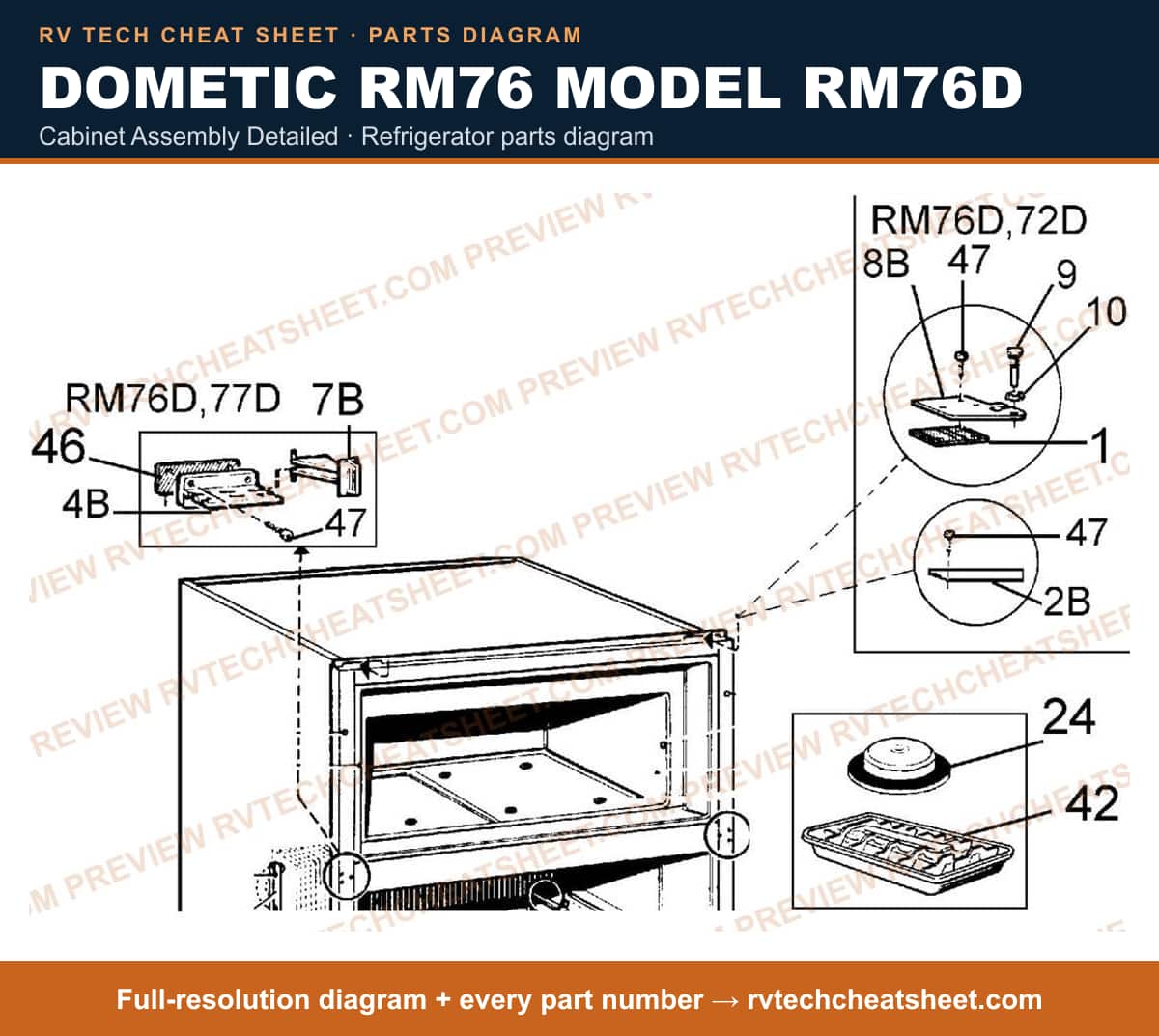

Cabinet Assembly Detailed

Components

12 items

1. #SPACER MFR # 2002266019
2. #COVER MFR # 2002799001
3. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model RM77D MFR # DMT2002760029 Superseded: see description
4. #S,LOCK PIN MFR # 2002759005
5. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
6. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
7. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
8. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
9. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
10. #TRAY,ICE W/RELEASER MFR # 2002337000
11. #DOLLY F/RETAINER MFR # 2002761001
12. #SCREWS RM10 0 MFR # 7241328017

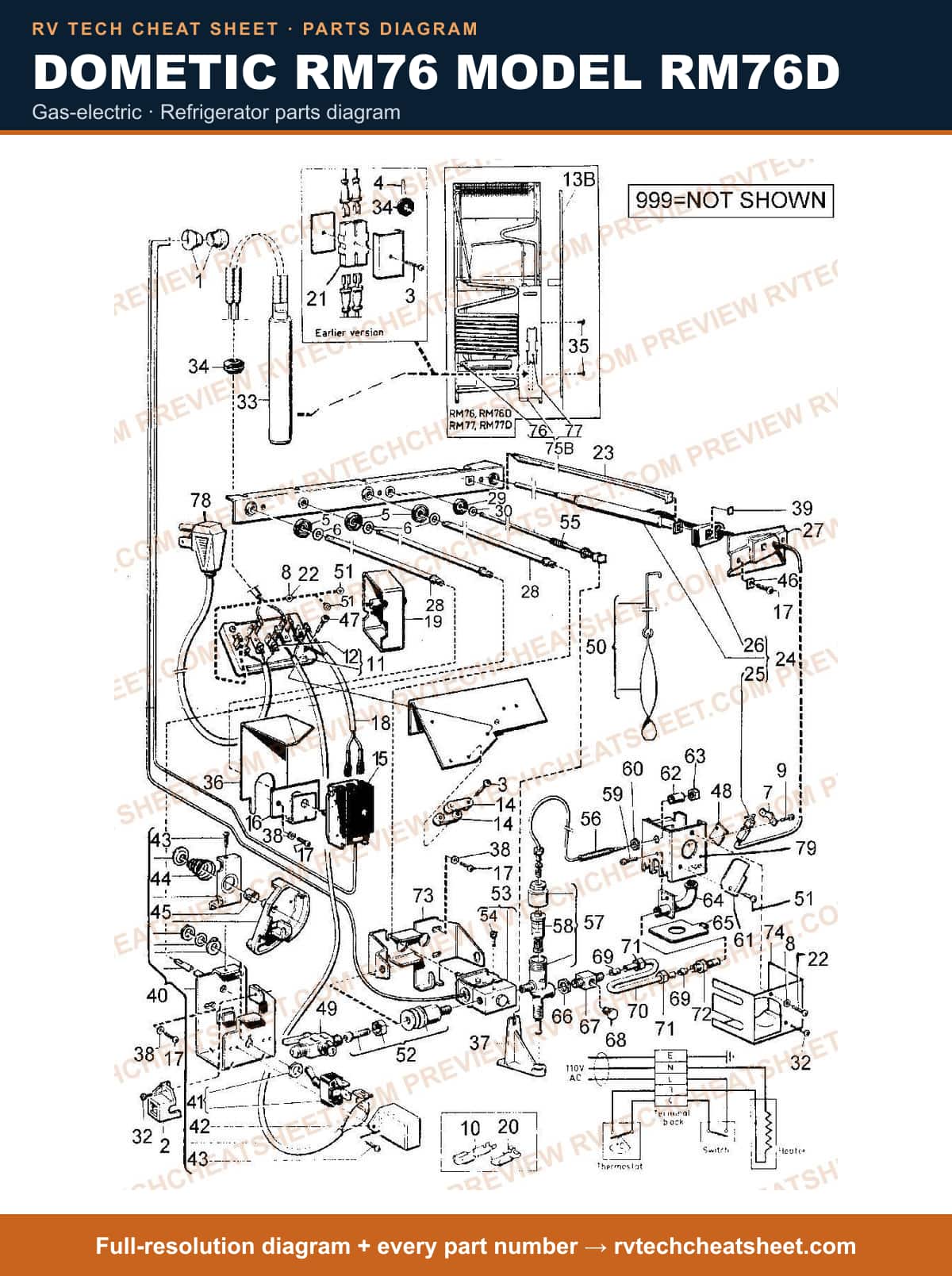

Gas-electric

Components

116 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #TURN PROTECTION MFR # 2002766000
3. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
4. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
5. #SCREW MFR # 7298285402
6. #LOCKING SPRING MFR # 170692008
7. #SEALING RING MFR # 2002224018
8. #WASHER RM36E MFR # 7344974014
9. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
10. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
11. #SCREW RXS B6X5 MFR # 7295275015
12. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
13. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
14. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
15. #FLUE N/A MFR # 2002472013
16. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
17. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
18. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
19. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
20. #BRACKET T-STAT MFR # 2890034008
21. #SCREW #17 MFR # 7241289011
22. #CABLE, COMPL., FOR T-STAT MFR # 173193046
23. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
24. #TAB CONNECTOR, ANGLE MFR # 7604855002
25. #CONNECTION BLOCK MFR # 2400297004
26. #APPLIANCE COMPONENTS RV; Conductor Light 7' MFR # 2002222020
27. #IGNITER USE 2002609028 LOT 439 MFR # 2002609010 Superseded: see description
28. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
29. #PIEZO LIGHTER MFR # 440
30. #APPLIANCE COMPONENTS RV; Piezo MFR # 2002609010MC
31. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
32. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
33. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
35. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
36. #SHAFT RM7'S MFR # 2002300024
37. #RING,SEALING MFR # 2002224000
38. #WASHER RM66 MFR # 7344908012
39. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
40. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
41. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
43. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
44. #BUSHING MFR # 149585010
45. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
46. #PROTECTION PLATE MFR # 2002445001
47. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
48. #SPRING WASHER MFR # 7351136010
49. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
50. #SWITCH, SELECTOR MFR # 2002670038
51. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
52. #COVER MFR # 173101007
53. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
54. #SWITCH ASM 3 WAY MFR # 2007176007
55. #SEALING RING MFR # 7356819115
56. #WASHER MFR # 2002351001
57. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
58. #INSULATION - NLA MFR # 2002442008
59. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
60. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
61. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
62. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
63. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
64. #BAFFLE, FLUE MFR # 172174013
65. #Screw MFR # 7295340017
66. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
67. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
68. #T-STAT, GAS MFR # V35P0111013
69. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
71. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
72. #APPLIANCE COMPONENTS RV; Rod Pull Rm76 76D 77 MFR # 2002226021
73. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
74. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
75. #QUICK CHECK MFR # 423
76. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
77. #THERMOCOUPLE MFR # 169372000MC
78. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
79. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
80. #THERMOCOUPLE, 18" MFR # 169372002MC
81. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
82. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
83. #VALVE, SAFETY MFR # 293165
84. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
85. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
86. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
87. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
88. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
89. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
90. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
91. #LID MFR # 2890053008
92. #SPACER SLEEVE MFR # 173344011
93. #SPACER NUT MFR # 170827000
94. #TUBE, BURNER MFR # 2890010008
95. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
96. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
97. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
98. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
99. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
100. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
101. #LINE,GAS INLET RM7'S MFR # 2890051002
102. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
103. #NUT, UNION FEMALE MFR # 2902553003
104. #ORIFICE, #53 MFR # 2002660195
105. #ORIFICE, #52 MFR # 2002660187
106. #BRACKET MFR # 2002469001
107. #BURNER PROTECTION MFR # 2002476006
108. #REMAN C/U USE 5575 RM75,76D,77 MFR # 9285134004R Superseded: see description
109. #COOLING UNIT RM77 USE 49-4752 MFR # 9285134004N Superseded: see description
110. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
111. #COVER N/A MFR # 173430000
112. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
113. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
114. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
115. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
116. #BRACKET,BURNER MFR # 2002493001

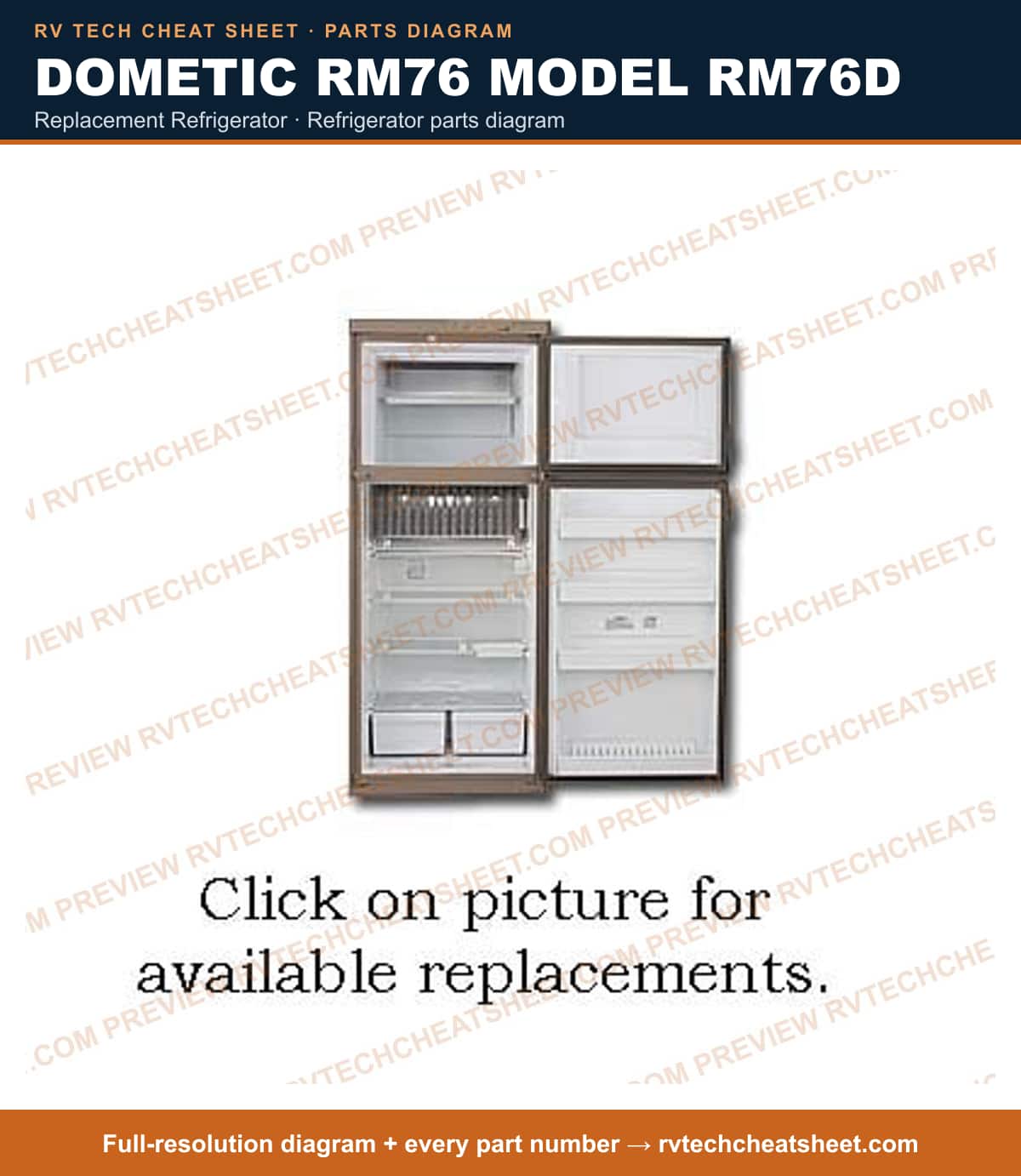

Replacement Refrigerator

Components

12 items

1. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK
3. #Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description
4. #REFER,8 CU FT 2 WAY BLK FRM 59 15/16" X 23 11/16" MFR # RM2862B
5. #REFER,8 CU FT BLK 59 15/16" X 23 11/16" X 24" MFR # RM2852B
6. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
8. #REFER,8 CU.FT USE RM2852B 2-WAY BEIGE MFR # RM2852N Superseded: see description
9. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
10. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
11. #Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK

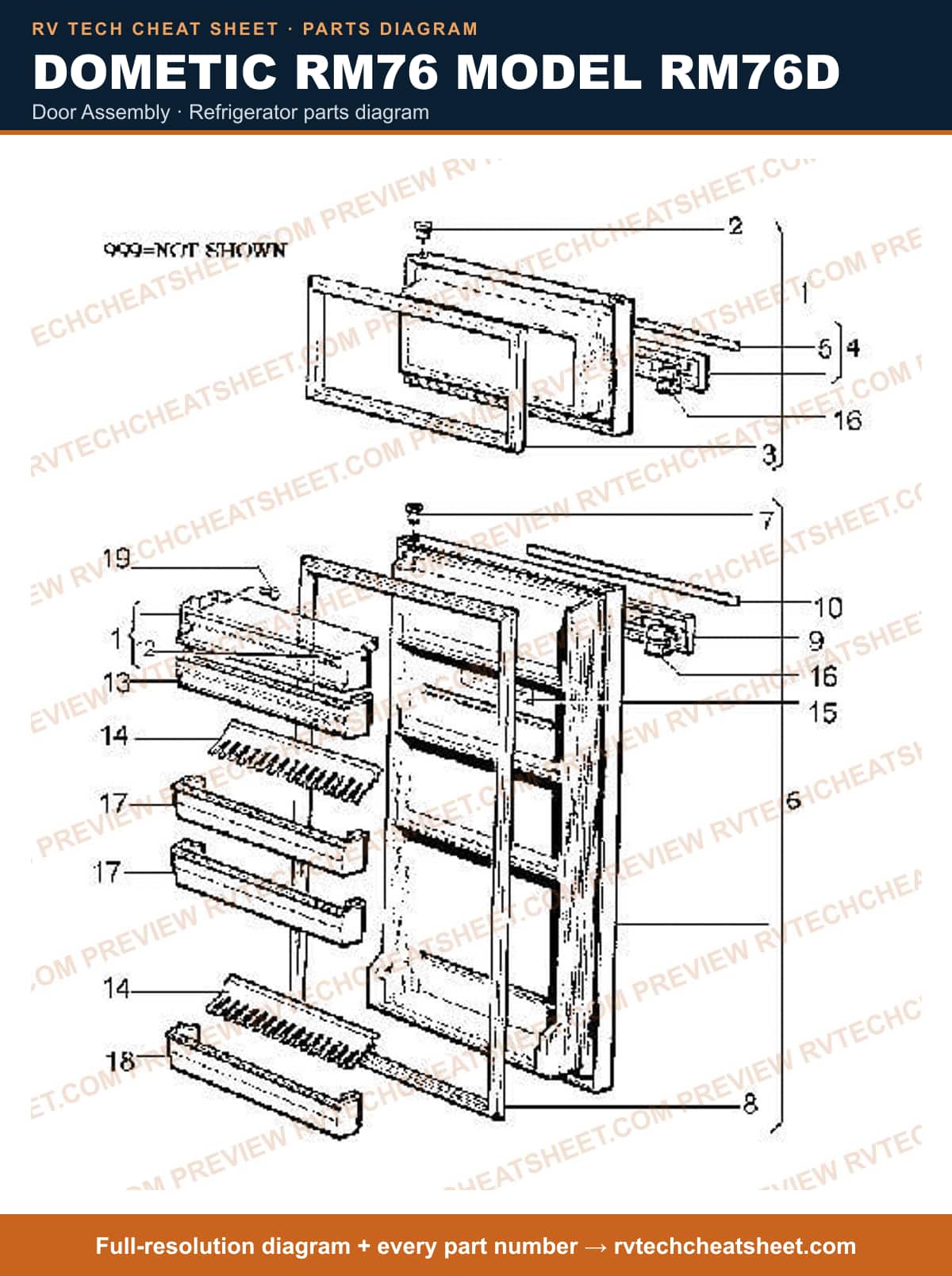

Door Assembly

Components

25 items

1. #DOOR, FREEZER MFR # 2002775050
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #Refrigerator Gasket; Use With Dometic Refrigerator RM76D MFR # 3108700489 Superseded: see description
4. #GASKET, FREEZER USE 3108700489 MFR # 2002626089 Superseded: see description
5. #DOOR, FREEZER MFR # 2002690026
6. #DECOR STRIP MFR # 2002776009
7. #DOOR, LOWER MAIN W/O COMPARTMENTS MFR # 2002774053
8. #Refrigerator Gasket; Replacement For Dometic RM75/ RM76/ RM77 Model Refrigerator; Lower Door Gasket MFR # 2001111083
9. #STRIP,DECO USE 2002675078 IS A USE # FOR 2002675029,2002675102,2002676027 MFR # 2002675029 Superseded: see description
10. #STRIP, DECO USE 2002675078 MFR # 2002675128 Superseded: see description
11. #STRIP, DECORATION MFR # 2002675078
12. #NAME PLATE "DOMETIC GAS ELECTRIC" MFR # 2002777023
13. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
14. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
15. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
17. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
18. #HOLDER, BOTTLE USE 2002794168 MFR # 2002794002 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
20. #LABEL, INSTRUCTION MFR # 2002356000
21. #FASTENING PLATE MFR # 2002707004
22. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
23. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
24. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
25. #SHAFT JOURNAL MFR # 2001170016

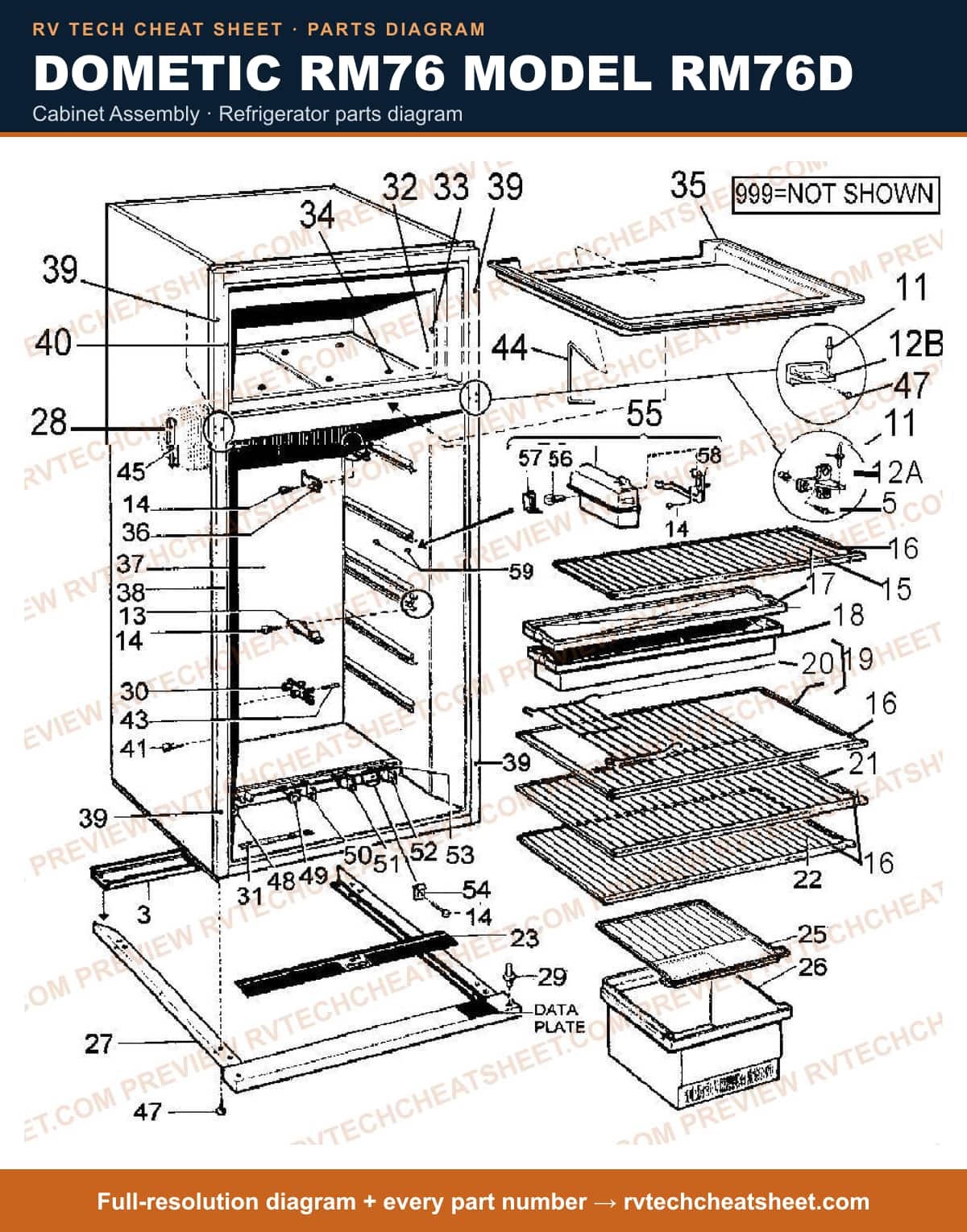

Cabinet Assembly

Components

54 items

1. #SHELF, FREEZER MFR # 2007535004
2. #SCREW, RX5X12, Z. PL. MFR # 7241327019
3. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
4. #HINGE, MIDDLE MFR # 2002323018
5. #HINGE, MIDDLE MFR # 2002323026
6. #APPLIANCE COMPONENTS RV; Latch Hinge MFR # 2002535009
7. #STOP,SHELF MFR # 2002635007
8. #SCREW MFR # 7295281658
9. #SHELF, UPPER MFR # 2002652036
10. #DECOR. STRIP - LATER VERSION MFR # 2002479034
11. #COVER MFR # 2000543039
12. #TRAY, DRIP WHITE MFR # 2000542031
13. #SHELF USE 2002651111 MFR # 2002651145 Superseded: see description
14. #SHELF MFR # 2002651111
15. #INSTRUCTION PLATE MFR # 2007008010
16. #LID, CRISPER M70 RM7 MFR # 2000579009
17. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
18. #CRISPER MFR # 2000577011
19. #CABINET BASE MFR # 2002533020
20. #CABINET BASE MFR # 2002533095
21. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
23. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
24. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
25. #WARNING LABEL MFR # 2007048008
26. #LINING MFR # 2000538005
27. #SCREW, KFXS B8X16, STAINLESS MFR # 7297344405
28. #SCREW - FX 5X18, NI, PL. MFR # 7243330136
29. #TRAY MFR # 2000533006
30. #SNAP SPRING MFR # 2000547006
31. #LINING MFR # 2002316004
32. #FRONT FRAME, BEIGE, RM76D & RM77D MFR # 2007000017
33. #APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017
34. #COVERING FRAME MFR # 2000541017
35. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
36. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
37. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
38. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
39. #PIN,RETAINING MFR # 2001281019
40. #CLAMP MFR # 2000966008
41. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
42. #SCREWS RM10 0 MFR # 7241328017
43. #KNOB,PIEZO MFR # 2002669006
44. #APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027
45. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
46. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
47. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
48. #PANEL,CONTROL YELLOW MFR # 2002664056
49. #LOCK NUT SNJ 1915 MFR # 7337813062
50. #FITTING LAMP COMPLETE MFR # 2002751002
51. #LAMP,6 VOLT MFR # 140315003
52. #LAMP,GLASS MFR # 2002748008
53. #APPLIANCE COMPONENTS RV; Bracket MFR # 2002749006
54. #PLUG MFR # 2009097005
