Dometic RM760 Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 244 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM760 RV refrigerator: 5 assemblies (Replacement Refrigerator, Cabinet Assembly, Gas-electric Parts, Vibration Suppression Kit, Door Assembly) and 244 manufacturer part numbers. 77 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

12 items

1. #REFER,6 CU FT USE RM3662BN 53 3/4 X 23 11/16 X 24 MFR # RM3662N Superseded: see description
2. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
3. #REFER,6 CU.FT USE RM2652B 2-WAY BEIGE MFR # RM2652N Superseded: see description
4. #Refrigerator; Americana; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 6 Cubic Foot; 54-9/16 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control/ Automatic Temperature Control; Black Frame; With Locking Door Handles/ 2 Crispers/ 3 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2652RB
5. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # RM2652BA
6. #PANELS,DOOR USE RM2652BA STAINLESS STEEL MFR # RM2652SS Superseded: see description
7. #REFER,6 CU FT 2 WAY BLK FRM 53 3/4" X 23 11/16" X 24" MFR # RM2662B
8. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
9. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
10. #REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B
11. #REFER,6 CU FT. 2 WAY BLK FRAME MFR # RM3662BN
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS

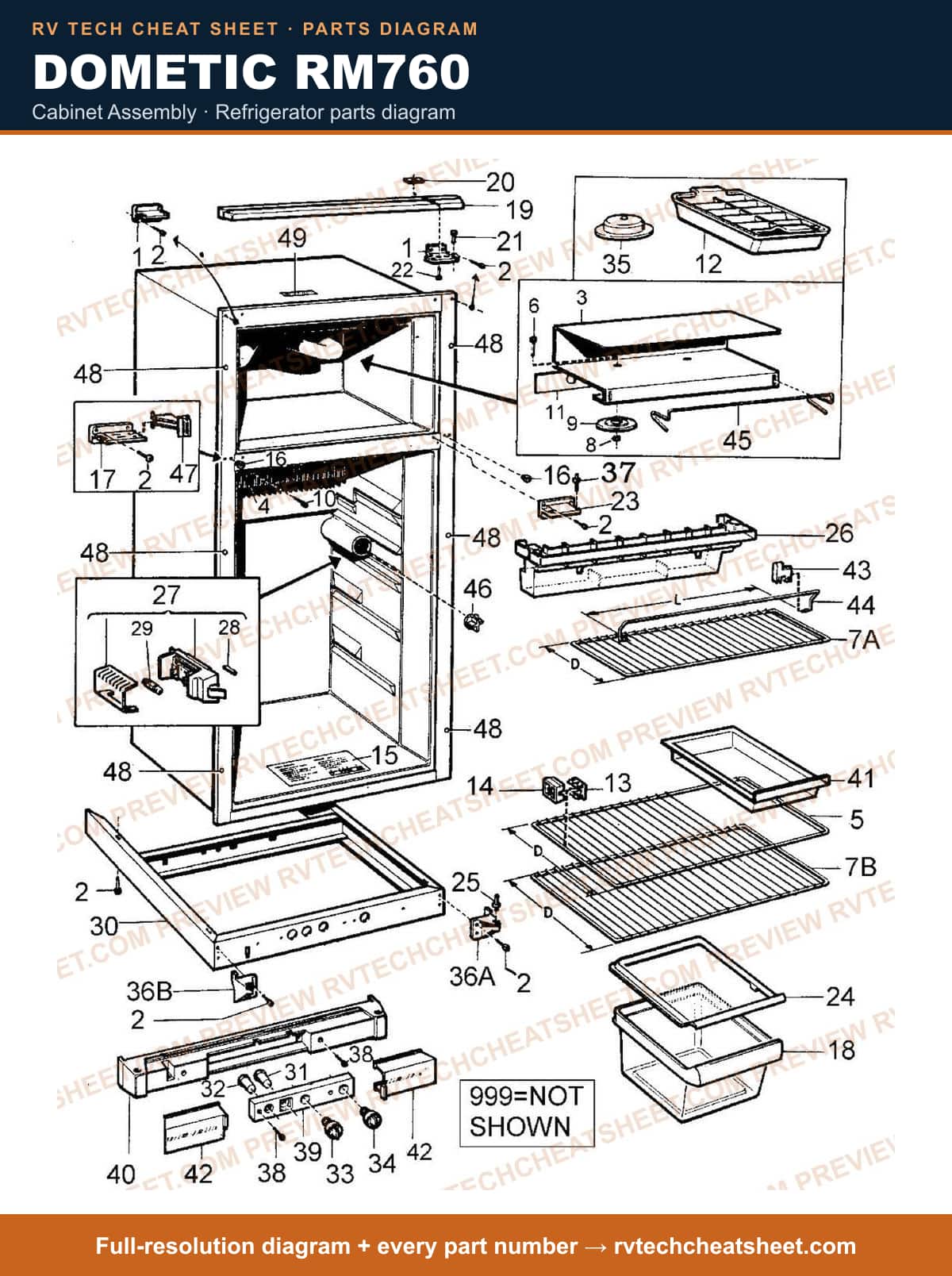

Cabinet Assembly

Components

86 items

1. #Appliance Components RV; Hinge Upper MFR # 2007270008
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #FASTENING WASHER MFR # 2007536002
4. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
6. #Shelf, 763 (use MFR# 2930133067) MFR # 2002650063 Superseded: see description
7. #SCREW, FREEZER M65 5X22 BRASS N.I PL. MFR # 7252332130
8. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
10. #SHELF, WIRE USE 2002652234 MFR # 2002652143 Superseded: see description
11. #SHELF USE 2002652226 MFR # 2002652135 Superseded: see description
12. #SHELF WIRE USE 2002652218 MFR # 2002652127 Superseded: see description
13. #Refrigerator Shelf MFR # 2002652218
14. #NUT,FREEZER MFR # 7314314035
15. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
16. #COVER PLATE MFR # 2007358001
17. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
18. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
19. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
20. #HOLDER, RACK USE 2007393024 MFR # 2007393008 Superseded: see description
21. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
22. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
23. #INTERLOCK,SHELF USE 2007392018 MFR # 2007392000 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
25. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
26. #INSTRUCTION PLATE MFR # 2007483007
27. #N/A PLUG MFR # 2007063007
28. #HOUSING, LATCH MFR # 2007680008
29. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model RM77D MFR # 2002760029 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Housing Latch 1303 MFR # 2007680032
31. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
32. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
33. #DECOR STRIP UPPER MFR # 2007275023
34. #DECORATION USE 2007275023 MFR # 2007275007 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005
36. #Pin, Hinge MFR # 2007271006
37. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
38. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
39. #HINGE, MIDDLE MFR # 2007272004
40. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
41. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description
42. #Appliance Components RV MFR # 2007519008
43. #Appliance Components RV; Lamp Inside MFR # 2007282003
44. #Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025
45. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
46. #BULB 2/PK MFR # 2007290006
47. #CABINET BASE MFR # 2007465004
48. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
49. #APPLIANCE COMPONENTS RV; Button Push MFR # 2007479005
50. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
51. #BUTTON, PUSH MFR # 2007479013
52. #Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description
53. #KNOB, T-STAT USE 2007480102 MFR # 2007480003 Superseded: see description
54. #Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094
55. #KNOB, SELECTOR MFR # 2007480011
56. #Appliance Components RV; Knob Selector 115V MFR # 2007480029
57. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
58. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
59. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Hinge Lower LH MFR # 2007501006
61. #APPLIANCE COMPONENTS RV; Hinge Lower RH MFR # 2007500008
62. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
63. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
64. #SCREW MFR # 7298285402
65. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
66. #PANEL, GREY MFR # 32007463058
67. #PANEL, GREY MFR # 2007463009
68. #Retainer, Lamp MFR # 2930557000
69. #BASE FRONT RM24 00, 2500 MFR # 2930591090
70. #BASE FRONT (use MFR# 2930591090 & 2930557000) MFR # 2007461011 Superseded: see description
71. #APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049
72. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
74. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
75. #Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description
76. #APPLIANCE COMPONENTS RV; Bar L Approx. 13.5" Rm76 MFR # 2007337005
77. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
78. #Appliance Components RV; Bar Freezer Shelf MFR # 2007537000
79. #CLAMP F/CABLE RM760 MFR # 2007627009
80. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007620004
81. #Appliance Components RV; Latch Brown MFR # 2007681030
82. #LATCH, TRAVEL MFR # 2007681006
83. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
84. #PLUG, FACE BROWN MFR # 2002352033
85. #PLATE RETAINING MFR # 2007649011
86. #PLATE, FREEZER USE 2007649011 4 HOLE MFR # 2007649003 Superseded: see description

Gas-electric Parts

Components

107 items

1. #Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
3. #VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description
4. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
5. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
6. #S,THERMOCOUPLE-232MM MFR # 2931496042
7. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
8. #Coupling MFR # 2007518000
9. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
10. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
11. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
12. #DOMETIC DUAL T-STAT MFR # 2007199009
13. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
14. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
15. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
16. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
17. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
18. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
19. #Appliance Components RV; Nut Union MFR # 172809006
20. #Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003
21. #Screw MFR # 7295340017
22. #S,SWITCH,RM2410-2810 MFR # 2007432004
23. #Appliance Components RV; Cover Switch MFR # 2007439009
24. #Screw MFR # 170730014
25. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
26. #TAB CONNECTOR MFR # 7602885217
27. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
28. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
29. #SCREW MFR # 7298285402
30. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Spring MFR # 2007577006
32. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
33. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
34. #Igniter, Piezo MFR # 2007423003
35. #Appliance Components RV; Retainer MFR # 2007424001
36. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
37. #Bracket Mount MFR # 2007410000
38. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
39. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
40. #Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description
41. #Screw - RXS B4X6 - NI. PL. MFR # 7295221118
42. #Block Terminal Small 3 Poi MFR # 7627202562
43. #Ring, Sealing 2 Req. MFR # 140748005
44. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
45. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
46. #Catch, Snap Use 2930071010 MFR # 2007454008 Superseded: see description
47. #SNAP CATCH/115V MFR # 2007428005
48. #Catch Snap 12/120 (Fus) MFR # 2930066028
49. #BURNER RM660-760 MFR # 2007503002
50. #Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038
51. #APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description
52. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
53. #APPLIANCE COMPONENTS RV; Fuse 25 Amp Nla MFR # 2002578017
54. #3858022019 MFR # 3858022019
55. #BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
57. #PLATE/SIGN,12 VOLT DC MFR # 2007452002
58. #ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description
59. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
60. #Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183
61. #Appliance Components RV; Relay For 12/115V RM760; Fits Models: RM2601, 2800, 2801; 0 332 019 151 # ON RELAY; 5 Terminals MFR # 2007329010
62. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
63. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
64. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
65. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
66. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
67. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
68. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
69. #SCREW M4 X 10 S MFR # 7241289615
70. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
71. #Baffle, Flue 530A MFR # 2007179019
72. #Reman Cooling Unit (UPS) RM760 MFR # 9285309002R
73. #Cooling Unit Use 9285319001N MFR # 9285309002 Superseded: see description
74. #REMAN C/U USE 5561 RM760/761, RM763 MFR # 9285319001R Superseded: see description
75. #APPLIANCE COMPONENTS RV; Cooling Unit 761-63 MFR # 9285319001N
76. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
77. #ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description
78. #ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974
79. #Element, Heating Use 173754045 250W 120V MFR # 173740010 Superseded: see description
80. #Element, Heating Q (25) 12V 260W 3/8D X 7-1/2L MFR # 173741018
81. #ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386
82. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
83. #Channel MFR # 2007520006
84. #RETAINER MFR # 2007619006
85. #Flue MFR # 2007521004
86. #Protection Hose MFR # 2007069046
87. #Conductor, Light; Use 2007478031 MFR # 2007478015 Superseded: see description
88. #Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description
89. #APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008
90. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
91. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
92. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
93. #APPLIANCE COMPONENTS RV; Conductor MFR # 2007445006
94. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009
95. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
96. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
97. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
98. #PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description
99. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
100. #DECAL, WARNING 2807/4801 MFR # 2002577001
101. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
102. #LABEL FOR 12/115V MFR # 2007573005
103. #Locking Washer MFR # 7352146018
104. #DECAL RM38 04 MFR # 2007574029
105. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
106. #Clamp MFR # 2007395003
107. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006

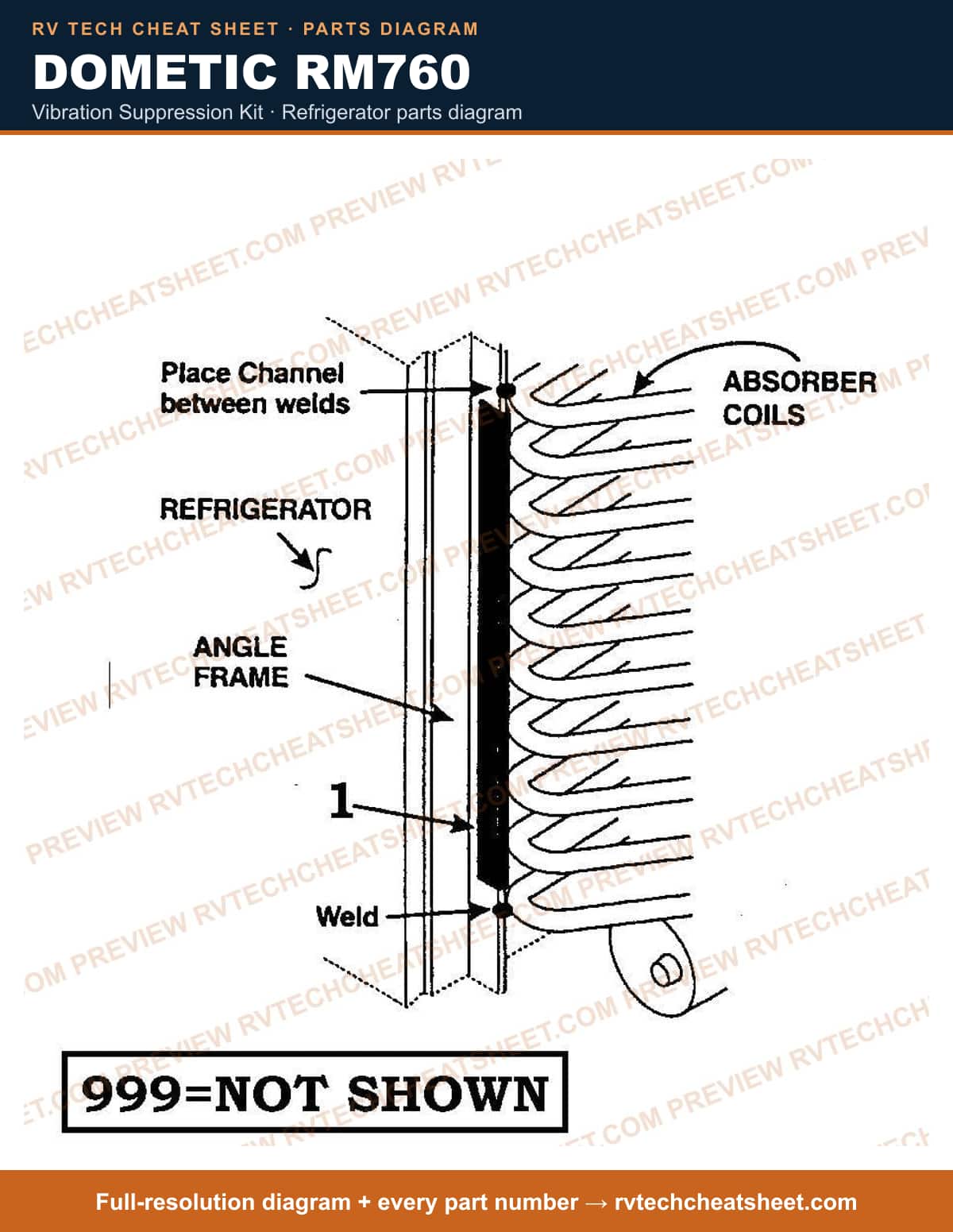

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

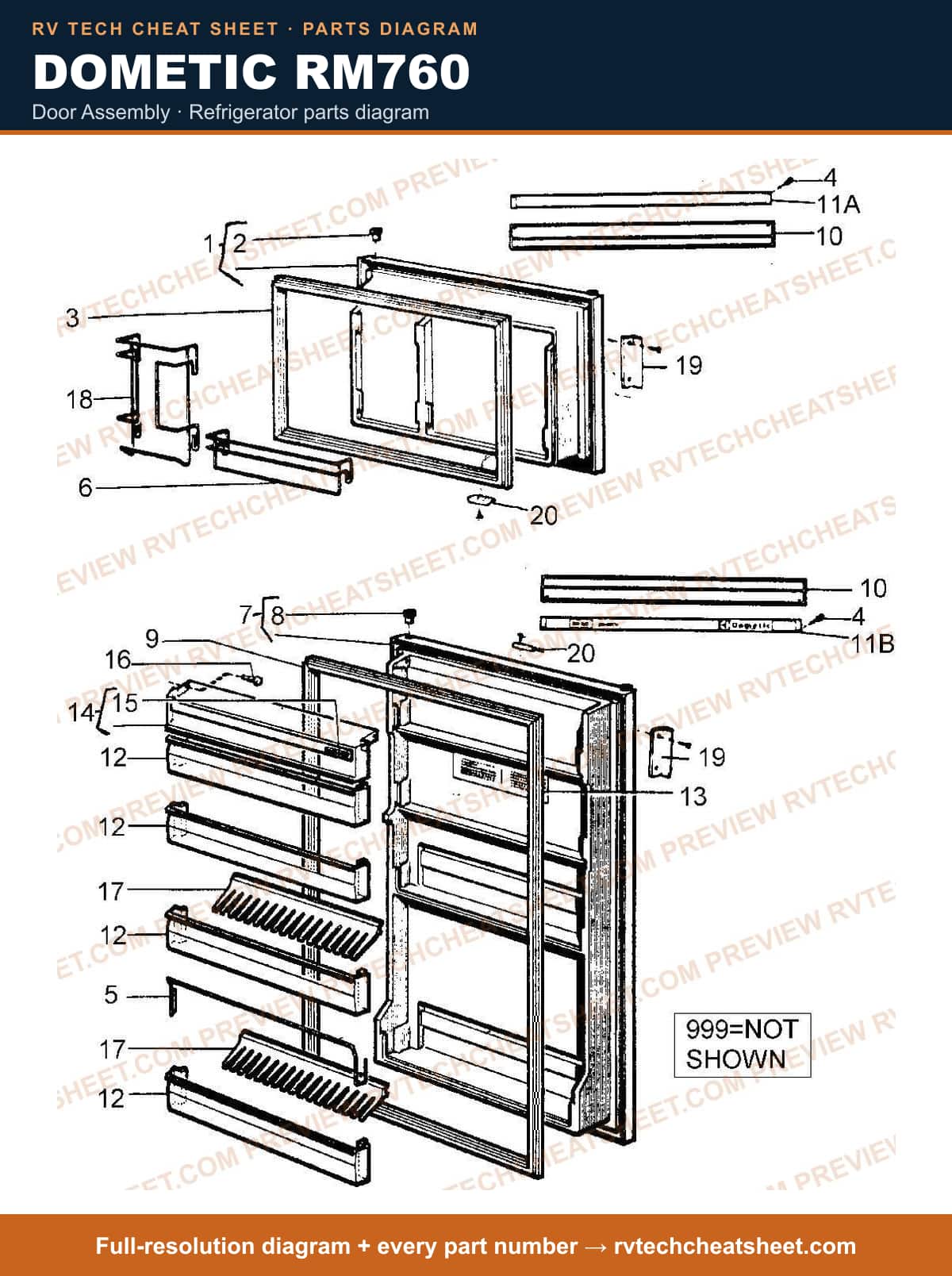

Door Assembly

Components

42 items

1. #DOOR, UPPER USE 2930926130 W/O BASKET & SHELF MFR # 2007381037 Superseded: see description
2. #DOOR USE 2930926130 N MFR # 2930926114 Superseded: see description
3. #Refrigerator Door; Use With Dometic Refrigerator Models RM3601/ RM3600/ RM2600; Upper MFR # 2930926130 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #GASKET, FREEZER USE 3103688002 MFR # 2002626105 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002
7. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
10. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
11. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
12. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
14. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
15. #DOOR, MAIN USE 2930127036 MFR # 2007380039 Superseded: see description
16. #DOOR, MAIN 13 LBS MFR # 2930127036
17. #GASKET, MAIN USE 3103688002 MFR # 2002626196 Superseded: see description
18. #GASKET, MAIN USE 2002626196 MFR # 2002626097 Superseded: see description
19. #Strip, Decor Use 2002675110 MFR # 2002675094 Superseded: see description
20. #STRIP, DECORATION MFR # 2002675110
21. #DECO STRIP RM760 MFR # 2007538008
22. #STRIP, DECORATION MFR # 2930137001
23. #STRIP, DECO. USE 2930137001 MFR # 2007538016 Superseded: see description
24. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
25. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
26. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER MFR # 2000571170 Superseded: see description
27. #LABEL, INSTRUCTION MFR # 2002356000
28. #DOOR, DAIRY USE 2002258149 MFR # 2002258123 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
30. #NAMEPLATE MFR # 2002672000
31. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
32. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
33. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
34. #HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description
35. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
36. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
37. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
38. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
39. #RACK, WIRE MFR # 2007040005
40. #HANDLE,FREEZER RM76 0 MFR # 2007542010
41. #CATCH, RETAINER USE 2007544006 MFR # 2007679026 Superseded: see description
42. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
