Diagrams › Dometic › RM761 Dometic RM761 Parts Diagram · Cabinet Assembly
Refrigerator · 6 assemblies · 6 diagram sheets · 256 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM761 RV refrigerator: 6 assemblies (Cabinet Assembly, Gas-electric W-reignitor Asm, Gas-electric W-o Reignitor Asm, Door Assembly, Vibration Suppression Kit and more) and 256 manufacturer part numbers. 78 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

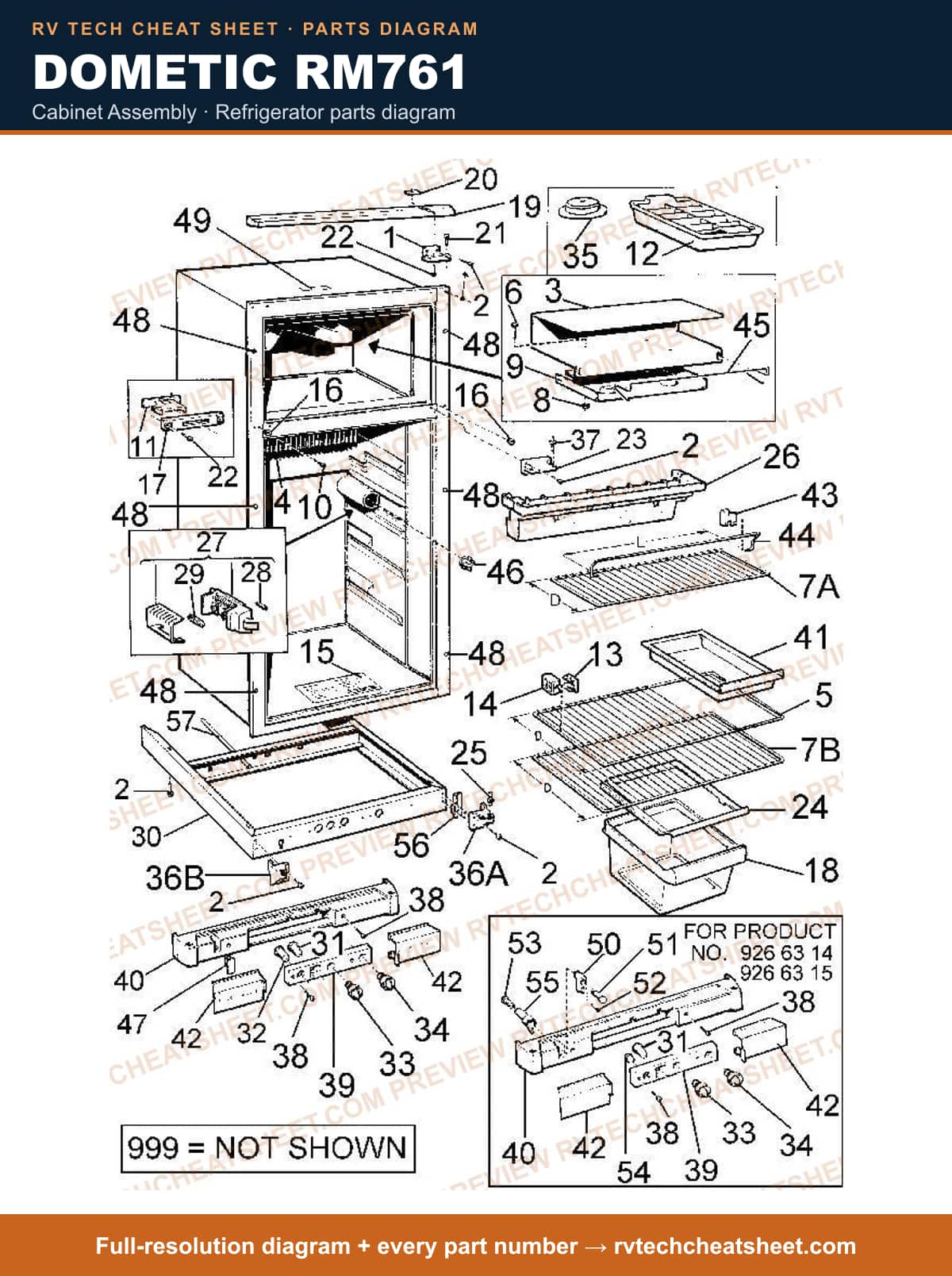

Cabinet Assembly
Dometic RM761 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 96 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHELF, FREEZER MFR # 2007535004 # Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description # Shelf, 763 (use MFR# 2930133067) MFR # 2002650063 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # SCREW, FREEZER M65 5X22 BRASS N.I PL. MFR # 7252332130 # APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234 # SHELF USE 2002652226 MFR # 2002652135 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226 # SHELF WIRE USE 2002652218 MFR # 2002652127 Superseded: see description # SHELF, WIRE USE 2002652234 MFR # 2002652143 Superseded: see description # Refrigerator Shelf MFR # 2002652218 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # PLATE RETAINING MFR # 2007649011 # PLATE, FREEZER USE 2007649011 4 HOLE MFR # 2007649003 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # T-LATCH USE 2007681030 MFR # 2007681022 Superseded: see description # Appliance Components RV; Latch Brown MFR # 2007681030 # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Instruction Plate MFR # 2007690007 # INSTRUCTION PLATE MFR # 2007693001 # N/A PLUG MFR # 2007063007 # APPLIANCE COMPONENTS RV; Housing Latch 1303 MFR # 2007680032 # HOUSING, LATCH MFR # 2007680008 # S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061 # CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description # DECOR STRIP UPPER MFR # 2007275023 # APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005 # Pin, Hinge MFR # 2007271006 # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # SCREW USE 7295281401 MFR # 7295281013 Superseded: see description # HINGE, MIDDLE MFR # 2007272004 # HINGE, MIDDLE USE 2007272004 MFR # 2007272038 Superseded: see description # APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description # Appliance Components RV MFR # 2007519008 # Appliance Components RV; Lamp Inside MFR # 2007282003 # Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # CABINET BASE MFR # 2007465004 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description # BUTTON, PUSH MFR # 2007479013 # Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description # Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094 # Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177 # Appliance Components RV; Knob Selector 115V MFR # 2007480029 # KNOB, SELECTOR MFR # 2007480011 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # HINGE, RH MFR # 290232000 # APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008 # Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003 # SCREW MFR # 7298285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description # Base Front; Use MFR# 2930591090 & 2930557000 MFR # 2007461094 Superseded: see description # Retainer, Lamp MFR # 2930557000 # BASE FRONT RM24 00, 2500 MFR # 2930591090 # APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049 # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # APPLIANCE COMPONENTS RV; Bar L Approx. 13.5" Rm76 MFR # 2007337005 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # CLAMP F/CABLE RM760 MFR # 2007627009 # Appliance Components RV; Plug Grey/Brown MFR # 2930083031 # Plug Use 2930083031 MFR # 2930083023 Superseded: see description # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description # LABEL MFR # 2007688001 # Appliance Components RV; Socket Lamp MFR # 2007674001 # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # SCREW MFR # 7295231018 # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # Plug, Beige Use 2007662022 MFR # 2007662014 Superseded: see description # Plug, Grey/Brown MFR # 2007662022 # Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003 # Plate, Sealing MFR # 2930074006 # Hose, Protecting MFR # 2007349026 # SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
Gas-electric W-reignitor Asm
Dometic RM761 gas-electric w-reignitor asm — parts list sheet Full-resolution diagram + every part number →
Components 104 items # Clamp MFR # 2007395003 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # S,THERMOCOUPLE-232MM MFR # 2931496042 # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # PLUG MFR # 2001192000 # DOMETIC DUAL T-STAT MFR # 2007199009 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SCREW - RXS B8X13 - Z. PL. MFR # 7295342013 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # SWITCH, SELECTOR MFR # 2007664002 # S,COVER,CONTROLS,INNER MFR # 2007661008 # Screw MFR # 140730011 # SCREW, RX 4X8, Z. PL. MFR # 7241287015 # TAB CONNECTOR MFR # 7602896701 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # SCREW MFR # 7298285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Screw RXS B4 X 19 Z.PL. MFR # 729523018 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # Screw - RXS B4X6 - NI. PL. MFR # 7295221118 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # Burner Use 2007503036 MFR # 2007503028 Superseded: see description # APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description # Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # 3858022019 MFR # 3858022019 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191 # Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183 # ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description # Appliance Components RV; Relay For 12/115V RM760; Fits Models: RM2601, 2800, 2801; 0 332 019 151 # ON RELAY; 5 Terminals MFR # 2007329010 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW #17 MFR # 7241289011 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # Baffle, Flue 530A MFR # 2007179019 # Cooling Unit Use 9285319001N MFR # 9285309002 Superseded: see description # APPLIANCE COMPONENTS RV; Cooling Unit 761-63 MFR # 9285319001N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386 # Element, Heating Use 173754045 250W 120V MFR # 173740010 Superseded: see description # ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description # ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974 # Element, Heating Q (25) 12V 260W 3/8D X 7-1/2L MFR # 173741018 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description # Channel MFR # 2007520006 # RETAINER MFR # 2007619006 # Flue MFR # 2007521004 # LABEL, IMPORTANT MFR # 2007689009 # Protection Hose MFR # 2007069046 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # DECAL RM38 04 MFR # 2007574029 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # APPLIANCE COMPONENTS RV; Conductor MFR # 2007445006 # APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009 # PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # PLATE,12V MFR # 2007686005

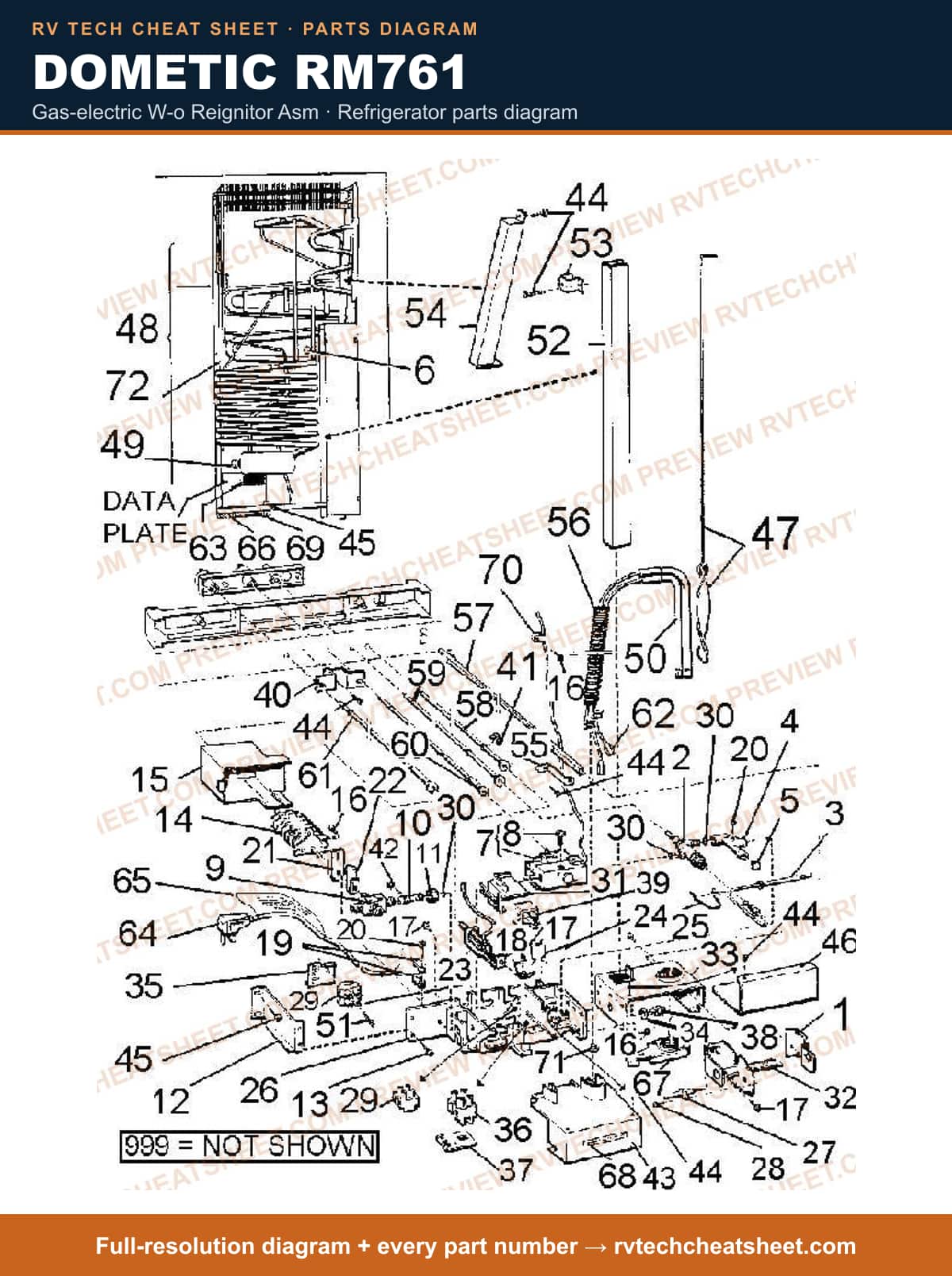

Gas-electric W-o Reignitor Asm
Dometic RM761 gas-electric w-o reignitor asm — parts list sheet Full-resolution diagram + every part number →
Components 103 items # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # PLUG MFR # 2001192000 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # SCREW - RXS B8X13 - Z. PL. MFR # 7295342013 # S,SWITCH,RM2410-2810 MFR # 2007432004 # Appliance Components RV; Cover Switch MFR # 2007439009 # Screw MFR # 140730011 # SCREW, RX 4X8, Z. PL. MFR # 7241287015 # TAB CONNECTOR MFR # 7602896701 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SCREW MFR # 7298285402 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Igniter, Piezo MFR # 2007423003 # Appliance Components RV; Retainer MFR # 2007424001 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Bracket Mount MFR # 2007410000 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Screw - RXS B4X6 - NI. PL. MFR # 7295221118 # Block Terminal Small 3 Poi MFR # 7627202562 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # Burner Use 2007503036 MFR # 2007503028 Superseded: see description # Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038 # APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description # WASHER MFR # 20007457001 # PLATE,12V MFR # 2007686005 # 3858022019 MFR # 3858022019 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183 # Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191 # ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description # Appliance Components RV; Relay For 12/115V RM760; Fits Models: RM2601, 2800, 2801; 0 332 019 151 # ON RELAY; 5 Terminals MFR # 2007329010 # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # SCREW #17 MFR # 7241289011 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007 # Baffle, Flue 530A MFR # 2007179019 # APPLIANCE COMPONENTS RV; Cooling Unit 761-63 MFR # 9285319001N # Cooling Unit Use 9285319001N MFR # 9285309002 Superseded: see description # REMAN C/U USE 5561 RM760/761, RM763 MFR # 9285319001R Superseded: see description # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # ELEMENT, HEATING 295W/120V 2WIRE 3/8 X 6-7/8 MFR # CHX17974 # ELEMENT, HEATING USE 48-9357 295W/120V 2WIRE MFR # 173754045 Superseded: see description # Element, Heating Q (25) 12V 260W 3/8D X 7-1/2L MFR # 173741018 # Element, Heating Use 173754045 250W 120V MFR # 173740010 Superseded: see description # ELEMENT, HEATING **ALT 48-9357 W/120V 2WIRE 3/8 X 6-7/8 MFR # 3108702386 # SCREW MFR # 7295231018 # Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description # Channel MFR # 2007520006 # RETAINER MFR # 2007619006 # Flue MFR # 2007521004 # Protection Hose MFR # 2007069046 # Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description # APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # APPLIANCE COMPONENTS RV; Conductor MFR # 2007445006 # APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009 # CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description # S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110 # CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description # PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # DECAL, WARNING 2807/4801 MFR # 2002577001 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # LABEL, IMPORTANT MFR # 2007689009 # DECAL RM38 04 MFR # 2007574029 # Clamp MFR # 2007395003 # BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611

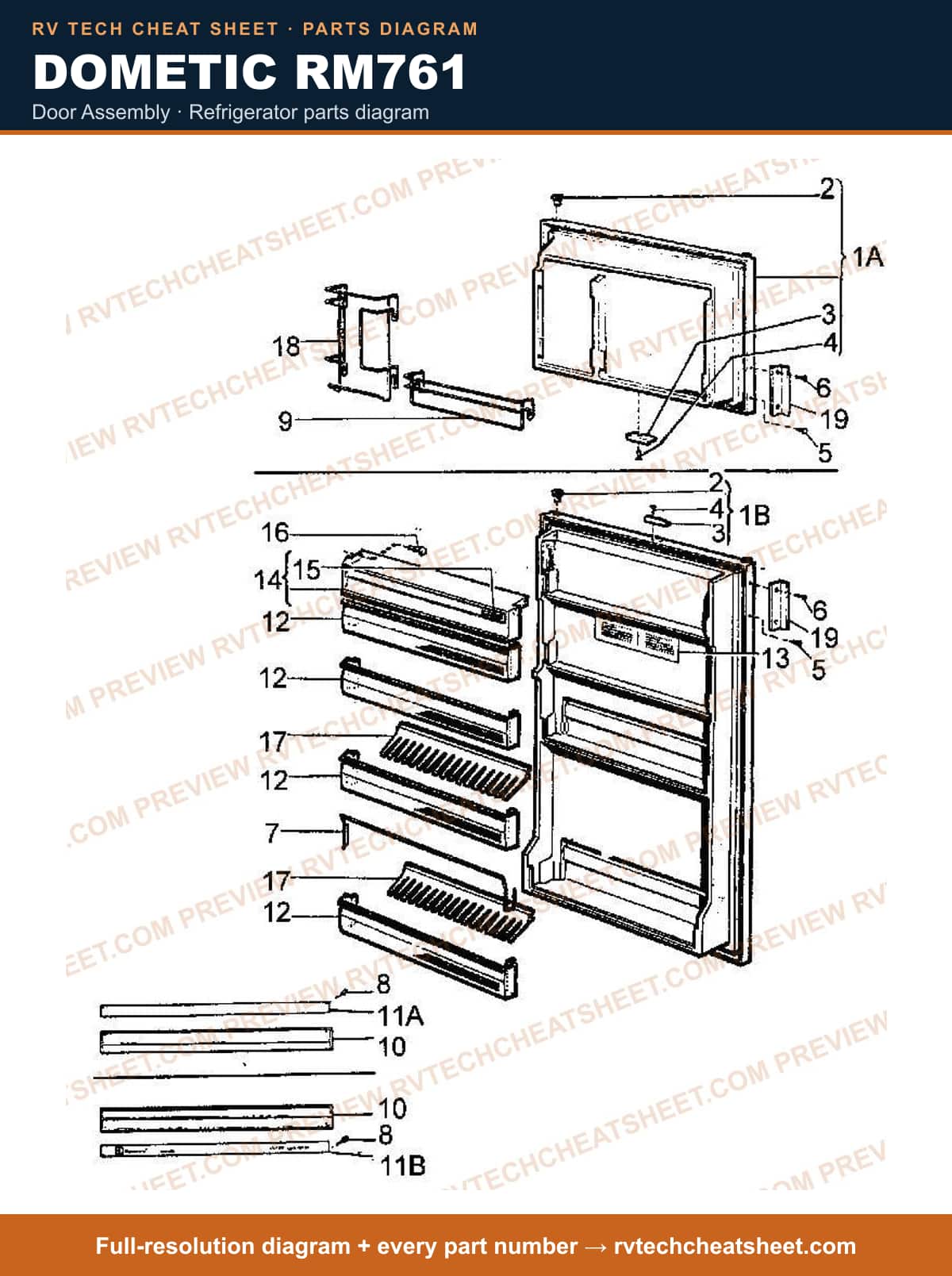

Door Assembly
Dometic RM761 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 39 items # DOOR, FREEZER MFR # 2930128034 # APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002 # DOOR, MAIN 13 LBS MFR # 2930127036 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # CATCH, RETAINER USE 2007544006 MFR # 2007679026 Superseded: see description # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # RIVET, POP MFR # 7227835027 # PLUG, GREY USE 2006460055 MFR # 2006460071 Superseded: see description # Plug Beige MFR # 20026460279 # Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description # Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019 # APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description # SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description # SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057 # SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description # STRIP, DECORATION MFR # 2002675110 # STRIP, DECORATION MFR # 2930137001 # STRIP, DECORATION MFR # 2930137118 # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description # SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER MFR # 2000571170 Superseded: see description # S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253 # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149 # NAMEPLATE MFR # 2002672000 # SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description # RACK, WIRE MFR # 2007040005 # HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description # Appliance Components RV; Handle Door RM1303 MFR # 2930283003

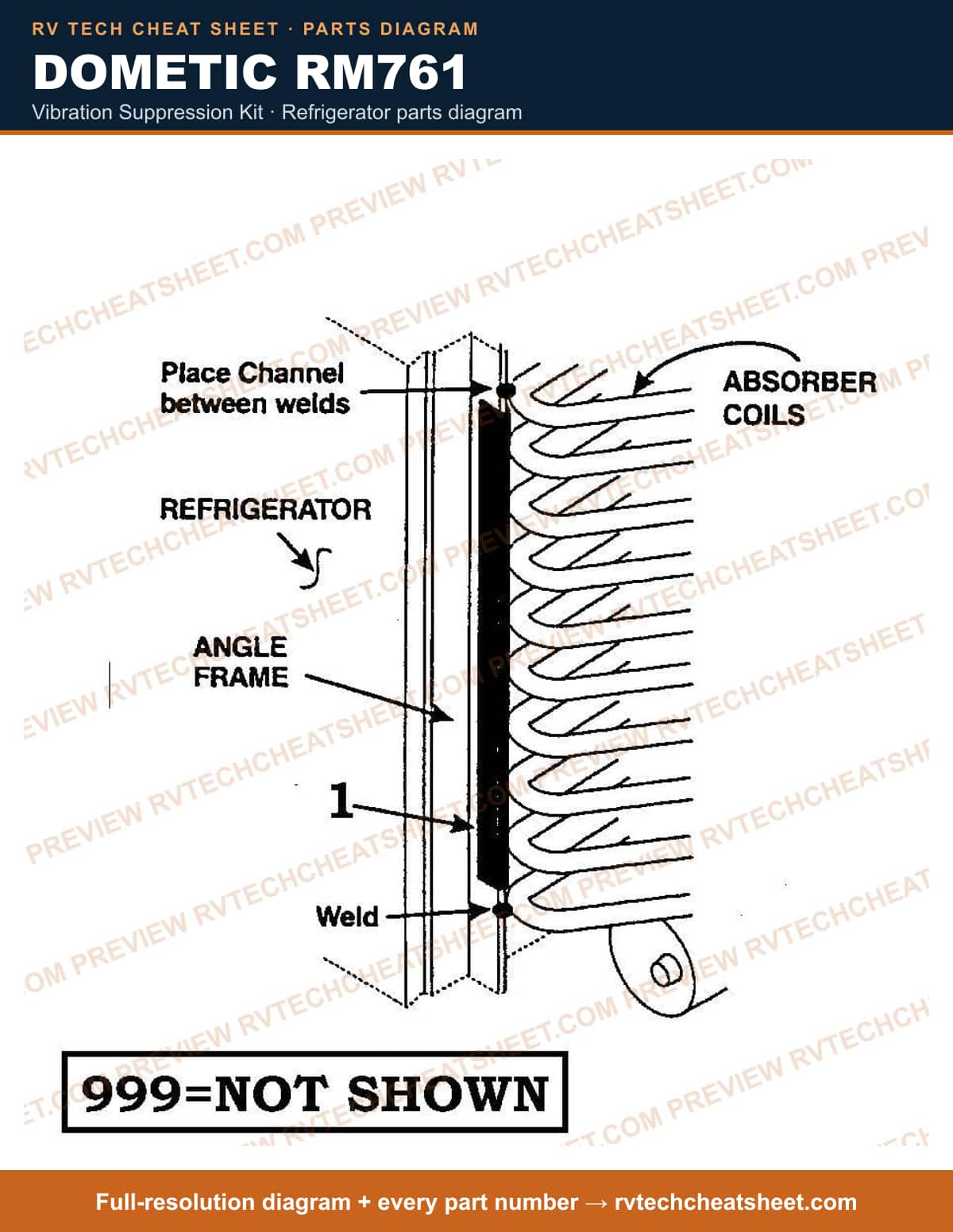

Vibration Suppression Kit

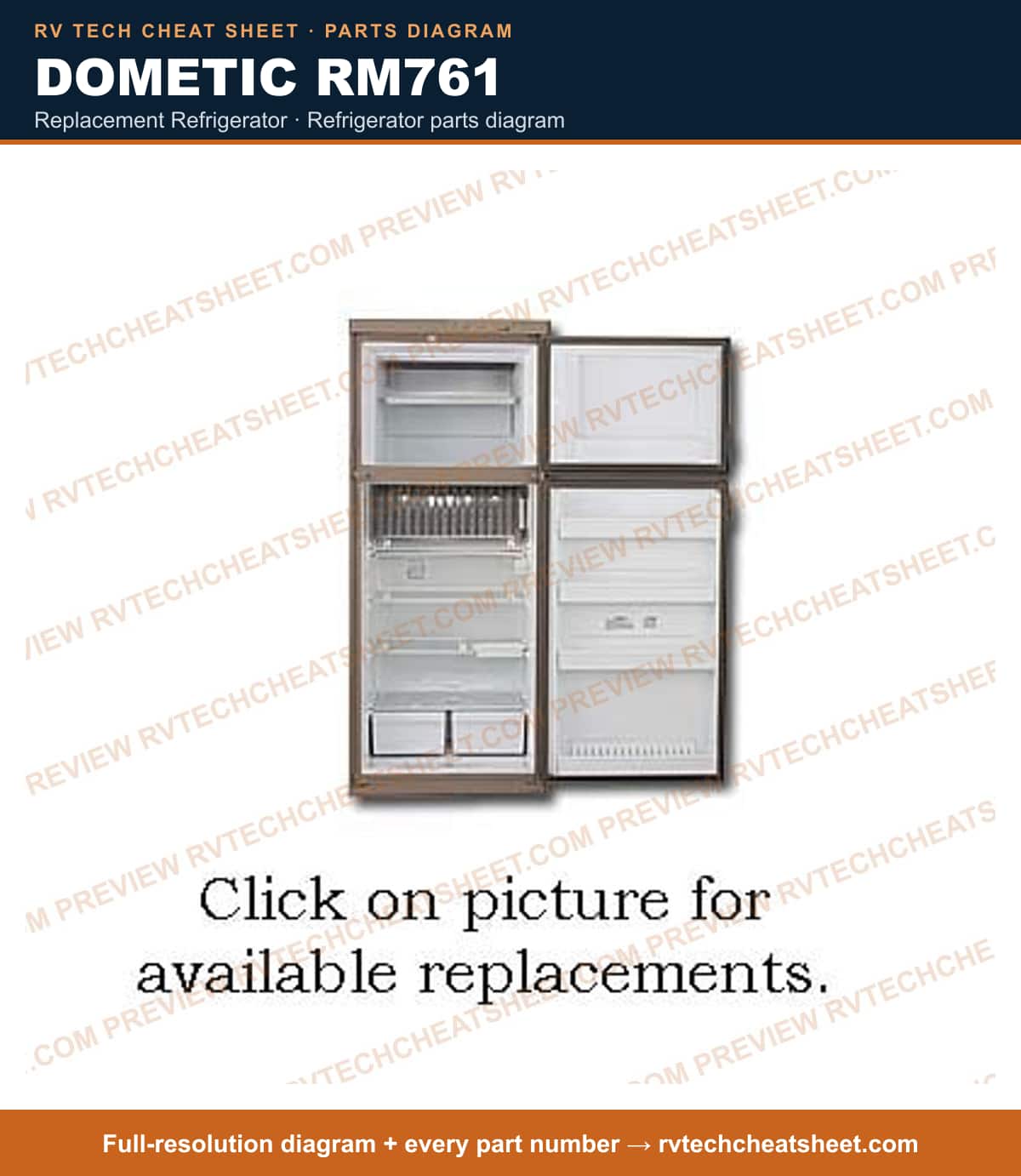

Replacement Refrigerator
Dometic RM761 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 12 items # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK # REFER,6 CU FT USE RM3663BN 53 3/4 X 23 11/16 X 24 3-WAY MFR # RM3663N Superseded: see description # Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK # REFER,6 CU FT USE RM3662BN 53 3/4 X 23 11/16 X 24 MFR # RM3662N Superseded: see description # APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS # REFER,6 CU.FT USE RM2652B 2-WAY BEIGE MFR # RM2652N Superseded: see description # REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N # REFER,6 CU FT 2 WAY SILVER 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652S # REFER,6 CU.FT 3-WAY BLACK FRAME FOR BLACK DOOR PANELS USE 3106863073C FOR WOODGRAIN DOOR PANELS USE 3106863073B 3 WAY DOUBLE DOOR WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE RM... MFR # RM2663B Superseded: see description # REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH # REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B # REFER,6 CU FT USE RM2663B BLACK FRAME 3-WAY DIMENSIONS: 53 3/4 X 23 11/16 X 24 3-WAY DOUBLE DOOR WITH BLACK METAL FRAME. FOR BEIGE METAL FRAME USE RM3663N. MFR # RM3663BN Superseded: see description
