Dometic RM763 Parts Diagram · Cooling Unit

Refrigerator · 6 assemblies · 6 diagram sheets · 233 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM763 RV refrigerator: 6 assemblies (Cooling Unit, Vibration Suppression Kit, Burner & Control, Cabinet Assy, Door Assy and more) and 233 manufacturer part numbers. 71 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

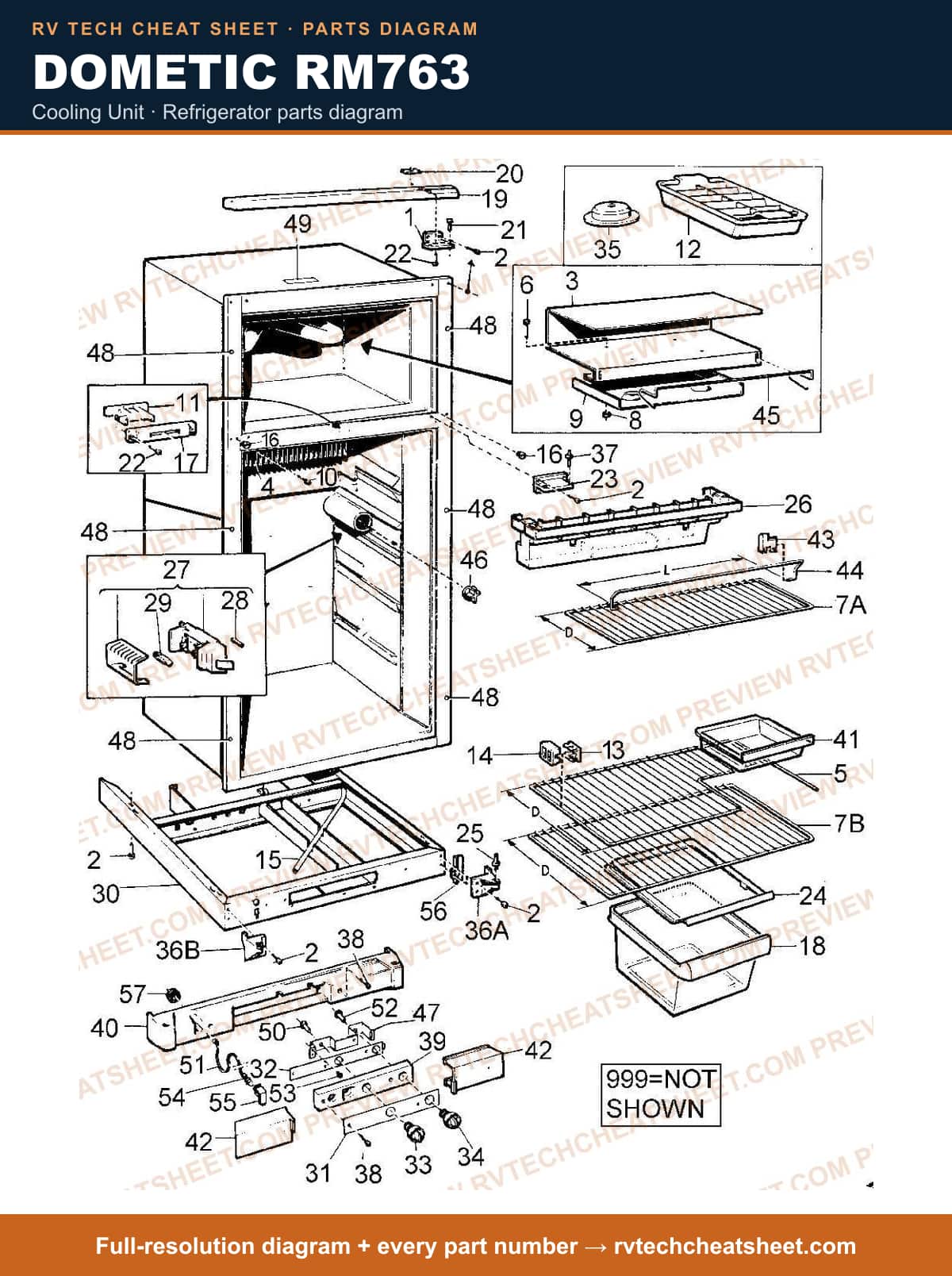

Cooling Unit

Components

13 items

1. #Clamp MFR # 2007395003
2. #PLUG MFR # 2001192000
3. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
4. #APPLIANCE COMPONENTS RV; Cooling Unit 761-63 MFR # 9285319001N
5. #REMAN C/U USE 5561 RM760/761, RM763 MFR # 9285319001R Superseded: see description
6. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
7. #WIRING DIAGRAM MFR # 2930372004
8. #LABEL MFR # 2930447004
9. #S,CAP,FLUE MFR # 2007598010
10. #LABEL, IMPORTANT MFR # 2007689009
11. #DECAL RM38 04 MFR # 2007574029
12. #DECAL, WARNING 2807/4801 MFR # 2002577001
13. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009

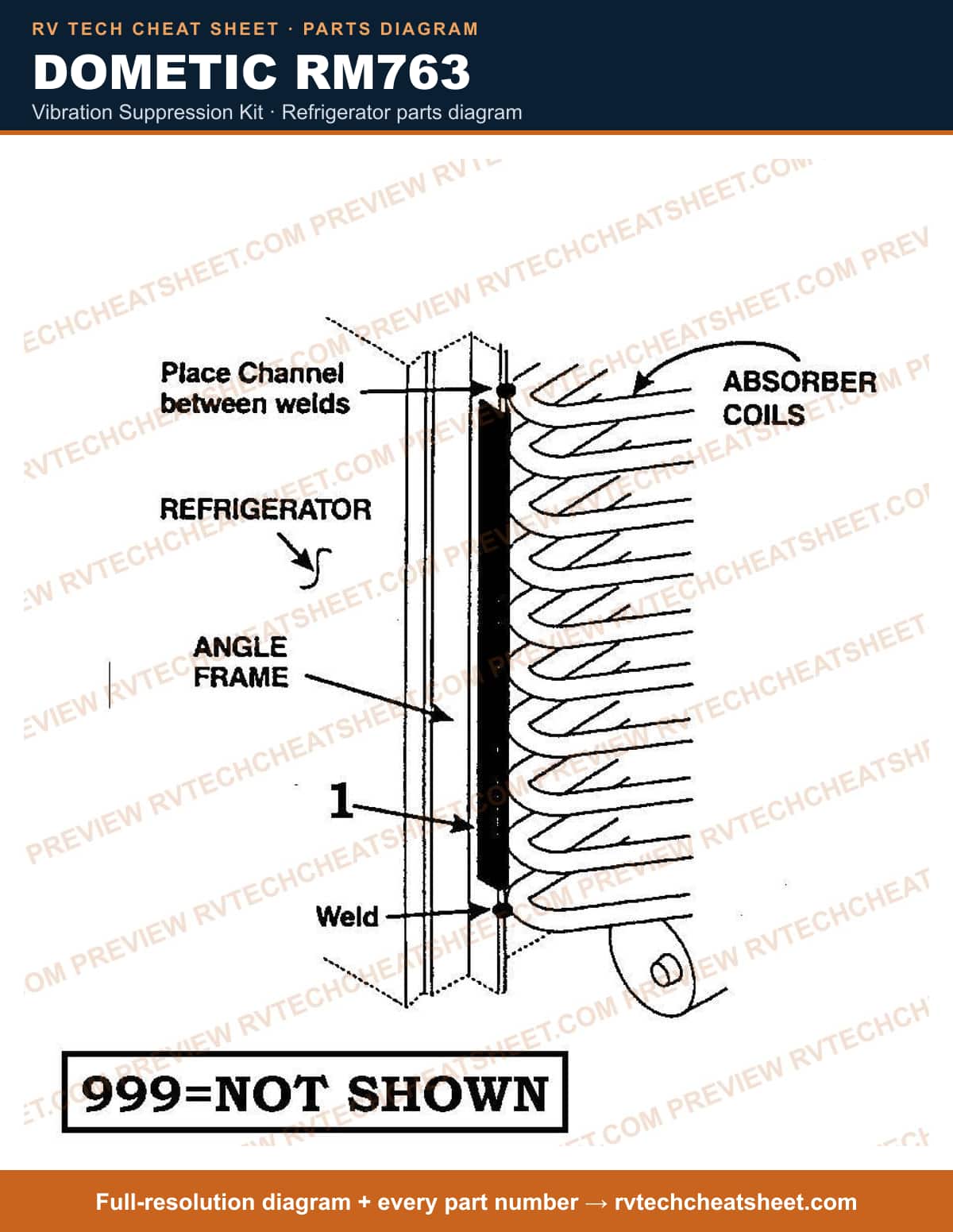

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

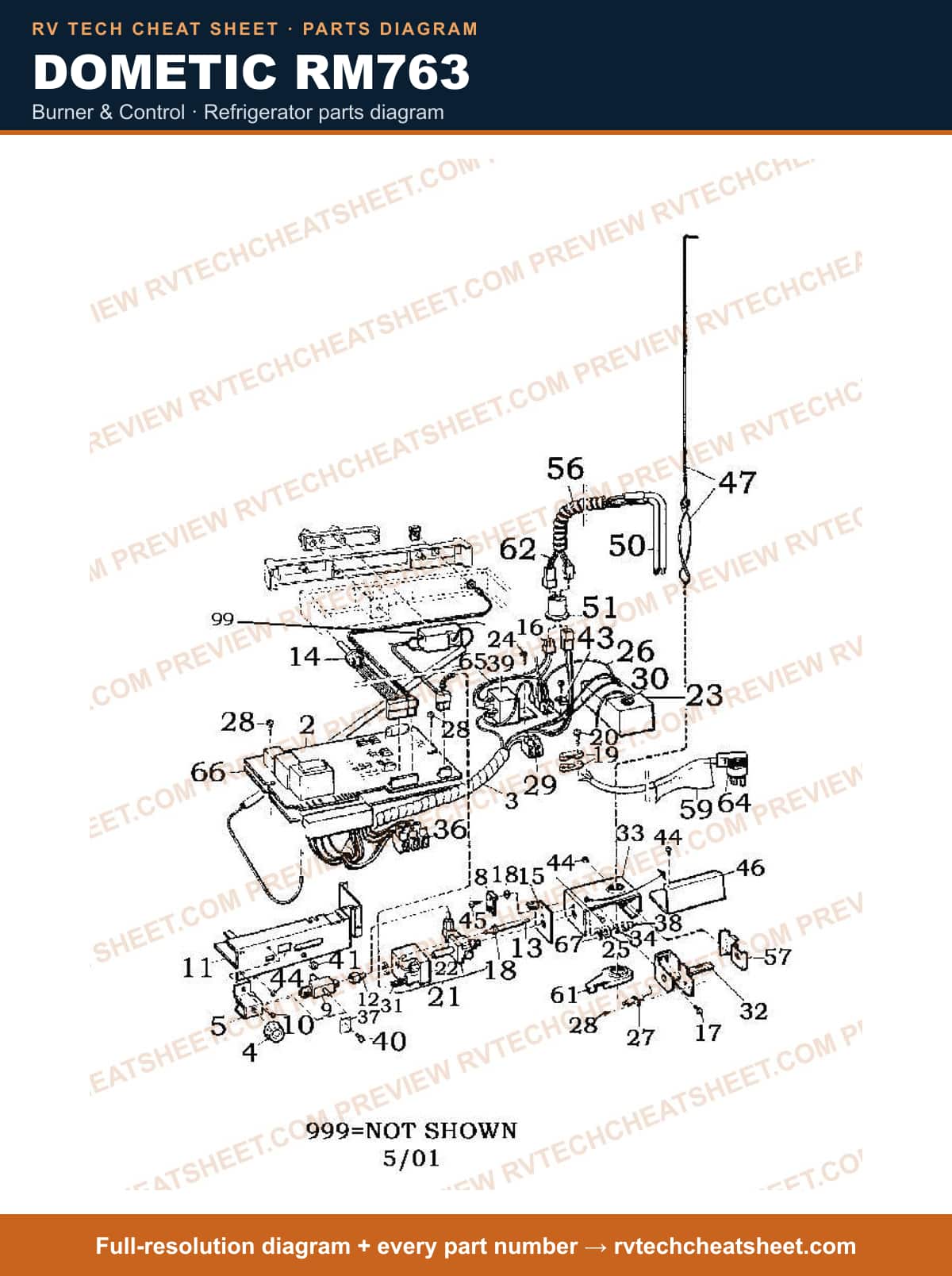

Burner & Control

Components

94 items

1. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Earlier Refrigerator Series Micro P-24 2-Way\ Micro P-24 3-Way\ Micro P-26; 3 Way; With Built In Microcontroller\ Self-Resetting Circuit Breaker MFR # MICROP246PLUS
2. #APPLIANCE COMPONENTS RV; Board Module MFR # 3106375003
3. #BOARD,CIRCUIT USE 3106375003 MFR # 87500351199 Superseded: see description
4. #BOARD,CIRCUIT USE 87500351199 MFR # 2007716000 Superseded: see description
5. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Series RM663, RM763, RM1303 MFR # MICROP13
6. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338
7. #APPLIANCE COMPONENTS RV; Circuit Board, Refrigerator, Dometic MFR # MICROP1338REV5
8. #APPLIANCE COMPONENTS RV; Cable Complete Rm1303 MFR # 2930342007
9. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2004067217
10. #N/A BRACKET GAS VALVE MFR # 2007702000
11. #N/A RETAINER MFR # 2007701002
12. #APPLIANCE COMPONENTS RV; Valve Kit Shut Off W/Pro MFR # 3108706023
13. #COCK, GAS USE 2007709047 MFR # 2007709013 Superseded: see description
14. #VALVE, GAS USE 3108706023 MFR # 2007709047 Superseded: see description
15. #VALVE, GAS USE 2007709013 MFR # 2007709005 Superseded: see description
16. #SCREW, RX 5X10 Z. PL. MFR # 7241325013
17. #PLATE, MOUNTING RM1303 MFR # 2930320003
18. #Dometic 300 Series Toilet Flush Ball Seal MFR # 2007710003
19. #Thermocouple; Use On Dometic Refrigerator Model RM1303 MFR # 2930326000MC Superseded: see description
20. #T-COUPLE MFR # 2930326000
21. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
22. #S,THERMOCOUPLE-232MM MFR # 2931496042
23. #APPLIANCE COMPONENTS RV; Switch Selector On/Off MFR # 2930306002
24. #SWITCH RM1303 MFR # 2930306002MC
25. #END PIECE 1303 MFR # 2930325002
26. #APPLIANCE COMPONENTS RV; Lead 12V Heater Lwr 1303 MFR # 2930333006
27. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
28. #Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description
29. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
30. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
31. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
32. #BOARD, MODULE MFR # 3106375015
33. #VALVE, SOLENOID USE 3108705272 MFR # 2007719020 Superseded: see description
34. #VALVE, SOLENOID USE 2007719020 MFR # 2007719004 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Gas Valve & Board Kit MFR # 3108705272
36. #VALVE, SOLENOID USE 2007719020 MFR # 2007719012 Superseded: see description
37. #VALVE, SOLENOID USE 2007719012 MFR # 2007715002 Superseded: see description
38. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
39. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
40. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
41. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
42. #SCREW MFR # 7295231018
43. #NUT MFR # 140207036
44. #Lead, Igniter Ground RM1303, 3604 MFR # 2930332008
45. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
46. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
47. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
48. #Block Terminal Small 3 Poi MFR # 7627202562
49. #APPLIANCE COMPONENTS RV; Lead Electrode Use 293278 MFR # 2007668003 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Lead To Solenoid MFR # 2930330010
51. #LEAD, SOLENOID USE 2930330010 MFR # 2930330002 Superseded: see description
52. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
53. #APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description
54. #Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038
55. #APPLIANCE COMPONENTS RV; Block Terminal 4 Large MFR # 2930463001
56. #BLOCK, TERMINAL USE 2930463001 MFR # 7627203560 Superseded: see description
57. #PLATE 12V MFR # 2007707009
58. #Refrigerator Burner Orifice; Replacement For Dometic RM660/ RM661/ RM2600/ RM2603/ RM2601/ RM2602/ RM760/ RM761/ RM3600 Series Refrigerators; #52 MFR # 2007419183
59. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
60. #ORIFICE #51 USE 2007419183 BUTANE 760 MFR # 2007419175 Superseded: see description
61. #RELAY USE 2930385006 MFR # 2002769004 Superseded: see description
62. #Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description
63. #APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006
64. #SCREW RXS B6X5 MFR # 7295275015
65. #BUSHING MFR # 149585010
66. #Washer; Replacement For Dometic RM3500/ RM3600/ RM3604 Model Refrigerator MFR # 2930364001
67. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
68. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
69. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
70. #SCREW M4 X 10 S MFR # 7241289615
71. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
72. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
73. #BAFFLE 531A MFR # 2007179035
74. #ELEMENT,HEATING USE 48-9508 120V 295W MFR # 173740044 Superseded: see description
75. #ELEMENT,HEATING USE 48-9337 12V 3/8"DIA 7-1/2 LNG TO BND MFR # 173741026 Superseded: see description
76. #ELEMENT, HEATING 12V 250W 3/8"DIA 7-1/2 LNG TO BND MFR # CH000178
77. #ELEMENT, HEATING 120V295W 3/8"DIA 7-1/2"LNG TO BND MFR # CS000021
78. #BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description
79. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
80. #Protection Hose MFR # 2007069046
81. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
82. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
83. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
84. #ELEMENT LEAD RM13 03 MFR # 2930289000
85. #PLUG W/CORD USE 2002699037 MOLDED MFR # 2002699011 Superseded: see description
86. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
87. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
88. #LEAD,EARTHING 12V RELAY MFR # 2930338005
89. #PLATE,INSULATION RM1303 MFR # 2930339003
90. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
91. #Refrigerator Thermostat Control Assembly; Use On Dometic Refrigerator Models RM1303, RM663 And RM763; With Control Knob MFR # 2930523002MC Superseded: see description
92. #T-STAT, ELECTRIC MFR # 2930523002
93. #STORE FIXTURE MERCH DISPLAY RV; BUSINESS CARD HOLDER MFR # K50P1283
94. #T-STAT USE MFR # 2007712009 Superseded: see description

Cabinet Assy

Components

82 items

1. #Appliance Components RV; Hinge Upper MFR # 2007270008
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #FASTENING WASHER MFR # 2007536002
4. #Refrigerator Cooling Unit; Use With Dometic RM2611/ RM2620/ RM2607/ RM761/ RM760/ RM2602/ RM3600/ RM3604/ RM3607 Model Refrigerators MFR # 2007351006 Superseded: see description
5. #SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
7. #SCREW, FREEZER M65 5X22 BRASS N.I PL. MFR # 7252332130
8. #SHELF, WIRE USE 2002652234 MFR # 2002652143 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Shelf Wire 12"W X 17 7/ MFR # 2002652226
10. #APPLIANCE COMPONENTS RV; Shelf Wire 8"W X 17 7/8L MFR # 2002652234
11. #SHELF USE 2002652226 MFR # 2002652135 Superseded: see description
12. #SHELF WIRE USE 2002652218 MFR # 2002652127 Superseded: see description
13. #Refrigerator Shelf MFR # 2002652218
14. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
15. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
16. #PLATE, FREEZER USE 2007649011 4 HOLE MFR # 2007649003 Superseded: see description
17. #PLATE RETAINING MFR # 2007649011
18. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
19. #Appliance Components RV; Latch Brown MFR # 2007681030
20. #T-LATCH USE 2007681030 MFR # 2007681022 Superseded: see description
21. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
22. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
23. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
24. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
25. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
26. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
27. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
28. #TUBE MFR # 2930340001
29. #N/A PLUG MFR # 2007063007
30. #APPLIANCE COMPONENTS RV; Housing Latch 1303 MFR # 2007680032
31. #HOUSING, LATCH MFR # 2007680008
32. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
33. #CRISPER USE 2002726061 MFR # 2002726038 Superseded: see description
34. #DECOR STRIP UPPER MFR # 2007275023
35. #APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005
36. #Pin, Hinge MFR # 2007271006
37. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
38. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
39. #Appliance Components RV; Hinge Middle RA1302 MFR # 2007272046
40. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
41. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description
42. #Appliance Components RV MFR # 2007519008
43. #Appliance Components RV; Lamp Inside MFR # 2007282003
44. #Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025
45. #BULB 2/PK MFR # 2007290006
46. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
47. #BASE, CABINET RM66 3-763 MFR # 2930314006
48. #PANEL, DECOR RM1303 MFR # 2930302001
49. #MOUNTING PLATE MFR # 2930203009
50. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 2007480136
51. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Switch Knob MFR # 2007480144 Superseded: see description
52. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
54. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
55. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
56. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
57. #SCREW MFR # 7298285402
58. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
59. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
60. #APPLIANCE COMPONENTS RV; Panel Rm763 MFR # 2007463041
61. #BASE FRONT MFR # 2007461136
62. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
63. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
64. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
65. #Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description
66. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
67. #APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062
68. #APPLIANCE COMPONENTS RV; Bar L Approx. 13.5" Rm76 MFR # 2007337005
69. #Appliance Components RV; Bar Freezer Shelf MFR # 2007537000
70. #CLAMP F/CABLE RM760 MFR # 2007627009
71. #Refrigerator Eyebrow Power Control Circuit Board Mount Clip; Replacement For Dometic RM663/ RM763 Refrigerators MFR # 2930304007
72. #Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description
73. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
74. #SCREW MFR # 2930431008
75. #ADAPTER, T-STAT MFR # 2930305004
76. #APPLIANCE COMPONENTS RV; Lead Indicator Lamp RM130 MFR # 2930310004
77. #ADAPTER, SWITCH MFR # 2930360009
78. #SCREW RXS B6X5 MFR # 7295275015
79. #APPLIANCE COMPONENTS RV; Lamp Indicator Red MFR # 2930311002
80. #APPLIANCE COMPONENTS RV; Socket Lamp RM1303 MFR # 2930309006
81. #Plate, Sealing MFR # 2930074006
82. #BUSHING MFR # 149585010

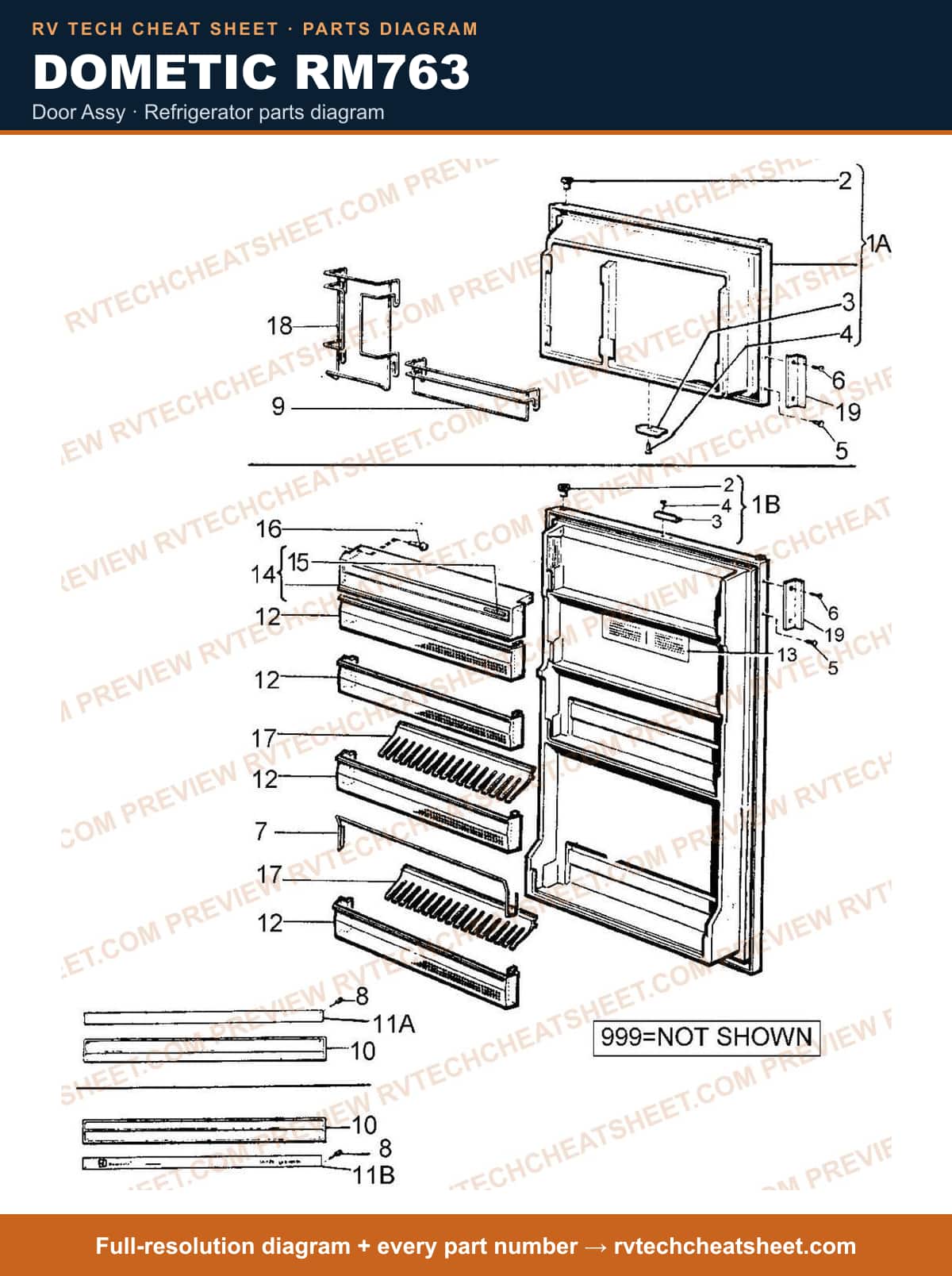

Door Assy

Components

38 items

1. #APPLIANCE COMPONENTS RV; Gasket Kit MFR # 3103688002
2. #DOOR, FREEZER MFR # 2930128034
3. #DOOR, MAIN 13 LBS MFR # 2930127036
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
6. #CATCH, RETAINER USE 2007544006 MFR # 2007679026 Superseded: see description
7. #RIVET, POP MFR # 7227835027
8. #Plug Beige MFR # 20026460279
9. #PLUG, GREY USE 2006460055 MFR # 2006460071 Superseded: see description
10. #Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description
11. #Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description
12. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
13. #APPLIANCE COMPONENTS RV; Bar L MFR # 2007523000
14. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
15. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
17. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
18. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
19. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
20. #STRIP, DECORATION MFR # 2002675110
21. #STRIP, DECORATION MFR # 2930137118
22. #STRIP, DECORATION MFR # 2930137001
23. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
24. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
25. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER MFR # 2000571170 Superseded: see description
26. #LABEL, INSTRUCTION MFR # 2002356000
27. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
28. #NAMEPLATE MFR # 2002672000
29. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
30. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
31. #HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description
32. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
33. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
34. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
35. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
36. #RACK, WIRE MFR # 2007040005
37. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
38. #Appliance Components RV; Handle Door RM1303 MFR # 2930283003

Replacement Refrigerator

Components

12 items

1. #PANELS,DOOR USE RM2652BA STAINLESS STEEL MFR # RM2652SS Superseded: see description
2. #Refrigerator; Americana; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 6 Cubic Foot; 54-9/16 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control/ Automatic Temperature Control; Black Frame; With Locking Door Handles/ 2 Crispers/ 3 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2652RB
3. #REFER,6 CU FT 2 WAY SILVER 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652S
4. #REFER,6 CU FT 2 WAY BLK FRM 53 3/4" X 23 11/16" X 24" MFR # RM2662B
5. #REFER,6 CU.FT USE RM2652B 2-WAY BEIGE MFR # RM2652N Superseded: see description
6. #REFER,6 CU.FT 3-WAY BLACK FRAME FOR BLACK DOOR PANELS USE 3106863073C FOR WOODGRAIN DOOR PANELS USE 3106863073B 3 WAY DOUBLE DOOR WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE RM... MFR # RM2663B Superseded: see description
7. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
8. #REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B
9. #REFER,6 CU FT USE RM3663BN 53 3/4 X 23 11/16 X 24 3-WAY MFR # RM3663N Superseded: see description
10. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black; With Crispers/ Shelving And Door Bins MFR # N6413N
11. #REFER,6 CU FT USE RM2663B BLACK FRAME 3-WAY DIMENSIONS: 53 3/4 X 23 11/16 X 24 3-WAY DOUBLE DOOR WITH BLACK METAL FRAME. FOR BEIGE METAL FRAME USE RM3663N. MFR # RM3663BN Superseded: see description
12. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
