Dometic RM77 Model RM77 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 231 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM77 Model RM77 RV refrigerator: 5 assemblies (Door Assembly, Cabinet Assembly Detailed, Cabinet Assembly, Gas-electric, Replacement Refrigerator) and 231 manufacturer part numbers. 50 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

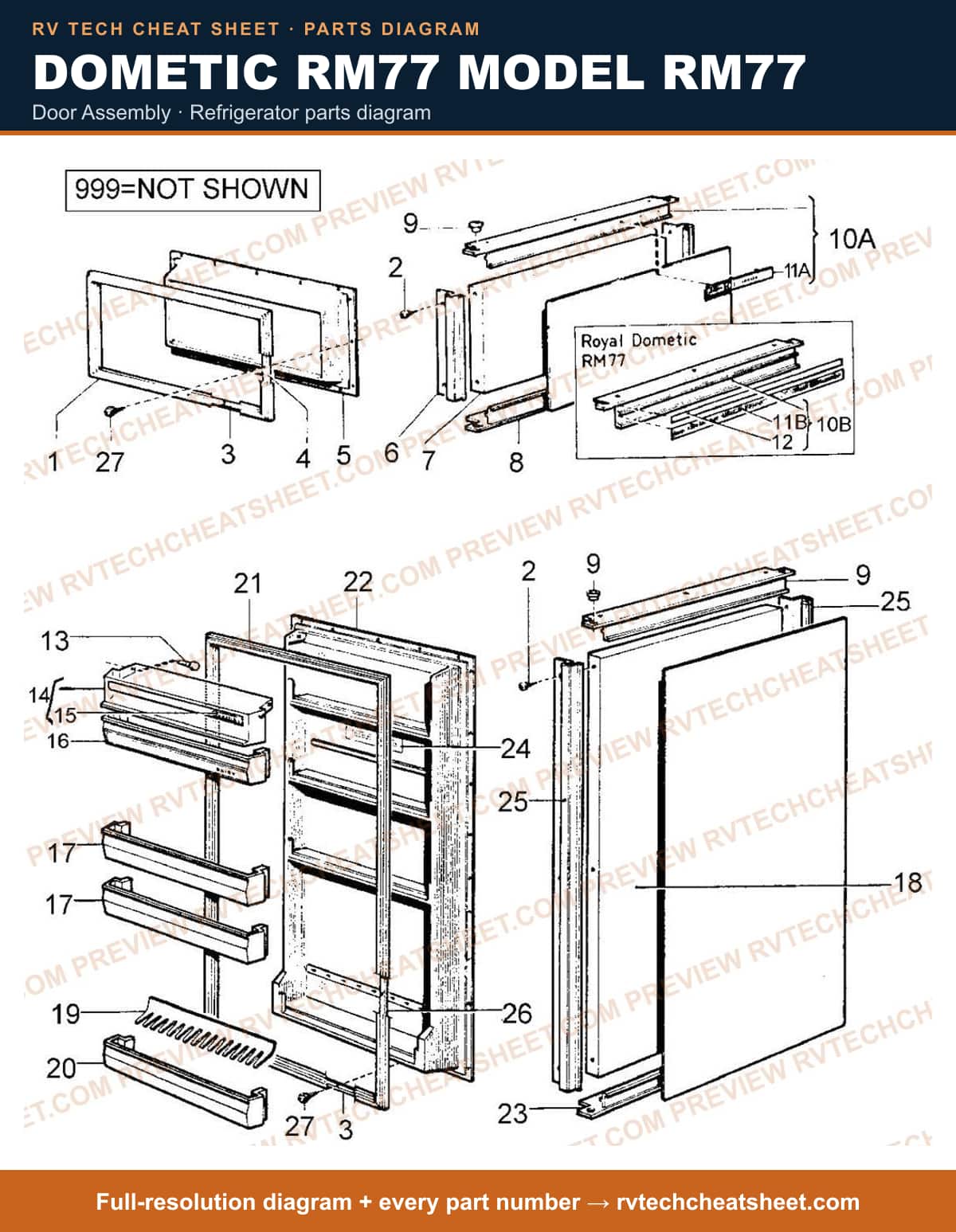

Door Assembly

Components

31 items

1. #APPLIANCE COMPONENTS RV; Gasket Freezer RM75 MFR # 2001111091
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #REINFORCING STRIP, HORIZONTAL MFR # 2001586003
4. #REINFORCING STRIP, VERTICAL MFR # 2001585088
5. #DOOR PAN UPPER YELLOW MFR # 2002330039
6. #DOOR FRAME - ANODIZED ALUM - GOLD MFR # 2002342117
7. #DOOR PLATE INSULATED MFR # 2002328009
8. #DOOR FRAME - ANODIZED ALUM. - GOLD MFR # 2002341010
9. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
10. #DOOR FRAME-COMPL-ANODIZED ALUM-GOLD MFR # 2002632053
11. #NAME PLATE "ROYAL DOMETIC" MFR # 2002627020
12. #DECORATION STRIP - BROWN MFR # 2002628028
13. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
14. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
16. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
17. #NAME PLATE DOMETIC MFR # 2002256002
18. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
19. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
20. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
21. #N/A MFR # 2002334007
22. #APPLIANCE COMPONENTS RV; Holder Bottle Wht MFR # 2001730007
23. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
24. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
25. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
26. #Refrigerator Gasket; Replacement For Dometic RM75/ RM76/ RM77 Model Refrigerator; Lower Door Gasket MFR # 2001111083
27. #DOOR FRAME-ANODIZED ALUM-GOLD MFR # 2002340087
28. #LABEL, INSTRUCTION MFR # 2002356000
29. #DOOR FRAME-ANODIZED ALUM-GOLD MFR # 2002342109
30. #REINFORCING STRIP MFR # 2002585070
31. #SCREW MFR # 7295279652

Cabinet Assembly Detailed

Components

13 items

1. #SPACER MFR # 2002266019
2. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005
3. #HOLDER, LATCH MFR # 2002324008
4. #SCREW, RX5X12, Z. PL. MFR # 7241327019
5. #RIVET NUT MFR # 149370017
6. #LATCH RM 75 MFR # 2002325005
7. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003
8. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
9. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
10. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
11. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
12. #TRAY,ICE W/RELEASER MFR # 2002337000
13. #SCREWS RM10 0 MFR # 7241328017

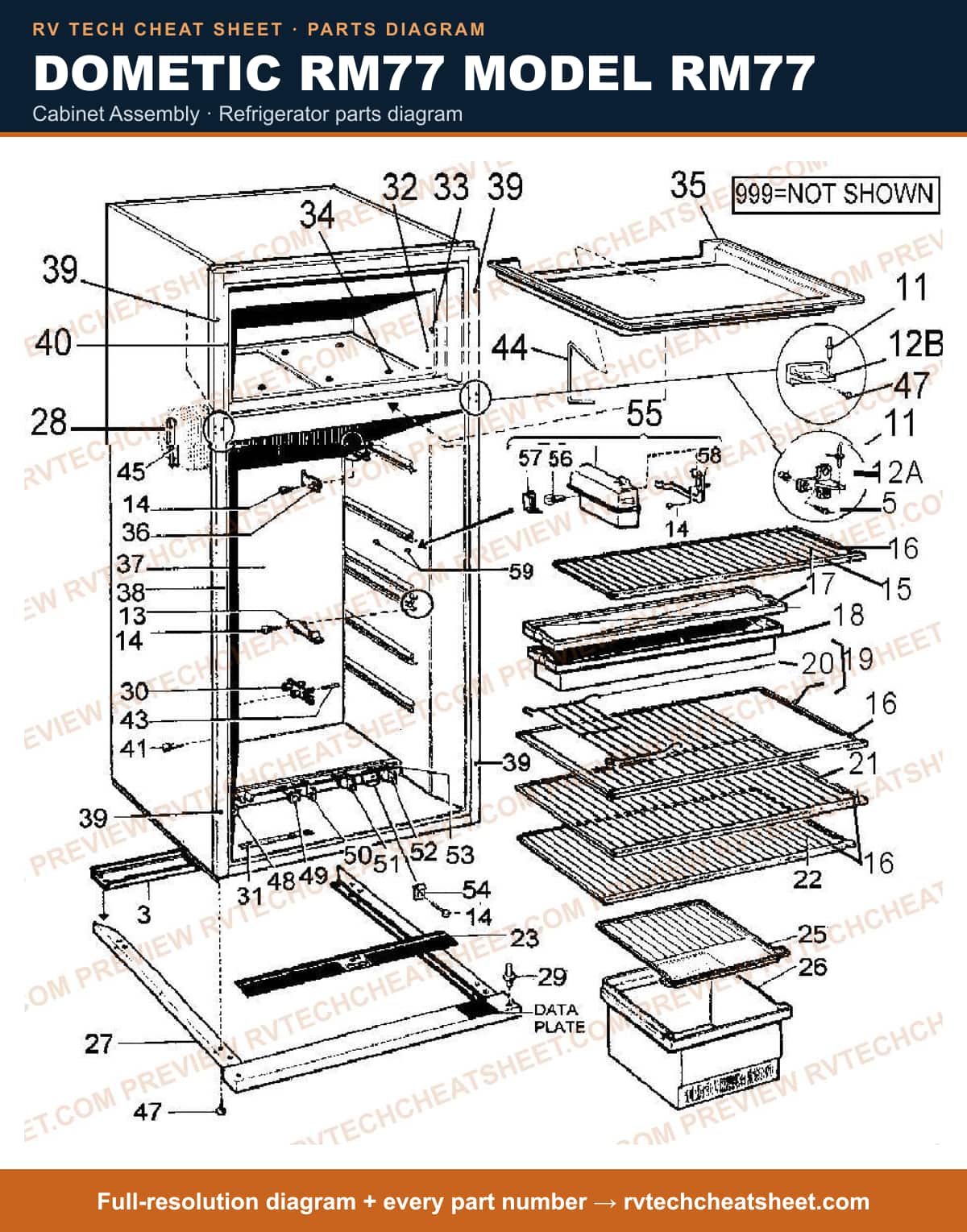

Cabinet Assembly

Components

61 items

1. #PROTECTION PLATE FOR RM75A MFR # 2002625024
2. #SCREW, RX5X12, Z. PL. MFR # 7241327019
3. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
4. #HINGE, MIDDLE MFR # 2002323018
5. #HINGE, MIDDLE MFR # 2002323026
6. #APPLIANCE COMPONENTS RV; Latch Hinge MFR # 2002535009
7. #STOP,SHELF MFR # 2002635007
8. #SCREW MFR # 7295281658
9. #SHELF, UPPER MFR # 2002652036
10. #DECOR. STRIP - LATER VERSION MFR # 2002479034
11. #COVER MFR # 2000543039
12. #TRAY, DRIP WHITE MFR # 2000542031
13. #SHELF USE 2002651111 MFR # 2002651145 Superseded: see description
14. #SHELF MFR # 2002651111
15. #INSTRUCTION PLATE MFR # 2007008010
16. #LID, CRISPER M70 RM7 MFR # 2000579009
17. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
18. #CRISPER MFR # 2000577011
19. #CABINET BASE MFR # 2002533020
20. #CABINET BASE MFR # 2002533095
21. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
22. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
24. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
25. #WARNING LABEL MFR # 2007048008
26. #LINING MFR # 2000538005
27. #SCREW, KFXS B8X16, STAINLESS MFR # 7297344405
28. #SCREW - FX 5X18, NI, PL. MFR # 7243330136
29. #TRAY MFR # 2000533006
30. #SNAP SPRING MFR # 2000547006
31. #LINING MFR # 2002316004
32. #TRIM MFR # 2002317036
33. #FRONT FRAME - YELLOW, RM76, 77 MFR # 2002317028
34. #PLUG, FACE WHITE MFR # 2002352009
35. #COVERING FRAME MFR # 2000541017
36. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
37. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
39. #PIN,RETAINING MFR # 2001281019
40. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
41. #CLAMP MFR # 2000966008
42. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
43. #SCREWS RM10 0 MFR # 7241328017
44. #KNOB,PIEZO MFR # 2002669006
45. #KNOB,LIGHTER YELLOW MFR # 2002724009
46. #APPLIANCE COMPONENTS RV; Knob Pull Off MFR # 3002168031
47. #KNOB USE 3002168031 MFR # 2002722003 Superseded: see description
48. #KNOB,T-STAT GAS USE 2002423024 YELLOW MFR # 2002725022 Superseded: see description
49. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
50. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
51. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
52. #KNOB,SWITCH USE 2002423040 2W MFR # 2002725048 Superseded: see description
53. #KNOB,ELECTRIC USE 2002423032 T-STAT YELLOW MFR # 2002725030 Superseded: see description
54. #PANEL,CONTROL YELLOW MFR # 2002664007
55. #PANEL,CONTROL YELLOW MFR # 2002664056
56. #LOCK NUT SNJ 1915 MFR # 7337813062
57. #FITTING LAMP COMPLETE MFR # 2002751002
58. #LAMP,6 VOLT MFR # 140315003
59. #LAMP,GLASS MFR # 2002748008
60. #APPLIANCE COMPONENTS RV; Bracket MFR # 2002749006
61. #PLUG MFR # 2009097005

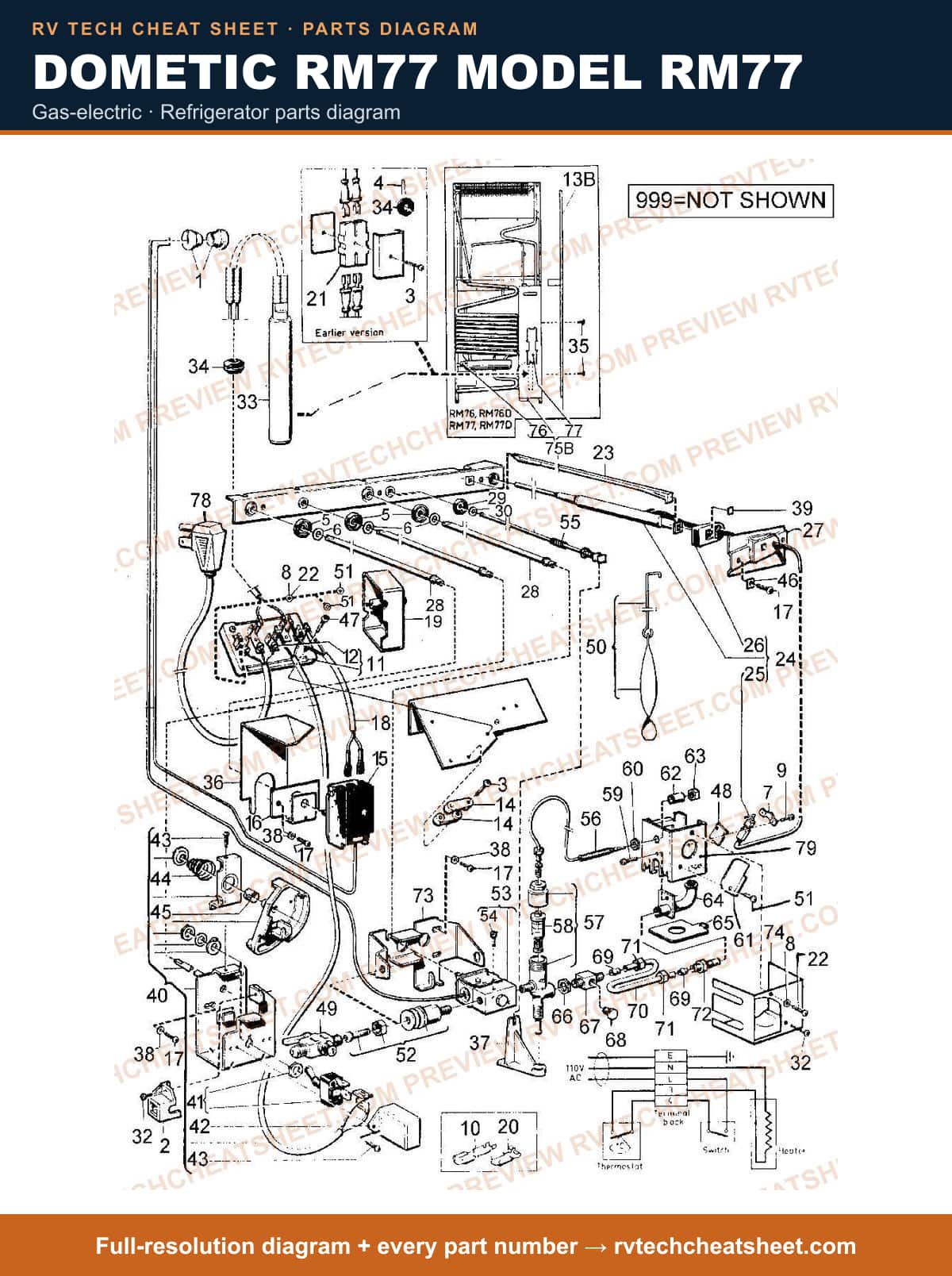

Gas-electric

Components

120 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #TURN PROTECTION MFR # 2002766000
3. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
4. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
5. #SCREW MFR # 7298285402
6. #LOCKING SPRING MFR # 170692008
7. #SEALING RING MFR # 2002224018
8. #WASHER RM36E MFR # 7344974014
9. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
10. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
11. #SCREW RXS B6X5 MFR # 7295275015
12. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
13. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
14. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
15. #FLUE N/A MFR # 2002472013
16. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
17. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
18. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
19. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
20. #BRACKET T-STAT MFR # 2890034008
21. #SCREW #17 MFR # 7241289011
22. #CABLE, COMPL., FOR T-STAT MFR # 173193046
23. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
24. #TAB CONNECTOR, ANGLE MFR # 7604855002
25. #CONNECTION BLOCK MFR # 2400297004
26. #NO PART # GIVEN BY VENDOR MFR # NPG
27. #APPLIANCE COMPONENTS RV; Conductor Light 7' MFR # 2002222020
28. #PIEZO LIGHTER MFR # 440
29. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
30. #IGNITER USE 2002609028 LOT 439 MFR # 2002609010 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Piezo MFR # 2002609010MC
32. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
33. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
34. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
35. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
36. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
37. #SHAFT RM7'S MFR # 2002300024
38. #RING,SEALING MFR # 2002224000
39. #WASHER RM66 MFR # 7344908012
40. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
41. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
43. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
44. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
45. #BUSHING MFR # 149585010
46. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
47. #PROTECTION PLATE MFR # 2002445001
48. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
49. #SPRING WASHER MFR # 7351136010
50. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
51. #SWITCH, SELECTOR MFR # 2002670038
52. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
53. #COVER MFR # 173101007
54. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
55. #SWITCH ASM 3 WAY MFR # 2007176007
56. #SEALING RING MFR # 7356819115
57. #WASHER MFR # 2002351001
58. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
59. #INSULATION - NLA MFR # 2002442008
60. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
61. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
62. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
63. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
64. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
65. #BAFFLE, FLUE MFR # 172174013
66. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
67. #Screw MFR # 7295340017
68. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
69. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
70. #T-STAT, GAS MFR # V35P0111013
71. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
72. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
73. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
74. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
75. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
76. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
77. #THERMOCOUPLE, 18" MFR # 169372002MC
78. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
79. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
80. #QUICK CHECK MFR # 423
81. #THERMOCOUPLE MFR # 169372000MC
82. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
83. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
84. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
85. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
86. #VALVE, SAFETY MFR # 293165
87. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
88. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
89. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
90. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
91. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
92. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
93. #LID MFR # 2890053008
94. #SPACER SLEEVE MFR # 173344011
95. #SPACER NUT MFR # 170827000
96. #TUBE, BURNER MFR # 2890010008
97. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
98. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
99. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
100. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
101. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
102. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
103. #LINE,GAS INLET RM7'S MFR # 2890051002
104. #NUT, UNION FEMALE MFR # 2902553003
105. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
106. #ORIFICE, #53 MFR # 2002660195
107. #ORIFICE, #52 MFR # 2002660187
108. #BRACKET MFR # 2002469001
109. #BURNER PROTECTION MFR # 2002476006
110. #COOLING UNIT RM77 USE 49-4752 MFR # 9285134004N Superseded: see description
111. #REMAN C/U USE 5575 RM75,76D,77 MFR # 9285134004R Superseded: see description
112. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
113. #COVER N/A MFR # 173430000
114. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
115. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
116. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
117. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
118. #BRACKET,BURNER MFR # 2002493001
119. #Refrigerator Cooling Fan Thermostat MFR # 2007010016MC
120. #T-STAT, DUAL ALT MFR # 2007010016

Replacement Refrigerator

Components

12 items

1. #REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
2. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK
3. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
4. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
5. #REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
6. #REFER,8 CU FT 2 WAY BLK FRM 59 15/16" X 23 11/16" MFR # RM2862B
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
8. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
10. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
11. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
12. #Refer, 8 Cu Ft Use RM2862B 59 15/16" x 23 11/16" MFR # RM3862BN Superseded: see description
