Dometic RM77 Model RM77D Parts Diagram · Cabinet Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 226 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM77 Model RM77D RV refrigerator: 6 assemblies (Cabinet Assembly, Gas-electric, Replacement Refrigerator, Cabinet Assembly Detail, Cabinet Assembly Detailed and more) and 226 manufacturer part numbers. 54 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

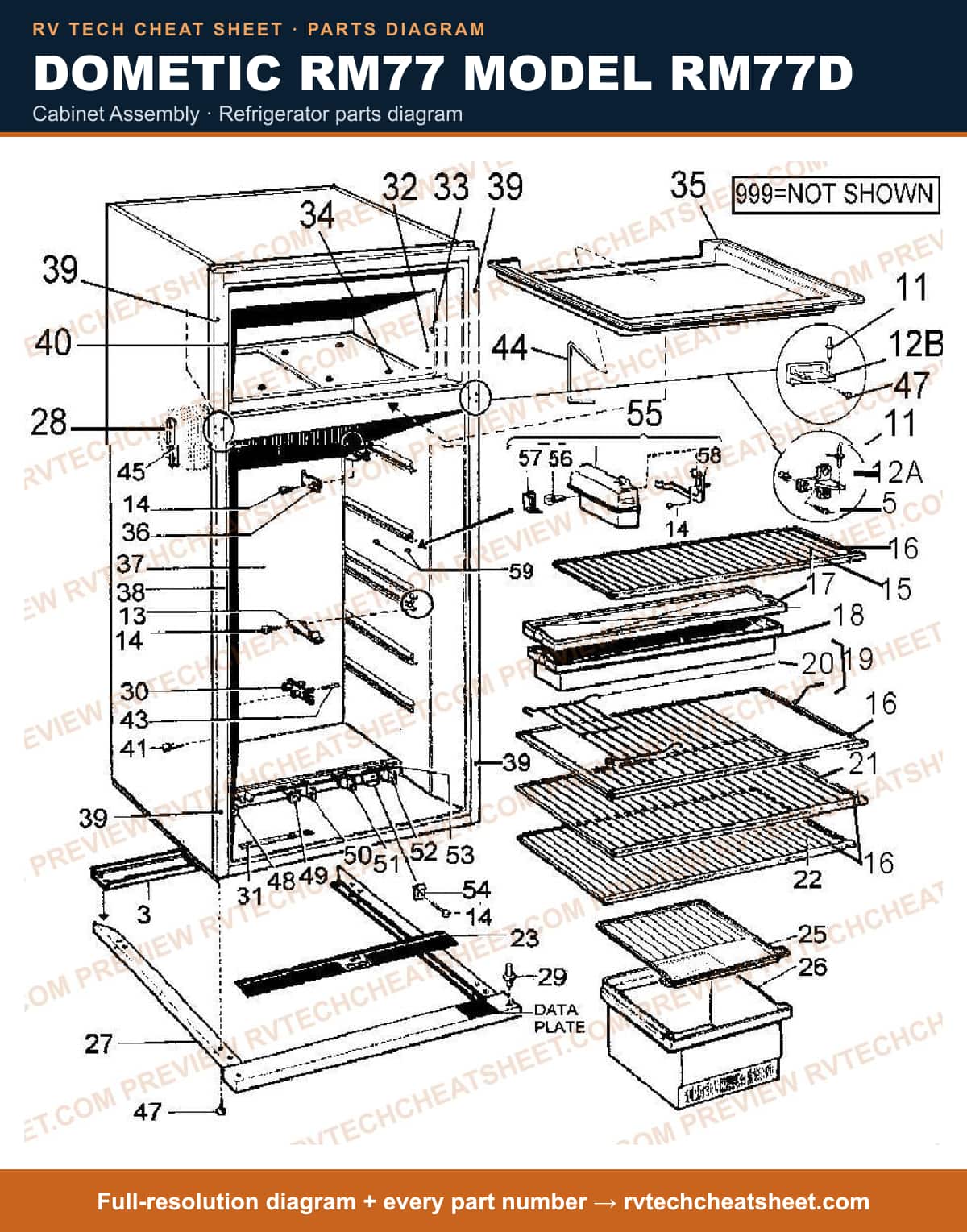

Cabinet Assembly

Components

56 items

1. #PROTECTION PLATE FOR RM75A MFR # 2002625024
2. #SCREW, RX5X12, Z. PL. MFR # 7241327019
3. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
4. #HINGE, MIDDLE MFR # 2002323026
5. #APPLIANCE COMPONENTS RV; Latch Hinge MFR # 2002535009
6. #HINGE, MIDDLE MFR # 2002323018
7. #STOP,SHELF MFR # 2002635007
8. #SCREW MFR # 7295281658
9. #SHELF, UPPER MFR # 2002652036
10. #DECOR. STRIP - LATER VERSION MFR # 2002479034
11. #COVER MFR # 2000543039
12. #TRAY, DRIP WHITE MFR # 2000542031
13. #SHELF MFR # 2002651111
14. #SHELF USE 2002651111 MFR # 2002651145 Superseded: see description
15. #INSTRUCTION PLATE MFR # 2007008010
16. #LID, CRISPER M70 RM7 MFR # 2000579009
17. #CRISPER MFR # 2000577011
18. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
19. #CABINET BASE MFR # 2002533020
20. #CABINET BASE MFR # 2002533095
21. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
23. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
24. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
25. #WARNING LABEL MFR # 2007048008
26. #LINING MFR # 2000538005
27. #SCREW, KFXS B8X16, STAINLESS MFR # 7297344405
28. #SCREW - FX 5X18, NI, PL. MFR # 7243330136
29. #TRAY MFR # 2000533006
30. #SNAP SPRING MFR # 2000547006
31. #LINING MFR # 2002316004
32. #FRONT FRAME, BEIGE, RM76D & RM77D MFR # 2007000017
33. #APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017
34. #COVERING FRAME MFR # 2000541017
35. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
36. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
38. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
39. #PIN,RETAINING MFR # 2001281019
40. #CLAMP MFR # 2000966008
41. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
42. #SCREWS RM10 0 MFR # 7241328017
43. #KNOB,PIEZO MFR # 2002669006
44. #APPLIANCE COMPONENTS RV; Knob Pull Brown MFR # 2002426027
45. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
46. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
47. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
48. #KNOB,SWITCH USE 2002423040 2W MFR # 2002725048 Superseded: see description
49. #KNOB,ELECTRIC USE 2002423032 T-STAT YELLOW MFR # 2002725030 Superseded: see description
50. #PANEL,CONTROL YELLOW MFR # 2002664056
51. #LOCK NUT SNJ 1915 MFR # 7337813062
52. #FITTING LAMP COMPLETE MFR # 2002751002
53. #LAMP,6 VOLT MFR # 140315003
54. #LAMP,GLASS MFR # 2002748008
55. #APPLIANCE COMPONENTS RV; Bracket MFR # 2002749006
56. #PLUG MFR # 2009097005

Gas-electric

Components

116 items

1. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
2. #TURN PROTECTION MFR # 2002766000
3. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
4. #SCREW MFR # 7298285402
5. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
6. #LOCKING SPRING MFR # 170692008
7. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
8. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
9. #SCREW RXS B6X5 MFR # 7295275015
10. #TAB CONNECTOR, STRAIGHT MFR # 7603857009
11. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
12. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
13. #FLUE N/A MFR # 2002472013
14. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
15. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
16. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
17. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
18. #BRACKET T-STAT MFR # 2890034008
19. #SCREW #17 MFR # 7241289011
20. #CABLE, COMPL., FOR T-STAT MFR # 173193046
21. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
22. #TAB CONNECTOR, ANGLE MFR # 7604855002
23. #CONNECTION BLOCK MFR # 2400297004
24. #APPLIANCE COMPONENTS RV; Conductor Light 7' MFR # 2002222020
25. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
26. #PIEZO LIGHTER MFR # 440
27. #APPLIANCE COMPONENTS RV; Piezo MFR # 2002609010MC
28. #IGNITER USE 2002609028 LOT 439 MFR # 2002609010 Superseded: see description
29. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
30. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
31. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
33. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
34. #SHAFT RM7'S MFR # 2002300024
35. #RING,SEALING MFR # 2002224000
36. #WASHER RM66 MFR # 7344908012
37. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
38. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
39. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
40. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
41. #BUSHING MFR # 149585010
42. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
43. #PROTECTION PLATE MFR # 2002445001
44. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
45. #SPRING WASHER MFR # 7351136010
46. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
47. #SWITCH, SELECTOR MFR # 2002670038
48. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
49. #COVER MFR # 173101007
50. #SPRING USE 2007176007 MFR # 2002665004 Superseded: see description
51. #SWITCH ASM 3 WAY MFR # 2007176007
52. #SEALING RING MFR # 7356819115
53. #WASHER MFR # 2002351001
54. #Screw, RXS B6X16, Z.PL. MFR # 7295283019
55. #INSULATION - NLA MFR # 2002442008
56. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
57. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
58. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
59. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
60. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
61. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
62. #BAFFLE, FLUE MFR # 172174013
63. #Screw MFR # 7295340017
64. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
65. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
66. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
67. #T-STAT, GAS MFR # V35P0111013
68. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
69. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
70. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
71. #THERMOCOUPLE, 18" MFR # 169372002MC
72. #QUICK CHECK MFR # 423
73. #THERMOCOUPLE MFR # 169372000MC
74. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
75. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
76. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
77. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
78. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
79. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
80. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
81. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
82. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
83. #VALVE, SAFETY MFR # 293165
84. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
85. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
86. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
87. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
88. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
89. #LID MFR # 2890053008
90. #SPACER SLEEVE MFR # 173344011
91. #SPACER NUT MFR # 170827000
92. #TUBE, BURNER MFR # 2890010008
93. #APPLIANCE COMPONENTS RV; Base Burner; *** Nla *** MFR # 2890009000
94. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
95. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
96. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
97. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
98. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
99. #LINE,GAS INLET RM7'S MFR # 2890051002
100. #NUT, UNION FEMALE MFR # 2902553003
101. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
102. #ORIFICE, #52 MFR # 2002660187
103. #ORIFICE, #53 MFR # 2002660195
104. #BRACKET MFR # 2002469001
105. #BURNER PROTECTION MFR # 2002476006
106. #COOLING UNIT RM77 USE 49-4752 MFR # 9285134004N Superseded: see description
107. #REMAN C/U USE 5575 RM75,76D,77 MFR # 9285134004R Superseded: see description
108. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
109. #COVER N/A MFR # 173430000
110. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
111. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
112. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
113. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
114. #BRACKET,BURNER MFR # 2002493001
115. #Refrigerator Cooling Fan Thermostat MFR # 2007010016MC
116. #T-STAT, DUAL ALT MFR # 2007010016

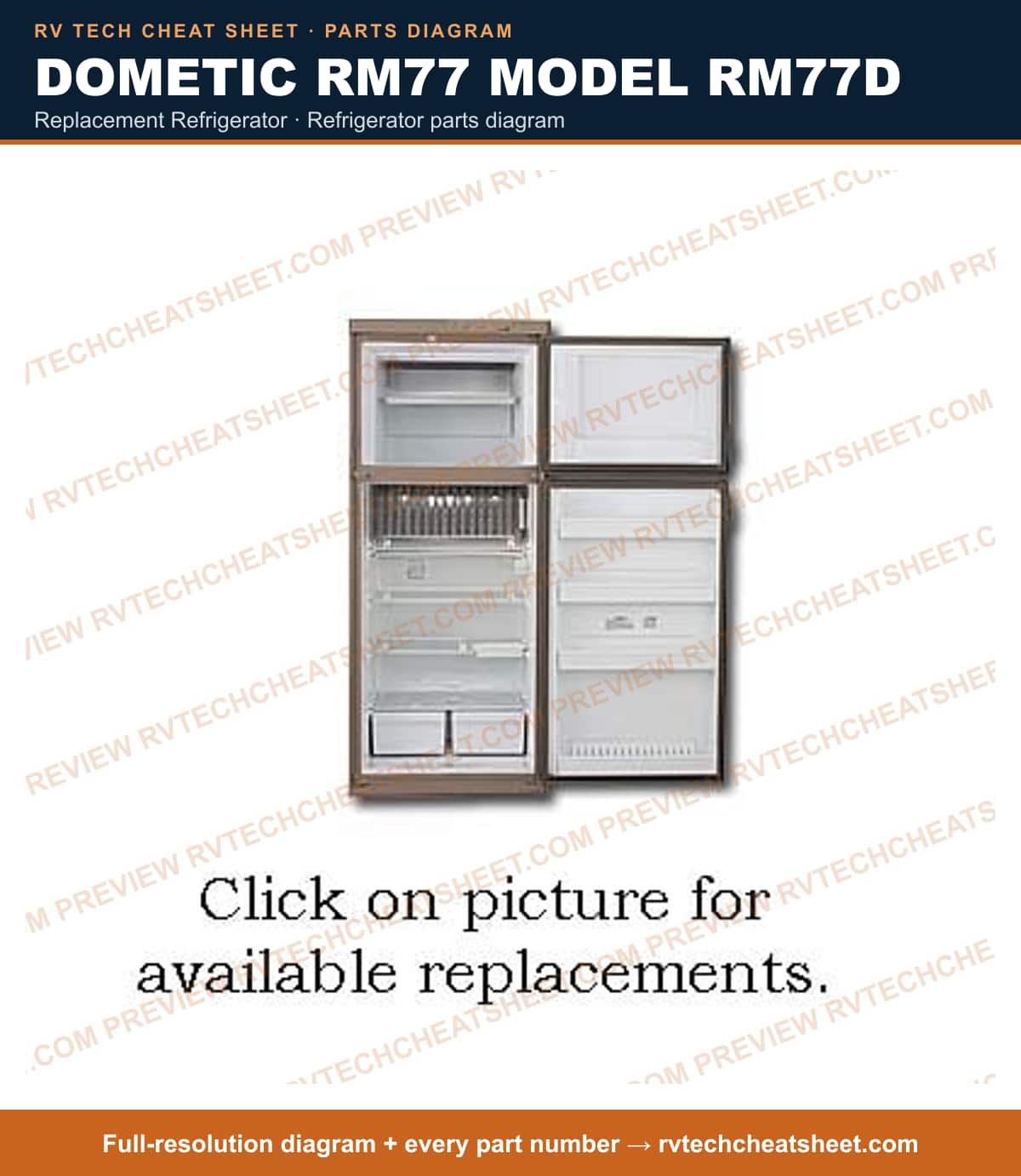

Replacement Refrigerator

Components

12 items

1. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
2. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
3. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
4. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
6. #Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N
7. #REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
8. #REFER,8 CU FT 3WAY BLK FRM59 1 5/16 X 23 11/16 X 24 MFR # RM3863BN
9. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
10. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
11. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK
12. #REFER,8 CU FT 2 WAY BLK FRM 59 15/16" X 23 11/16" MFR # RM2862B

Cabinet Assembly Detail

Components

18 items

1. #SPACER MFR # 2002266019
2. #COVER MFR # 2002799001
3. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 2002349005
4. #HOLDER, LATCH MFR # 2002324008
5. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model RM77D MFR # 2002760029 Superseded: see description
6. #SCREW, RX5X12, Z. PL. MFR # 7241327019
7. #RIVET NUT MFR # 149370017
8. #LATCH RM 75 MFR # 2002325005
9. #S,LOCK PIN MFR # 2002759005
10. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002350003
11. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
12. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
13. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
14. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
15. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
16. #TRAY,ICE W/RELEASER MFR # 2002337000
17. #DOLLY F/RETAINER MFR # 2002761001
18. #SCREWS RM10 0 MFR # 7241328017

Cabinet Assembly Detailed

Components

12 items

1. #SPACER MFR # 2002266019
2. #COVER MFR # 2002799001
3. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model RM77D MFR # 2002760029 Superseded: see description
4. #S,LOCK PIN MFR # 2002759005
5. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
6. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
7. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
8. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
9. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
10. #TRAY,ICE W/RELEASER MFR # 2002337000
11. #DOLLY F/RETAINER MFR # 2002761001
12. #SCREWS RM10 0 MFR # 7241328017

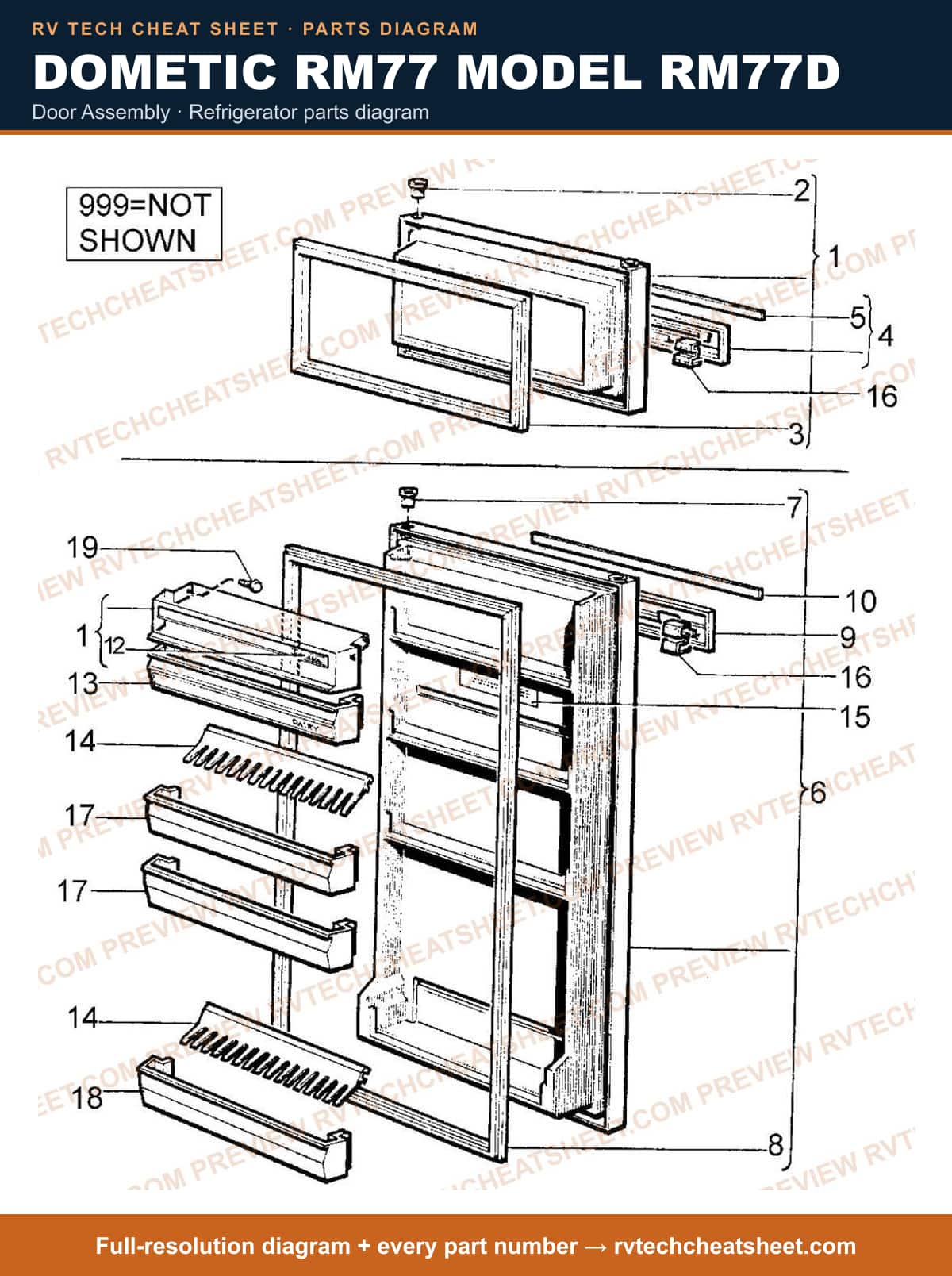

Door Assembly

Components

28 items

1. #DOOR - UPPER - NO DECORATION MFR # 2002775043
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #Refrigerator Gasket; Use With Dometic Refrigerator RM76D MFR # 3108700489 Superseded: see description
4. #GASKET, FREEZER USE 3108700489 MFR # 2002626089 Superseded: see description
5. #N/A DECORATION, COMPLETE MFR # 2002690028
6. #N/A STRIP, DECORATION MFR # 2002691026
7. #DOOR RM75 MFR # 2002774046
8. #Refrigerator Gasket; Replacement For Dometic RM75/ RM76/ RM77 Model Refrigerator; Lower Door Gasket MFR # 2001111083
9. #GASKET, MAIN USE 3108700489 MFR # 2002626071 Superseded: see description
10. #STRIP,DECO USE 2002675078 IS A USE # FOR 2002675029,2002675102,2002676027 MFR # 2002675029 Superseded: see description
11. #STRIP, DECORATION MFR # 2002675078
12. #STRIP, DECO USE 2002675078 MFR # 2002675128 Superseded: see description
13. #STRIP, DECOR USE 2002675128 MFR # 2002676027 Superseded: see description
14. #NAMEPLATE MFR # 2002672000
15. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
16. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
17. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
19. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
20. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
21. #HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description
22. #HOLDER, BOTTLE USE 2002794168 MFR # 2002794002 Superseded: see description
23. #LABEL, INSTRUCTION MFR # 2002356000
24. #FASTENING PLATE MFR # 2002707004
25. #SHELF, DOOR USE 2002261143 MFR # 2002261101 Superseded: see description
26. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
27. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
28. #SHAFT JOURNAL MFR # 2001170016
