Dometic RM7732 Elite Product # 921148014 Parts Diagram · Cooling Unit

Refrigerator · 8 assemblies · 8 diagram sheets · 164 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7732 Elite Product # 921148014 RV refrigerator: 8 assemblies (Cooling Unit, Exploded View - Icemaker, Front View - Icemaker, Cabinet Interior, Replacement Refrigerator and more) and 164 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

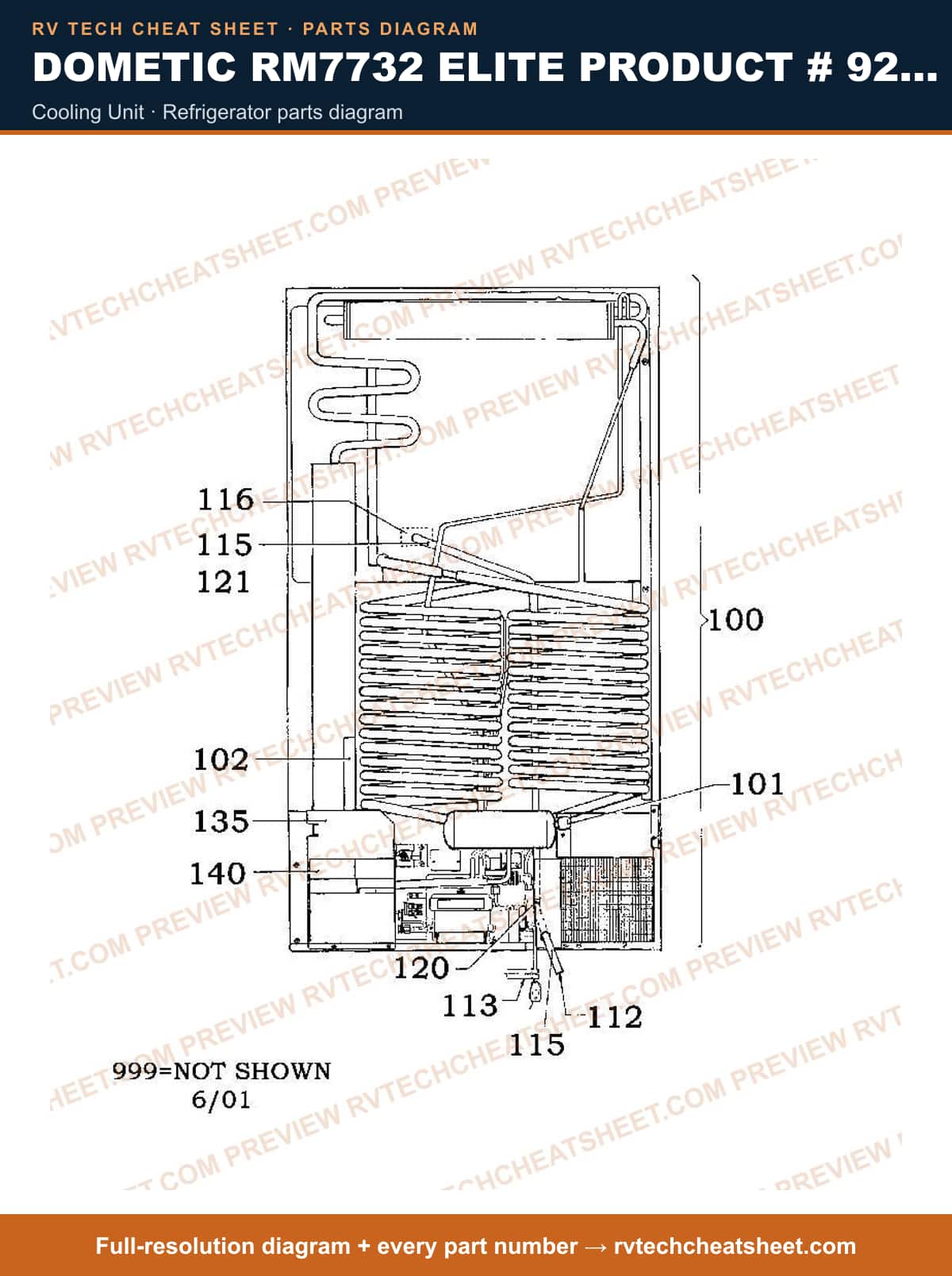

Cooling Unit

Components

17 items

1. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
2. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
3. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
4. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
9. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
10. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
12. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
13. #S,PROTECTION PLATE,REAR MFR # 2932155019
14. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
15. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
16. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
17. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

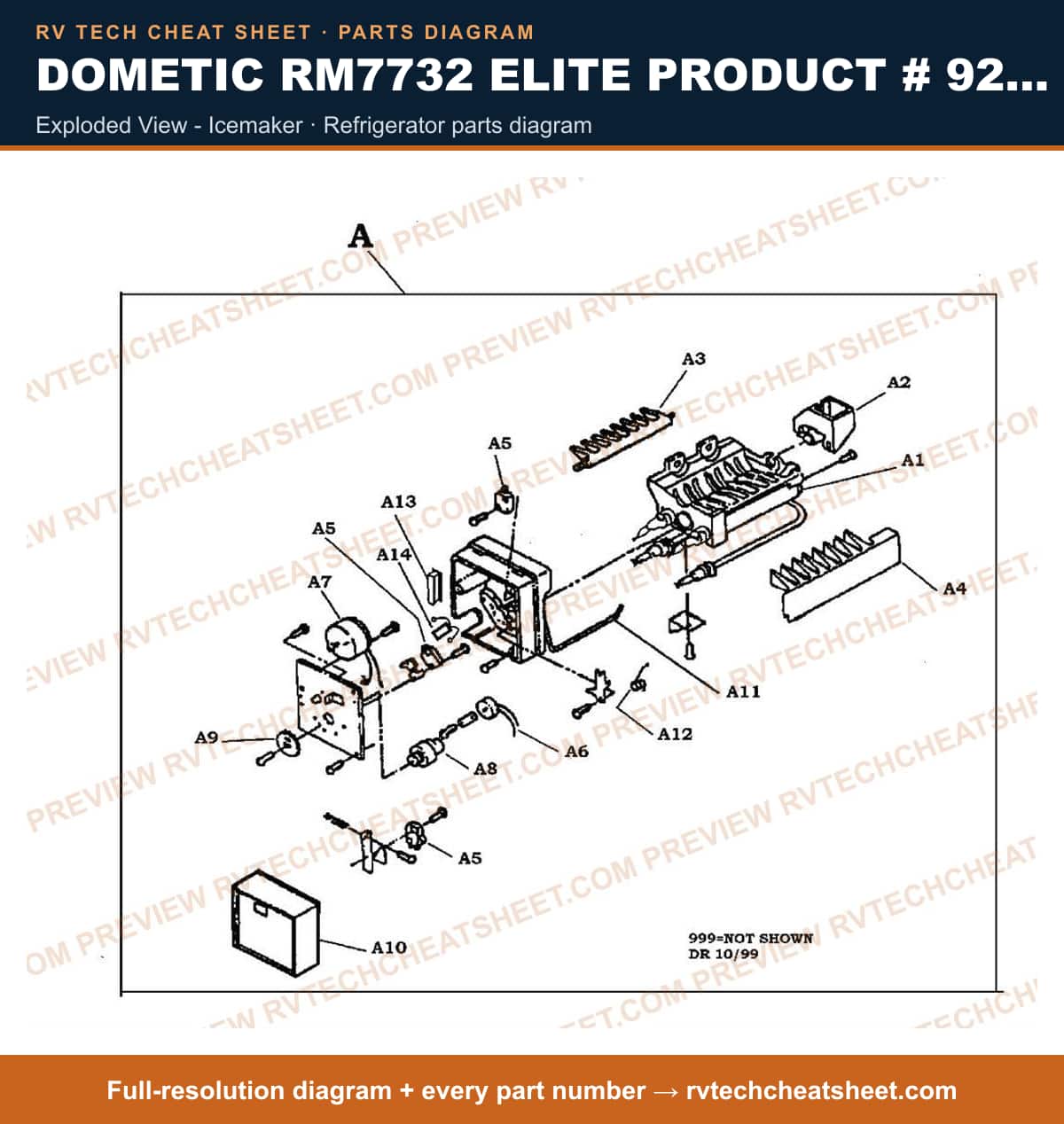

Exploded View - Icemaker

Components

15 items

1. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
2. #EJECTOR MFR # 3108703434
3. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
4. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
5. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
6. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
7. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
8. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
9. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
11. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
12. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
13. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445
14. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
15. #CYCLE, ICE USE 50-0780 MFR # D7E3108703517 Superseded: see description

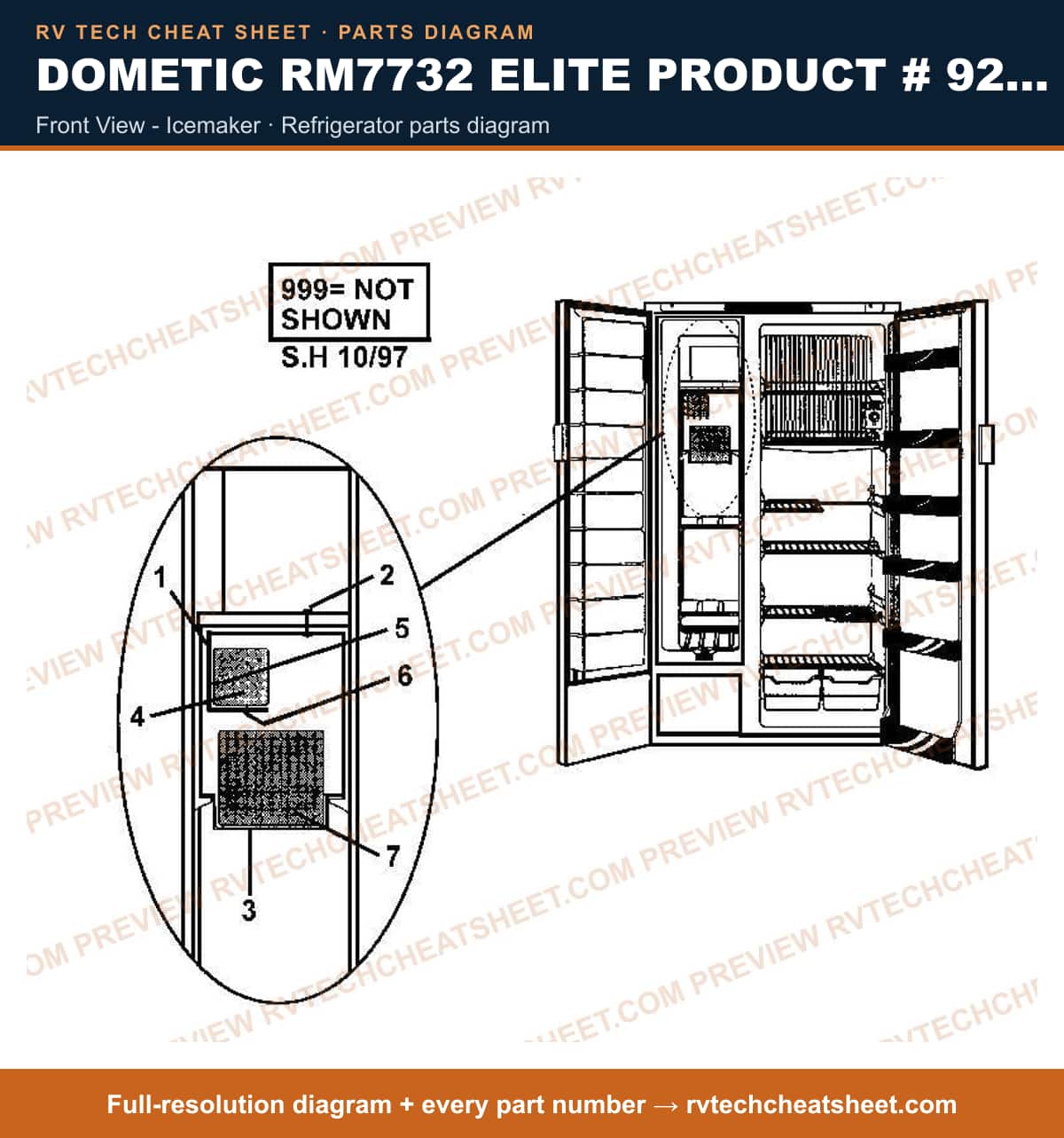

Front View - Icemaker

Components

10 items

1. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
2. #SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010
3. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
4. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
5. #APPLIANCE COMPONENTS RV; Screw #8 X 1/2" L Bracke MFR # 3108071006
6. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
7. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
8. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
10. #DECORATION, DOOR MFR # 3107178000

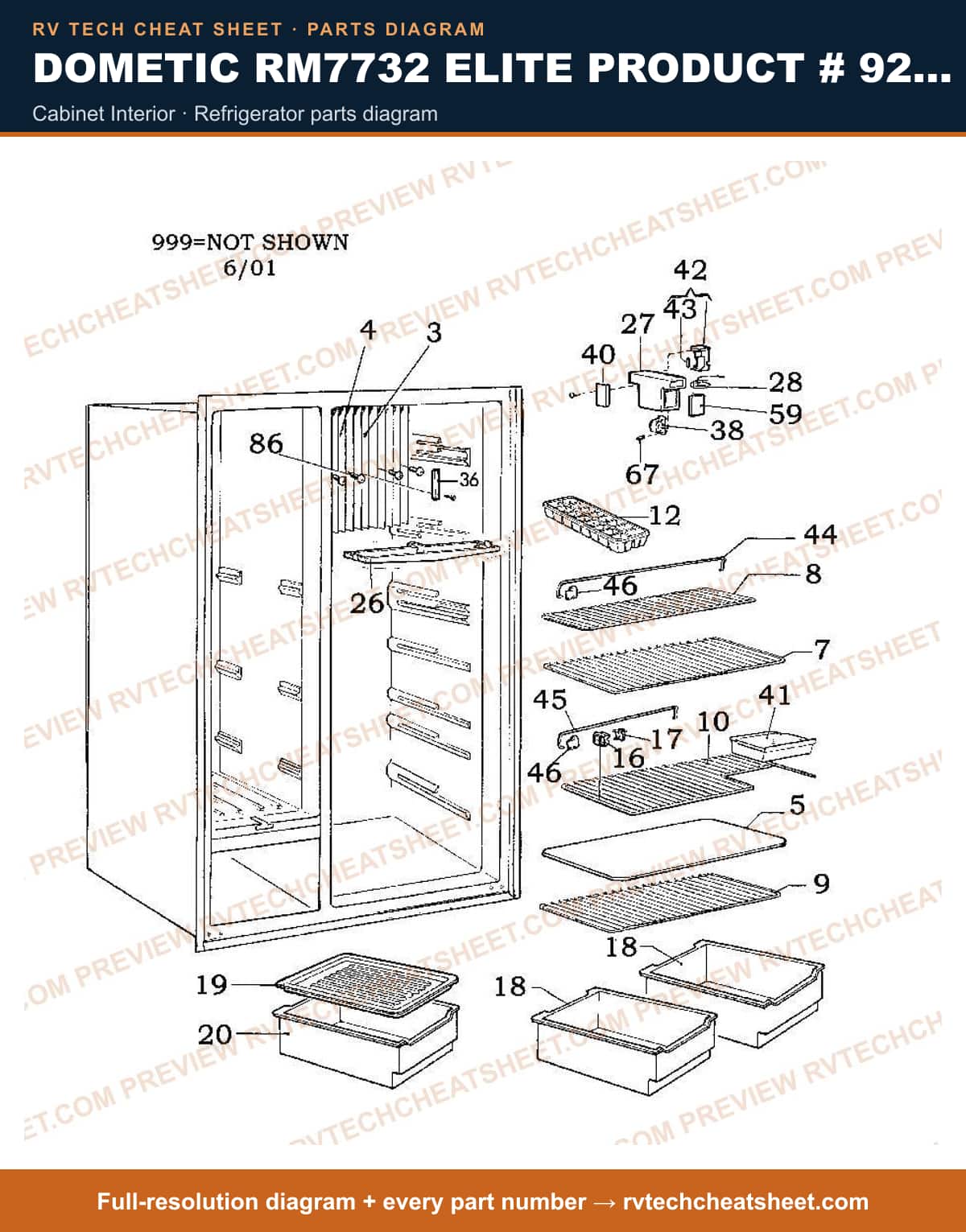

Cabinet Interior

Components

33 items

1. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
2. #FINS, COOLING LEFT-HAND MFR # 2932761022
3. #Refrigerator Crisper Bin Cover; Use With Dometic Refrigerator Models RM7832/ RM7830 MFR # 2931117069 Superseded: see description
4. #SHELF,WIRE MFR # 2931541045
5. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM7832/ RM7130; Wire MFR # 2931541052 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire White MFR # 2931541060
7. #Appliance Components RV; Shelf Wire White MFR # 2931542027
8. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
9. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
10. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
11. #BOX,VEGETABLE MFR # 2931471029
12. #Refrigerator Crisper Bin Cover; Replacement For Dometic RM7832/ RM7732 Refrigerators MFR # 2932693019
13. #CRISPER USE 2931471029 MFR # 2931471037 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2932769017
15. #COVER, LIGHT SWITCH MFR # 2004044109
16. #2004044091 MFR # 2004044091
17. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
18. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
19. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
20. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
21. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
22. #SHADE, LAMP MFR # 2004043002
23. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
24. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
25. #BULB 2/PK MFR # 2007290006
26. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
27. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
28. #S,RAIL,SHELF,164MM MFR # 2007337161
29. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
30. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
31. #Refrigerator Thermostat Cover; Use With Dometic RM3807/ RM2611/ RM7732 Refrigerators MFR # 2930611013 Superseded: see description
32. #PIN,RETAINING MFR # 2001281019
33. #SCREW MFR # 7241333405

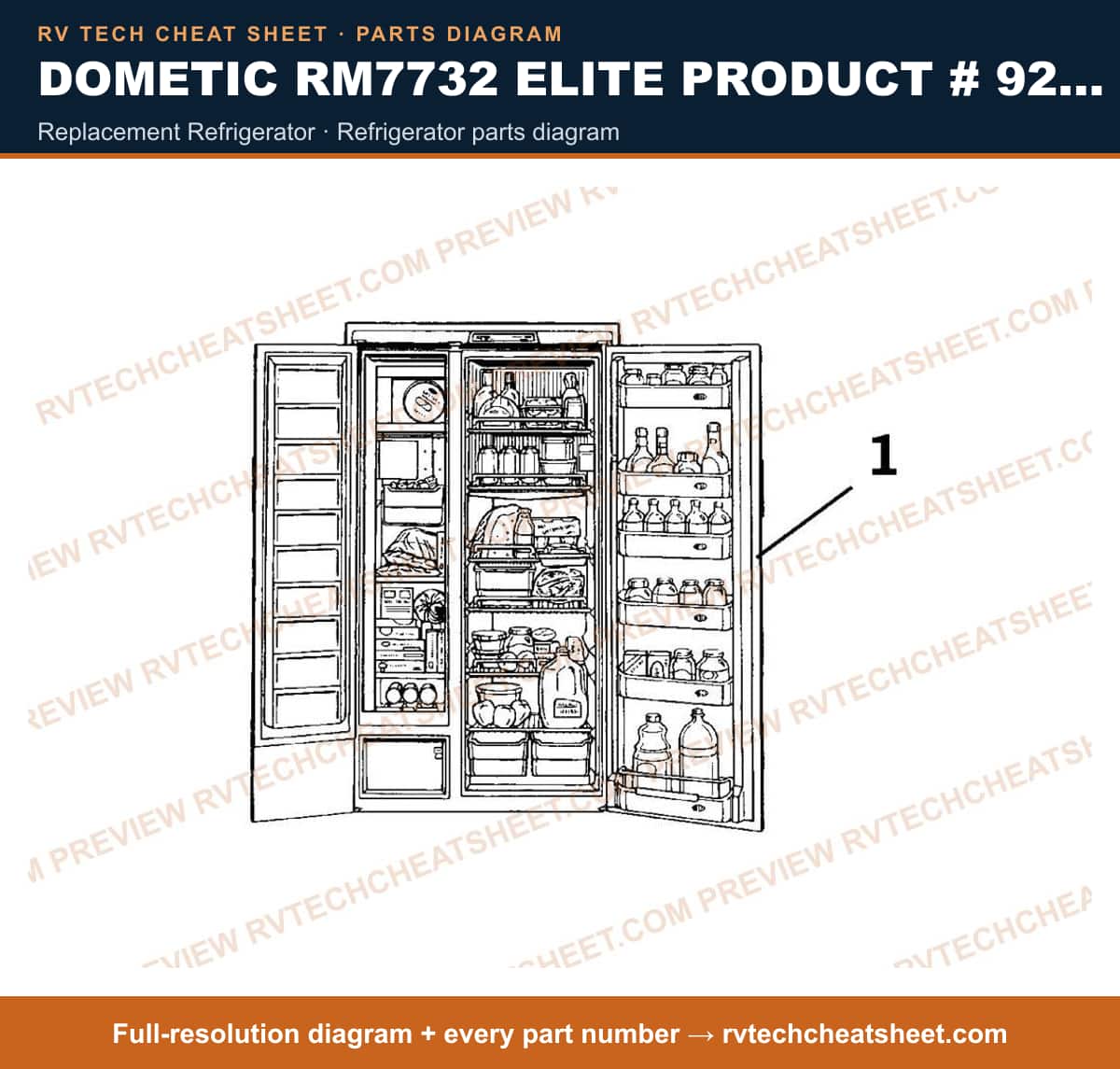

Replacement Refrigerator

Components

8 items

1. #REFER,12 CU FT USE NDR1292BN 59 1/16" X 32 3/4" X 24" MFR # NDR1292N Superseded: see description
2. #Refer, 12 Cu Ft 2 Way W/Icemaker 59 1/16" X 32 3/4" X 24" MFR # NDR1292BIMHN
3. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
4. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
5. #REFER,12 CU FT USE 72-4885 W/ICEMAKER,2W MFR # 1200LRIMN Superseded: see description
6. #REFER USE NDR1292N 58 31/32"H X 32 11/16"W X 24"D MFR # RM7732N Superseded: see description
7. #REFER, 12 CU FT USE NDR1292BF 59 1/16" X 32 3/4" X 24" MFR # NDR1292BN Superseded: see description
8. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN

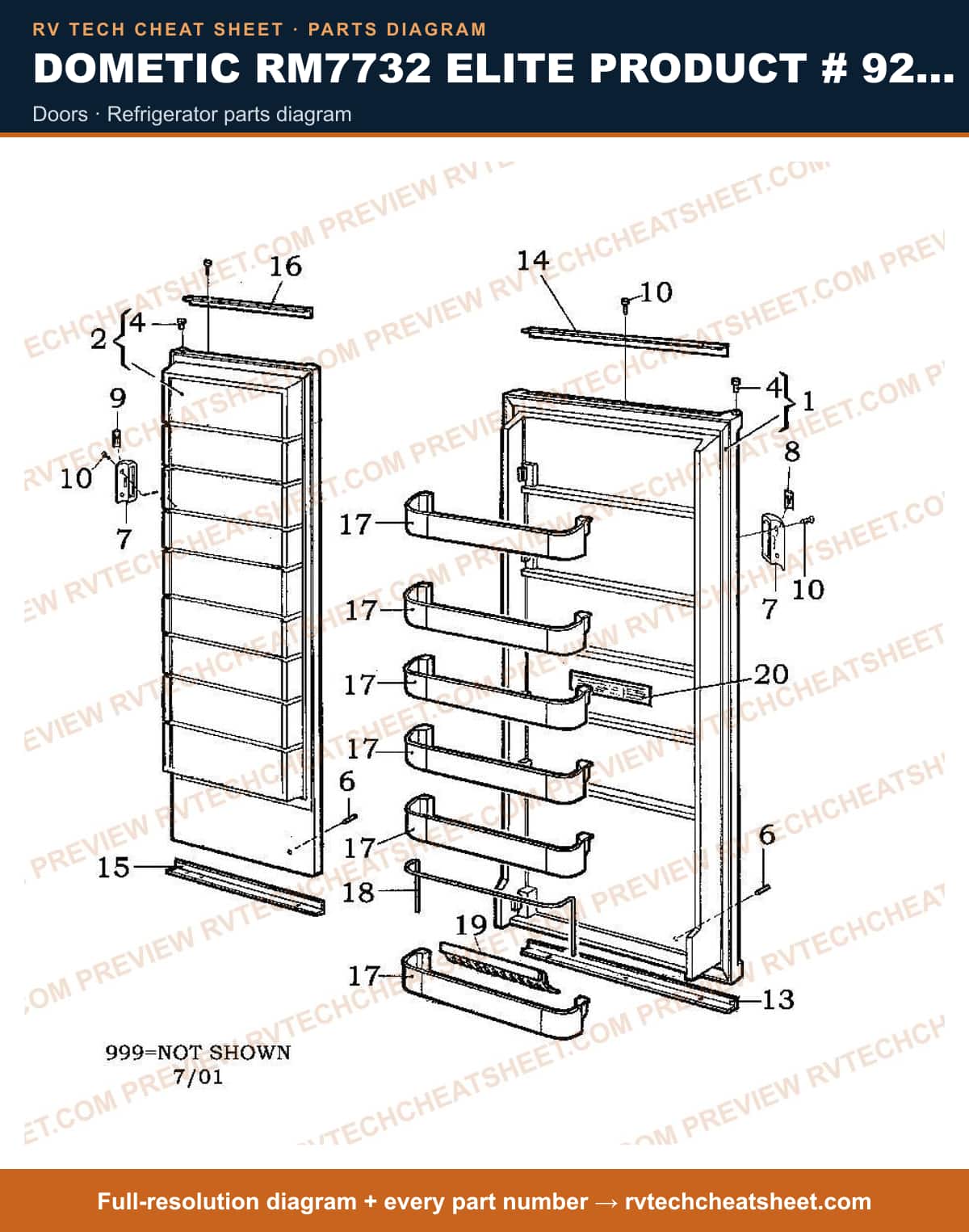

Doors

Components

20 items

1. #GASKET KIT RM7732/7832; MFR # 3108704390
2. #DOOR, REFER MFR # 2932590124
3. #DOOR, FREEZER RM7732 MFR # 2932589126
4. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #HANDLE RM7732 MFR # 2932093020
7. #APPLIANCE COMPONENTS RV; Control Right MFR # 2932389014
8. #APPLIANCE COMPONENTS RV; Control Left MFR # 2932389022
9. #Appliance Components RV; Screw MFR # 2801049020
10. #DECORATION, REFER DOOR MFR # 3850381033
11. #DECORATION USE 3850381033 F/REFER DOOR MFR # 2932642032 Superseded: see description
12. #DECORATION, DOOR W/LOGO MFR # 2932642107
13. #Decoration, Freezer Bottom MFR # 2932642024
14. #DECORATION MFR # 2932642123
15. #SHELF, DOOR USE 2932583038 MFR # 2932583020 Superseded: see description
16. #SHELF,DOOR IS A USE # F/2932583020 MFR # 2932583038 Superseded: see description
17. #RACK MFR # 2932585041
18. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
19. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
20. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008

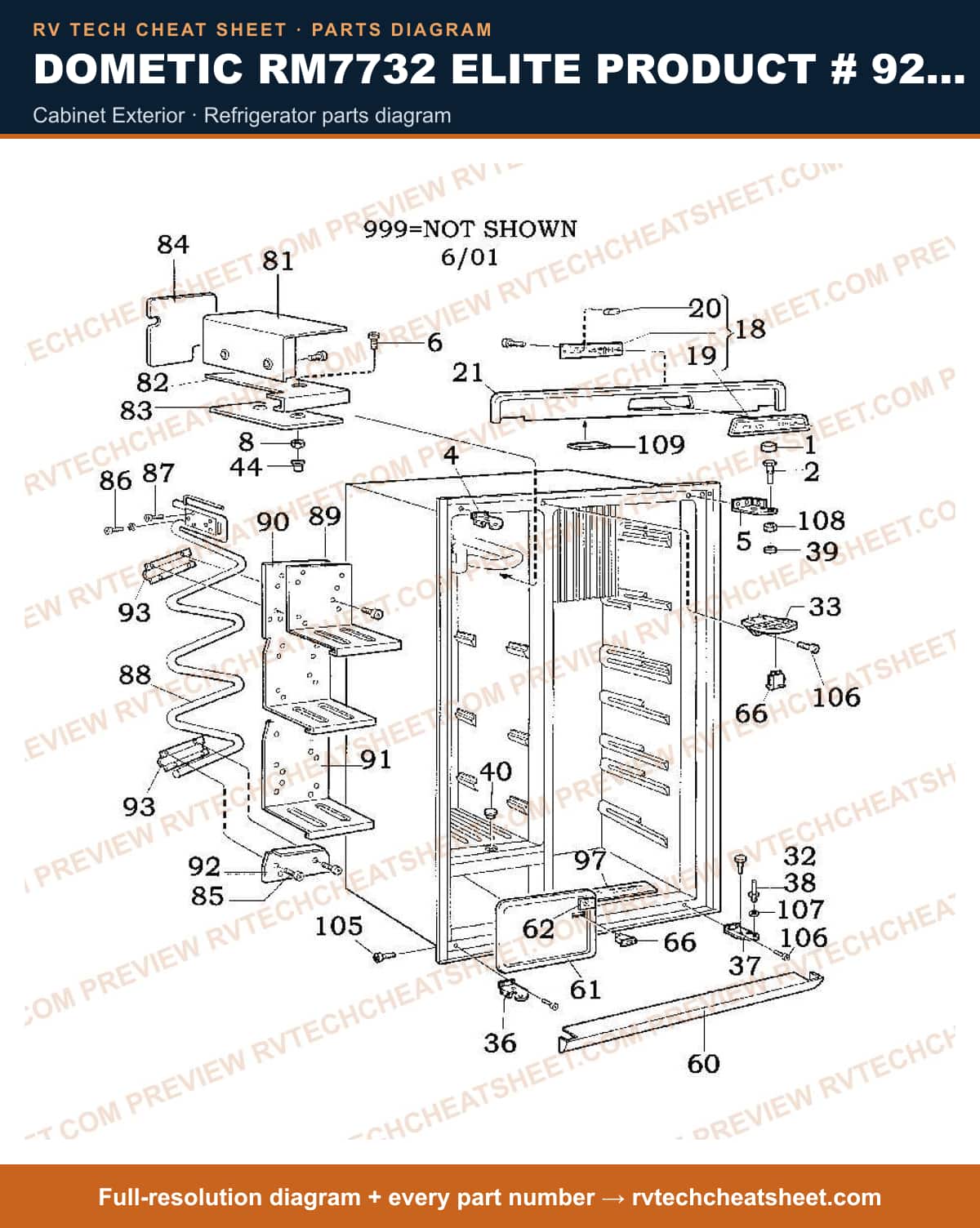

Cabinet Exterior

Components

44 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2932646017
4. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
5. #SCREW M6S 5 X 20 MFR # 7252331405
6. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
7. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
8. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
9. #Board Control Assm ***Us MFR # 2932884022
10. #COVER, UPPER CONTROL W/DECAL MFR # 955024534
11. #Button Pushbutton On/Off MFR # 955024138
12. #DECORATION FRONT MFR # 2932663038
13. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
14. #APPLIANCE COMPONENTS RV; Retainer Latch MFR # 2932390012
15. #APPLIANCE COMPONENTS RV; Hinge Lwr Lh THE FOLLOWING CAN ONLY BE USED ON REFERS WITH BLACK OR BEIGE TRIM, NOT STAINLESS STEEL. MFR # 2932846013
16. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
17. #HINGE, LOWER RH BEIGE... MFR # 2932846021
18. #S,HINGE PIN,LWR MFR # 2932649029
19. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
20. #S,COVER,NEA1402 MFR # 2931715011
21. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
22. #APPLIANCE COMPONENTS RV; Strip Trim Lower Front MFR # 2932664036
23. #Baffle Flue MFR # 2932655018
24. #DECAL,ON/OFF SWITCH MFR # 2931877001
25. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
26. #Plate Freezer MFR # 2931476028
27. #Shelf MFR # 2931477026
28. #Plate Cover MFR # 2932853019
29. #SCREW MFR # 2801014016
30. #SCREW MFR # 7241333405
31. #SCREW MFR # 7241327407
32. #FREEZER UNIT MFR # 2931474015
33. #SHELF MFR # 2931982025
34. #SHELF MFR # 2931482026
35. #PLATE, FREEZER MFR # 2931483024
36. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
37. #DECAL MFR # 2932438001
38. #Decal; For Use With Dometic RM4872/ RM7732 And RM4872 Model Refrigerators MFR # 2932698000 Superseded: see description
39. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
40. #SCREW M4 X 10 S MFR # 7241289615
41. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
43. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
44. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008

Rear View - Icemaker

Components

19 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM7732/ NDR1272/ NDR1282 Refrigerators MFR # 3108706080
3. #NUT, WATER VALVE MFR # 3108706288
4. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
5. #APPLIANCE COMPONENTS RV; Diagram Wiring MFR # 2931988006
6. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
7. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
8. #TERMINAL, 4-WAY MFR # 2931963018
9. #CORD, SET STRAIGHT MFR # 2002699080
10. #WARNING LABEL MFR # 2931975003
11. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
13. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
14. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
15. #HARNESS, WIRE 73" RM7732 MFR # 3105585008
16. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
17. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
18. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
19. #RING, HOG MFR # 3107614012
