Dometic RM7832 Product # 921148010 Parts Diagram · Cabinet Rear View

Refrigerator · 8 assemblies · 8 diagram sheets · 233 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7832 Product # 921148010 RV refrigerator: 8 assemblies (Cabinet Rear View, Front View - Icemaker, Burner & Controls, Replacement Refrigerator, Cabinet Interior and more) and 233 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

20 items

1. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
2. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
3. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
4. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Sign Plate MFR # 2007574037
8. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
9. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
10. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
11. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
12. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
13. #HOSE,DRAIN (725MM) MFR # 2931578054
14. #HOSE DRAIN-, L=255 MFR # 2931578062
15. #HOSE, DRAIN 650MM MFR # 2931578096
16. #PLATE MFR # 2932176015
17. #PLATE MFR # 2932185016
18. #Coupler, Hose MFR # 2932158013
19. #S,PROTECTION PLATE,REAR MFR # 2932155019
20. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

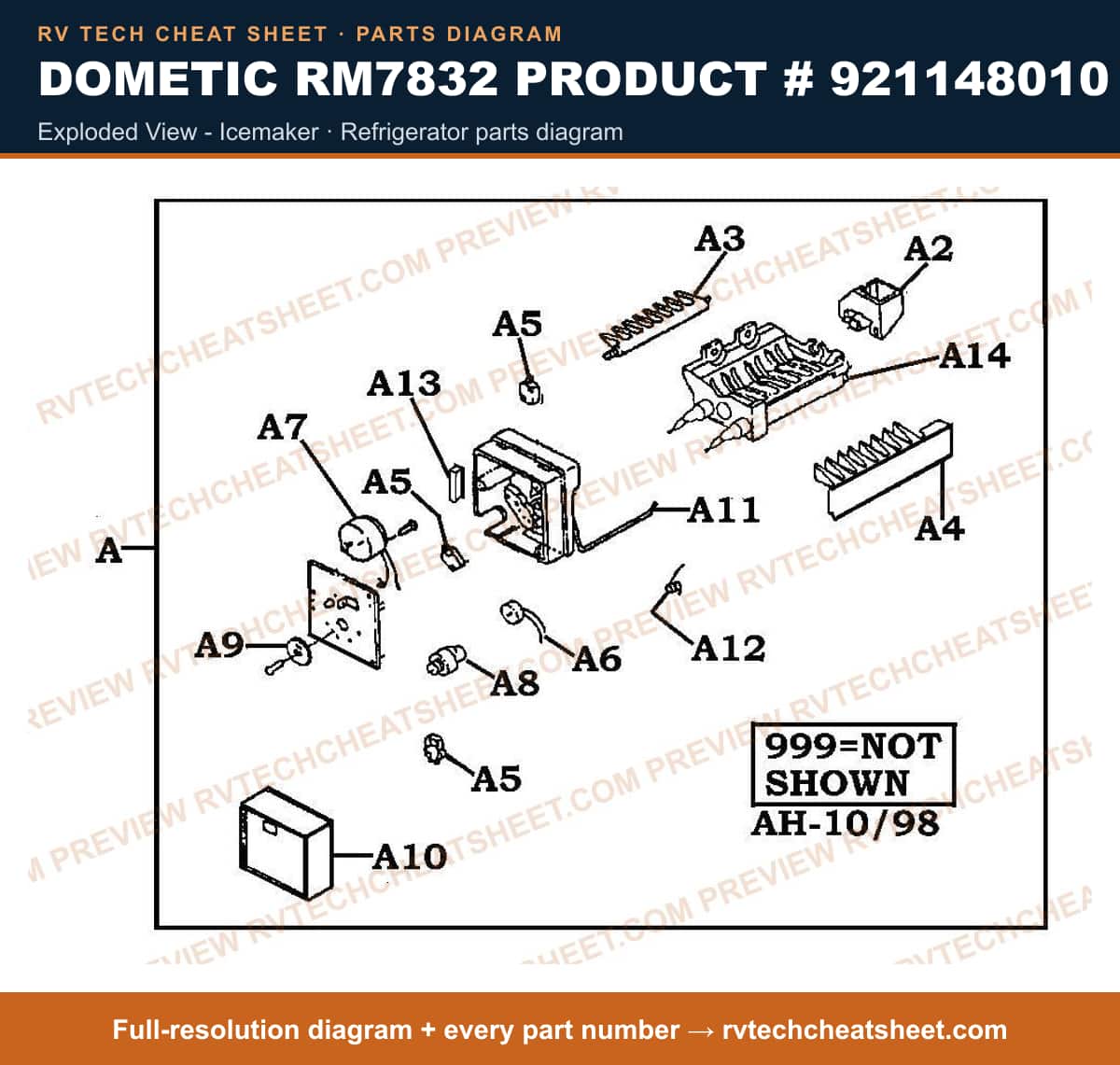

Front View - Icemaker

Components

31 items

1. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
2. #Spacer Screw MFR # 2001759006
3. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
5. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
6. #RELAY ASM USE 955809009 DN1070 MFR # 3100499007 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
8. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
10. #Valve, Water MFR # 2932148022
11. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122
12. #VALVE, WATER USE 2932148022 MFR # 2932148014 Superseded: see description
13. #Plate, Divider MFR # 2932174010
14. #Bracket, Fan Motor MFR # 2931138016
15. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
16. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
17. #Plate, MTG. Comp./Fan MFR # 2932137017
18. #Coil, Condenser MFR # 2943926002
19. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
20. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
21. #Hose, Water MFR # 2930905035
22. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
23. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
24. #WARNING LABEL MFR # 2931975003
25. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
26. #Cover MFR # 2932145010
27. #Coil, Evap. MFR # 2932134014
28. #Wire Harness MFR # 2932144013
29. #APPLIANCE COMPONENTS RV; Icemaker Replacement Kit MFR # 3108701552
30. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM7832 MFR # 2932160019 Superseded: see description
31. #Drier MFR # 2053836025

Burner & Controls

Components

59 items

1. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
2. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
3. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
4. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
5. #APPLIANCE COMPONENTS RV; Wire Leadreignitor/Elect MFR # 2007668045
6. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
7. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932061019
8. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
9. #PROTECTION PLATE MFR # 2932599018
10. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
11. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
12. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
13. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
15. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
16. #ELECTRODE RM7030 MFR # 2931495010
17. #Igniter Electrode; Use With Dometic Refrigerator Models RM1272/ NDR1272/ RM1282/ NDR1282/ NDR1292/ NDR1492/ RM7030/ RM7130/ RM7732/ RM7832 MFR # 2931495010MC Superseded: see description
18. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
19. #BRACKET, MTG USE 2932759018 MFR # 2932146018 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
21. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
22. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
23. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
24. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
25. #Label 12VDC MFR # 2931827006
26. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
27. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
28. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
29. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
30. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
31. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
32. #DOM REPLACEMENT BRD MFR # MICROP711
33. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
34. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
35. #S,COVER,LESS DECALS MFR # 2931858019
36. #LEAD,PC BOARD MFR # 2931862029
37. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
38. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
39. #HARNESS, GAS SOLENOID MFR # 2954437048
40. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
41. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
42. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
43. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
44. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
45. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
46. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
47. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
48. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
49. #3858022019 MFR # 3858022019
50. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
51. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
52. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
53. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
54. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
55. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
56. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
57. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
58. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
59. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009

Replacement Refrigerator

Components

8 items

1. #REFER, 10 CU FT 2W USE NDR1292N 59 1/16 X 32 11/16 X 24 MFR # RM7832N Superseded: see description
2. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
3. #Refrigerator; Ultra Line; Three Compartment 4 Door Side-By-Side Refrigerator With Two Freezer; Flush Mount; 12 Cubic Foot; 32-11/16 Inch Width x 24 Inch Depth x 63-1/4 Inch Height; 1.9 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With 2 Fans/ Shelving/ Door Bins; Without Door Panels MFR # 1210N
4. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
5. #REFER, 12 CU FT USE 72-4886; 2-WAY MFR # 1210LR Superseded: see description
6. #REFER,12 CU FT USE NDR1292BN 59 1/16" X 32 3/4" X 24" MFR # NDR1292N Superseded: see description
7. #50A PORTABLE GENERATOR PARALLEL KIT MFR # 1210
8. #REFER, 12 CU FT USE NDR1292BF 59 1/16" X 32 3/4" X 24" MFR # NDR1292BN Superseded: see description

Cabinet Interior

Components

33 items

1. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
2. #FINS, COOLING LEFT-HAND MFR # 2932761022
3. #Refrigerator Crisper Bin Cover; Use With Dometic Refrigerator Models RM7832/ RM7830 MFR # 2931117069 Superseded: see description
4. #SHELF,WIRE MFR # 2931541045
5. #Refrigerator Shelf; Use With Dometic Refrigerator Models RM7832/ RM7130; Wire MFR # 2931541052 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Shelf Wire White MFR # 2931541060
7. #Appliance Components RV; Shelf Wire White MFR # 2931542027
8. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
9. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
10. #BOX,VEGETABLE MFR # 2931471029
11. #CRISPER USE 2931471029 MFR # 2931471037 Superseded: see description
12. #Refrigerator Crisper Bin Cover; Replacement For Dometic RM7832/ RM7732 Refrigerators MFR # 2932693019
13. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2932769017
14. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
15. #2004044091 MFR # 2004044091
16. #COVER, LIGHT SWITCH MFR # 2004044109
17. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
18. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
19. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
20. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
21. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
22. #SHADE, LAMP MFR # 2004043002
23. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
24. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
25. #BULB 2/PK MFR # 2007290006
26. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
27. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
28. #S,RAIL,SHELF,164MM MFR # 2007337161
29. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
30. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
31. #PLATE, COVER THERMOSTAT HOUSING MFR # 2930611013D
32. #PIN,RETAINING MFR # 2001281019
33. #SCREW MFR # 2801015013

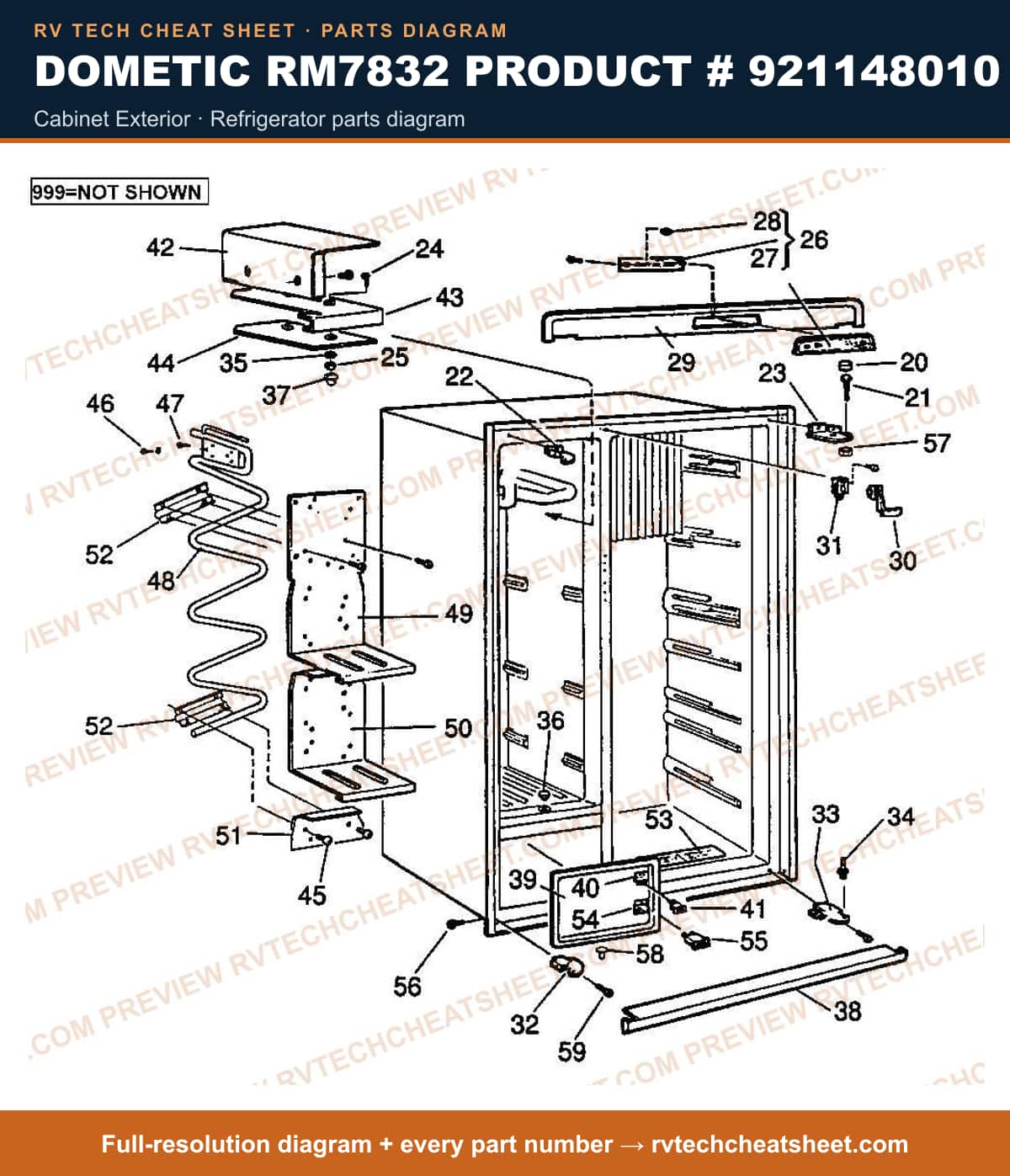

Cabinet Exterior

Components

46 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2932646017
4. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
5. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
6. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
8. #BOARD,CIRCUIT USE 2932884022 MFR # 2932697085 Superseded: see description
9. #Board Control Assm ***Us MFR # 2932884022
10. #COVER, UPPER CONTROL W/DECAL MFR # 955024534
11. #Button Pushbutton On/Off MFR # 955024138
12. #APPLIANCE COMPONENTS RV; Decoration Front MFR # 2932663012
13. #APPLIANCE COMPONENTS RV; Lock Door MFR # 2932745017
14. #APPLIANCE COMPONENTS RV; Bracket Door Lock MFR # 2932746015
15. #HINGE, LOWER LEFT-HAND MFR # 2932774017
16. #HINGE, LOWER RH BEIGE... MFR # 2932846021
17. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
18. #HINGE,LOWER RIGHT HAND USE 2932846021 MFR # 2932774025 Superseded: see description
19. #S,HINGE PIN,LWR MFR # 2932649029
20. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
21. #S,COVER,NEA1402 MFR # 2931715011
22. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
23. #APPLIANCE COMPONENTS RV; Strip Trim Lower Front MFR # 2932664036
24. #APPLIANCE COMPONENTS RV; Cover MFR # 2932655026
25. #DECAL,ON/OFF SWITCH MFR # 2931877001
26. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
27. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
28. #Plate Freezer MFR # 2931476028
29. #Shelf MFR # 2931477026
30. #Plate Lower Freezer Tube MFR # 2931478016
31. #SCREW MFR # 2801014016
32. #SCREW MFR # 2801015013
33. #SCREW MFR # 2801015021
34. #FREEZER UNIT MFR # 2931474015
35. #SHELF MFR # 2931982025
36. #SHELF MFR # 2931482026
37. #PLATE, FREEZER MFR # 2931483024
38. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
39. #DECAL MFR # 2932721000
40. #DECAL MFR # 2932060003
41. #SWITCH, ICEMAKER MFR # 2930891011
42. #SCREW MFR # 7241283014
43. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
44. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
45. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
46. #SCREW M4 X 10 S MFR # 7241289615

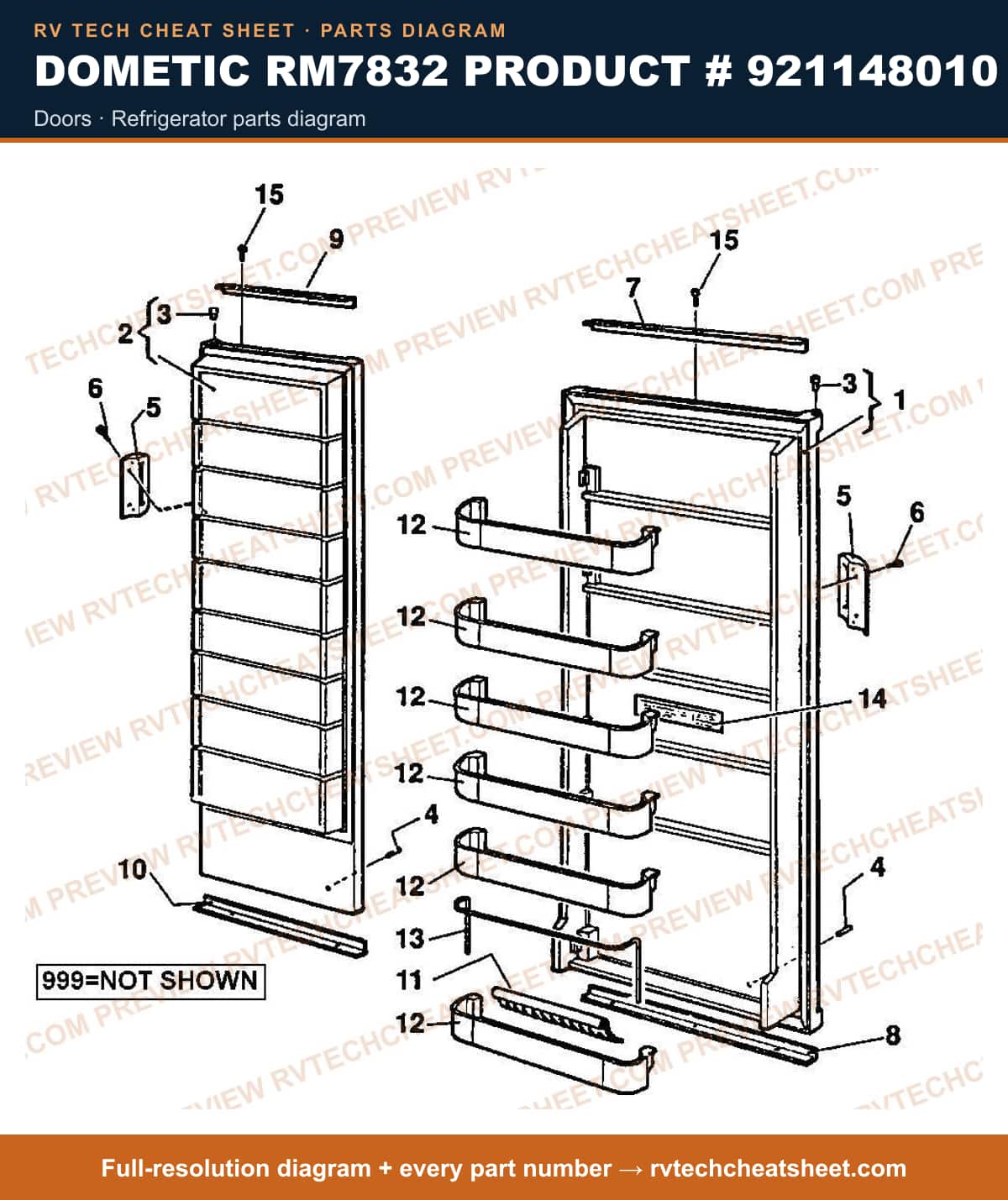

Doors

Components

23 items

1. #DOOR, REFER; MFR # 2932590116
2. #GASKET KIT RM7732/7832; MFR # 3108704390
3. #PANELS, DOOR WOODGRAIN SIDE BY SIDE PANELS MFR # RM7732G
4. #APPLIANCE COMPONENTS RV; Door Freezer MFR # 2932589118
5. #PANEL, DOOR USE RM7732G WOODGRAIN MFR # 3106863131B Superseded: see description
6. #PANELS, DOOR BLACK PLEXIGLASS SIDE BY SIDE PANELS MFR # RM7732L
7. #PANEL, DOOR USE RM7732L MFR # 3106863131C Superseded: see description
8. #Refrigerator Door Hinge Bushing; Replacement For Dometic RM7130/ RM2607/ RM2652 Refrigerators; Fits Top Hinge MFR # 2931171017
9. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
10. #HANDLE, DOOR; FOR PRODUCT # 921148003,921148008,921148011 USE 2932729011 MFR # 2932729011 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Screw MFR # 7241323612
12. #DECORATION, DOOR W/LOGO MFR # 2932642107
13. #DECORATION, REFER DOOR MFR # 3850381033
14. #DECORATION USE 3850381033 F/REFER DOOR MFR # 2932642032 Superseded: see description
15. #DECORATION MFR # 2932642123
16. #Decoration, Freezer Bottom MFR # 2932642024
17. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
18. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
19. #SHELF,DOOR IS A USE # F/2932583020 MFR # 2932583038 Superseded: see description
20. #SHELF, DOOR USE 2932583038 MFR # 2932583020 Superseded: see description
21. #RACK MFR # 2932585041
22. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
23. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010

Exploded View - Icemaker

Components

20 items

1. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
2. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
3. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
4. #EJECTOR MFR # 3108703434
5. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
6. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
7. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
8. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
9. #CAM MFR # 3108703483
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #GEAR, TIMING USE 3101296006 MFR # 3108703491 Superseded: see description
13. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
15. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
16. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
17. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
18. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
19. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
20. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
