Dometic RM7851L Product # 921086615 Grey Parts Diagram · Gas & Electric Parts

Refrigerator · 5 assemblies · 5 diagram sheets · 87 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM7851L Product # 921086615 Grey RV refrigerator: 5 assemblies (Gas & Electric Parts, Door Assembly, Cabinet Interior, Control Panel Parts, Cabinet Rear View) and 87 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Gas & Electric Parts

Components

20 items

1. #BRACKET, GAS VALVE MFR # 2926202009
2. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 2412798338
3. #PIPE, GAS INLET MFR # 2412593804
4. #CONNECTION, GAS COMPLETE MFR # 2412300879
5. #ELEMENT, HEATING 120V/190W MFR # 2412966513
6. #HEATERS & FURNACES RV; HEATER MFR # 2412968105
7. #NUT, UNION M14X1.5 MFR # 2927903100
8. #APPLIANCE COMPONENTS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796407
9. #Appliance Components RV; Filter, Gas MFR # 2923191007
10. #SHAFT, SELECTOR SWITCH BLACK MFR # 2412784106
11. #APPLIANCE COMPONENTS RV; SHAFT, TEMPERATURE YELLOW MFR # 2412785103
12. #SHAFT, TEMPERATURE GRAY USE 2412785103 MFR # 2412785004 Superseded: see description
13. #APPLIANCE COMPONENTS RV; RELAY MFR # 2952089007
14. #APPLIANCE COMPONENTS RV; THERMISTER MFR # 2952248702
15. #BRACKET, FIXING MFR # 2412786002
16. #IGNITER MFR # 2412789105
17. #CABINET LOWER ELECTRONIC MFR # 2412769008
18. #APPLIANCE COMPONENTS RV; ELECTRONIC COMPLETE MFR # 2412771103
19. #CABINET, TOP ELECTRONIC MFR # 2412770006
20. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BLACK MFR # 2412840338

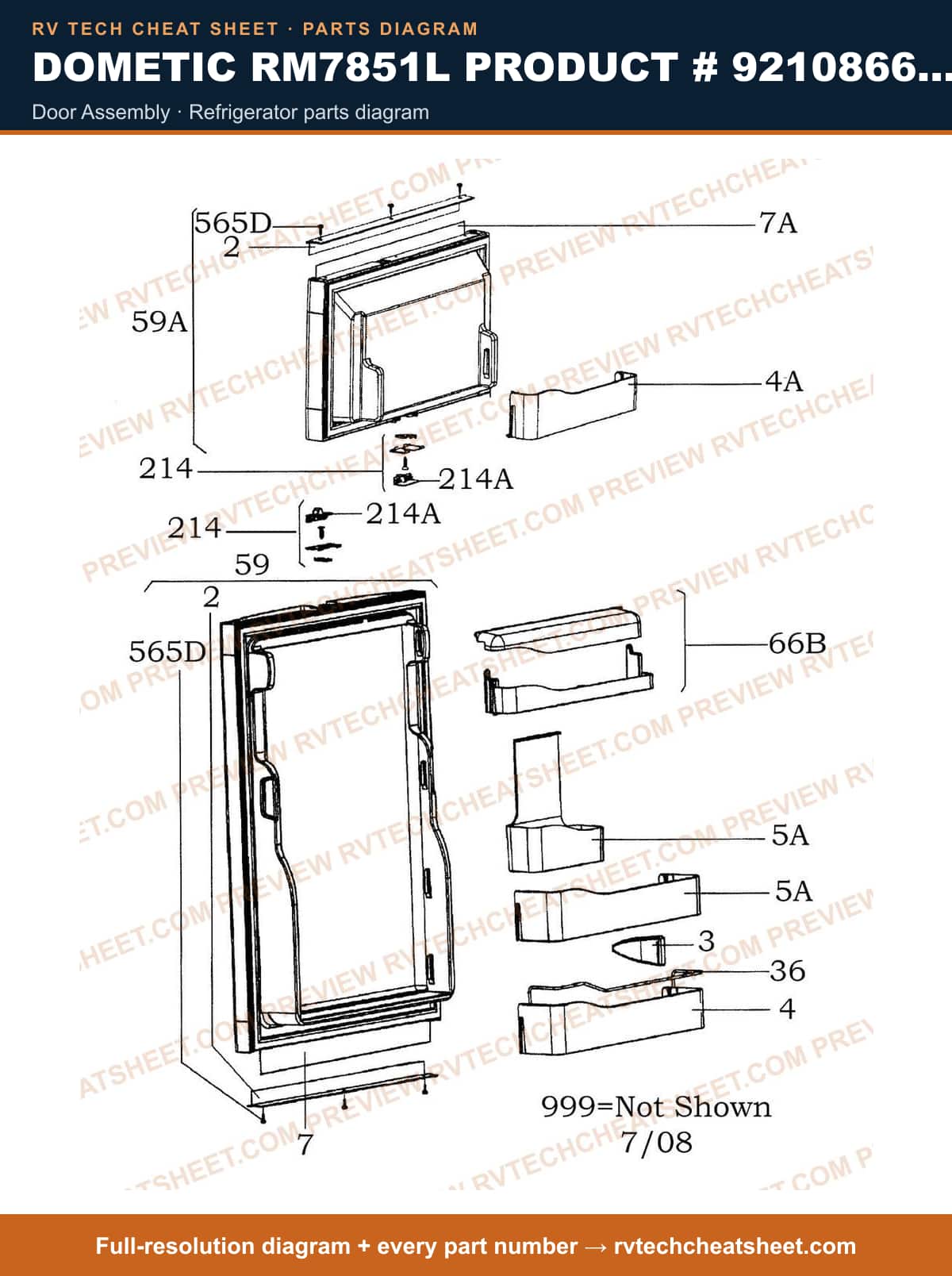

Door Assembly

Components

12 items

1. #DOORS RV; COVER LEDGE DOOR LIGHT GREY MFR # 2412737005
2. #HOLDER, BOTTLE BLUE MFR # 2412084002
3. #SHELF, FREEZER WHITE MFR # 3850595020
4. #SHELF, BOTTOM WHITE MFR # 2412077105
5. #SHELF, MIDDLE WHITE MFR # 2412075109
6. #HOLDER, BOTTLE WIRE SILVER MFR # 2412104131
7. #DOOR, REFRIGERATOR MFR # 2412384709
8. #DOOR, FREEZER MFR # 2412384501
9. #SHELF, UPPER MFR # 2412382109
10. #APPLIANCE COMPONENTS RV; SLIDER MFR # 2412883601
11. #Door Catch; Use With Dometic RM7851L Model Refrigerator Door Assembly; Gray MFR # 2412757805 Superseded: see description
12. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016

Cabinet Interior

Components

36 items

1. #CRISPER, BLUE MFR # 3850599014
2. #HINGE, UPPER RH CHROME MFR # 2412096204
3. #APPLIANCE COMPONENTS RV; HINGE UPPER LEFT CHROME PLATED MFR # 2412097202
4. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
5. #APPLIANCE COMPONENTS RV; HINGE LOWER LEFT CHROME PLATED MFR # 2412099109
6. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
7. #PIN, HINGE MFR # 2926265402
8. #FOOT MFR # 2923297028
9. #HOSE, DRAIN MFR # 2923346205
10. #EVAPORATOR, REAR MFR # 2412948008
11. #COVER, EVAPORATOR MFR # 2926234242
12. #GRATE MFR # 2412943504
13. #GRATE, BOTTOM MFR # 2412943306
14. #GRATE, UPPER MFR # 2412943405
15. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
16. #BRACKET, DOOR LOCK MFR # 2412884518
17. #LIGHTING, COMPLETE WHITE MFR # 2951641220
18. #LAMP, 12V 1.5W AC 50HZ MFR # 2951388202
19. #AWNING-REPAIR PARTS RV; COVER LEDGE BACK UPPER MFR # 2923842013
20. #RIVIT, PLASTIC MFR # 2926566007
21. #PAD, INSULATION 519M MFR # 2925065001
22. #COVER,COMPLETE BLACK MFR # 2923842518
23. #Nut; Replacement For Dometic RM2193/ RM4292/ RML855 Model refrigerator; Fits Cooling Unit; Push-In MFR # 2926545209
24. #SCREW, COUNTERSINK MFR # 7296350015
25. #COVER CAP, FIXING WHITE MFR # 2951221031
26. #REFLECTOR MFR # 2951643127
27. #SCREWS MFR # 2926544004
28. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
29. #SENSOR COMPLETE MFR # 2951381009
30. #LOCK, SHELF WHITE MFR # 2412082006
31. #GUIDE, SHELF LH WHITE MFR # 2412083103
32. #APPLIANCE COMPONENTS RV; Guide Shelf Rh MFR # 2412083004
33. #HINGE, CENTER MFR # 2412954303
34. #SCREW, COUNTERSUNK C3.9X16 MFR # 2926710019
35. #SCREW B8 X 13 MFR # 7296342012
36. #SCREW, SHEET METAL MFR # 2951230008

Control Panel Parts

Components

8 items

1. #CONDUCTOR, LIGHT MFR # 2412788511
2. #SCREW C3.6X13 BLACK MFR # 2926535101
3. #LED MFR # 2412989002
4. #CONTROL PANEL COMPLETE MFR # 2412941904
5. #Refrigerator Control Knob; Replacement For Dometic RM460/ RA1302/ RM660/ RM661/ RM760/ RM761/ RM1301/ RM360 Series Refrigerator; Power Selector Knob; Gray MFR # 2412787208
6. #FRAME, SWITCH MFR # 2412946002
7. #SWITCH MFR # 2412942001
8. #COVER, SWITCH MFR # 2412947000

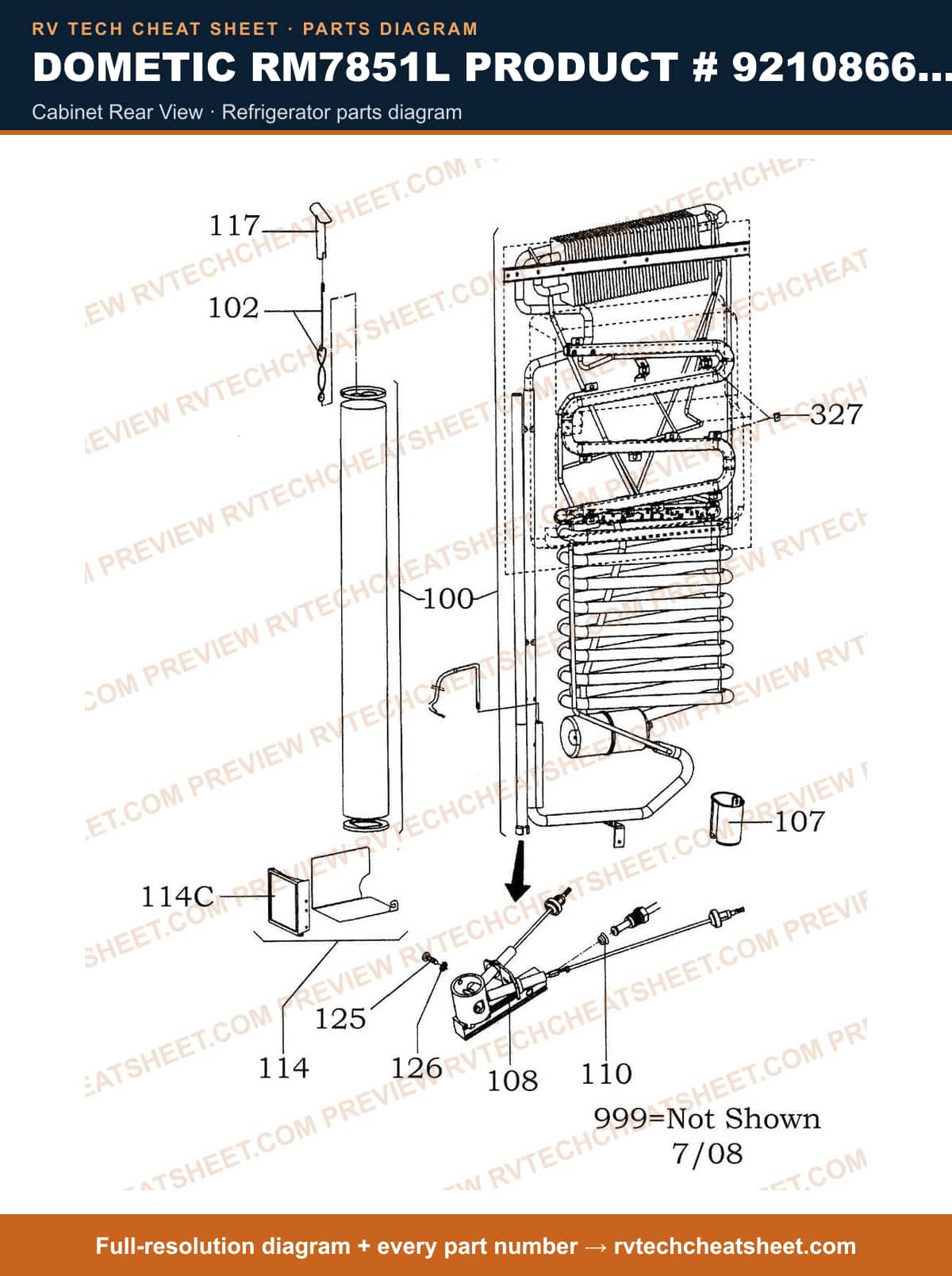

Cabinet Rear View

Components

11 items

1. #COOLING UNIT MFR # 2952976609
2. #BAFFLE, FLUE MFR # 2926212008
3. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
4. #BURNER, GAS W/ELECTRODE MFR # 2412802809
5. #JET KZ16 MFR # 2922033101
6. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
7. #BRACKET, COVER MFR # 2925057107
8. #TEE, FLUE 75MM MFR # 2952444400
9. #SCREW MFR # 2952435408
10. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
11. #NUT, INSERT FOR C/U MFR # 2106626001
