Dometic RM8501 Prod# 921084801 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM8501 Prod# 921084801 RV refrigerator: 5 assemblies (Door Assembly, Gas & Electric Controls, Cabinet Assembly, Cabinet Rear View, Replacement Refrigerator) and 61 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

11 items

1. #DOORS RV; COVER LEDGE DOOR BLACK/GREY MFR # 2413338621
2. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
3. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
4. #APPLIANCE COMPONENTS RV; SHELF MIDDLE BLUE MFR # 2413342003
5. #RACK, UPPER L=411.5MM MFR # 2413938008
6. #APPLIANCE COMPONENTS RV; DECORATION PLATE CHARCOAL-GREY MFR # 2890238641
7. #DOOR, COMPLETE MFR # 2413275930
8. #DOORS RV; DOOR COMPLETE SERVICE MFR # 2890264035
9. #LOCK, DOOR MFR # 2413946308
10. #DOOR LOCK DOOR SERVICE MFR # 241212630
11. #button door lock doorhang left MFR # 241326022

Gas & Electric Controls

Components

13 items

1. #DOORS RV; CONTROL PANEL DOORHANG LEFT BLACK/G MFR # 2413355120
2. #APPLIANCE COMPONENTS RV; RETAINER CONTROL PANEL BLACK/GREY MFR # 2413193703
3. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 241279838
4. #KITCHEN SUPPLIES RV; GAS INLET PIPE COMPLETE MFR # 2412593572
5. #GAS INLET PIPE MFR # 241259387
6. #CONNECTION, GAS COMPLETE MFR # 2412300879
7. #gas connection complete MFR # 241230083
8. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
9. #APPLIANCE COMPONENTS RV; HEATER 120V 135W MFR # 2952170567
10. #Appliance Components RV; Filter, Gas MFR # 2923191007
11. #APPLIANCE COMPONENTS RV; TEMPERATURE PROBE MFR # 2952248819
12. #WIRING & SERVICE ACCESSORIES RV; CONNECTION WIRING BLACK MFR # 2890281203
13. #CONNECTION WIRING, 12V, SOLAR MFR # 2412796100

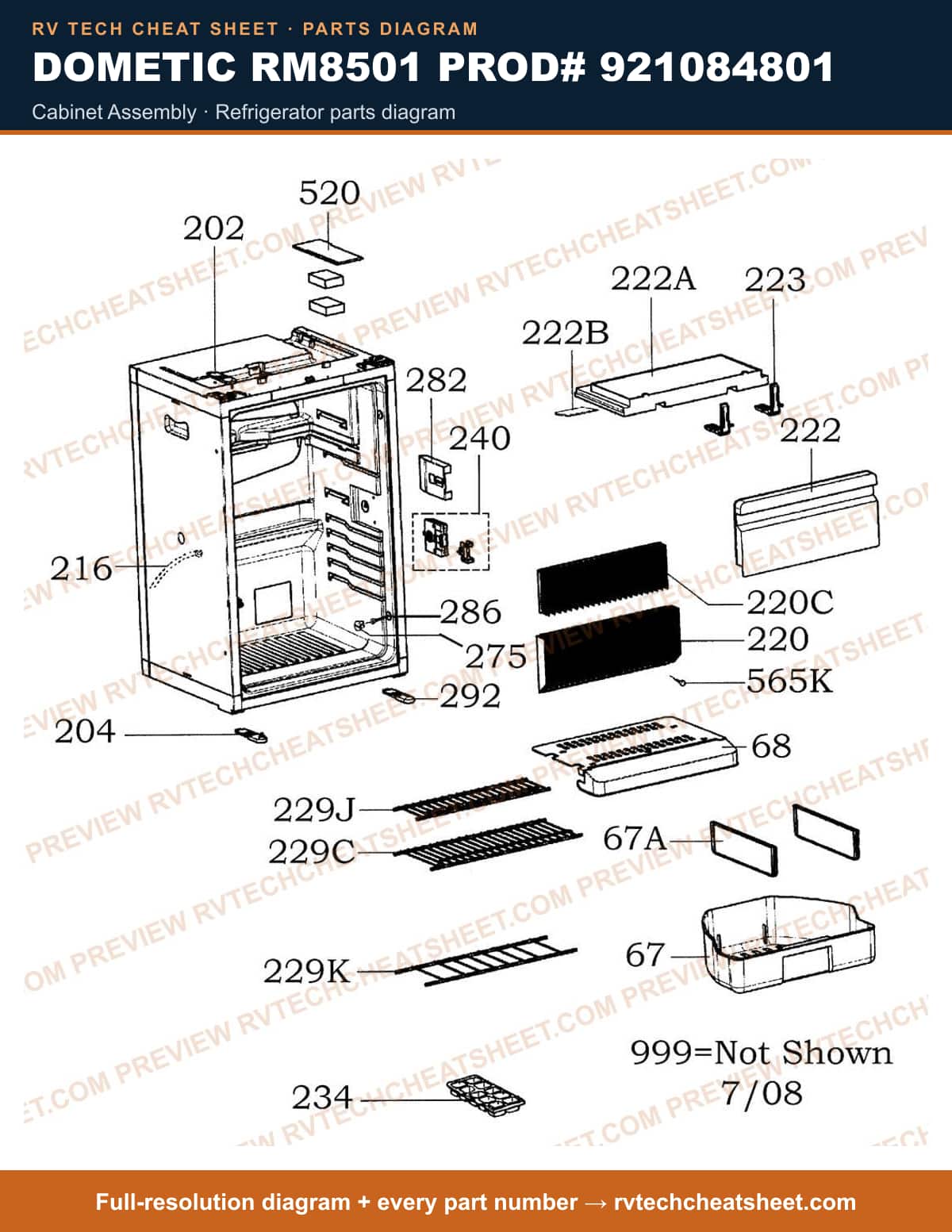

Cabinet Assembly

Components

25 items

1. #CRISPER, TRANSPARENT MFR # 2413367000
2. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
3. #Refrigerator Crisper Bin Cover; Replacement For Dometic Refrigerator MFR # 2413956000
4. #COVER, CRISPER MFR # 2413370012
5. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
6. #REAR EVAPORATOR FREEZER MFR # 2413328002
7. #REAR EVAPORATOR COMPLETE MFR # 2412606416
8. #REAR-EVAPORATOR REFRIGERATOR MFR # 241294837
9. #REAR-EVAPORATOR FREEZER COMPARTMENT MFR # 241294838
10. #DOOR, FREEZER MFR # 2412195311
11. #SLIDER F/FREEZER COMPARTMENT MFR # 2413327004
12. #APPLIANCE COMPONENTS RV; BOTTOM FREEZER COMPARTMENT MFR # 2413339009
13. #APPLIANCE COMPONENTS RV; SLIDER FOR FREEZER COMPARTMENT MFR # 2413327202
14. #HINGE, FREEZER COMPLETE MFR # 2412125011
15. #APPLIANCE COMPONENTS RV; GRATING FREEZER COMPARTMENT ZINC-PL MFR # 2413399102
16. #SHELF, UPPER MFR # 2413375508
17. #SHELF, CRISPER COVER MFR # 2413381704
18. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
19. #DOOR LOCK, LIGHTING CABINET MFR # D7E2413267010
20. #DOOR LOCK, LIGHTING CABINET MFR # 289037103
21. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
22. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
23. #SCREWS MFR # 2926544004
24. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
25. #SCREW, SHEET METAL MFR # 2951230008

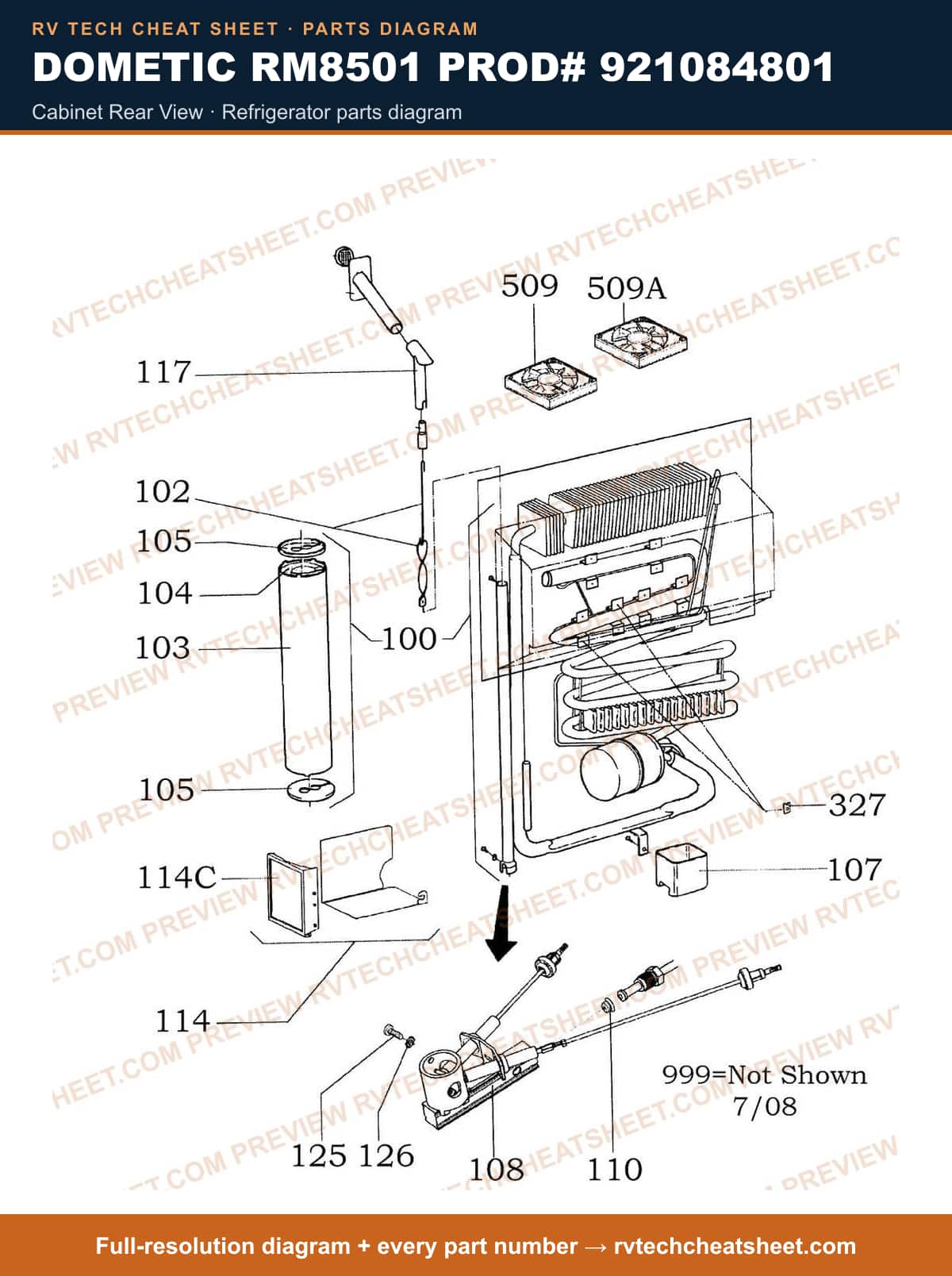

Cabinet Rear View

Components

10 items

1. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
2. #Appliance Components RV; Helix Complete MFR # 2926212206
3. #COVER, BOILER MFR # 2924082304
4. #INSULATION MFR # 2926680113
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #TRAY, EVAPORATOR MFR # 2926019304
7. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
8. #SCREW MFR # 2952435408
9. #VENTILATOR, 12V DC, MES/AES4 MFR # 2106511856
10. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204

Replacement Refrigerator

Components

2 items

1. #REFRIGERATORS & ICE MAKERS RV; RM 8501 ABSORPTION REFRIGERATOR 10 MFR # RM8501LFBP
2. #REFRIGERATORS & ICE MAKERS RV; 3 WAY SMALL SINGLE DOOR RH/SLIVER MFR # RM8501RFBP
