Dometic RM8501 Prod# 921712882 Parts Diagram · Cabinet Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 57 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM8501 Prod# 921712882 RV refrigerator: 5 assemblies (Cabinet Assembly, Gas & Electric Controls, Door Assembly, Replacement Refrigerator, Cabinet Rear View) and 57 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Assembly

Components

23 items

1. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
2. #CRISPER, TRANSPARENT MFR # 2413367000
3. #COVER, CRISPER MFR # 2413370012
4. #Refrigerator Crisper Bin Cover; Replacement For Dometic Refrigerator MFR # 2413956000
5. #APPLIANCE COMPONENTS RV; HINGE LOWER RIGHT CHROME PLATED MFR # 2412098101
6. #REAR-EVAPORATOR FREEZER COMPARTMENT MFR # 241294838
7. #REAR-EVAPORATOR REFRIGERATOR MFR # 241294837
8. #REAR EVAPORATOR COMPLETE MFR # 2412606416
9. #DOOR, FREEZER MFR # 2412195311
10. #APPLIANCE COMPONENTS RV; BOTTOM FREEZER COMPARTMENT MFR # 2413339009
11. #APPLIANCE COMPONENTS RV; SLIDER FOR FREEZER COMPARTMENT MFR # 2413327202
12. #HINGE, FREEZER COMPLETE MFR # 2412125011
13. #APPLIANCE COMPONENTS RV; GRATING FREEZER COMPARTMENT ZINC-PL MFR # 2413399102
14. #SHELF, CRISPER COVER MFR # 2413381704
15. #SHELF, UPPER MFR # 2413375508
16. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
17. #DOOR LOCK, LIGHTING CABINET MFR # 289037103
18. #DOOR LOCK, LIGHTING CABINET MFR # D7E2413267010
19. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
20. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
21. #KIT SCREWS; 6X 3, 5 X 20, 6 X 4 X 17 MILLIMETER MFR # 295176590
22. #APPLIANCE COMPONENTS RV; CAP HINGE MFR # 2412743110
23. #LENS SCREW; TORX B4/ 8X19 MFR # 295123000

Gas & Electric Controls

Components

12 items

1. #APPLIANCE COMPONENTS RV; RETAINER CONTROL PANEL BLACK/GREY MFR # 2413193703
2. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 241279838
3. #KITCHEN SUPPLIES RV; GAS INLET PIPE COMPLETE MFR # 2412593572
4. #GAS INLET PIPE MFR # 241259387
5. #gas connection complete MFR # 241230083
6. #HEATERS & FURNACES RV; HEATER MFR # 2890180041
7. #Appliance Components RV; Filter, Gas MFR # 2923191007
8. #CONNECTION WIRING, 12V/ELECTRONICS MFR # 289029871
9. #WIRING & SERVICE ACCESSORIES RV; CONNECTION WIRING BLACK MFR # 2890281203
10. #CONNECTION WIRING TERMINAL BOARD HEATING ELEMENT MFR # 289035614
11. #CONNECTION WIRING WITHOUT PLUG, 12V MFR # 289029722
12. #CONNECTION WIRING, 12V, SOLAR MFR # 2412796100

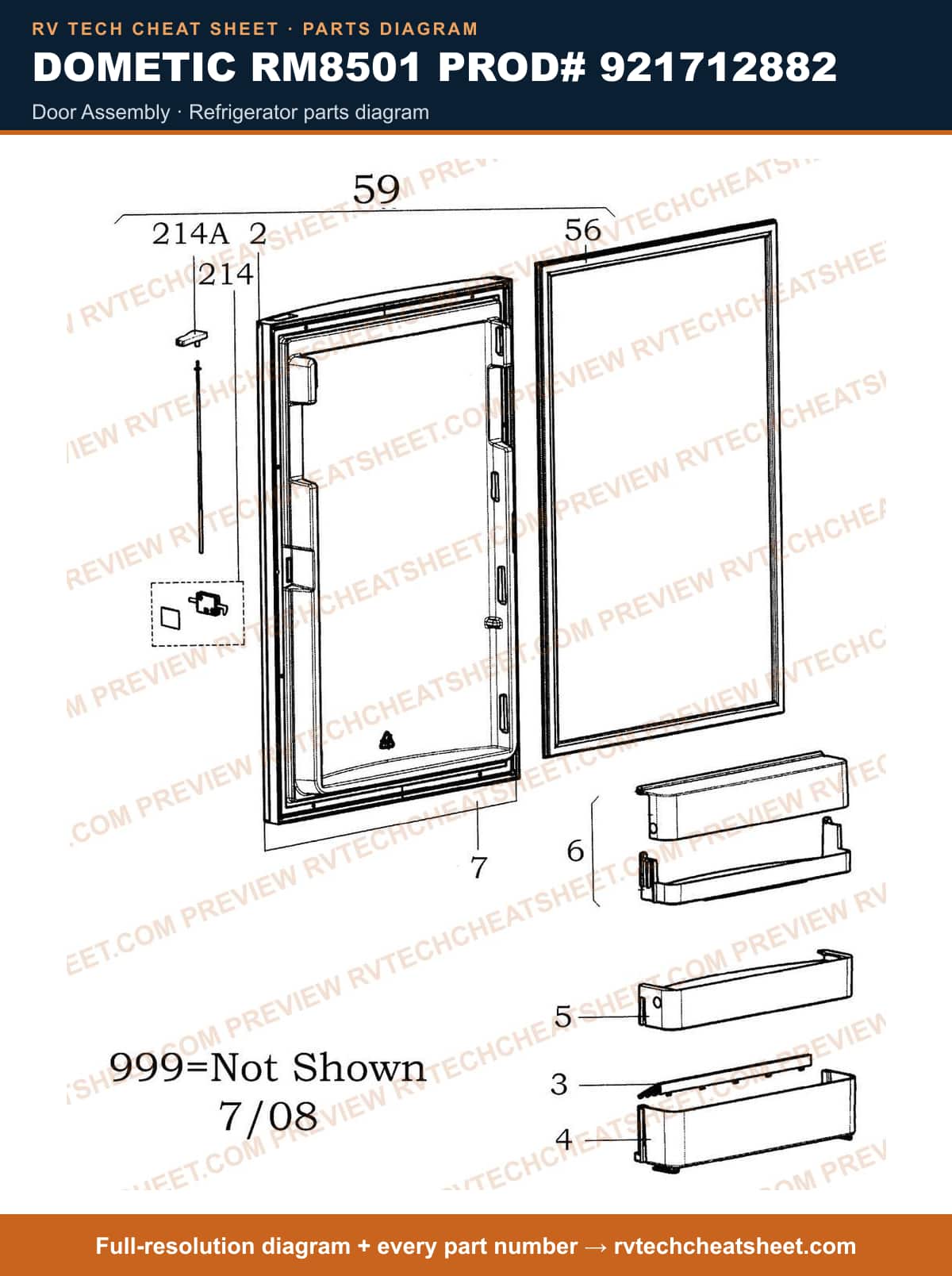

Door Assembly

Components

11 items

1. #DOORS RV; COVER LEDGE DOOR BLACK/GREY MFR # 2413338621
2. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
3. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
4. #APPLIANCE COMPONENTS RV; SHELF MIDDLE BLUE MFR # 2413342003
5. #RACK, UPPER L=411.5MM MFR # 2413938008
6. #APPLIANCE COMPONENTS RV; DECORATION PLATE CHARCOAL-GREY MFR # 2890238641
7. #DOOR, COMPLETE MFR # 2413275930
8. #DOORS RV; DOOR COMPLETE SERVICE MFR # 2890264035
9. #button door lock doorhang left MFR # 241326022
10. #LOCK, DOOR MFR # 2413946308
11. #DOOR LOCK DOOR SERVICE MFR # 241212630

Replacement Refrigerator

Components

2 items

1. #REFRIGERATORS & ICE MAKERS RV; 3 WAY SMALL SINGLE DOOR RH/SLIVER MFR # RM8501RFBP
2. #REFRIGERATORS & ICE MAKERS RV; RM 8501 ABSORPTION REFRIGERATOR 10 MFR # RM8501LFBP

Cabinet Rear View

Components

9 items

1. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
2. #Appliance Components RV; Helix Complete MFR # 2926212206
3. #COVER, BOILER MFR # 2924082304
4. #INSULATION MFR # 2926680113
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #TRAY, EVAPORATOR MFR # 2926019304
7. #GAS BURNER COMPLETE CBS2, MES/AES, DN65 MFR # 289060493
8. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
9. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204
