Dometic RM8505 Product # 921087117 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 72 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM8505 Product # 921087117 RV refrigerator: 5 assemblies (Door Assembly, Gas & Electric Controls, Cabinet Assembly, Cabinet Rear View, Replacement) and 72 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

10 items

1. #APPLIANCE COMPONENTS RV; COVER LEDGE, DOOR BLK/GREY MFR # 2413338027
2. #BOTTLE HOLDER, BLUE, RM85XX MFR # 2951237029
3. #AWNING-ACCESSORIES RV; S,SHELF,DR,BOTTLE,BLUE,RMX85XX MFR # 2413341005
4. #APPLIANCE COMPONENTS RV; SHELF MIDDLE BLUE MFR # 2413342003
5. #RACK, UPPER L=411.5MM MFR # 2413938008
6. #PLATE, DECORATION SILVER MFR # 2413421005
7. #GASKET, DOOR 498X732 MFR # 2413278033
8. #DOOR, COMPLETE MFR # 2413458122
9. #BUTTON, DOOR LOCK MFR # 2413260221
10. #LOCK, DOOR MFR # 2413946308

Gas & Electric Controls

Components

19 items

1. #APPLIANCE COMPONENTS RV; SENSOR, LIGHTING MFR # 2951380514
2. #RETAINER, LIGHTING SENSOR MFR # 2413929007
3. #DOORS RV; CONTROL PANEL DOORHANG LEFT BLACK/G MFR # 2413355021
4. #RETAINER, CONTROL PANEL BLK/GREY MFR # 2413193612
5. #APPLIANCE COMPONENTS RV; OPERATING PANEL TRANSPARENT MFR # 2413358603
6. #BRACKET, GAS VALVE MFR # 2926202009
7. #APPLIANCE COMPONENTS RV; GAS VALVE WITH GAS CONNECTION MFR # 2412798338
8. #KITCHEN SUPPLIES RV; GAS INLET PIPE COMPLETE MFR # 2412593572
9. #CONNECTION, GAS COMPLETE MFR # 2412300879
10. #APPLIANCE COMPONENTS RV; ELEMENT, 12V 130W MFR # 2951694302
11. #APPLIANCE COMPONENTS RV; HEATER 120V 135W MFR # 2952170567
12. #NUT, UNION M14X1.5 MFR # 2927903100
13. #WIRING & SERVICE ACCESSORYS RV; CONNECTION WIRING BURNER CONTROL DE MFR # 2412796308
14. #Appliance Components RV; Filter, Gas MFR # 2923191007
15. #THERMISTOR KIT, RM8501 MFR # 2952248504
16. #APPLIANCE COMPONENTS RV; BURNER CONTROL DEVICE MFR # 2412789303
17. #APPLIANCE COMPONENTS RV; SVC, ELECTRONIC KIT, AES 120V MFR # 2413490208
18. #KIT, PUSH BUTTON MFR # 2413933926
19. #CONNECTION, WIRING BLACK 59 INCH MFR # 2412840908

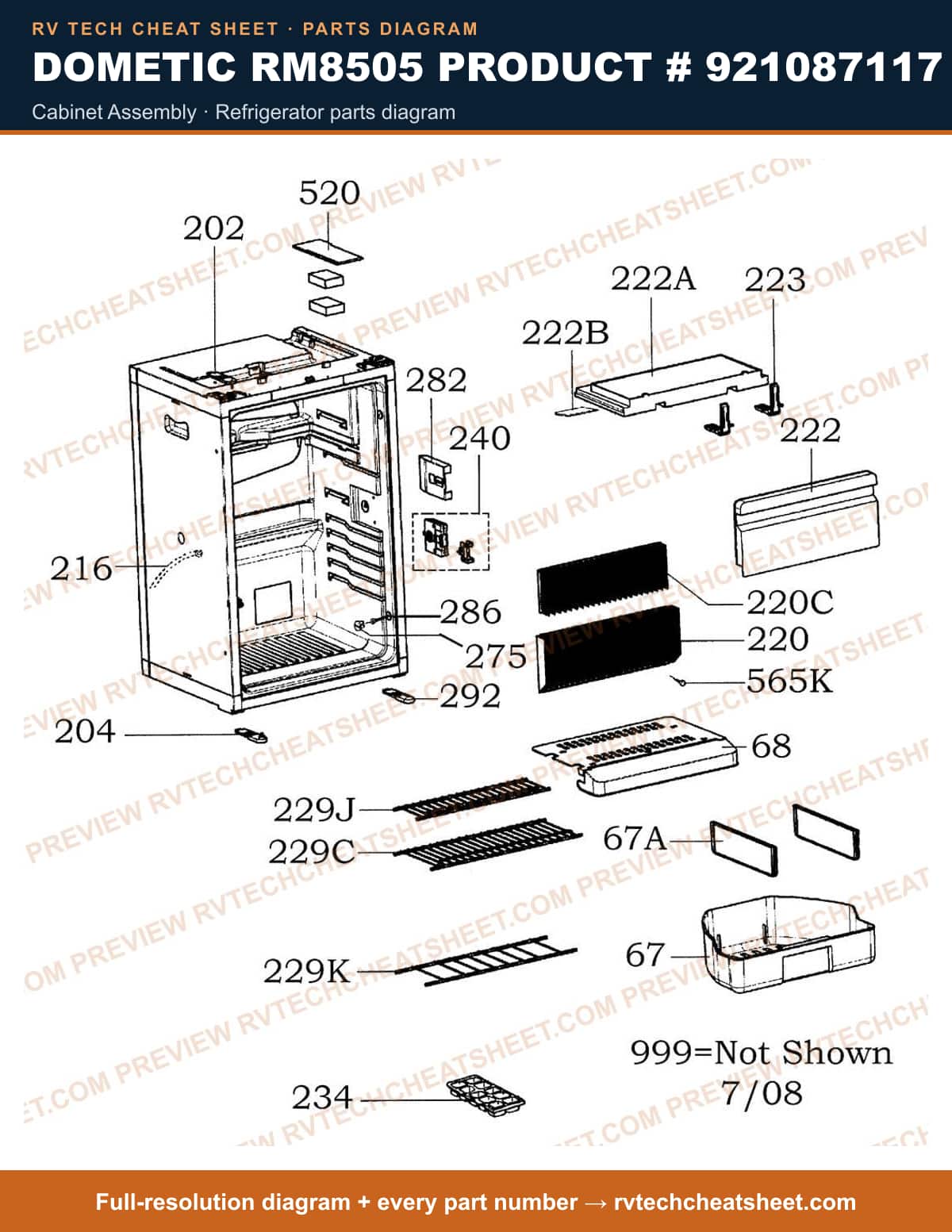

Cabinet Assembly

Components

23 items

1. #CRISPER, TRANSPARENT MFR # 2413367000
2. #APPLIANCE COMPONENTS RV; DIVIDER CRISPER MFR # 2413377207
3. #COVER, CRISPER MFR # 2413370012
4. #APPLIANCE COMPONENTS RV; HINGE BLACK GREY SERVICE MFR # 2413321916
5. #HINGE, BOTTOM BLK/GREY MFR # 2413322518
6. #HOSE, DRAIN MFR # 2923346205
7. #REAR EVAPORATOR COMPLETE MFR # 2412606416
8. #REAR EVAPORATOR FREEZER MFR # 2413328002
9. #APPLIANCE COMPONENTS RV; BOTTOM FREEZER COMPARTMENT MFR # 2413339009
10. #DOOR, FREEZER MFR # 2412195311
11. #SLIDER F/FREEZER COMPARTMENT MFR # 2413327004
12. #HINGE, FREEZER COMPLETE MFR # 2412125011
13. #APPLIANCE COMPONENTS RV; GRATING FREEZER COMPARTMENT ZINC-PL MFR # 2413399102
14. #SHELF, CRISPER COVER MFR # 2413381704
15. #SHELF, UPPER MFR # 2413375508
16. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Door Lock Lighting Cabine MFR # 2413267010
18. #AWNING-REPAIR PARTS RV; COVER CAP MFR # 2951221056
19. #APPLIANCE COMPONENTS RV; COVER, DOOR LOCK LIGHTING MFR # 2413268018
20. #SCREWS MFR # 2926544004
21. #DOORS RV; RETAINER DOOR BOTTOM MFR # 2413322211
22. #COVER, HARNESS GUIDE BLK/GREY MFR # 2413320017
23. #SCREW, SHEET METAL MFR # 2951230008

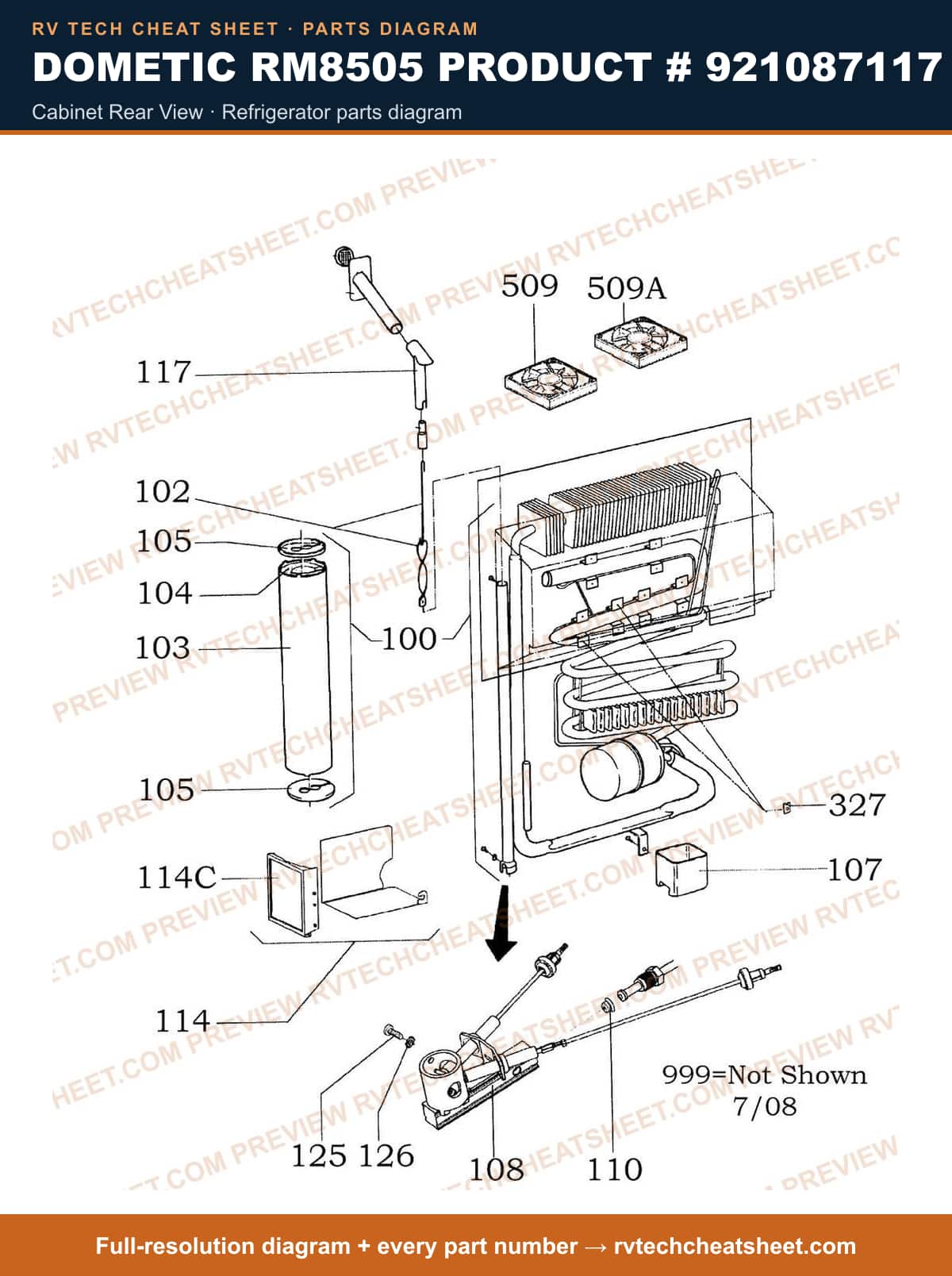

Cabinet Rear View

Components

19 items

1. #Refrigerator Cooling Unit; Use With Dometic RM8555/ RM8501 Model Refrigerators; 135 Watt MFR # 2413443108 Superseded: see description
2. #Appliance Components RV; Helix Complete MFR # 2926212206
3. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
4. #COVER, BOILER MFR # 2924082304
5. #INSULATION MFR # 2926680113
6. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
7. #TRAY, EVAPORATOR MFR # 2926019304
8. #BURNER, W/O ORIFICE MFR # 2412802817
9. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
10. #BRACKET, COVER MFR # 2925057107
11. #Refrigerator Burner Box Cover; Replacement For Dometic RM8551/ RM7401/ RML8555/ RM8551/ RM7551L/ RM7401/ RM7851L Series Refrigerator MFR # 2412559607
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #NUT, INSERT FOR C/U MFR # 2106626001
16. #VENT FAN, 12V COMPLETE MFR # 31087505744
17. #TRAILER CONNECTOR; VENTILATOR COMPLETE CONNECTION WIRI MFR # 2106511815
18. #VENTILATION RV; VENTILATOR COMPLETE MFR # 2106511823
19. #APPLIANCE COMPONENTS RV; THERMOSTAT,VENTILATOR MFR # 2412906204

Replacement

Components

1 item

1. #Refrigerator; Single Compartment Refrigerator With Freezer; Right Hinge Door; 32-5/16 Inch Height x 20-9/16 Inch Width x 21-5/16 Inch Depth; 0.6 Amp/ 240 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; With Door Ajar Alarm; Black Gray; With Integrated LED Display Control Panel MFR # RM8505RF-CBS1
